4K 30Hz HDMI Audio Extractor with SPDIF Optical and RCA L/R Outputs
$24.99
Best SellerEditor Choice
Please note that this unit does not support HDMI-ARC function
-

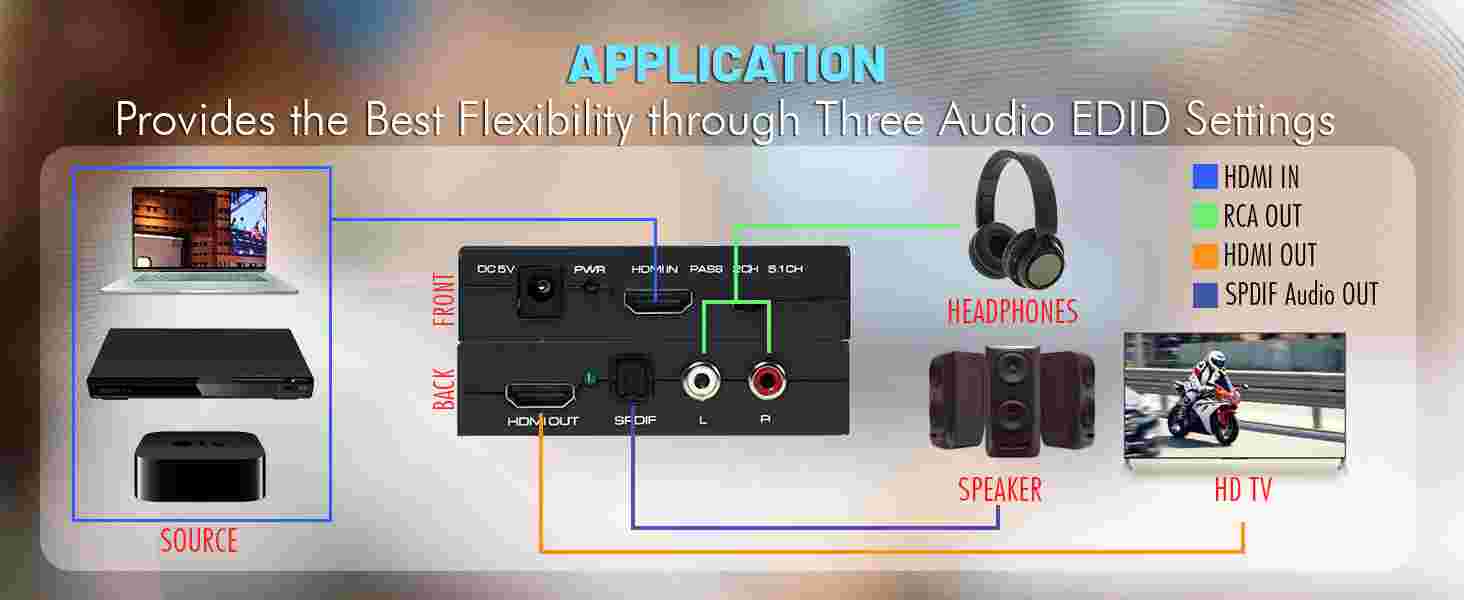

✅ HDMI Audio Extractor: Extract audio from an incoming HDMI audio / video signal, and send it to an external sound system via SPDIF Optical and/or RCA L/R
-

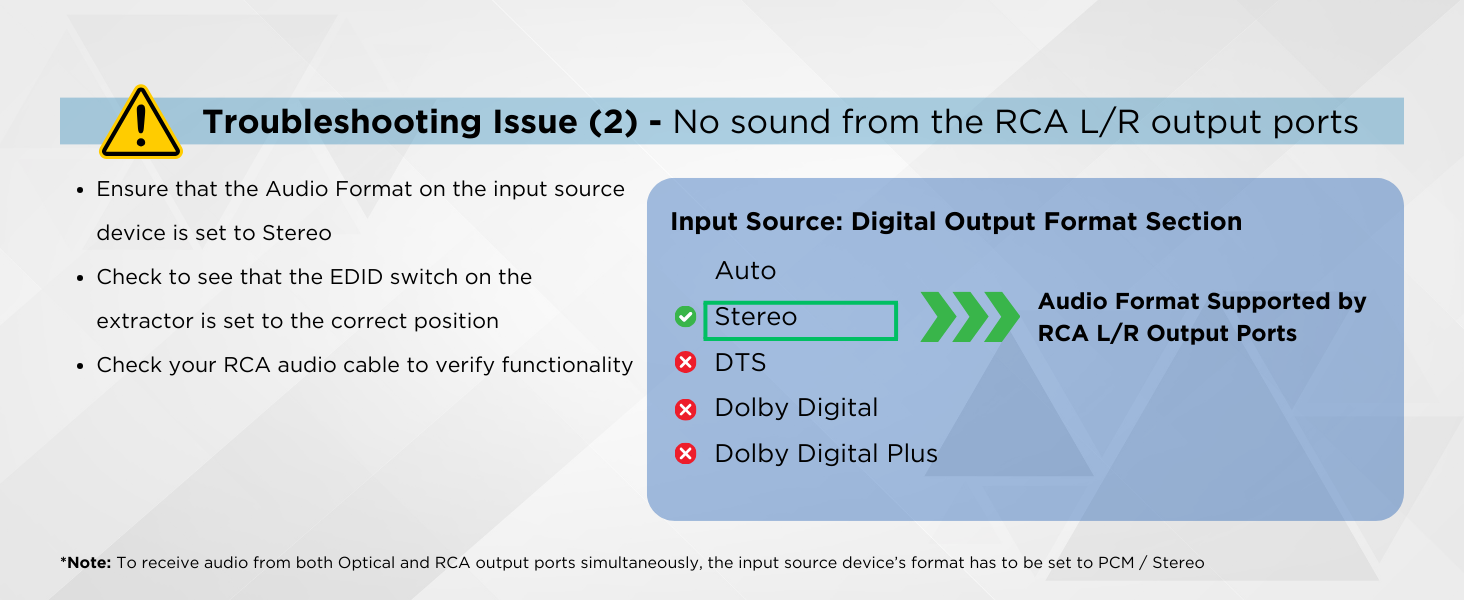

For simultaneous audio via SPDIF Optical and RCA L/R, please ensure that the incoming audio format is set to 2ch Stereo
-
-
✅ HD Resolution Support: Supports up to 4K@30Hz video pass-through
-

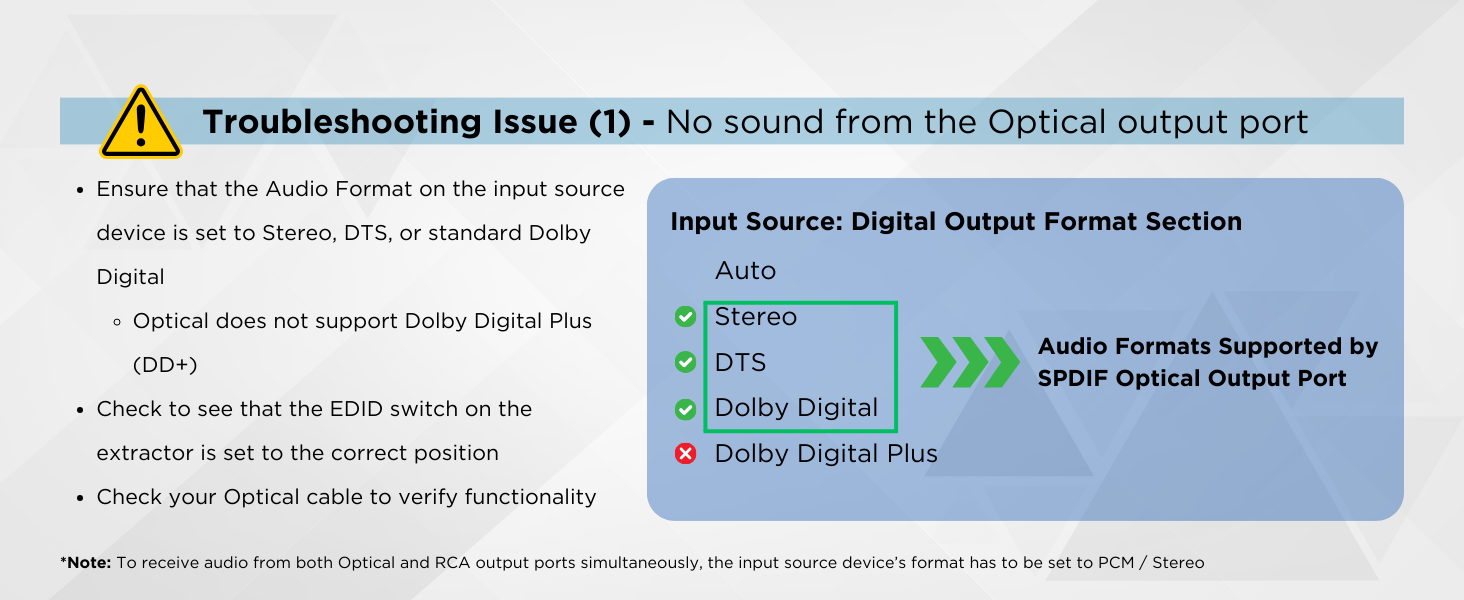

✅ Dual Audio Outputs: L/R audio output supports up to 2ch stereo audio. SPDIF Optical supports up to Dolby Digital 5.1
-

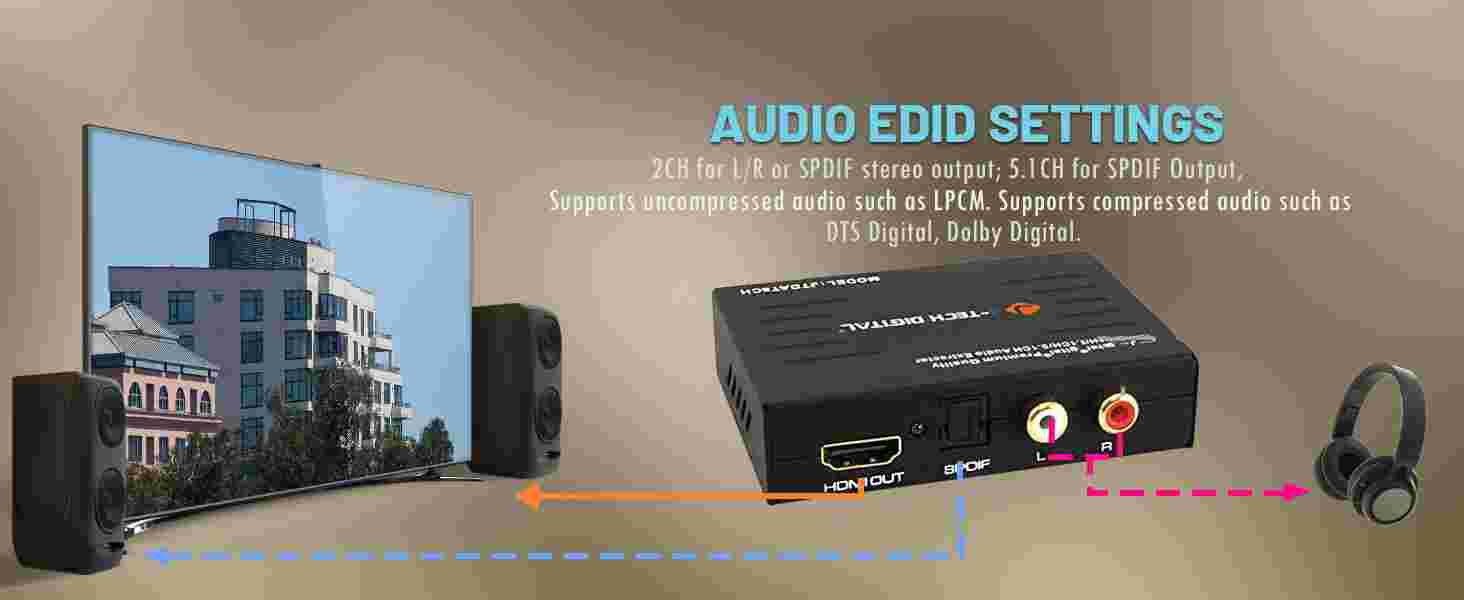

✅ EDID Toggle Switch: Three EDID settings (Pass / 2ch / 5.1ch) to help maximize audio compatibility
Information
- Brand
- J-Tech Digital
- MPN
- JTD-3199
- Model
- JTECH-AT5CH-V2
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications
Technical
- HDMI Input Resolution
- Up to 4K@30Hz
- HDMI Output Resolution
- Up to 4K@30Hz
- Audio Output Ports
- SPDIF Optical for 5Ch & 2Ch, RCA Analog for 2Ch, HDMI Output for Audio Pass-through
- Power Supply
- DC 5V/1A
