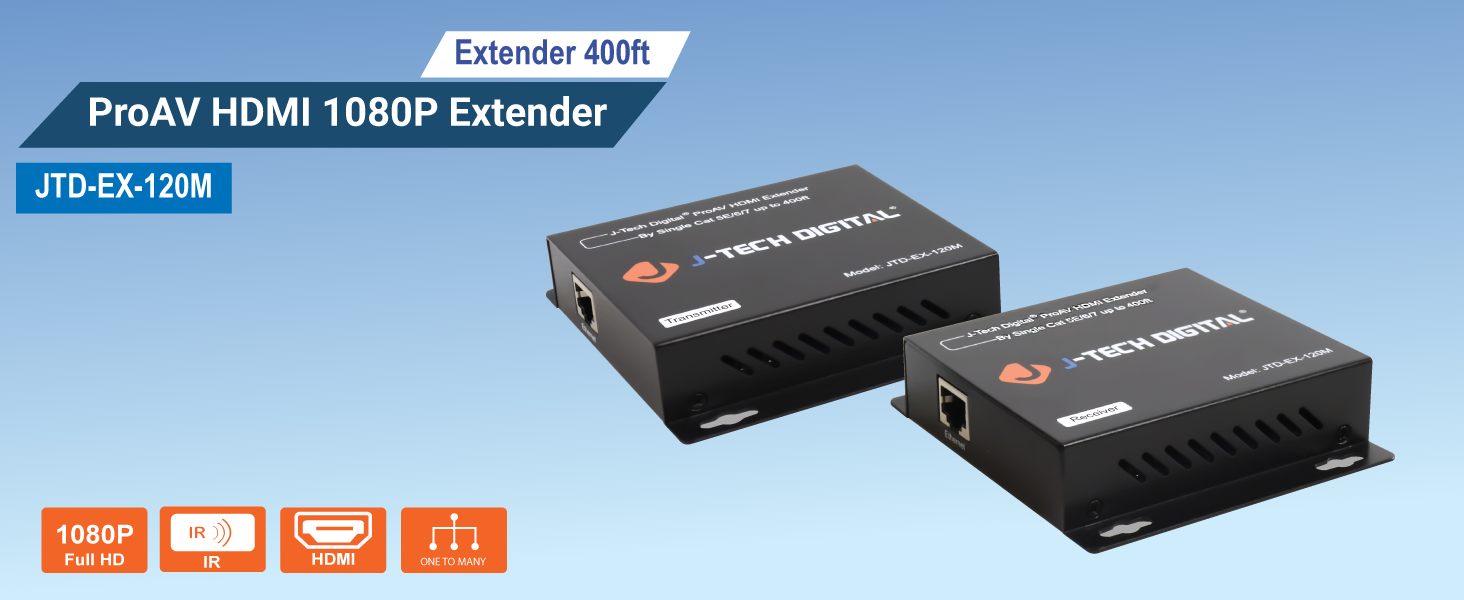

1080P 60Hz HDMI Extender Balun over Ethernet CAT5e/6/7 Cable (400ft.)

$219.99
4.9
24 Ratings
Best Seller

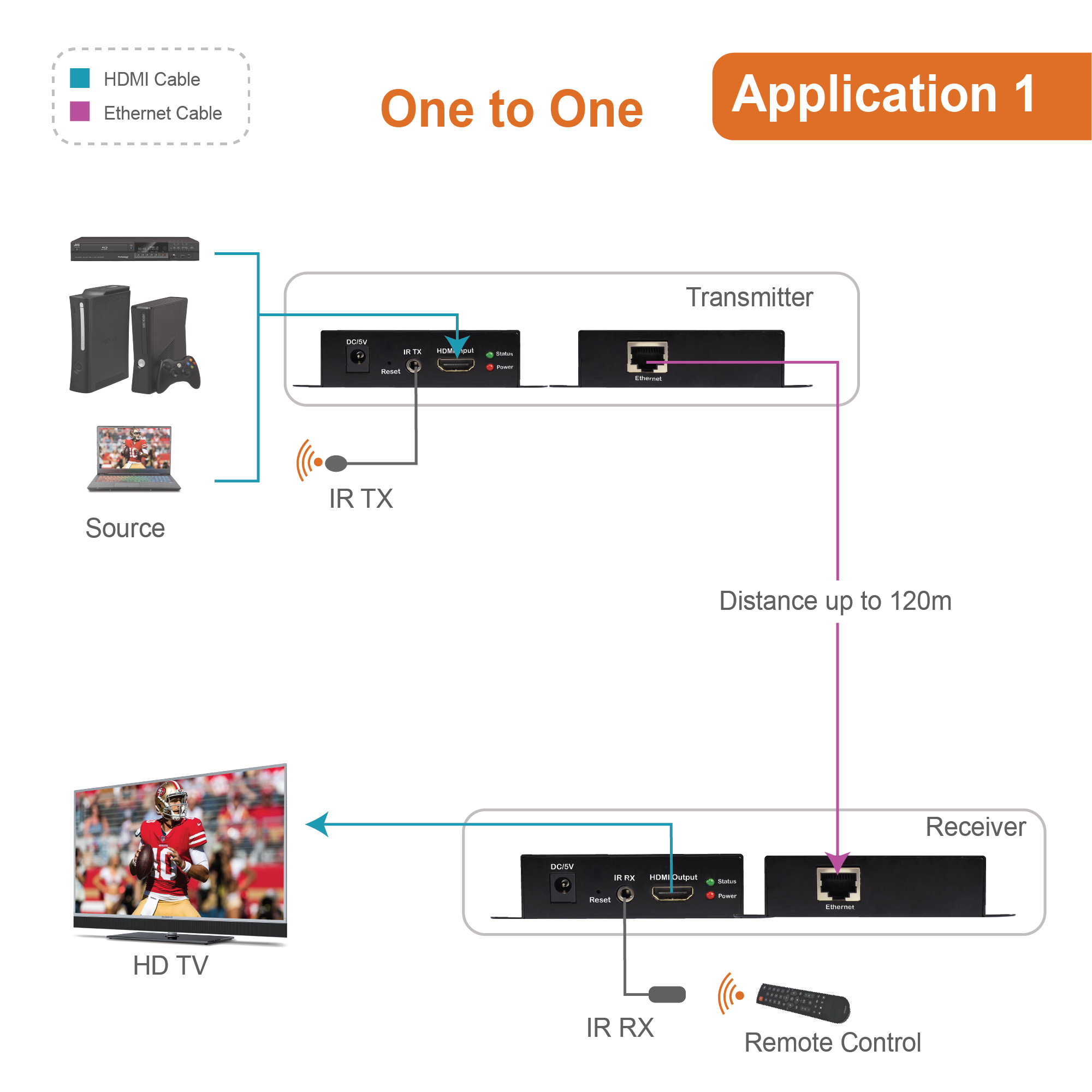

J-Tech Digital proudly introduces this HDMI Extender Over Single CAT5e/CAT6 Cable 1080p with IR - Up to 400 FT. This professional signal transmission system which combines the function of HDMI signal conversion, reception and reduction over a long range without loss in quality. One twisted pair up to 400 feet (CAT6) can be extended indefinitely.

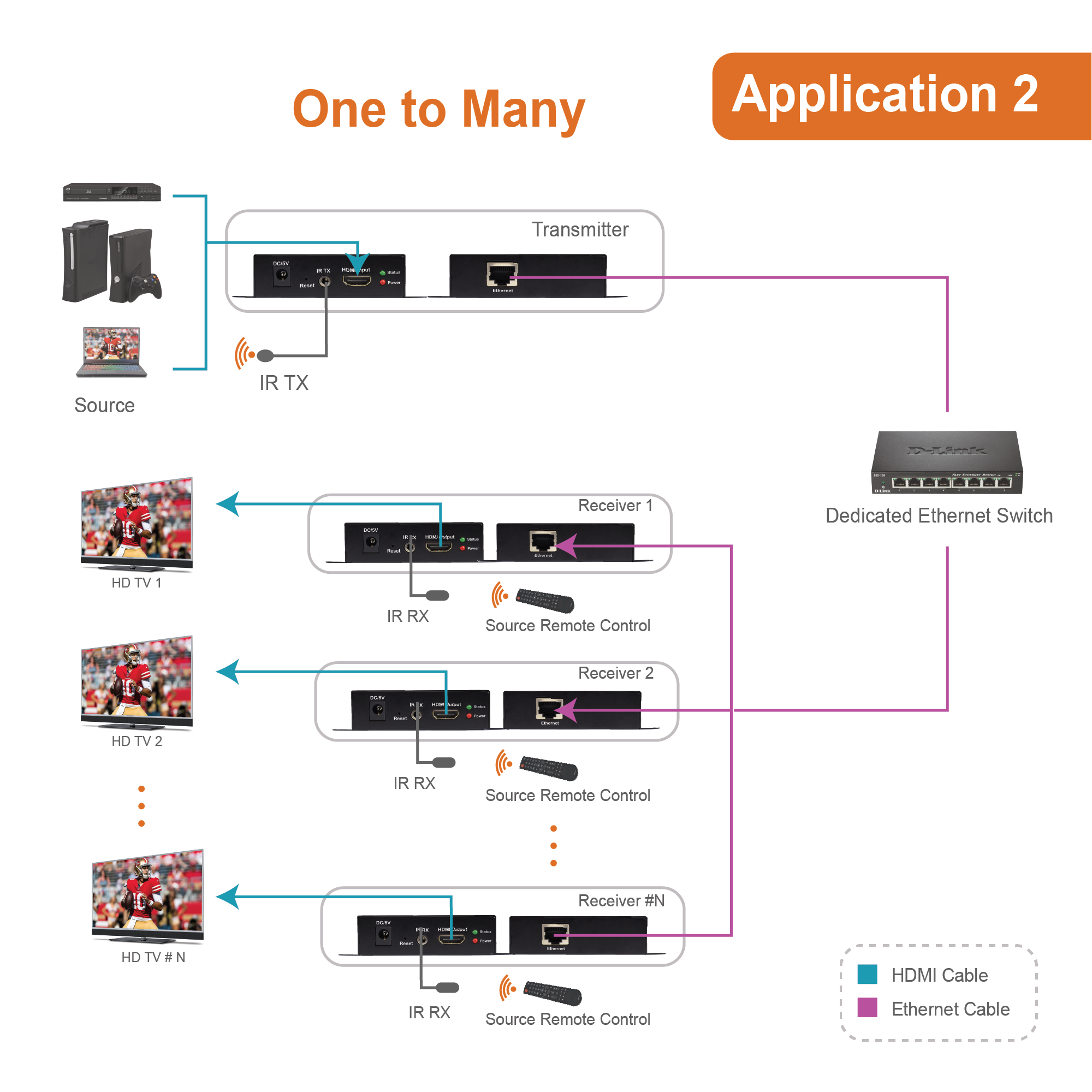

Converts HDMI signals to standard TCP/IP and with the help of network devices, the transmission distance is virtually unlimited The JTD-EX-120M features HDMI network extender, IR synchronization technology,IR Frequency 38KHz-56KHz, Network splitter technology and Network extension technology.

✅ Input HDMI resolution: 480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz

✅ Output HDMI resolution: 480p@60Hz、576p@50Hz、720p@50/60Hz、1080p@50/60Hz

✅ Supports video color format: 24bit/Deep color 30bit/Deep color 36bit

✅ Support audio format: PCM

✅ Max transmission rate: 10.2Gbps

✅ Audio signal transmission format: L/R stereo audio

✅ TMDS signal: 0. 5-1. 5Vp-p (TMDS)

✅ Input cable length: ≤5m (AWG26 HDMI1. 3 standard cable)

✅ Output cable length: ≤5m (AWG26 HDMI1. 3 standard cable)

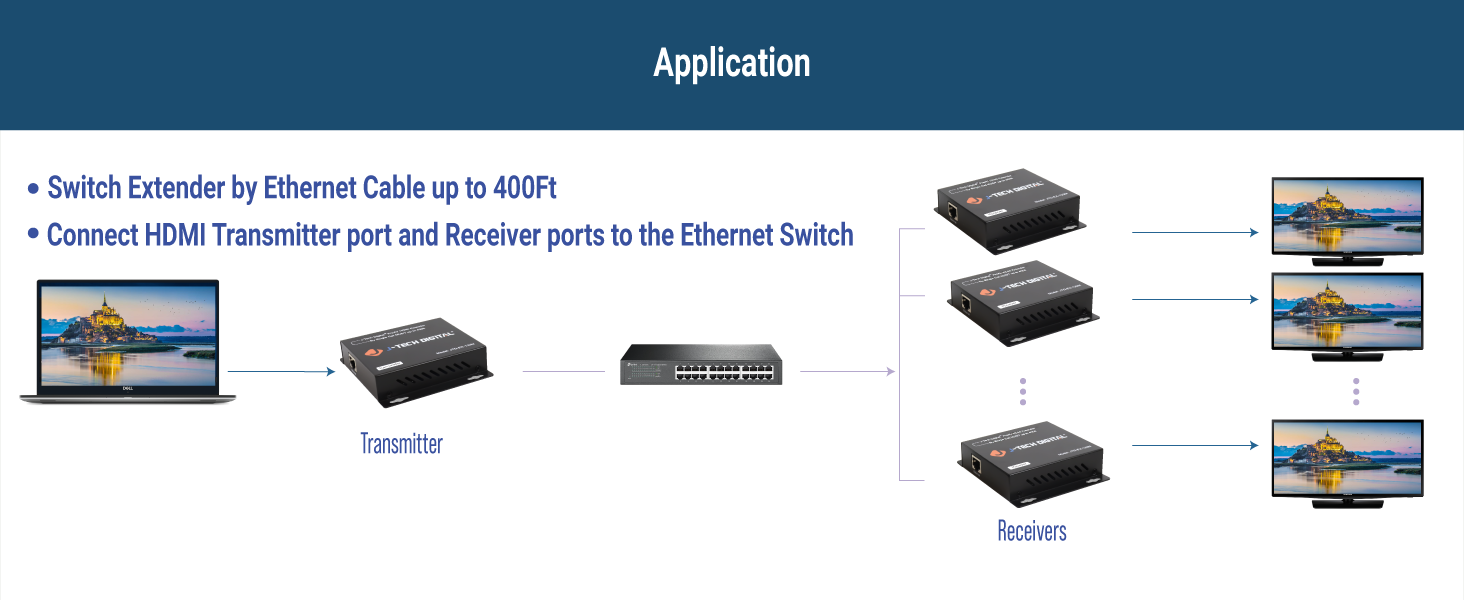

Please Note: We recommend using this extender with a separate network switch/router or a switch that supports VLAN

Information

Brand
J-Tech Digital
MPN
JTD-87
Model
JTD-EX-120M

Benefits

  • Free delivery over $50
  • Free return within 30 days.
  • Hassle-free Warranty
  • Lifetime Technical Support

Drivers

No drivers available

Specifications

General
Operating Temperature Range
-5 to 35°C, 23 to 95°F
Operating Humidity Range
5 to 90% RH (no condensation)
Input Video Signal
0.5-1.0 Volts P-P
Input DDC Signal
5 Volts P-P
Transmission Distance
1080p 8-bit 120m (maximum) over single CAT5E/6/24AWG/Solid
Power Consumption
TX: 3 watts (max), RX: 3 watts (max)
Dimension (L x W x H)
330 x 93.5 x 24.6 mm, 12.99 x 3.68 x 0.97 in
Net Weight
Transmitter: 220g (0.49 lbs), Receiver: 220g (0.49 lbs)
Video
Supported Video Format
DTV, HDTV, 480i/480p, 576i/576p, 720p, 1080i/1080p
Video Output
HDMI
Communications

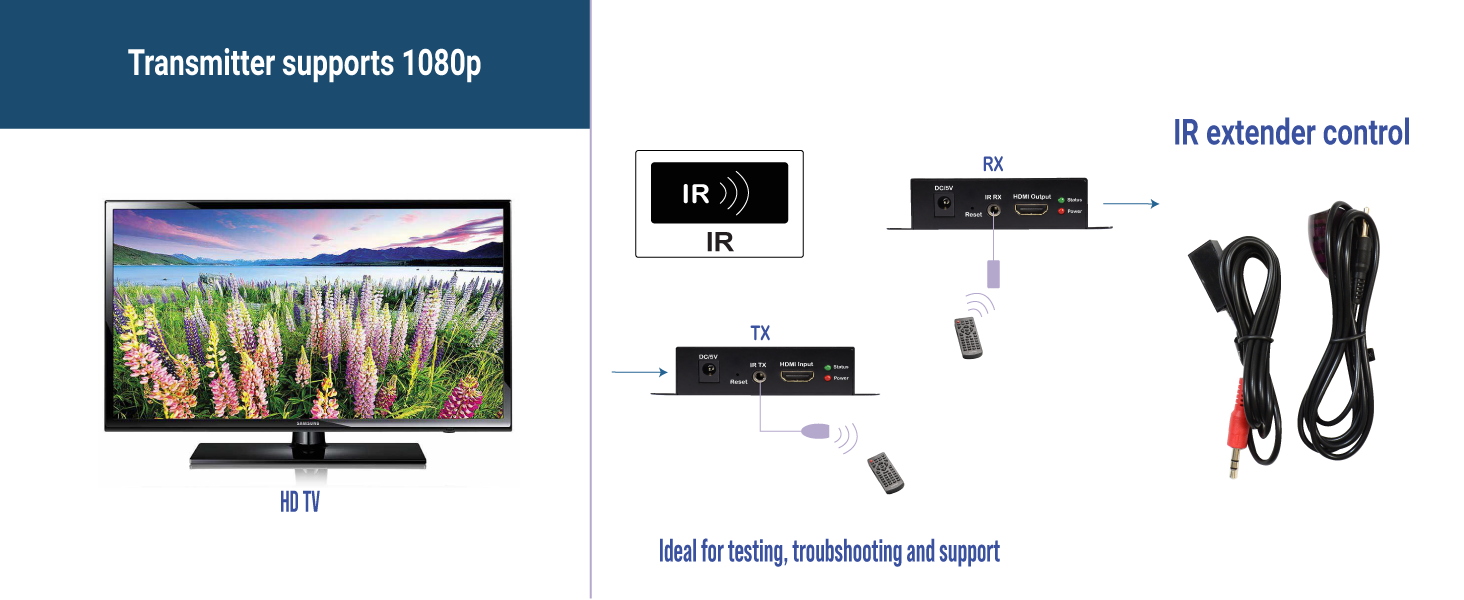

IR Frequency
38-56kHz
TX
Default IP address: 192.168.168.55, MAC address: 00:0b:78:00:60:01
RX
Default IP address: 192.168.168.56, MAC address: 00:0b:78:00:60:02

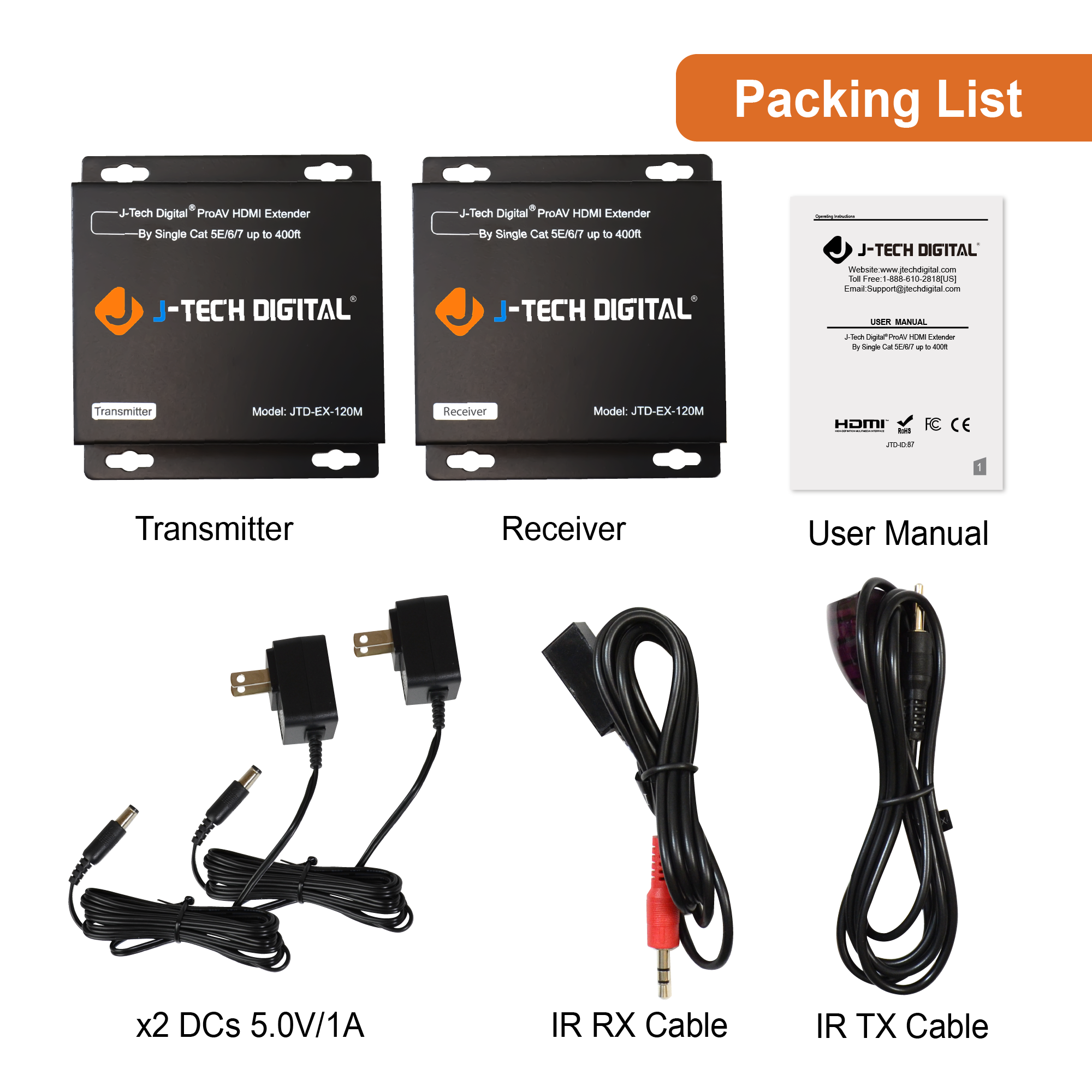

What's in the box

  • 1 x Transmitter
  • 1 x Receiver
  • 2 x 5V/1A DC power adapters
  • 1 x IR transmitter cable
  • 1 x IR receiver cable
  • 1 x User manual

Frequently asked questions

Resources

FileVersion
User Manual

1.0

Receiver Firmware

1.0

Reviews

4.9 out of 5 stars

Based on 24 reviews

Review data

5 star reviews

92%

4 star reviews

8%

3 star reviews

0%

2 star reviews

0%

1 star reviews

0%

Recent reviews

Charles B.

5 out of 5 stars

I had an earlier version that required 2 ethernet cables which I had installed during home construction. That unit died, I suspect. I went back to the web to replace it and found this unit that uses 1 ethernet cable. It has been working flawlessly for over a year until just recently. After troubleshooting it I found it was the power supply that died. I happened to have had another power supply with the same rating. I plugged it in and its working fine again. I'm wondering it the power supply of the 2 ethernet cable unit died and I replaced the unit for the wrong reason. My TV setup consists of a large screen in the family room (connected to a cable box) and a 30" in the kitchen. Whatever is on the big TV shows on the kitchen TV. This comes in handy when viewers are in both the kitchen and in the family room are watching the same broadcast. Another advantage is the kitchen TV can be on without the family room TV being on but you have to use the cable box remote (used with the big screen TV) to change channels. I'm about to duplicate this setup for my balcony TV and get rid of a remote cable box that I rent.

Thierry F.

5 out of 5 stars

I ordered the product on 16th of june and was delivered the 21th of june in France. I try it with a switch, and it work perfectly. The quality of the picture and sound are no difference between using the extender or straight from an HDMI cable.

pete

5 out of 5 stars

Have used this several times, so far so good!

EmFan313

5 out of 5 stars

Plugged it in works as described solid metal case. Feels like a high quality product. If you plan on having more than one input I would also get an hdmi switch.

G. Burns

5 out of 5 stars

After a few days of use this product does what is supposed to do, and what I wanted it to do. Setup took just a couple of minutes, testing it took another couple of minutes, and I am good to go. I did not notice any degradation in either picture or sound quality on my Home Theater system. Thanks for a good product, highly recommended.
