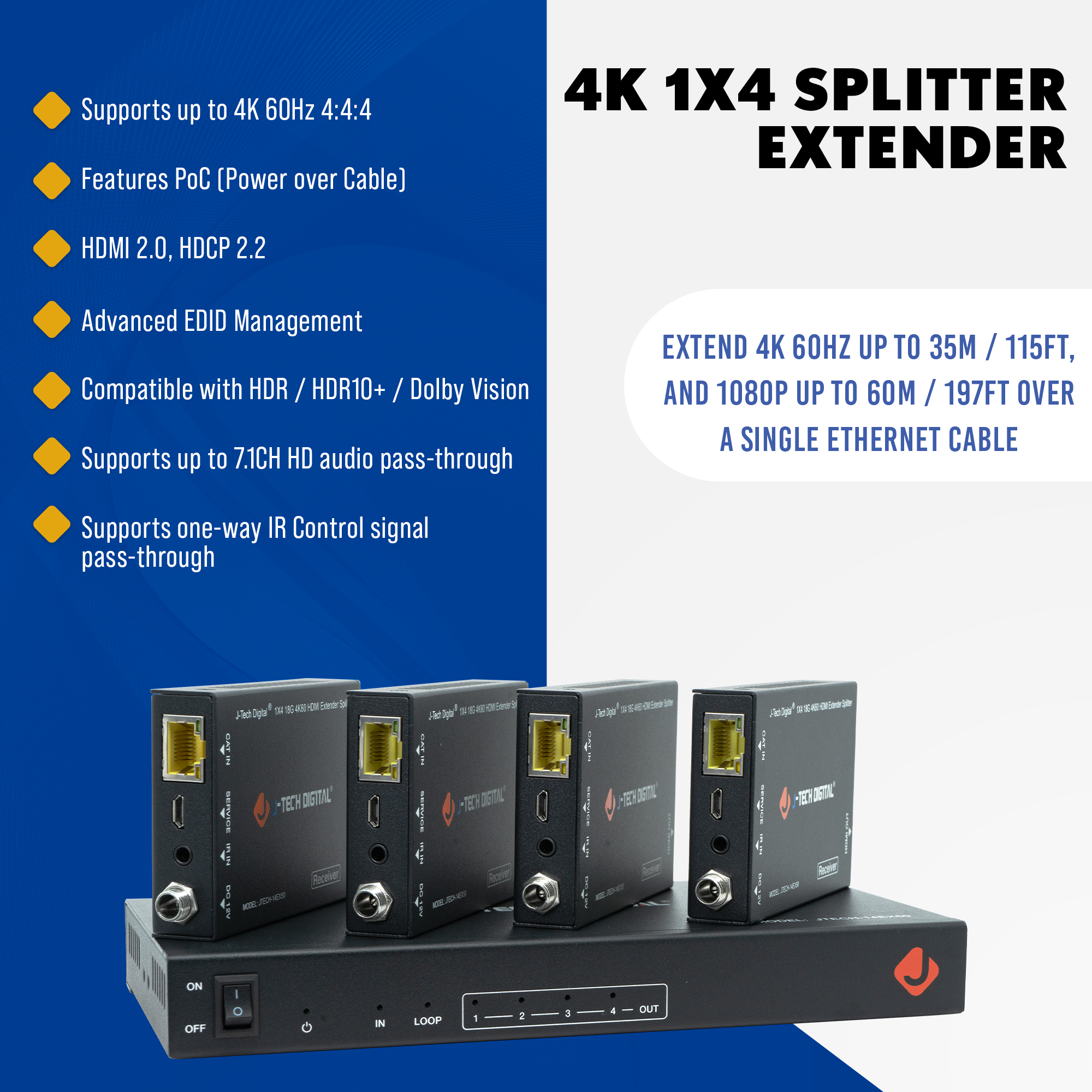

4K 60Hz 1x4 HDMI Splitter Extender Over Ethernet w/ PoC

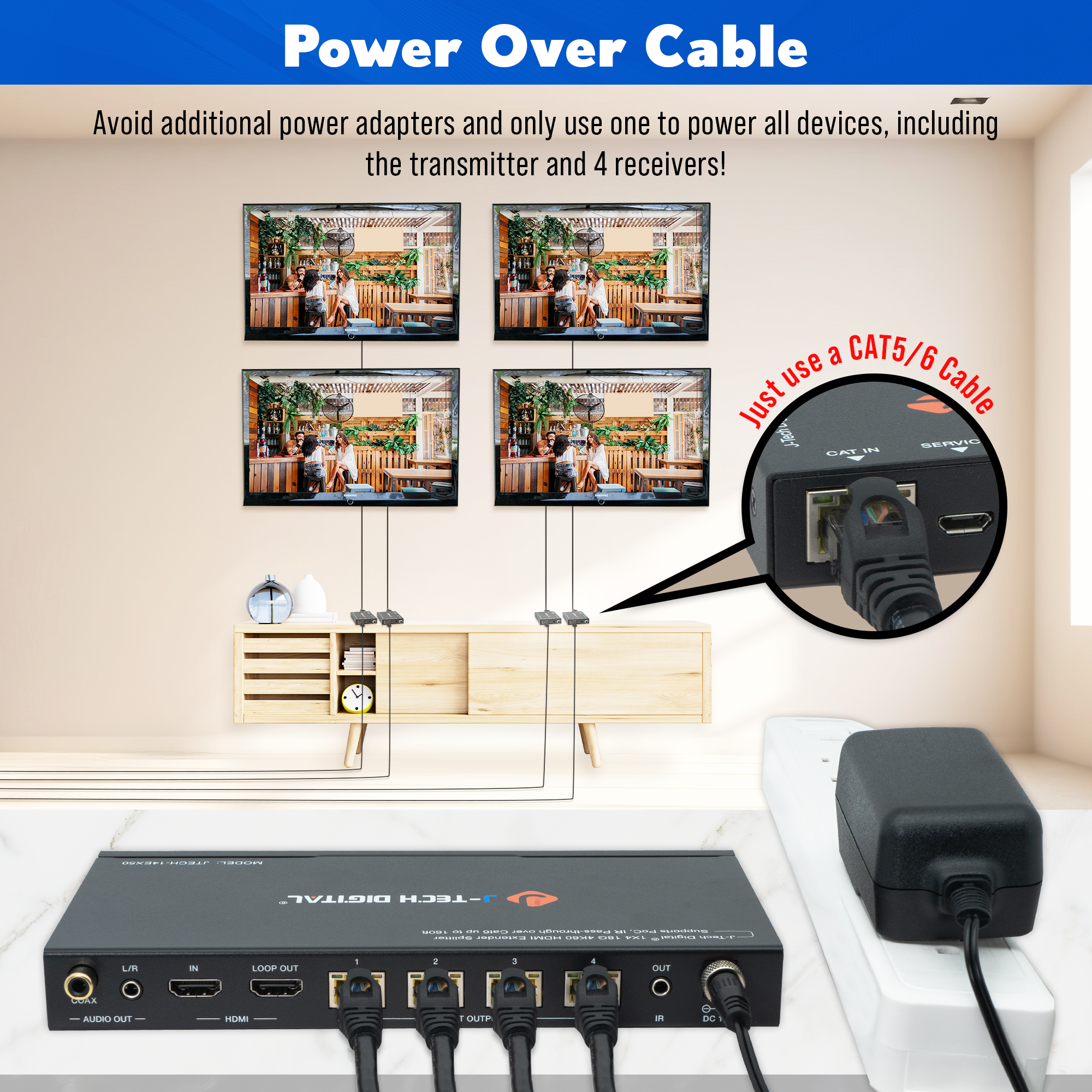

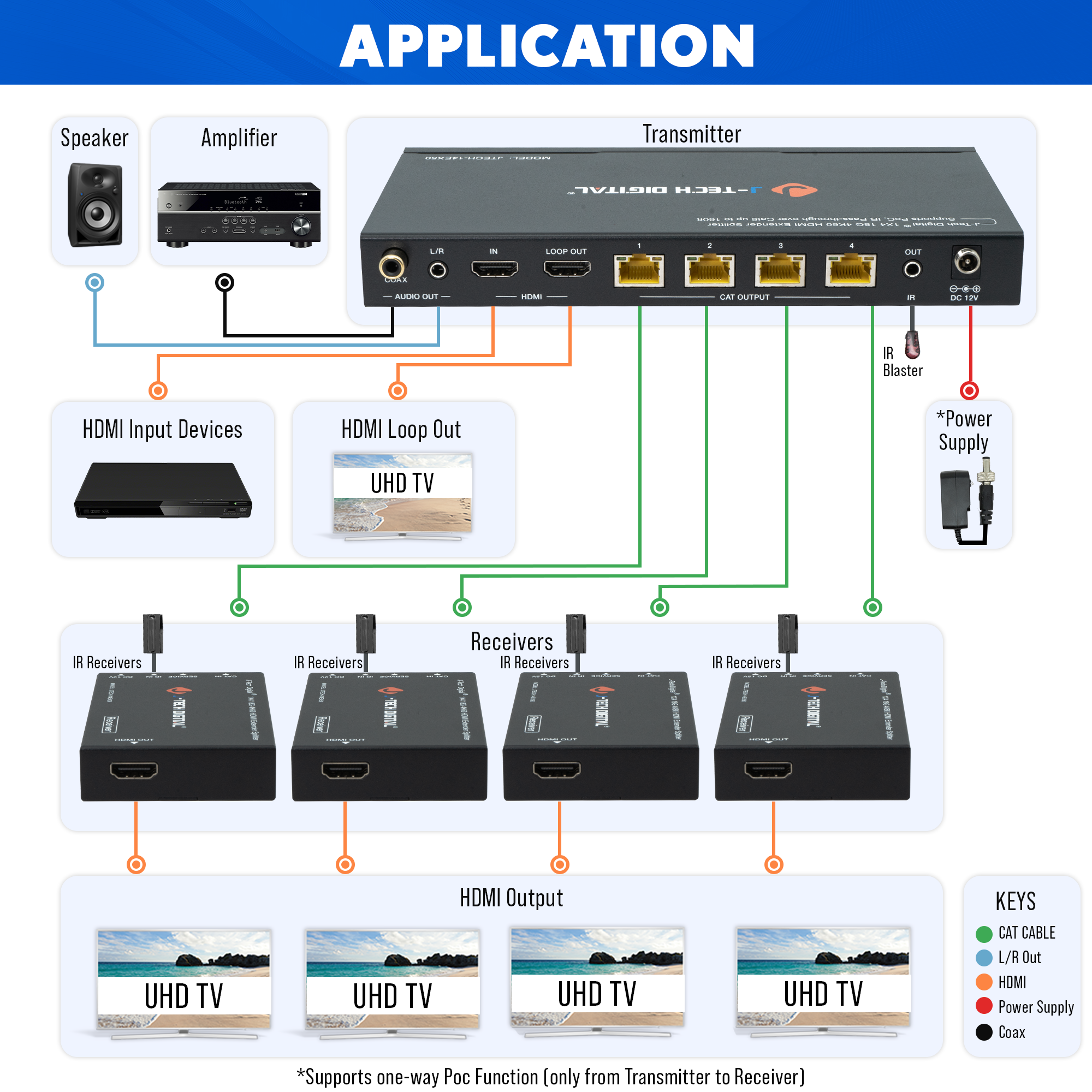

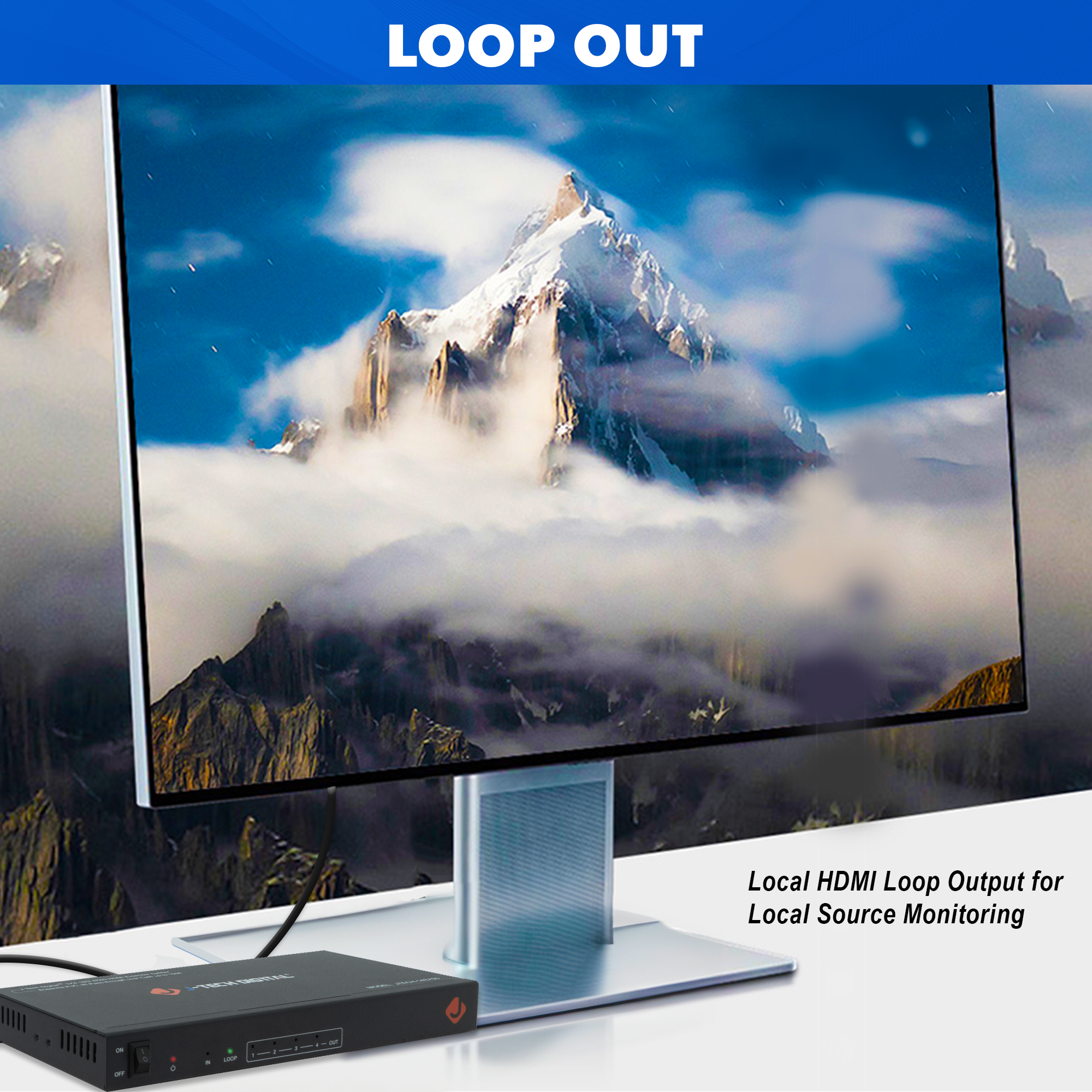

The J-Tech Digital JTECH-14EX50 is an HDMI 2.0 splitter extender over single CAT cable. Designed to distribute your 4K HDMI source signal to multiple displays, the JTECH-14EX50 is fully HDMI 2.0 and HDCP 2.2 compliant. The JTECH-14EX50 features 4 PoC (power over cable) receivers that don’t require additional power adapters that can clutter up your installation. With the JTECH-14EX50, you have the ability of not only splitting your 4K source signal to 4 displays but the capability to extend the distance from your source to your displays as well. Utilizing the JTECH-14EX50 as a splitter/extender allows you to transmit your 4K 60Hz source signal up to 114 feet away over a single CAT6 cable while also connecting a 4K display to the transmitter’s local HDMI loop output.
✅ HDMI 2.0 | HDCP 2.2 Compliant
✅ 18 Gbps Video Bandwidth
✅ Supports Resolutions up to 4K@60Hz 4:4:4
✅Supports 3D | HDR10 | HDR10+ | HLG | Dolby Vision
✅ Transmission Distance: 114 Feet (4K60) | 164 Feet (4K30) | 196 Feet (1080p60)
Information
- Brand
- J-Tech Digital
- MPN
- JTD-185
- Model
- JTECH-14EX50
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications
- HDMI Compliance
- HDMI 2.0b
- HDCP Compliance
- HDCP 2.2/1.x
- Video Bandwidth
- 594MHz/18Gbps
- Video Resolution
- Up to 4k2k@50/60Hz 4:4:4
- Color Depth
- 8-bit, 10-bit, 12-bit (1080p@60Hz), 8-bit (4K2K@60Hz YUV4:4:4), 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
- Color Space
- RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0
- HDR
- Support HDR 10, HDR 10+, HLG, Dolby Vision
- HDMI Audio Formats
- LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
- Coaxial Audio Formats
- PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
- Analog Audio Formats
- PCM 2.0CH
- ESD Protection
- Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)

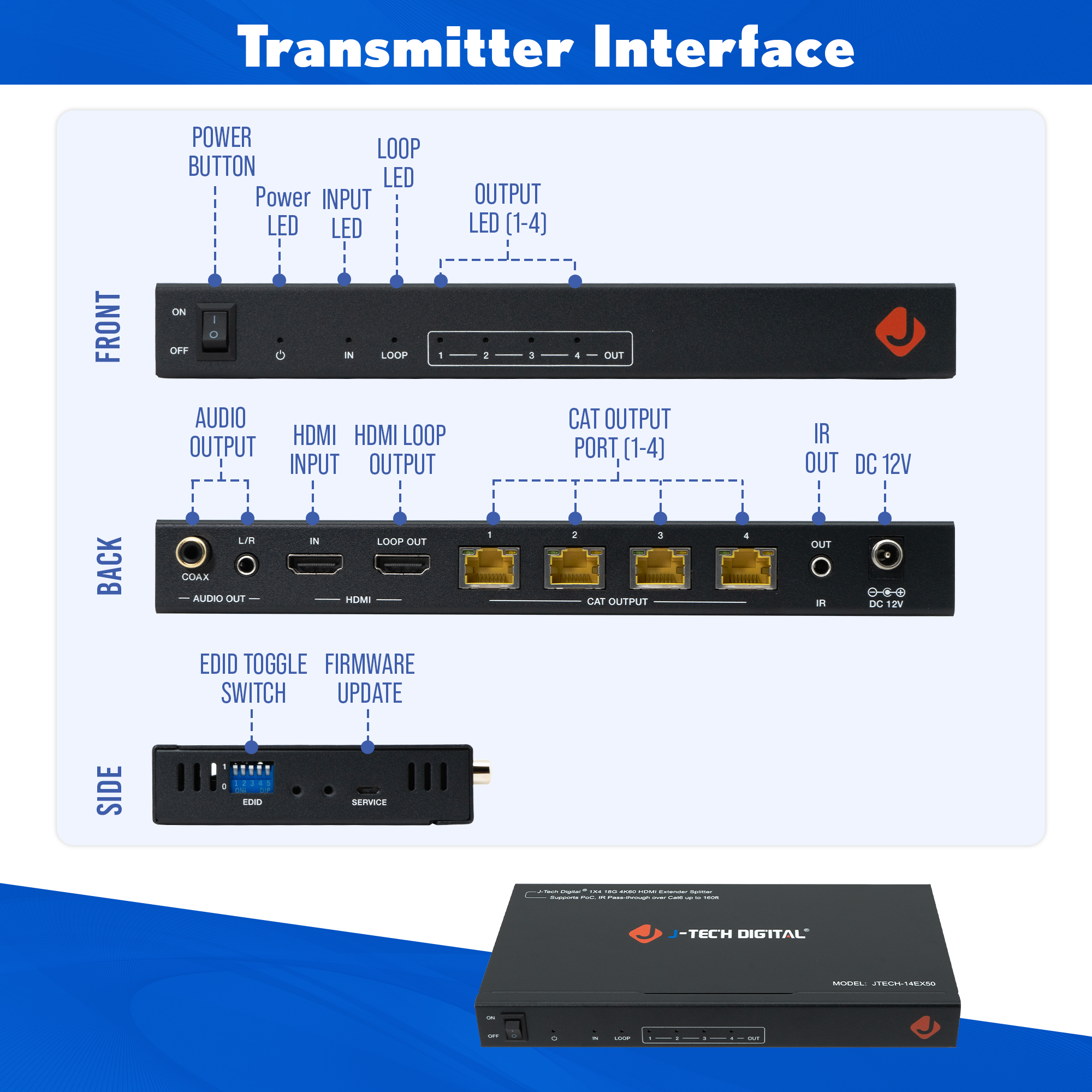

- Input
- 1 × HDMI Type A (19-pin female)
- Output
- 1 × HDMI Type A (19-pin female), 4 × CAT OUT [RJ45, 8-pin female], 1 × Coaxial Audio OUT [RCA], 1 × L/R Audio OUT [3.5mm Stereo Mini-jack]
- Control
- 1 × SERVICE (Micro USB, Update port), 1 × EDID DIAL switch [5-pin], 1 × IR OUT [3.5mm Stereo Mini-jack]
- Housing
- Metal Enclosure
- Silkscreen Color
- Black

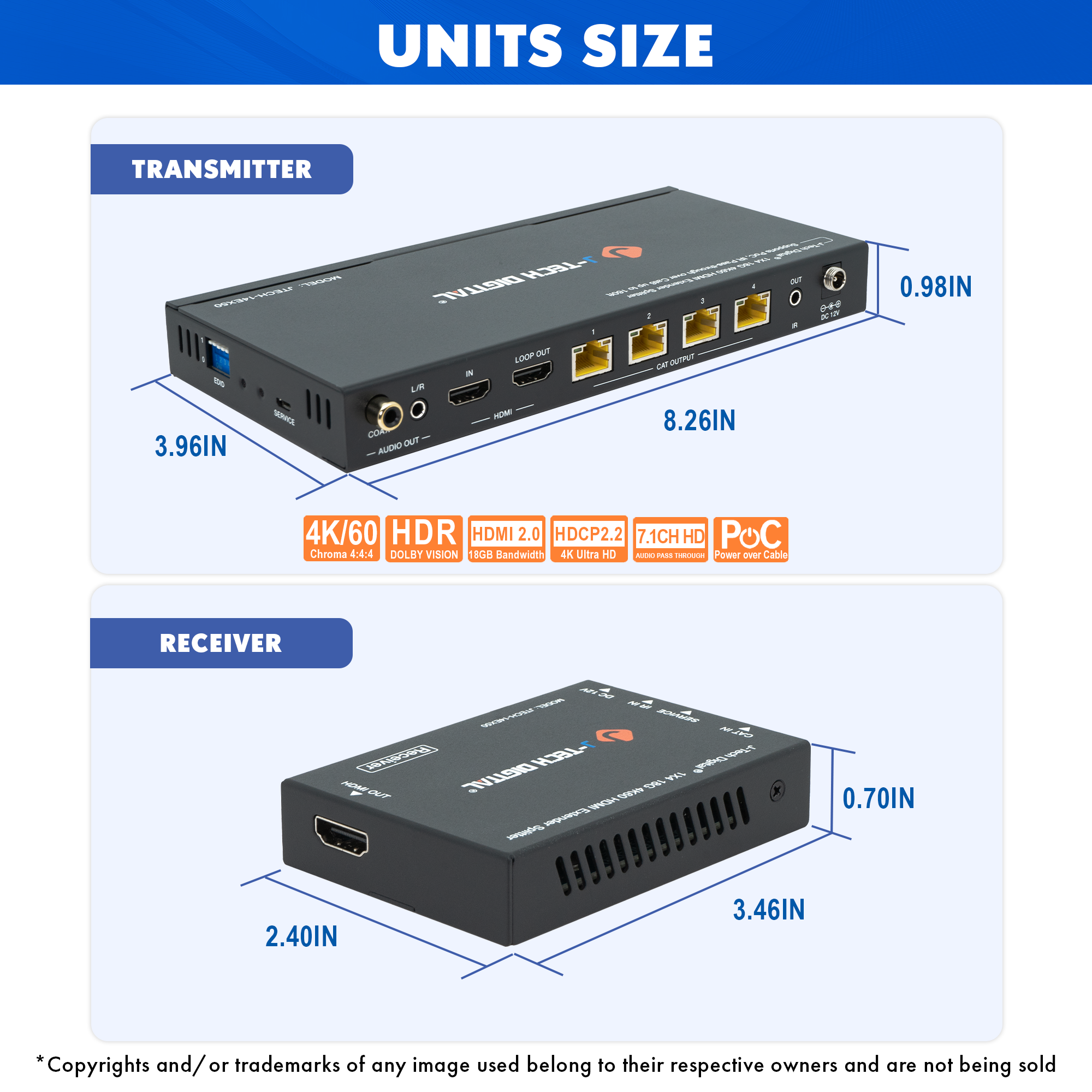

- Dimensions
- Transmitter: 210mm (W) × 100mm (D) × 25mm (H), Receiver: 88mm (W) × 61mm (D) × 18mm (H)
- Weight
- Transmitter: 617g, Receiver:155g
- Power Supply
- Input: AC 100-240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)
- Power Consumption
- 14W (Max)
- Operation Temperature
- 0°C~40°C / 32°F~104°F
- Storage Temperature
- -20°C~60°C / -4°F~140°F
- Relative Humidity
- 20%~90% RH (non-condensing)

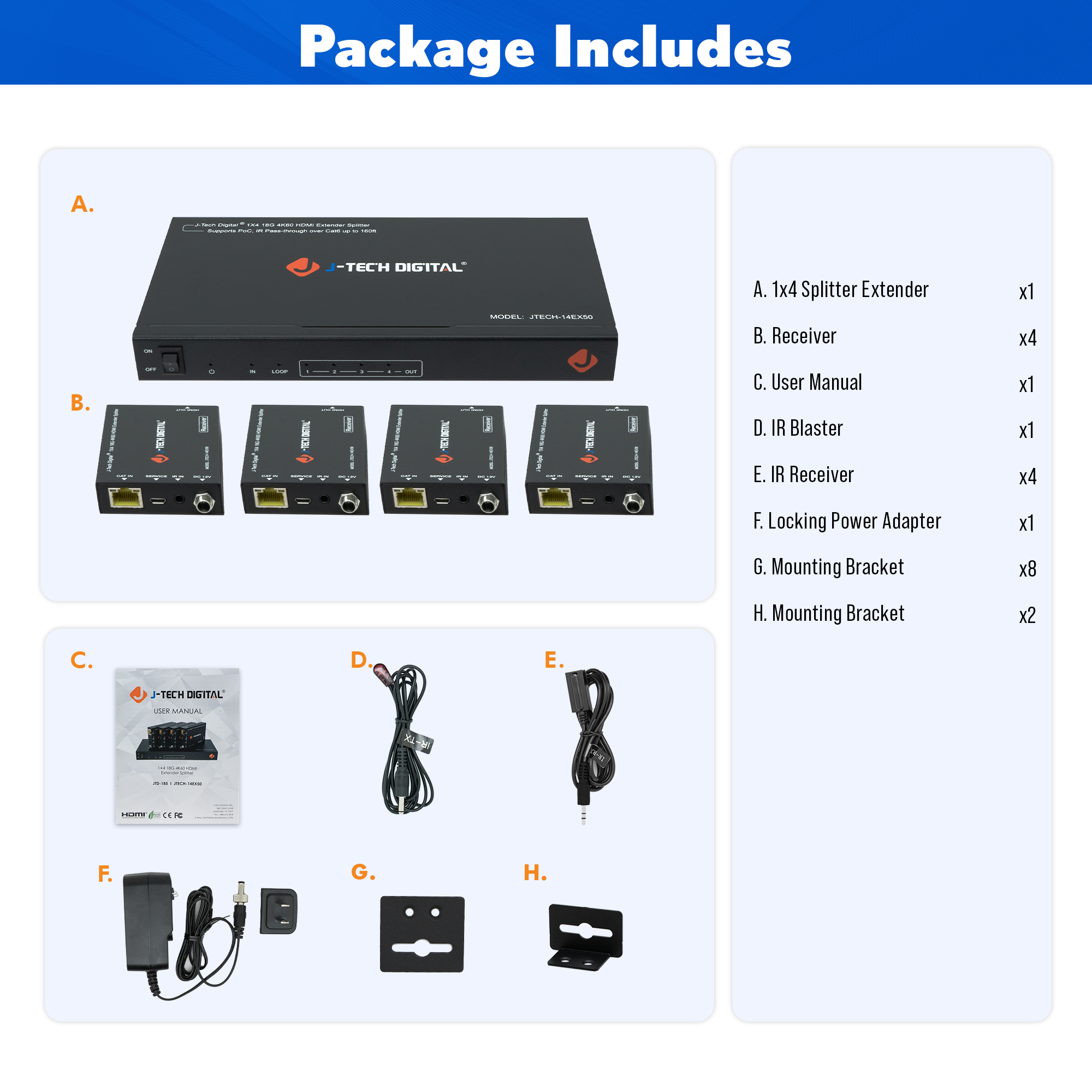

What's in the box
- 1 x Transmitter
- 4 x Receivers
- 1 x User Manual
- 1 x IR Blaster Cable
- 4 x IR Receiver Cables
- 1 x Locking Power Adapter
- 10 x Mounting Bracket
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
