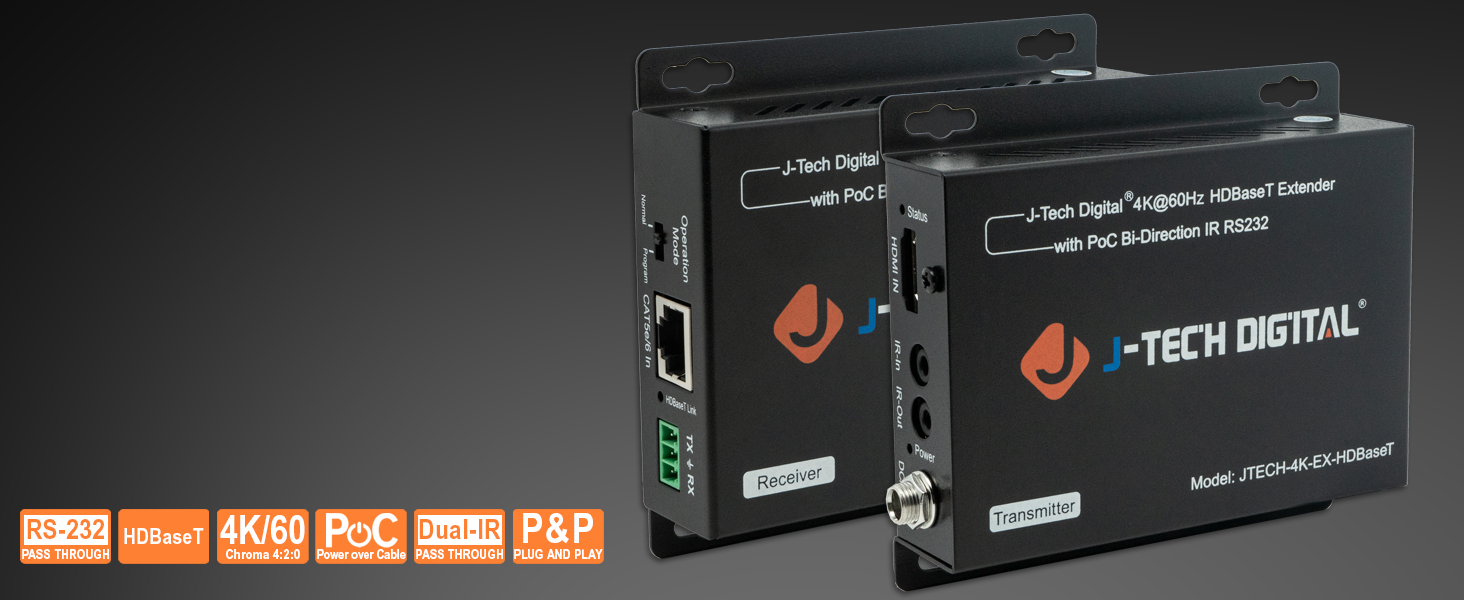

4K 60Hz (4:2:0) HDBaseT HDMI Extender Balun Over Ethernet with PoC
4K HDMI Extender over Cat5e/Cat6 – HDBaseT 230ft 1080P / 130ft 4K HDMI 2.0 Extender with IR & RS232

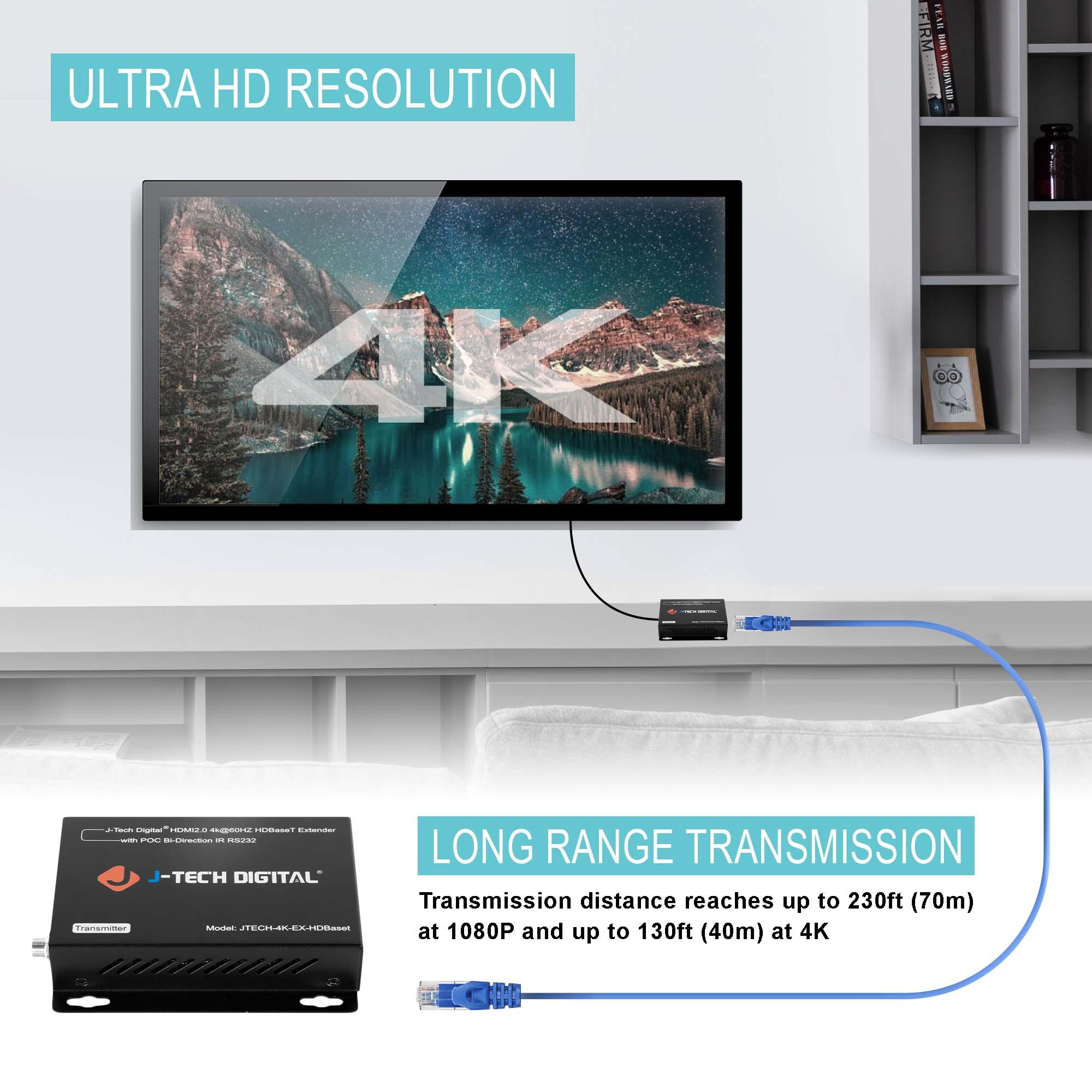

Extend your HDMI signal over long distances with this HDBaseT HDMI Extender, delivering uncompressed 4K@60Hz (4:2:0) video up to 130 ft (40m) and 1080P up to 230 ft (70m) using a single Cat5e/6 Ethernet cable. Enjoy flawless, high-definition video and audio transmission without signal loss or delay.
Compatible with HDMI 2.0 and HDCP 2.2/1.4, this extender supports a full range of resolutions including 4K, 1080P, 720P, 576P, and 480P, along with premium audio formats like LPCM, DTS-HD, Dolby TrueHD, and Dolby Digital.

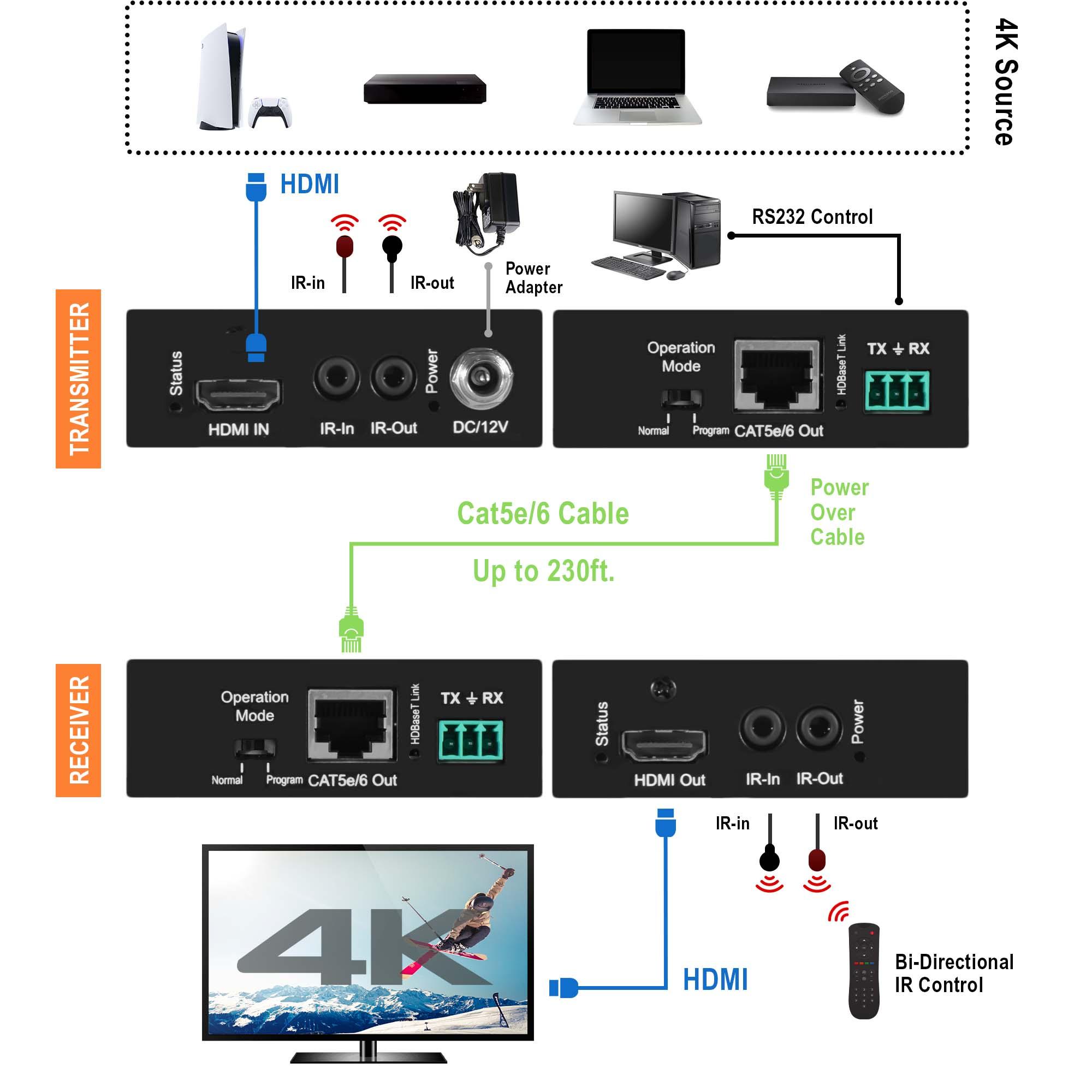

Includes bi-directional IR (20~60kHz) for remote control from either end and a Phoenix RS232 port for firmware updates or serial control integration.

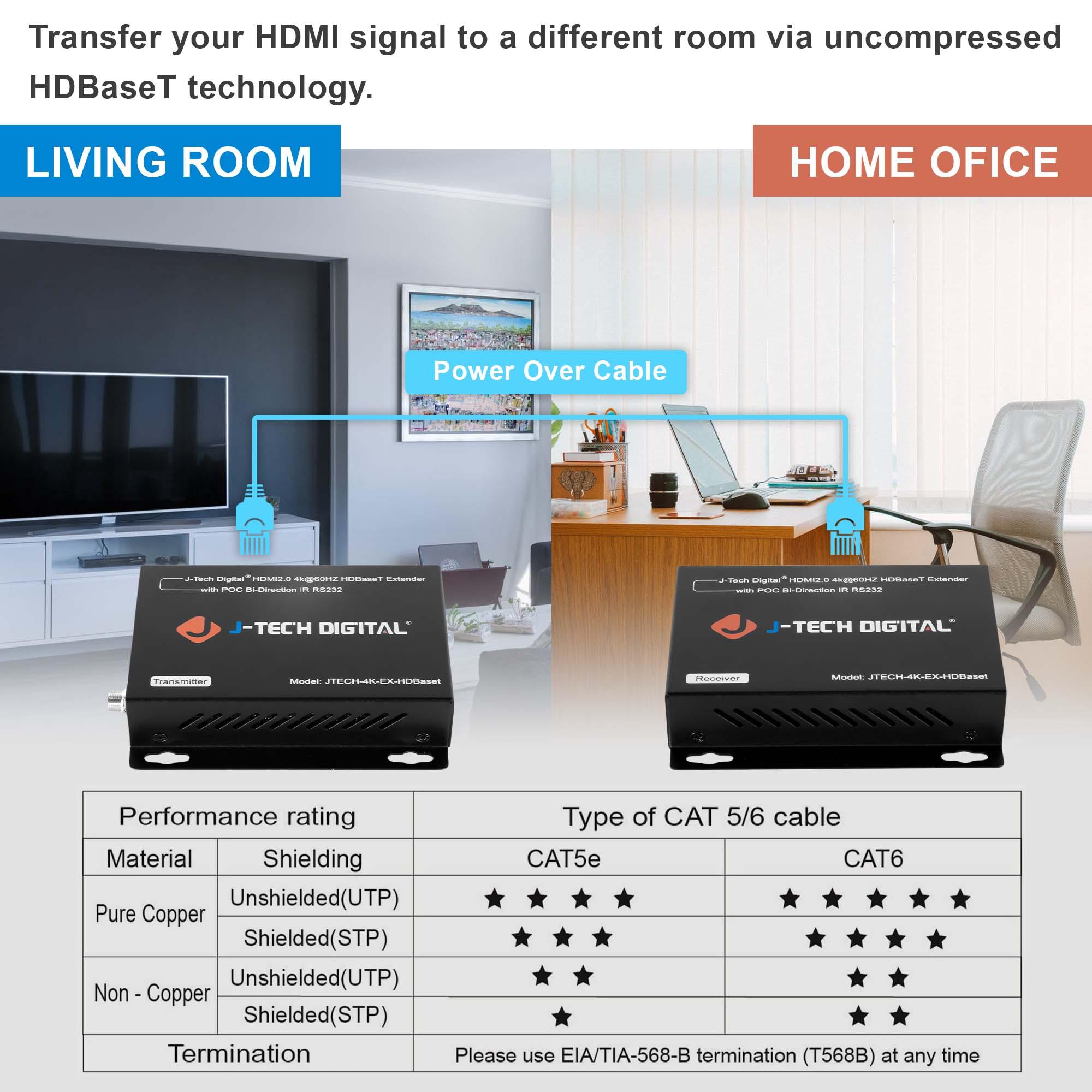

For the best performance, use solid copper Cat6 Ethernet cable—we recommend the J-Tech Digital 150ft Cat6 cable (model JTD-943) for optimal results.
Perfect for home theaters, classrooms, offices, digital signage, and professional AV installations.
Information
- Brand
- J-Tech Digital
- MPN
- JTD-931
- Model
- JTECH-4K-EX-HDBaseT
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications
- Operating Temperature Range
- -5 to +35°C (-41 to +95 °F)
- Operating Humidity Range
- 5 to 90 % RH (no condensation)
- Maximum Transmission Distance
- 70 meters for 1080P, 40 meters for 4K
- Power Supply
- 12V/2A
- PoC

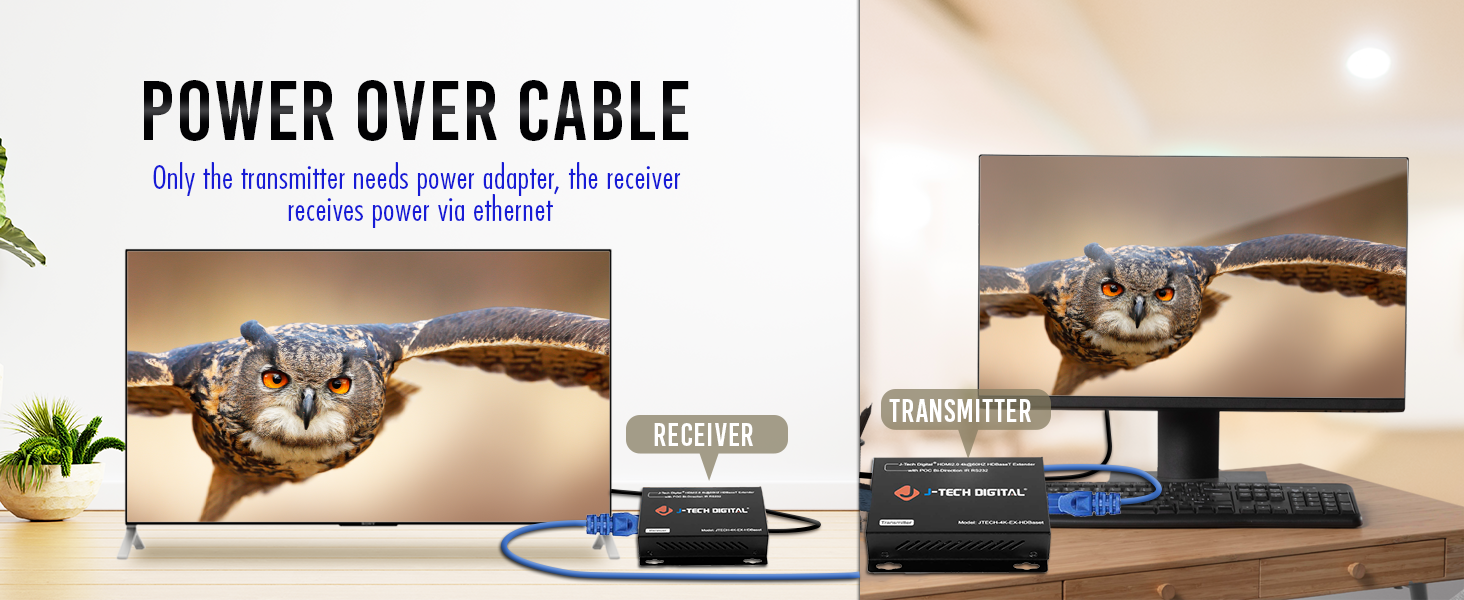

- Power from TX to RX over Cat5/6 cable
- Power Consumption
- 2.5Watts (TX), 5Watts (RX)
- Dimensions

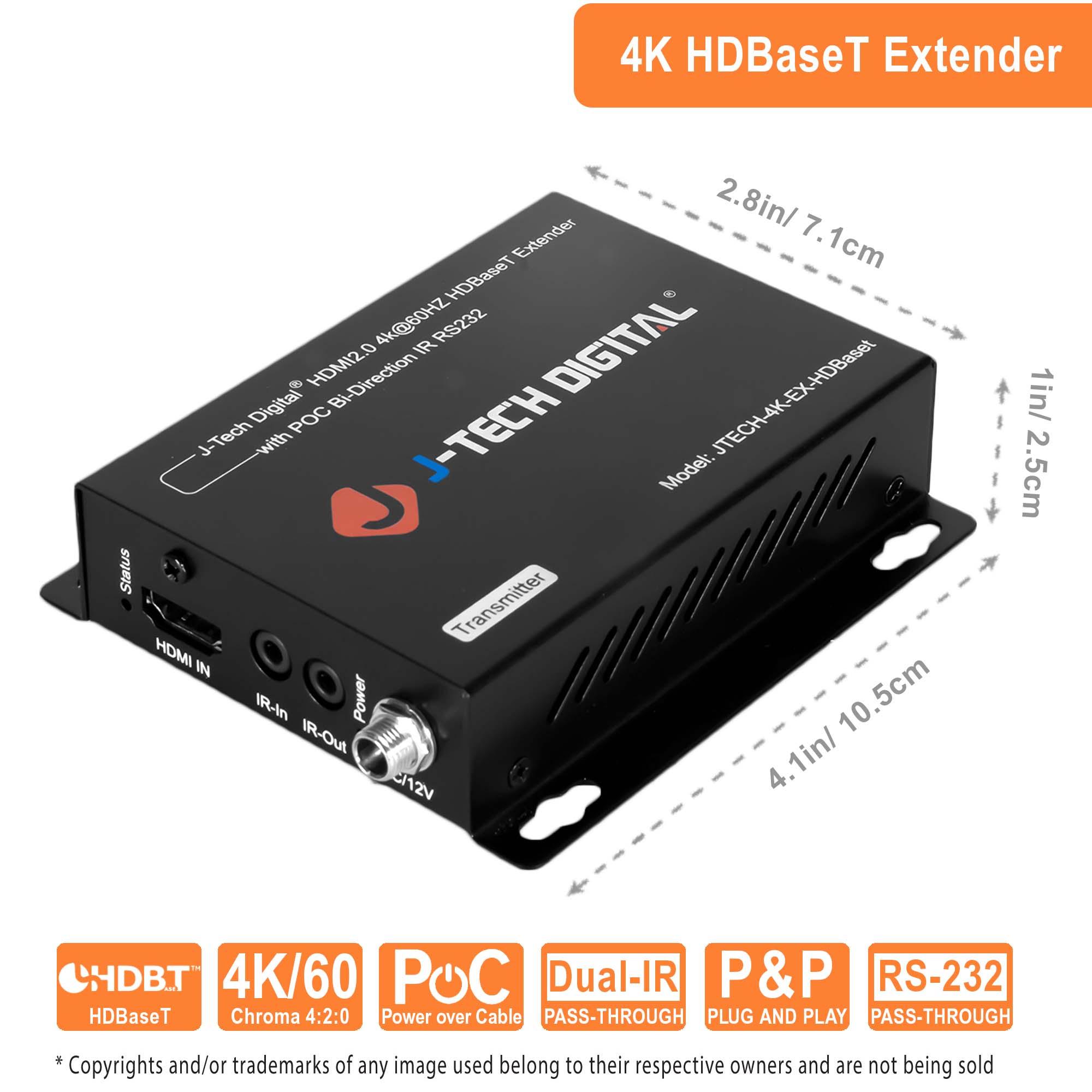

- 105mm(H) ×71mm (W) ×25mm (D)
- Weight
- 0.7Kg / 1.54lb (Pairs)
- Input Video Signal
- 0.5-1.0 volts p-p
- Input DDC Signal
- 5 volts p-p (TTL)
- Video Format Supported
- DTV/HDTV; 4K / 1080P / 1080i / 720P / 576P / 480P / 576i / 480
- Output Video
- HDMI 2.0+HDCP1.4/2.2
- Output Audio
- Support DTS-HD, Dolby-HD

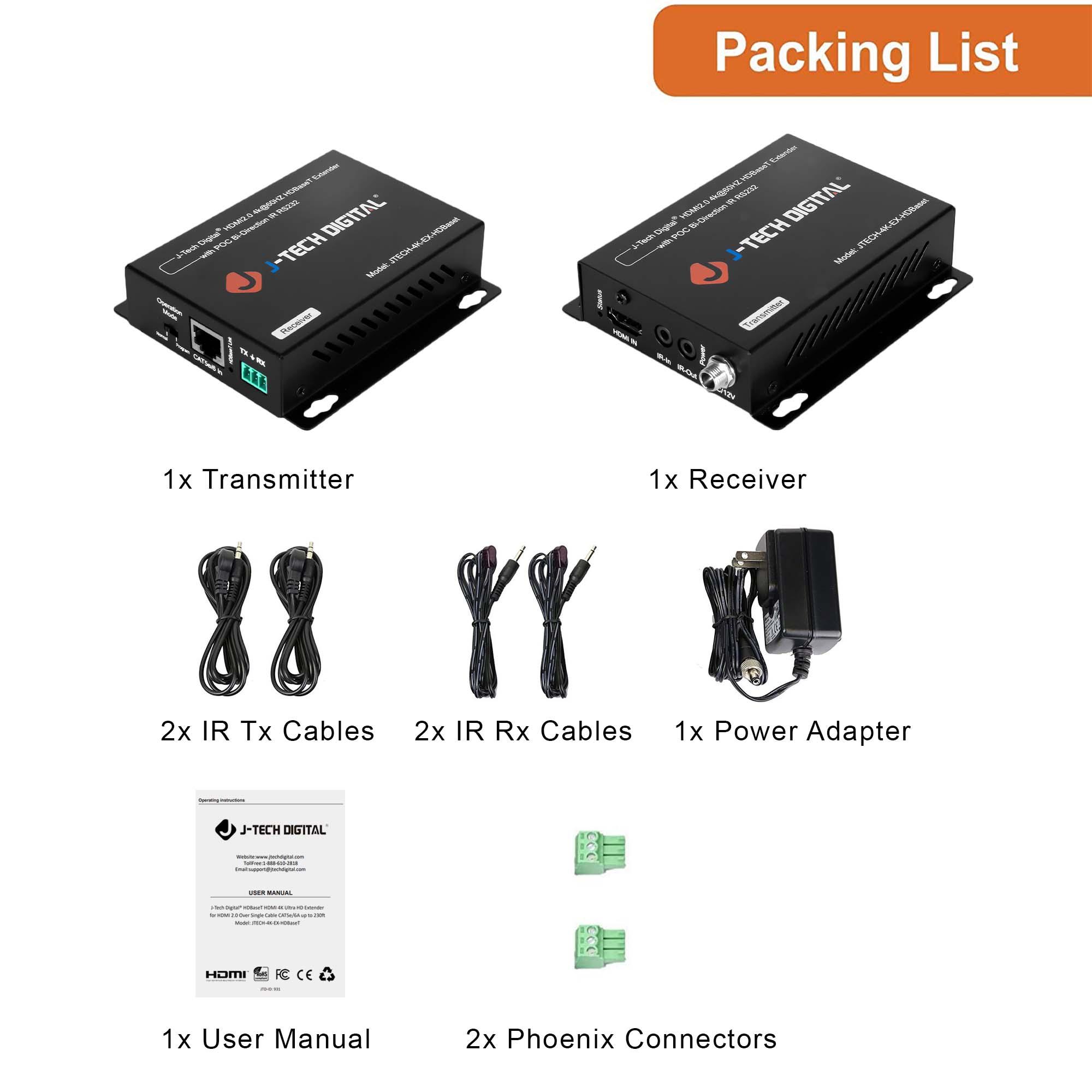

What's in the box
- 1 x JTECH-4K-EX-HDBaseT
- 2 x IR Tx Cables
- 2 x IR Rx Cables
- 1 x Power Adapter
- 1 x Mount Kits
- 1 x User Manual
