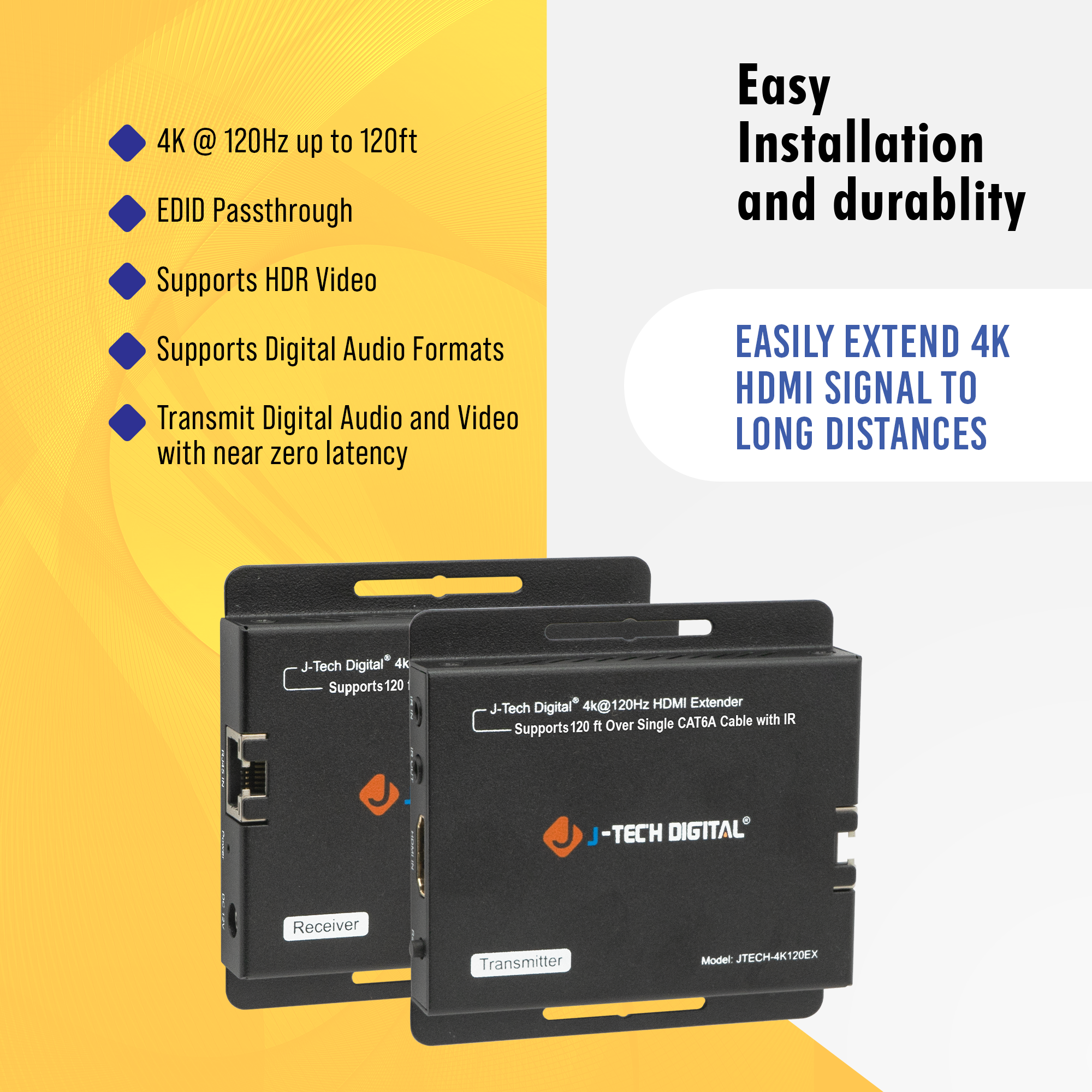

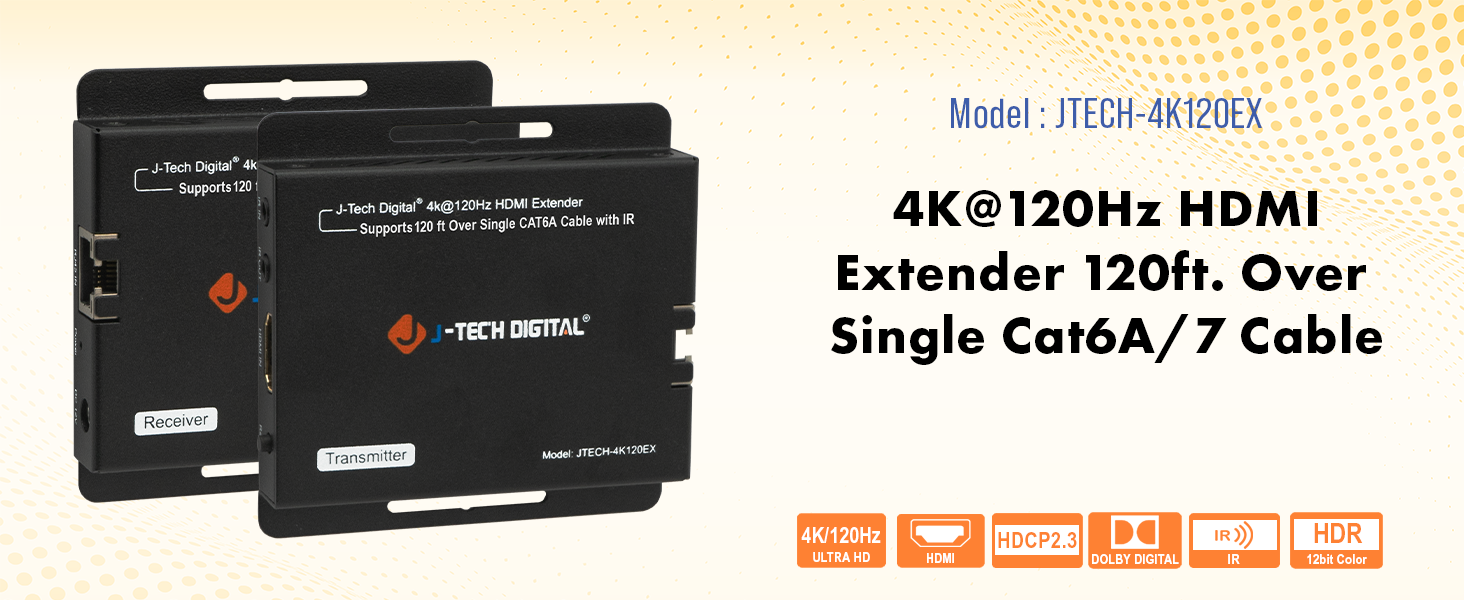

4K 120Hz HDMI Extender Balun Over Ethernet (120ft.)

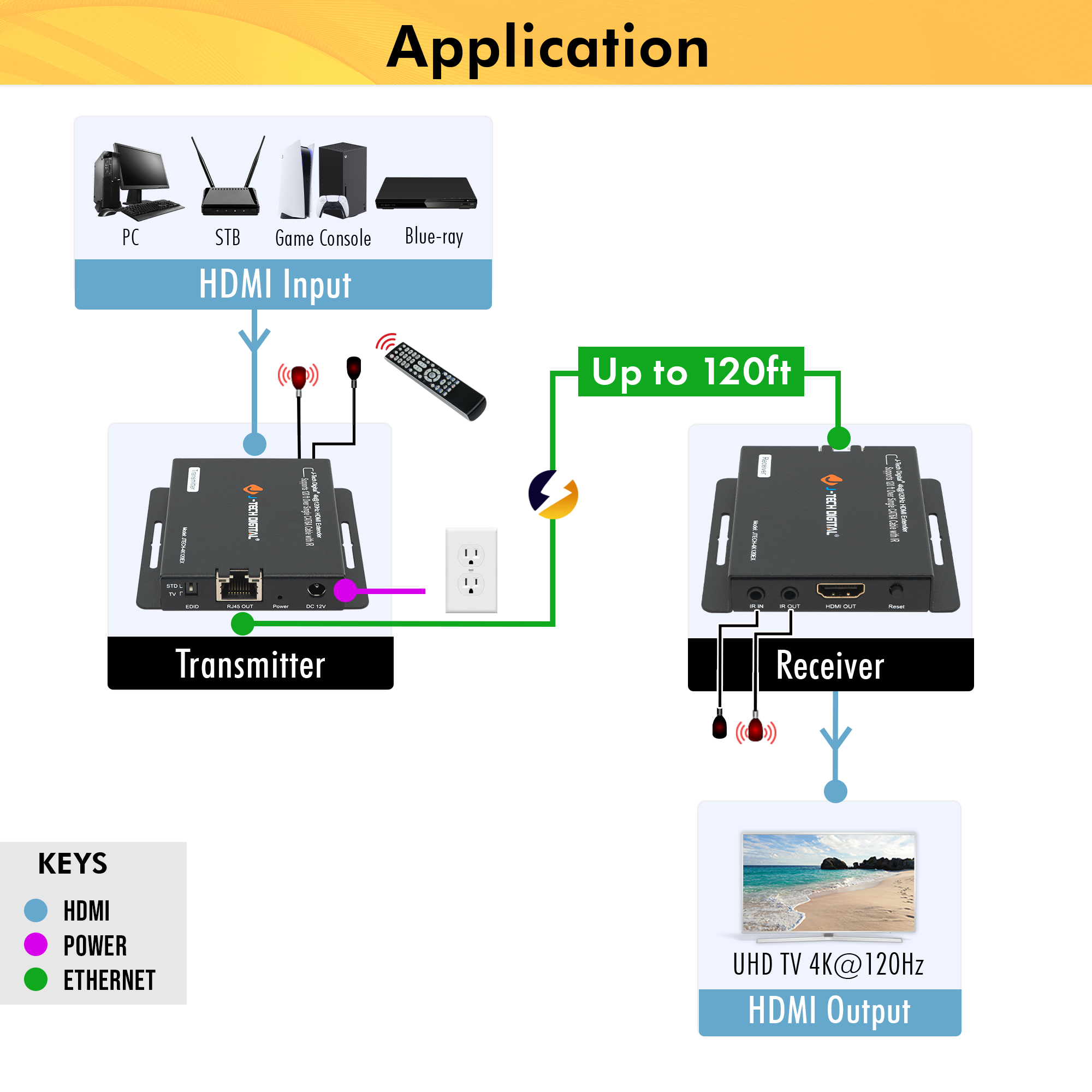

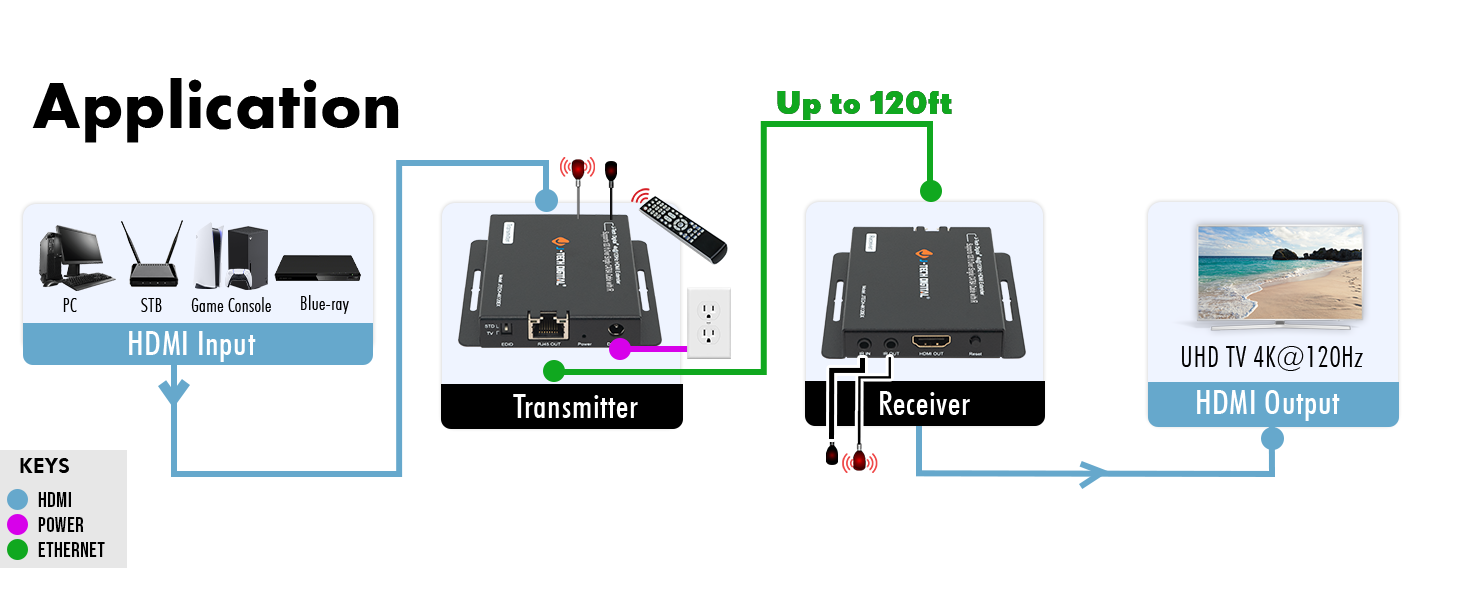

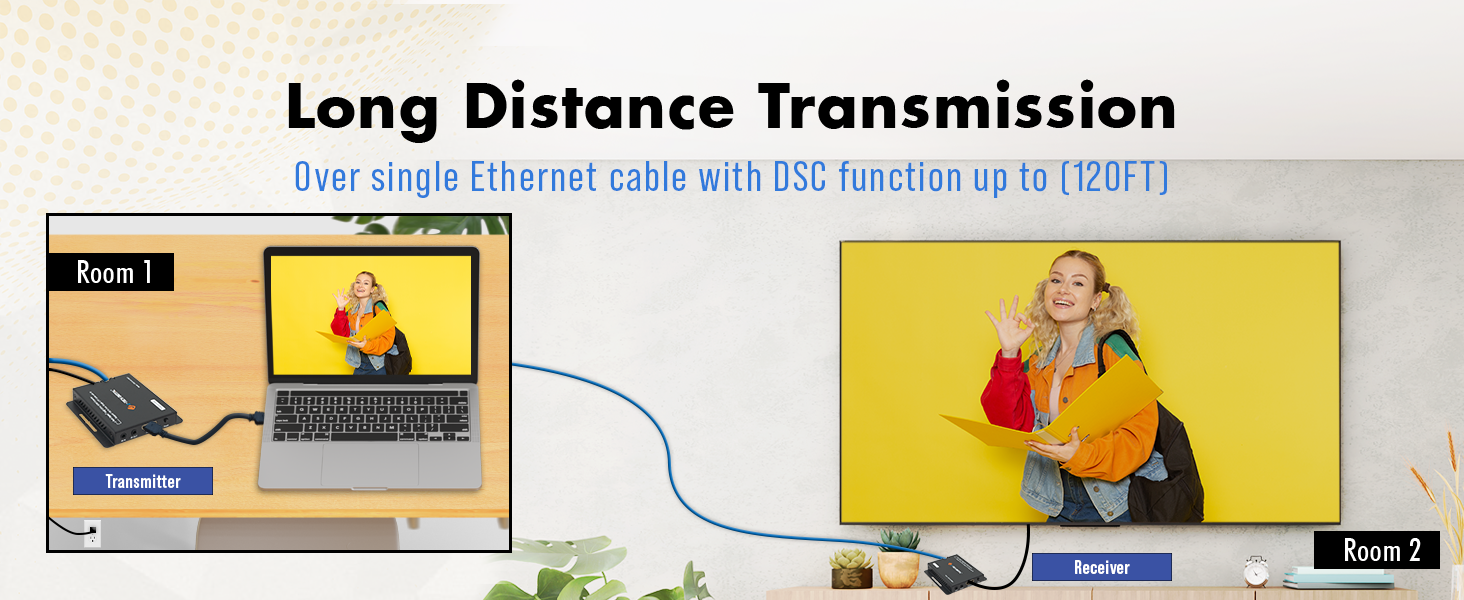

The JTECH-4K120EX HDMI over Ethernet extender helps deliver 4K UHD resolution at 120Hz up to 120ft. over a single CAT 6A/7 cable. With support for HDR, you can now enjoy your favorite content in its full glory at 4 times the distance compared to a standard HDMI Cable. Bi-directional IR feature allows you to control your source device from the display’s location using the source devices remote, or control your display from the source device’s location using the display remote.
Take advantage of the 2 EDID settings provided by the JTECH-4K120EX extender. Choose between “STD” mode for 4K 120Hz, or use the “TV” mode for EDID pass-through to the display. HDCP 2.3 (backwards compatible with 2.2 and 1.4) ensures compatibility with a wide variety of compatible sources and displays. Take advantage of the plug and play function, and integrate JTECH-4K120EX HDMI over Ethernet extender within your setup today!

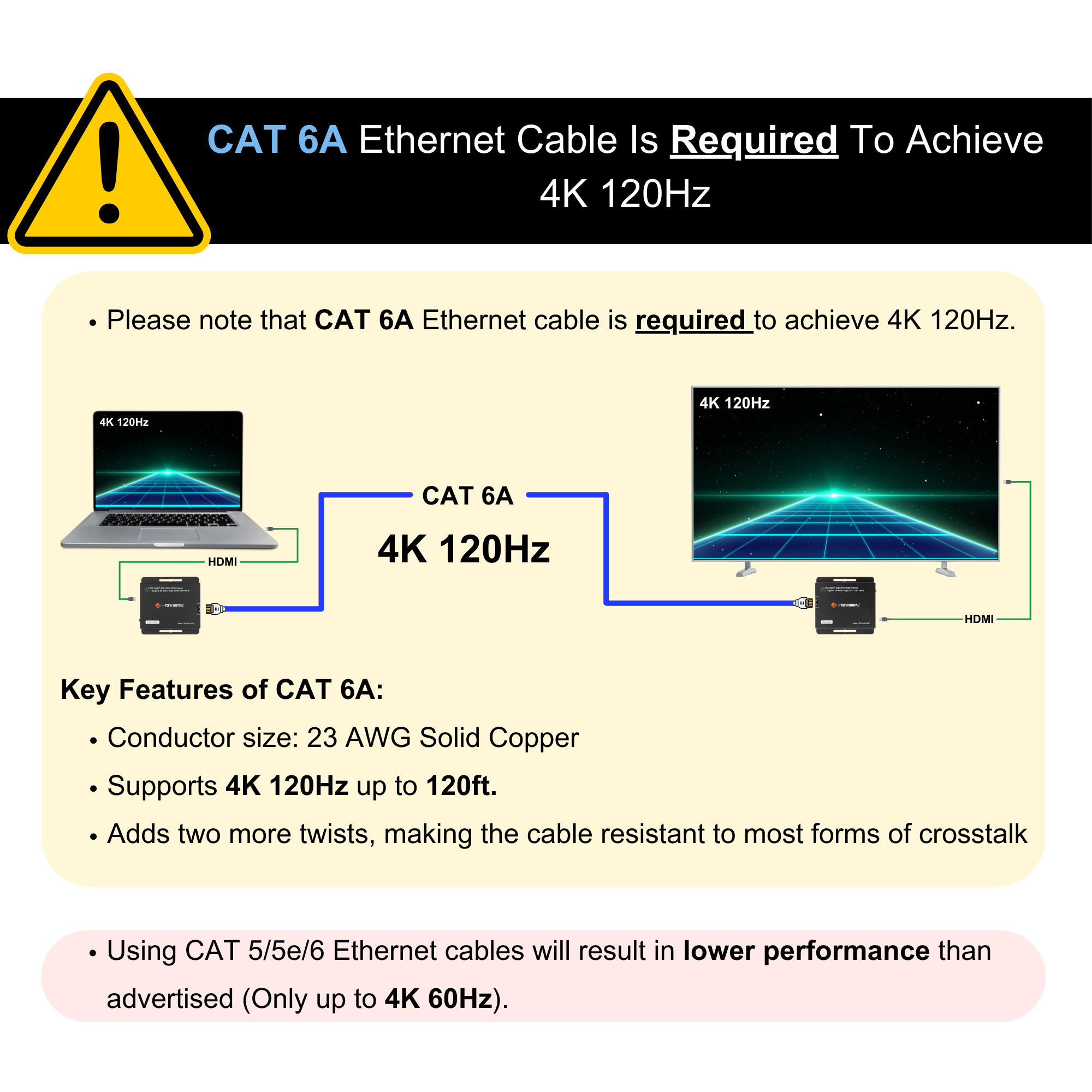

✅ Resolution support up to 4K 120Hz 4:4:4 up to 120ft. over single CAT6A/7 (*Not compatible with Acer XV282K monitor for 4K 120Hz)
✅ Compatible with High Dynamic Range (HDR) video
✅ Supports HDCP 2.3, and backwards compatible with HDCP 2.2 and 1.4
✅ EDID toggle switch setting to ensure compatibility
✅ Supports digital audio formats such as Dolby Digital, DTS, DTS-HD Master etc.
✅ Bi-Directional IR function to allow users to control their source device from displays location or vice versa
Information
- Brand
- J-Tech Digital
- MPN
- JTD-3023
- Model
- JTECH-4K120EX
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
Specifications

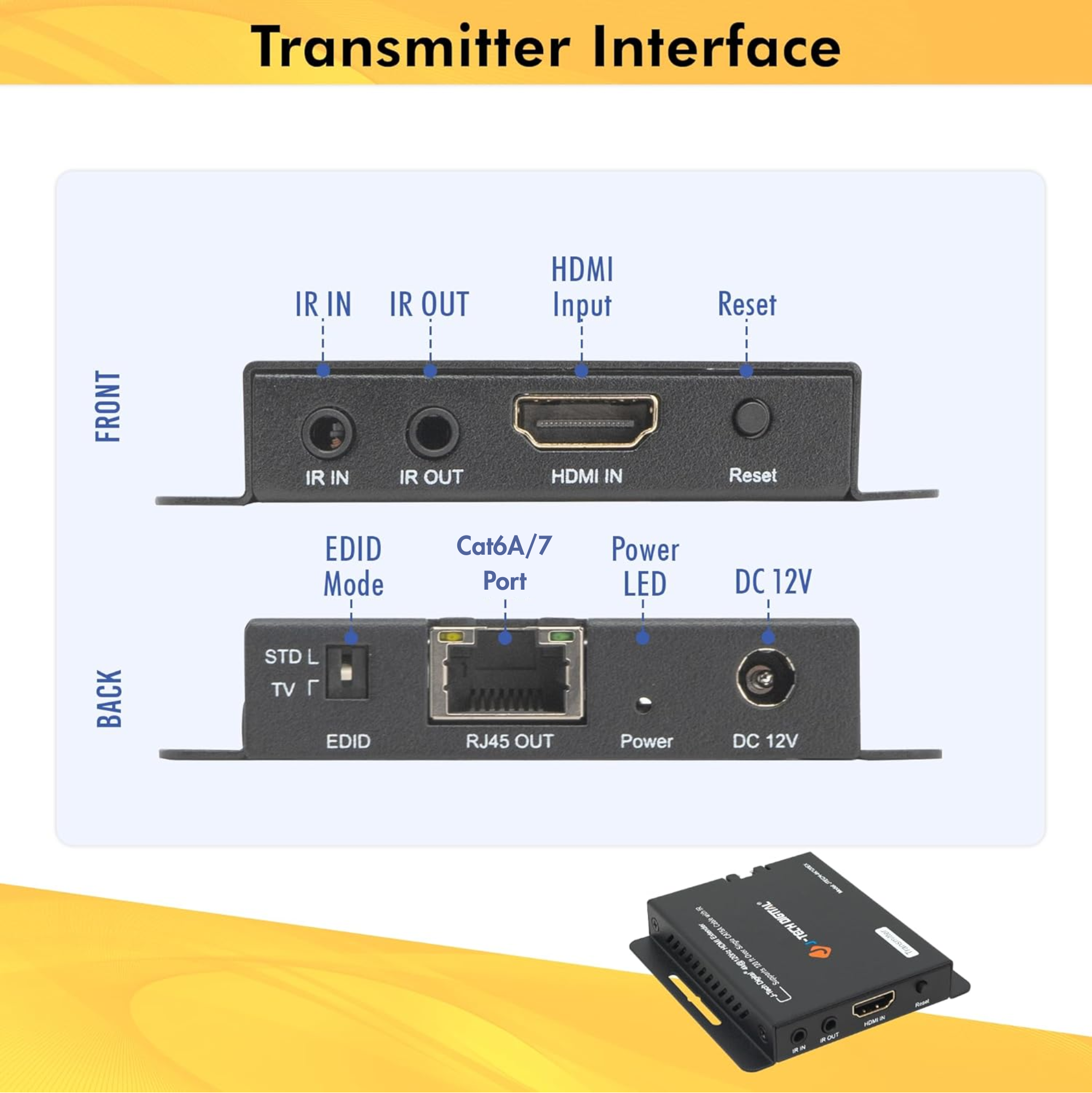

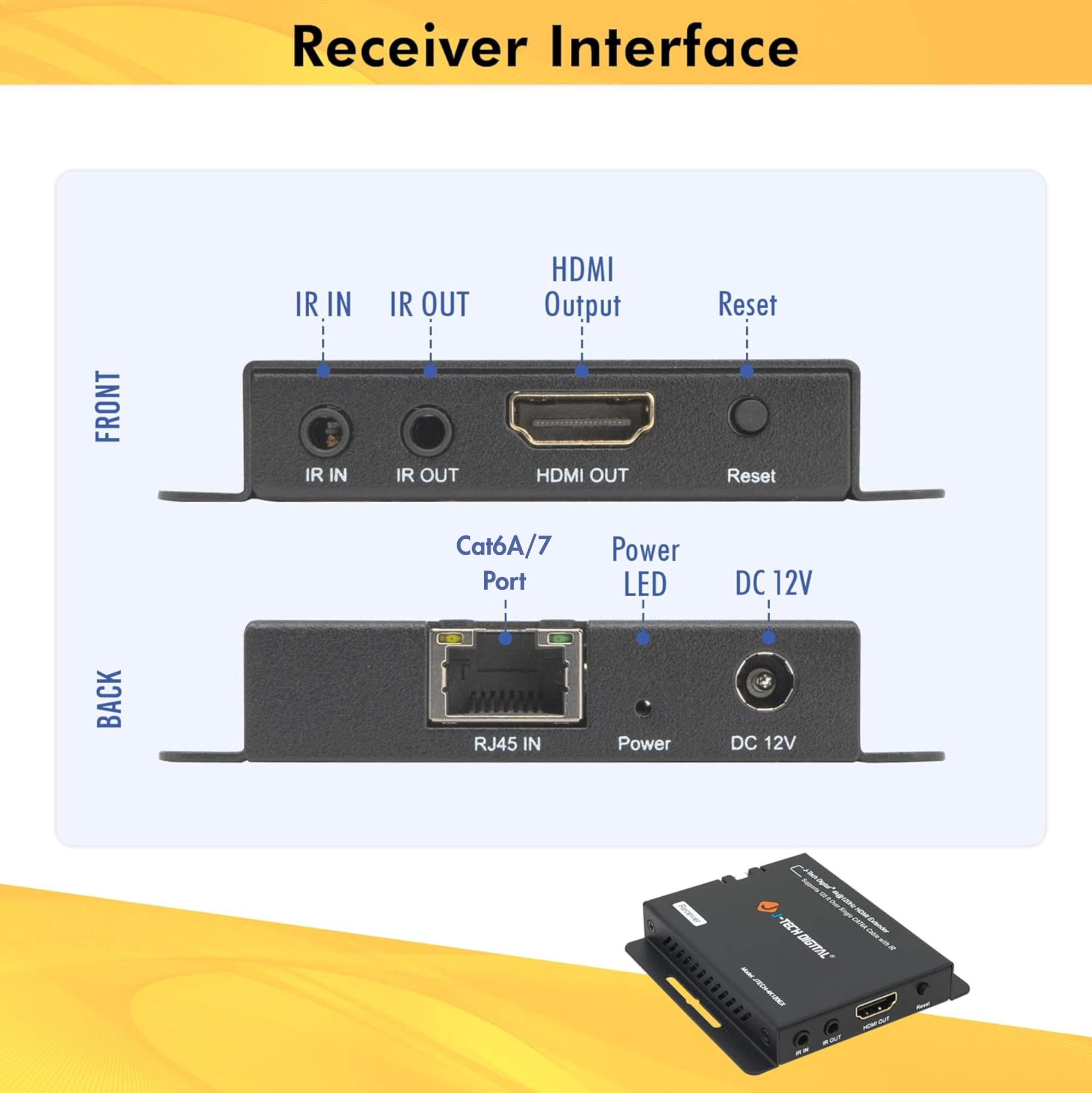

- Input Port
- 1 x HDMI, 1 x RJ45, 2 x 3.5mm
- Output Ports
- 1 x HDMI, 1 x RJ45, 2 x 3.5mm
- Vertical Frequency Range
- 50 / 60Hz
- Transmission Distance
- 120ft. for 4K 120Hz 4:4:4, 200ft. for 4K 60Hz
- IR Frequency Range
- 20 - 60KHz
- Operating Temperature
- 0° ~ 50°C
- Storage Humidity
- 5 - 90% non-condensing
- Power Supply
- DC 12V
- Power Consumption (Max)
- Transmitter: 4W, Receiver: 3.5W

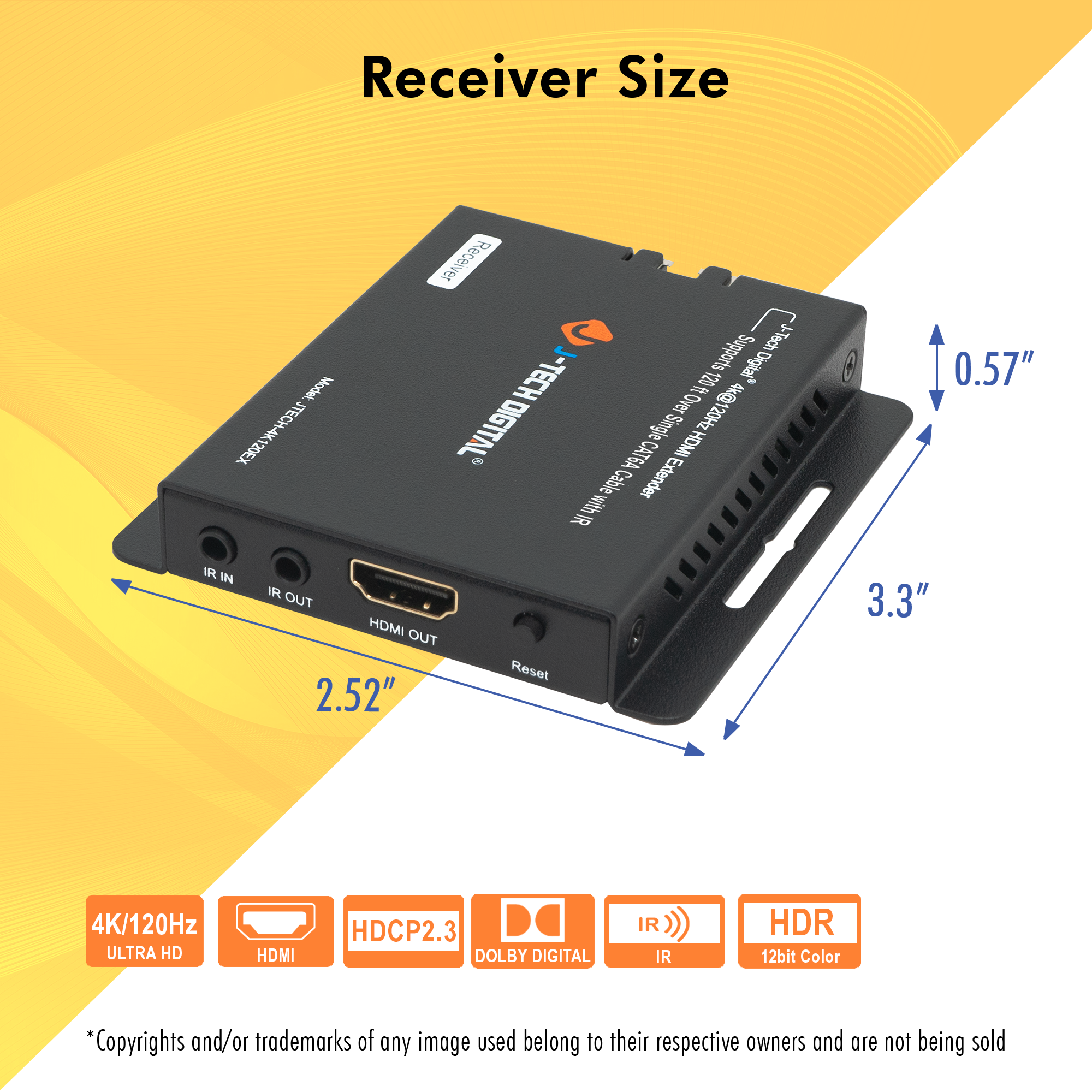

- Dimensions (L x W x H)
- 3.3" x 2.52" x 0.57
- Net Weight
- Transmitter / Receiver: 0.26lbs

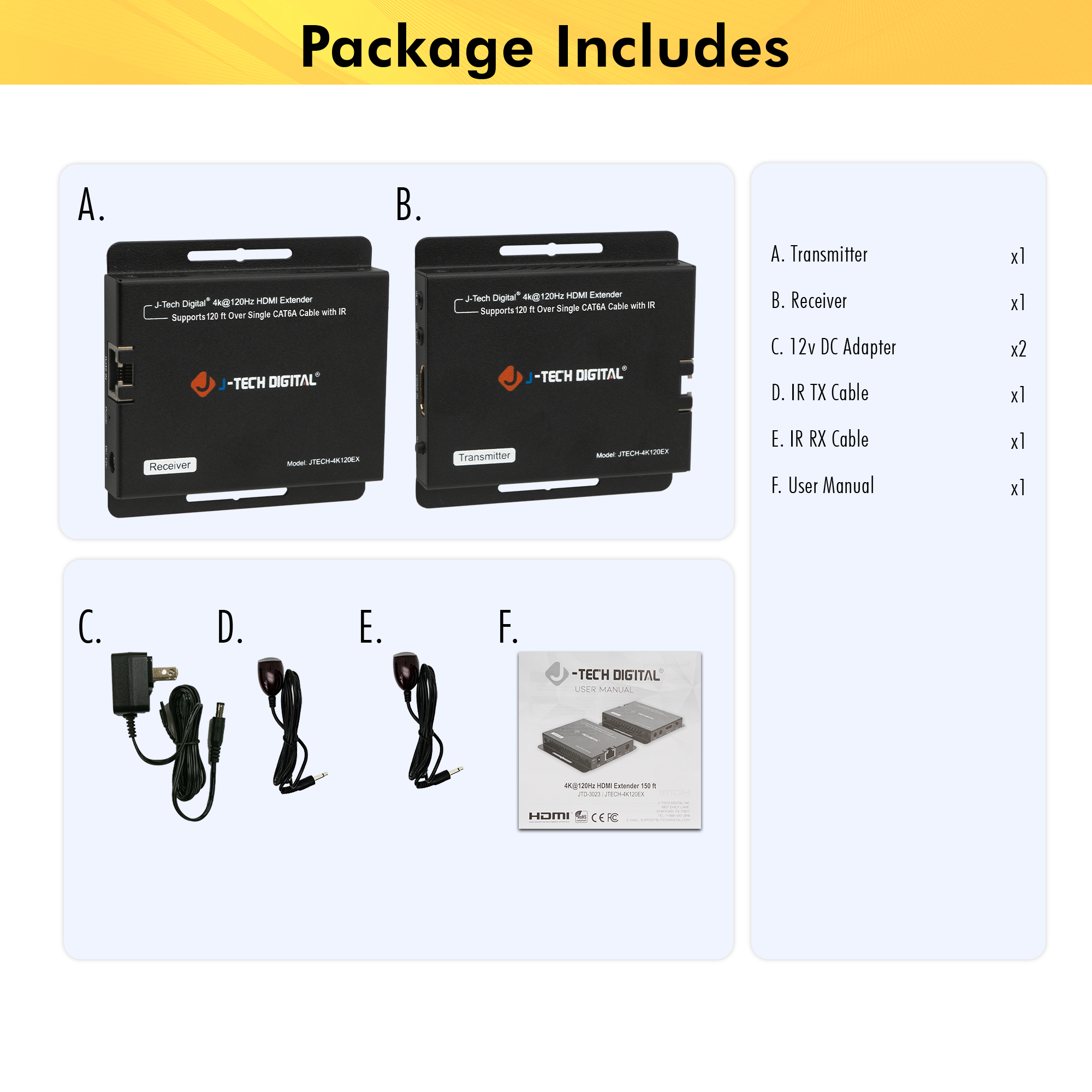

What's in the box
- 1 x Transmitter
- 1 x Receiver
- 2 x Power Adapaters 12V DC
- 1 x IR TX Cable
- 1 x IR RX Cable
