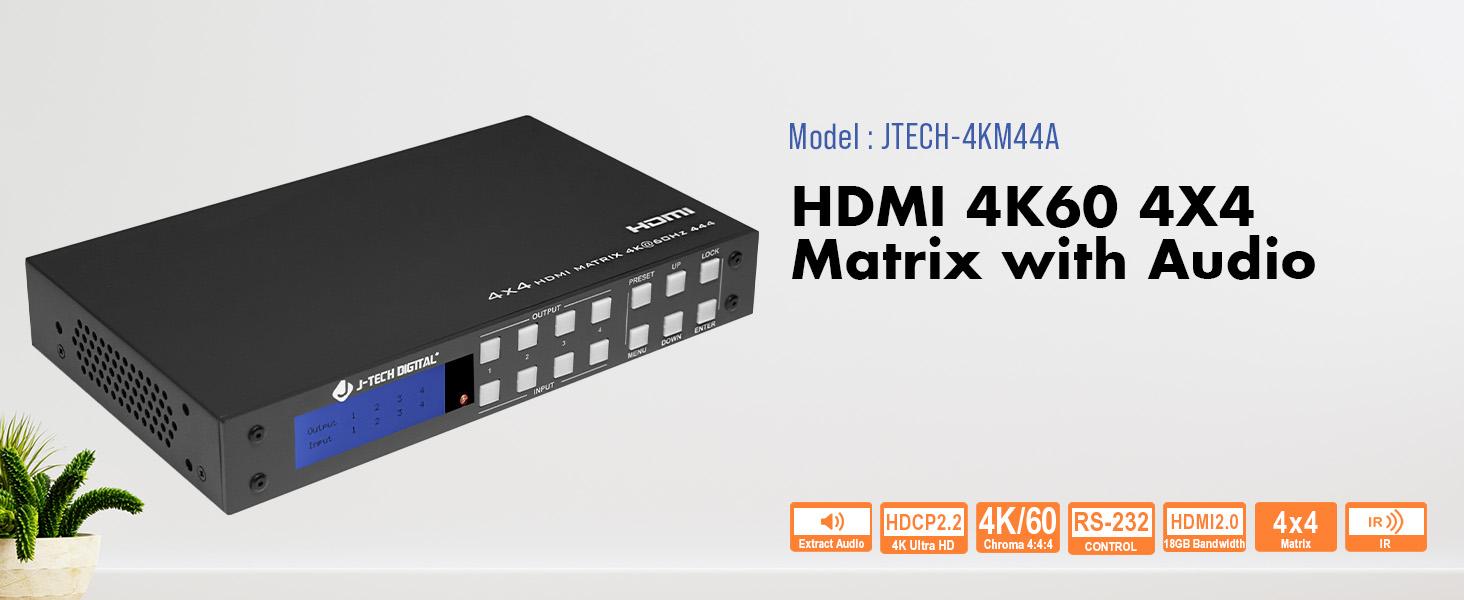

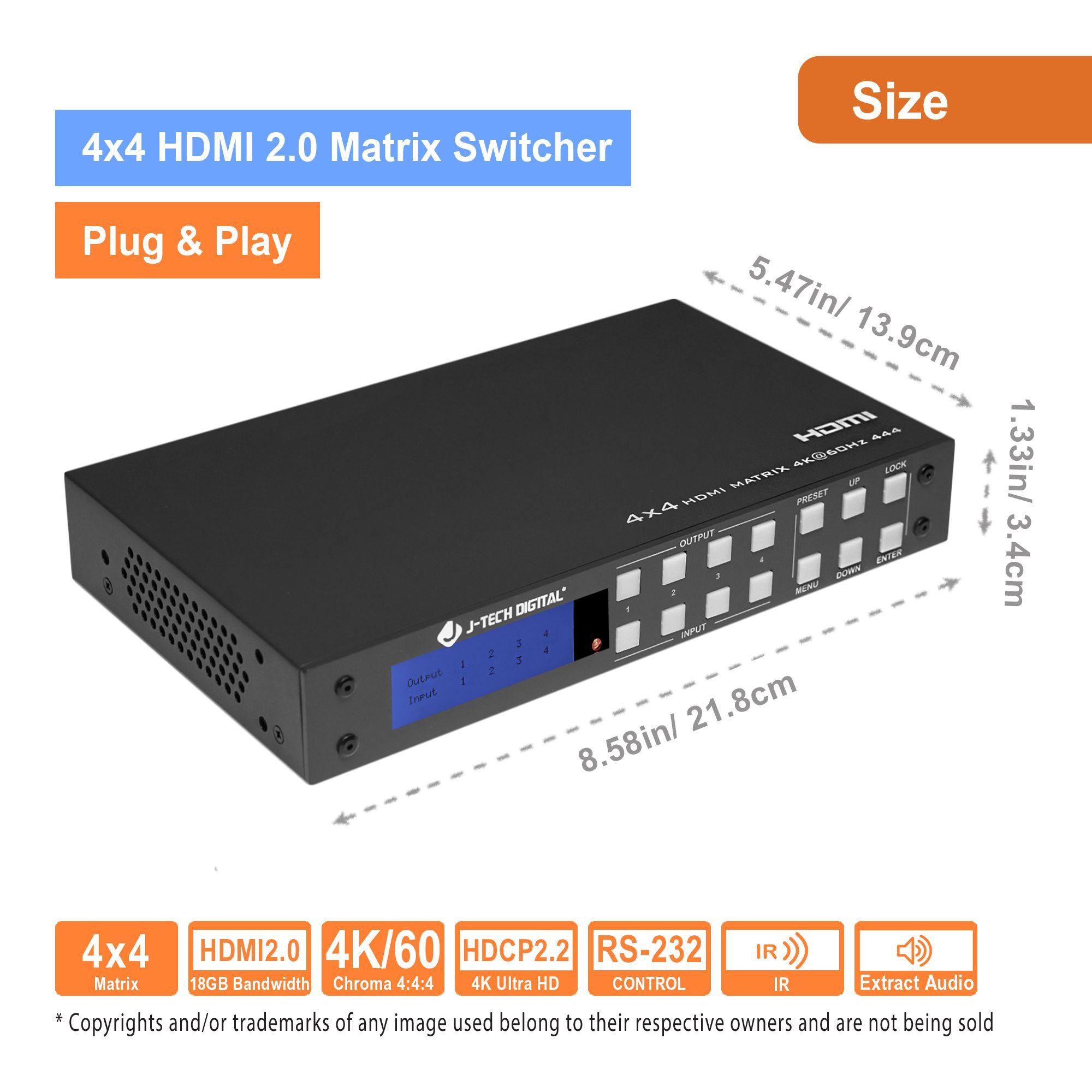

4K 60Hz 4x4 HDMI Matrix Switch with Audio De-Embedding

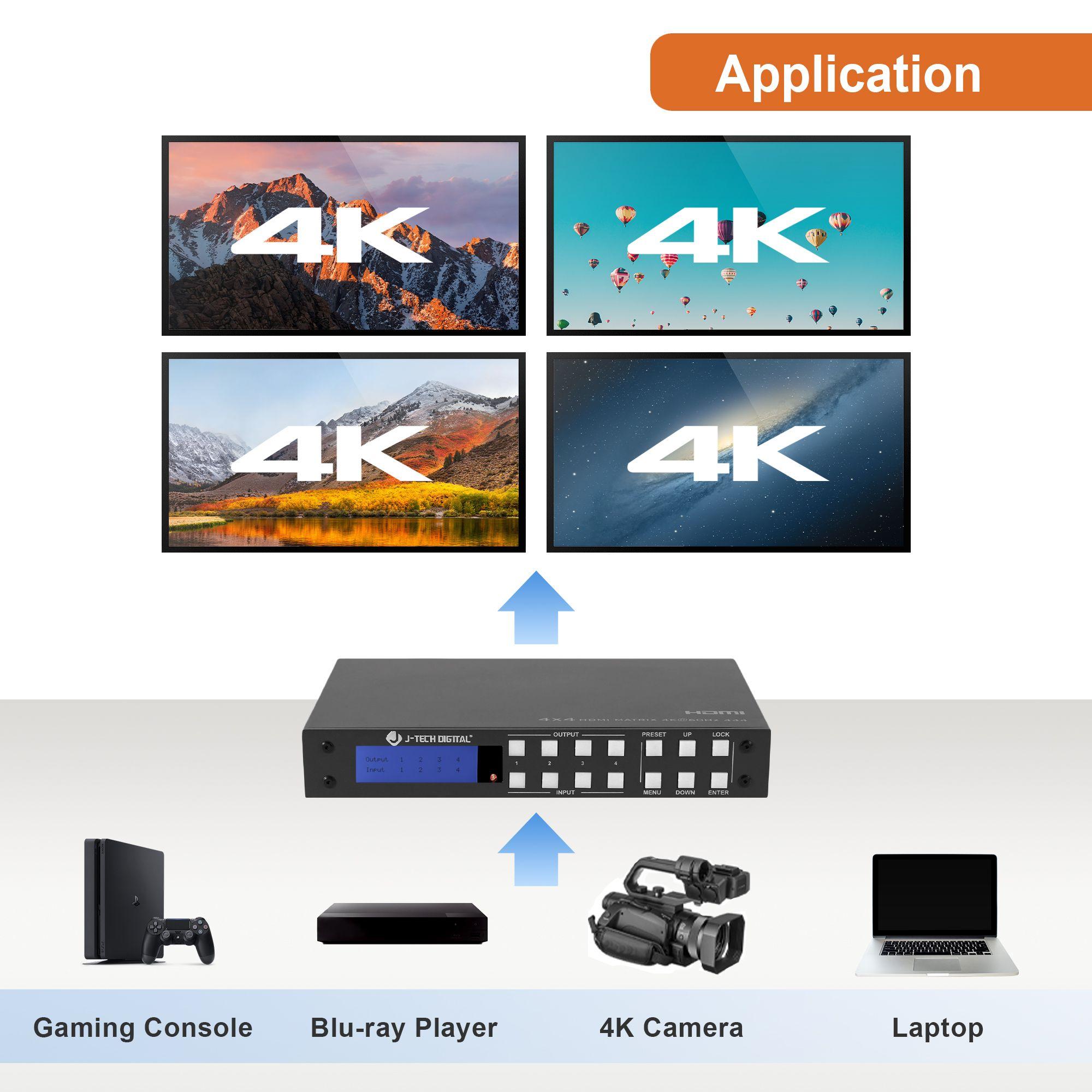

The J-Tech Digital JTECH-4KM44A is a professional UHD 4K@60Hz 4:4:4 HDR HDMI video distribution matrix switcher. With 18Gbps HDMI 2.0 support, the JTECH-M4KM44A 4×4 HDMI Matrix allows up to four UHD 4K sources to be independently routed to four UHD displays. All four outputs support audio de-embedding via coaxial S/PDIF or analog phoenix connectors. Pair the audio de-embedding function with the JTECH-4KM44A‘s EDID management tool (built in EDID + EDID copy) and you have an incredibly versatile and flexible HDMI routing system suitable for a number of applications.
✅ HDMI 2.0 | HDCP 1.4/2.2 Compliant | Supports HDR-10 | HLG | Dolby Vision

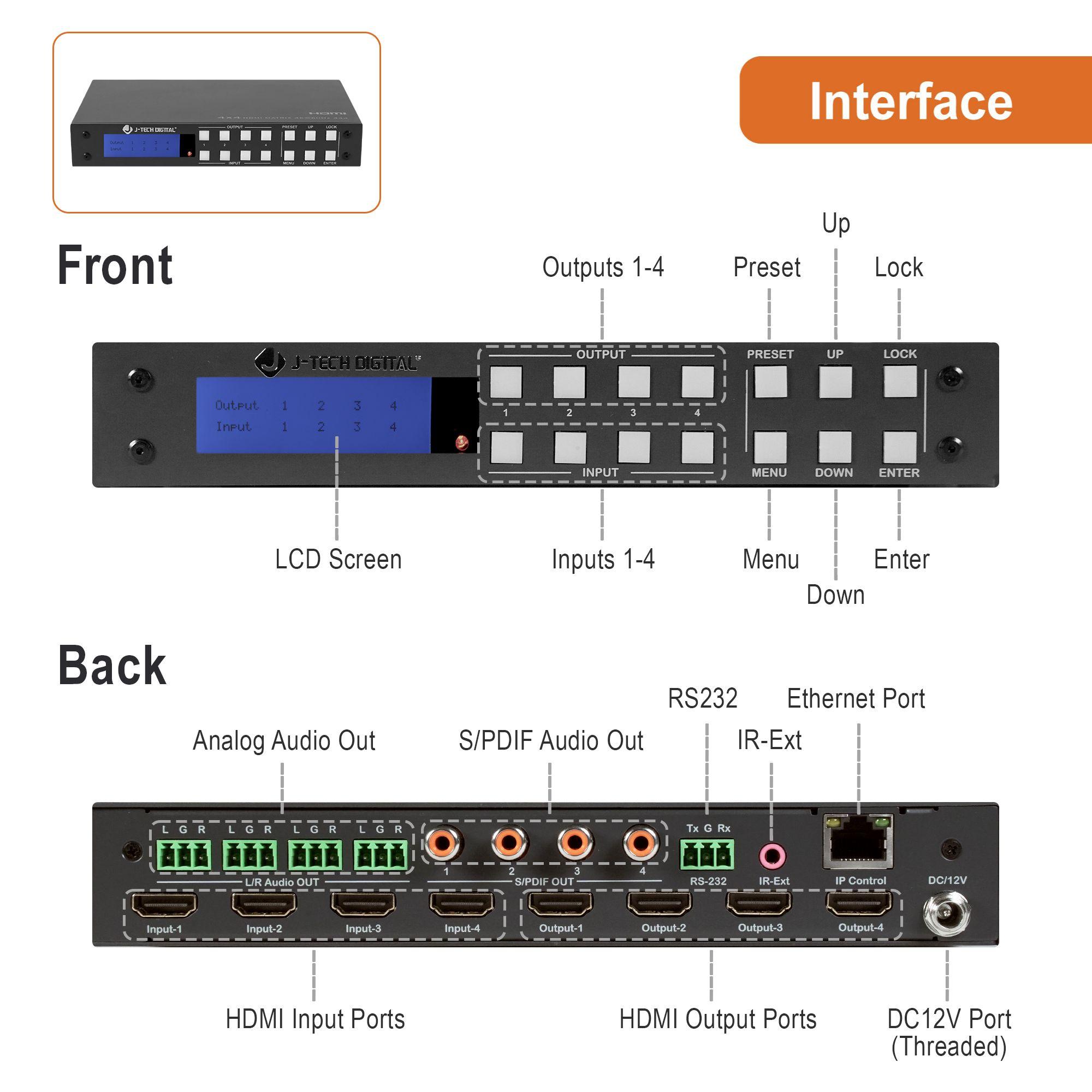

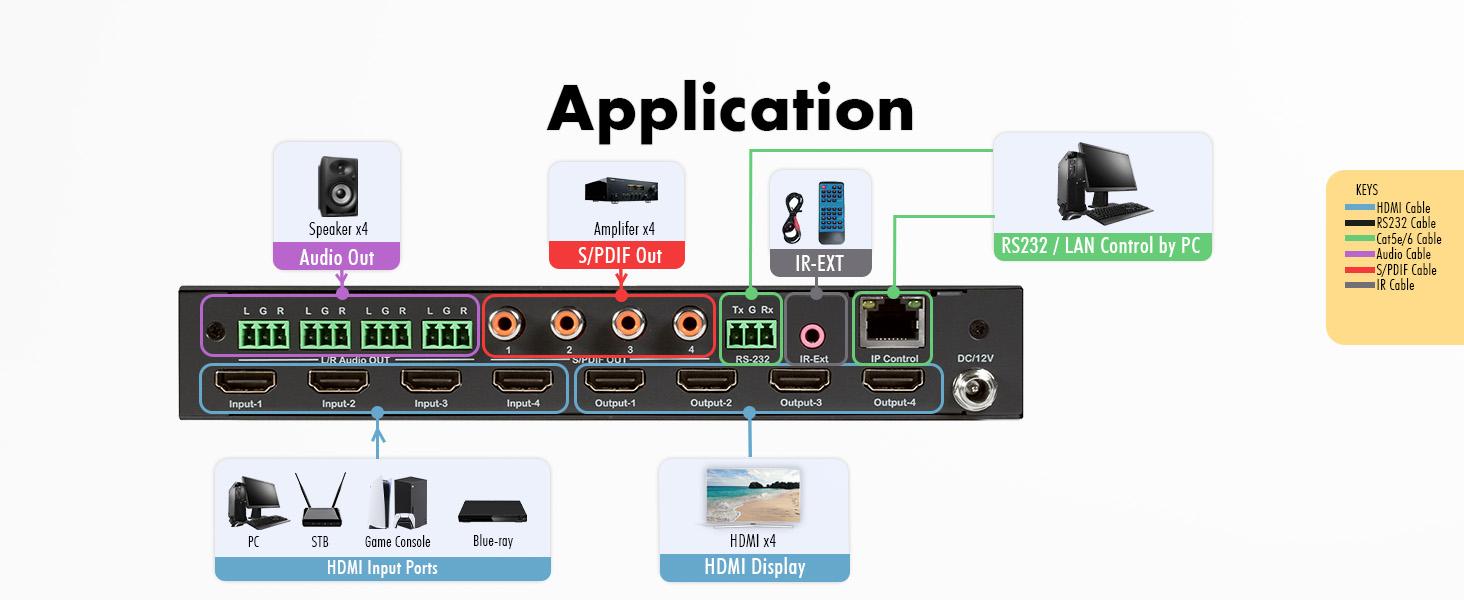

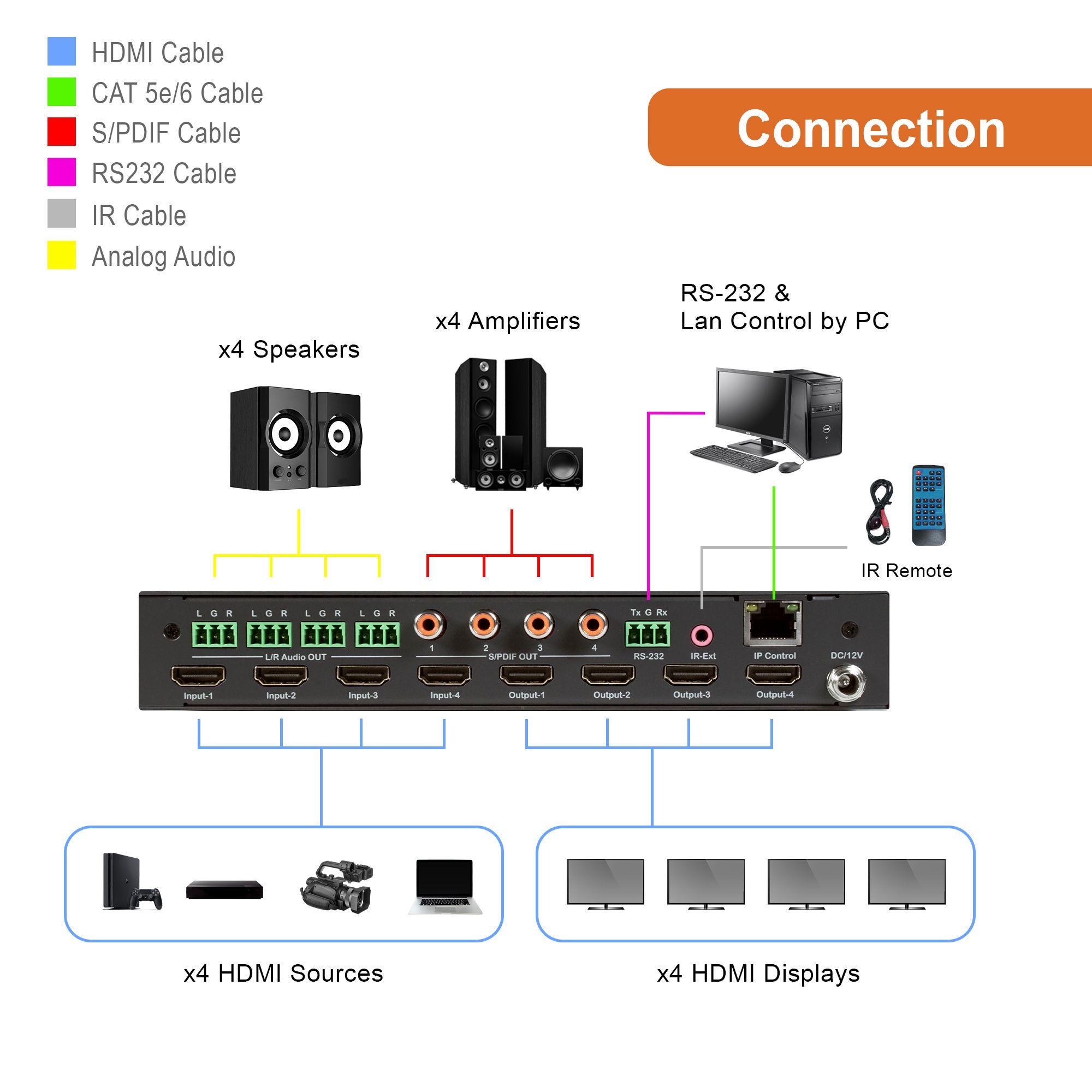

✅ 4 x HDMI 2.0 Inputs | 4 x HDMI 2.0 Outputs | 4 x Coaxial S/PDIF Outputs | 4 x Analog Phoenix Outputs

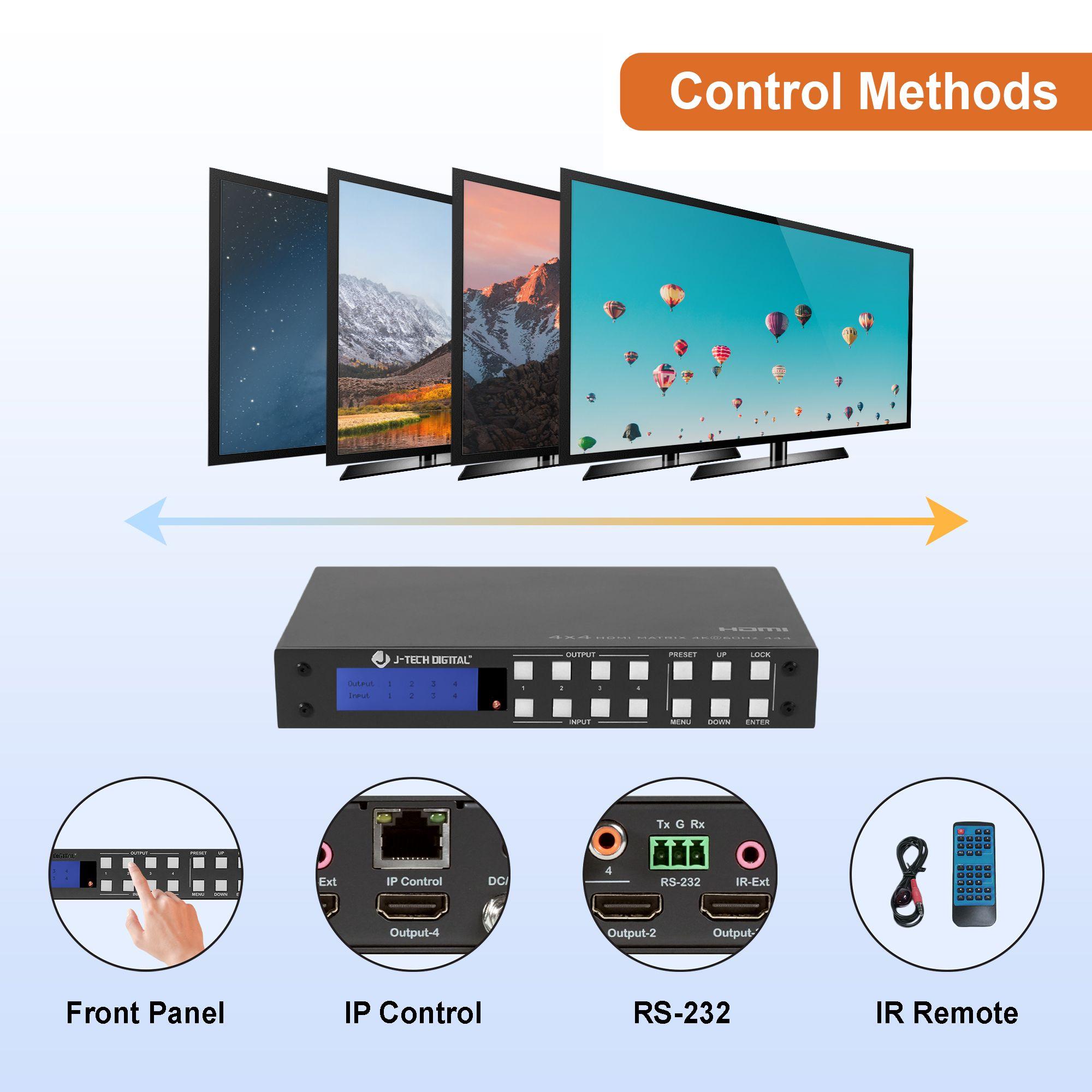

✅ Control via IR | RS232 | Web GUI
✅ Supports PCM 2.0 | Dolby True HD | DTS-HD Master Audio | LPCM 7.1 | Analog & Digital S/PDIF Audio Extraction
✅ Supports EDID Management & EDID Copy | Firmware Updates Available via USB Port
Information
- Brand
- J-Tech Digital
- MPN
- JTD-669
- Model
- JTECH-4KM44A
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
CONTROL4, JTDP8, QSYS
Specifications
- Audio From HDMI Output
- Up to LPCM 7.1 of 24-bit / 192KHz, Dolby Atmos, Dolby TrueHD, and Dolby Legacy Formats DTS:X, DTS-HD Master Audio, DTS 96KHz / 24 bits, and DTS Legacy Formats
- Digital Output Format
- PCM 2.0, Dolby True HD, DTS-HD Master Audio, LPCM 7.1
- Analog De-Embed
- Up to LPCM 2.0 of 24-bit / 96KHz (Input CODEC must be LPCM/PCM)
- Output
- 4 x S/PDIF (Coaxial) | 4 x 3-pin phoenix
- Input
- 4 x HDMI Type A
- Output
- 4 x HDMI Type A
- Resolution
- Up to 4K @ 60Hz
- Specification
- DVI 1.0, HDMI 1.4, HDMI 2.0, HDCP 1.4, HDCP 2.2
- Routing
- 4 x 4
- Chroma Sampling
- 4:4:4, 4:2:2, 4:2:0
- Color Depth
- 8, 10, 12 bits per color
- Color Format
- RGB and YCbCr digital video
- Colors
- 1 Billion (10-bit processing)
- EDID
- EDID Management and EDID Copy
- Frame Rate
- 24, 25, 30, 50, 60
- HDR
- HDR-10, Dolby Vision, HLG
- Maximum Data Rate
- 18 Gbps (6 Gbps per color)
- Maximum Pixel Clock
- 600 MHz
- Control Program
- Web
- USB Port
- 1 x USB Micro B
- IR Extender
- For IR Remote Controller
- IR Connector
- 1 x 3.5mm jack
- IR Carrier Frequency
- 38KHz
- Serial Port
- RS-232
- Serial Connector
- 1 x 3-pin phoenix
- Serial Baud Rate
- 115200
- Serial Data Bit
- 8 bits
- Serial Stop Bit
- 1 bit
- Serial Parity
- None
- Serial Pin Configuration
- TX-GND-RX
- Ethernet Port
- 1 x RJ45
- Ethernet IP Address
- 192.168.1.168
- Ethernet DHCP
- Off
- Ethernet Gateway
- 192.168.1.1
- Ethernet Subnet Mask
- 255.255.255.0
- Enclosure Type
- Metal
- Operating Humidity
- 5% RH - 90% RH (non-condensing)
- Operating Temperature
- 32°F - 104°F
- Power Supply Input
- AC 100V - 240V, 50Hz - 60Hz
- Power Supply Output
- DC 12V/2A, 24W
- Power Consumption
- 14W
- Rack Mount
- No
- Regulatory Compliance
- CE, PSE, RoHs, UL

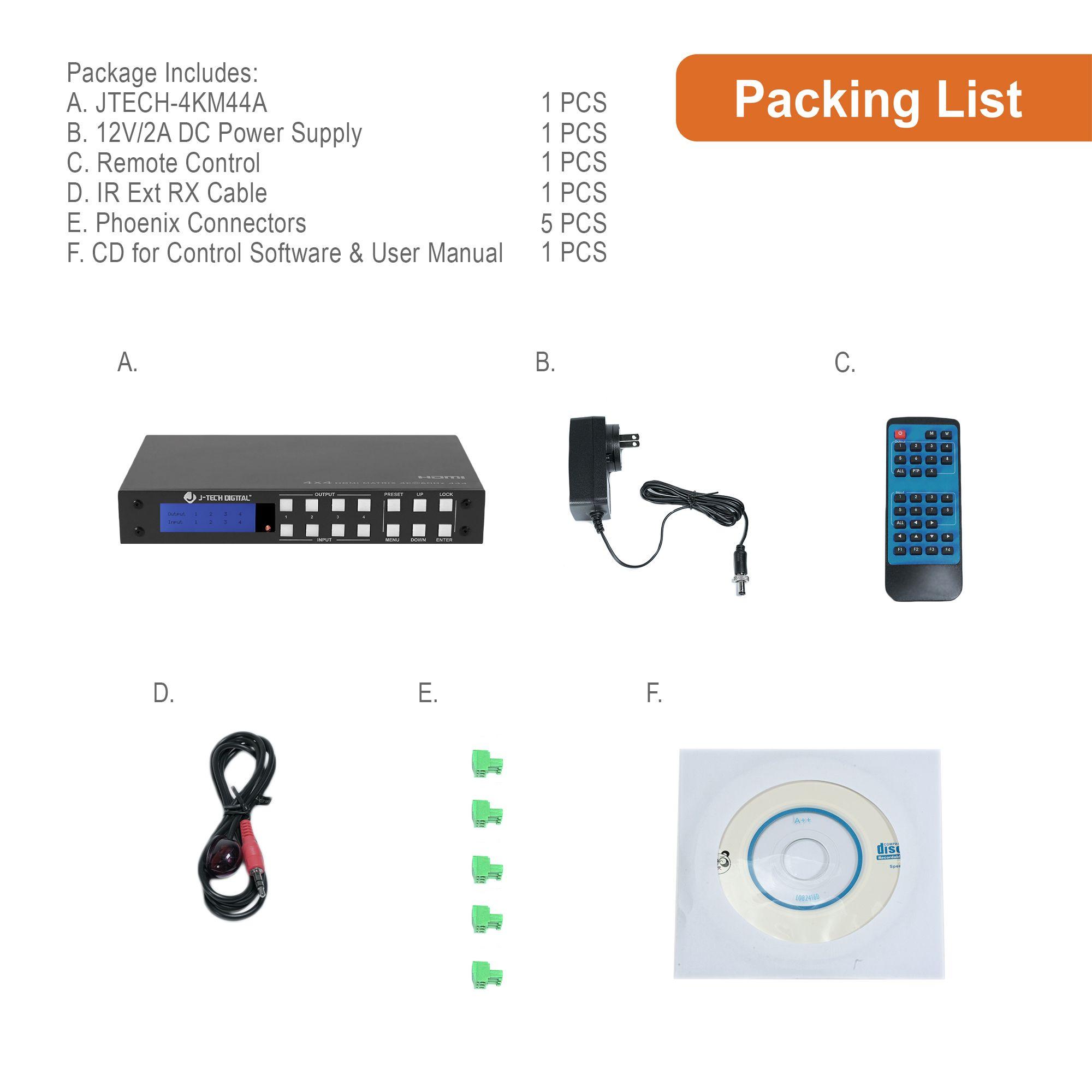

What's in the box
- 1 x JTECH-4KM44A 4×4 HDMI 2.0 Matrix
- 1 x 12VDC 2A Power Supply
- 1 x Remote Control
- 1 x IR EXT RX Cable
- 5 x Phoenix Plugs
- 1 x CD for Control Software & User Manual
Frequently asked questions
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
| Command List | 1.0 |
| P8 Driver | 1.0 |
| Firmware for New Command | 1.0 |
| Control 4 Driver (Legacy) | 1.0 |
| Control 4 Driver | 6.0 |
| Control 4 Driver | 7.0 |
| Control 4 Driver | 8.0 |
| Q-SYS v1 | 1.0 |
| URC v1 | 1.0 |
