Digital and Analog Audio Extender Over Ethernet CAT5e/6 (1640ft)

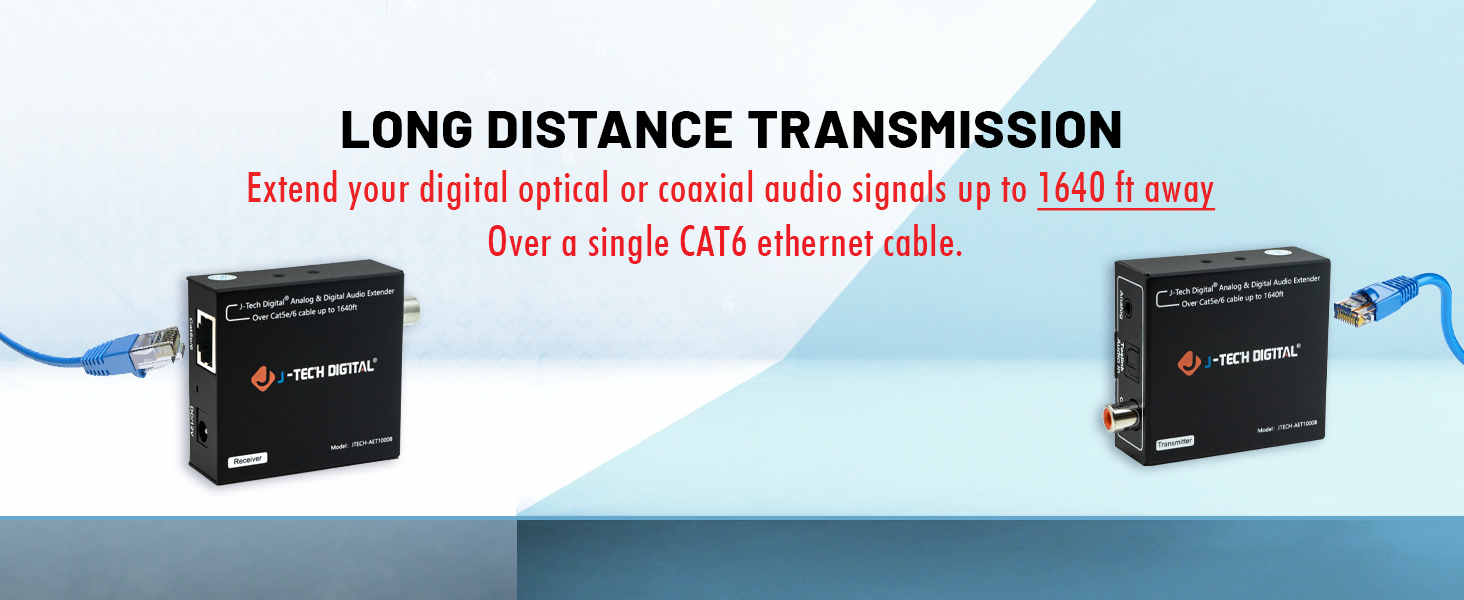

The J-Tech Digital JTECH-AET1000B Analog + Digital Audio Extender is the ideal solution for applications that require long-range extension of audio signals. The JTECH-AET1000B allows users to extend surround sound digital audio signals 1,640 feet away and analog audio signals 1,480 feet away over a single Cat6 Ethernet cable.

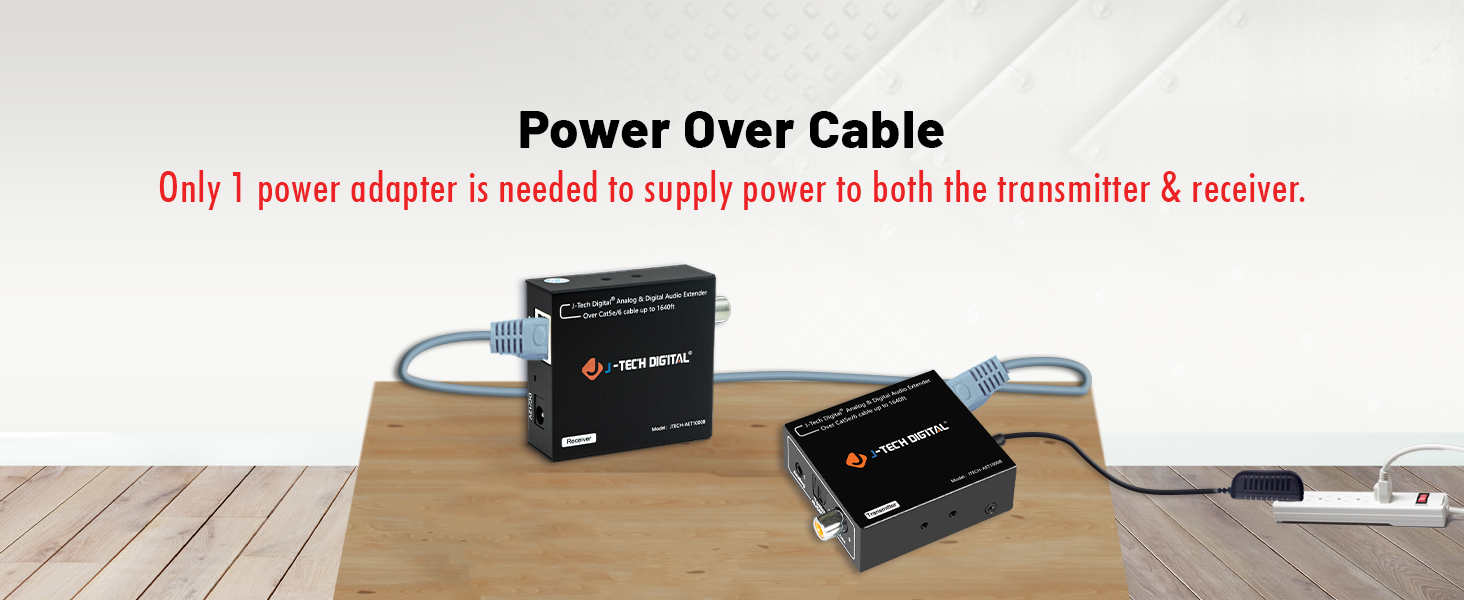

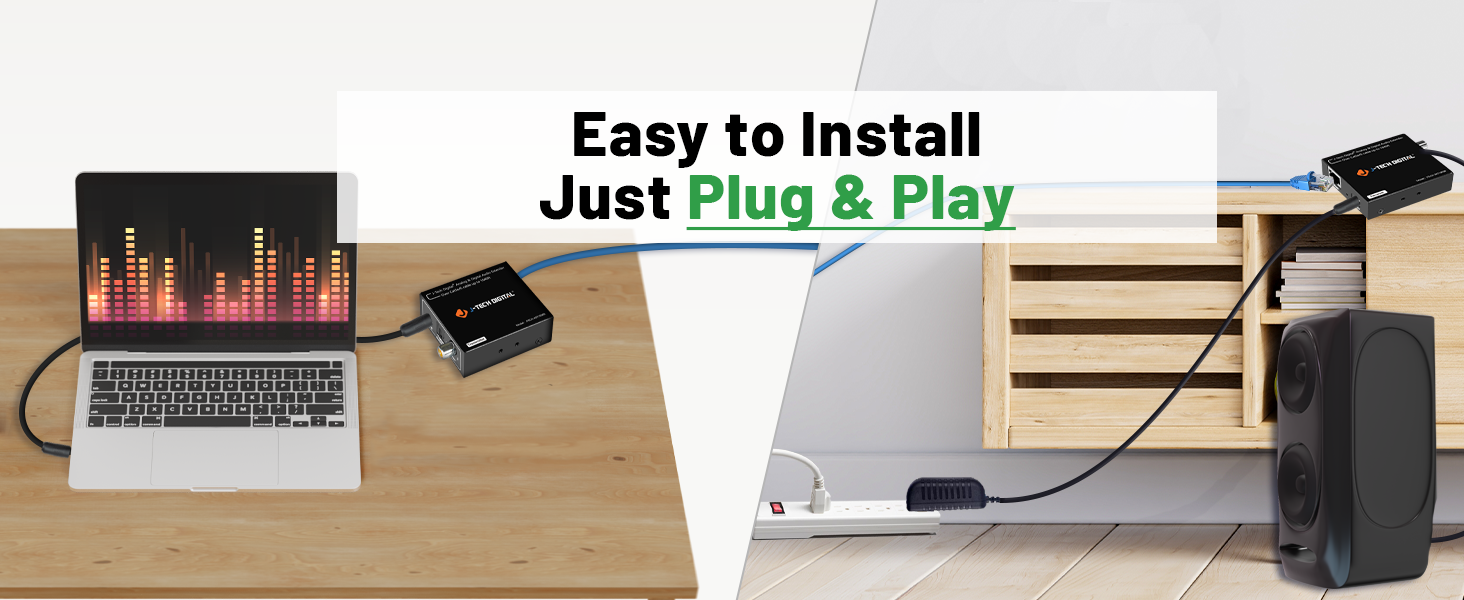

Installation is as simple as plug and play! The JTECH-AET1000B audio extender utilizes PoC (Power Over Cable) technology and only requires one power adapter to power both the transmitter and receiver; saving you from finding a free electrical outlet on one end, flexible installation options, and fewer cable management headaches!
✅ Transmission Distance: Analog – 1480FT | Digital – 1640 FT

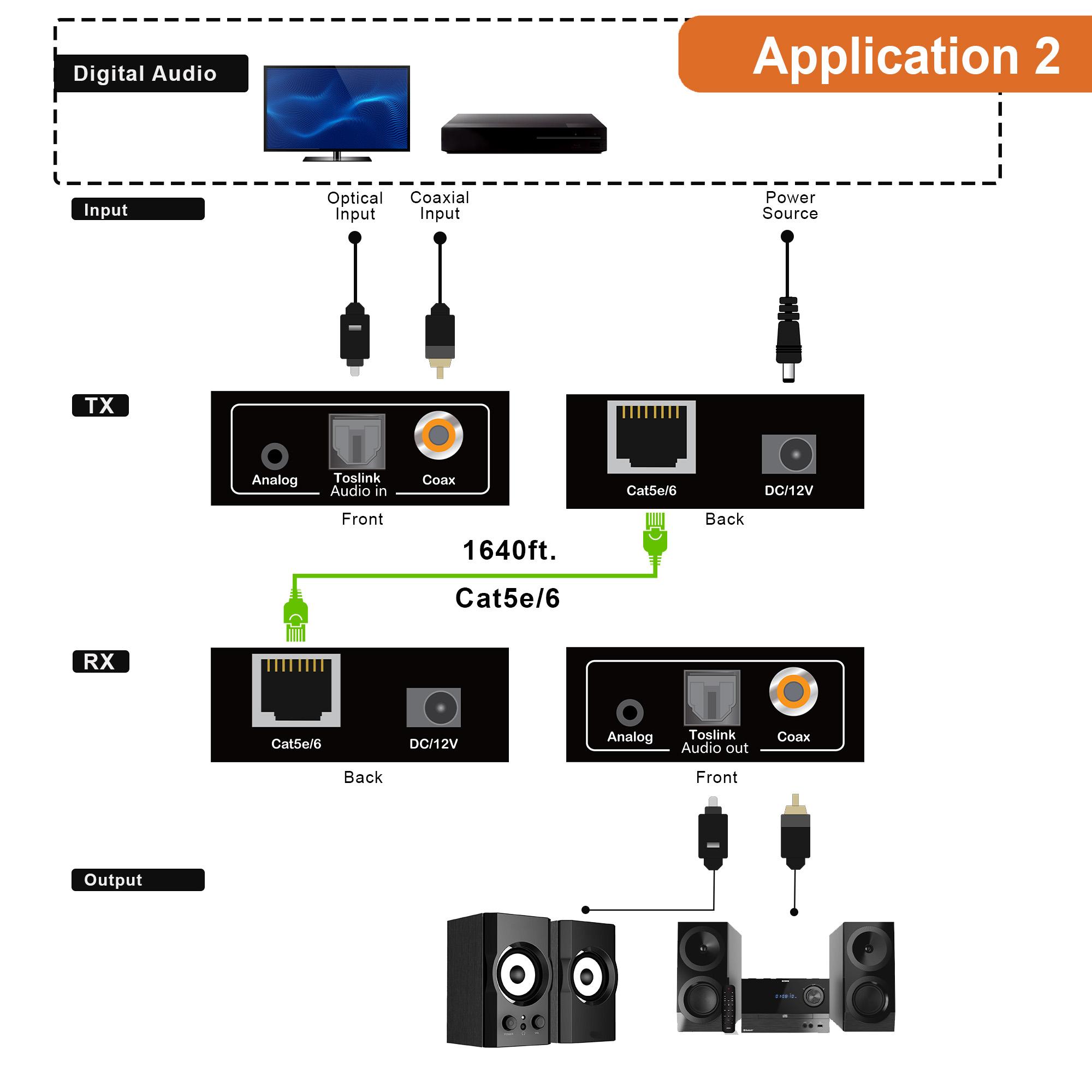

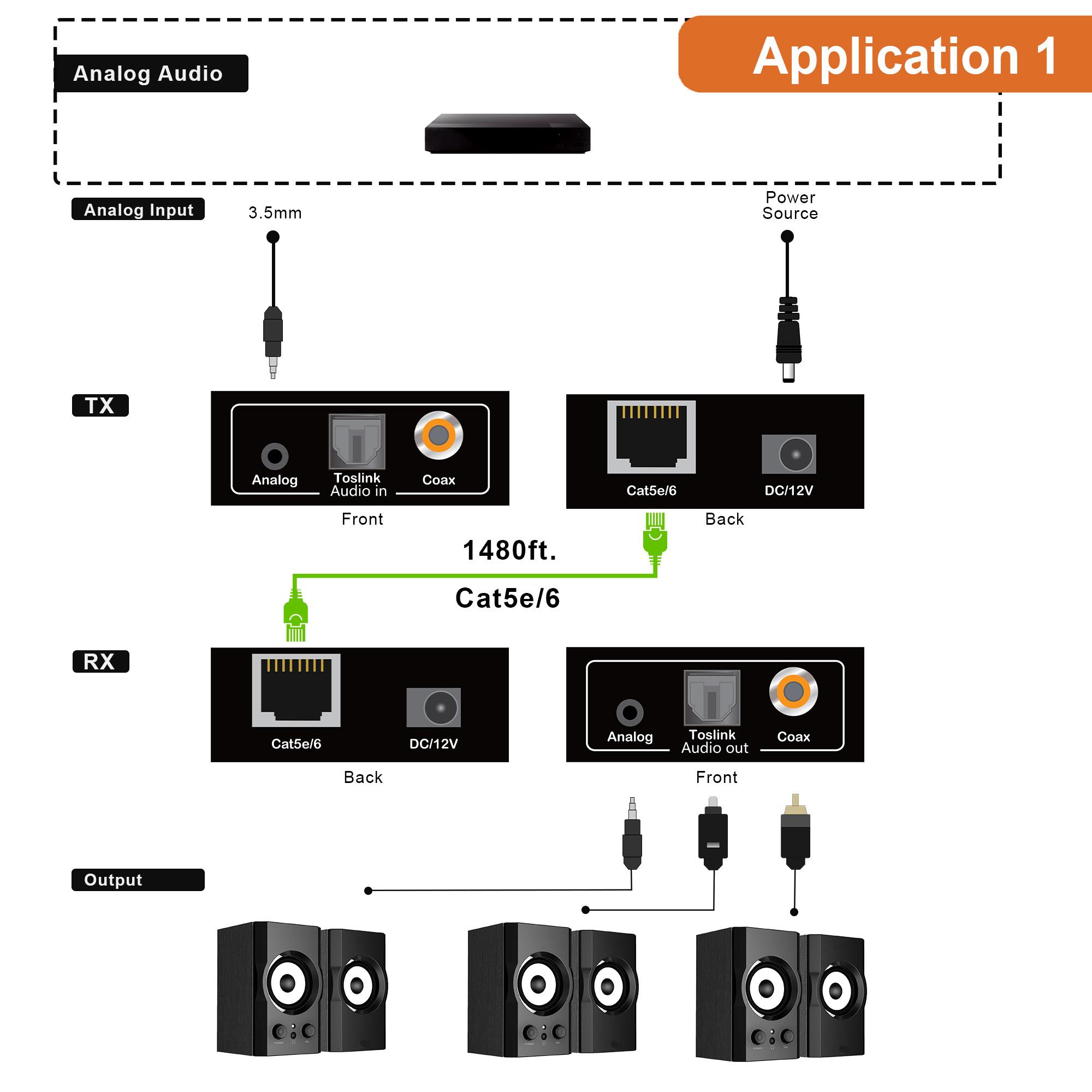

✅ Accepts Analog (3.5mm), SPDIF Coaxial, SPDIF Optical Form Factors
✅ Auto-Identify Audio Input: Analog > Digital Coaxial > Digital Optical
✅ Supports PCM 2.0 CH | Digital 5.1 CH (DTS, Dolby Digital, etc.)
✅ Supported Sample Rates: Input – 44.1 – 96 KHz | Output – 48 KHz 16-24 bit
✅Supports AC 100-240V 50/60Hz Input Power | DC12V/1A | PoC (Power Over Cable)
Information
- Brand
- J-Tech Digital
- MPN
- JTD-402
- Model
- JTECH-AET1000B
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications
- Operating Temperature Range
- 0 to +40℃ | 32 to 104℉
- Operating Humidity Range
- 5 to 90% RH (No Condensation)
- Data Transfer Speed
- 6.9 Mbps
- Power Consumption
- 1.5 Watts (Max)

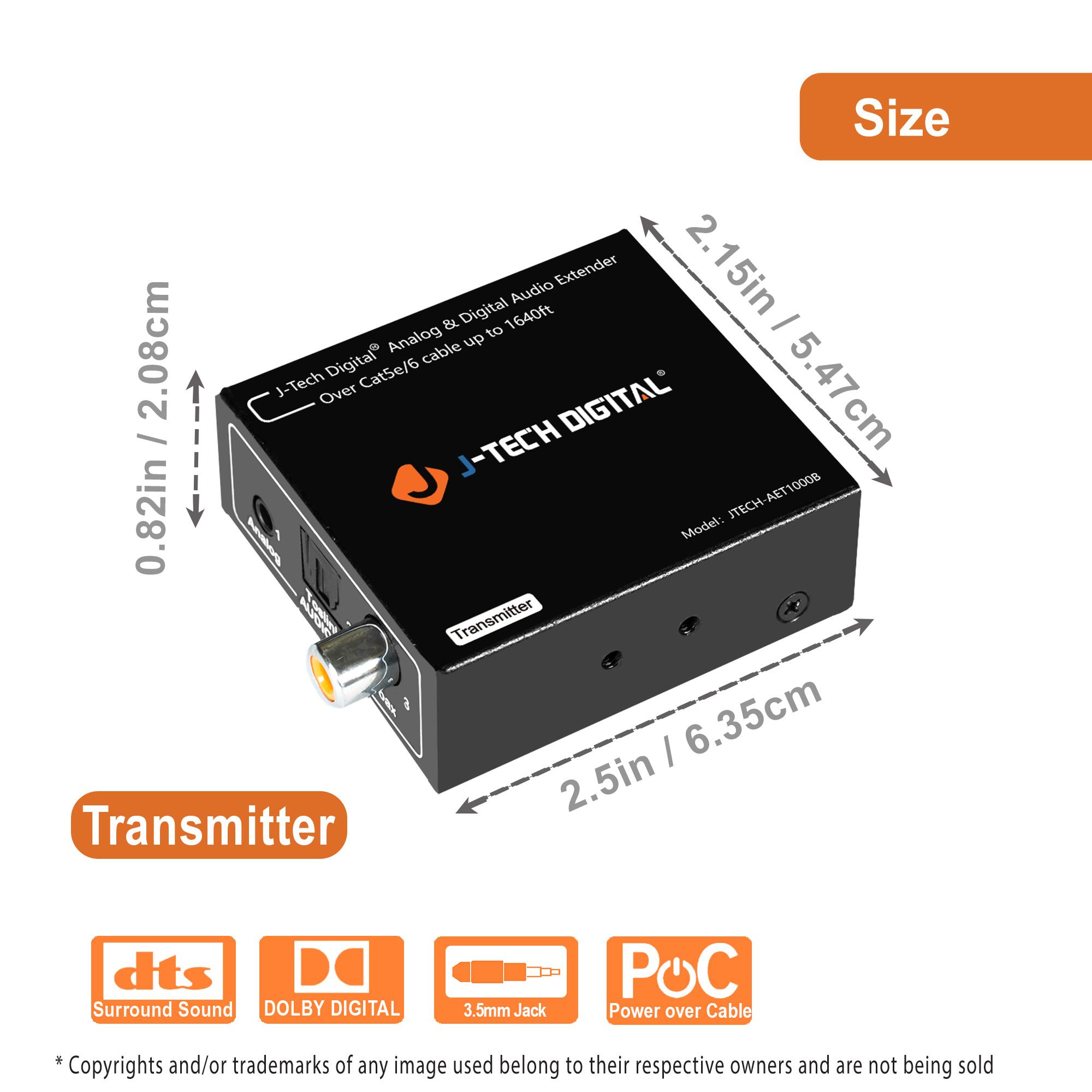

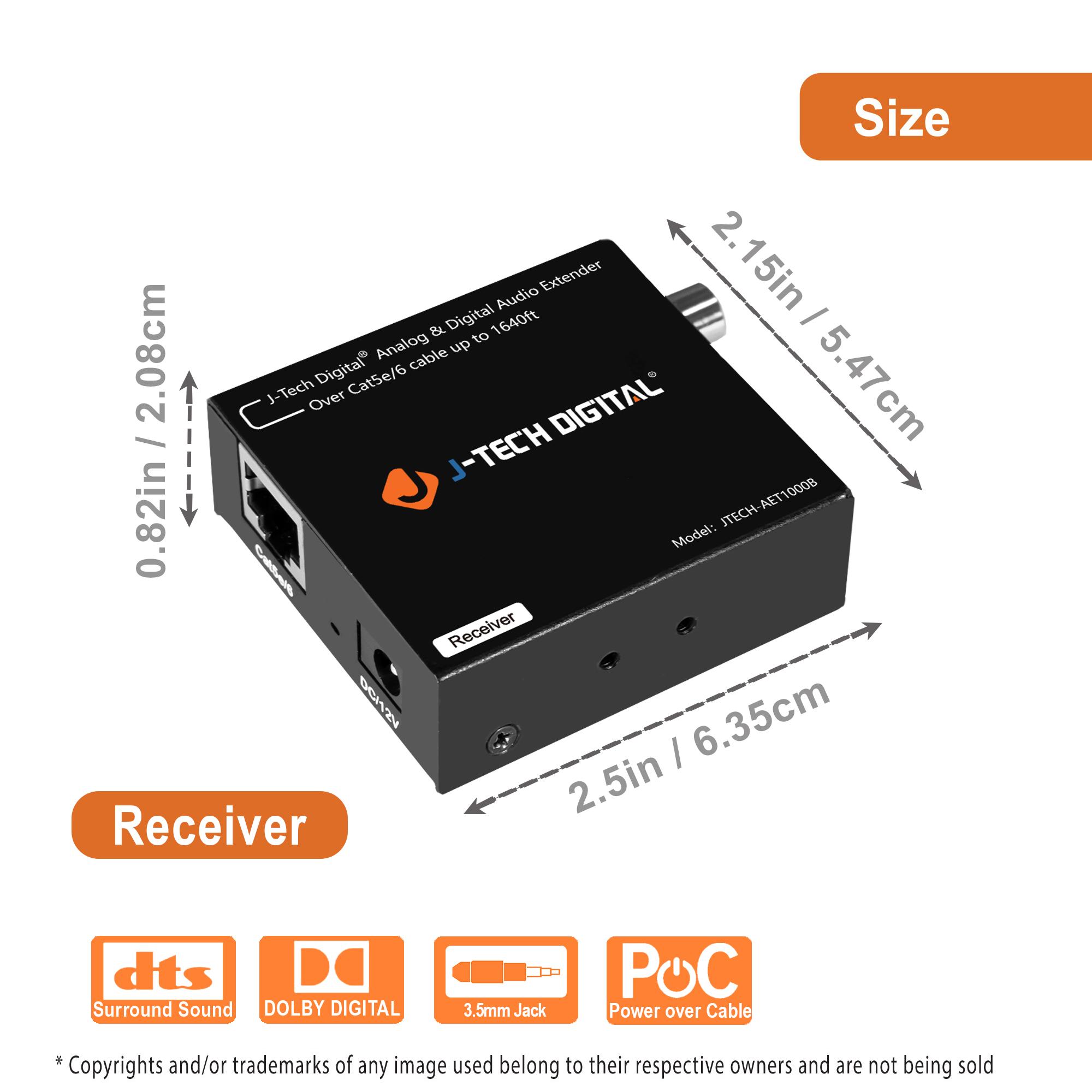

- Dimension (L×W×H)
- 58.5 x 54.7 x 21 mm
- Net Weight
- 182g (Pair)
- Transmitter

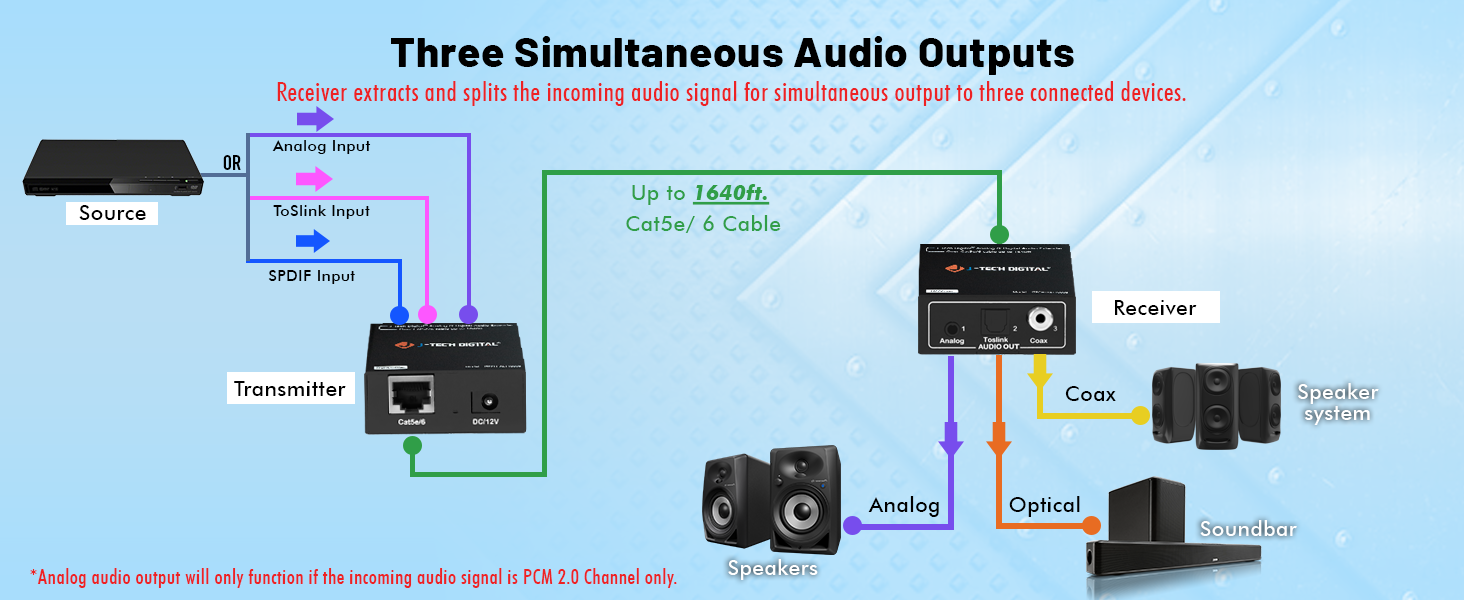

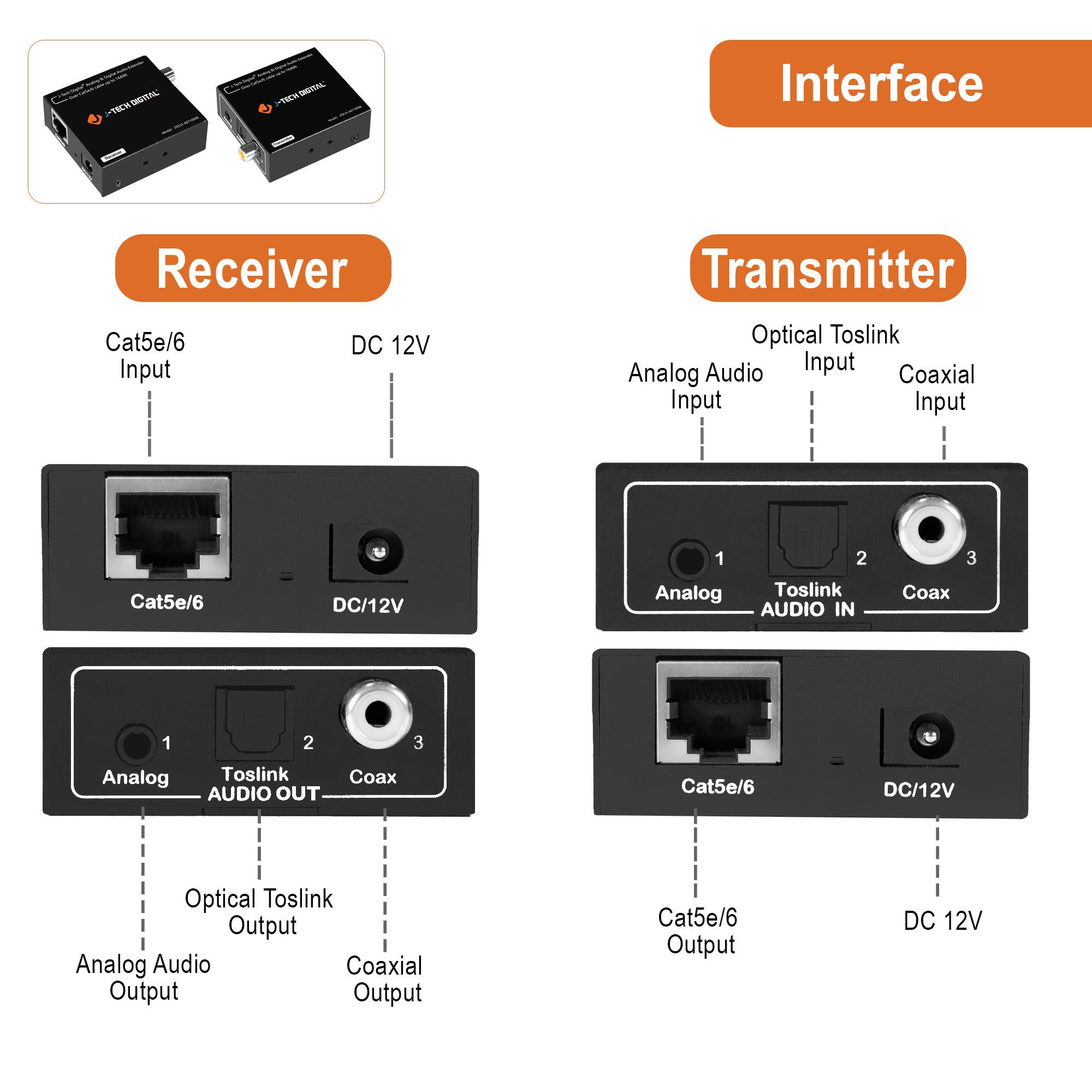

- 1 x Cat5e/6 out, 1 x Power DC, 3 x Audio In (Analog | Optical | Coaxial)
- Receiver
- 1 x Cat5e/6 in, 1 x Power DC, 3 x Audio Out (Analog | Optical | Coaxial)
- Audio Format Support
- PCM 2.0, Dolby Digital EX, Dolby Digital 5.1, DTS-HD, DTS ES Discrete 6.1, DTS Digital Surround 5.1

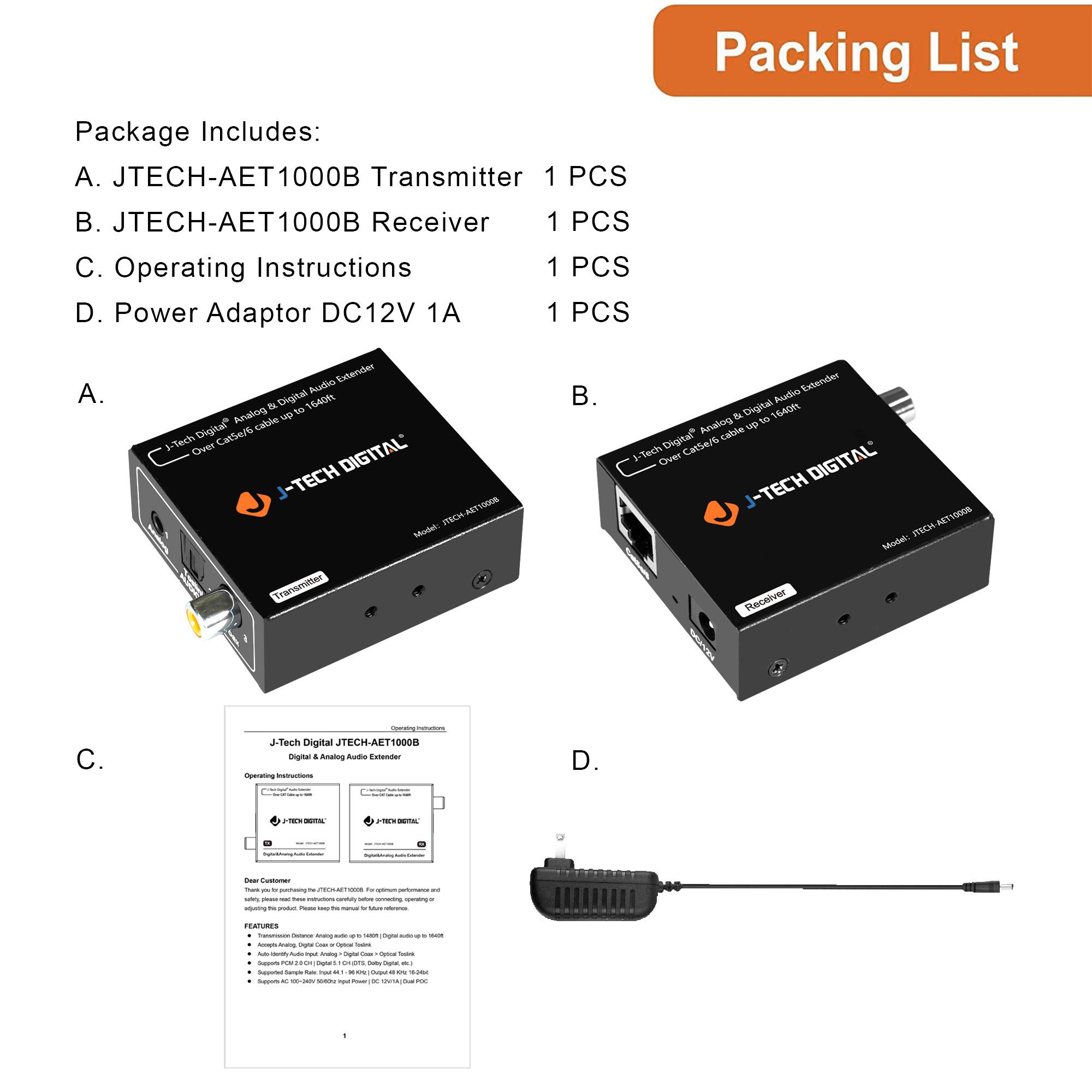

What's in the box
- 1 x Transmitter
- 1 x Receiver
- 1 x User Manual
- 1 x Power Adapter
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
