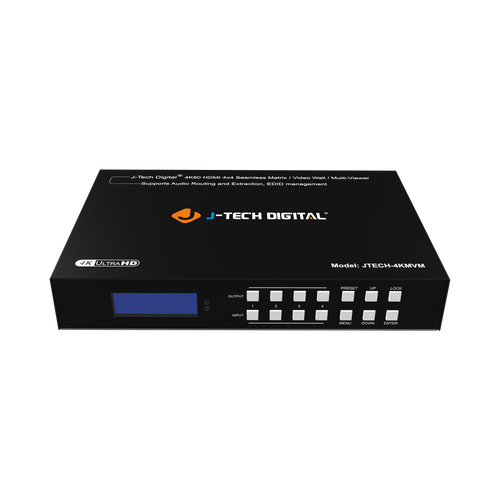

The JTECH-4KMVM combines an HDMI matrix, video wall controller, and multiviewer in one compact device. Supporting up to 4K@60Hz resolution, it allows seamless routing of 4 HDMI inputs to 4 outputs with no data-delays or picture loss. As a video wall controller, it offers 7 display modes, including 2x2 and 1x4 layouts, with a 180° rotation function per display for 2x2 setups. The multiviewer feature provides 12 viewing modes, including Picture-in-Picture (PIP) and 1 big, 3 small layouts, for displaying up to 4 sources on a single screen. Advanced audio features include sound extraction and routing via 3.5mm or SPDIF outputs for precise mixing. Its sleek, space-saving design ensures easy installation and a clean, professional setup.

✅ Features seamless HDMI matrix, video wall controller, and multiviewer function in one small and compact design

✅ Supports 4x4 HDMI matrix function with seamless switching

✅ Video wall controller with 7 display modes; 2x2, 1x4, 1x2, 1x3, 1x4, 2x1, 3x1. Supports 180° degree rotation per display in the 2x2 mode

✅ 4x1 multiviewer function with 12 different modes, including 4 equal screens, dual up/down, dual side by side, PIP, 1 big 3 small mode, and more

✅ Supports audio extraction via 3.5mm and/or SPDIF outputs from the HDMI inputs. Also features audio routing, allowing you to mix and match audio and video signals from HDMI sources and 3.5mm audio in ports

✅ Control via remote control, front panel buttons, RS232, or webGUI
