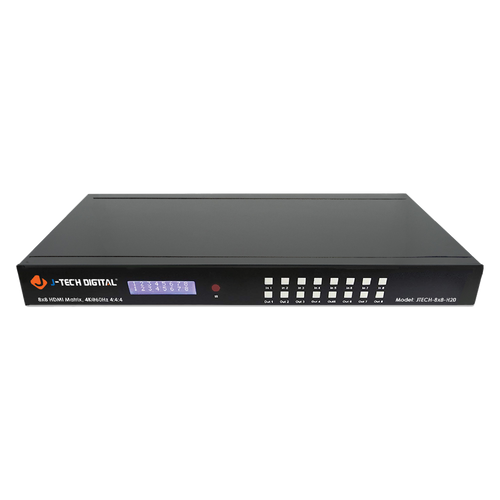

JTECH-8X8-H20 HDMI Matrix Switch – 8x8 4K@60Hz HDMI 2.0 Matrix with SPDIF, RS232, IR & Ethernet Control

Take full control of your AV setup with the JTECH-8X8-H20 HDMI Matrix Switch, featuring 8 HDMI inputs and 8 HDMI outputs. Route any input to any output to create a flexible 8x8 HDMI matrix, with each output including an independent coaxial SPDIF audio port for external sound systems.

Delivering stunning 4K@60Hz Ultra HD video performance, this unit is fully HDMI 2.0 and HDCP 2.2 compliant, ensuring compatibility with the latest 4K displays, projectors, and sources.

Built for industrial-grade reliability, the JTECH-8X8-H20 uses a state-of-the-art embedded chipset with ESD protection, tested for thousands of hours across professional environments such as security systems, digital signage, broadcast studios, and theaters.

Easily manage your setup via front-panel buttons, RS232, Ethernet, or IR remote control, with Control4 driver integration available for automation systems.

✅ HDMI 2.0 version supporting 4K@60Hz (YUV 4:4:4).

✅ 3D video compatible.

✅ Bandwidth up to 18Gbps.

✅ HDCP 2.2 input and HDCP 2.2 output.

✅ HDCP 1.4 input and HDCP 1.4 output.

✅ HDR10 support.

✅ 8× HDMI inputs and 8× HDMI outputs with 8× SPDIF audio outputs.

✅ Route any of the 8 Ultra HD sources to any of the 8 Ultra HD displays.

✅ Dolby TrueHD and DTS-HD Master Audio support.

✅ Micro USB port for firmware upgrades.

✅ Control options: front-panel buttons, IR remote, RS232, IP, and web GUI.

✅ 1U rack-mount design for easy installation.

✅ Unit dimensions: L440 × W220 × H44.5mm.
