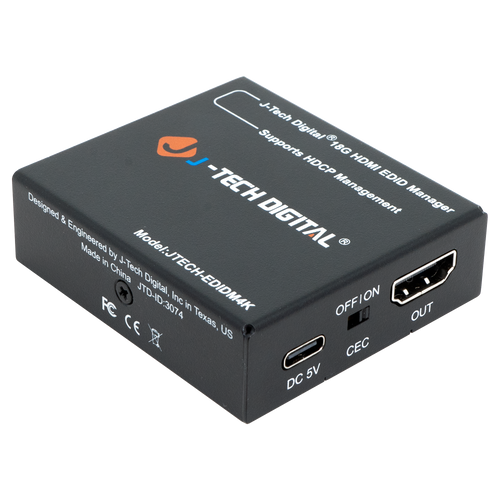

The JTECH- EDIDM4K is an 18G 4K 60Hz HDMI EDID and HDCP emulator / manager that allows users to eliminate most incompatibility issues between input source devices and displays that may occur due to resolution or HDCP compliance. This unit has 8 predefined EDID modes built in, and also allows users to upload user defined EDID settings (via USB-C) if needed. Supports HDMI 2.0 and HDCP 2.2, and allows for HDCP 2.2 (source) to be converted to HDCP 1.4 (display). Take advantage of 4K 60Hz resolution supports along with auto-downscaling function.

Say goodbye to unnecessary power adapters and extra cables. The JTECH-EDIDM4K can be powered via the HDMI cable or a USB-C cable. Also featured is a CEC toggle switch that allows for the CEC function to be turned on/off as needed. Offering a plug and play function along with a compact design, the JTECH-EDIDM4K can be easily integrated within any setup, and can be traveled with anywhere with ease.

✅ Features a DIP switch used to manage EDID and HDCP settings. Features 8 different EDID settings to help with incompatibility issues between source devices and displays

✅ Offers users to upload their own EDID setting via USB-C port

✅ Allows for HDCP 2.2 (source) to be converted to HDCP 1.4 (display)

✅ Unit can be powered by HDMI or USB-C (*Note: Cables not included)

✅ CEC toggle switch allows for CEC function to be turned on/off as needed

✅ Supports up to 4K 60Hz resolution with auto-downscaling. HDMI 2.0, HDCP 2.2 compliant

✅ USB-C port can be used for power, custom EDID upload, and firmware upgrade
