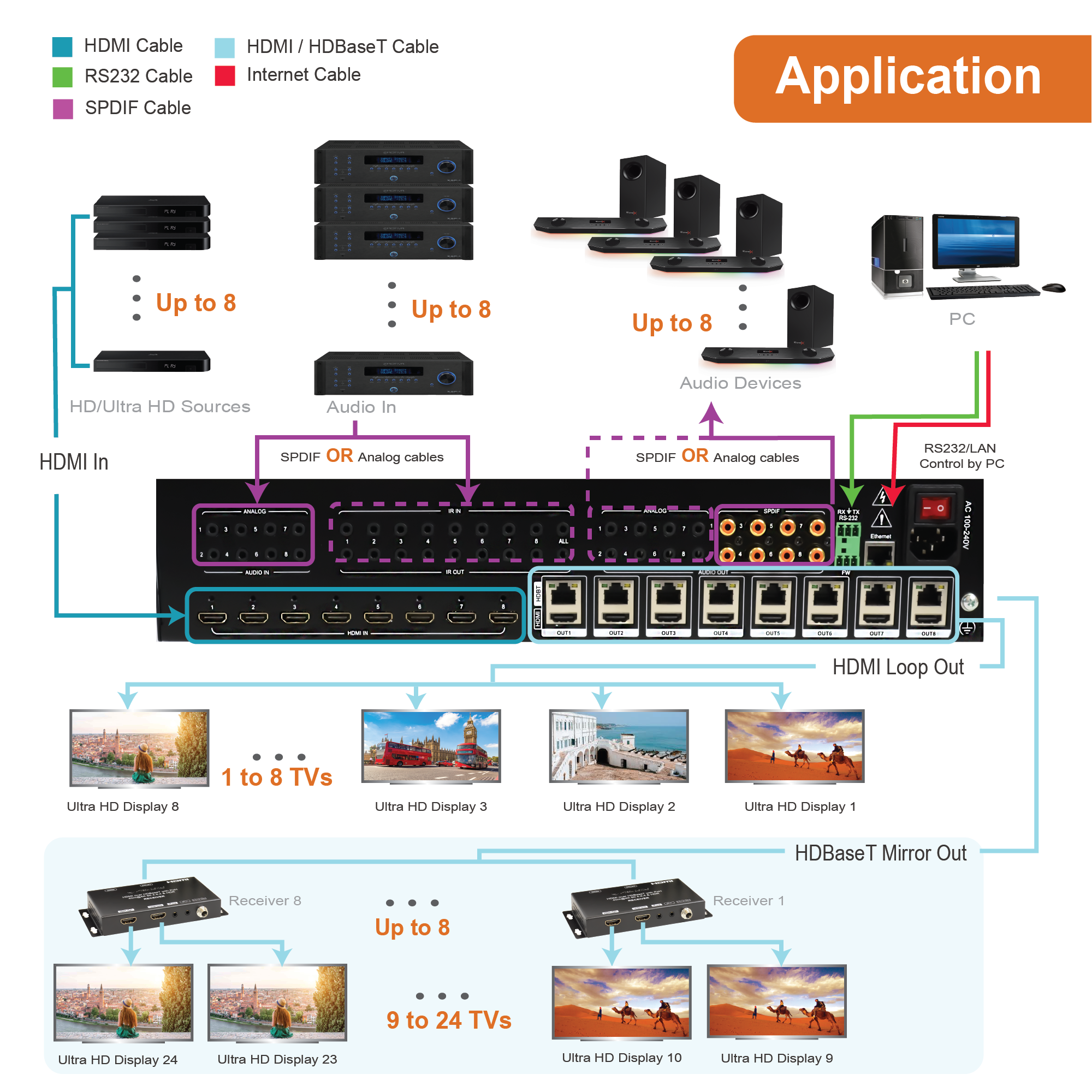

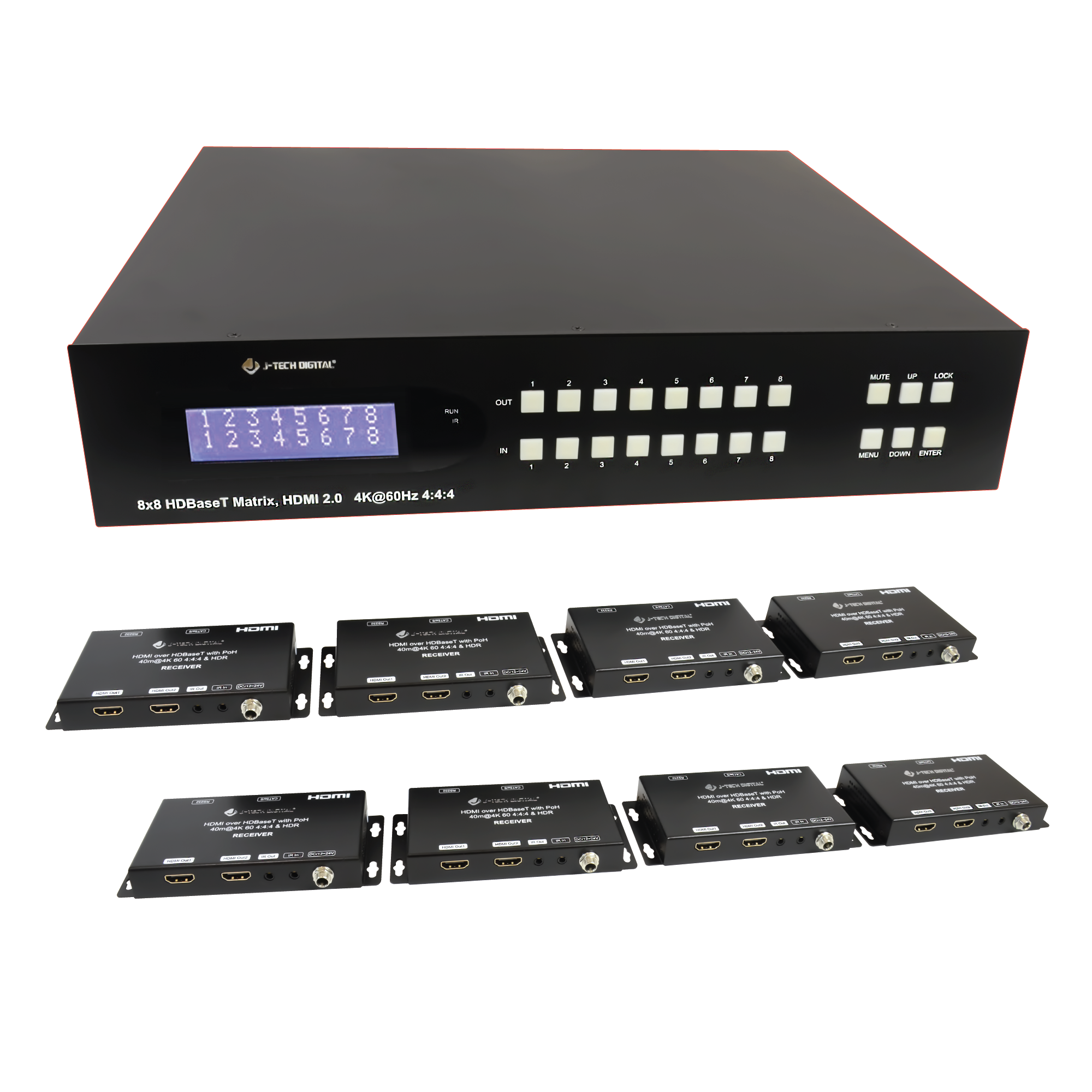

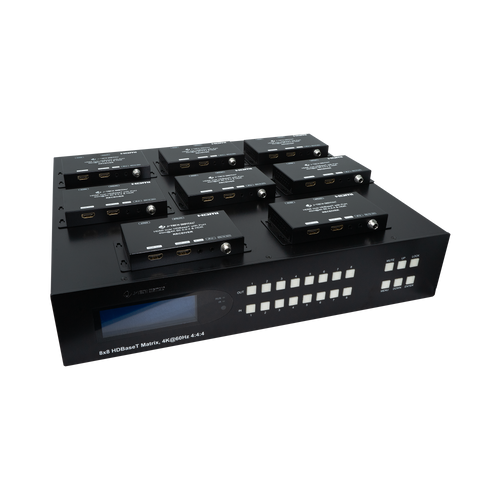

Our JTECH-MX443-UHD is a professional UHD 4K Video Distribution Matrix, which consists of 8 HDMI input ports, 8 HDMI output ports, and 8 Ethernet ports. Experience the best quality image by connecting your 4K sources and enjoy watching content at up to 3840×2160 UHD 4K@60Hz (YUV 4:4:4), 1080p and lower for older HDMI sources that lack 4K capabilities. With both 8 digital (SPDIF) & 8 analog (3.5mm) inputs and outputs, you get high flexibility of audio embedding and extraction. Each receiver includes 2 HDMI outputs. Different control options allow video routing your way. Switch your inputs and/or outputs by using the front panel buttons on the unit, the included IR remote, via RS-232, PC software, or Web GUI for optimal convenience and ease of use.

✅ Up to 4K 4:4:4 resolution support. HDMI 2.0 and HDCP 2.2 compliant

✅ 8 x HDMI input ports | 8 x HDMI output ports + 8 x RJ45 output ports to connect to extender receivers

✅ Each receiver supports dual HDMI outputs

✅ 8 x analog 3.5mm audio inputs | 8 x analog 3.5mm + 8 x SPDIF audio outputs

✅ Supports audio embedding and audio extraction

✅ Supports PoC (Power over Cable), EDID management

✅ Flexible control options via front panel, RS-232, PC Software, Web Interface
