Extend 1080p HDMI signals up to 492ft over Cat6 with HDBaseT, IR pass-through, and zero signal loss

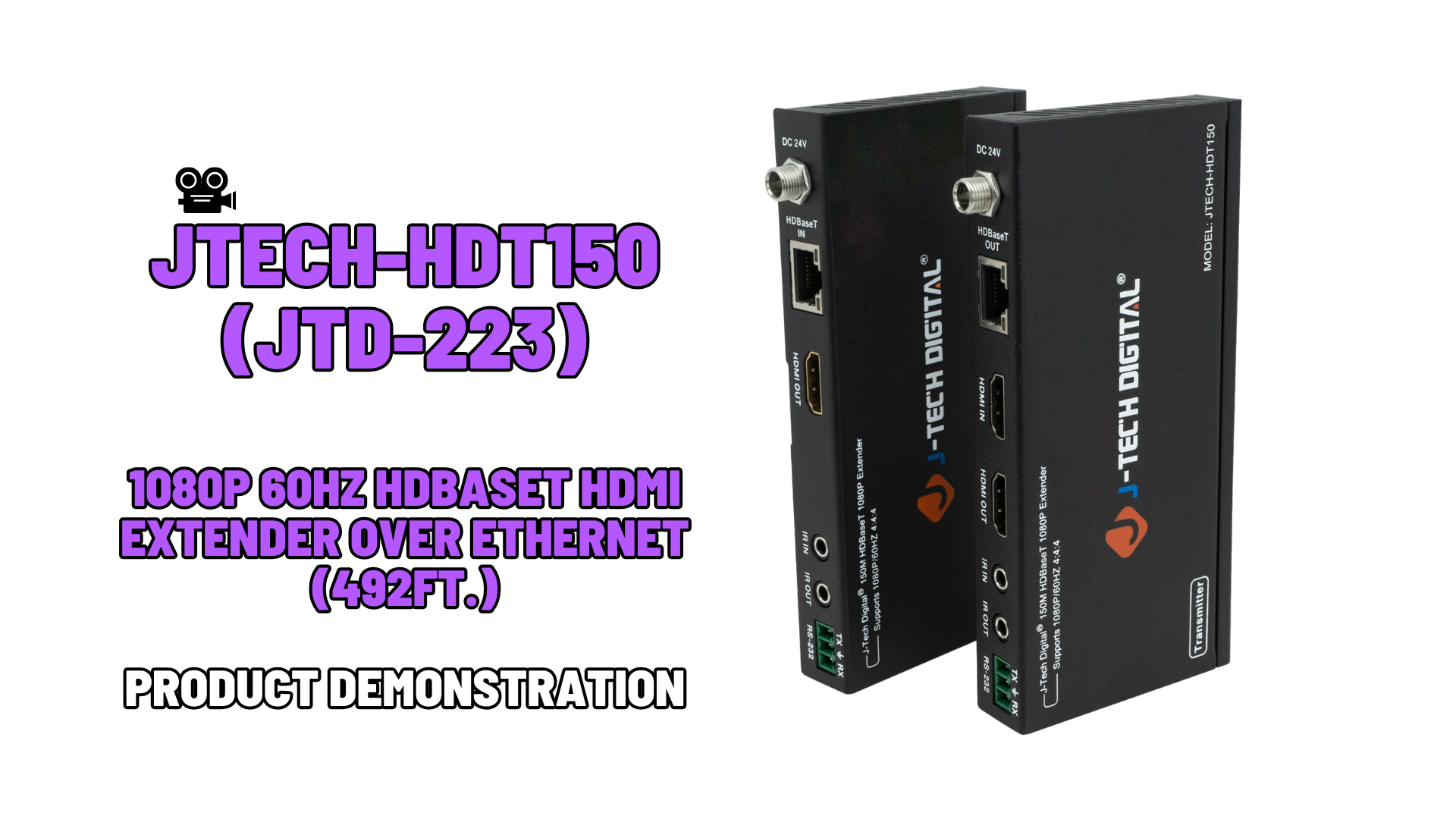

JTECH-HDT150 - 1080P 60Hz HDBaseT HDMI Extender Balun Over Ethernet (492ft)
The JTECH-HDT150 extender, can transmit a High-Definition 1080P signal up to 500 feet (150 meters) using the latest HDBaseT transmission protocol. With the JTECH-HDT150 extender, you have many different resolutions options to choose from, including common PC resolutions with 16:10 aspect ratios, such as 1920x1200, so you will not be limited to only “TV-friendly” source devices or monitor displays. This extender is powered by bi-directional POC, and only requires power to be connected to either the receiver or the transmitter, allowing for discreet installation. The JTECH-HDT150 uses an EDID passthrough that will automatically detect which resolutions and audio format are compatible with your display, set them to the highest options available. The JTECH-HDT150 also passes CEC commands, allowing source devices and displays that support CEC to also be turned on or off through the extender. The JTECH-HDT150 also passes RS-232 commands, to control devices for serial communication transmission of data.
Product Features:
- 1080P 60Hz HDBaseT HDMI extender over ethernet up to 492ft.
- HDMI Compliance: HDMI 1.4 | HDCP Compliance: 1.4
- Video Resolutions: up to 1080P@60Hz | Transmission distance up to 492ft. over single Cat5e/6 ethernet cable using HDBaseT Protocol
- Audio Formats: LPCM 2/5.1/7.1ch, Dolby Digital, DTS 5.1, Dolby TrueHD, Dolby Atmos, DTS:X
- Supports RS232, Power over Cable, Bi-Directional IR
Product Link:
https://www.jtechdigital.com/products/hdmi-extender-1080p-60hz-hdbaset-hdmi-extender-over-ethernet-492ft
Call our team at (888) 610-2818 or email us at sales@jtechdigital.com or support@jtechdigital.com for more information!
