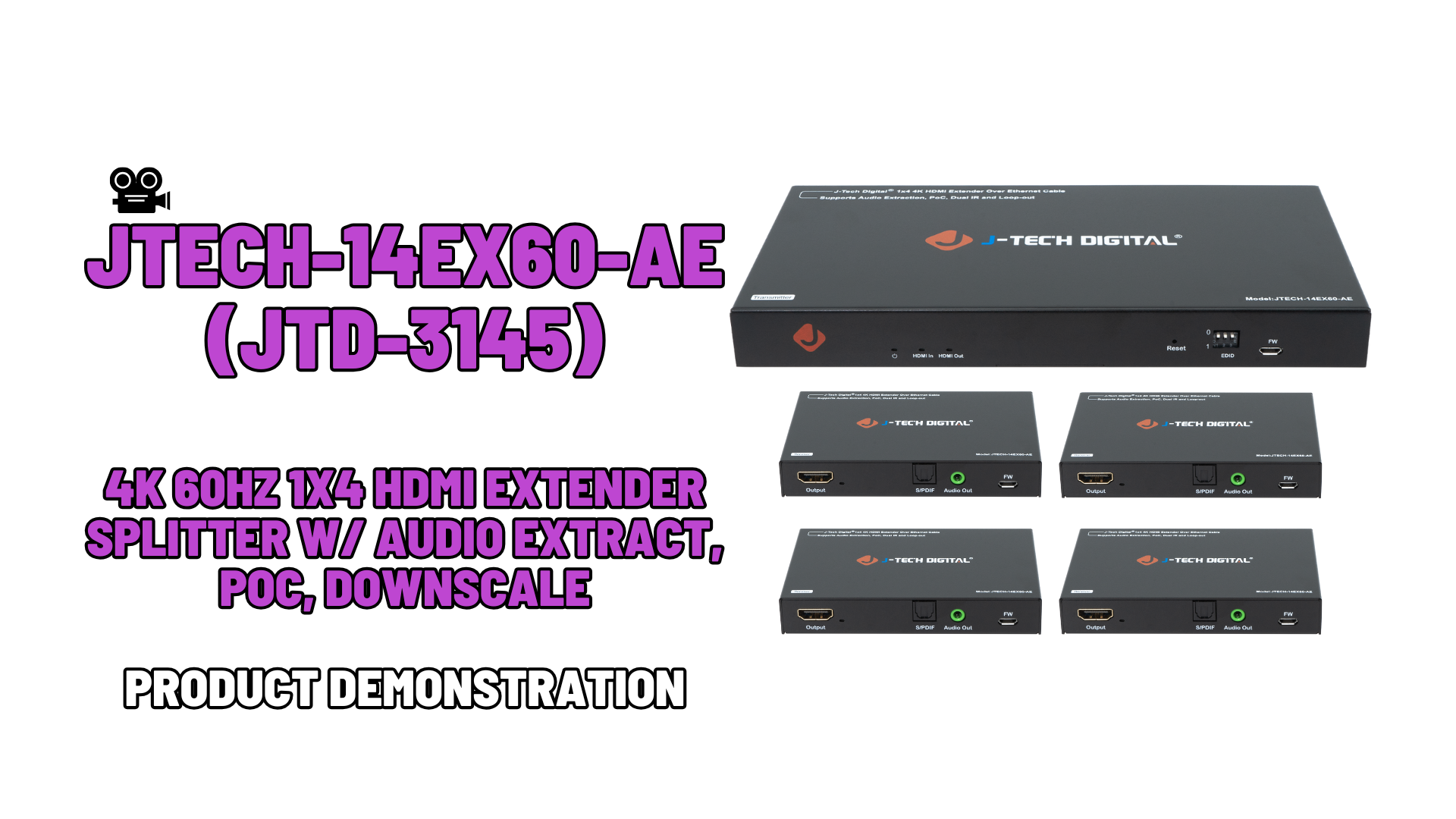

(Video) JTECH-14EX60-AE - 4K 60Hz 1x4 HDMI Splitter Extender Over Ethernet
- Categories
- Product Videos
- Published
Distribute 1 HDMI signal to 4 remote displays. Features Audio Extraction, PoC, & Downscaling
JTECH-14EX60-AE - 4K 60Hz 1x4 HDMI Extender Splitter Over Ethernet w/ Audio Extraction, PoC, 4K Downscaling
The JTECH-14EX60-AE HDMI extender splitter allows users to split an incoming HDMI signal to up to 4 displays. With the use of the included receivers, that signal can be extended up to 196ft. over single Cat5e/6 cable (per receiver) with ease. It also supports 4K > 1080P downscaling feature on the receiver end, so that users can utilize different resolution monitors within their setup. A local HDMI loop-out port is available on the transmitter so that users can monitor the source content on their remote displays via a local display.
The JTECH-14EX60-AE also features PoC, where a power adapter is only required for the transmitter, and the receivers get their power from the transmitter via the connected ethernet cables, making for a clean setup. Take advantage of the audio extraction feature, and extract audio from the incoming HDMI signal, and send it to your favorite external sound devices via Optical and/or 3.5mm analog. Bi-directional IR gives users the ability to easily control their source device from the display’s location or vice versa. Built-in EDID DIP switch allows for different settings to help with source device and display audio/video format compatibility.
Product Features:
- Extend 4K@60Hz HDMI signal up to 196ft. over single Cat5e/6 ethernet cable (per receiver). HDMI 2.0 and HDCP 2.2 compliant
- Features 1 HDMI input, 4 HDMI outputs, and a local HDMI loop-out port on the transmitter. Supports HDR10 and HLG
- Audio extraction function available via Optical or 3.5mm audio outputs
- Supports 4K > 1080P downscaling function (downscales on the receiver end)
- PoC function; power adapter is only required for the transmitter, and the receivers get power from transmitter via the connected ethernet cable
- Built-in EDID DIP switch with different settings to maintain audio/video format compatibility between source devices and displays. Supports Bi-directional IR function
Product Link:
https://www.jtechdigital.com/products/4k-60hz-1x4-hdmi-extender-splitter-over-ethernet-w-audio-extraction-poc-4k-downscalin
Call our team at (888) 610-2818 or email us at sales@jtechdigital.com or support@jtechdigital.com for more information!
