3x3 Video Wall Processor (4K30 In 1080P Out) with Audio Extraction

$159.99

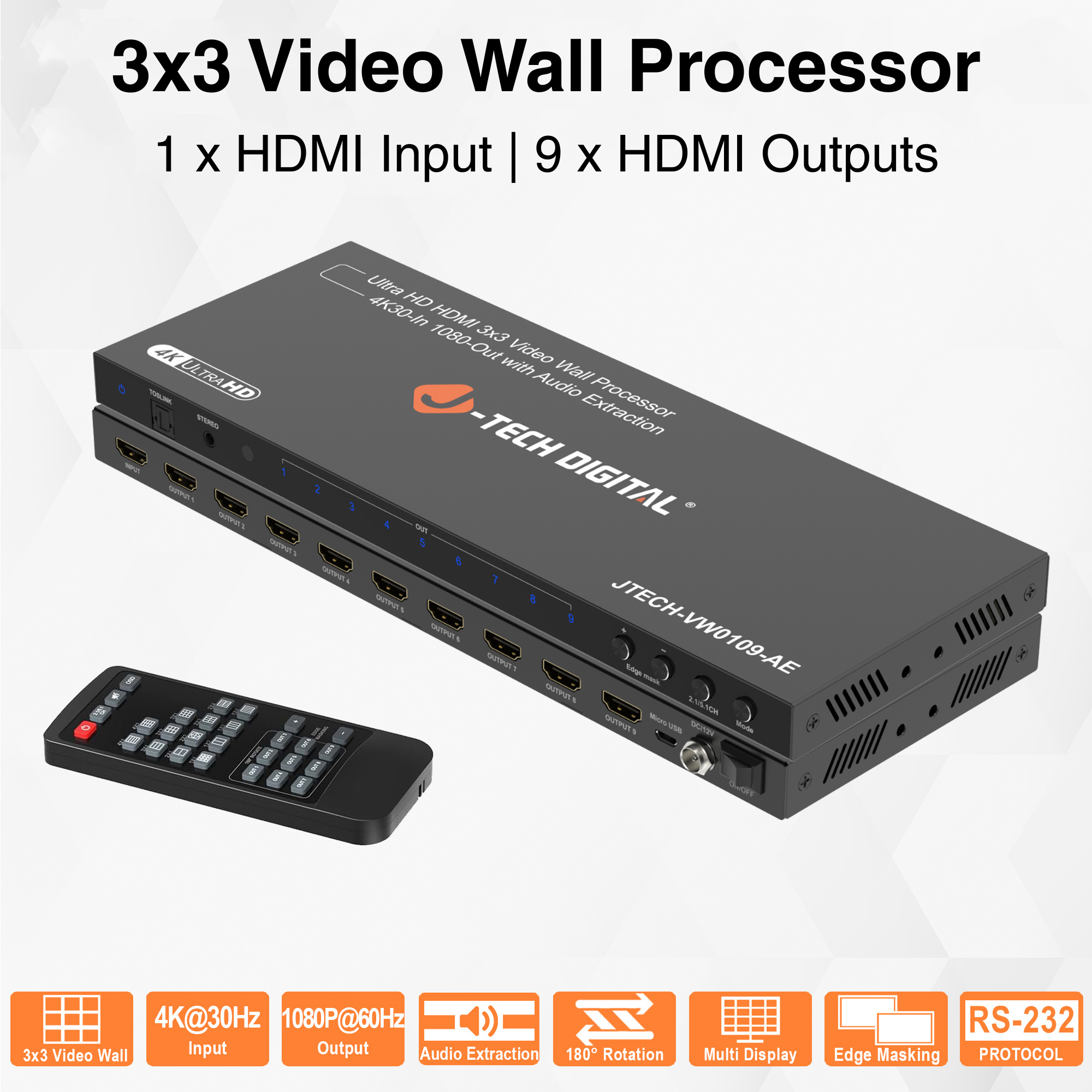

✅ 4K 3x3 Video Wall Processor: Combine up to 9 HDMI displays into one seamless video wall. Supports 4K@30Hz input and 1080P outputs.

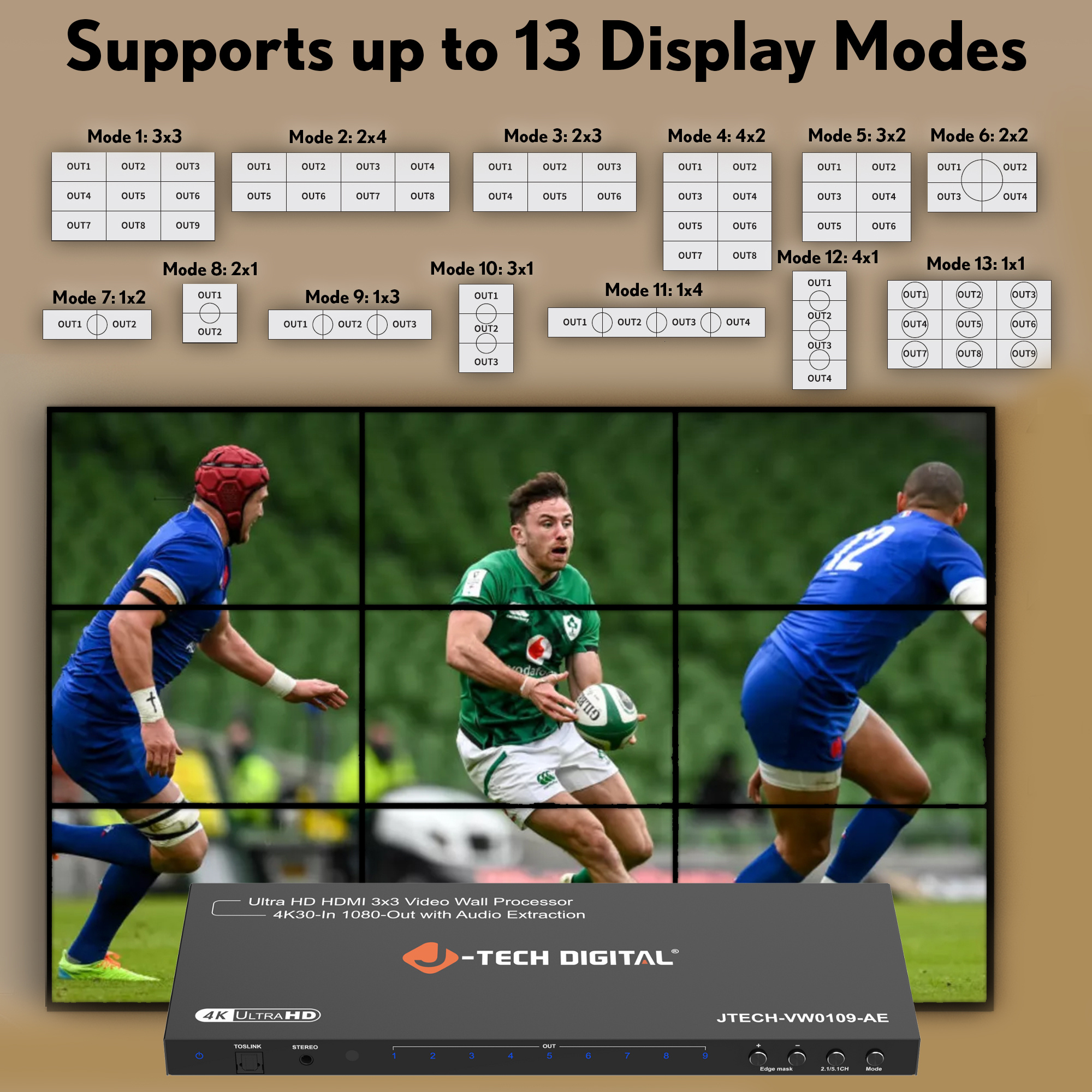

✅ 13 Display Modes Video Wall Controller: Toggle between 13 different display modes based on your setup, including 3x3, 2x2, 1x1 (Splitter mode), 2x4, 2x3, 4x2, 3x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1

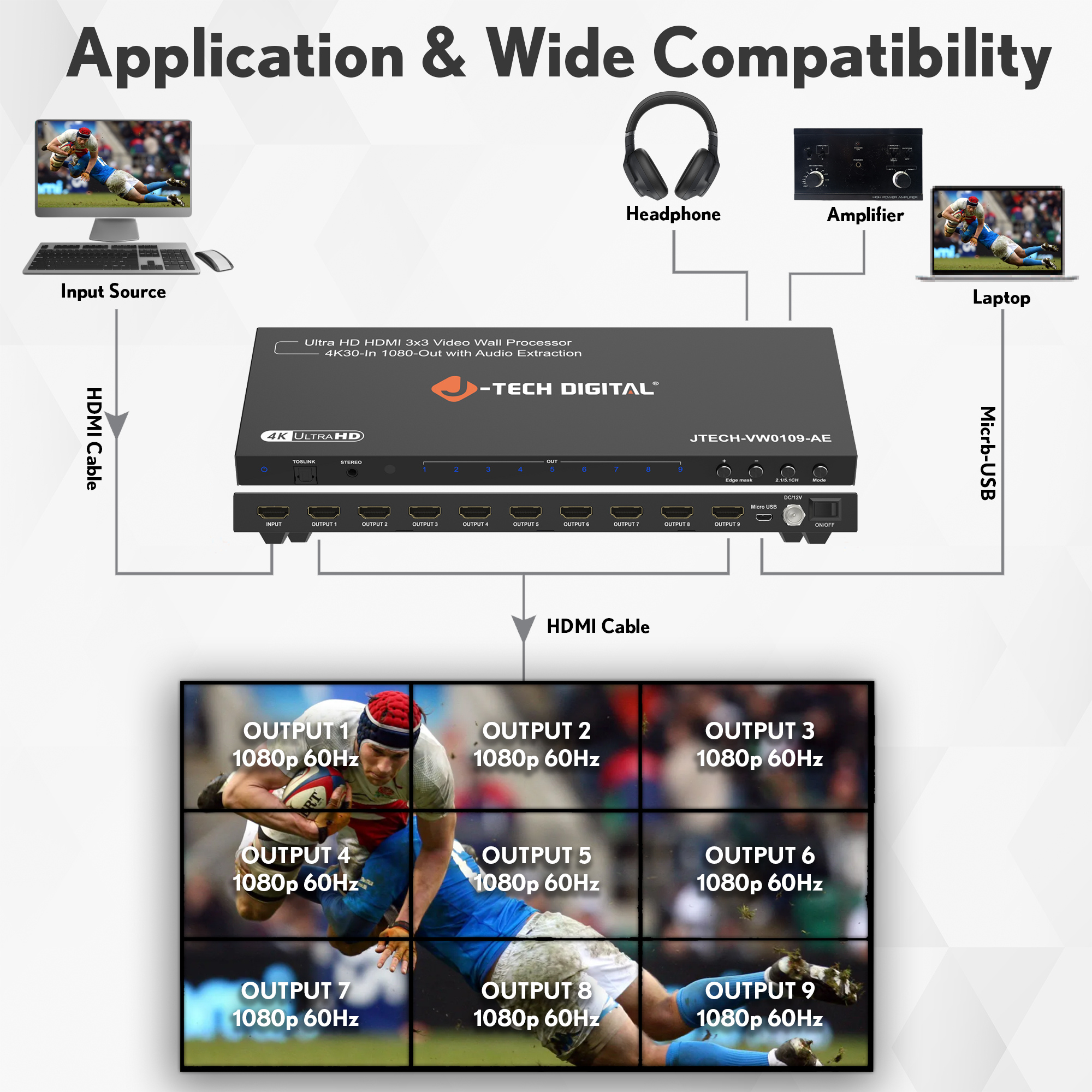

✅ Audio Extraction Function: Route the audio from your source device to an external sound system via SPDIF Optical (5ch) and 3.5mm (2ch) audio output ports.

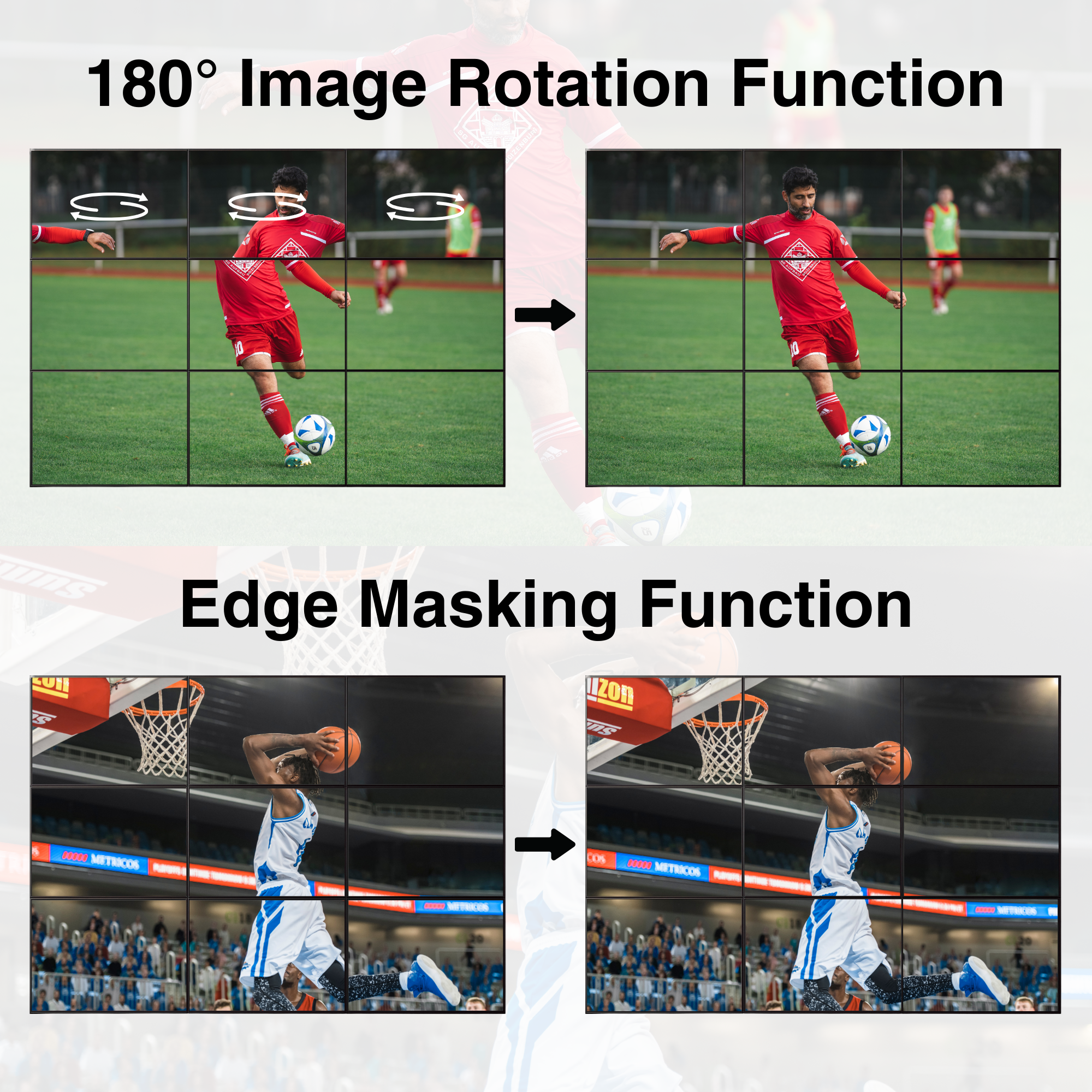

✅ Image Rotation and Edge Masking Function: Rotate each screen up to 180° (Modes 1–12) for perfect alignment and minimal bezel gaps. Fine-tune the display with edge masking, adjusting up to 8 pixels to eliminate distortion and ensure a seamless video wall.
- Note: 1×1 splitter mode does not support rotation or edge masking.

Information

Benefits

Drivers

No drivers available

Specifications

General

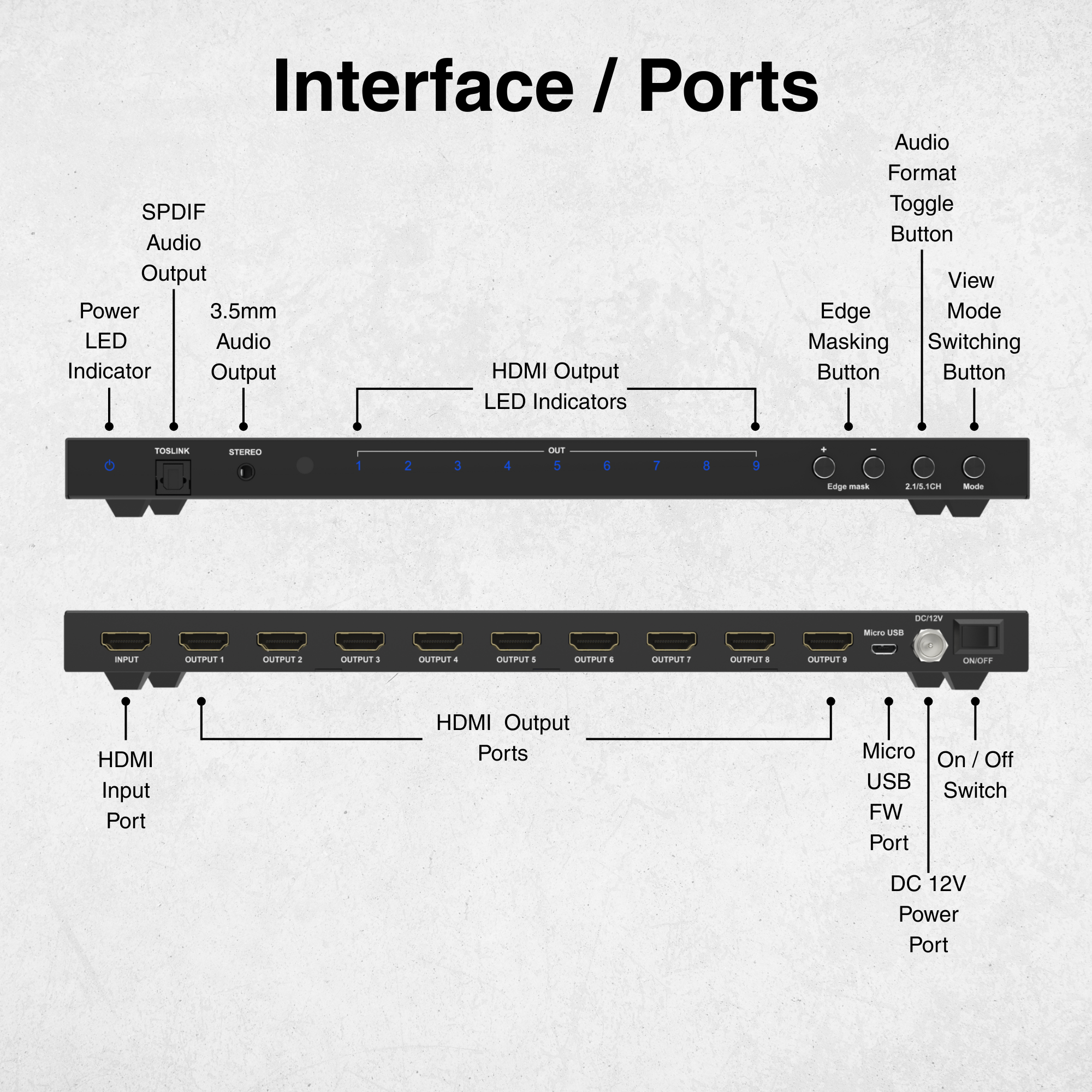

Input Ports: 1 x HDMI
Output Ports: 8 x HDMI, 1 x 3.5mm, 1 x SPDIF Optical
Vertical Frequency Range: 24 / 25 / 30 / 50 / 60Hz
Video Amplifier Bandwidth: 3.4Gbps / 340MHz per channel (10.2Gbps all channel)
Interlaced (50 & 60Hz): 480i, 576i, 1080i
Progressive (50 & 60Hz): 480p, 576p, 720p, 1080P, 4K@24 / 25 / 30
Operating Temperature: 0° ~ 70°C
Storage Humidity: 5% to 90% RH non-condensation
Power Supply: 12V DC 1A
Power Consumption: 6W (Max)
Matrix Switcher Unit Cert: CE, FCC, RoHS
Power Supply Cert: CE, FCC, RoHS
Dimensions: 290.8 x 110.5 x 19 (mm)
Net Weight: 615g
