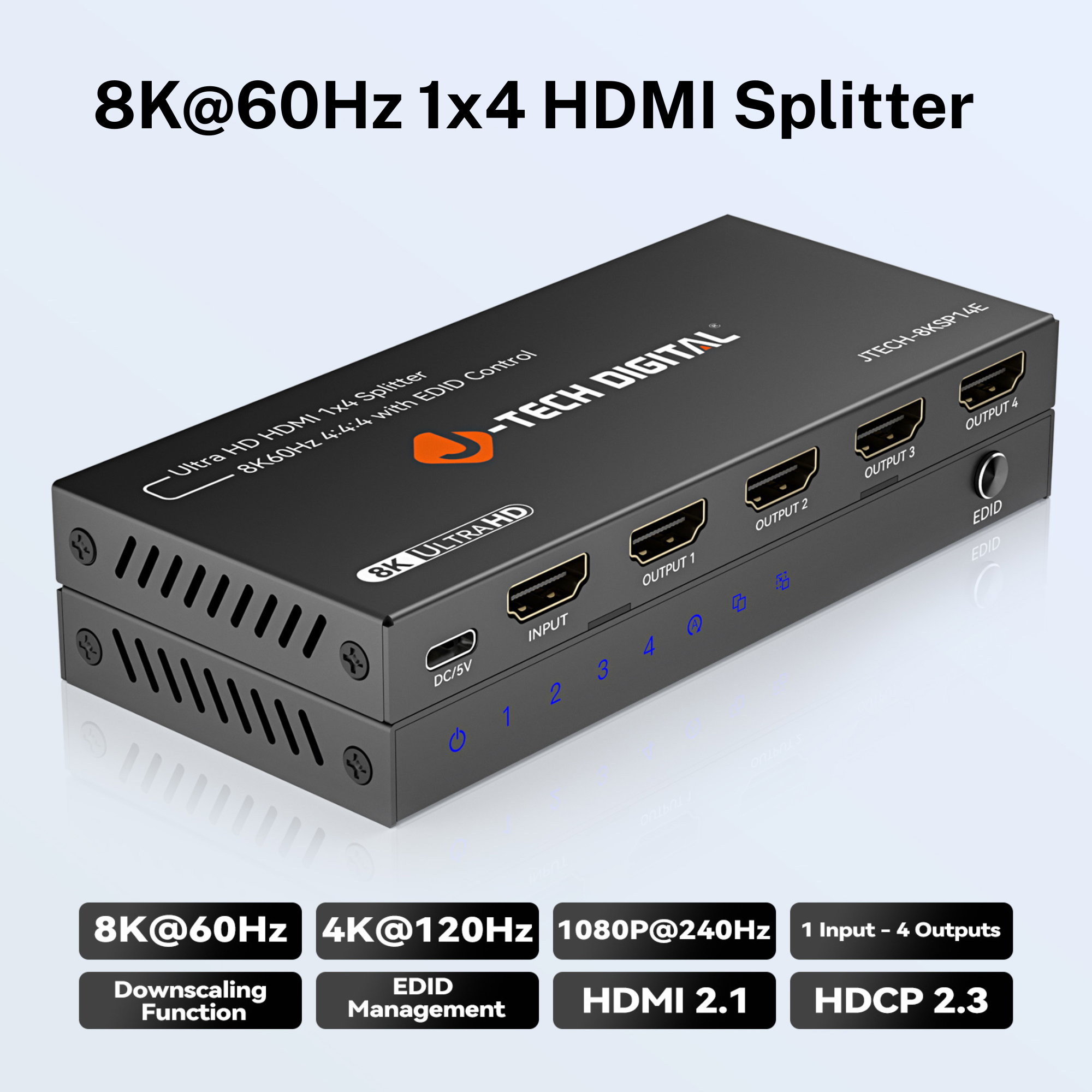

8K 60Hz 1x4 HDMI Splitter with Downscaling and EDID Control
$59.99
New

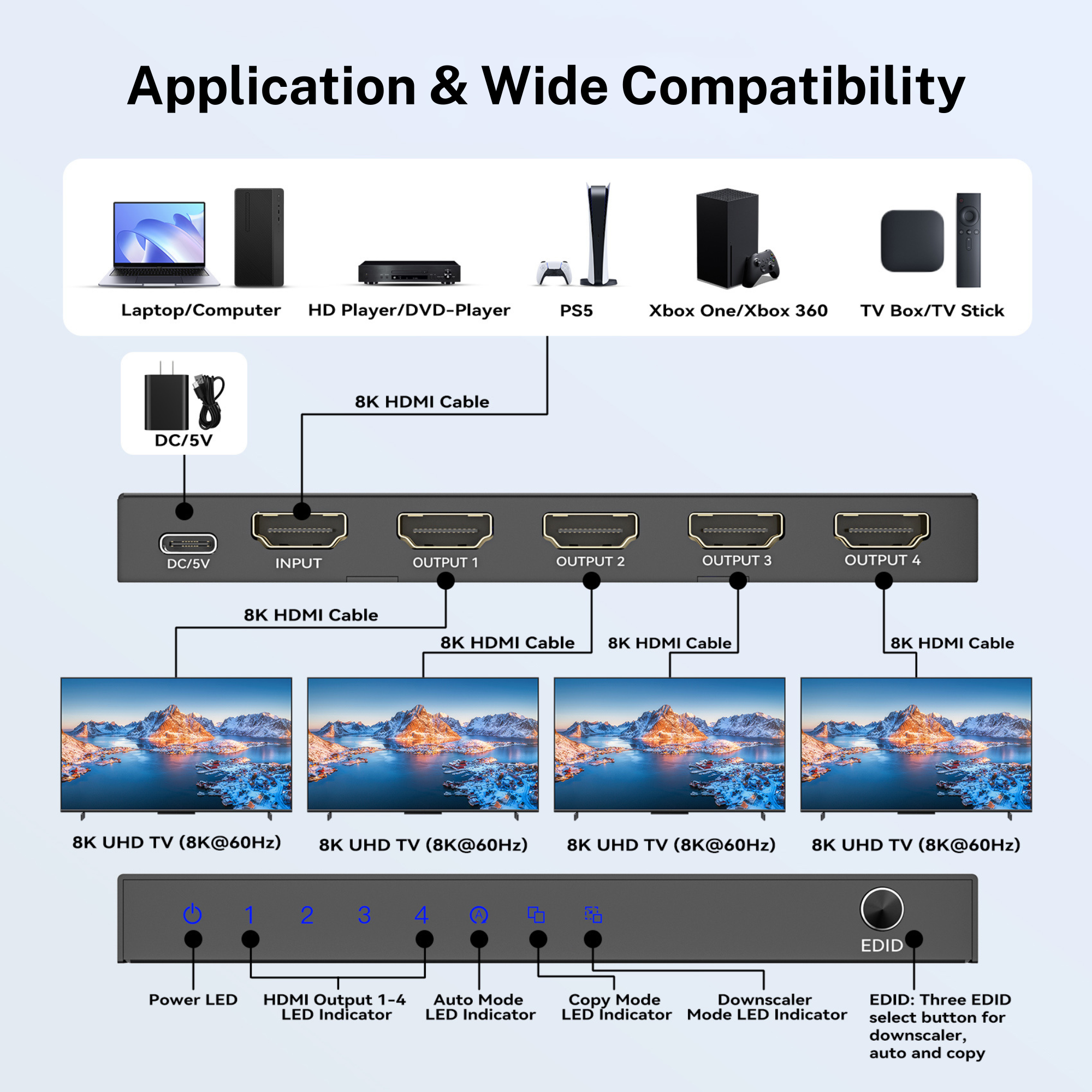

- ✅ Distribute 1 HDMI Signal to 4 Displays: Connect a single HDMI Source, such as cable box, media players, gaming consoles etc., to four displays simultaneously with this 1 In 4 Out 8K HDMI Splitter. Perfect for multi-screen setups! Note: This splitter mirrors the signal on all displays and does not extend the signal.
-

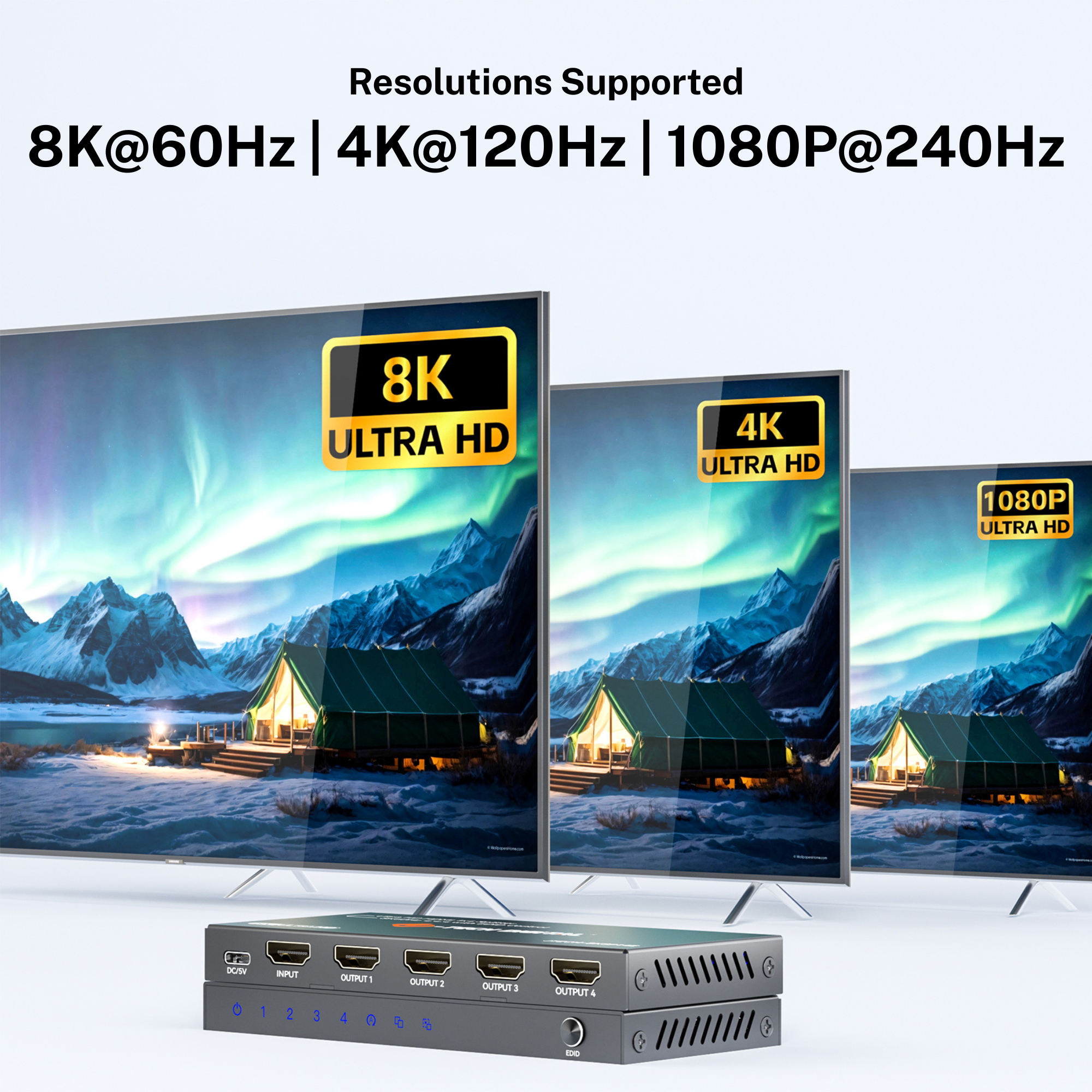

✅ Supports Ultra HD Resolutions & High Refresh Rates: This HDMI splitter supports 8K@60Hz, 4K@120Hz, and 1080P@240Hz resolutions and refresh rates. Also supports HDMI 2.1 and HDCP 2.3, along with HDR, HDR10+, Dolby Vision etc.
-

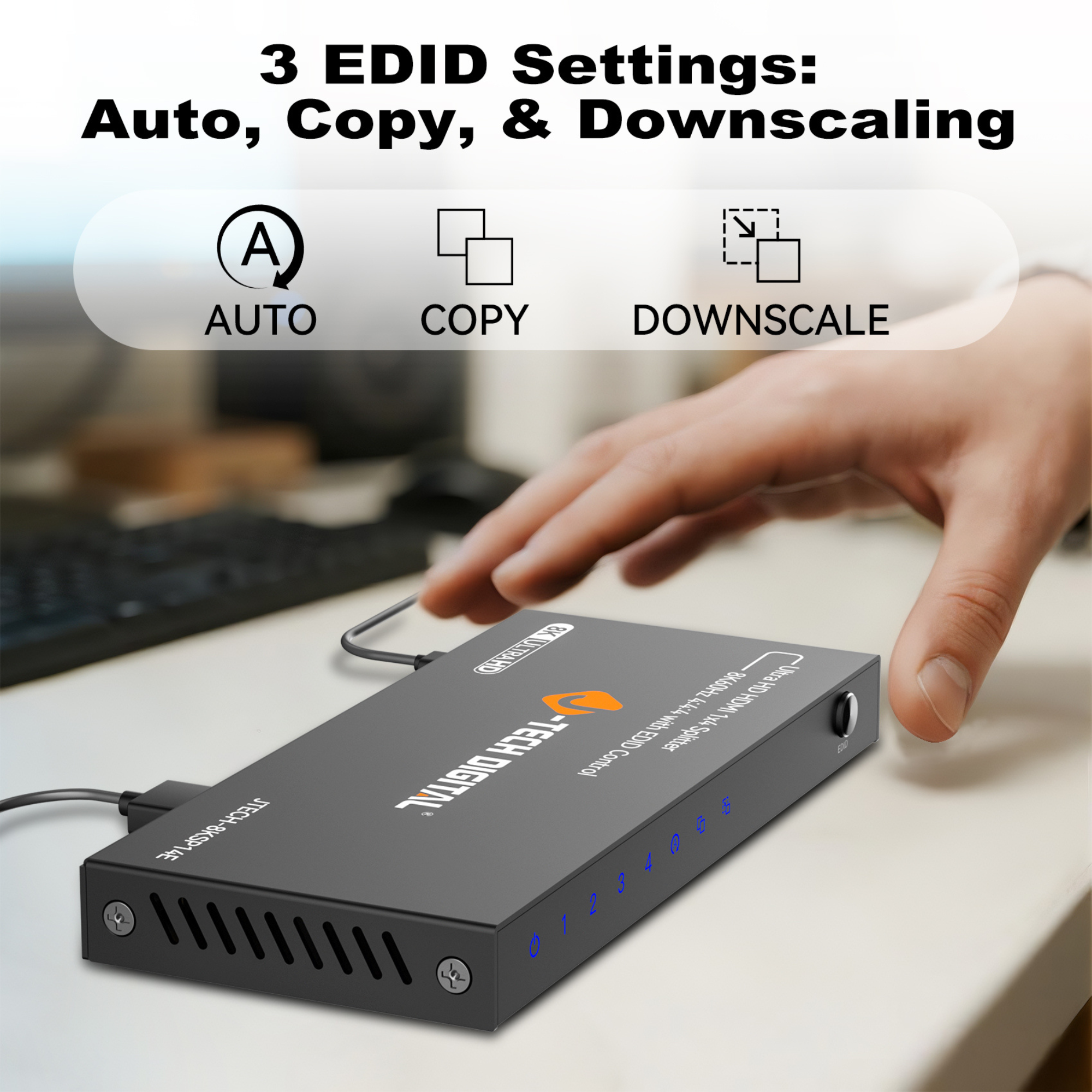

✅ Features 8K Downscaling & 3 EDID Modes: Help solve incompatibility issues via the EDID button with 3 modes; Auto, Copy, and Downscale. Supports 8K downscaling to 4K or 1080P to allow you to mix and match displays with different resolutions within the setup.
-
✅ Wide Audio Compatibility & Uncompromised Sound: Supports uncompressed audio formats like LPCM and high-quality compressed audio including DTS, Dolby Digital, DTS-HD Master Audio, and Dolby TrueHD.
Information
- Brand
- J-Tech Digital
- MPN
- JTD-3259
- Model
- JTECH-8KSP14E
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications
General
- Input Port
- 1 x HDMI
- Output Ports
- 4 x HDMI
- Vertical Frequency Range
- 50 / 60Hz
- Video Amplifier Bandwidth
- 12Gbps / 1200MHz per channel (48Gbps all channels)
- Resolution Support
- Up to 8K@60Hz, 4K@120Hz, 1080P@240Hz
- Operating Temperature
- 0°C ~ 70°C
- Storage Humidity
- 5% to 90% RH non-condensation
- Power Supply
- DC 5V / 2A
- Power Consumption (Max)
- 10W
- Splitter Unit Cert
- FCC, CE, RoHS
- Power Supply Cert
- FCC, CE, RoHS
- Dimensions
- 136 x 61 x 14.2 (mm)
- Net Weight
- 180g

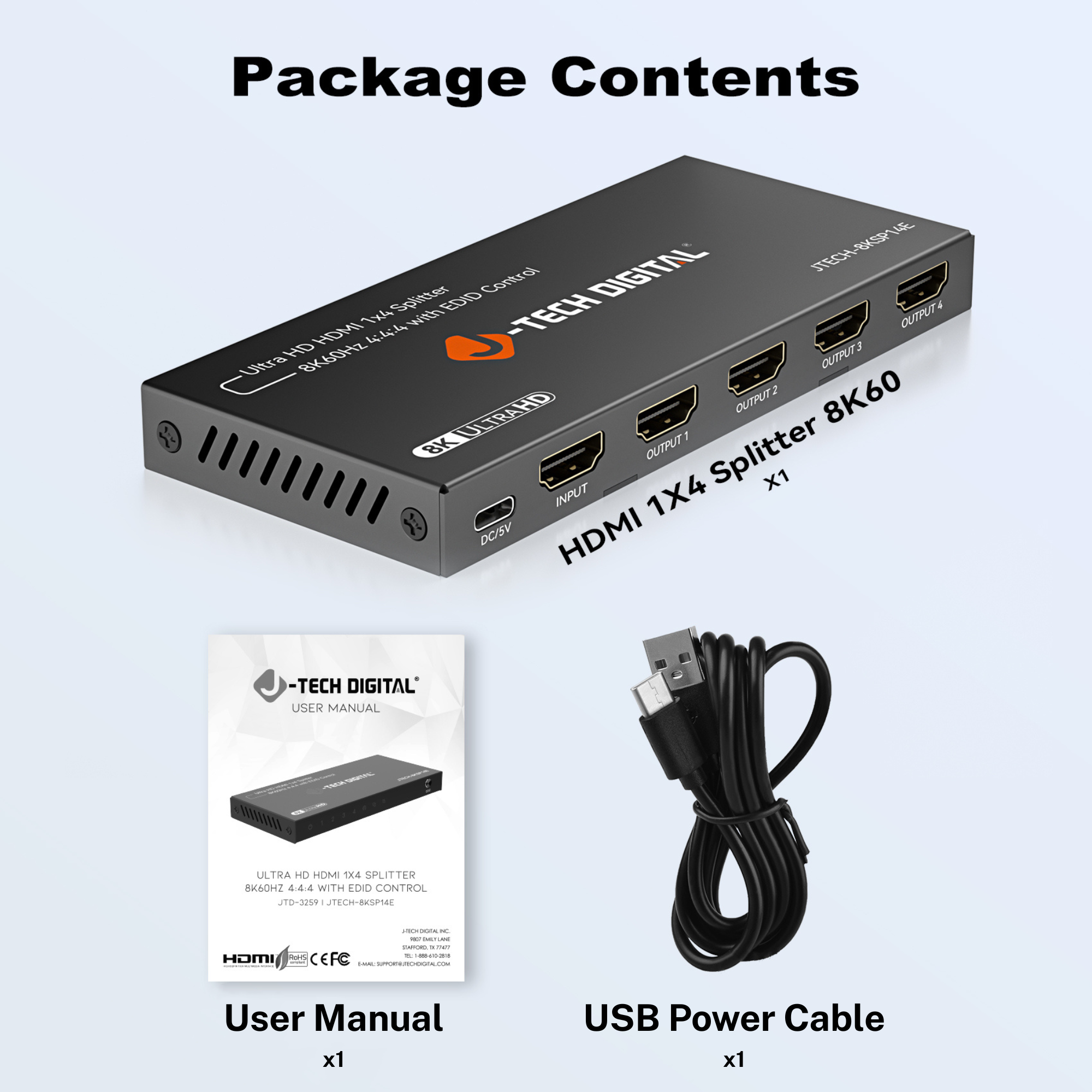

What's in the box
- 1 x HDMI Splitter
- 1 x USB Power Cable
- 1 x User Manual
