8K 60Hz HDMI Signal Generator and Analyzer

$1,199.95

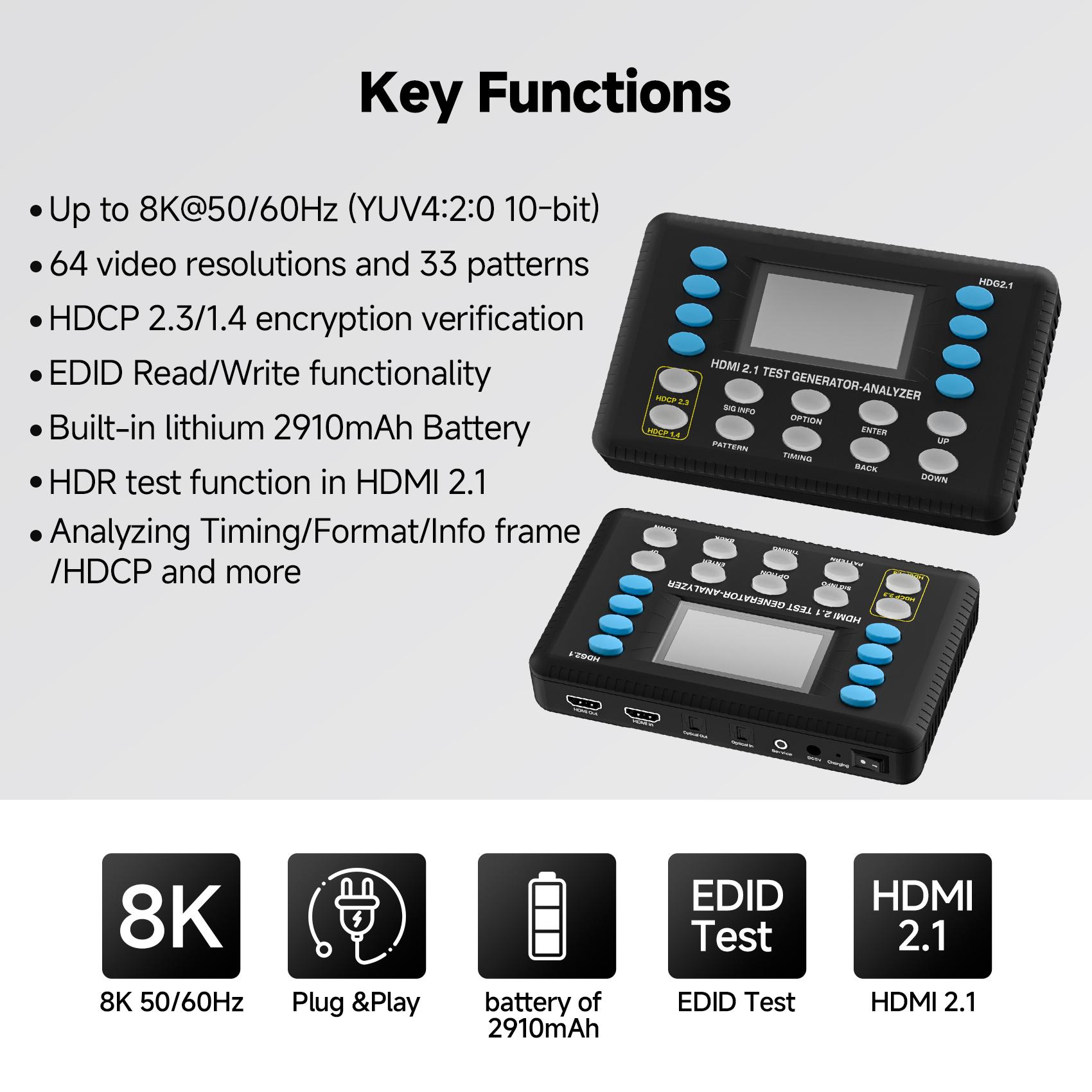

✅ Advanced HDMI 2.1 Compatibility: Supports resolutions up to 8K@60Hz with 10-bit color depth and 40Gbps bandwidth, meeting HDMI 2.1 standards.

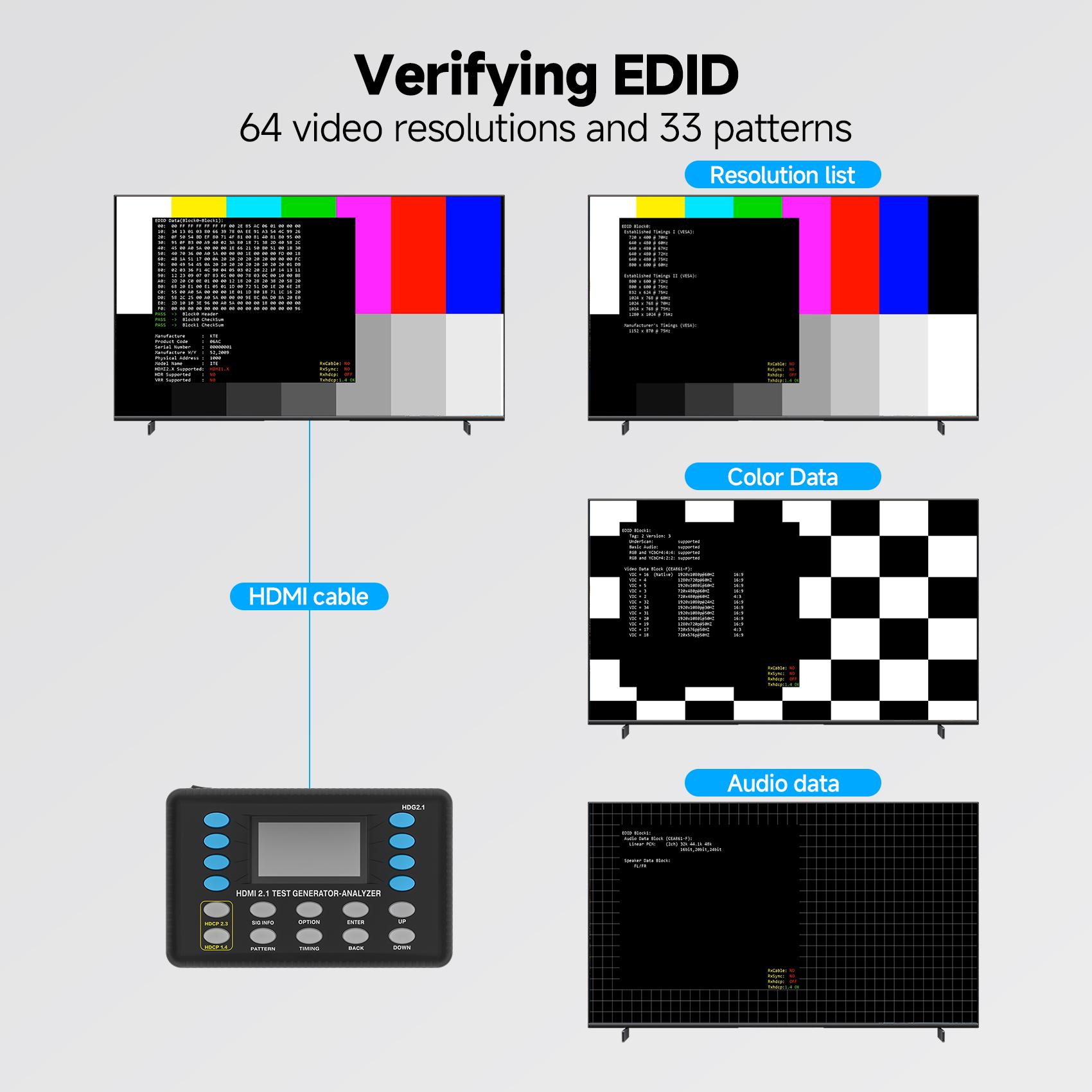

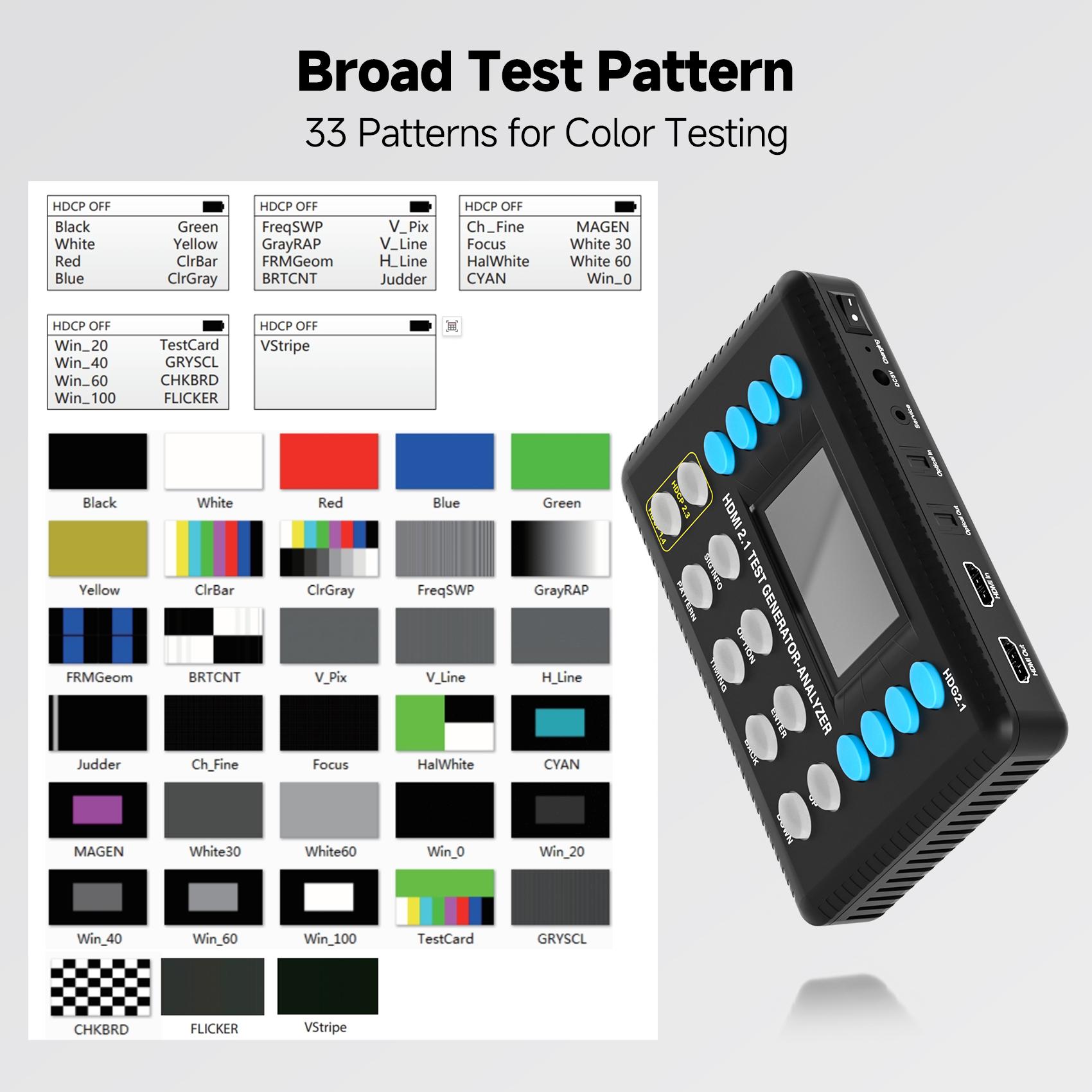

✅ Comprehensive Video Testing: Offers up to 64 video resolutions and 33 patterns, covering RGB and multiple YCbCr color spaces.
✅ Enhanced HDR Capabilities: Built-in HDR test function for HDMI 2.1 ensures accurate high dynamic range performance verification.
✅ Versatile Audio Options: Allows HDMI audio from internal sources or external S/PDIF inputs, supporting LPCM 2CH format and HDCP 2.3/1.4 encryption.

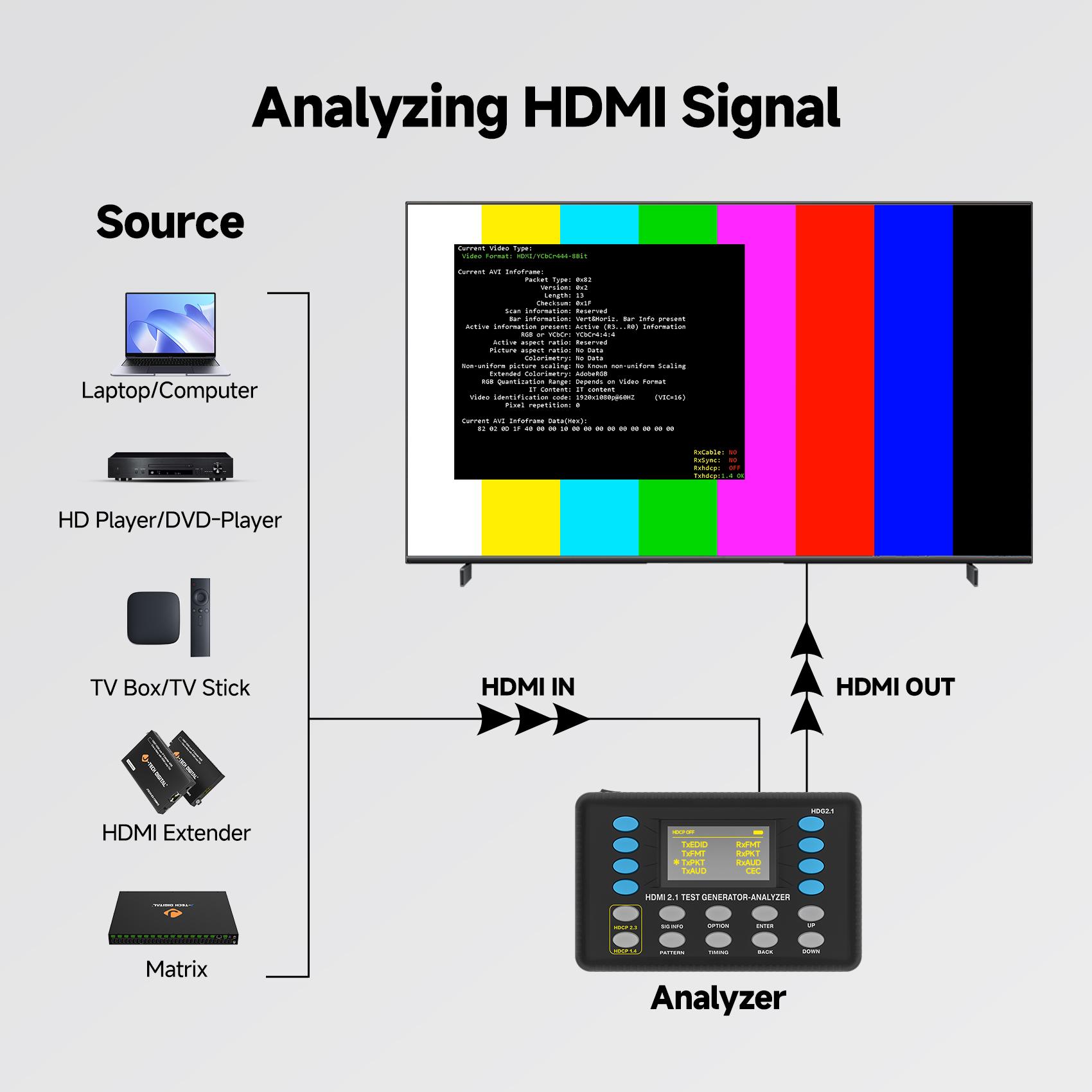

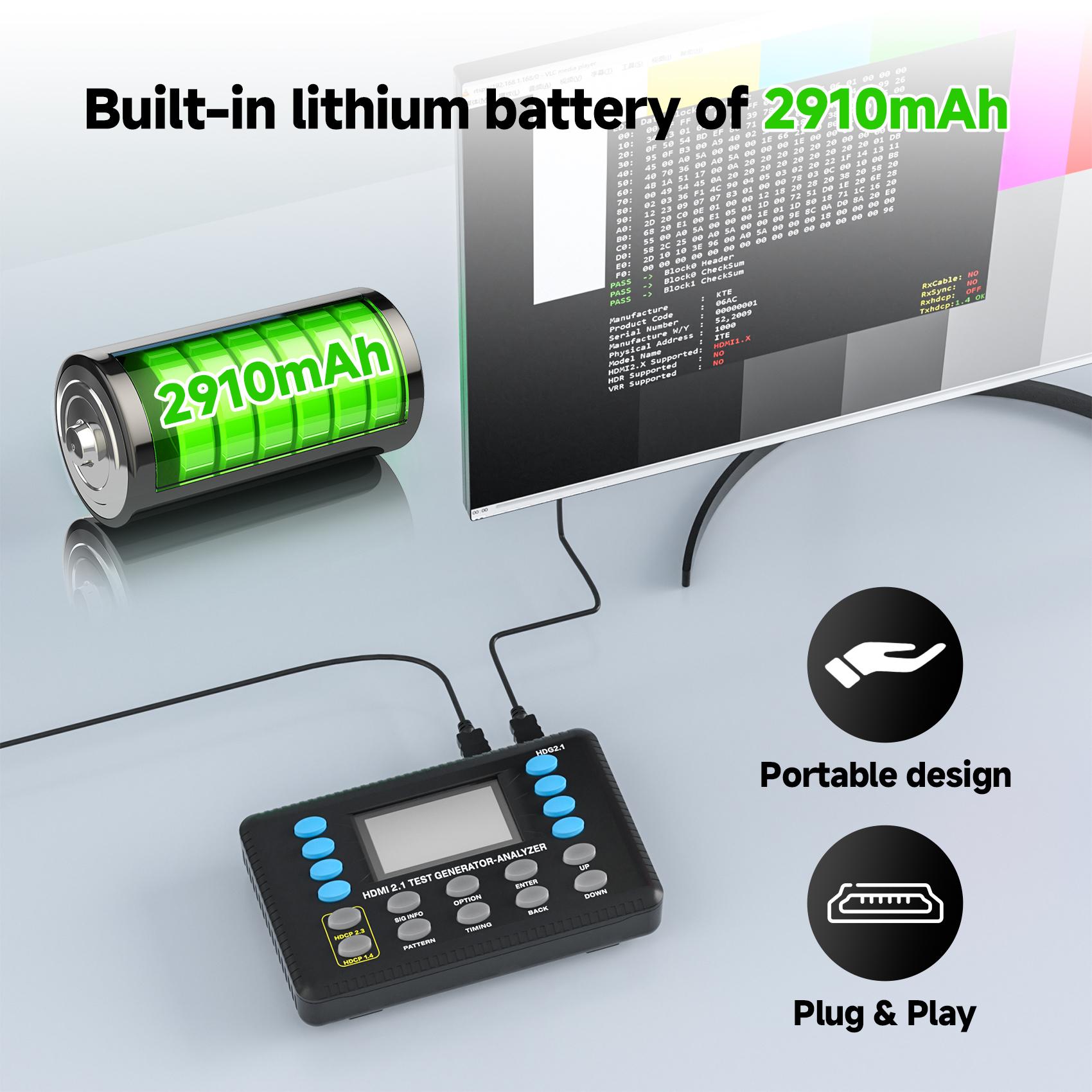

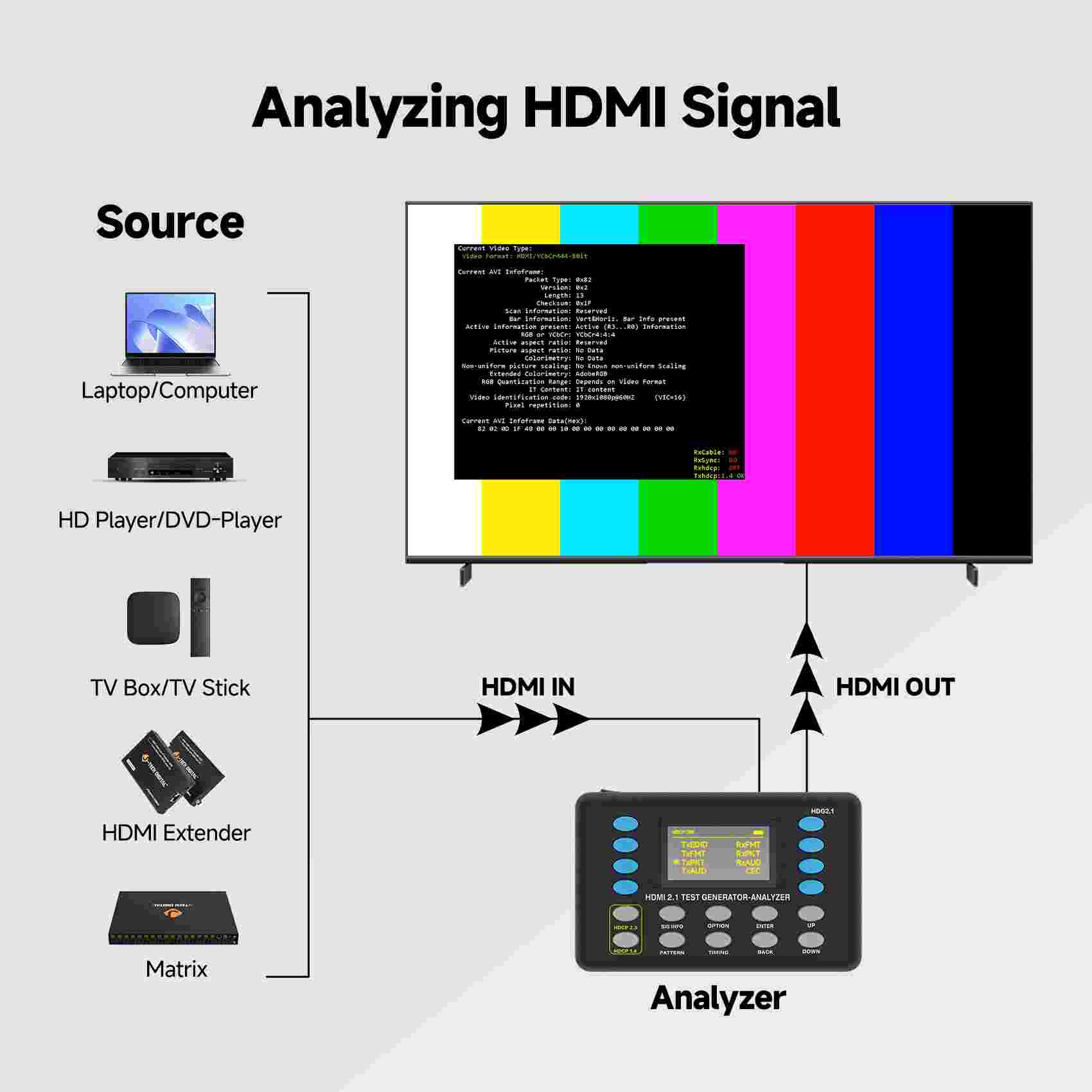

✅ User-Friendly Design: Portable with a built-in 2910mAh battery, featuring intuitive front panel controls for easy operation and HDMI signal analysis capabilities.

Information

Benefits

Specifications

Technical

HDMI Compliance: HDMI 2.1
HDCP Compliance: HDCP 2.3/1.4
Video Bandwidth: 40Gbps
Video Resolution: Up to 8K@50/60Hz (YUV4:2:0 10-bit)
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth: 8/10/12-bit
Audio Formats: Internal HDMI: LPCM 2CH, 48kHz, 16bits, External S/PDIF: LPCM 2/5.1CH, Dolby Digital, DTS 5.1, HDMI Pass-through: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

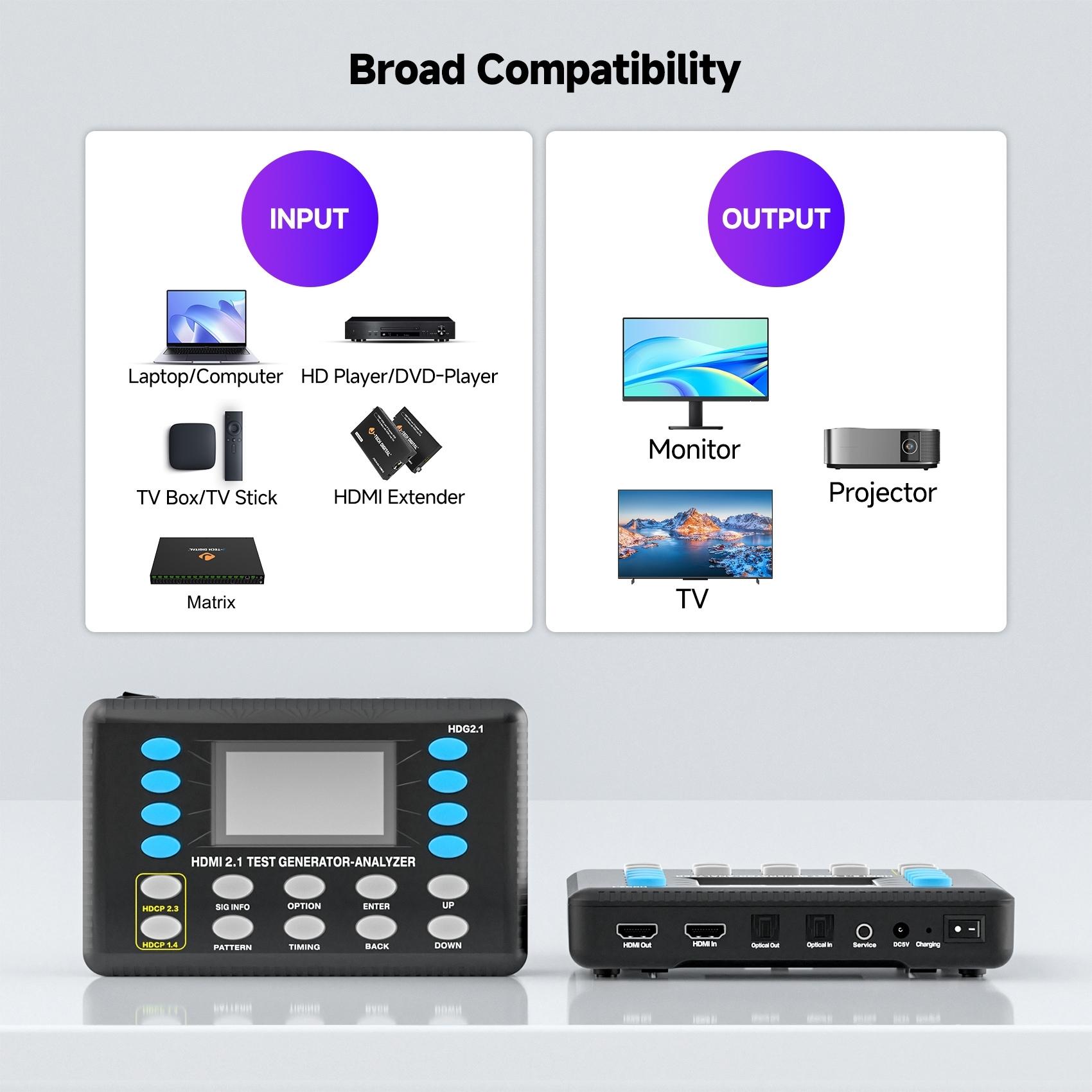

Input ports: 1 × HDMI In [Type A, 19-pin Female], 1 × Optical In [S/PDIF]
Output ports: 1 × HDMI Out [Type A, 19-pin Female], 1 × Optical Out [S/PDIF]
Control port: Service [3.5mm Mini-jack, Update port]

Mechanical

Housing: Plastic Enclosure
Color: Black

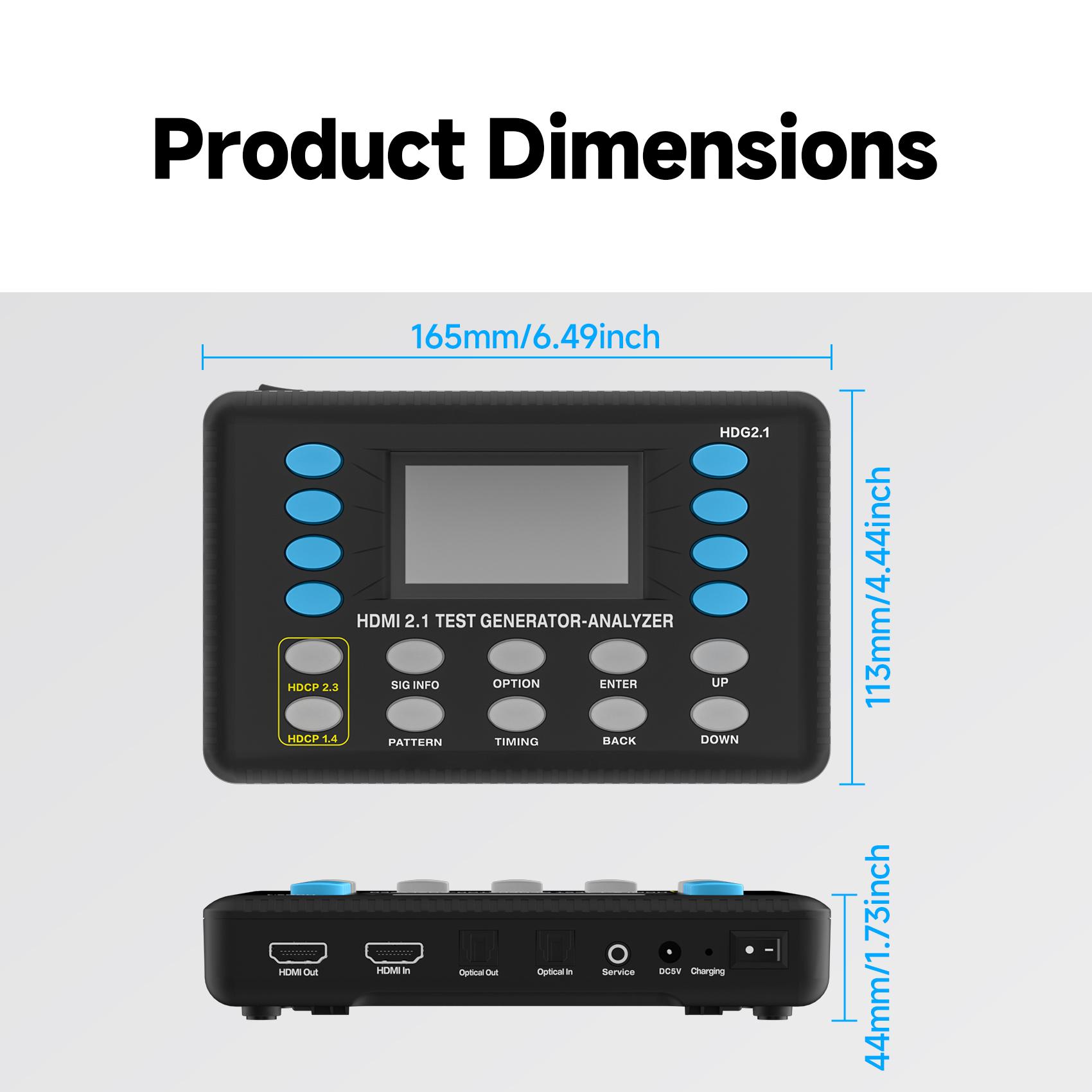

Dimensions: 165mm [W] × 103mm [D] × 37.4mm [H]
Weight: 320g
Power Supply: Input: AC 100-240V 50/60Hz, Output: DC 5V/2A (US/EU standard, CE/FCC/UL certified)
Power Consumption: 7.5W (Max)
Operating Temperature: 32 - 104°F / 0 - 40°C
Storage Temperature: -4 - 140°F / -20 - 60°C
Relative Humidity: 20 - 90% RH (no-condensing
