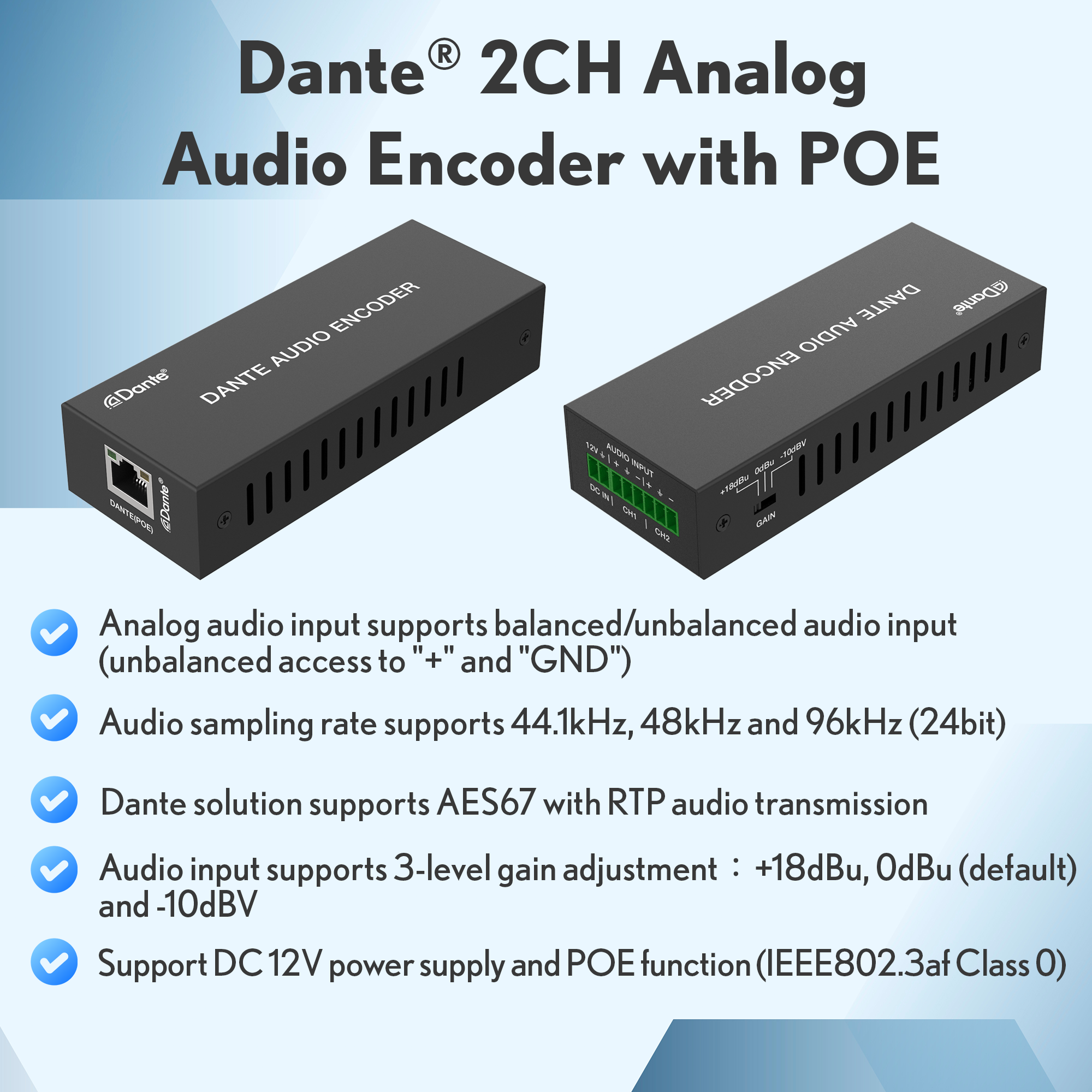

2-Channel Dante Analog Audio Encoder with PoE
-

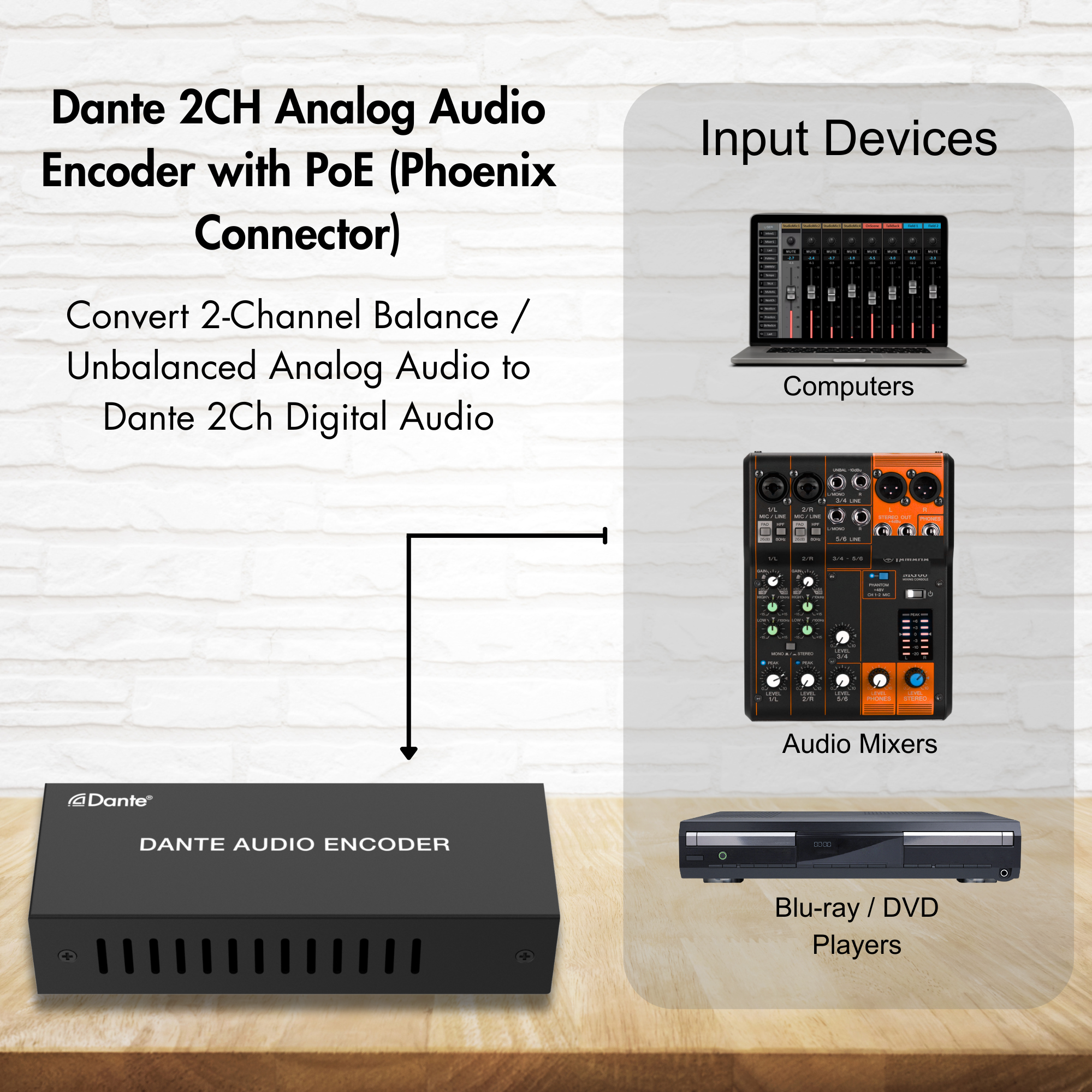

✅ Dante 2CH Analog Audio Encoding: Transmit crystal-clear audio over your network with this Dante Ultimo-based 2-channel analog audio encoder, supporting both balanced and unbalanced audio inputs for versatile connectivity.
-
✅ Flexible Sampling & Gain Control: Supports 44.1kHz, 48kHz, and 96kHz (24-bit) audio sampling rates with 3-level gain adjustment (+18dBu, 0dBu, -10dBV) to ensure optimal sound performance in any setup.
-

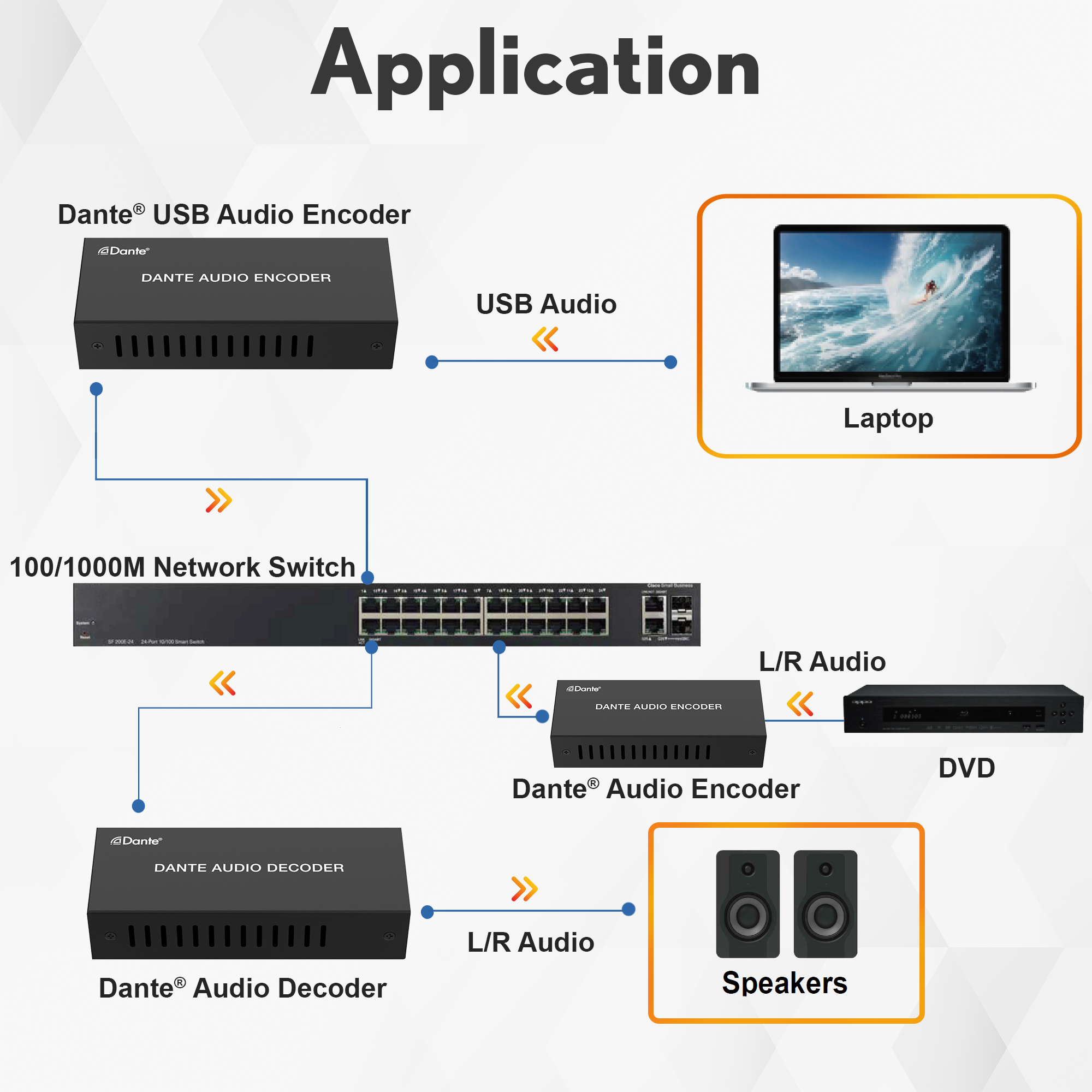

✅ Seamless Network Audio Transmission: Built-in Dante and AES67 RTP protocol compatibility delivers reliable, low-latency audio streaming over standard IP networks for professional installations.
-

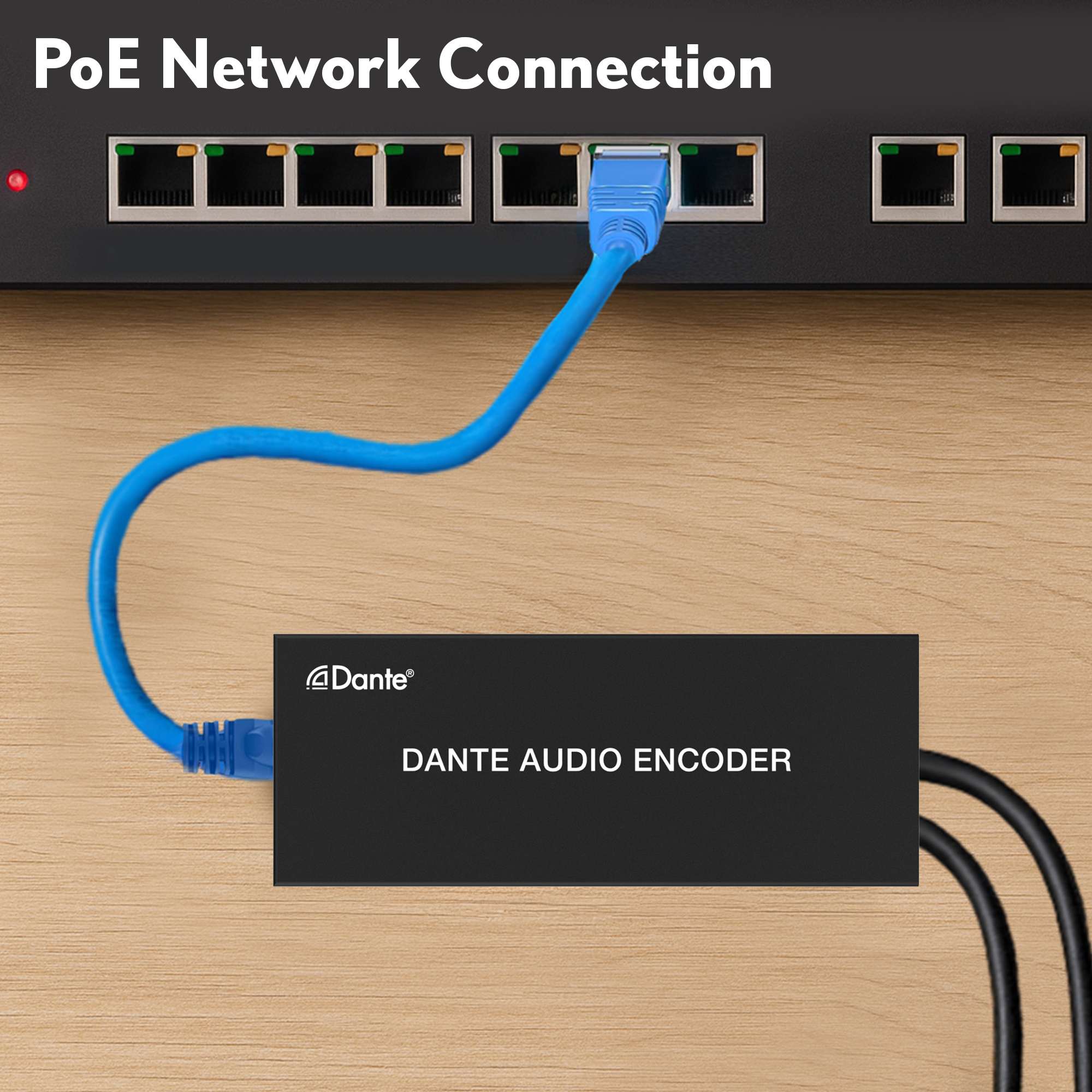

✅ Dual Power Options with POE Support: Operates with DC 12V power or via PoE (IEEE 802.3af Class 0), providing flexible installation options without compromising performance.
Information
- Brand
- J-Tech Digital
- MPN
- JTD-3245
- Model
- JTECH-DA2EP
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications
- Video Network Bandwidth
- 100M
- Audio Formats
- PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit
- Transmission Distance
- 100m (CAT6/6A)
- Control Method
- Dante Controller
- Inputs

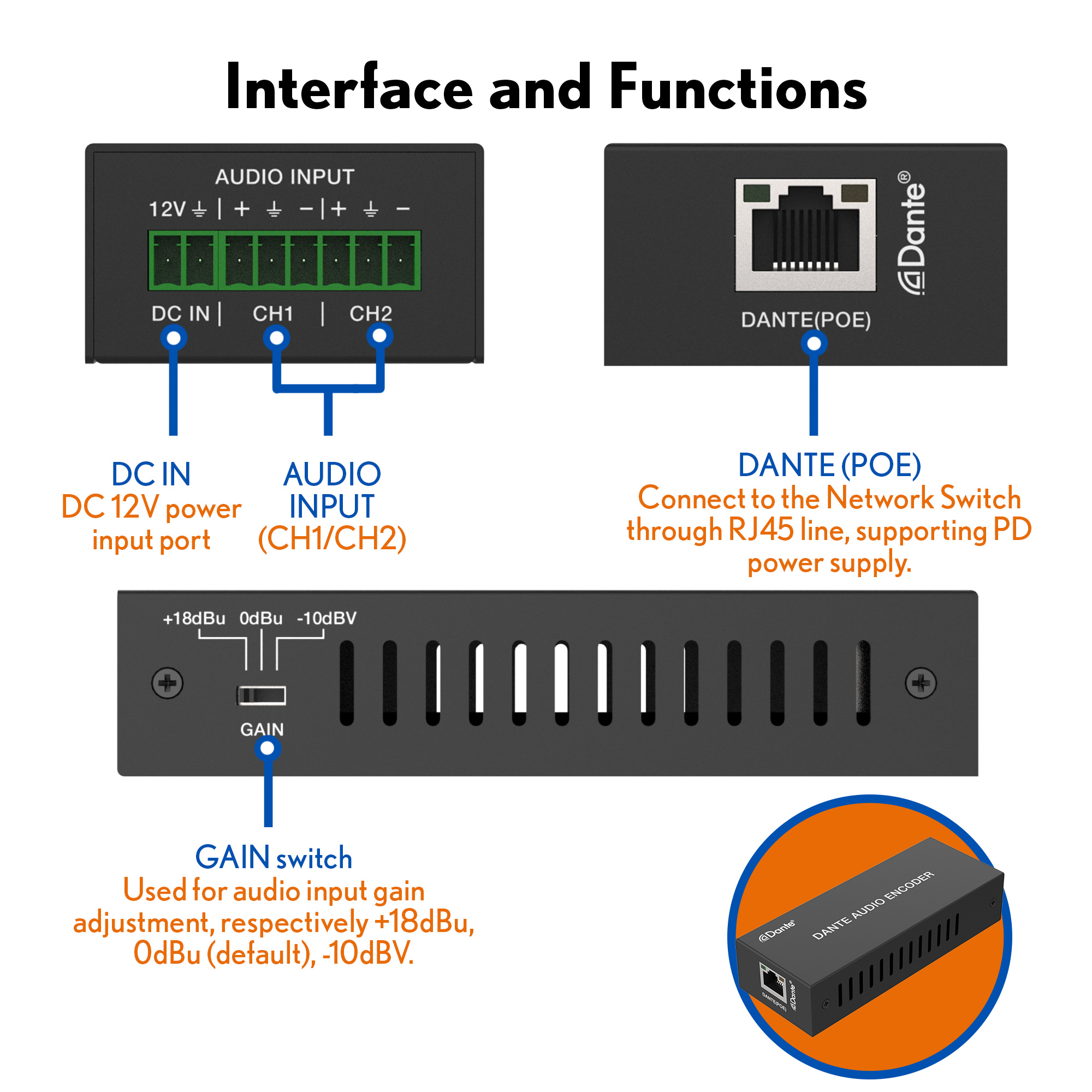

- 1x PWR [2-pin phoenix, 3.81mm], 1x AUD [6-pin phoenix, 3.81mm]
- Output
- 1x DANTE [RJ45 connector, POE]
- Dimensions
- 120mm[W] x 47mm[D] x 26mm[H]
- Weight
- 186g
- Power Supply
- DC input: 12V, POE input: IEEE802.3af Class 0
- Power Consumption
- 1.2W
- Operation Temperature
- 32 - 104°F / 0 - 40°C
- Storage temperature
- -4 - 140°F / -20 - 60°C
- Relative Humidity
- 20 - 90% RH (no condensation)
What's in the box
- 1 x Dante 2CH Analog Audio Encoder
- 1 x 6pin-3.81mm Phoenix Connector (male)
- 1 x 2pin-3.81mm Phoenix Connector (male)
- 1 x User Manual
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
