2-Channel XLR to Dante Digital Audio Input Adapter
-

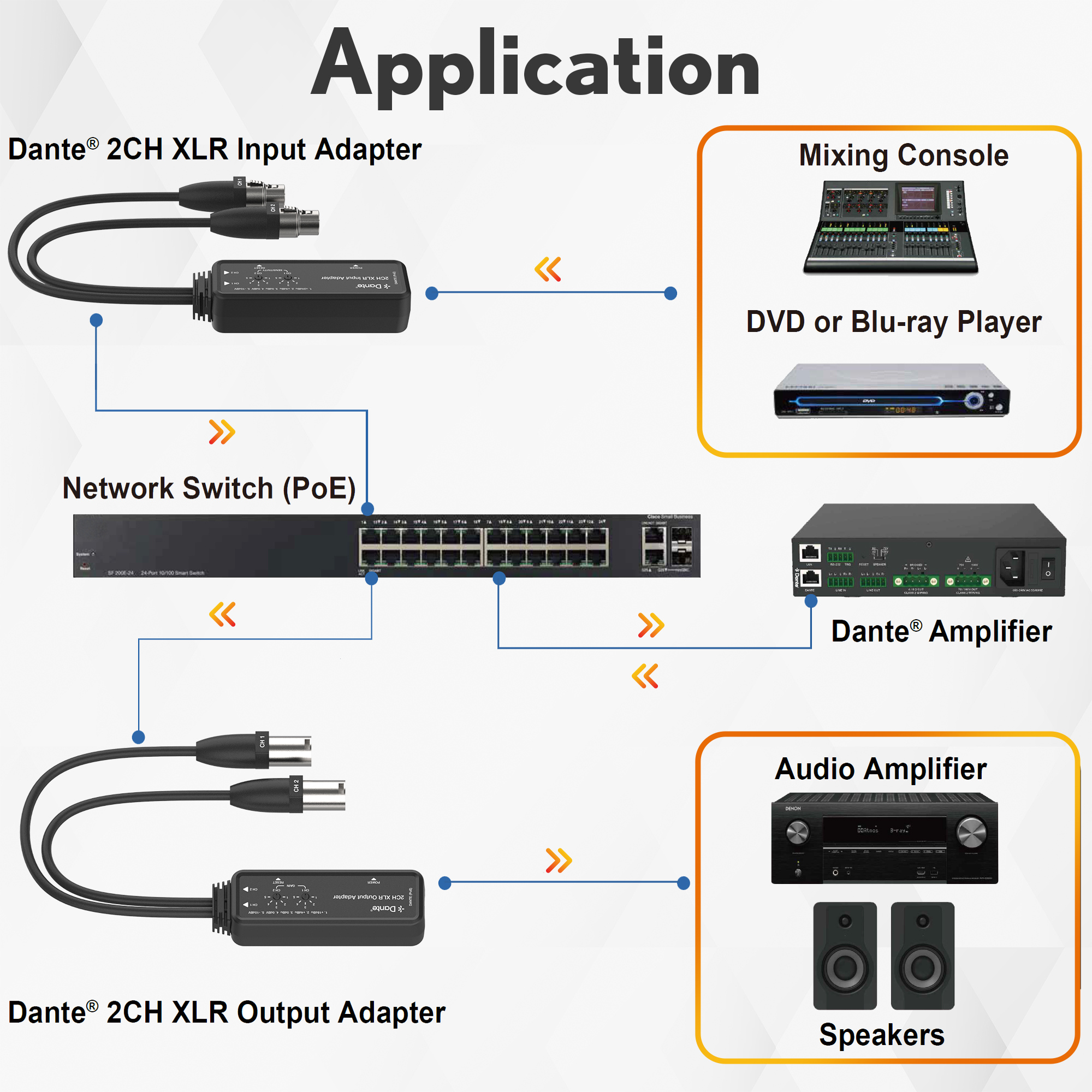

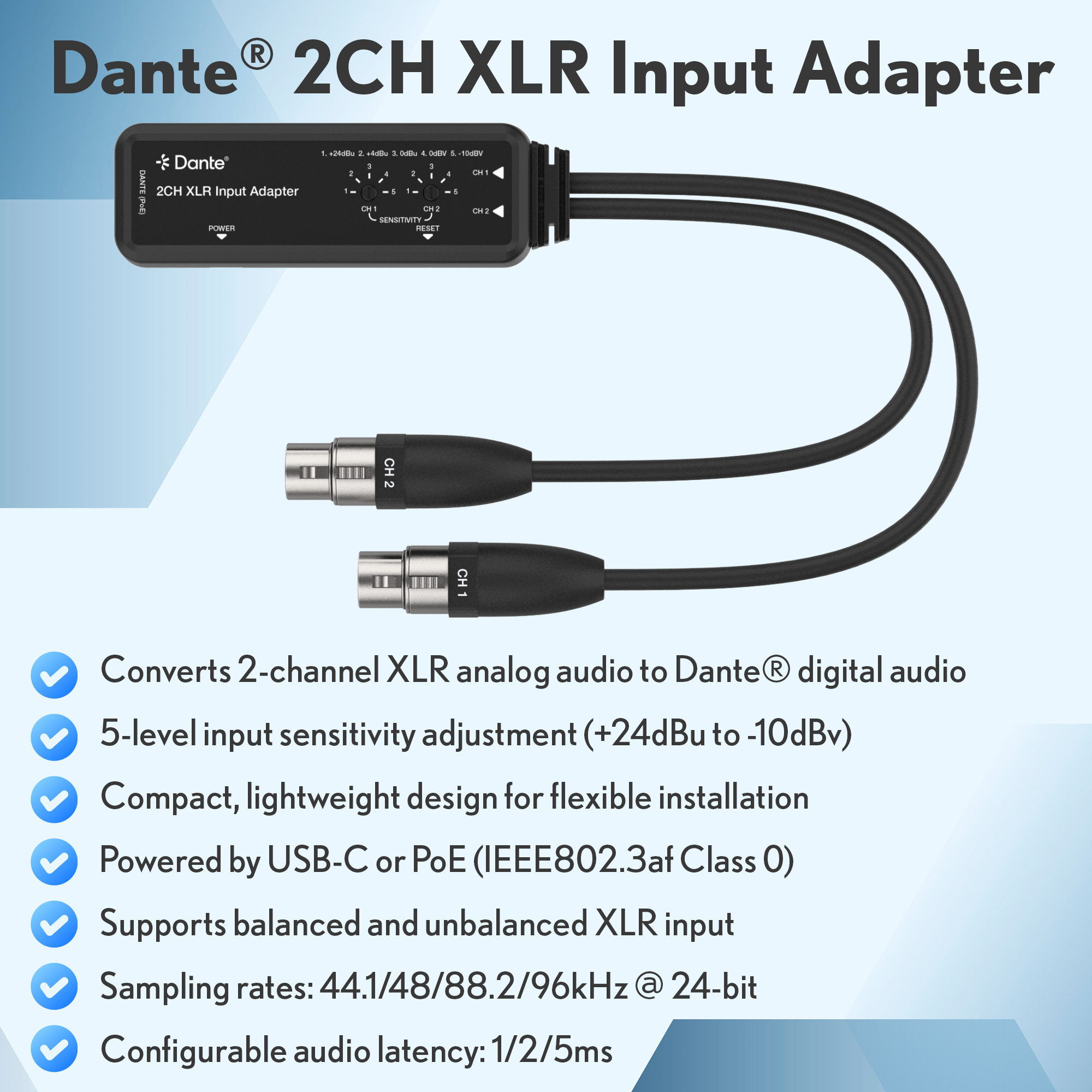

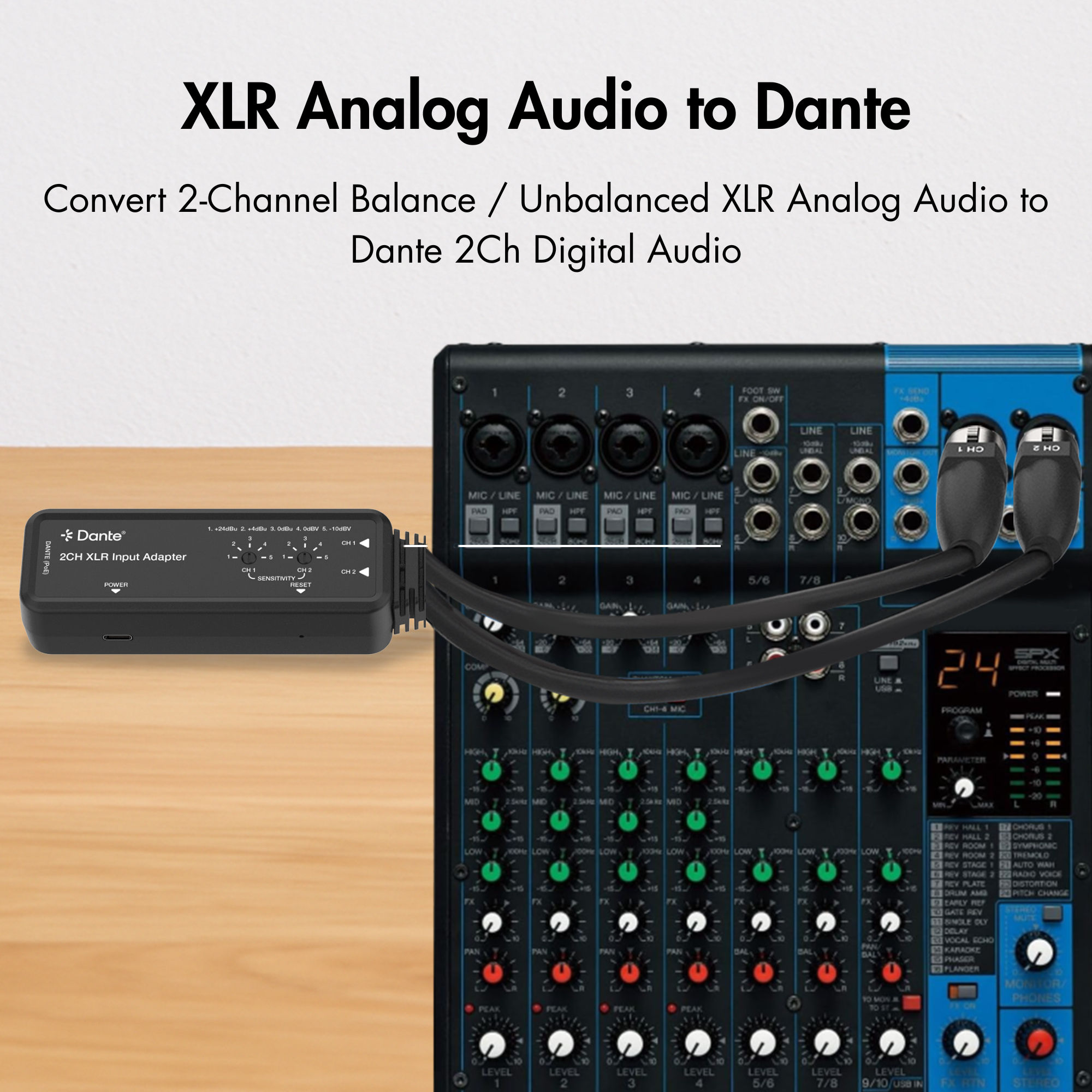

✅ 2-Channel XLR to Dante Audio Input Adapter Converter: Seamlessly converts two-channel balanced or unbalanced XLR analog audio into high-quality Dante 2CH digital audio, perfect for live sound, broadcast, recording, and AV installations.
-
✅ High-Fidelity Dante Audio Performance: Supports multiple audio sampling rates (44.1/48/88.2/96kHz at 24-bit) with configurable delay options (1/2/5ms), ensuring ultra-low latency and crystal-clear sound transmission over your Dante network.
-
✅ Flexible Analog Input & Sensitivity Control: Equipped with 5-level input sensitivity adjustment (+24dBu, +4dBu, 0dBu, 0dBv, -10dBv) to optimize signal strength from any professional audio source while maintaining pristine audio quality.
-

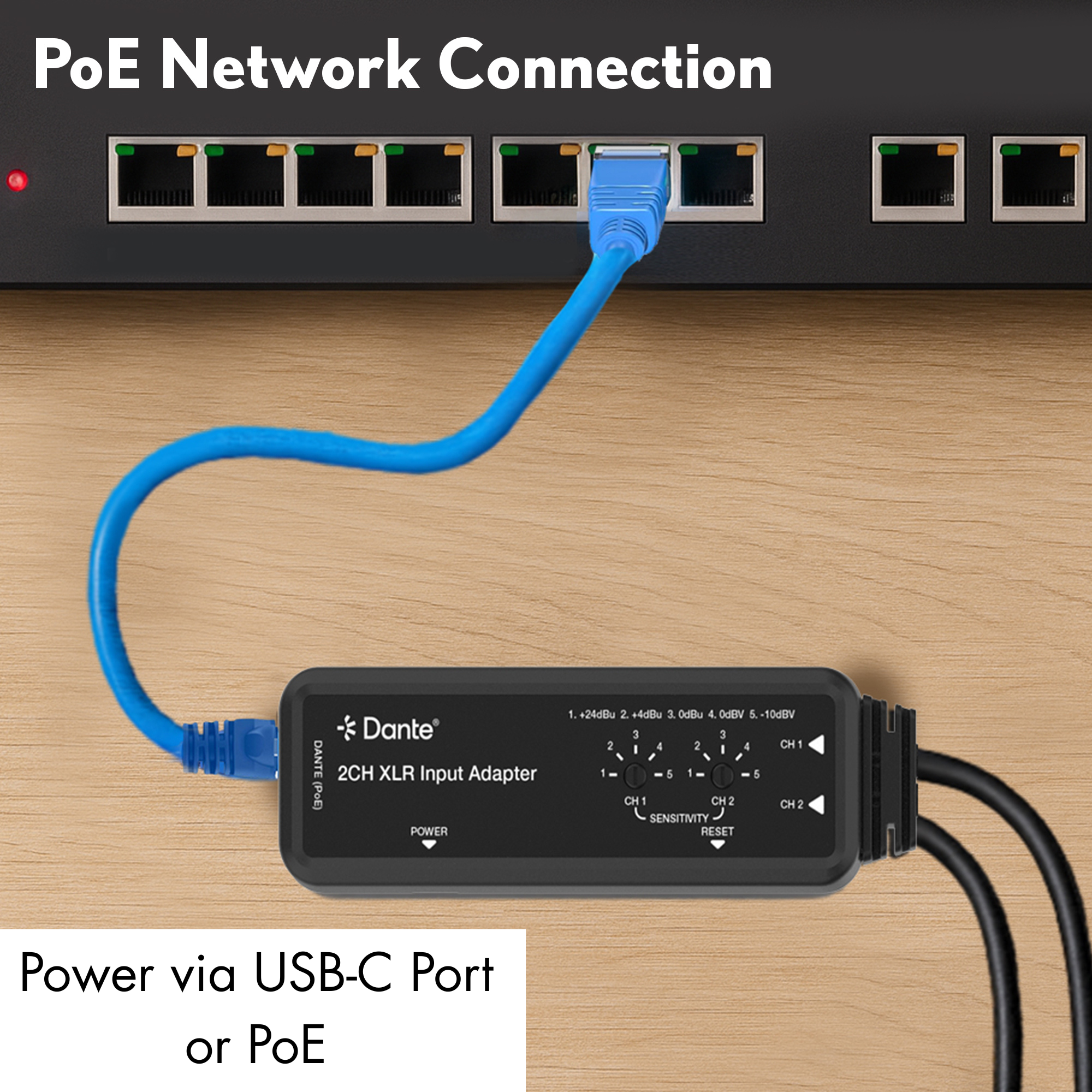

✅ Dual Power Options with Compact Design: Supports convenient USB-C local power supply or PoE (Class 0, 802.3af) for flexible installations in studios, stages, or AV racks. Its compact form factor allows easy integration in any professional audio setup.
Information
- Brand
- J-Tech Digital
- MPN
- JTD-3250
- Model
- JTECH-DA2EX
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications
- Input
- Two-channel balanced/unbalanced XLR analog audio
- Output
- Dante 2CH digital audio
- Control Method
- Dante Controller
- Video Network Bandwidth
- 100M
- Audio Latency
- Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante ® Controller)
- Audio Formats
- XLR IN [Analog audio input, Balanced/unbalanced 2CH, Max input level +24dBu], DANTE OUT [Digital audio output, PCM 2CH 44.1K-96KHz 16/24bit]
- Transmission Distance
- 328ft/100m (CAT6/6A/7)
- Input port

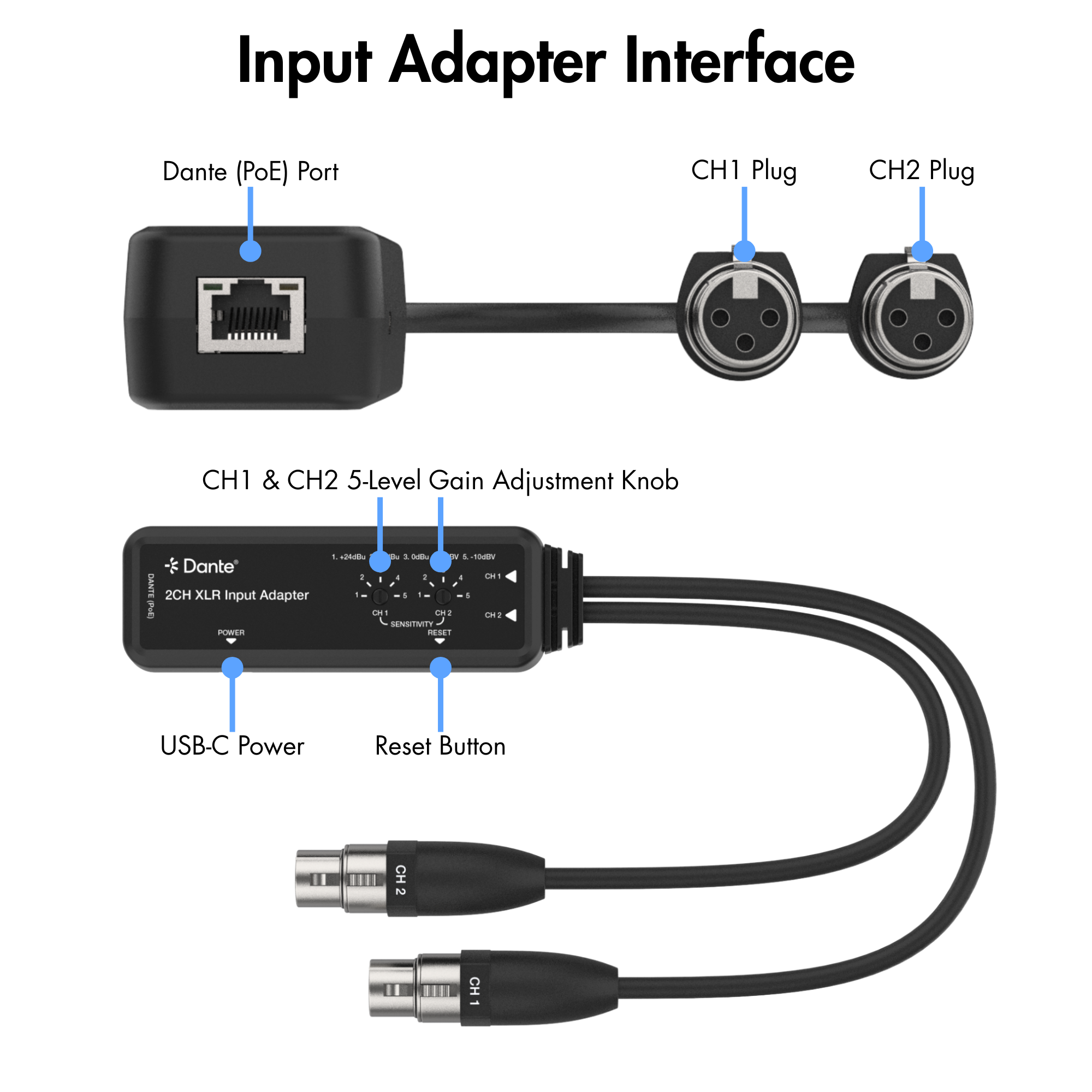

- 2x CH1/CH2 XLR IN [XLR female plug, with 30cm cable], 1x POWER [USB-C power and firmware update port, 12-pin female]
- Output port
- 1x DANTE [RJ45 connector, PoE]
- Others
- 1x RESET button [System reboot button], 2x SENSITIVITY knob [5-level dip switch]
- Housing
- Plastic Enclosure
- Color
- Black
- Dimensions
- 115mm [W] x 40mm [D] x 28 mm [H]
- Weight
- 173g
- Power Supply
- USB input: 5V/500mA, PoE input: PoE IEEE802.3af Class 0
- Power Consumption
- 2W (Max)
- Operating Temperature
- 32 ~ 104°F / 0 ~ 40°C
- Storage Temperature
- -4 ~ 140°F / -20 ~ 60°C
- Operating Humidity
- 20% ~ 80% RH (relative humidity, non-condensing)
- Storage Humidity
- 10% ~ 90% RH (relative humidity, non-condensing)
What's in the box
- 1 x Dante 2CH XLR Input Adapter
- 1 x User Manual
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
