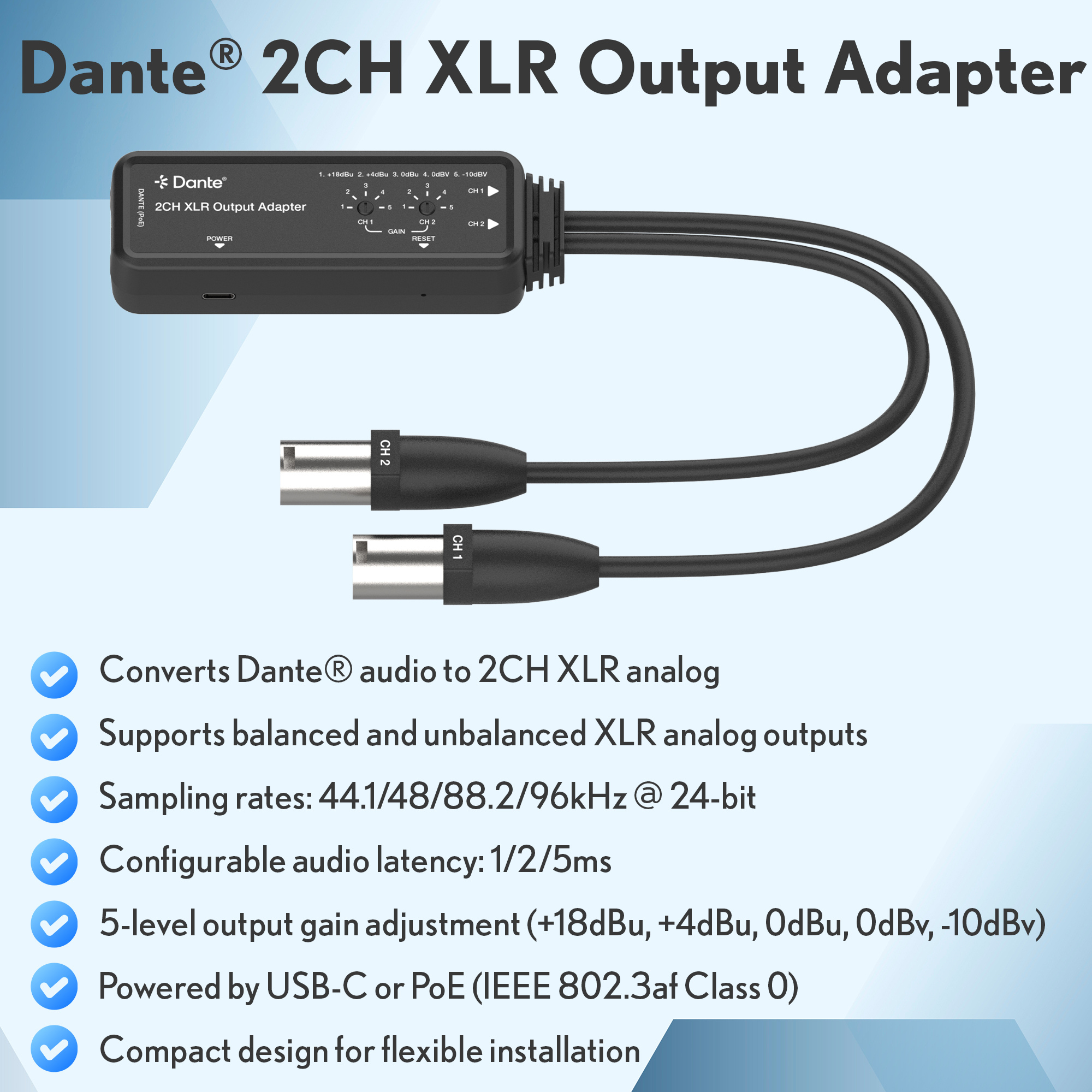

2-Channel Dante to XLR Audio Output Adapter
-

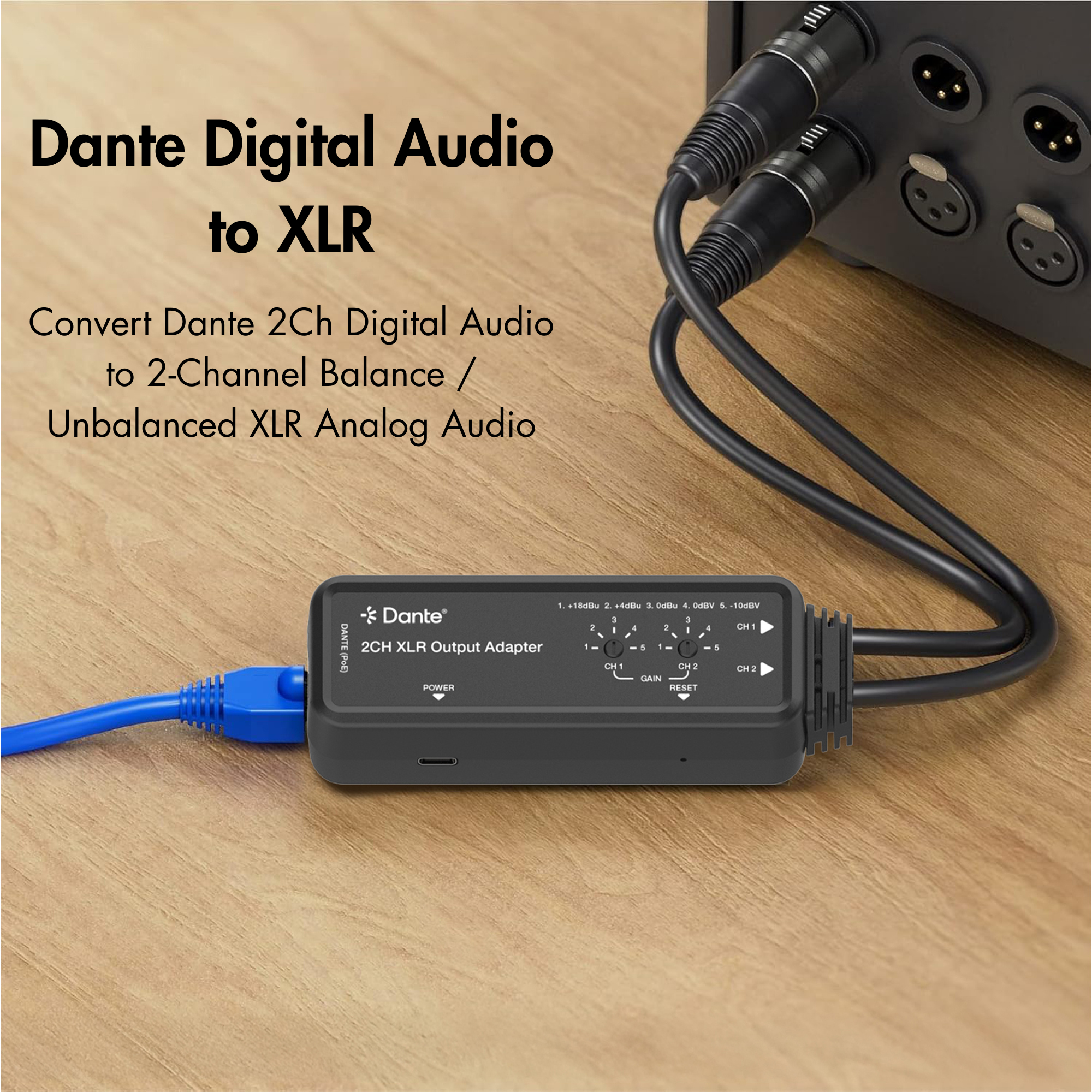

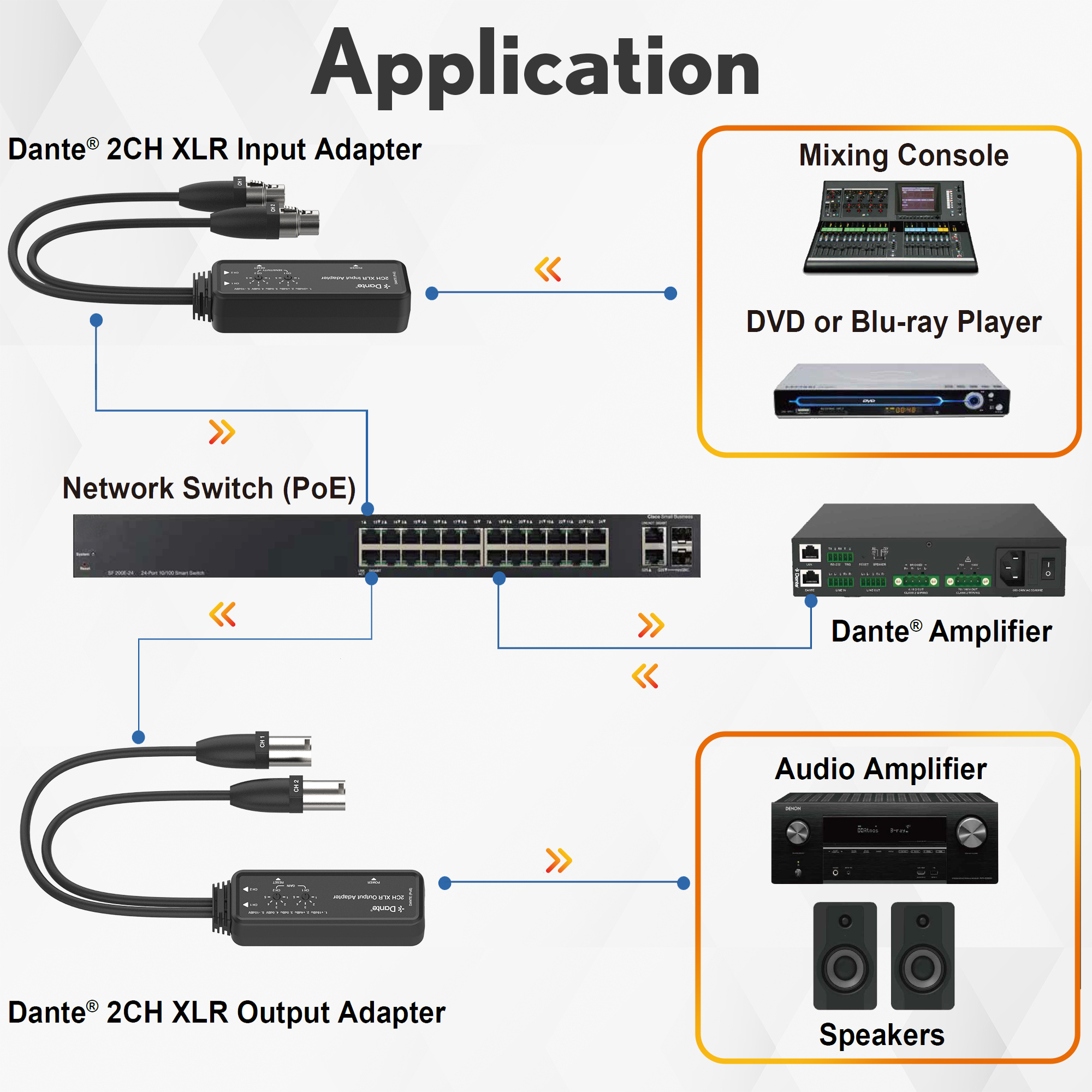

2-Channel Dante to XLR Audio Output Adapter Converter: Easily transforms two-channel Dante analog signals into balanced/unbalanced XLR analog audio, ideal for live sound, broadcast, recording, and professional AV installations.
-
High-Fidelity Dante Audio Performance: Supports 24-bit audio at multiple sampling rates (44.1 / 48 / 88.2 / 96 kHz) with configurable 1 / 2 / 5 ms delay, delivering ultra-low latency and precise, synchronized audio across your Dante network.
-
Flexible Analog Input & Sensitivity Control: Features 5-level input control (+24 dBu, +4 dBu, 0 dBu, 0 dBv, -10 dBv) to optimize any professional audio source, ensuring clean, distortion-free signal transmission.
-

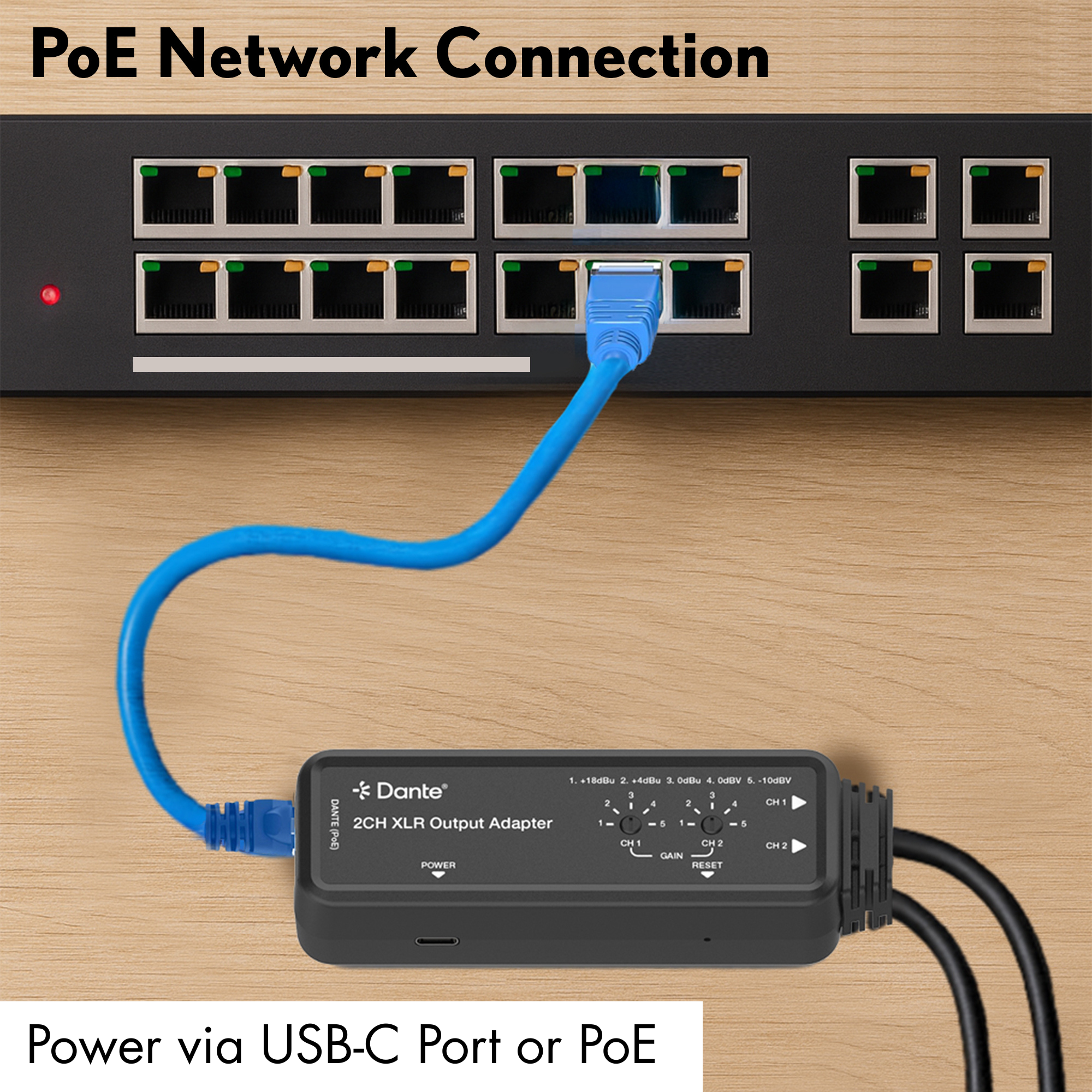

Dual Power Options with Compact Design: Powered via USB-C or PoE (Class 0, 802.3af) for versatile installation in studios, stages, or AV racks. Its small form factor allows seamless integration into any professional audio setup.
Information
- Brand
- J-Tech Digital
- MPN
- JTD-3251
- Model
- JTECH-DA2DX
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications
- Input
- Dante 2CH digital audio
- Output
- Two-channel balanced/unbalanced XLR analog audio
- Video Network Bandwidth
- 100M
- Audio Latency
- Configurable Dante device latency (Supports 1, 2 or 5ms configurable using Dante ® Controller)
- Audio Formats
- DANTE IN [Digital audio input, PCM 2CH 44.1K-96KHz 16/24bit], XLR OUT [Analog audio output, Balanced/unbalanced 2CH, Max input level +24dBu]
- Transmission Distance
- 328ft/100m (CAT6/6A/7)
- ESD Protection
- IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

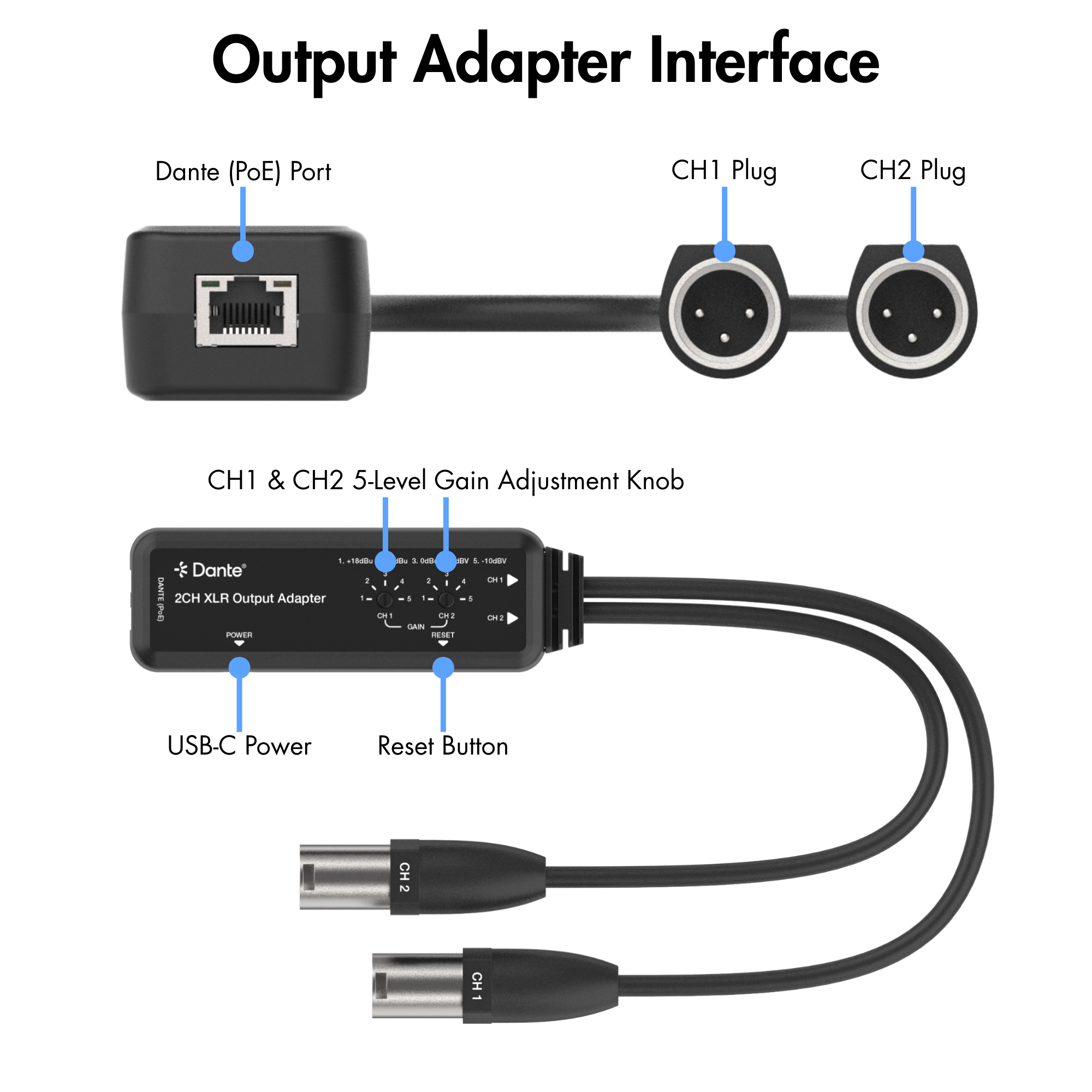

- Input port
- 1x DANTE [RJ45 connector, PoE], 1x POWER [USB-C with USB power only, 12-pin female]
- Output port
- 2x CH1/CH2 XLR OUT [XLR female plug, with 30cm cable]
- Others
- 1x RESET button [System reboot button], 2x GAIN knob [5-level dip switch]
- Housing
- Plastic Enclosure
- Color
- Black
- Dimensions
- 115mm [W] x 40mm [D] x 28 mm [H]
- Weight
- 173g
- Power Supply
- USB input: 5V/500mA, PoE input: PoE IEEE802.3af Class 0
- Power Consumption
- 1.25W (Max)
- Operating Temperature
- 32 ~ 104°F / 0 ~ 40°C
- Storage Temperature
- -4 ~ 140°F / -20 ~ 60°C
- Operating Humidity
- 20% ~ 80% RH (relative humidity, non-condensing)
- Storage Humidity
- 10% ~ 90% RH (relative humidity, non-condensing)
What's in the box
- 1 x Dante 2CH XLR Output Adapter
- 1 x User Manual
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
