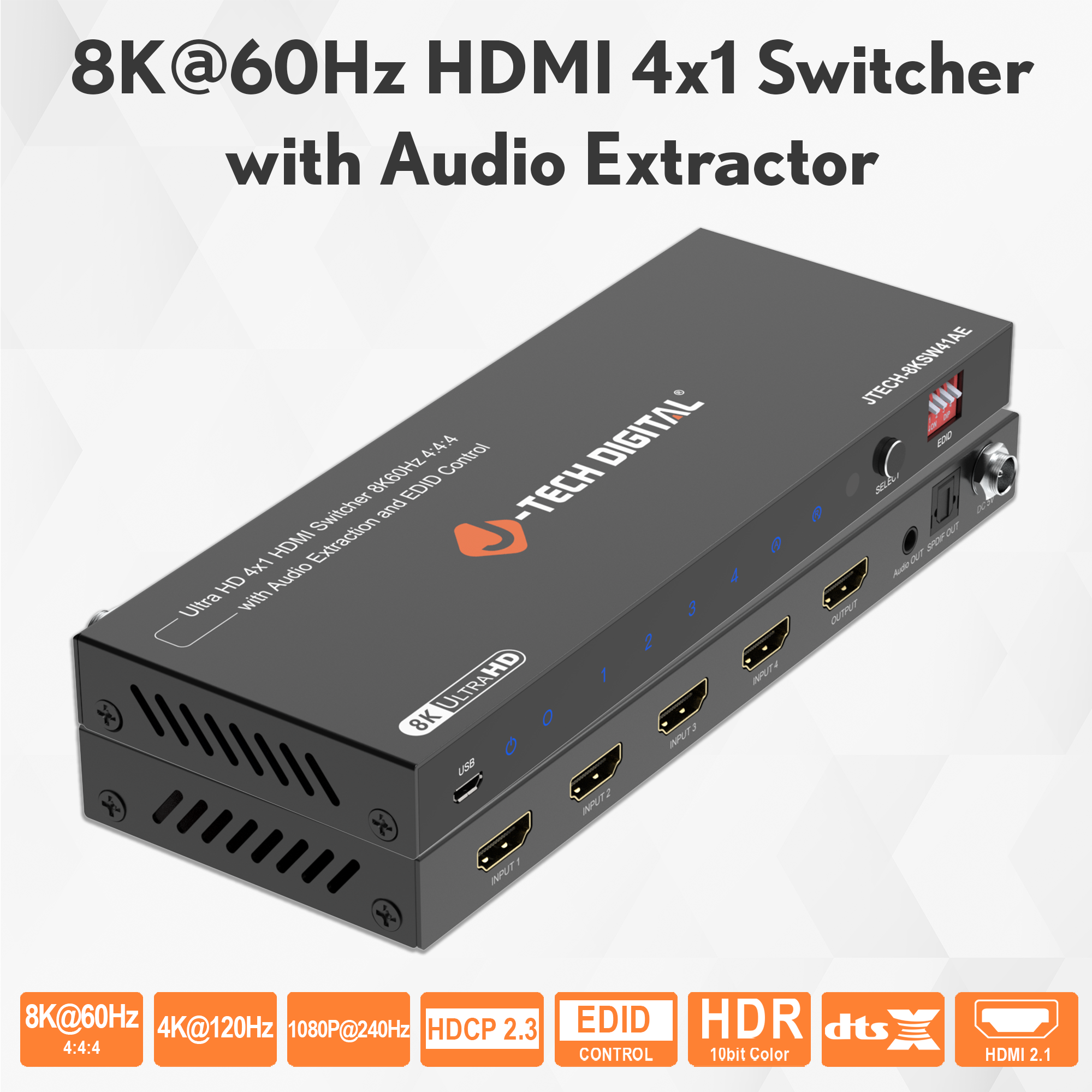

8K 60Hz HDMI Switch 4 In 1 Out with Audio Extraction

$59.99

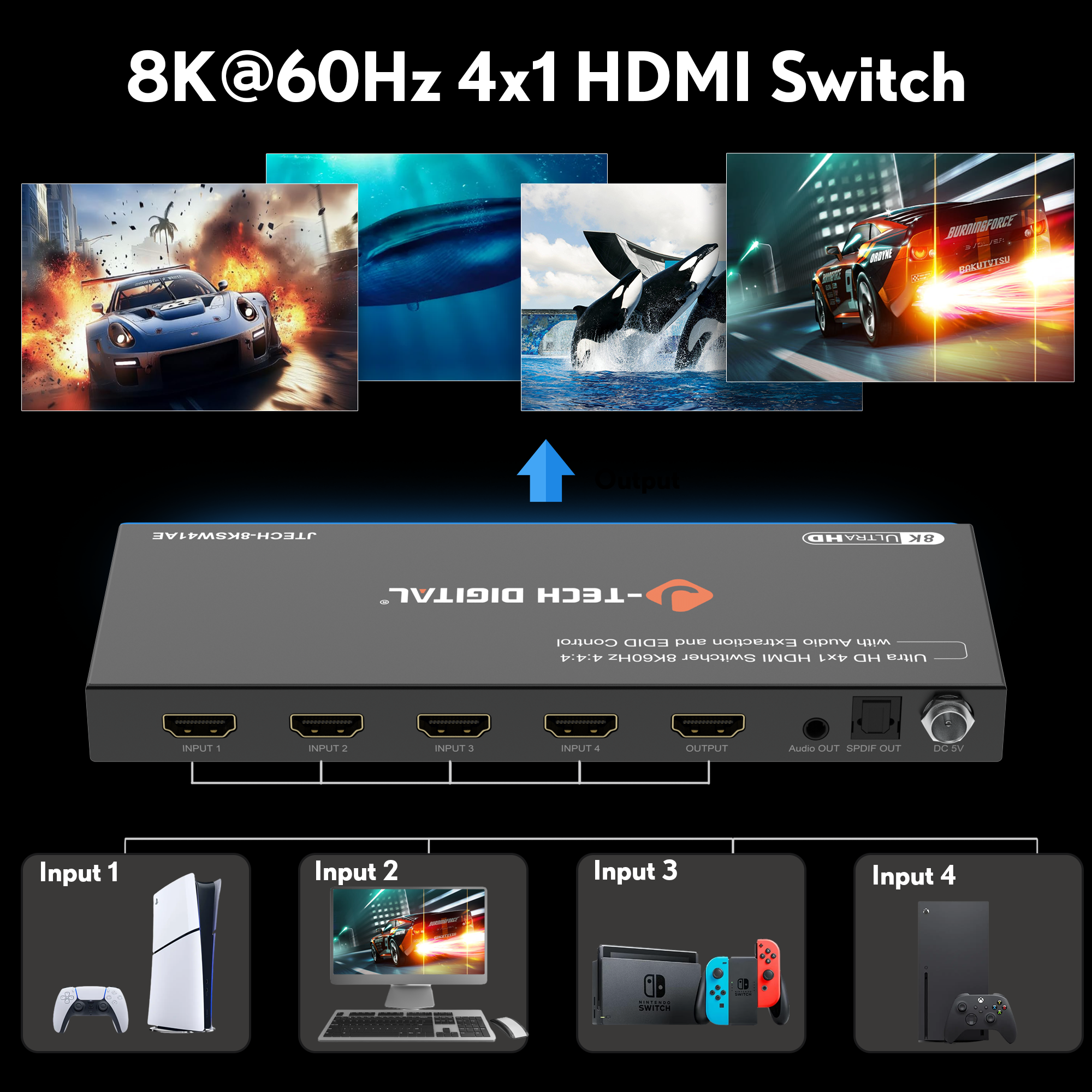

✅ 4x1 HDMI Switch 8K@60Hz | 4K@120Hz | 1080P@240Hz: Effortlessly switch between four HDMI source devices on a single display, supporting 8K@60Hz 4:4:4, 4K@120Hz, and 1080P@240Hz for crystal-clear visuals. Enjoy HDR10, HDR10+, Dolby Vision for an immersive viewing experience.
✅ Audio Extraction via Optical & 3.5mm: Extract high-quality audio from HDMI to Optical and 3.5mm stereo output, ideal for soundbars, AV receivers, and speakers. Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and uncompressed LPCM for premium surround sound.

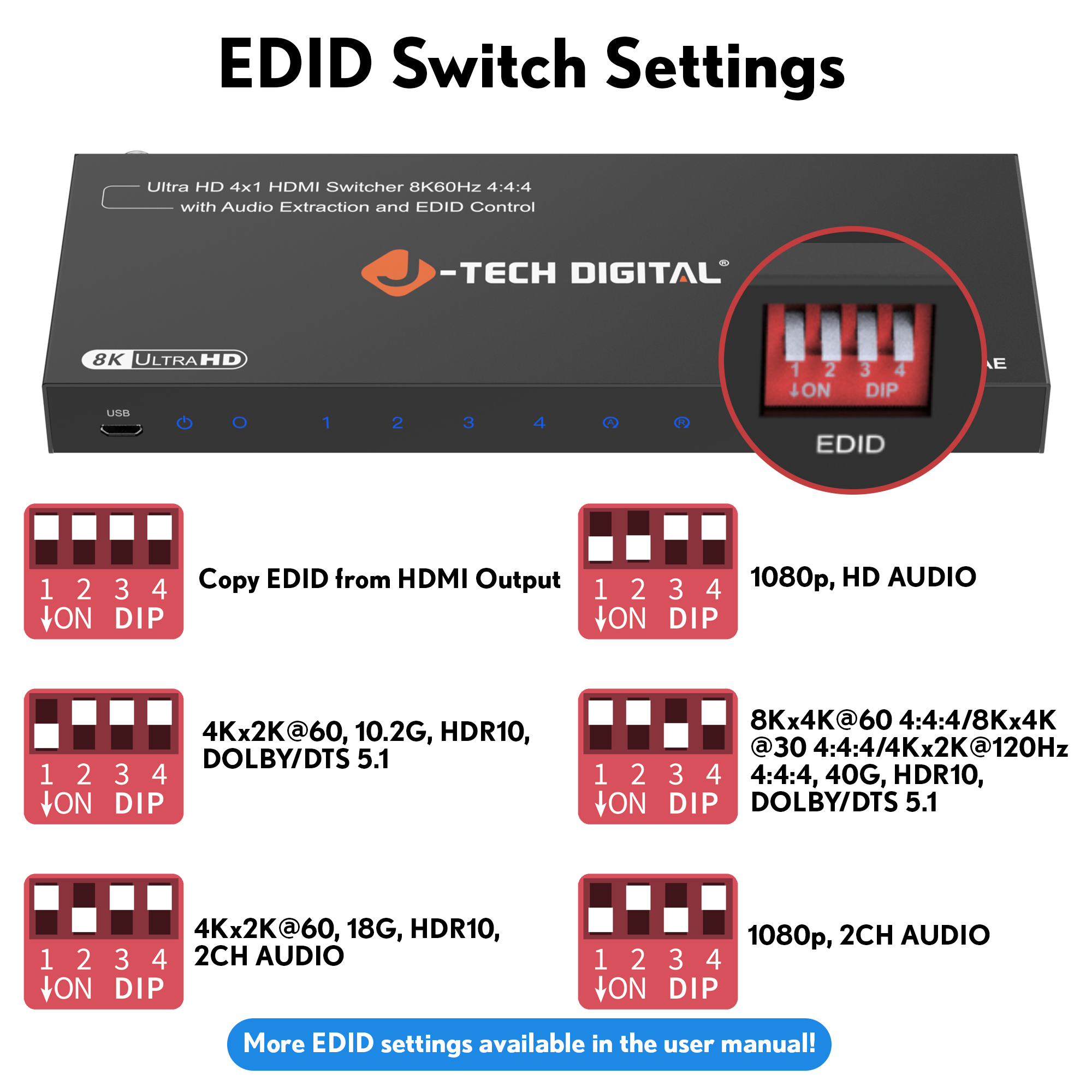

✅ EDID Management with 15 Settings for Maximum Compatibility: Advanced EDID control with 15 preset settings optimizes resolution and audio settings for different displays. The bypass EDID function ensures plug-and-play ease with TVs, projectors, and monitors.

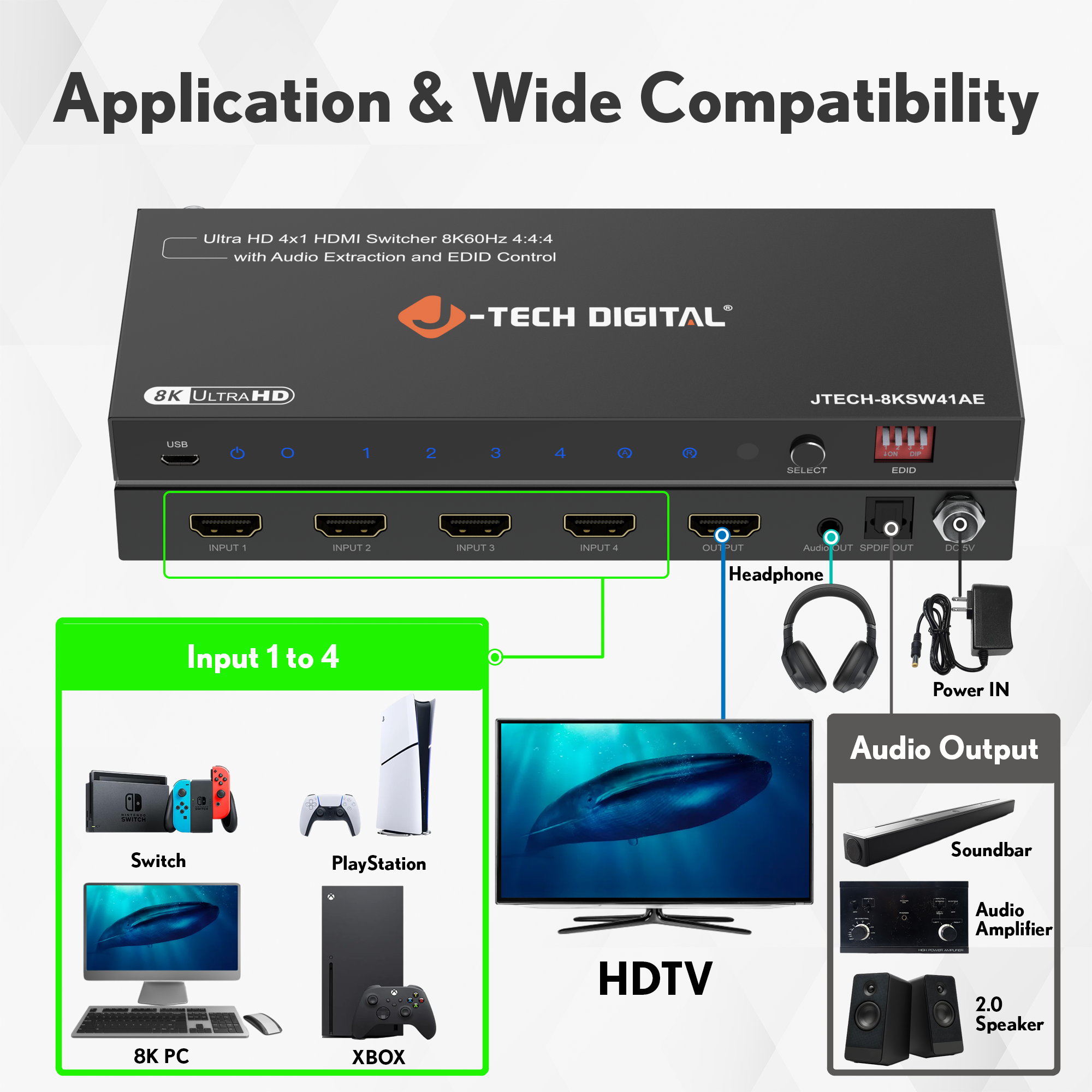

✅ HDMI 2.1 | HDCP 2.3 | Wide Compatibility: Works with PS5, Xbox Series X, Apple TV, Roku, Fire Stick, Blu-ray players, PCs, and home theater systems for seamless integration. Supports CEC (consumer electronics control) function.

Information

Benefits

Drivers

No drivers available

Specifications

General

Input Ports: HDMI x 4
Output Ports: HDMI x 1
Vertical Frequency Range: 50/60Hz
Video Amplifier Bandwidth: 12Gbps/1200MHz per channel(48Gbps all channels)
Interlaced (50 & 60Hz): 480i, 576i, 1080i
Progressive (50 & 60Hz): 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60/120Hz, 8K@24/30/50/60Hz
Operating Temperature: 0℃ to 70℃
Storage Humidity: 5% to 90% RH non-condensation
Power Consumption (Max): 5W
Switcher Unit Cert: FCC, CE, RoHS
Power Supply Cert: FCC, CE, RoHS
