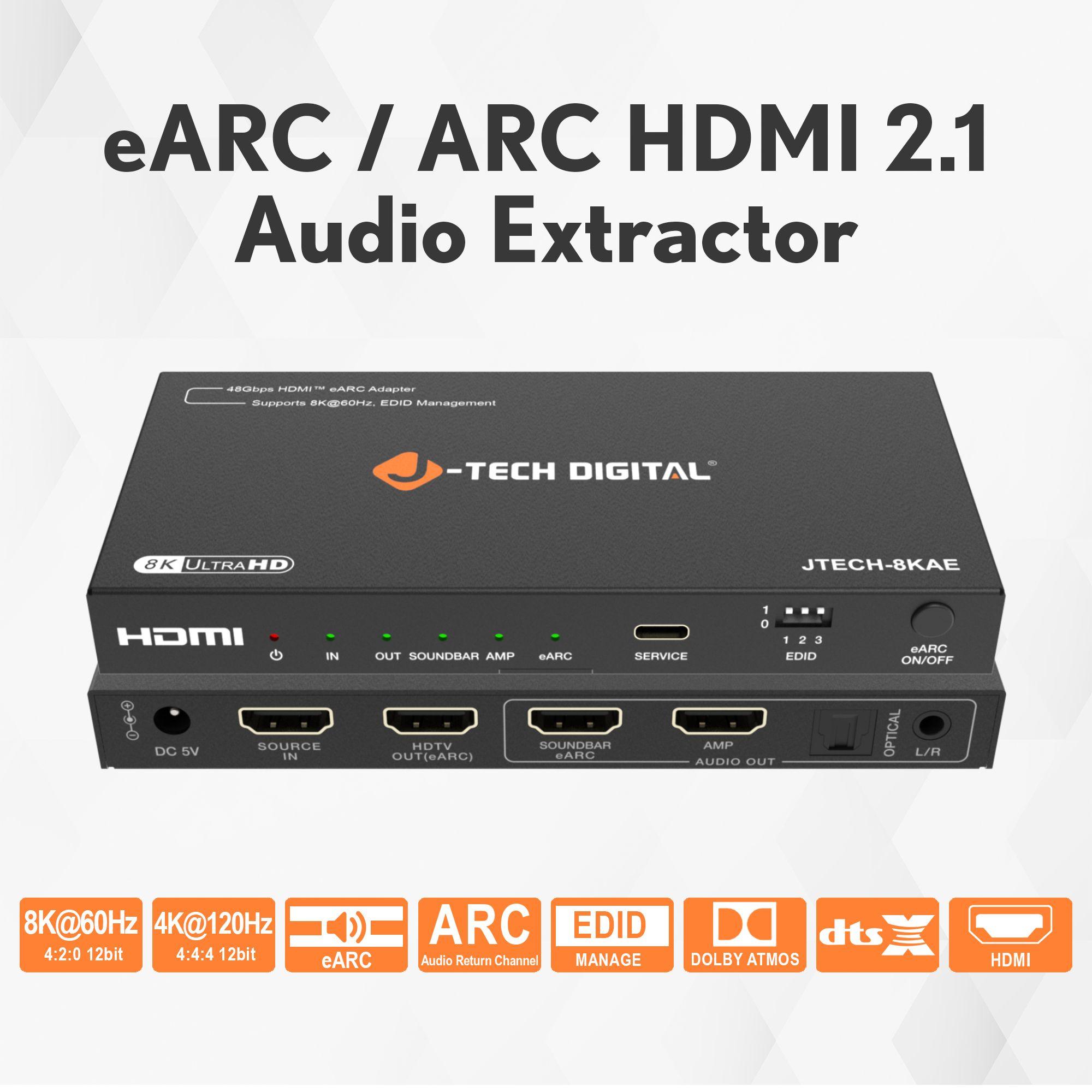

8K 60Hz 4K 120Hz eARC / ARC HDMI Audio Extractor

$129.99

✅ 8K 60Hz | 4K 120Hz HDMI Audio Extractor: Extract audio from HDMI signal, send to external audio systems via Optical, L/R out, and HDMI audio out ports; pass up to 8K@60Hz or 4K@120Hz video signal to display. This HDMI audio extractor handles the latest HDMI 2.1 standards with support for HDR, HDR10+, Dolby Vision, and HLG pass-through

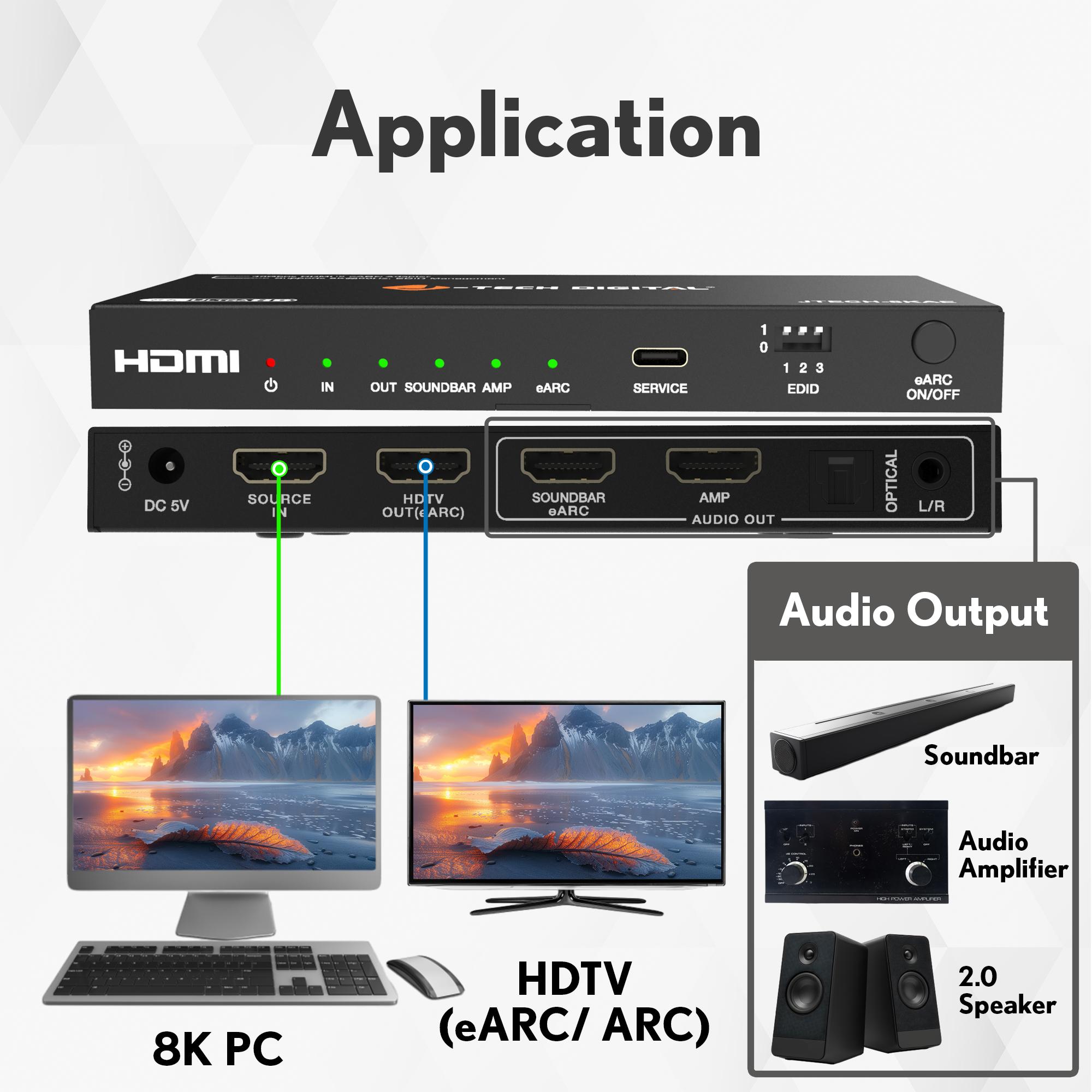

✅ eARC / ARC Audio Extraction Function: Easily extract audio signals from your 8K@60Hz, 4K@120Hz HDMI source, ARC, or eARC enabled TV. Send the audio signal directly to your sound system, AV receiver, or amplifier through Optical SPDIF, L/R analog, or HDMI audio outputs

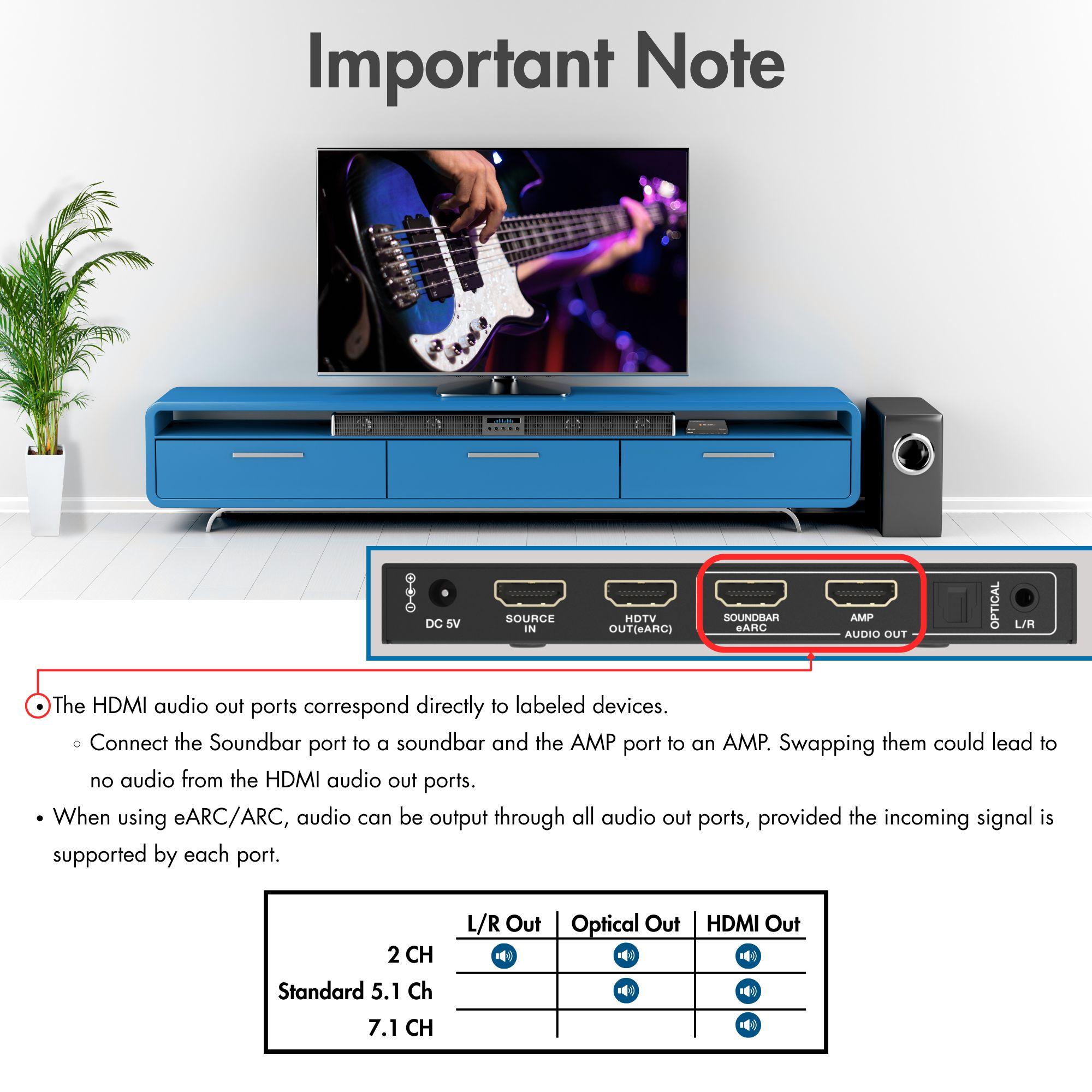

✅ Digital Audio Formats Supported: L/R audio out supports Stereo; Optical audio out supports up to standard Dolby Digital 5.1; HDMI audio out ports support up to 7.1ch audio. Please ensure that your incoming audio from source is set accordingly for the audio out port being used

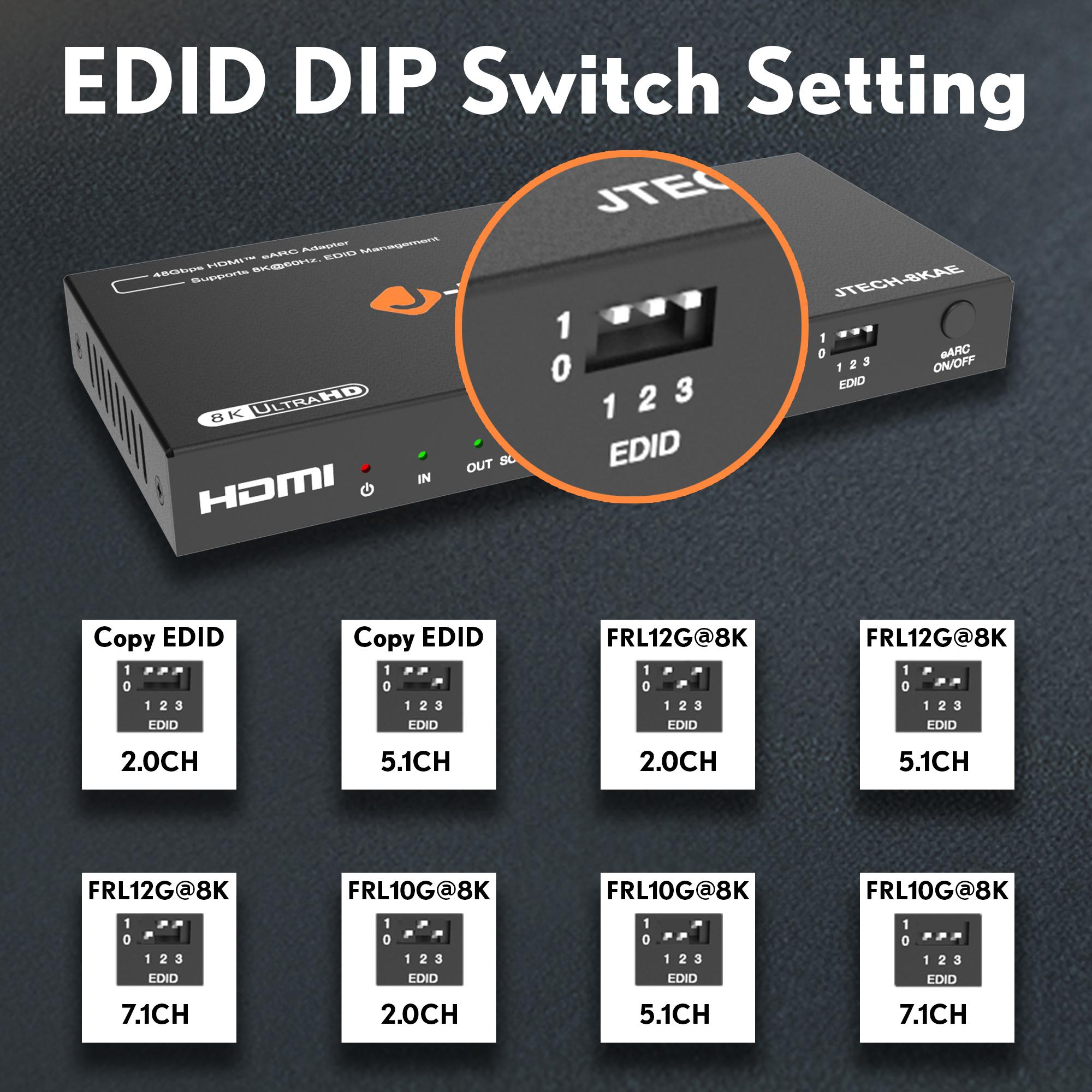

✅ EDID Management DIP Switch: Supporting EDID management via DIP switch, this HDMI audio extractor ensures hassle-free installation and compatibility across a wide range of devices such as gaming consoles, media players, blu-ray players, laptops/desktops etc.
✅ CEC Control & HDCP 2.3 Compliant: HDCP 2.3 compliant with support for CEC control from your TV to the source, amplifier, or soundbar, ensuring seamless operation and audio synchronization (works with eARC / ARC for volume control)

Information

Benefits

Specifications

Technical

HDMI Compliance: HDMI 2.1
HDCP Compliance: HDCP 2.3
Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
Video Resolution: 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
Color Depth: 8/10/12bit
Color Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats: HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, eARC Audio Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, Amp Audio Out: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, Optical: PCM 2.0CH/Dolby/DTS 5.1CH, L/R: PCM 2.0CH
ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

Connection

Input: 1 × Source IN [HDMI Type A, 19-pin female]

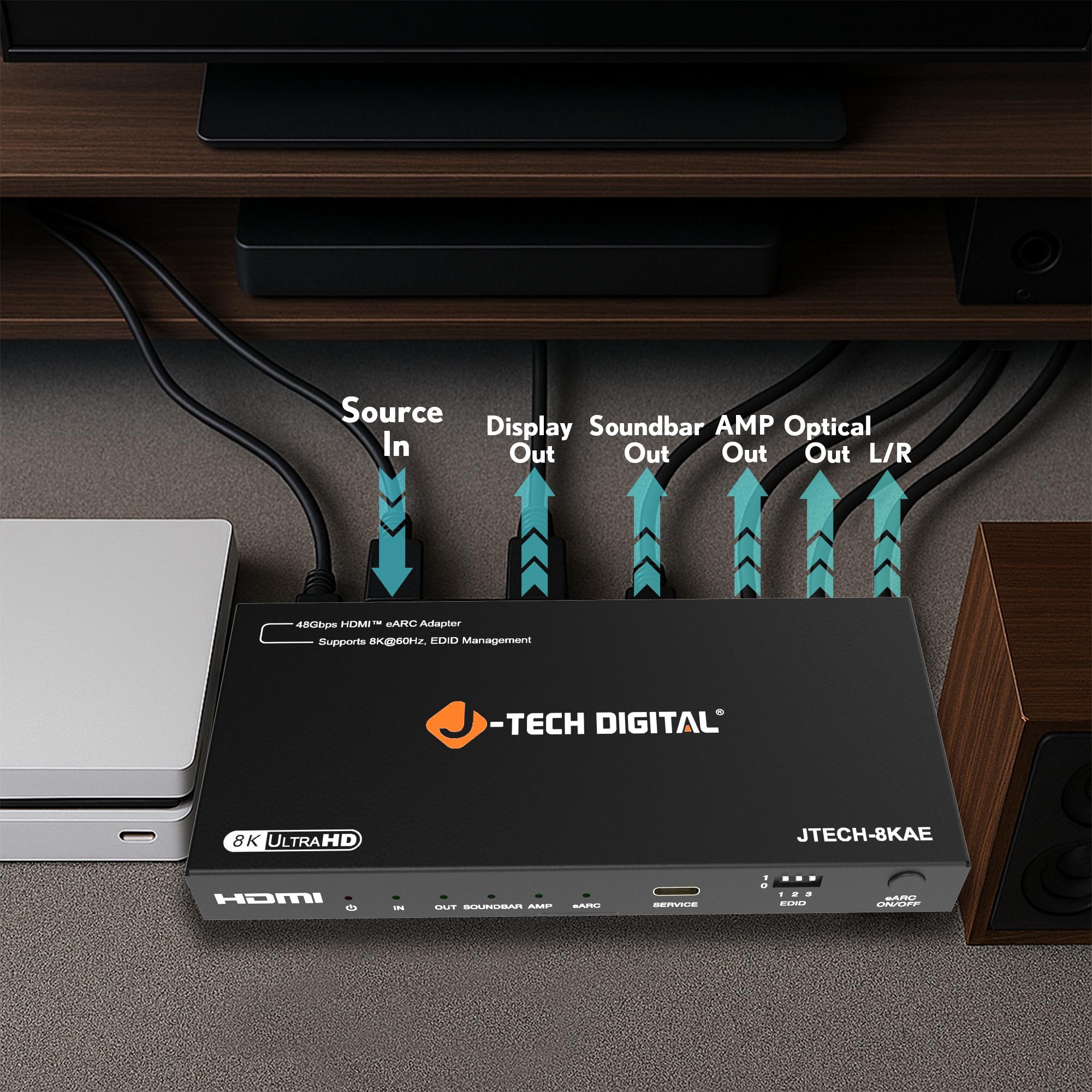

Output: 1 × HDTV OUT (eARC) [HDMI Type A, 19-pin female], 1 × SOUNDBAR eARC AUDIO OUT [HDMI Type A, 19-pin female], 1 × AMP AUDIO OUT [HDMI Type A, 19-pin female], 1 × OPTICAL AUDIO OUT [S/PDIF], 1 × L/R AUDIO OUT [3.5mm Stereo Mini-jack]
Control: 1 × SERVICE [USB Type C, Update port]

Mechanical

Housing: Metal Enclosure
Color: Black
Dimensions: 145mm [W] × 68mm [D] × 18mm [H]
Weight: 262g
Power Supply: Input: AC 100-240V 50/60Hz, Output: DC 5V/2A, (US/EU standards, CE/FCC/UL certified)
Power Consumption: 5.2W (Max)
Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity: 20~90% RH (non-condensing)
