Product Link:

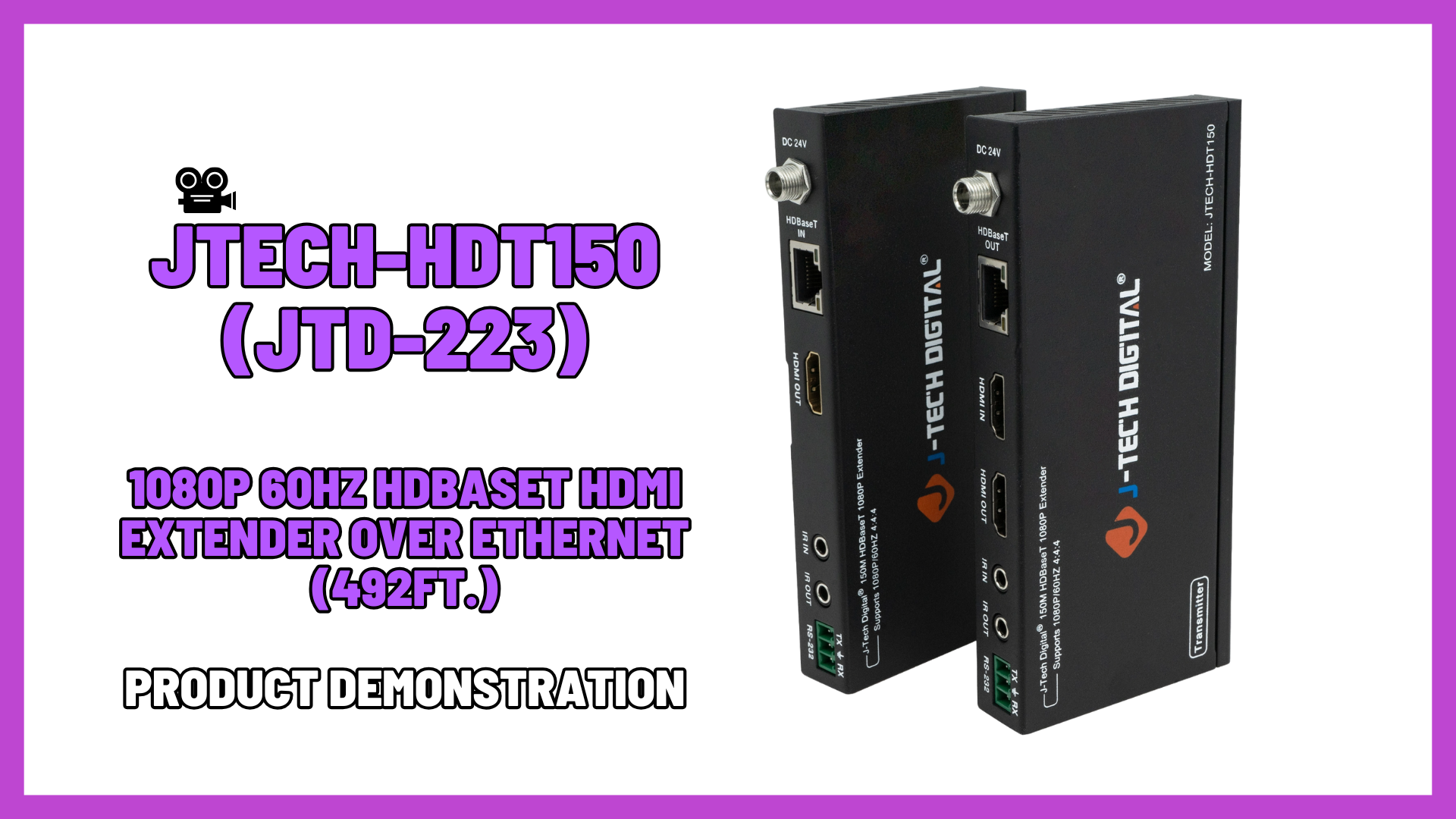

Model: JTECH-HDT150
JTD-ID: JTD-223
Category: HDMI HDBaseT Extender
Model: JTECH-HDT150
JTD-ID: JTD-223
Category: HDBaseT HDMI Extender
The JTECH-HDT150 extender, can transmit a High-Definition 1080P signal up to 500 feet (150 meters) using the latest HDBaseT transmission protocol. With the JTECH-HDT150 extender, you have many different resolutions options to choose from, including common PC resolutions with 16:10 aspect ratios, such as 1920x1200, so you will not be limited to only “TV-friendly” source devices or monitor displays. This extender is powered by bi-directional POC, and only requires power to be connected to either the receiver or the transmitter, allowing for discreet installation. The JTECH-HDT150 uses an EDID passthrough that will automatically detect which resolutions and audio format are compatible with your display, set them to the highest options available. The JTECH-HDT150 also passes CEC commands, allowing source devices and displays that support CEC to also be turned on or off through the extender. The JTECH-HDT150 also passes RS-232 commands, to control devices for serial communication transmission of data.
Product Features:
-
1080P 60Hz HDBaseT HDMI extender over ethernet up to 492ft.
-
HDMI Compliance: HDMI 1.4 | HDCP Compliance: 1.4
-
Video Resolutions: up to 1080P@60Hz | Transmission distance up to 492ft. over single Cat5e/6 ethernet cable using HDBaseT Protocol
-
Audio Formats: LPCM 2/5.1/7.1ch, Dolby Digital, DTS 5.1, Dolby TrueHD, Dolby Atmos, DTS:X
-
Supports RS232, Power over Cable, Bi-Directional IR
