When a display is far from the source, the hard part is rarely just buying “a longer HDMI cable.” Installers and owners often discover the real issue after the cable is already in the wall: a Cat-cable extender was expected to pass through network switches, the picture drops when the resolution changes, or the room also needs audio, IR control, or power at the far end. A wired HDMI extender works best when the entire signal path is decided before the hardware is selected.
First, Separate a Direct Cable Link From a Networked AV System
An HDMI-over-Cat extender commonly uses Cat cable as a dedicated link between its transmitter and receiver. That does not automatically mean the signal can travel through ordinary Ethernet switches, building network equipment, or a fiber backbone. If the project needs to traverse a switched network, connect many endpoints, or distribute streams across rooms, compare an AV-over-IP system rather than assuming a point-to-point extender will fill that role.

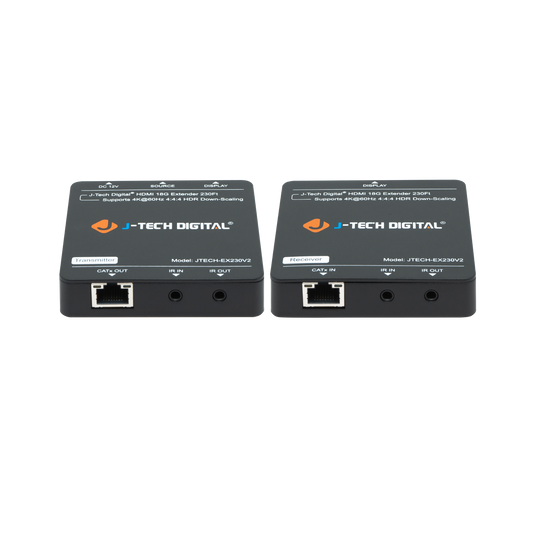

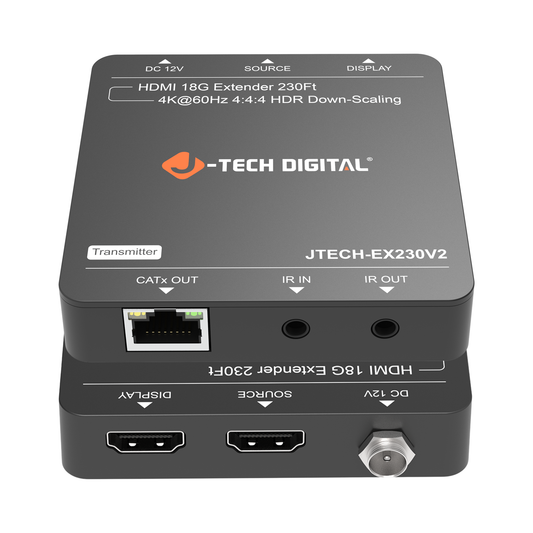

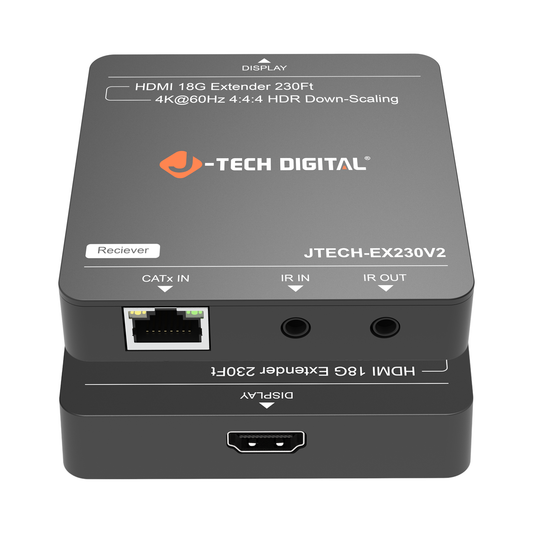

For a direct 4K 60Hz Ethernet run, the 4K HDMI Extender Over Ethernet with 230ft, PoC, and IR is an example of a transmitter-and-receiver format. Its listing notes HDMI output, audio output, SPDIF, IR, and PoC, making it useful to compare when the far end needs more than a display connection.
Let the Cable Path Decide the Next Question
Choose the transmission method around the pathway that can actually be installed. Ethernet-based extension is relevant where a direct Cat run is available or practical. Coax-based options can be relevant where existing coax is the constraint. If the route is short and accessible, a direct or active cable may also be worth comparing. The right answer depends on the real run, the desired format, and whether the cable will be easy to service later.
Before committing to a model, confirm the stated distance at the resolution you plan to use, the required cable type, and the number of intermediate components. Avoid assuming a maximum-distance figure applies unchanged to every cable, endpoint, or video format.
| Check after choosing the path | What to confirm | Why it helps |
|---|---|---|
| Source-to-display connection | Direct transmitter-to-receiver path or an AV-over-IP architecture | Prevents choosing a point-to-point extender for a switched-network route. |
| Video requirement | The required resolution and refresh rate across every component | Reduces surprises when sources or displays negotiate different formats. |
| Cable installation | Cable type, termination quality, bends, and accessible service points | The installed cable is part of the system, not a neutral accessory. |
| Endpoint features | Audio, IR, USB, PoC, or local loop-out needs | Keeps control and audio requirements from becoming late-stage add-ons. |

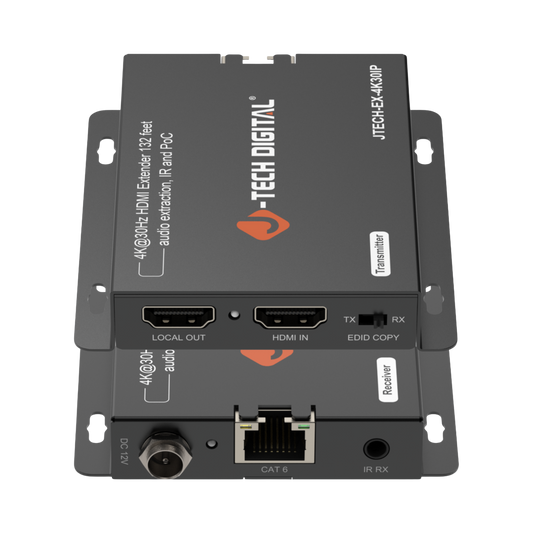

For a 4K 30Hz project that requires audio extraction, IR, and PoC, the 4K HDMI Extender Over Ethernet with Audio Extraction provides a distinct configuration to compare. Check the source, display, extender, and cable as one chain; a feature on one device does not guarantee it is supported end to end.
Choose Distribution Hardware Only When the Layout Requires It
One source and one distant display call for a different approach from one source feeding several remote screens. If the same content must reach multiple locations, start by counting the destinations and deciding whether they all need the same signal. That is the point to compare extender splitters rather than trying to turn a point-to-point kit into a distribution system later.
The 1x8 HDMI Extender Over Ethernet is a Full HD option with one transmitter and multiple receiver units over Cat5e/6. It is relevant when a central source must be delivered to several displays. For a daisy-chain topology, the 1080P HDMI Extender Over Ethernet with Daisy Chain is identified with a loop output and 400ft designation; verify the intended endpoint layout in the product documentation.
Treat Dropouts and Service Access as Installation Decisions
Intermittent picture loss, a blank display after a source wakes, or an unavailable far-end endpoint can be difficult to isolate once the equipment is enclosed. Plan a clean, direct cable run where the product requires one. Label the transmitter and receiver sides, test the complete signal path at the target format before closing walls or racks, and keep power connections accessible for service.
Audio and control should be included in the same plan. Decide where sound is needed, whether the display end must control the source, and how the endpoints will be powered. If the installation is specifically based on HDBaseT, compare Wired HDBaseT Extenders. If routing a cable is the main obstacle, evaluate Wireless Extenders as a separate approach.
Build the Extension Around the Real Signal Path
Choose a wired HDMI extender by first identifying whether the run is direct or networked, then confirming cable path, signal format, endpoint features, and distribution needs. This order turns a broad extender collection into an installation decision rather than a guess.
FAQ
Can a wired HDMI extender run through an Ethernet switch?
Not every HDMI-over-Cat extender is a networked AV-over-IP device. Confirm the product’s intended topology before connecting it through switches or other network infrastructure.
Why does a long-run setup work at one resolution but not another?
The source, extender, cable, and display must all support the active signal format. Recheck the full chain and the stated requirement for the selected model.
When do I need an extender splitter?
Choose an extender splitter when one source must reach multiple remote displays. A transmitter-and-receiver pair is the simpler fit for one source and one distant display.
What should I test before installation is closed up?
Test the actual source, display, cable run, control path, audio path, and endpoint power arrangement at the format the room will use.
