Matrix Switchers

An HDMI matrix switcher is usually bought after a simple switch or splitter stops being enough. The real problem is not just “more HDMI ports.” It is routing several sources to several displays without creating handshake issues, confusing control, mismatched resolutions, or a system that is hard to explain to the next person who has to use it.

For home theaters, conference rooms, retail displays, classrooms, houses of worship, control rooms, and demo spaces, the right matrix starts with the source-display map. Count the inputs, count the outputs, then check how the system will handle EDID, HDCP, resolution differences, cable distance, and day-to-day control.

Choose HDMI Matrix Switchers by the Problem You Need to Solve

Map Inputs and Outputs Before Comparing Features

Start with a plain list: sources on one side, displays on the other. Sources might include media players, computers, cameras, set-top boxes, consoles, signage players, or production equipment. Displays might include TVs, projectors, monitors, capture devices, or screens in different rooms.

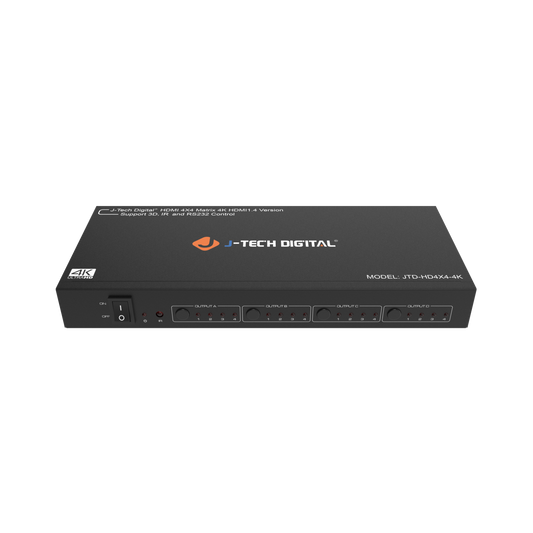

For compact multi-display routing, the 4K 4x4 HDMI Matrix Switcher with RS232 and IR Control is a practical starting point. It fits projects where four inputs and four outputs are enough, and where buyers want matrix routing without moving into a large-format system.

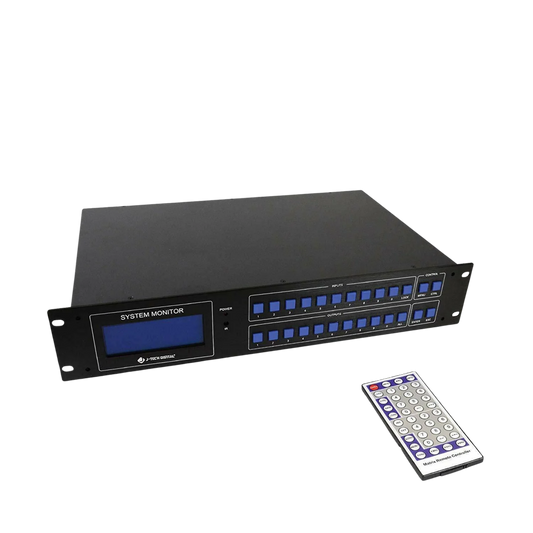

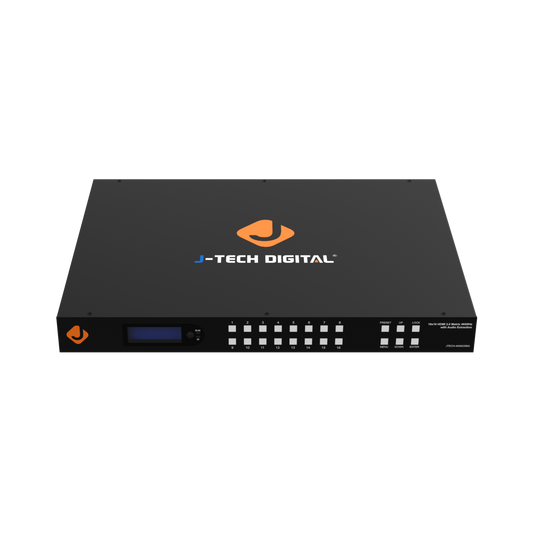

For larger installations, the 16x16 HDMI Matrix Switcher with 4K 30Hz RS232 Control is better aligned with high-output routing. This type of product is relevant when many displays need access to many sources from one central routing point.

Avoid choosing by the biggest number alone. A 16x16 matrix can be the right tool for a large venue, but a 4x4 matrix may be easier to manage in a smaller room. The better question is: how many independent routes does the system actually need on a normal day?

Treat EDID, HDCP, and Resolution as Buying Criteria

Many HDMI complaints show up as blank screens, flickering, no signal, wrong resolution, or audio that disappears after a source wakes from sleep. Those symptoms are often tied to the HDMI handshake rather than to the display itself. Matrix systems add more endpoints, so planning matters more than it does with a single cable.

Before choosing a matrix, check:

• the highest resolution and refresh rate needed by the sources and displays
• whether all displays support the same formats
• whether any device has strict HDCP requirements
• whether the system needs audio extraction or separate audio handling
• whether long HDMI runs require extenders instead of direct cables
• whether the matrix will be controlled manually, by remote, by RS232, or by another system

If one display is older or lower-resolution, it can affect the routing plan. If a source requires a protected content path, the display chain has to support it. If several displays need different resolutions, the matrix selection should be made with that reality in mind instead of assuming every output will behave identically.

Separate Matrix Switching From Video Wall Control

Matrix switching and video wall control overlap in some products, but they solve different problems. A matrix routes sources to outputs. A video wall controller helps arrange video across a screen layout. If the project involves a 2x2 display wall, menu board, showroom wall, or monitoring display, look at layout capability as a separate requirement.

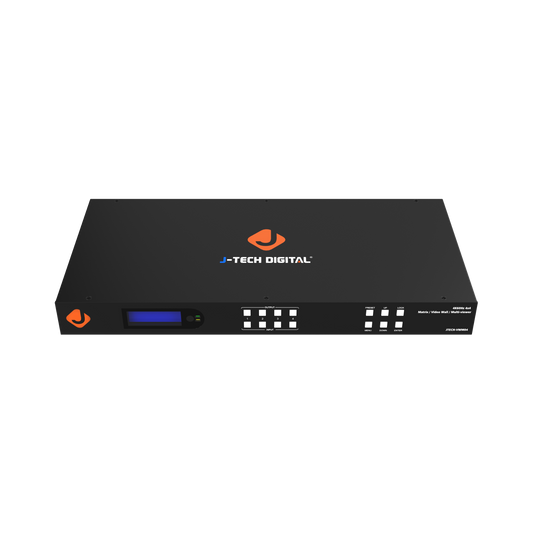

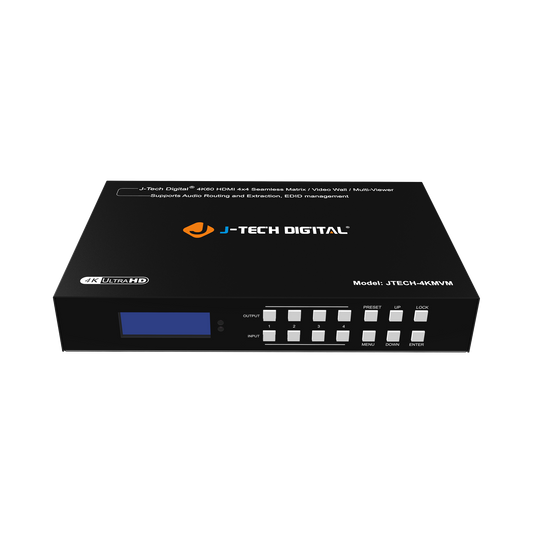

The 4K 2x2 Video Wall Controller with HDMI Matrix is a stronger fit when the buying question includes 2x2 video wall planning. The 4K 4x4 HDMI Matrix with Video Wall and Multiviewer is useful to compare when the project needs routing, display-wall use, and multiview-style monitoring in the same product family.

If the display wall is the main project, compare dedicated video wall controllers. If the operator needs to view several sources on one display, review multiview processors before committing to a standard matrix.

Plan Control Around the People Using the Room

A matrix can be technically correct and still frustrating if the control method does not match the room. A rack installation may need front-panel feedback. A conference room may need a repeatable source selection process. A control-room workflow may need fast switching and clear labeling. A home theater may need simple remote control.

Look at control early, not after installation. Front buttons can be useful for local operation. IR can be enough for basic remote use. RS232 or IP-related control may matter when the matrix becomes part of a managed AV system. If the room will be used by non-technical staff, keep the route labels clear and avoid creating more options than the workflow needs.

For single-display source selection, a matrix may be more than necessary. Compare HDMI switches when the goal is only to choose among several sources for one screen.

Build a Cleaner Installation Plan

Matrix projects often fail at the details around the hardware, not the hardware category itself. Leave space for cable strain relief. Label every input and output. Keep power and HDMI paths organized. Check whether any source goes to sleep and breaks the handshake. If displays are far away, plan extenders as part of the system rather than trying to solve distance with random long cables.

For commercial AV buyers, the cleanest matrix choice is the one that matches the room’s daily behavior: who changes sources, how often routes change, whether displays show the same or different content, and whether the system needs to be supported by someone who did not install it.

FAQ

What Is the Difference Between an HDMI Matrix and an HDMI Splitter?

An HDMI splitter duplicates one source to multiple displays. An HDMI matrix routes multiple sources to multiple displays, which makes it better suited to conference rooms, multi-screen spaces, retail displays, and installed AV systems.

What Is the Difference Between an HDMI Matrix and an HDMI Switch?

An HDMI switch usually sends several sources to one display. An HDMI matrix handles multiple inputs and multiple outputs, so different displays can receive different source routes depending on the matrix and setup.

Why Do Some Matrix Setups Have Blank Screens or Flicker?

Blank screens or flicker can come from resolution mismatch, HDCP compatibility, EDID handling, cable distance, source sleep behavior, or display capability differences. Check the entire source-to-display chain before assuming the matrix is the only issue.

Do I Need a Matrix Switcher or a Video Wall Controller?

Choose a matrix switcher when the main job is routing sources to displays. Choose a video wall controller when the main job is arranging content across a tiled display layout.

Should I Buy Extra Inputs and Outputs?

Extra capacity can help if the system may expand, but oversizing can make operation and support more complex. Choose enough headroom for realistic growth, not just the largest available number.

Compare HDMI Matrix Switchers for the Whole Signal Path

Choose HDMI matrix switchers by source count, display count, resolution needs, EDID and HDCP planning, control method, and room workflow. A matrix is easiest to live with when the routing plan, display capabilities, and control method are all matched before installation begins.
