4K 30Hz Input / 1080P Output H.265/H.264 IP Video Network Decoder with USB Playback

Regular price $129.99
  • ✅ H.265/H.264 IP Video Broadcast Decoder: HDMI network video decoder supporting RTSP, RTMP, RTMPS, HLS, SRT, RTP and UDP protocols. Ideal for IPTV systems, digital signage displays, security monitoring and broadcast video distribution.
  • ✅ 4K30 Input and 1080p HDMI Output: Supports video sources up to 4K@30Hz and converts to smooth Full HD 1080p@60Hz HDMI output for TVs, monitors and professional AV display systems.
  • ✅ USB Media Player Playback: Play MP4, MOV, WMV, MPEG and FLV video files directly from a USB drive. Perfect for digital signage playback, local media broadcast and standalone video display.
  • ✅ Features Channel Layout Function: Supports 4 independent channels while allowing users to resize and arrange multiple video channels on a single display to monitor multiple streams simultaneously.
  • ✅ Web Control Network Management: Configure stream sources, output settings and system controls through an easy browser based web interface for remote device management.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-3289
Model:
JTECH-D1MINI

The J-Tech Digital JTECH-D1MINI H.265/H.264 IP network video broadcast decoder converts RTSP, RTMP, RTMPS, HLS, SRT, RTP and UDP network streams into HDMI output for TVs, monitors and professional AV displays. It supports up to 4K@30Hz video input with smooth 1080p@60Hz HDMI output, making it ideal for IPTV systems, digital signage, security monitoring and broadcast video distribution. The decoder also supports USB media playback for MP4, MOV, WMV, MPEG and FLV files, allowing standalone video display without a network source. With its multi-channel layout function, users can monitor up to four video channels on a single screen, while the web-based control interface allows easy configuration, stream management and remote device control.

Decodes H.265/H.264 IP network video stream and USB playback while outputting via HDMI

Supports multiple IP decoding protocols including RTSP, RTMP, RTMPS, HTTP, HLS, UDP, RTP and SRT

Supports video input up to 4K@30Hz and 1080P Output

Web based interface for device configuration and monitoring

3.5mm analog audio output for external speakers or amplifiers

Adjustable video settings including brightness, contrast, hue, saturation and volume

Scheduled restart and remote reboot functions for system management

Supports ONVIF RTSP URL retrieval for IP camera integration

Compact mini design for easy installation in professional AV environments

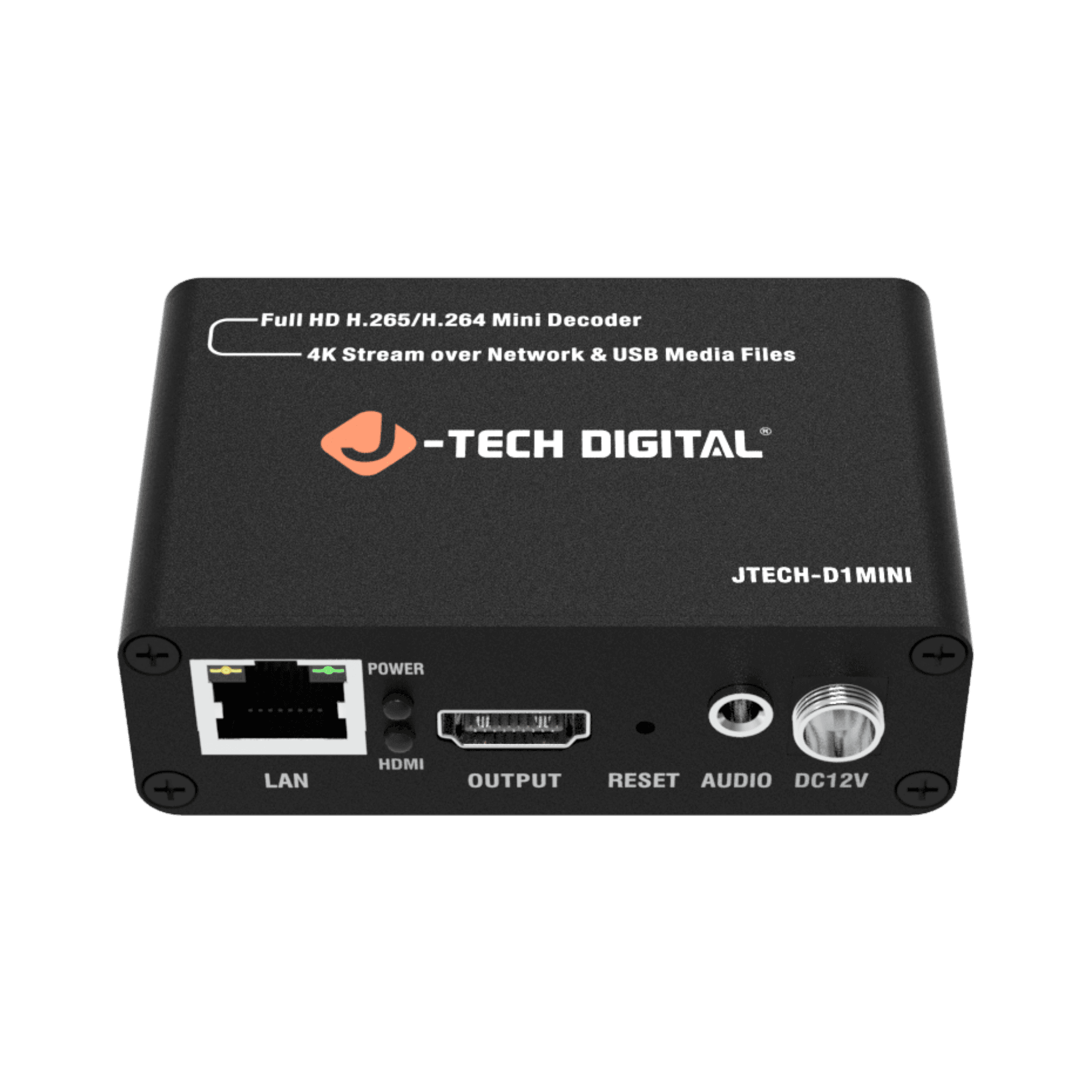

j-tech digital ip network decoder front view with hdmi and ethernet ports
4K 30Hz Input / 1080P Output H.265/H.264 IP Video Network Decoder with USB Playback
4K 30Hz Input / 1080P Output H.265/H.264 IP Video Network Decoder with USB Playback

Specifications

Video & Audio

Name Values
Max Input Resolution 3840 x 2160 @ 30Hz
Max Output Resolution 1920 x 1080 @ 60Hz
HDMI Standard HDMI 1.4b
HDCP Compliance Yes
Supported Audio Formats
  • G711A
  • G711U
  • AAC+
  • AAC++
  • MP2
  • MP3

Network & Media

Name Values
Ethernet Protocol Support
  • RTMP
  • RTSP
  • HTTP TS
  • HTTP FLV
  • HLS
  • SRT
  • UDP
  • RTP
  • HTTP PTE
  • HTTP PTL
USB Media Formats
  • WMV
  • MPEG
  • MP4
  • MOV
  • FLV
  • F4V
Network Bandwidth 100 Mbps
Default IP Address 192.168.1.169

Mechanical

Name Values
Dimensions (L x W x H) 8.4 x 5.3 x 2.8 cm
Net Weight 118 g

Environmental & Power

Name Values
Operating Temperature -20°C to +60°C
Operating Humidity <90% RH (non-condensed)
Power Consumption <1 W

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 JTD-3289 User Manual.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-3289 User Manual.pdf
