8K 60Hz 1x4 HDMI Splitter with Downscaling and EDID Control

Regular price $65.99
  • ✅ Distribute 1 HDMI Signal to 4 Displays: Connect a single HDMI source, such as a cable box, media player, or gaming console, to four displays simultaneously with this 1 In 4 Out 8K HDMI splitter. Perfect for multi-screen setups! Note: This splitter mirrors the signal on all displays and does not extend the signal.
  • ✅ Supports Ultra HD Resolutions & High Refresh Rates: This HDMI splitter supports 8K@60Hz, 4K@120Hz, and 1080P@240Hz resolutions and refresh rates. Also supports HDMI 2.1 and HDCP 2.3, along with HDR, HDR10+, and Dolby Vision.
  • ✅ Features 8K Downscaling & 3 EDID Modes: Help solve incompatibility issues via the EDID button with three modes—Auto, Copy, and Downscale. Supports 8K downscaling to 4K or 1080P, allowing you to mix and match displays with different resolutions within your setup.
  • ✅ Wide Audio Compatibility & Uncompromised Sound: Supports uncompressed audio formats like LPCM and high-quality compressed audio formats including DTS, Dolby Digital, DTS-HD Master Audio, and Dolby TrueHD.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-3259
Model:
JTECH-8KSP14E

Easily mirror a single HDMI source to four displays with this 1 In 4 Out 8K HDMI Splitter, perfect for home theaters, gaming setups, or digital signage. Supporting 8K@60Hz, 4K@120Hz, and 1080P@240Hz, along with HDMI 2.1, HDCP 2.3, HDR, HDR10+, and Dolby Vision, it delivers stunning visuals on every screen. The splitter features 8K downscaling and three EDID modes (Auto, Copy, Downscale) to ensure seamless compatibility across displays of different resolutions. Enjoy rich, immersive audio with support for LPCM, DTS, Dolby Digital, DTS-HD Master Audio, and Dolby TrueHD. With plug-and-play setup and smart EDID management, this HDMI splitter makes multi-screen viewing effortless without compromising picture or sound quality.

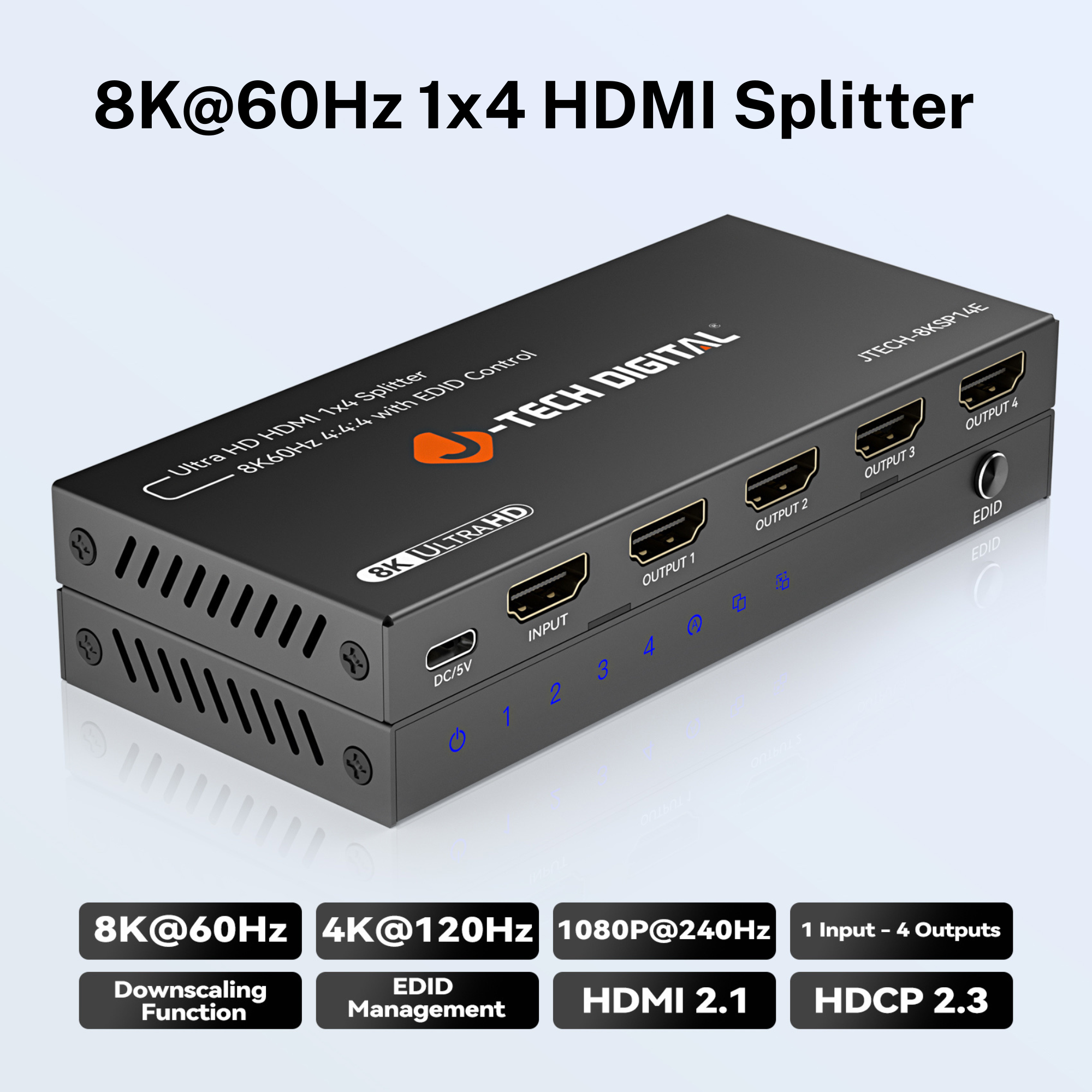

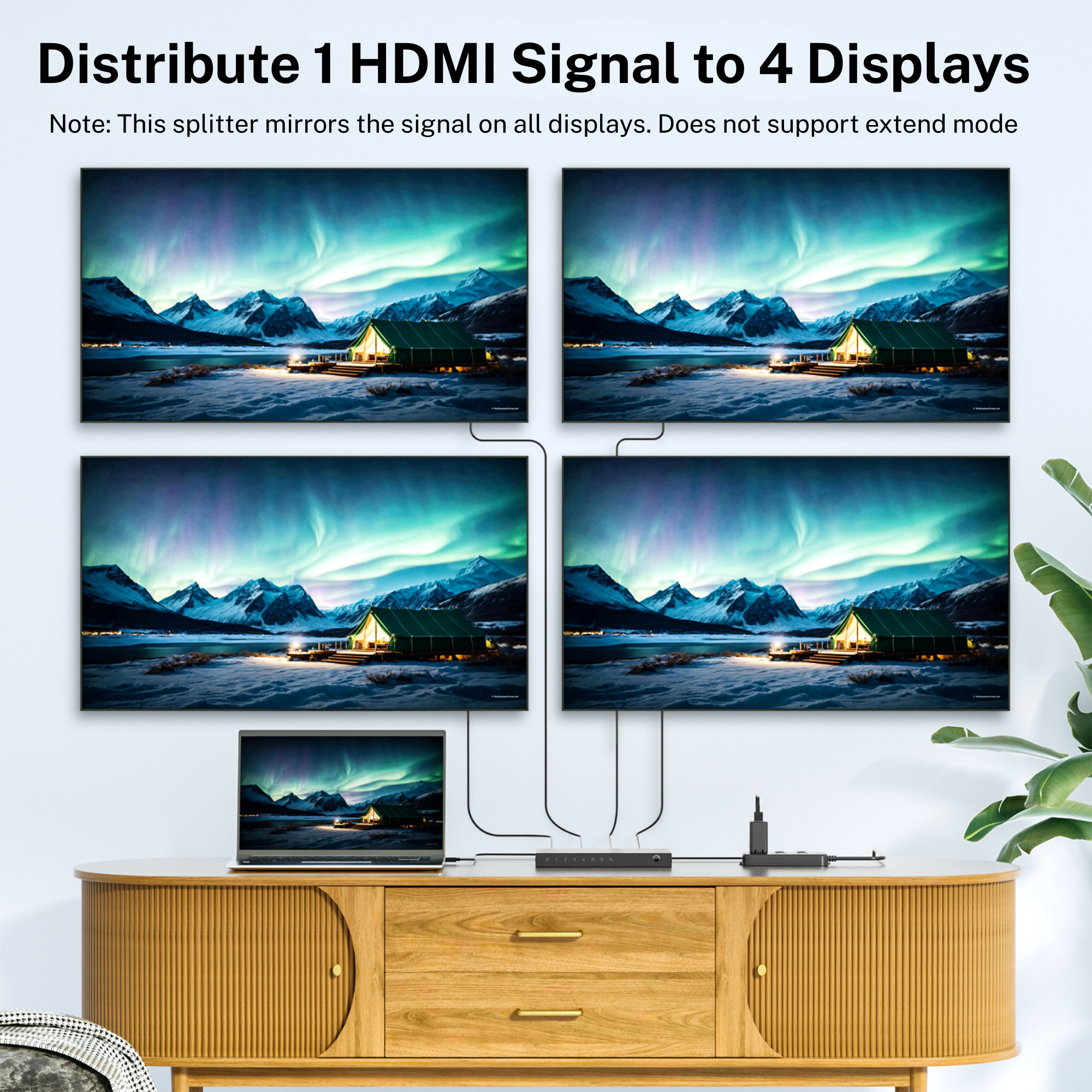

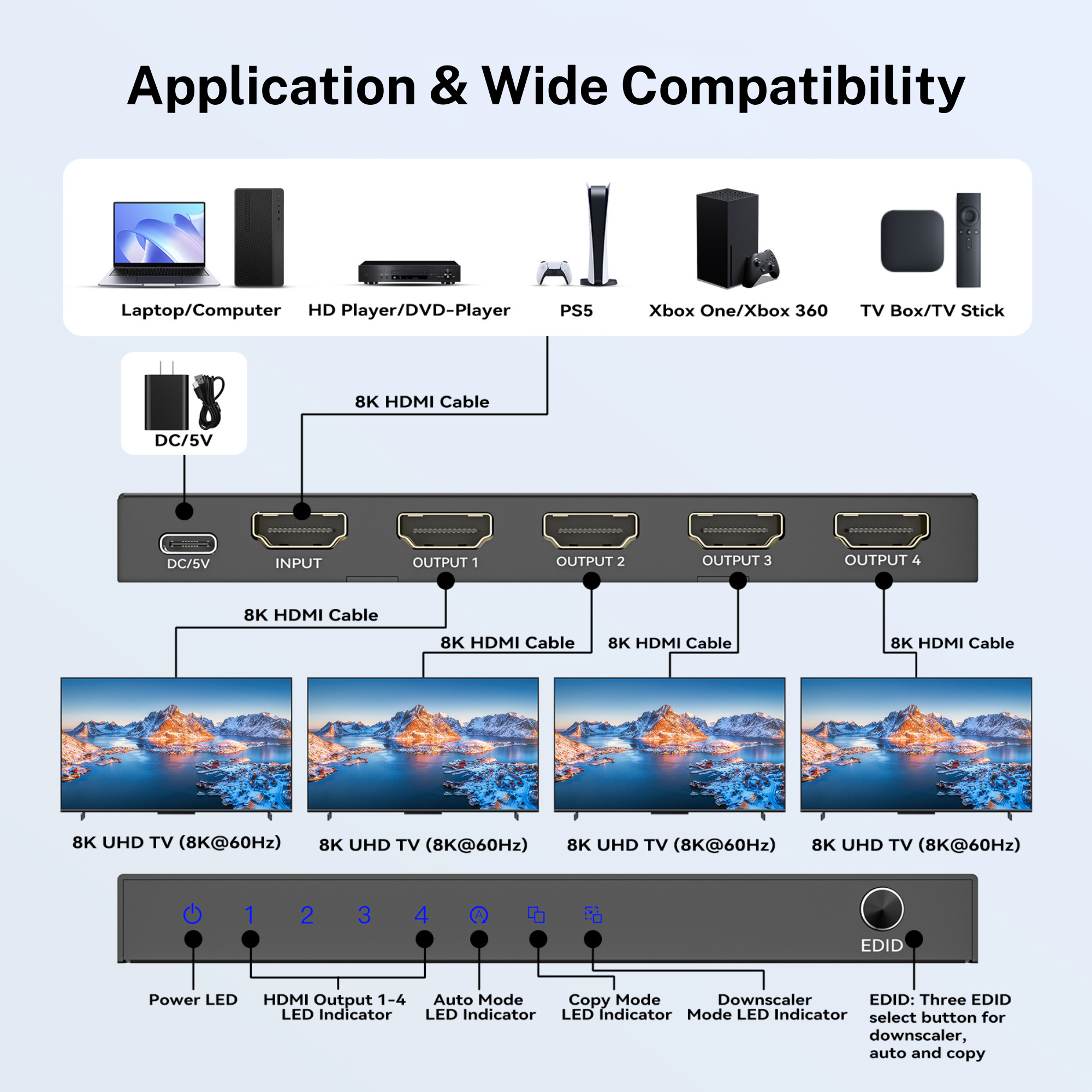

Distribute 1 HDMI signal to 4 displays simultaneously with this 8K HDMI Splitter

Note that this HDMI splitter only mirrors the signal on all displays. It does not extend the signal

Ultra HD resolution and high refresh rates

Supports 8K@60Hz, 4K@120Hz, 1080P@240Hz

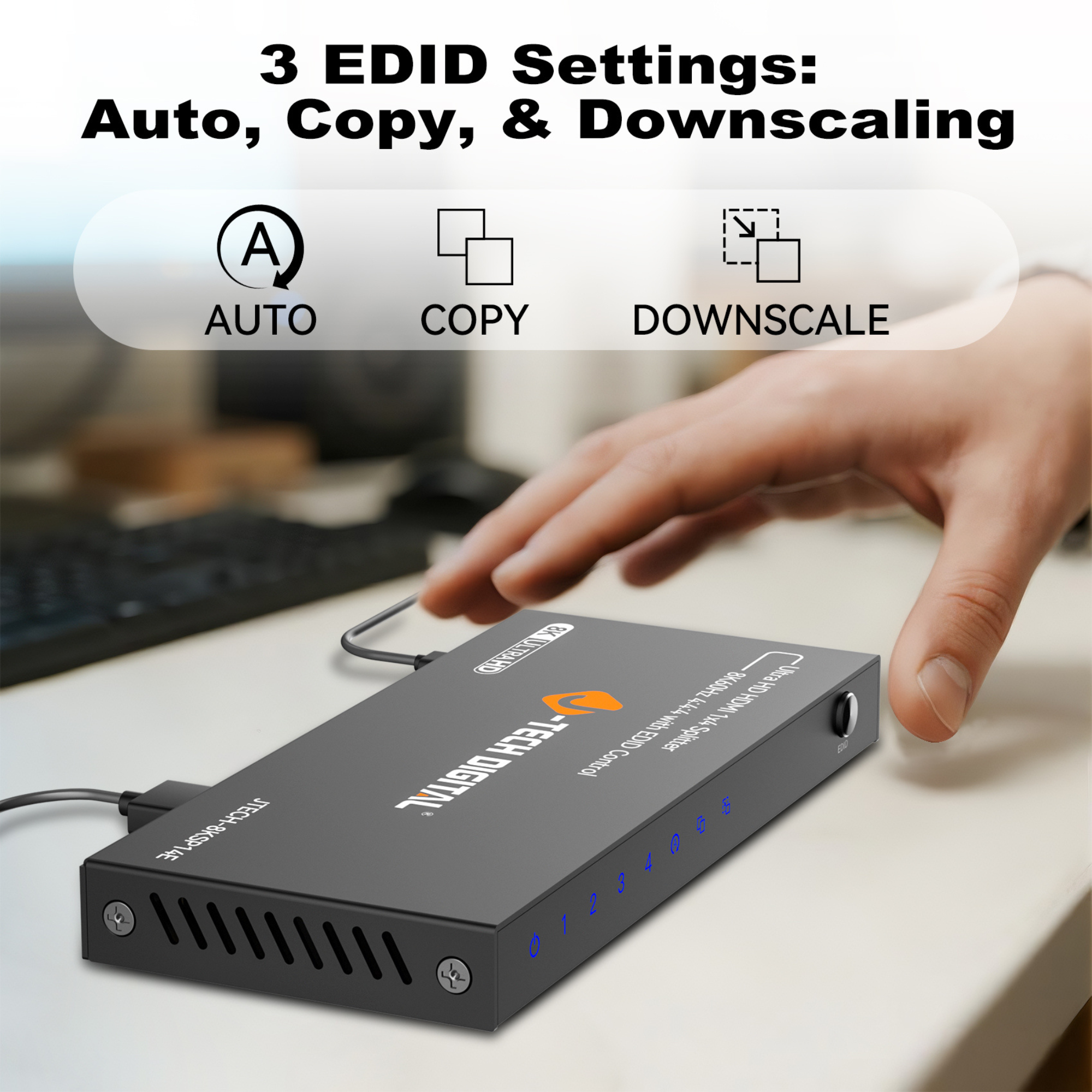

Features an EDID button with 3 modes; Auto, Copy, and Downscale

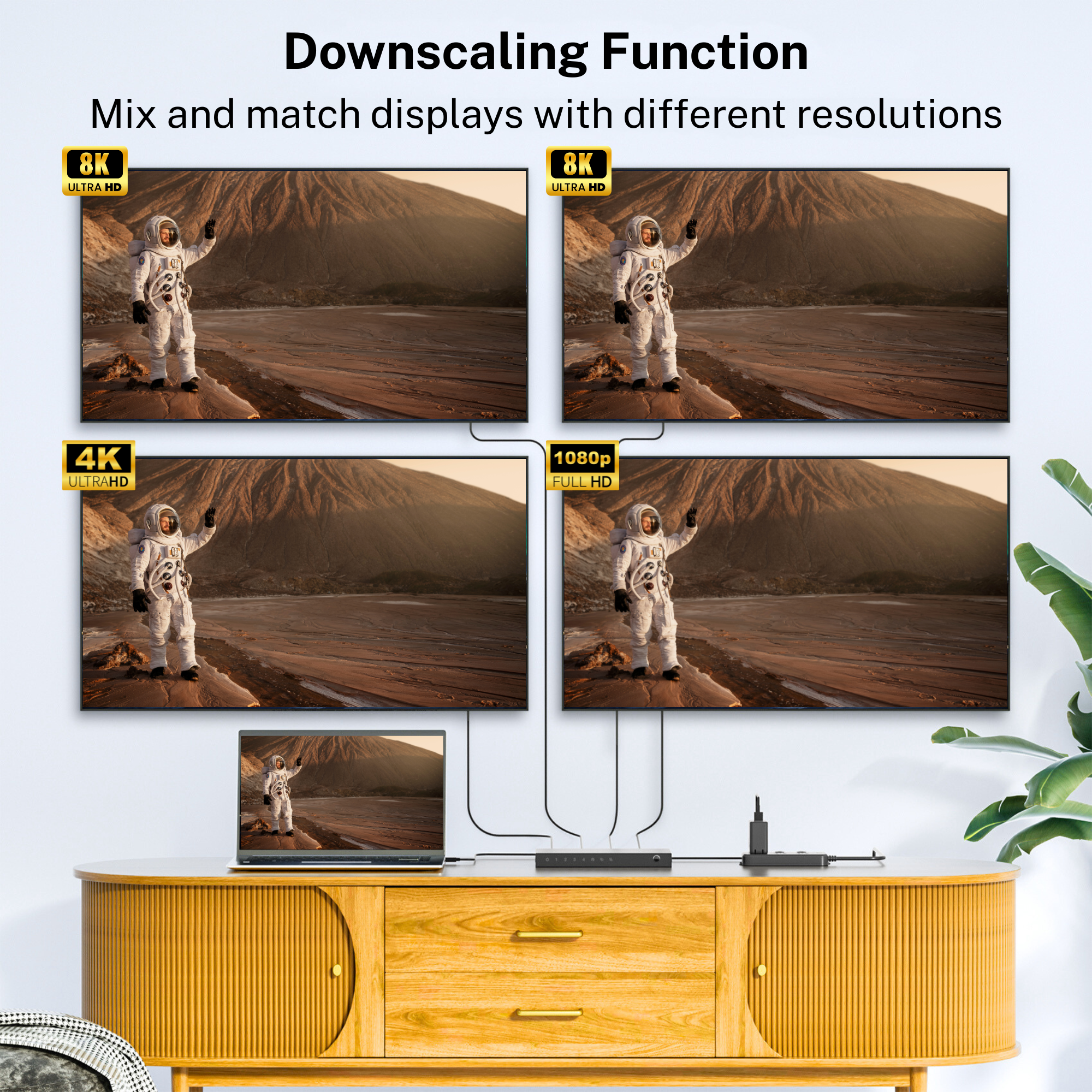

8K to 4K or 1080P downscaling function allows for displays with different resolutions to be used within the same setup

HDMI 2.1 standard support; HDR, HDR10, HDR10+, Dolby Vision

Supports CEC function, and HDCP 2.3 / 2.2 / 1.4 compliance

Uncompressed audio such as DTS, Dolby Digital, DTS-HD Master Audio, Dolby TrueHD etc.

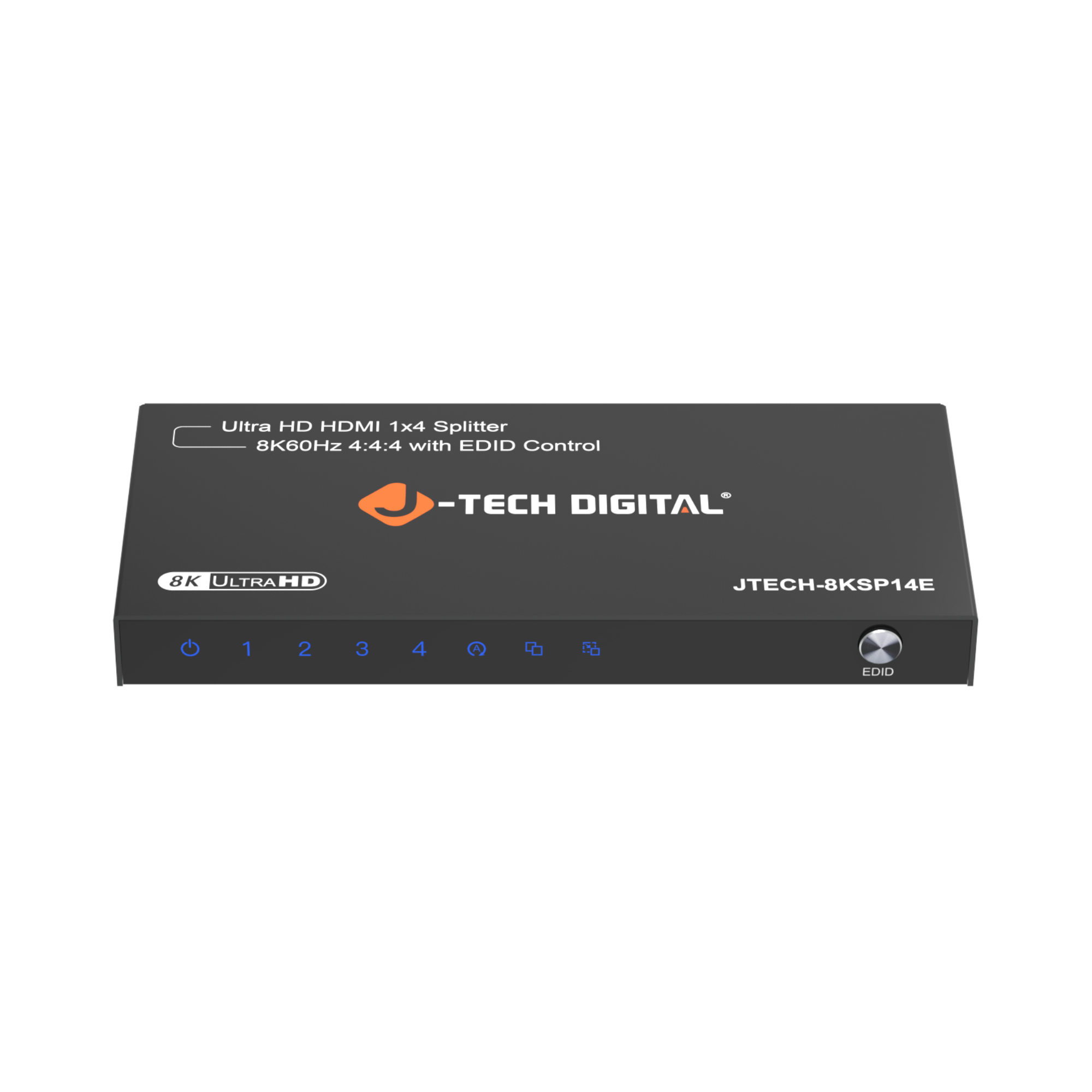

8k 4k 1080p hdmi splitter top front view
8K 60Hz 1x4 HDMI Splitter with Downscaling and EDID Control
8K 60Hz 1x4 HDMI Splitter with Downscaling and EDID Control

Specifications

General

Name Values
Input Port 1 x HDMI
Output Ports 4 x HDMI
Vertical Frequency Range 50 / 60Hz
Video Amplifier Bandwidth 12Gbps / 1200MHz per channel (48Gbps all channels)
Resolution Support
  • Up to 8K@60Hz
  • 4K@120Hz
  • 1080P@240Hz
Operating Temperature 0°C ~ 70°C
Storage Humidity 5% to 90% RH non-condensation
Power Supply DC 5V / 2A
Power Consumption (Max) 10W
Splitter Unit Cert
  • FCC
  • CE
  • RoHS
Power Supply Cert
  • FCC
  • CE
  • RoHS
Dimensions 136 x 61 x 14.2 (mm)
Net Weight 180g

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 JTD-3259 User Manual-compressed.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-3259 User Manual-compressed.pdf
