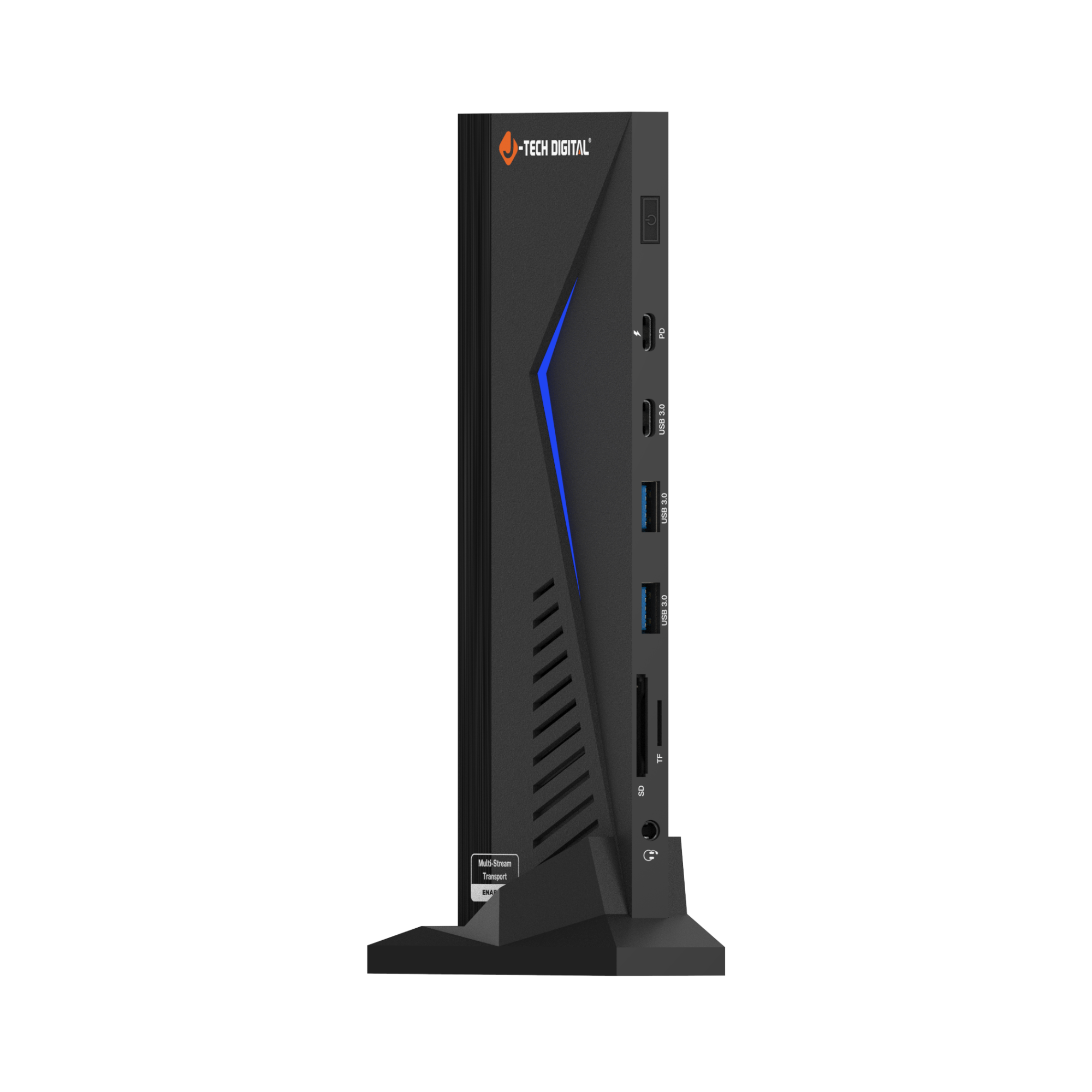

14-in-1 USB-C to HDMI Triple Display Docking Station – Up to 4K 60Hz

Regular price $186.99
  • ✅ Versatile 14-in-1 Docking Station: Connect your laptop to HDMI 4K displays at 60Hz and 30Hz, 1080p at 60Hz, USB-A 2.0 at 480Mbps, USB-A 3.0 at 5Gbps, USB-C 3.0 (Data Only), USB-C 3.0 with 20W PD Charging, Ethern
  • ✅ Triple Display Support: Enjoy triple monitor support with HDMI 1080p at 60Hz, HDMI 4K at 30Hz (requires Silicon Motion Driver installation), and HDMI 4K at 60Hz (Plug and Play with DP Alt Mode).
  • ✅ 100W PD & 20W PD Fast Charging: Charge your laptop with up to 100W using the included 150W, 20V, 7.5A power adapter. The USB-C 3.0 PD port offers 20W of charging power for smartphones and other connected devices, ensuring comprehensive charging solutions.
  • ✅ Wide Compatibility: Compatible with USB-C, USB-A, Thunderbolt 3/4, and USB 4 standard ports. Supports SST/MST for Windows 7/8/8.1/10 and above, and macOS 10.10.x and above.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-3222
Model:
JTECH-UHDOCK-MST

Upgrade your workspace with this powerful and easy-to-use 14-in-1 docking station. It’s perfect for turning your laptop into a full desktop setup—connect to triple monitors (including 4K at 60Hz), transfer files in seconds with USB 3.0, plug into fast wired internet, and even charge your laptop with up to 100W power delivery using the included 150W adapter. There's also a 20W USB-C port for quickly charging your phone or other devices. With wide compatibility (USB-C, USB-A, Thunderbolt 3/4, USB 4) and support for both Windows and macOS, this dock is ready to handle whatever you throw at it. Whether you're working from home, at the office, or on the go, it's the all-in-one solution that keeps everything connected and powered up.

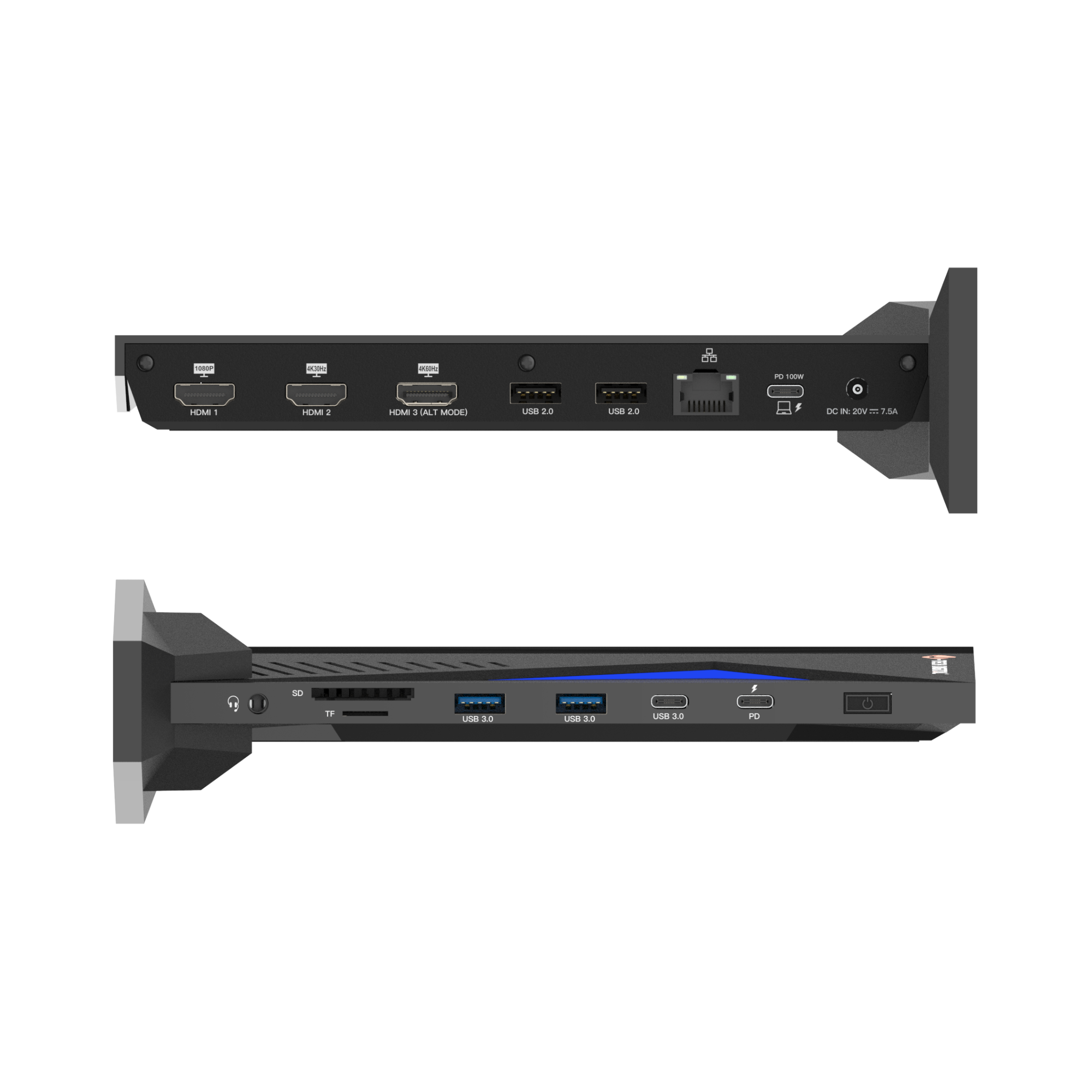

✅ Triple display output: one at 1080P (HDMI 1), one at 4K@30Hz (HDMI 2), and one at 4K@60Hz (HDMI 3 via USB-C DP Alt Mode).

✅ Power delivery up to 100W with PD 3.0 standard; includes 150W (20V/7.5A) DC power supply for laptop charging through docking station.

✅ Two USB 2.0 ports supporting up to 480Mbps data transfer with 5V 0.5A power supply per port.

✅ Two USB 3.0 ports and one USB-C (data only) port supporting up to 5Gbps data transfer with 5V 0.9A power output; one USB-C 5Gbps port supports 20W (8.95V 2.18A) fast charging.

✅ 10/100/1000Mbps Gigabit Ethernet port.

✅ SD and TF card slots supporting up to 104MB/s transfer rates (SD3.0/TF3.0 standard).

✅ 3.5mm microphone and stereo audio output.

✅ Multi-format video decoding: H.264, H.263, MP4, MP2, DivX, AVS, JPEG, and more.

✅ Compatible with USB-C, USB-A, Thunderbolt 3/4, and USB 4 standards.

✅ Expands your PC screen to multiple displays — up to 3 displays on Windows and macOS.

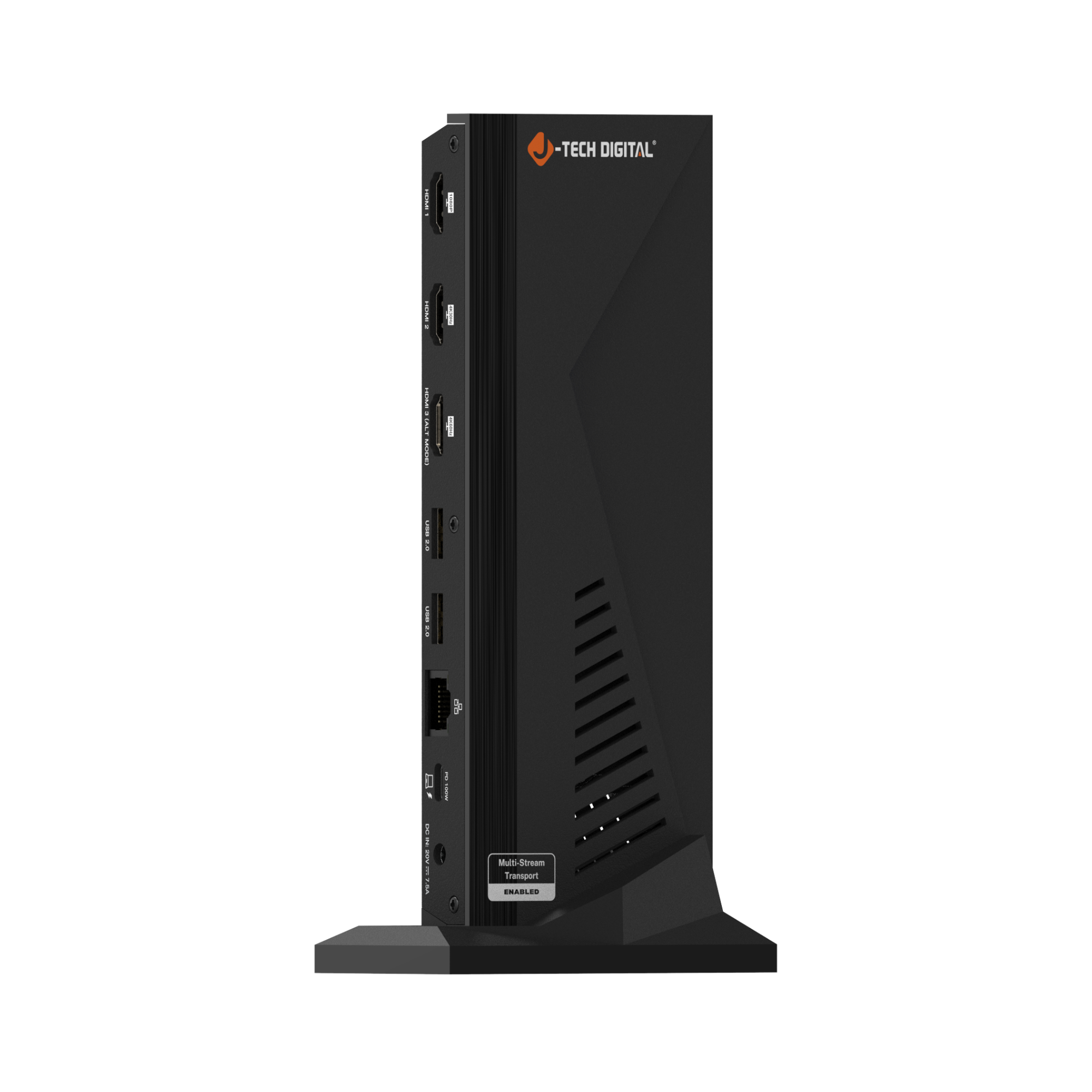

4K 60hz laptop docking station
14-in-1 USB-C to HDMI Triple Display Docking Station – Up to 4K 60Hz
14-in-1 USB-C to HDMI Triple Display Docking Station – Up to 4K 60Hz

Specifications

General

Name Values
Input Ports 1 x USB-C
Output Ports
  • 3 x HDMI
  • 2 x USB 2.0
  • 2 x USB 3.0
  • 1 x USB-C Fast Charging
  • 1 x USB Data Transmission Only
  • 1 x SD 3.0
  • 1 x TF 3.0
  • 1 x RJ45
  • 1 x 3.5mm
Data Transmission Rate (Max) 5Gbps
Compatibility
  • Windows 7/8/10/11 and above
  • Mac OS 10.10.x and above
  • Android 7.1 and above (Android device only support mirroring mode with resolutions up to 1080P)
Operating Temperature 0° ~ 60°C
Storage Humidity 5% to 90% RH non-condensation
Power Supply 150W
Unit Cert
  • FCC
  • CE
  • RoHS
Dimensions 7.8" x 3.07" x 0.93"
Net Weight 202g

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 JTD-3222 User Manual_compressed.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-3222 User Manual_compressed.pdf
