3x1 SPDIF Optical Switch with Remote and Dolby Digital Support

Regular price $26.65
  • ✅ 3-In 1-Out SPDIF Optical Switch: Features 3 x Optical inputs and 1 x Optical output.

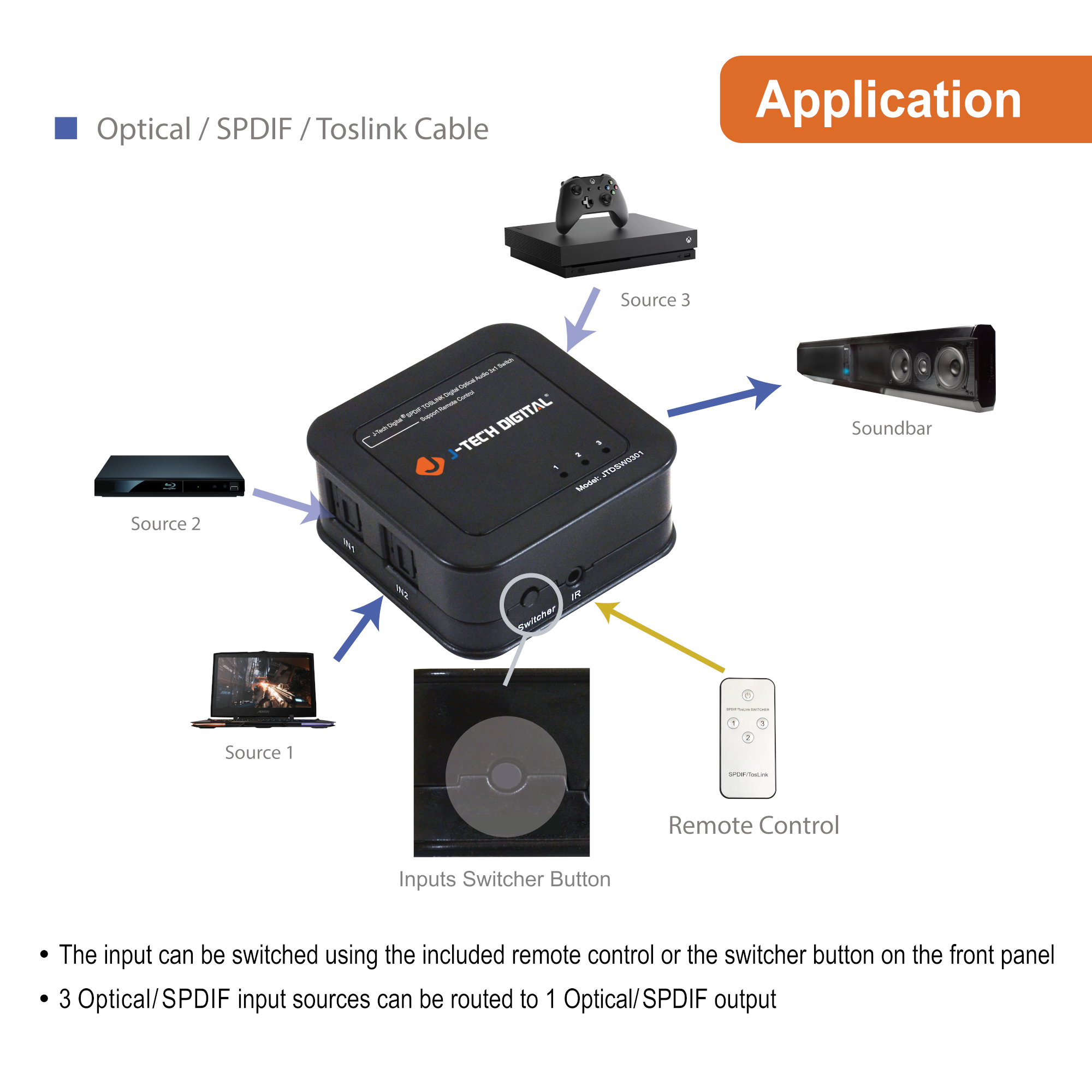

  • ✅ Switch Between 3 Devices: Connect 3 different optical input devices and selectively switch any of those inputs to the output port.
  • ✅ Digital Audio Formats Supported: Supports digital audio formats, such as Dolby Digital and DTS 5.1.

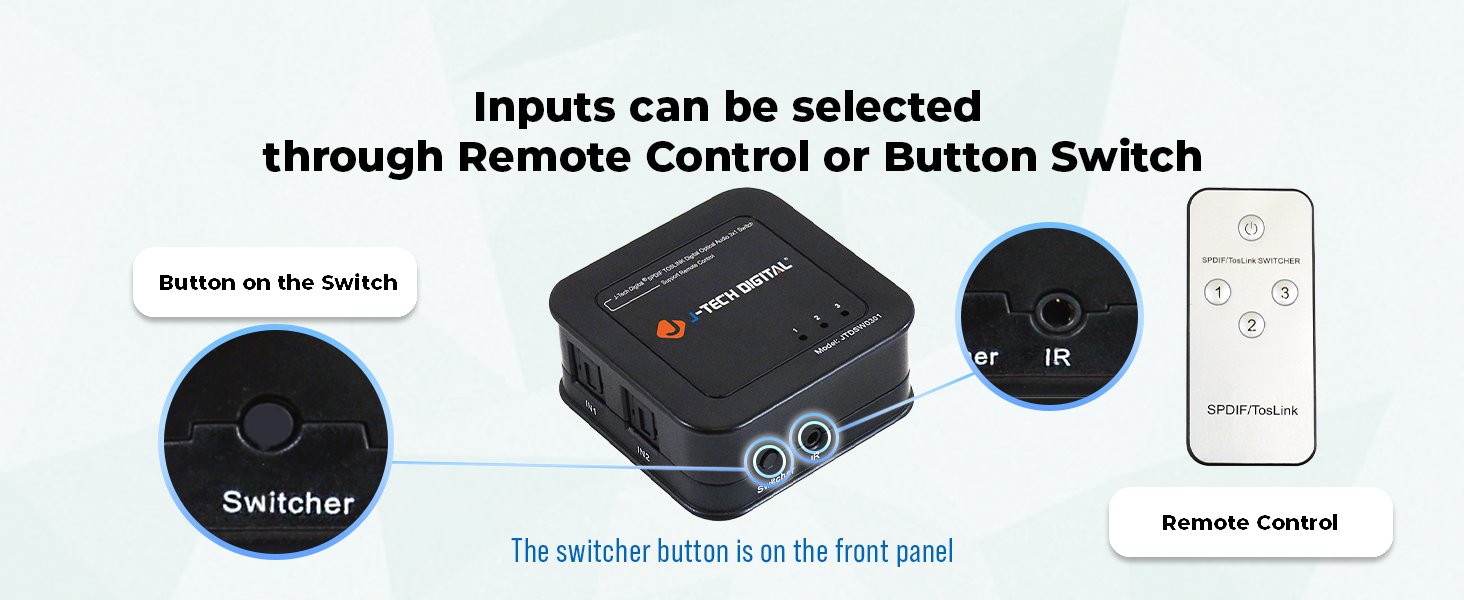

  • ✅ Easy Control: Toggle between different inputs using the included remote control or by pressing the "Switcher" button on the unit. (Note: The IR remote requires a CR2025 battery. The battery is not included).
SKU:
JTD-109
Model:
JTD-SW0301

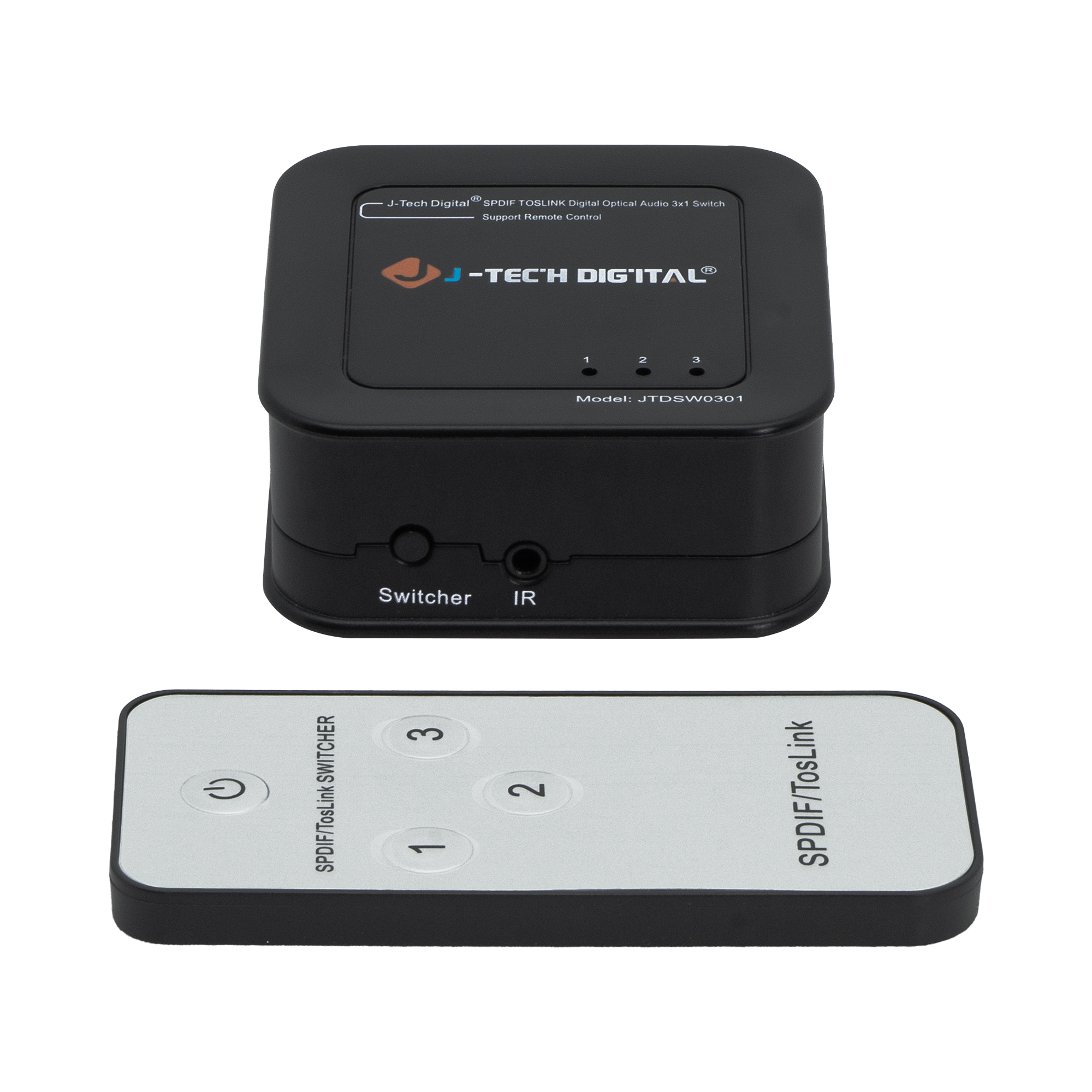

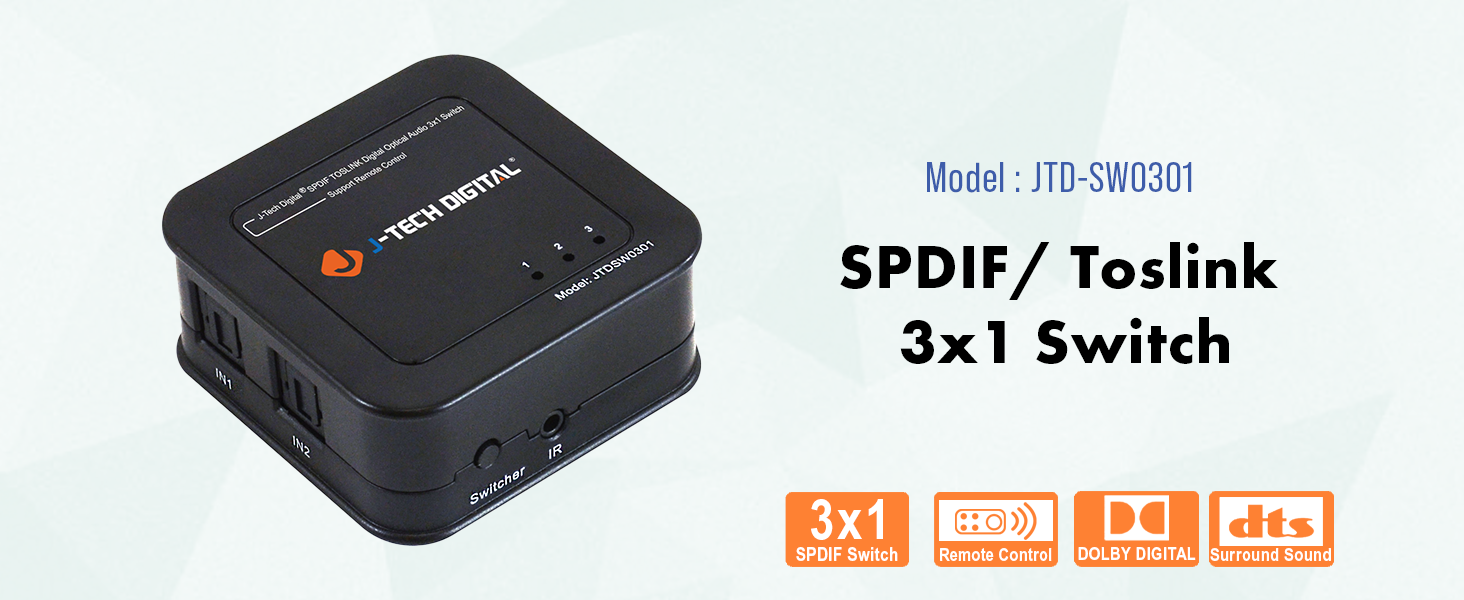

J-Tech Digital 3x1 SPDIF optical switch with remote control and switcher button
3x1 SPDIF Optical Switch with Remote and Dolby Digital Support

3x1 SPDIF Optical Audio Switch – 3-In 1-Out Toslink Selector with Remote Control

Easily manage multiple audio sources with this 3-in 1-out SPDIF Optical Audio Switch. Featuring three optical inputs and one optical output, it lets you connect up to three digital audio devices, such as TVs, Blu-ray players, game consoles, or soundbars, and switch between them effortlessly.

Supports premium digital audio formats, including Dolby Digital and DTS 5.1, for clear, high-quality surround sound. Enjoy simple control using the included remote control or the convenient “Switcher” button on the unit.

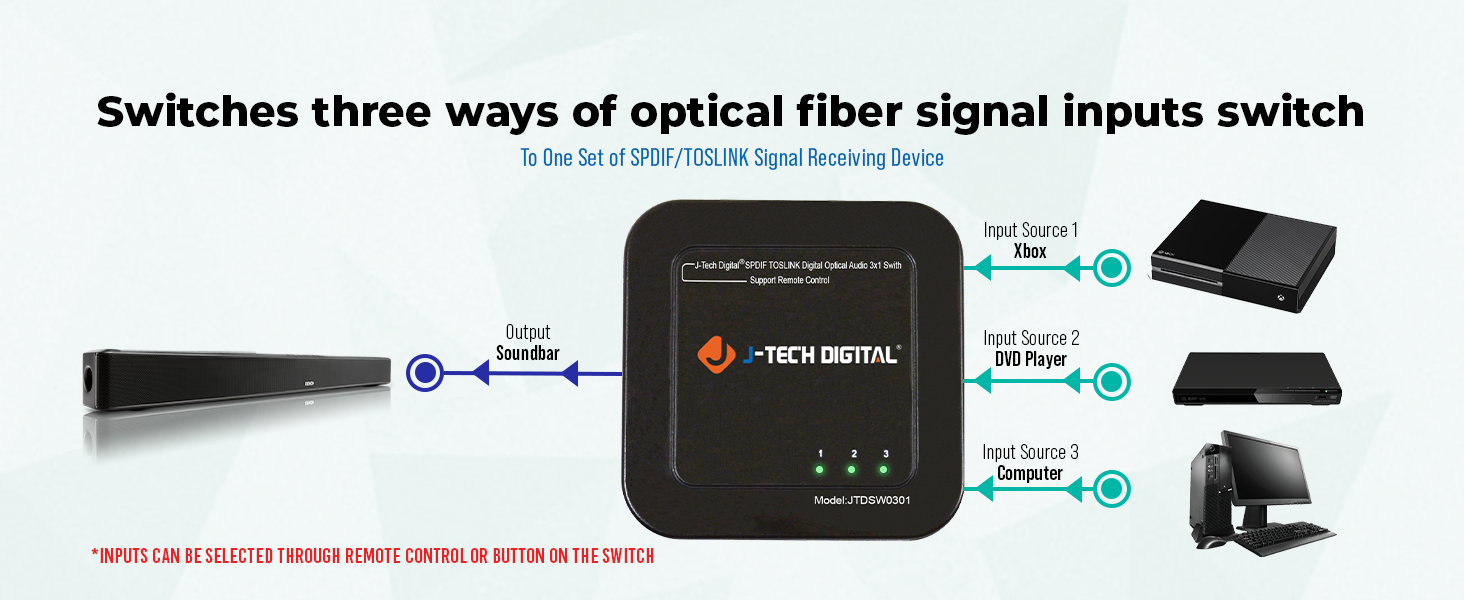

✅ Three ways of optical fiber signals switch to one set of SPDIF/TosLink signal receiving device.

✅ Audio format support: LPCM 2.0, DTS, Dolby-AC3.

✅ Supports signal retiming.

✅ Uses optical fiber cable with loss less than 0.2dB/m; output distance up to 40m.

✅ Input control via remote (R/M) or manual button.

✅ Supports last working state memory when powered off.

✅ Over-voltage protection prevents damage from unmatched power adapters.

✅ LED status indication.

✅ No loss of quality.

✅ Installs in minutes.

✅ Requires DC 5V / 500mA power supply.

3x1 SPDIF Optical Switch with Remote and Dolby Digital Support

Specifications

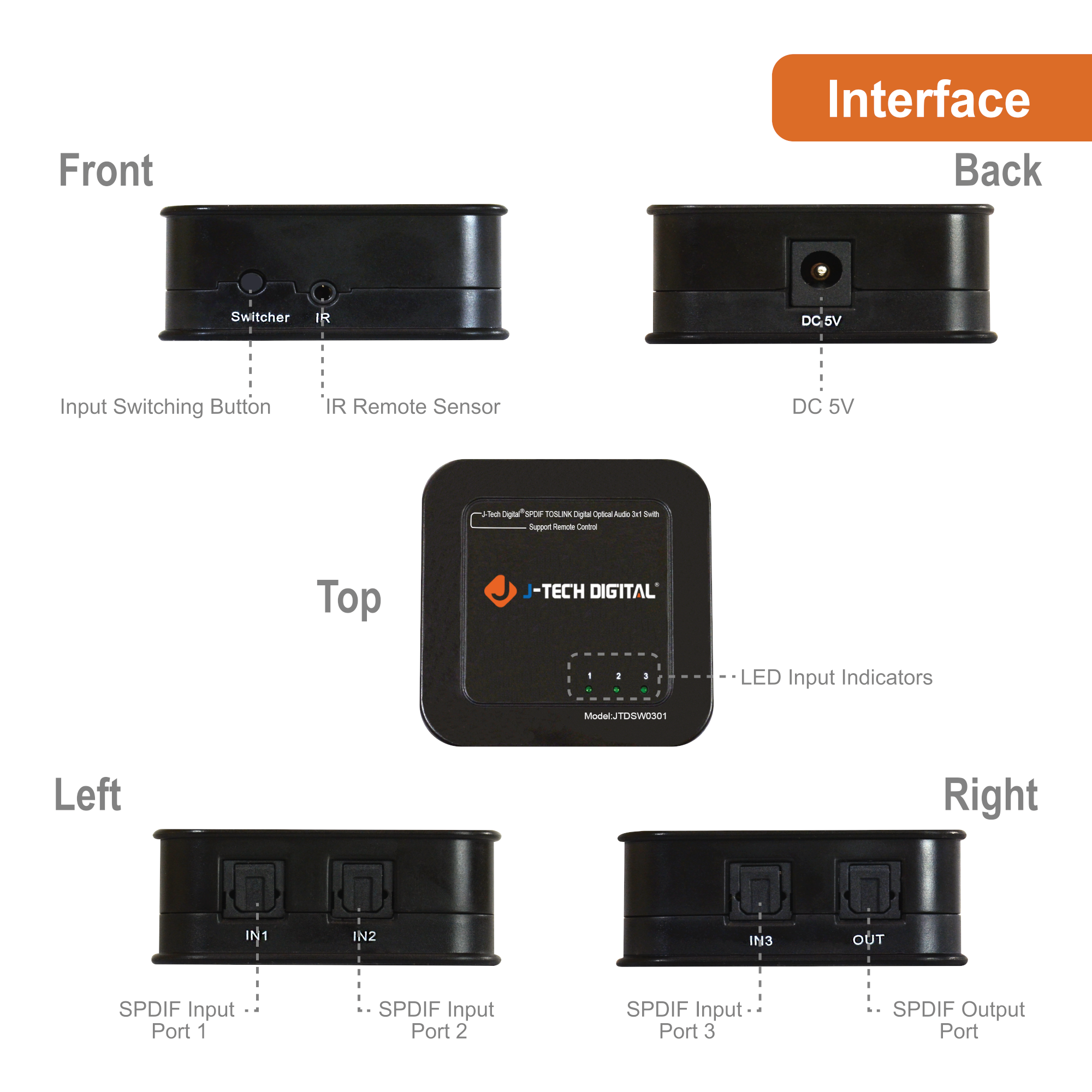

Ports

Name Values
Optical Input 3
Optical Output 1

Audio

Name Values
Supported Formats LPCM 2.0 / DTS / Dolby-AC3

General

Name Values
Max Baud Rate 16Mbps
Max Working Current 100mA
Input Power Specifications AC (50Hz, 60Hz) 100V - 240V
Output Power Specifications DC 5V / 500mA
Operating Temperature Range 0 ~ 40°C
Operating Humidity Range 5 to 90% RH (Non-condensing)

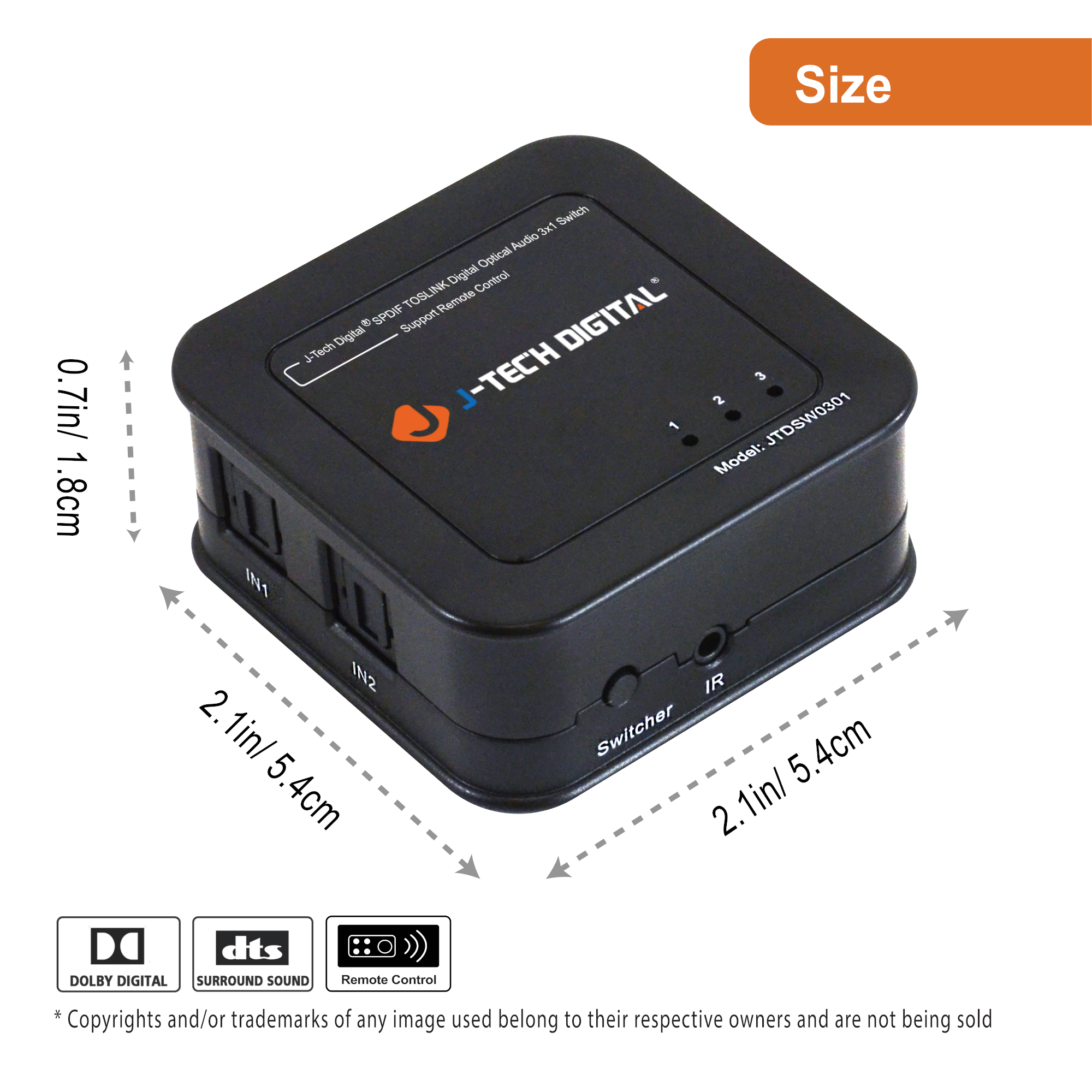

Dimensions (L x W x H)
  • 54mm x 54mm x 23.5mm
  • 2.13" x 2.13" x 0.93"
Weight 0.08lbs

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 jtd-109-user-manual-v1.0.PDF
COMMAND_LIST IR Codes 1.0 jtd-109-ir-codes-v1.0.docx
DRIVER Control 4 Driver 1.0 jtd-109-control-4-driver-v1.0.c4i

Category: MANUAL

Description: User Manual

Version: 1.0

File: jtd-109-user-manual-v1.0.PDF

Category: COMMAND_LIST

Description: IR Codes

Version: 1.0

File: jtd-109-ir-codes-v1.0.docx

Category: DRIVER

Description: Control 4 Driver

Version: 1.0

File: jtd-109-control-4-driver-v1.0.c4i
