4K 60Hz HDMI Extender Balun Over Ethernet (230ft.) w/ Audio Extraction, PoC, IR

Regular price $96.99
  • ✅ 4K@60Hz HDMI Extender Balun Up To 230ft: Transmit stunning 4K@60Hz 4:4:4 UHD signals up to 230ft (70m) and 4K@30Hz/1080p up to 295ft (90m) over a single Cat5e/6 Ethernet cable. Supports HDR10, 18Gbps bandwidth, and HDCP 2.2/1.4 for flawless ultra-high-definition video transmission
  • ✅ Local Loop-Out & Dual PoC HDMI Extender: Features an HDMI loop-out port on the transmitter for local display monitoring. Dual POC (Power over Cable) eliminates the need for extra power adapters, reducing clutter and simplifying your HDMI extender setup
  • ✅ Audio Extraction Function & EDID Management: Includes audio extraction via SPDIF optical and 3.5mm analog outputs on the receiver balun. Built-in EDID DIP switch ensures seamless compatibility and optimal video output between your source device and display
  • ✅ Long Range HDMI Extender with Bi-Directional IR Pass-Through: Control your source device from the display’s location or vice versa using the bi-directional wide-band IR pass-through function. Ideal for home theaters, gaming setups, digital signage, conference rooms, and classrooms

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-3139
Model:
JTECH-EX-4KAEIR

Take your home entertainment or workspace setup to the next level with this powerful and easy-to-use J-Tech Digital 4K@60Hz HDMI extender. Transmit crystal-clear 4K@60Hz 4:4:4 UHD video and high-quality audio up to 230ft or 295ft for 4K@30Hz/1080p, all over a single Cat5e/6 Ethernet cable. This 4K HDMI extender is packed with features like HDR10, HDCP 2.2/1.4 compliance, 18Gbps bandwidth, HDMI loop-out for connecting a local display, and dual POC (Power over Cable) meaning no extra power adapters needed.

This 4K HDMI extender also supports audio extraction via SPDIF Optical and 3.5mm analog audio output. Control your devices remotely using the dual wide-band IR pass-through feature. Simple to set up and built for reliable, long-distance connections — perfect for home theaters, gaming, office displays, and more.

Extend 4K@60Hz HDMI signal up to 230ft. and 4K@30Hz/1080P up to 295ft. over a single Cat5e/6 ethernet cable

This 4K HDMI extender supports HDR10, 18Gbps bandwidth, and HDCP 2.2/1.4

Features HDMI loop-out on the transmitter for source monitoring via local display

Dual PoC function eliminates the needs for additional power adapters

Audio extraction function via SPDIF Optical and 3.5mm analog audio output ports

Built in EDID DIP-switch ensures seamless compatibility between source and display

Bi-directional IR function allows you to remotely control the source device from the display’s location or vice versa

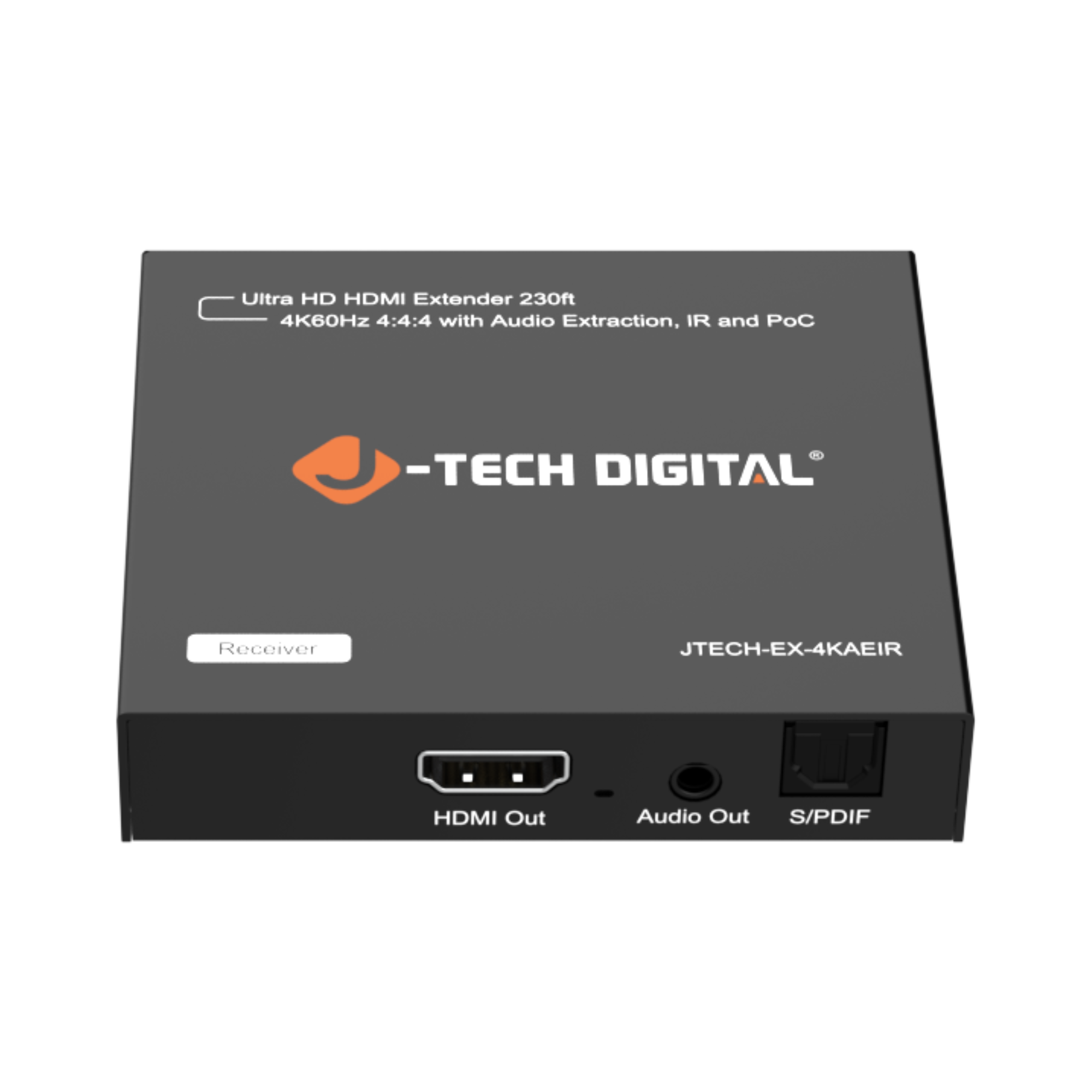

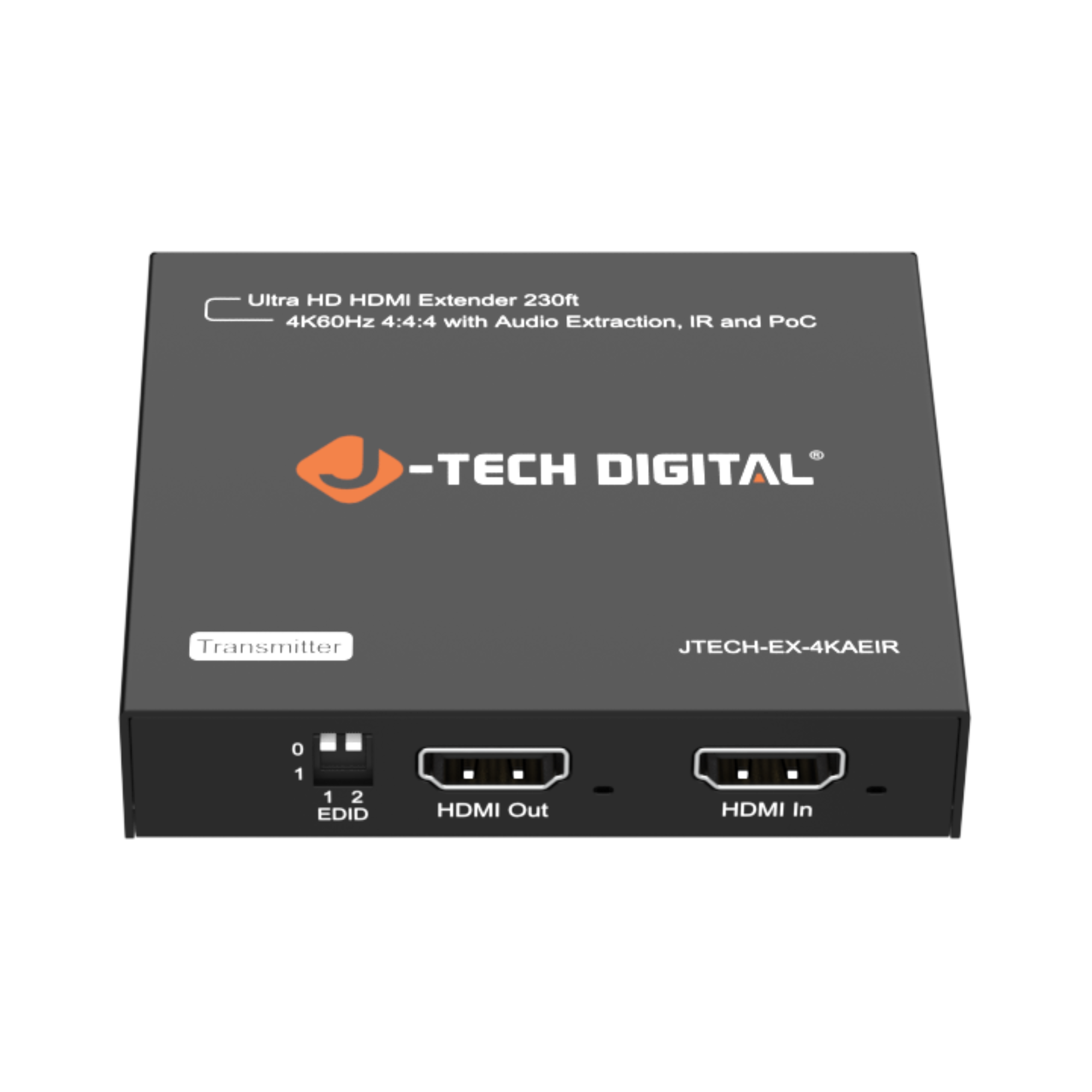

J-Tech Digital HDMI extender device on a white background
4K 60Hz HDMI Extender Balun Over Ethernet (230ft.) w/ Audio Extraction, PoC, IR
4K 60Hz HDMI Extender Balun Over Ethernet (230ft.) w/ Audio Extraction, PoC, IR

Specifications

Technical

Name Values
Resolution Outputs
  • 4K@60Hz YUV 4:4:4
  • 4K@30Hz
  • 1080p
  • 1080i
  • 720p
  • 576p
  • 480p
Audio Format Supported
  • DTS-HD Master Audio
  • Dolby True HD
  • LPCM 7.1
  • PCM etc.
Output Video Signal HDMI
Operating Temperature Range -5°C to +40°C (+23°F to +104°F)
Operating Humidity Range 5% to 90% RH (No Condensation)

Connection

Name Values

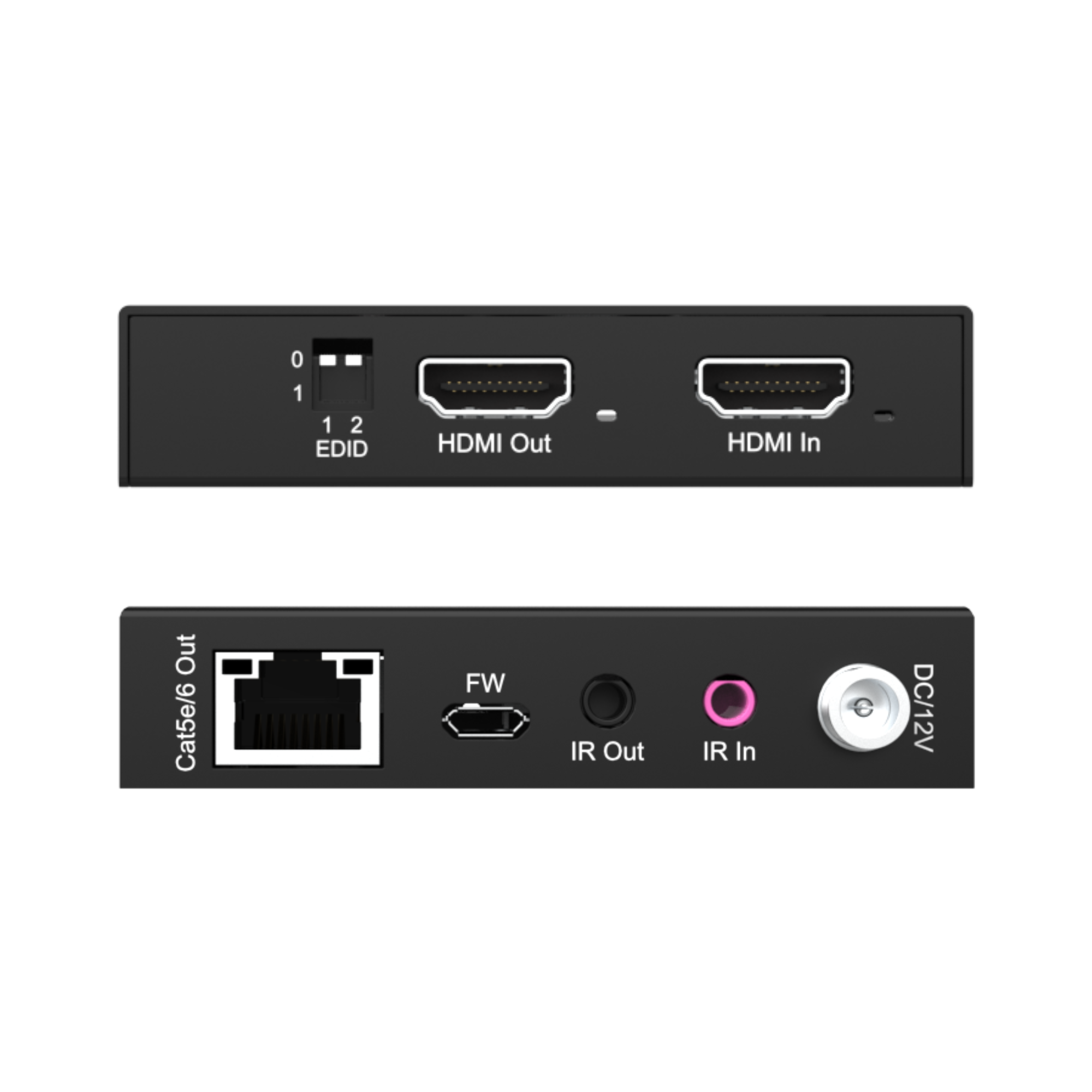

Connectors on Transmitter
  • HDMI Receptacle x 2 (1x HDMI Input, 1x HDMI Loop Output)
  • Power DC Receptacle x 1
  • IR Receptacle x 2 (for IR TX)

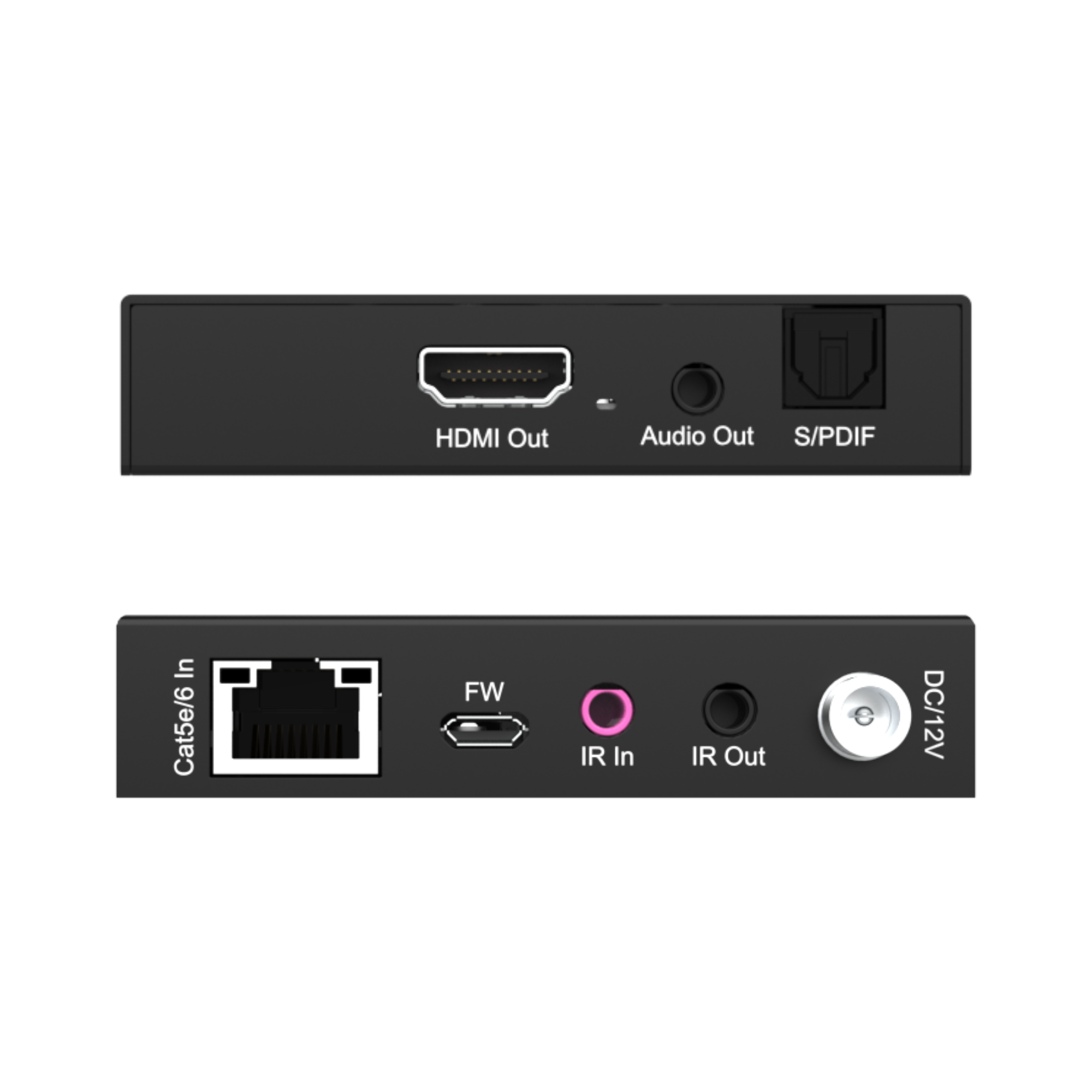

Connectors on Receiver
  • HDMI Receptacle x 1
  • IR Receptacle x 2 (for RX cable)

Mechanical

Name Values
Dimension (L×W×H)
  • TX: L75.2mm × W84.3mm × H18mm
  • RX: L75.2mm × W84.3mm × H18mm
Net Weight
  • TX: 305g
  • RX: 305g

Power

Name Values
Power Supply DC 12V/1A Power Supply
Power Consumption 3.8W (Max)

Performance

Name Values
Transmission Distance
  • Up to 70m / 230ft under 4K@60Hz YUV 4:4:4
  • Up to 90m / 295ft under 4K@30Hz / 1080p

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 JTD-3139 User Manual

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-3139 User Manual
