1080P 60Hz 1x8 HDMI Extender Over Ethernet (164ft.)

Regular price $233.10

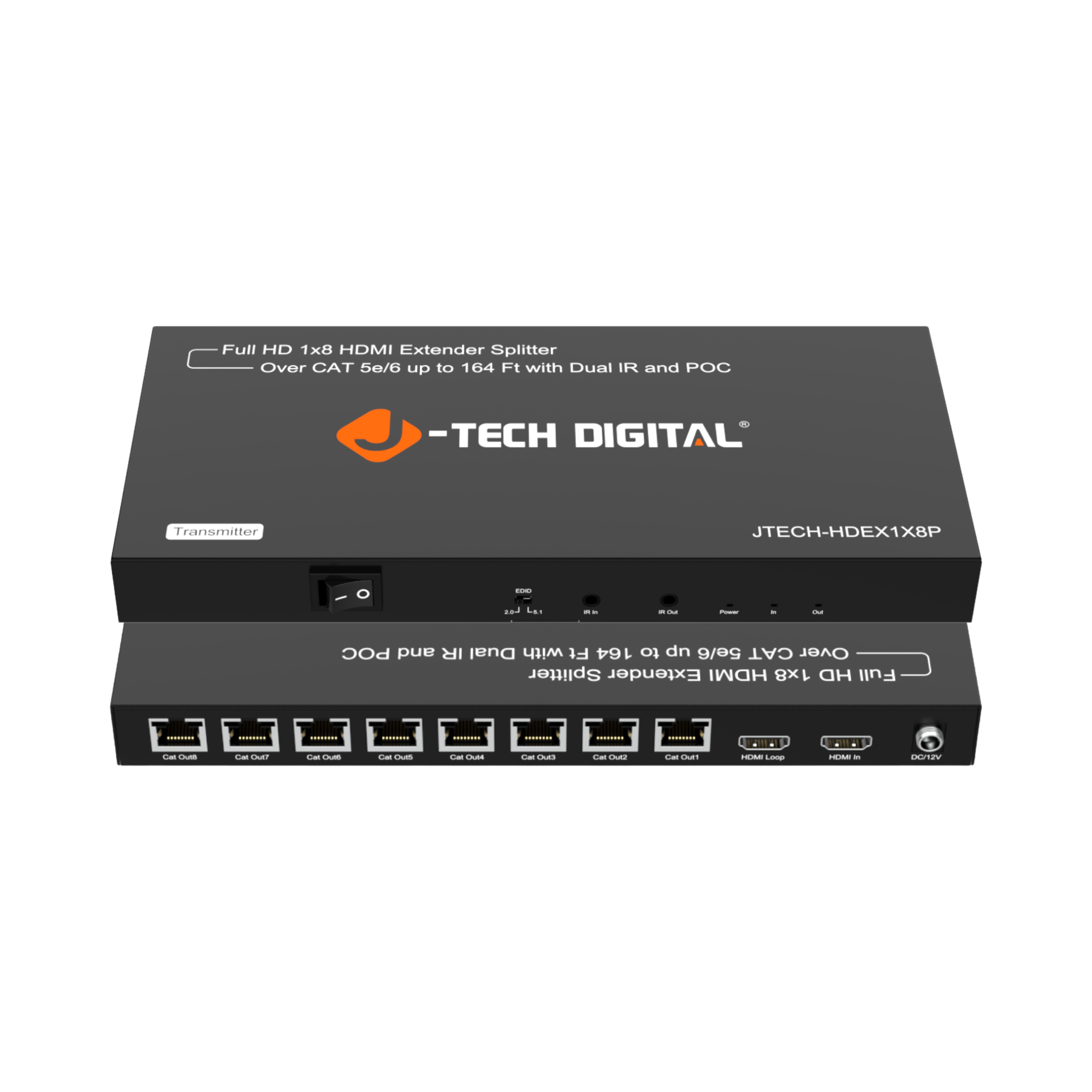

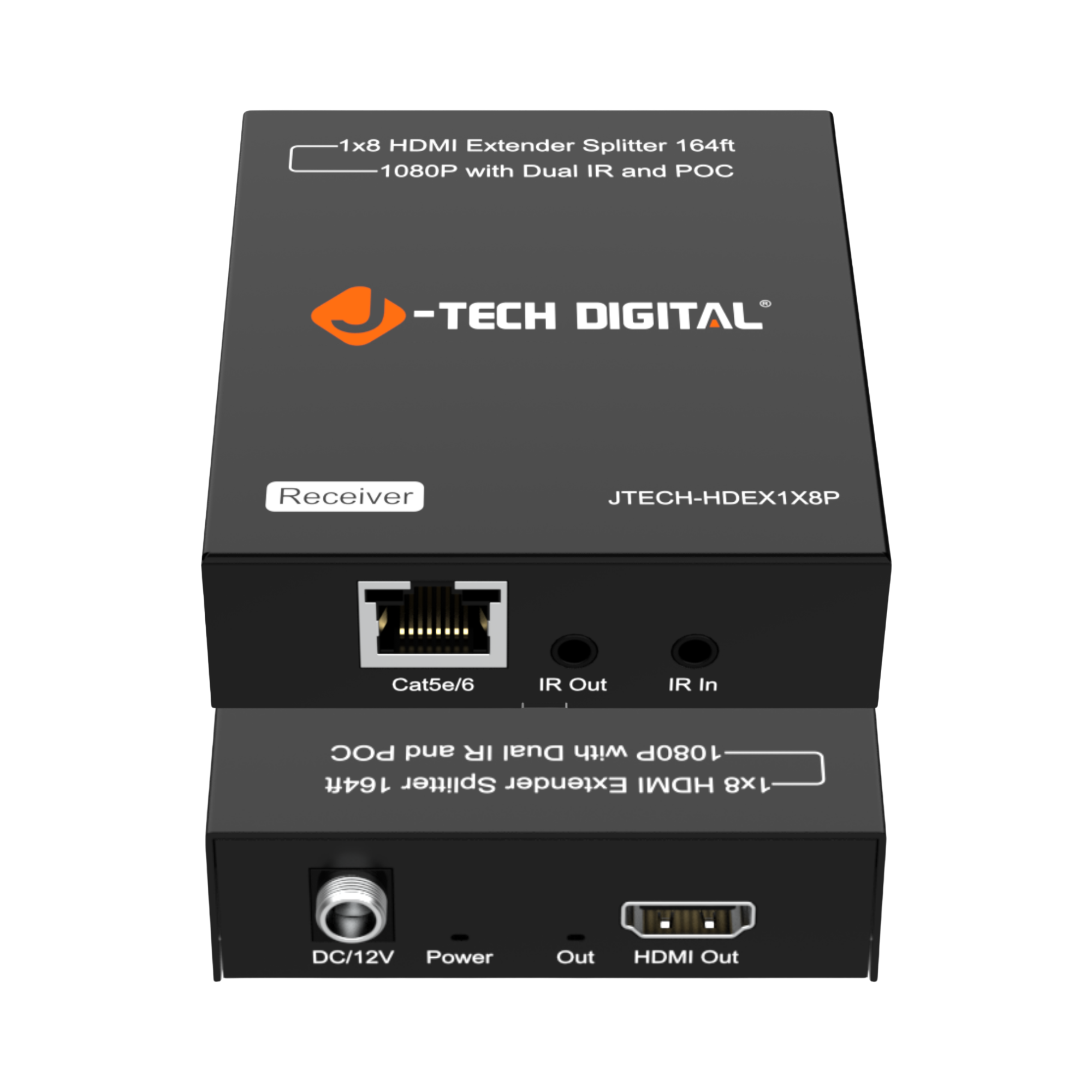

  • ✅ 1 x HDMI Input | 8 x RJ45 Outputs + 1 x Local HDMI Output: With this 1x8 HDMI extender, distribute an audio/video signal from one source device to up to 8 displays. Includes 8 RJ45-to-HDMI receivers. Also features a local HDMI loop-out port for connecting a nearby display.
  • ✅ Full HD 1080P@60Hz Resolution: HDMI 1.4 and HDCP 1.4 compliant. Supports full high-definition 1080P@60Hz resolution and refresh rate.
  • ✅ Long Distance Signal Transmission: Extend the audio/video signal up to 164 ft over a single Cat5e/6 Ethernet cable (per receiver).
  • ✅ Wide Audio Format Support: Supports digital audio formats such as Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, and more.
SKU:
JTD-3198
Model:
JTECH-HDEX1X8P

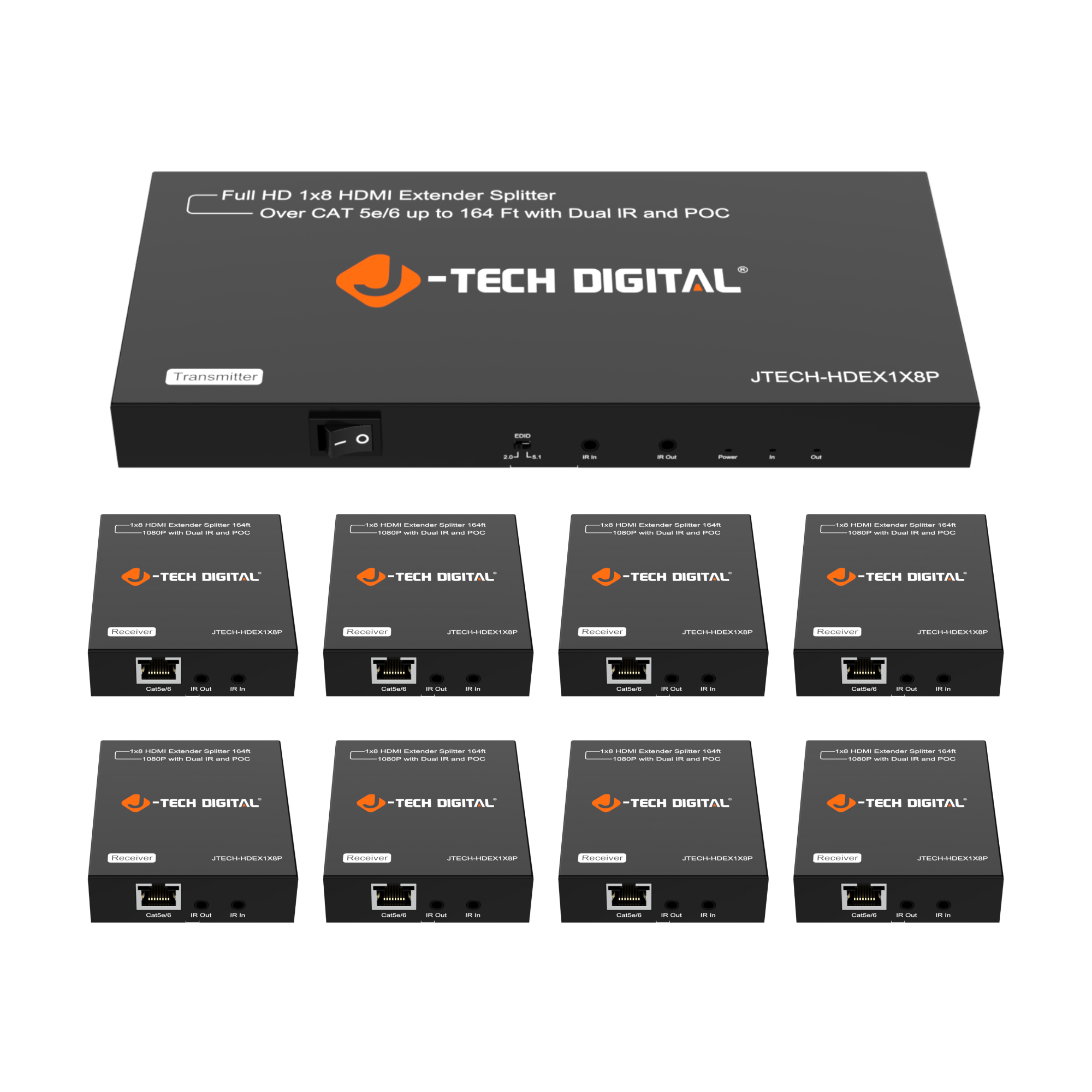

full hd 1080p 1x8 hdmi splitter overview
1080P 60Hz 1x8 HDMI Extender Over Ethernet (164ft.)

Are you running a trade show and need an easy way to setup multiple HD displays showcasing your product? Do you have a sports bar or recreation center with HDTVs set up everywhere for your customers to watch the big game? Or do you just want to have a TV in every room of your house, so you can do your household chores without missing a moment of your favorite TV show? This J-Tech Digital 1x8 HDMI Amplifier Splitter delivers! This is the perfect solution for when you need to distribute a video signal to multiple displays over long distance. It takes a single HDMI input and splits it into one HDMI output and seven Ethernet signals, which are then transmitted over a single Cat5e/6 cable each for to a distance of up to 164 feet. The receiver unit at the end then converts the signal back to HDMI for use by the display.

Distributes 1 input HDMI signal to 8 HDMI outputs | Transmission distance up to 164 ft. under 1080p over single Cat5e or Cat6 cable

Features local HDMI loop-out on transmitter to allow source monitoring via a local display

Bi-directional IR control allows you to control your source device from displays location or vice versa

Supports High Definition Audio: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio etc.

Supports 30/36 bit deep color display; Support 3D technology

Easy to install - just plug it in and start using it right away!

1080P 60Hz 1x8 HDMI Extender Over Ethernet (164ft.)

Specifications

General

Name Values
Operating Temperature Range -5 to 40℃(+23 to 104°F)
Operating Humidity Range 5 to 90%RH (No Condensation)
Data transfer speed rate 10.2Gbps
Input ports 1 x HDMI
Output ports
  • 8 x RJ45 output ports
  • 1 x HDMI loop out
Output Video Format Supported DTV/HDTV:720P/1080i/1080P
Transmission Distance 50m at 1080P@60Hz
Power consumption 25W (Maximum)
Dimensions (LxWxH)
  • TX : 114.15 mm x 252.73 mm x 25.13 mm
  • RX: 83.92 mm x 75.2 mm x 23.1 mm
Net Weight
  • TX: 1000g
  • RX: 2400g(8pcs)

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 JTD-3198 User Manual.docx

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-3198 User Manual.docx
