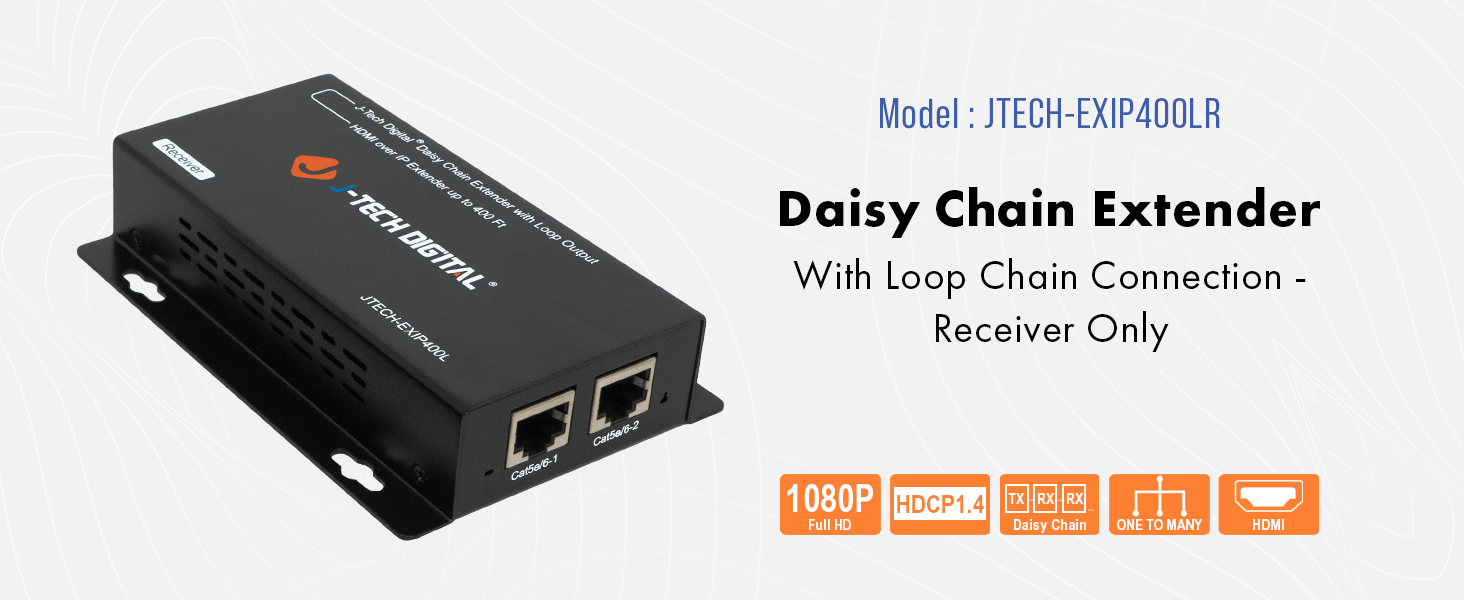

1080P 60Hz HDMI Extender Balun Over Ethernet w/ Daisy Chain Function (Receiver Only)

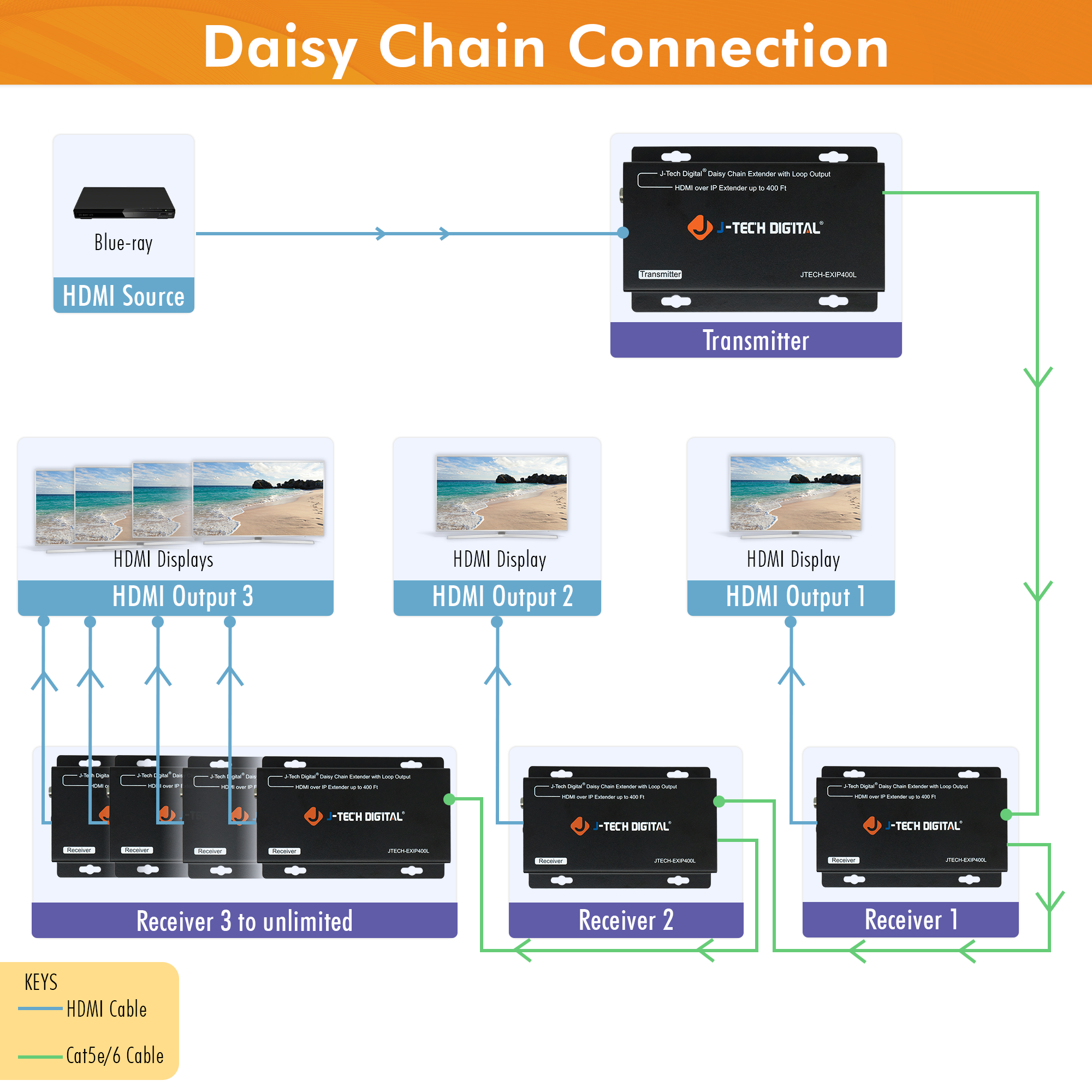

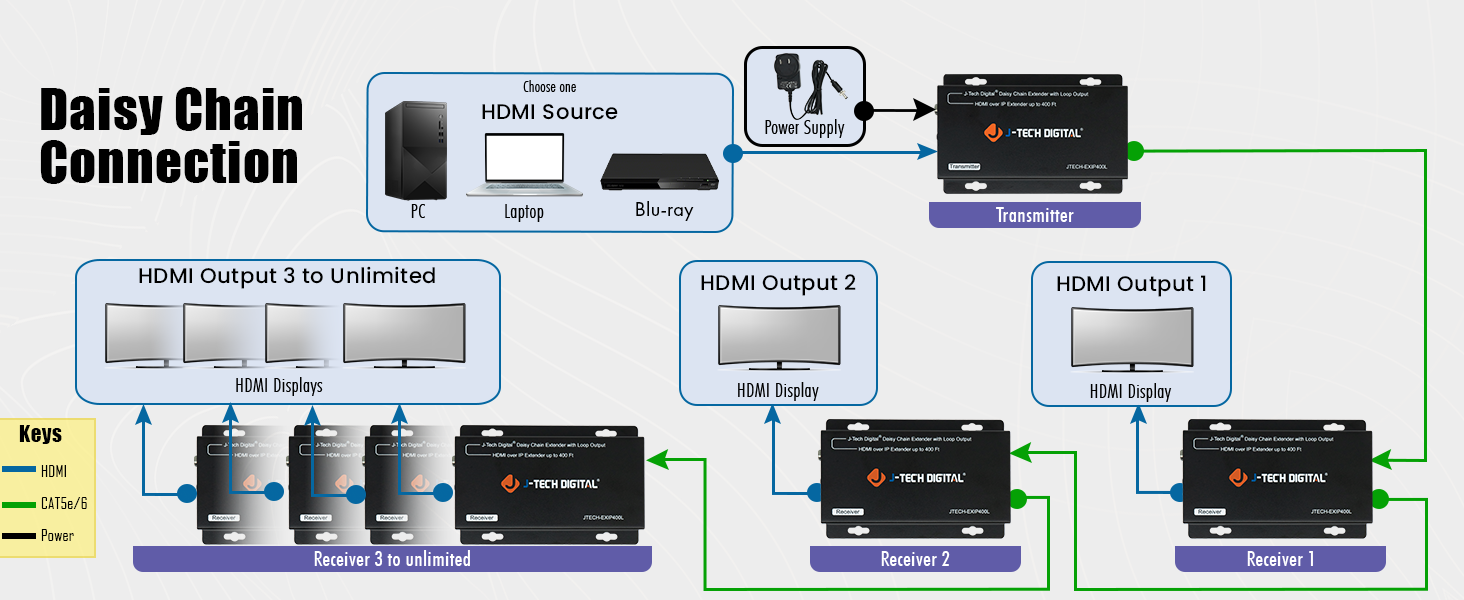

Users have the ability to daisy chain one receiver to another via Ethernet to share the source signal from the transmitter. Now, instead of running an additional Ethernet cable back to your equipment rack for each receiver, users can simply make a much shorter Ethernet run from one receiver to another. This daisy chain method saves users on Ethernet cable costs, simplifies installation and reduces the number of break points in your AV over IP installation.
✅ Fully scalable from residential rooms to campuses & large commercial enterprise applications

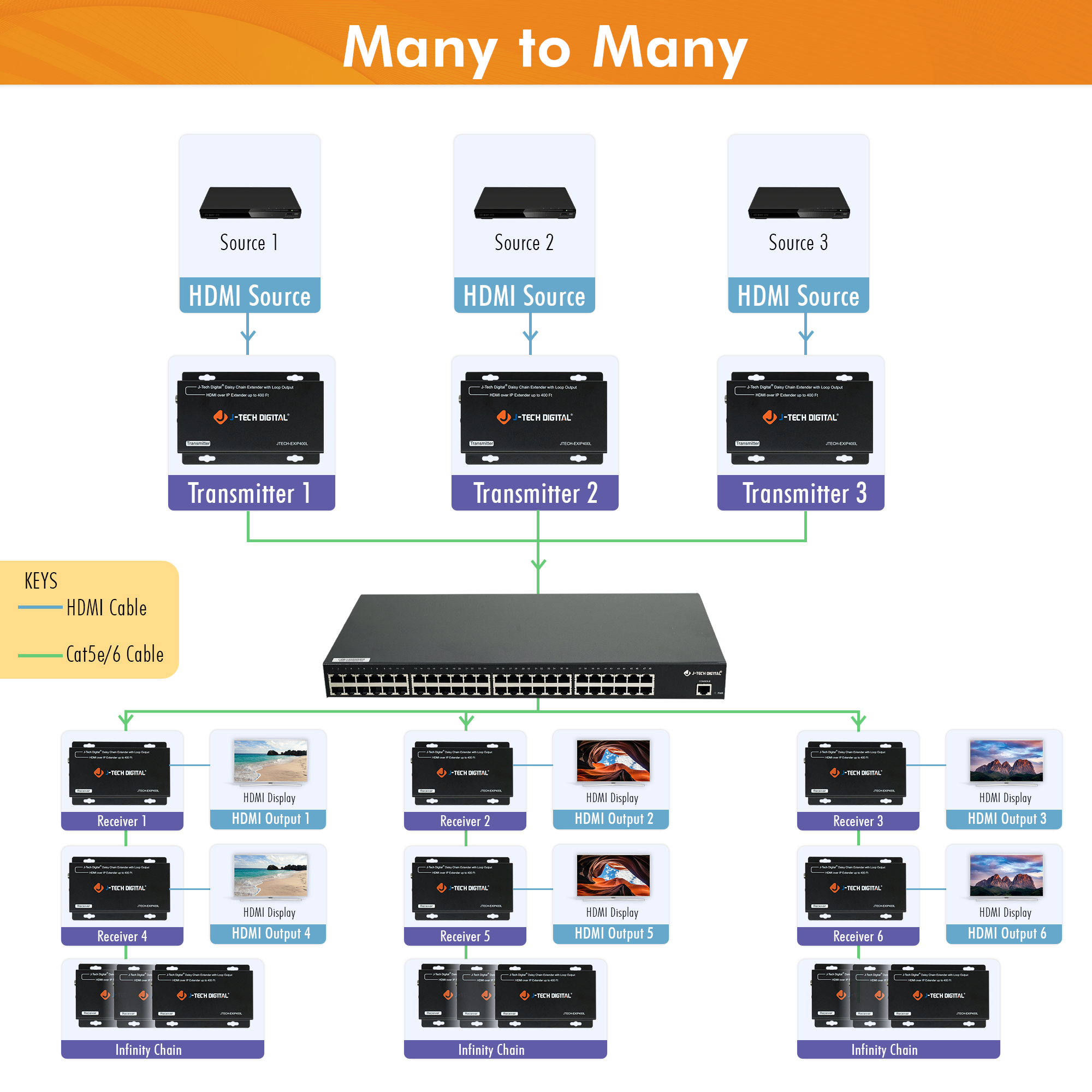

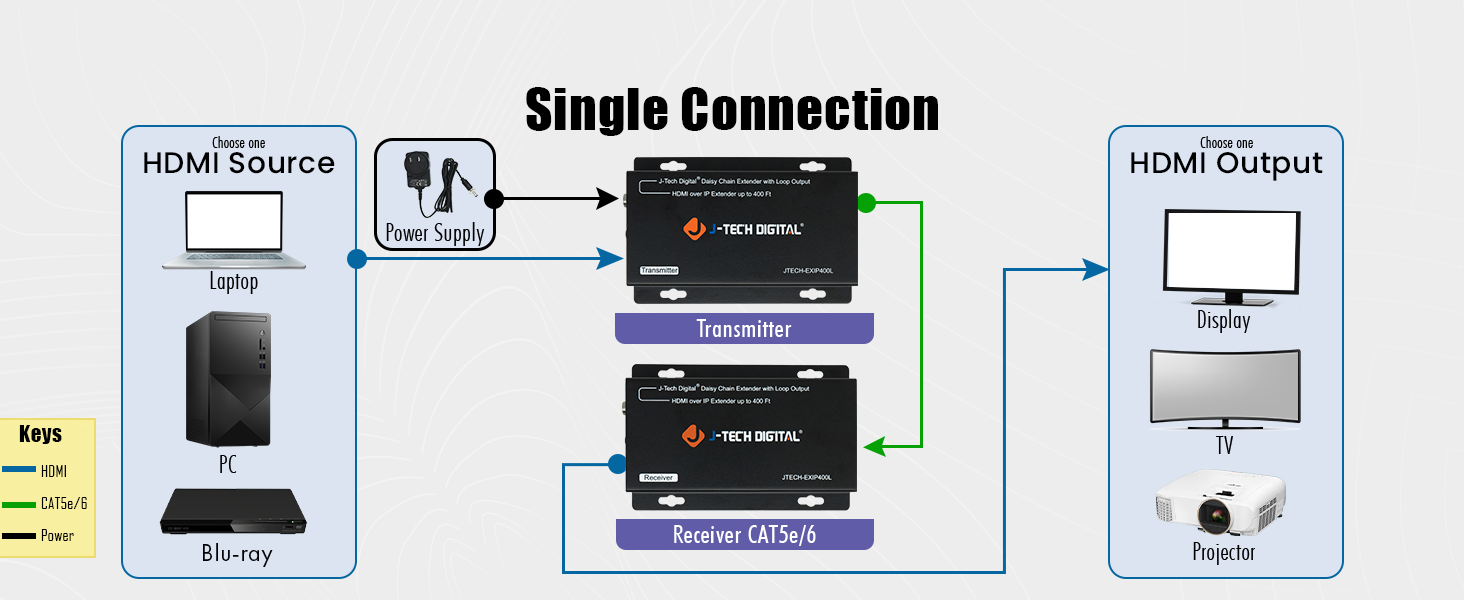

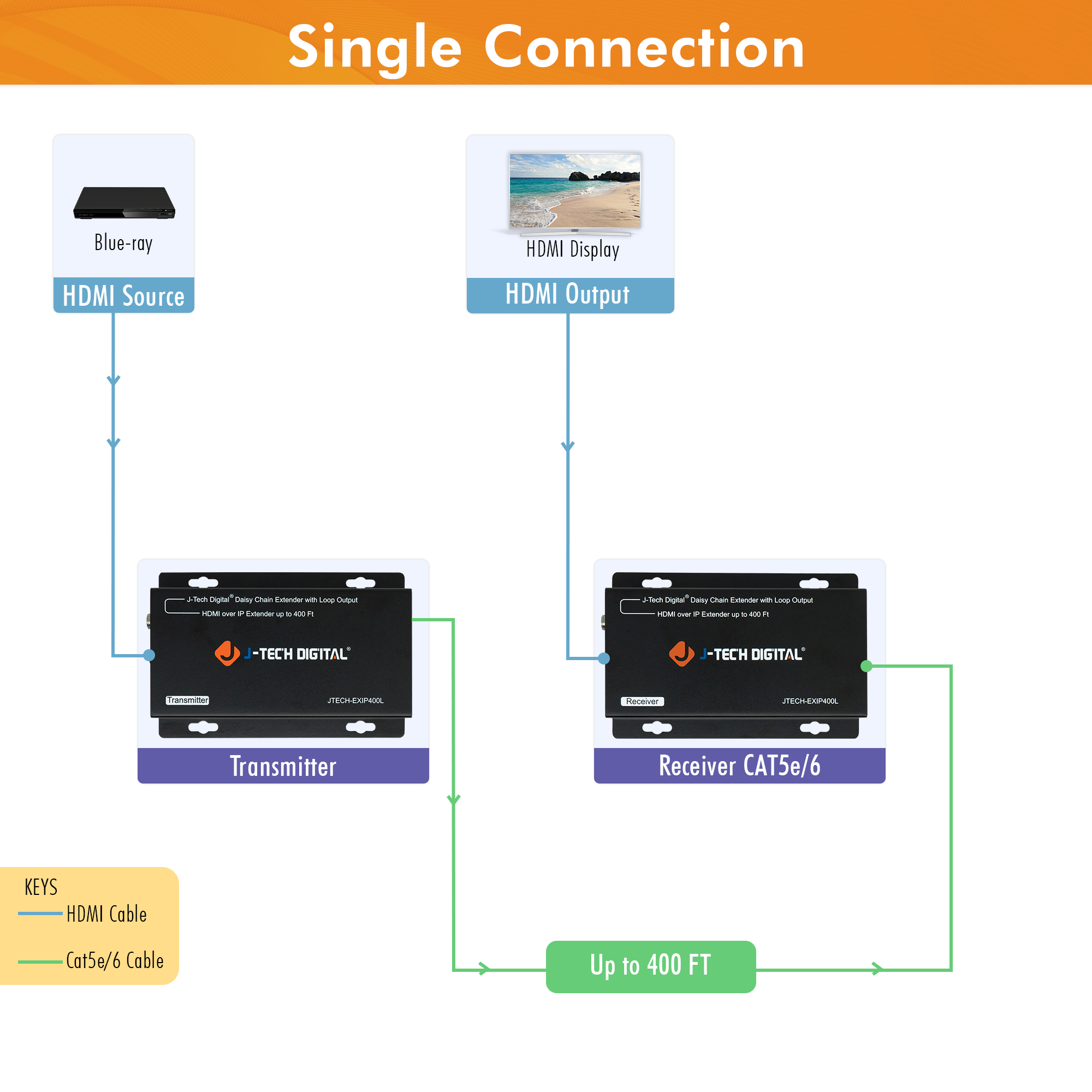

✅ 3 HDMI Extension & Distribution Modes – Point to Point / One to Many / Many to Many
✅ Transmission Protocol – TCP/IP
✅ Supported Resolutions – 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz
✅ Supported Audio Format – PCM
Information
- Brand
- J-Tech Digital
- MPN
- JTD-597
- Model
- JTECH-EXIP400LR
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications

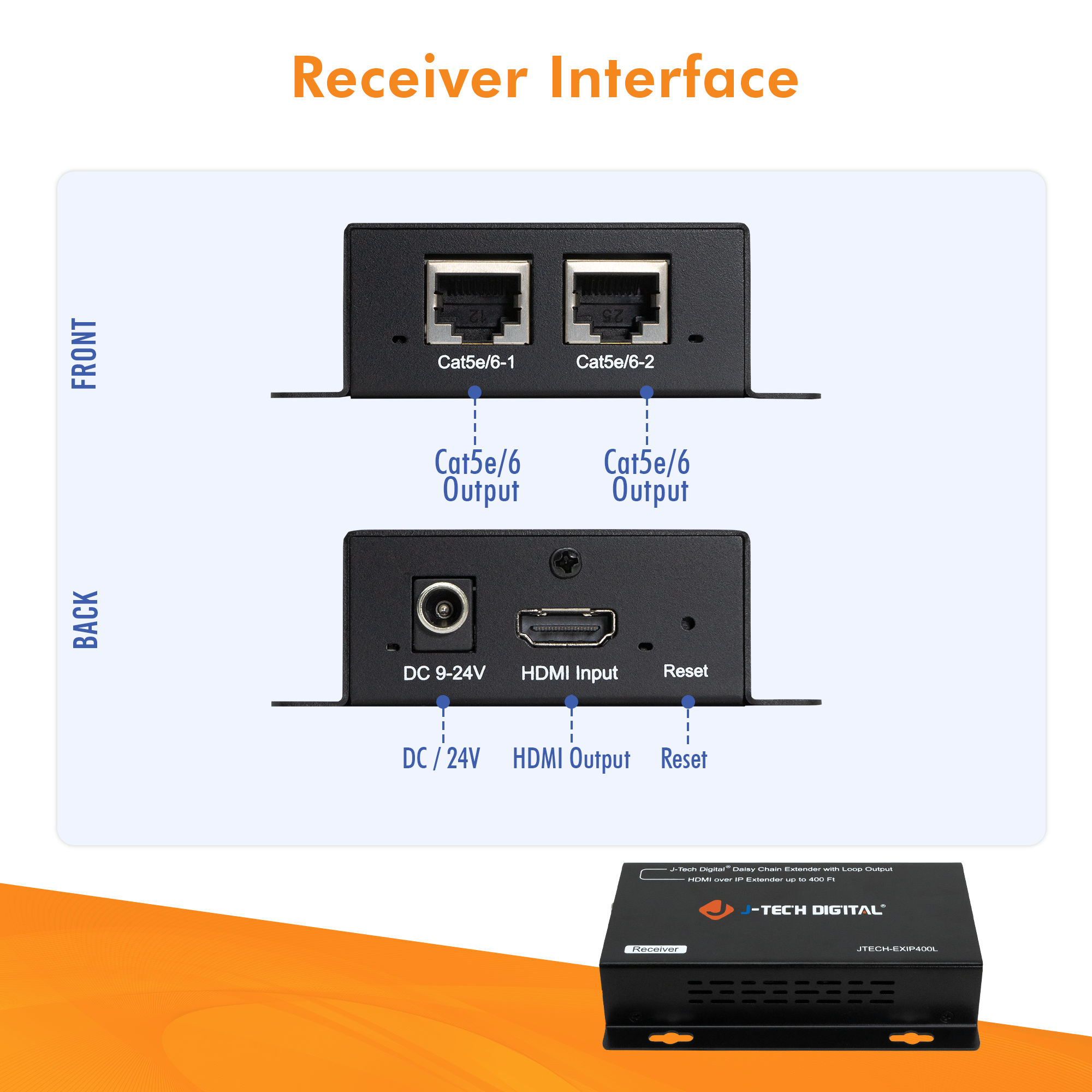

- HDMI Output
- 1
- Ethernet Input
- 1
- Ethernet Output
- 1
- Default IP Address
- 192.168.168.56
- Operating Temperature Range
- -10 to 45°C , 14 to 113°F
- Operating Humidity Range
- 5 to 90% RH (No condensation)
- Power Consumption
- 2.5W (Max)

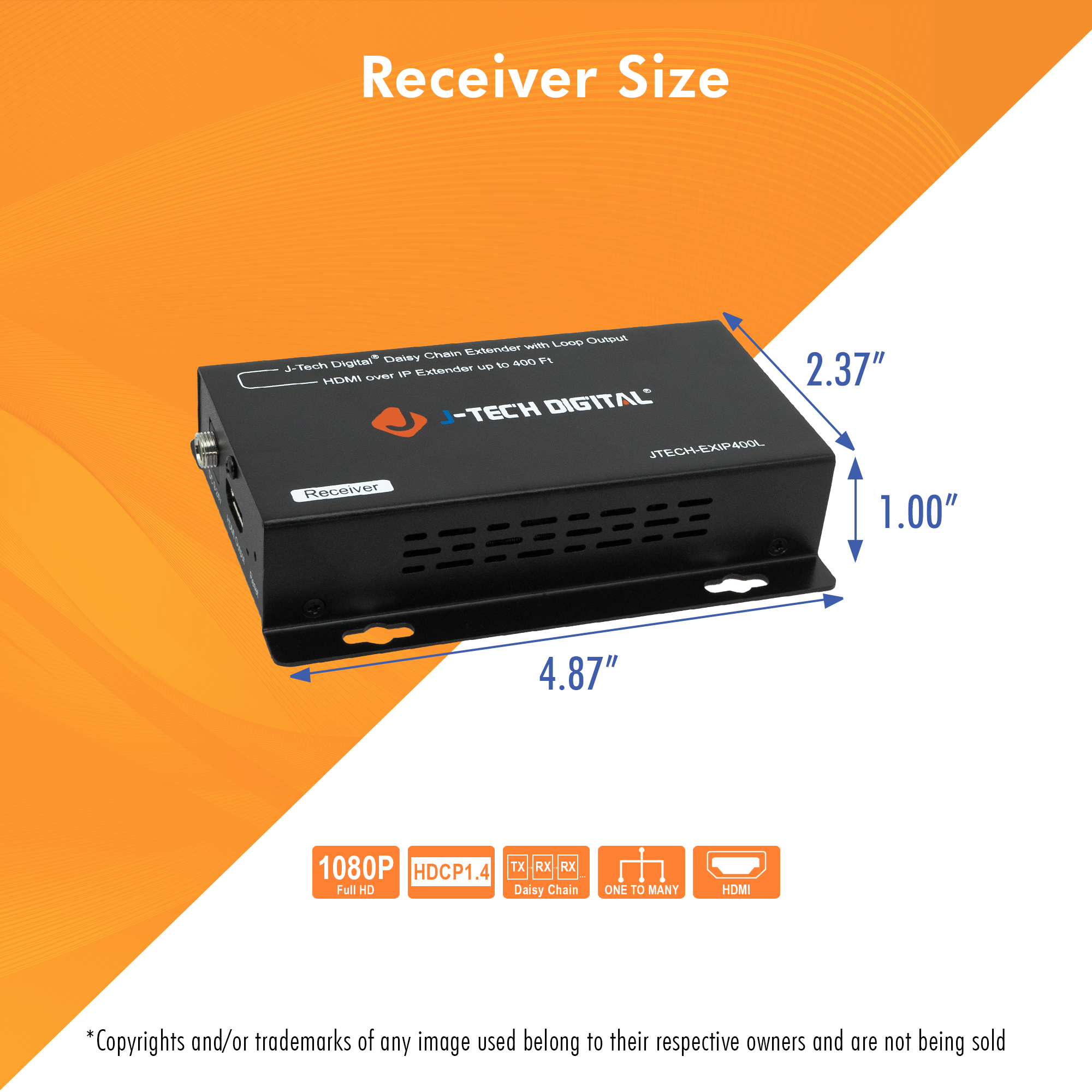

- Dimension
- (L) 124.6 x (W) 84 x (H) 27mm
- Net Weight
- 240g

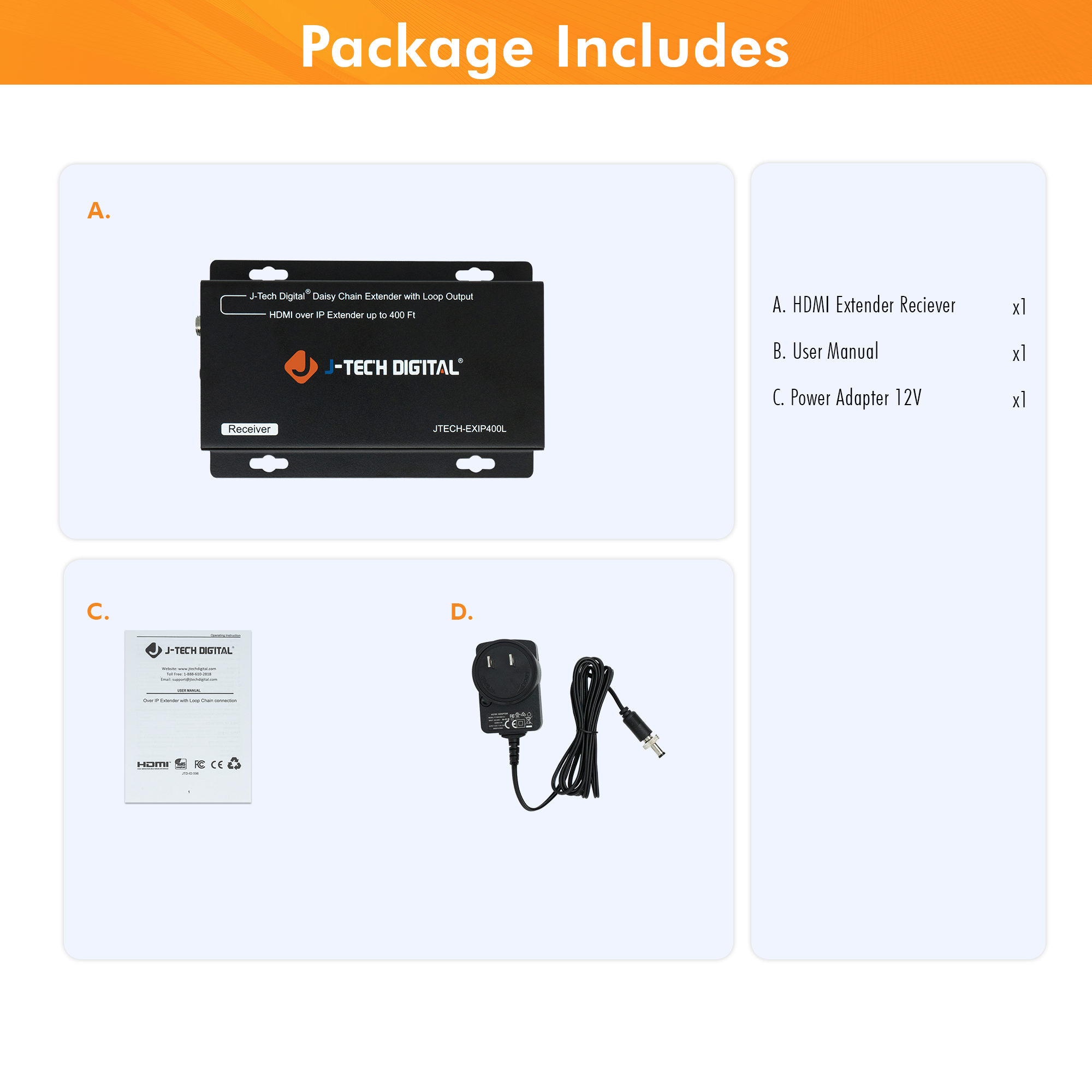

What's in the box
- 1 x Receiver
- 1 x User Manual
- 1 x Power Adapter
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
