8 Port H.264, H.265, MJPEG HDMI Encoder for Livestream - 8 x 1080P 60Hz for YouTube Facebook Twitch VLC
The J-Tech Digital JTECH-ENCH58 8 input HDMI H.264 H.265 MJPEG Livestream encoder is an IPTV live streaming device offered by J-Tech Digital used to get your event or content online. Broadcast up to eight 1080P 60Hz HDMI input signals to multiple streaming platforms like YouTube Live, Facebook Live and Twitch simultaneously. This J-Tech Digital 1080P H.265 / H.265 / MJPEG IPTV encoder supports multiple protocols (UDP | HTTP | RTSP | RTMP | FLV | ONVIF) so that you can share your message, no matter the needed format. Broadcast your message beyond your walls and establish your online presence today.
✅ Supports H.264 | H.265 | MJPEG Encoding
✅ Supports UDP, HTTP, RTSP, RTMP, FLV, ONVIF Protocols
✅ CBR/VBR Rate: 32 Kbps – 32 Mbps
✅1000M Network Interface uses Full-Duplex Mode
✅ Supports up to 1080P 60Hz HD Video Input and Output Stream Resolution
✅ Supports Image Parameter Settings

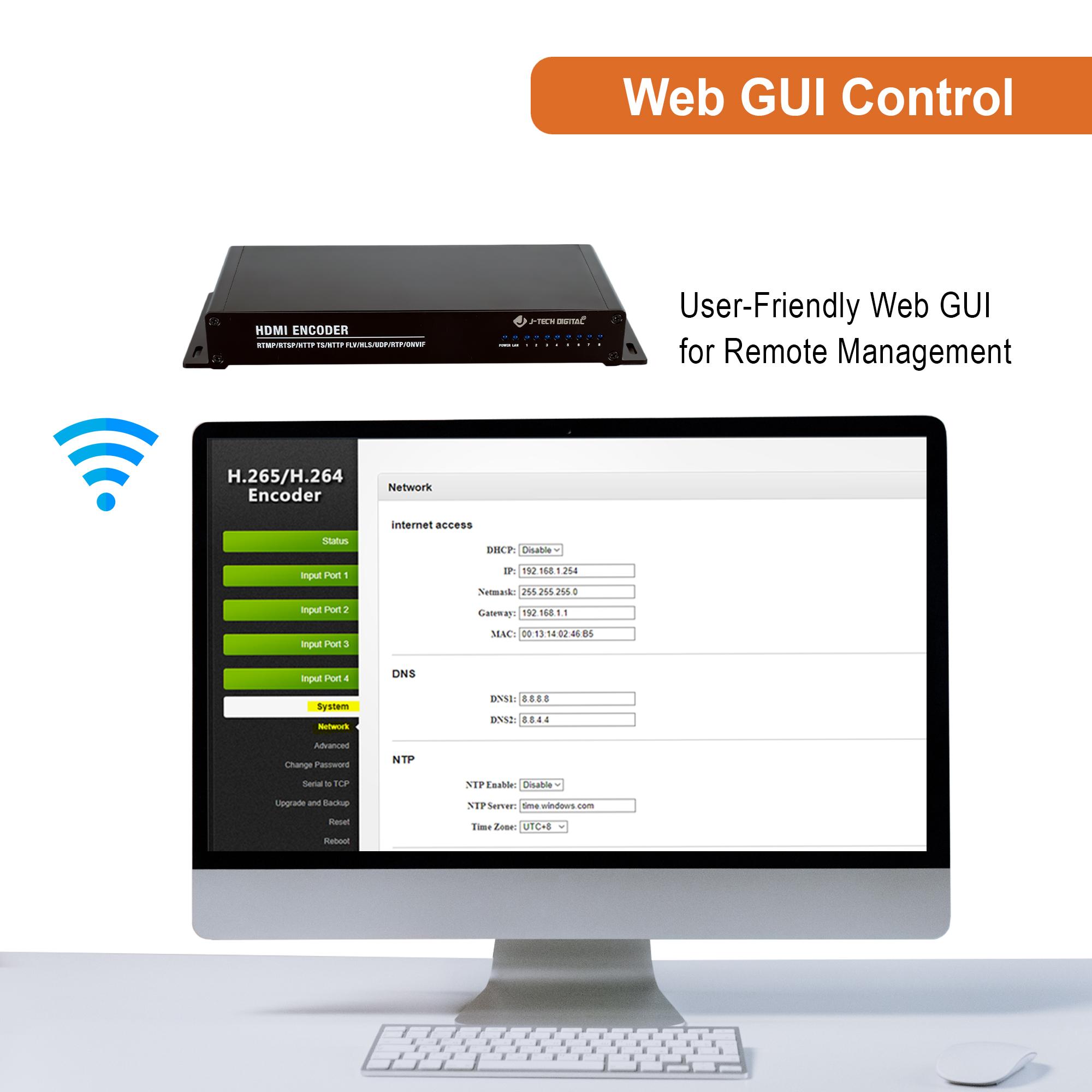

✅ Supports Remote Management in WAN (WebGUI)
✅ Supports Customized Resolution Settings
Information
- Brand
- J-Tech Digital
- MPN
- JTD-673
- Model
- JTECH-ENCH58
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications

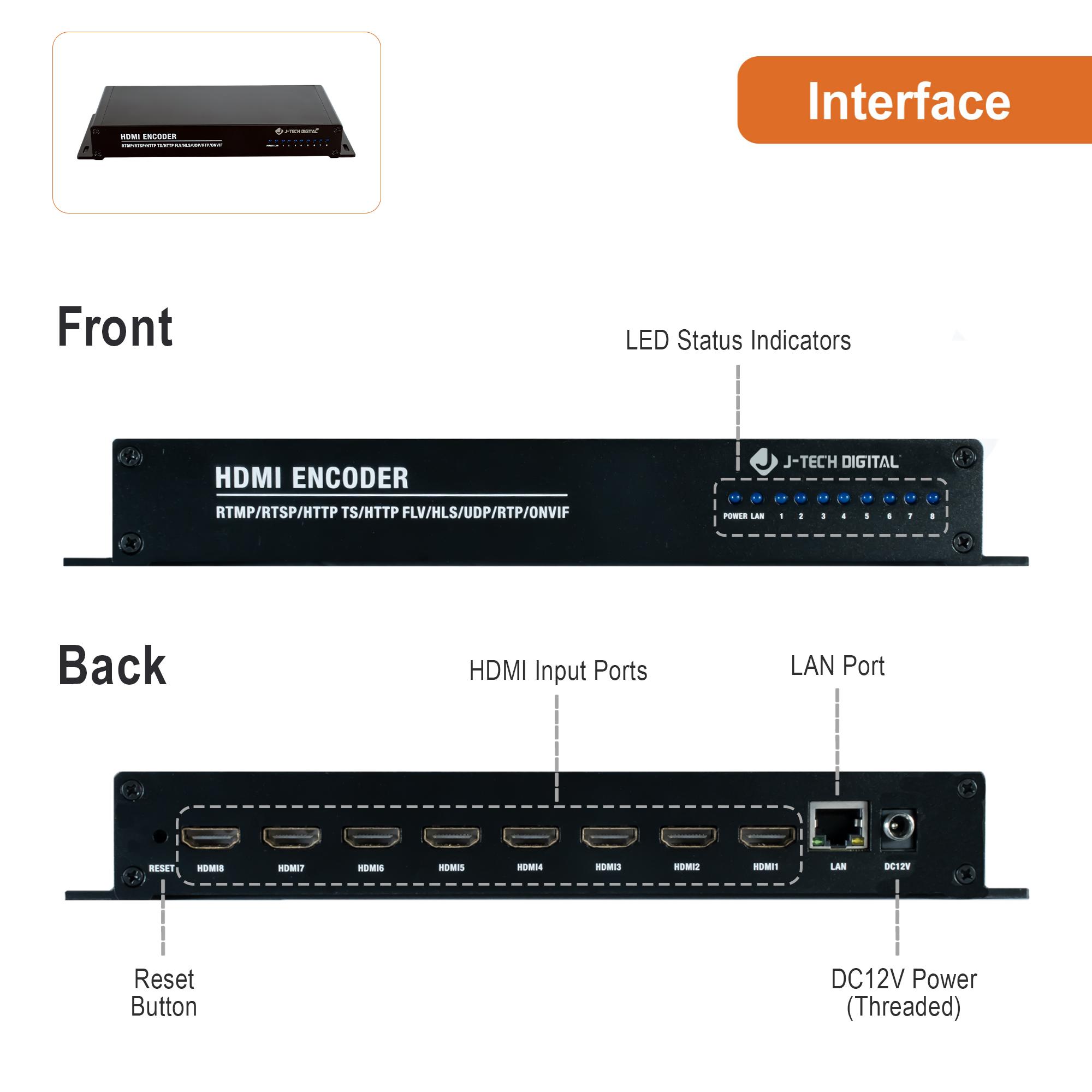

- HDMI Inputs
- 8 x 19-Pin Female HDMI 1.4
- Ethernet
- 1 x RJ-45 (10/100/1000 Full Duplex)
- Supported Input Standards
- 1080p 60Hz
- Video Streaming Resolutions
- 176 x 144 | 240 x 180 | 320 x 180 | 320 x 240 | 320 x 256 | 352 x 228 | 352 x 480 | 400 x 224 | 400 x 320 | 480 x 270 | 480 x 272 | 480 x 320 | 480 x 360 | 480 x 384 | 480 x 480 | 544 x 480 | 608 x 448 | 640 x 360 | 640 x 480 | 704 x 576 | 720 x 404 | 720 x 480 | 720 x 540 | 720 x 576 | 850 x 480 | 1024 x 576 | 1024 x 768 | 1280 x 720 | 1680 x 1056 | 1920 x 1080
- Video Streaming FPS
- 5 – 60
- Video Streaming GOP
- 5 - 300
- Encoding Method
- H.264 | H.265 | MJPG
- Streaming Standards
- SRT | RTSP | RTMPS | RTMP | ONVIF | TS | HLS | FLV
- H.264 Profiles
- Baseline | Main | High
- Bitrate Control
- Constant Bit Rate | Strong Constant Bit Rate | Variable Bit Rate
- Bit Rate
- 32 – 32000 kbps
- Device Control
- Ethernet (Web GUI)
- Power Supply Input
- 100 – 240VAC 50/60Hz
- Power Supply Output
- DC 12V 1A
- Power Usage
- 12 Watts (max)

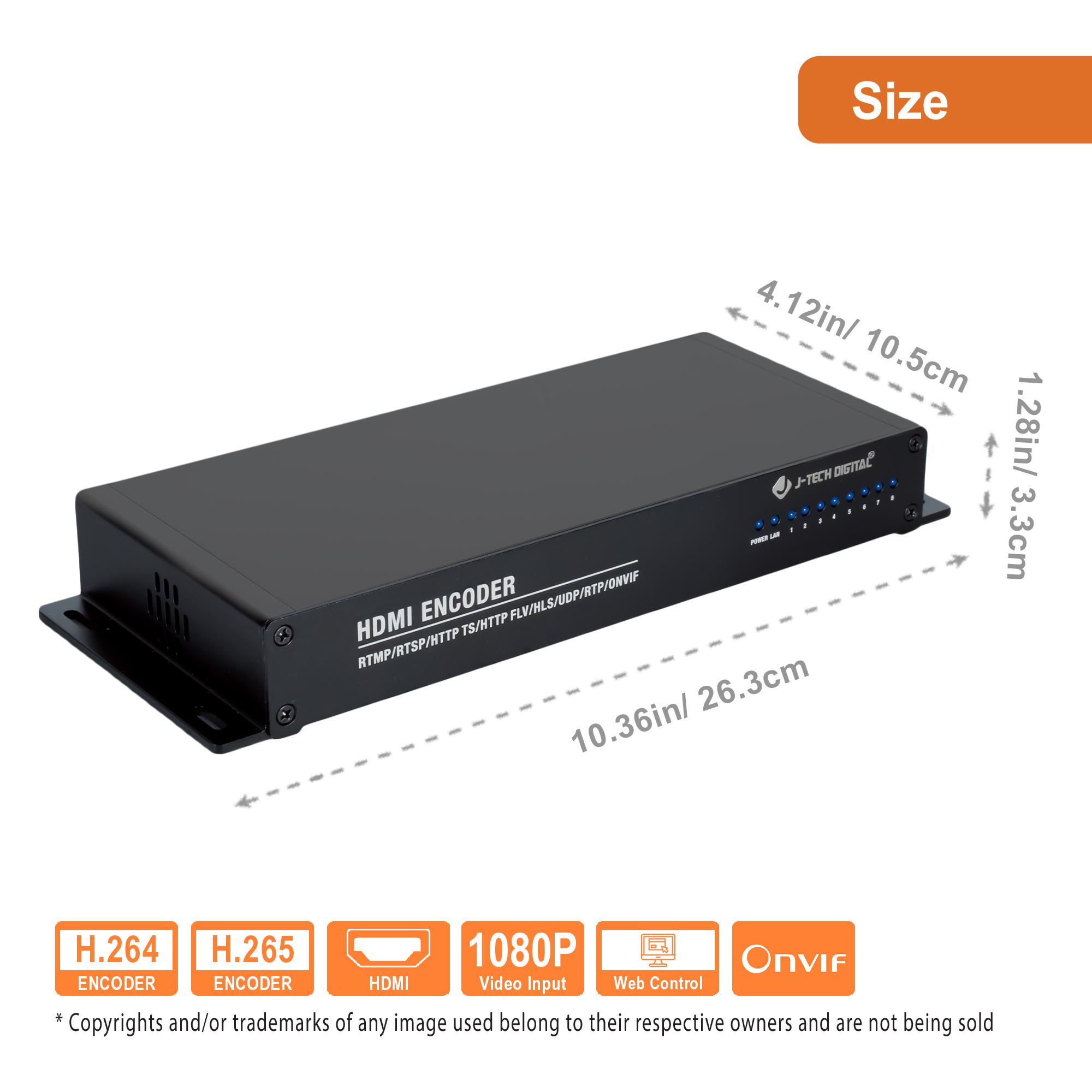

- Dimensions (LxWxH)
- 10.375 in x 4.125 in x 1.25 in
- Weight
- 1.3 lbs.
- Operating Temperature
- -4° - 140°F
- Storage Temperature
- -40° - 257°F
- Relative Humidity
- < 90% (non-condensing)

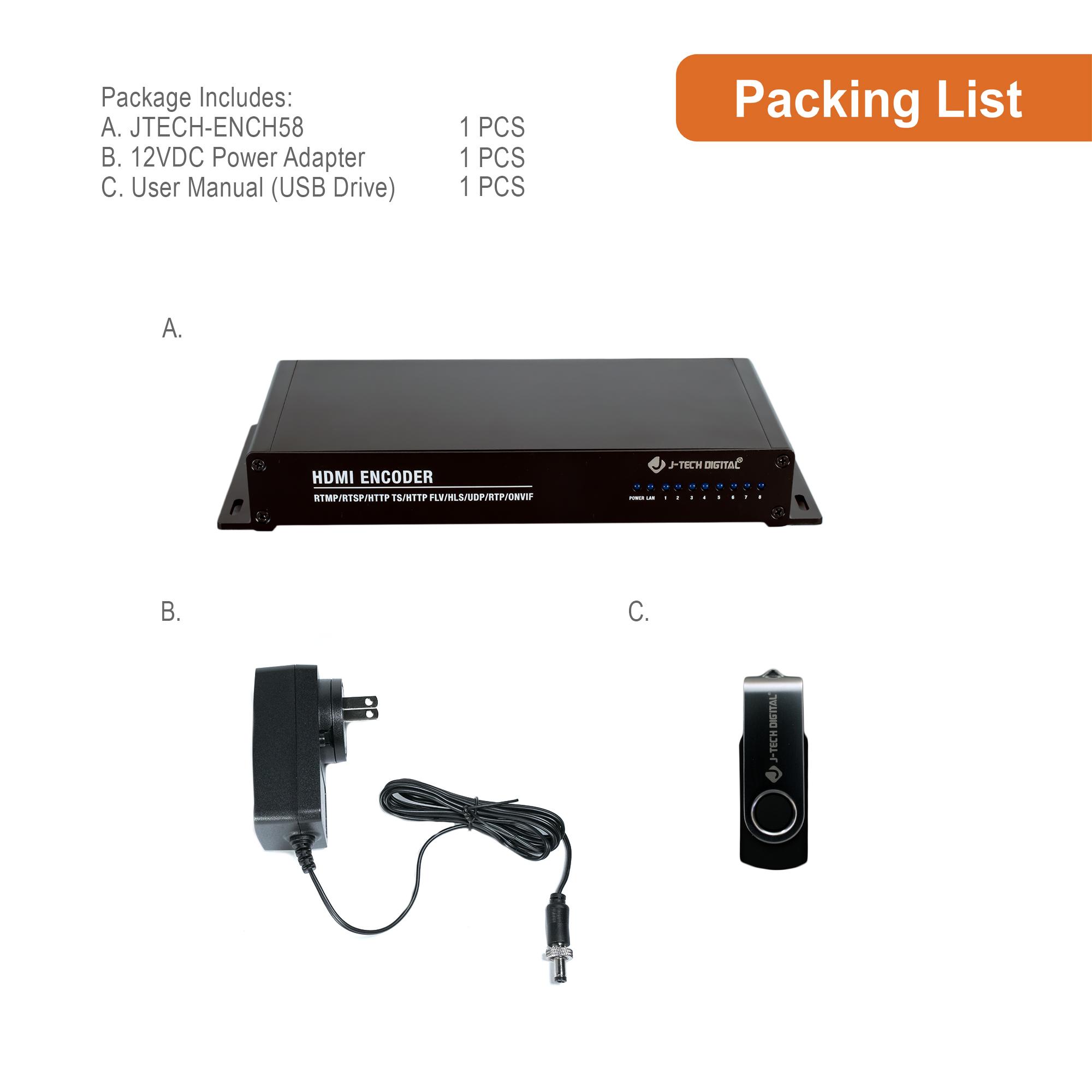

What's in the box
- 1 x JTECH-ENCH58
- 1 x DC12V 1A Power Supply
- 1 x User Manual
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
| Spec Sheet | 1.1 |
