1080P 60Hz HDMI H.264/H.265 Decoder Livestream with Audio Output and NDI HX Support

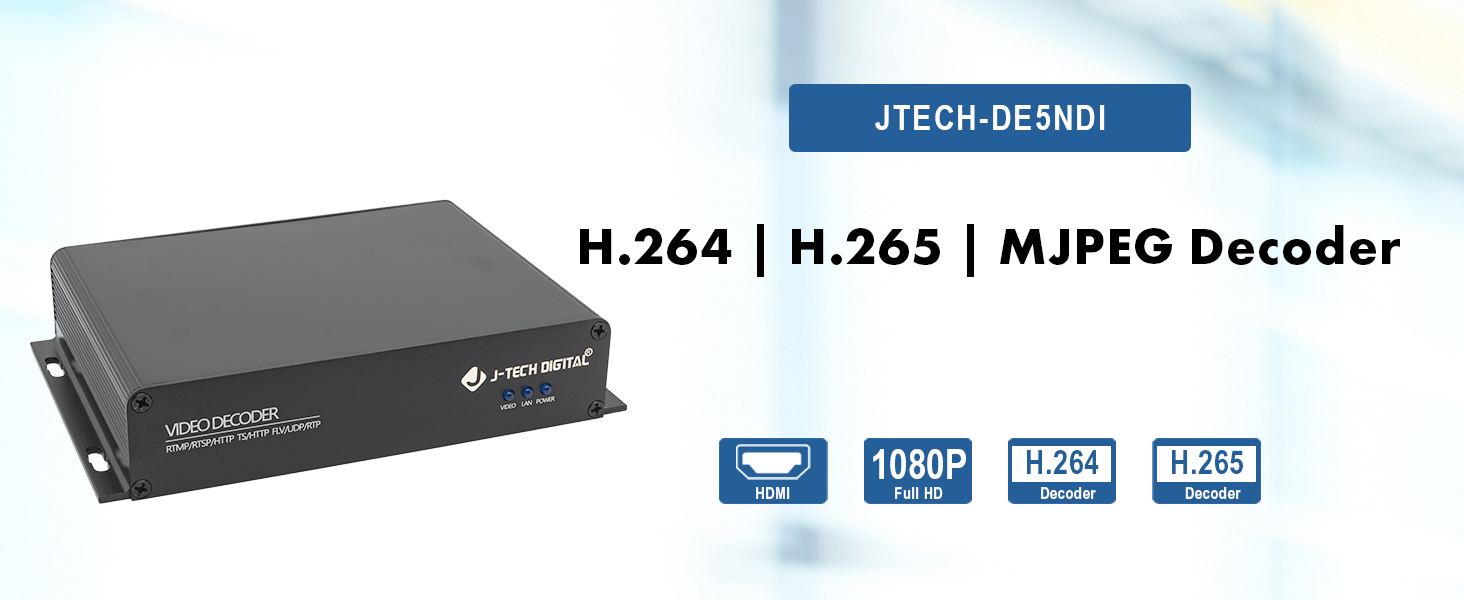

J-Tech Digital is proud to announce the introduction of JTECH-DE5NDI H.264/H.265/MJPEG HDMI IPTV livestream decoder. The JTECH-DE5NDI decoder allows you to decoder different protocols, such as NDI/RTSP/RTMP/HTTP/HLS/UDP/RTP/SRT, and convert them to HDMI/VGA/CVBS video signal output. With Full HD 1080P support and 3.5mm audio output, this decoder is perfect to integrate into your existing NDI environment.
✅ Supports decoding NDI/RTSP/RTMP/HTTP/HLS/UDP/RTP/SRT Protocols
✅ H.264 | H.265 | MJEPG Decoding

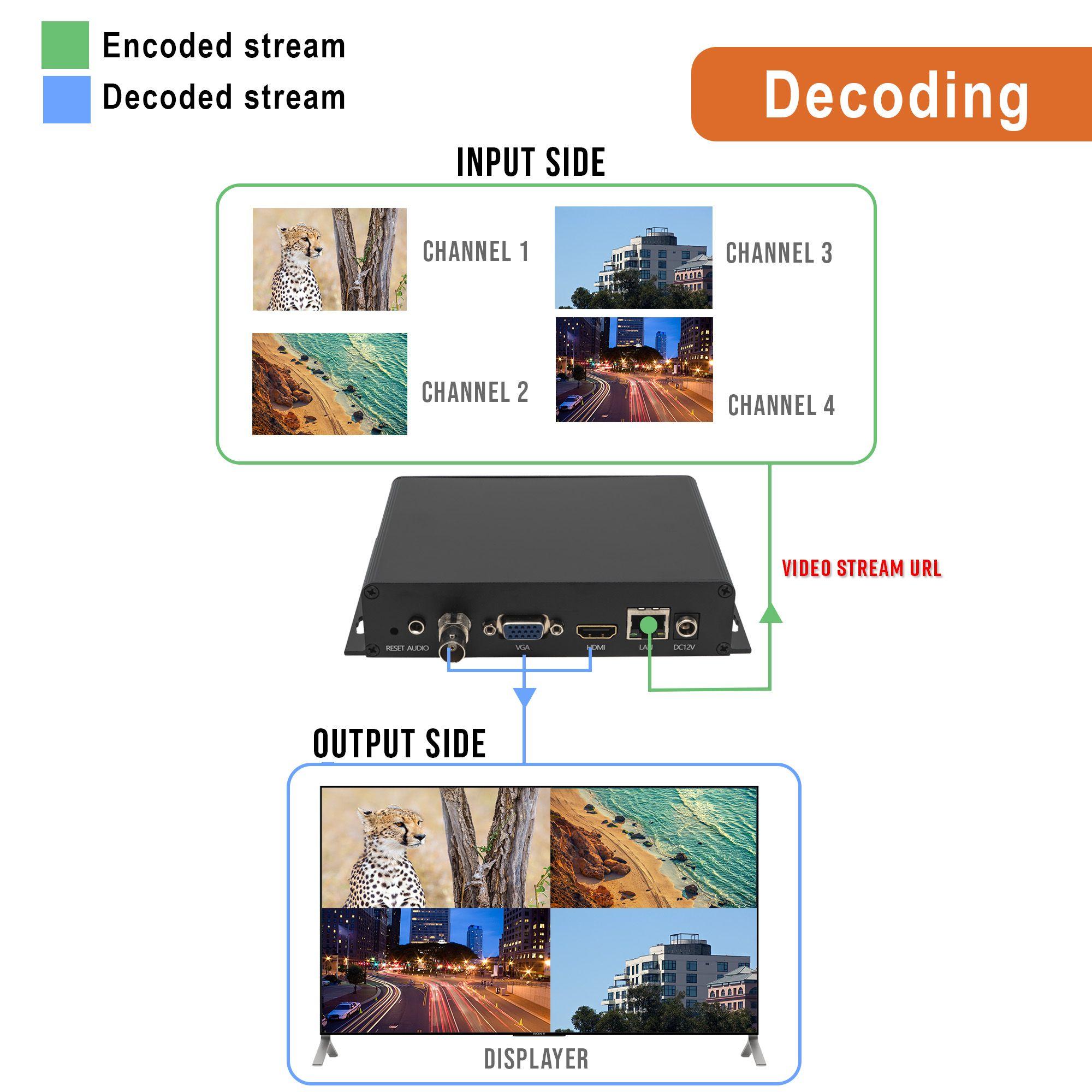

✅ Multi-viewer function allows you to view 4 streams simultaneously on a single display
✅ Customizable OSD, Resolution, Frame Rate settings
✅ Full HD 1080P 60Hz support
✅ 5mm Analog Audio Output
✅ Remote Management via Web interface
Information
- Brand
- J-Tech Digital
- MPN
- JTD-623
- Model
- JTECH-DE5NDI
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications
- Default IP
- 192.168.1.169
- Default WebGUI Username
- admin
- Default WebGUI Password
- admin
- Protocol Support
- NDI | HX, RTSP, RTMP, HTTP, HLS, UDP, RTP, SRT
- Power Supply
- 12V 2A
- Storage Temperature
- -20℃+60℃
- Humidity
- <90%, non-condensed

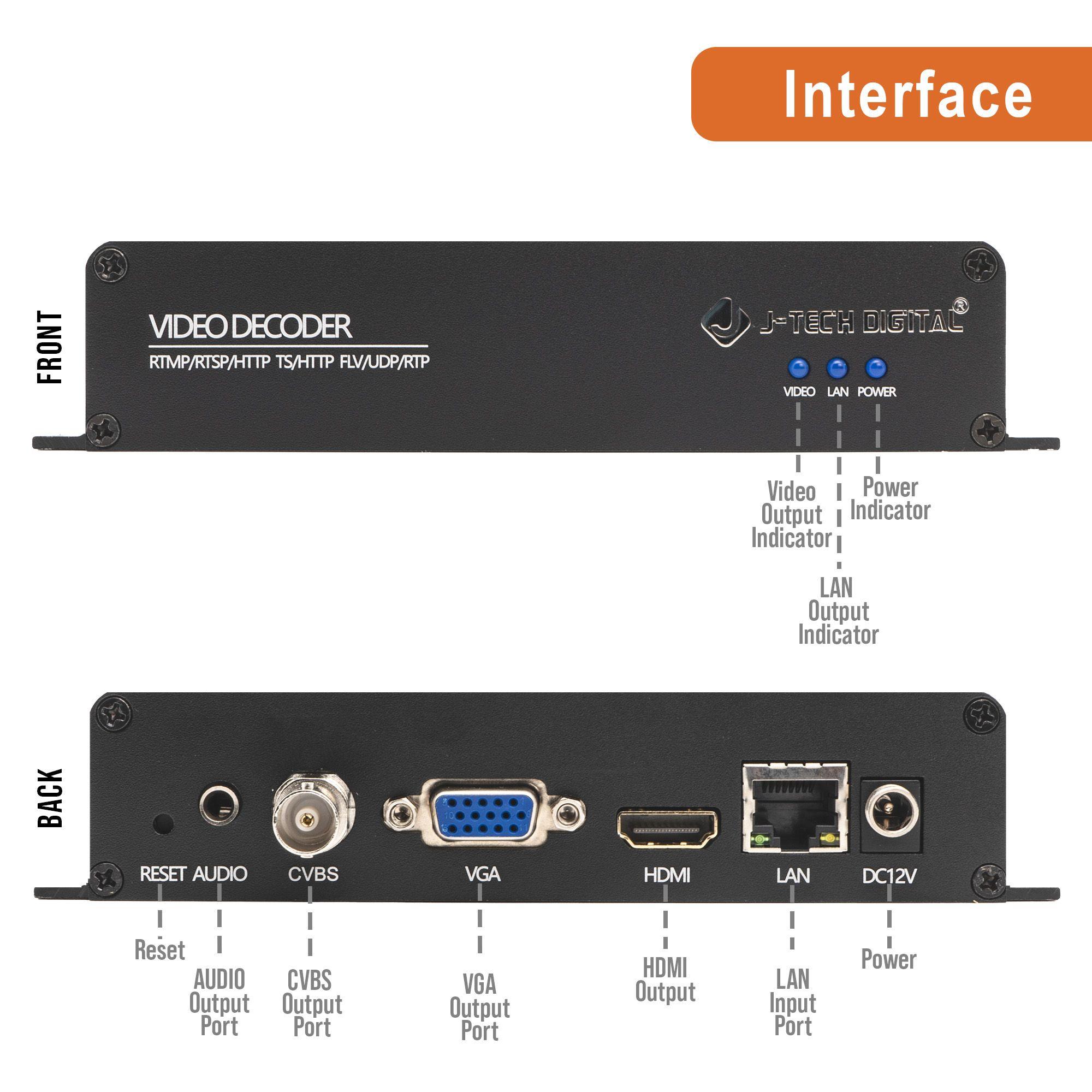

- Output Ports
- 1 x 3.5mm audio, 1 x CVBS Output, 1 x VGA, 1 x HDMI
- Input Ports
- 1 x LAN
What's in the box
- 1 x DE5NDI Decoder
- 1 x Power Supply
- 1 x User Manual
Frequently asked questions
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
