1080P 60Hz HDMI H.264 Encoder Livestream with Audio Embedding
$198.00

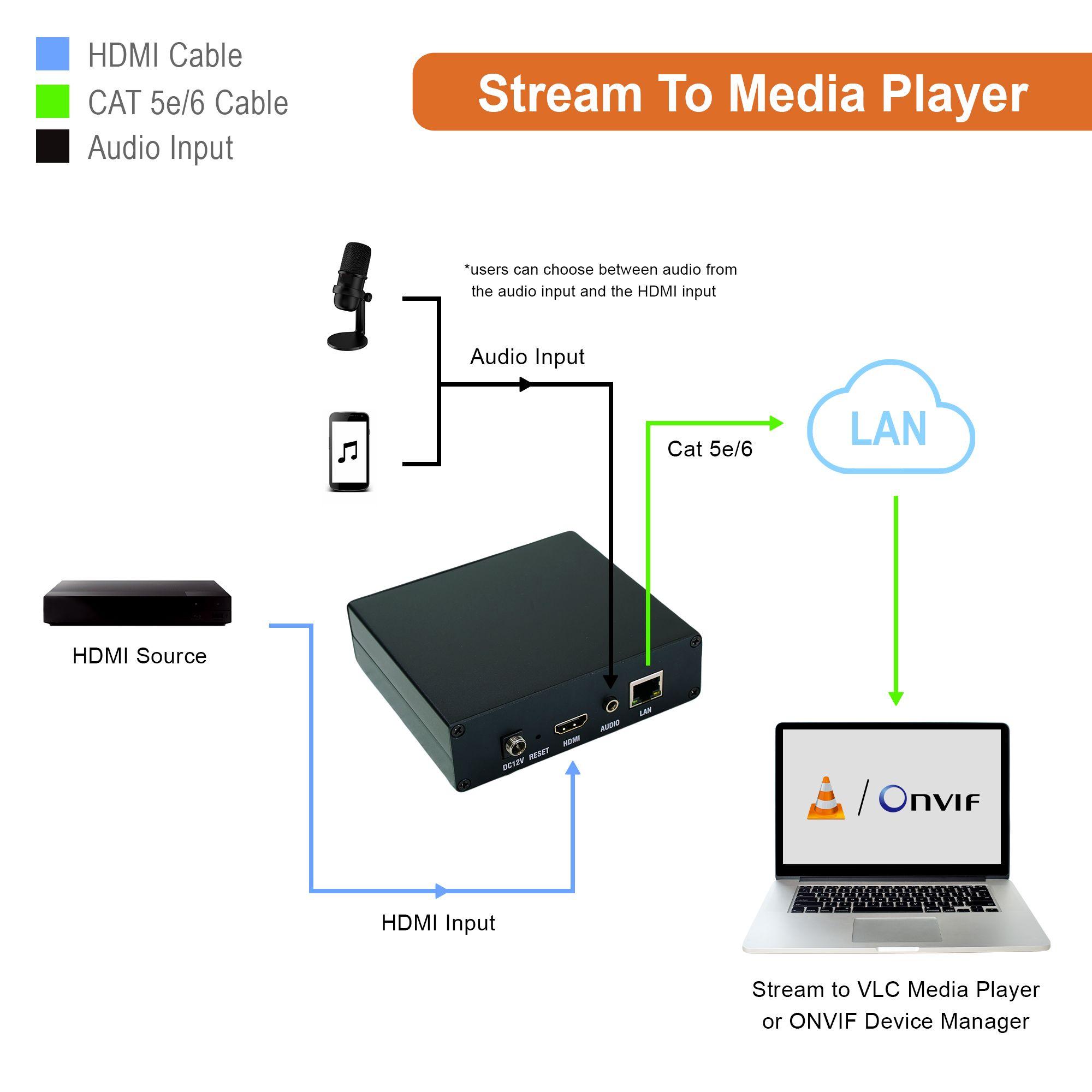

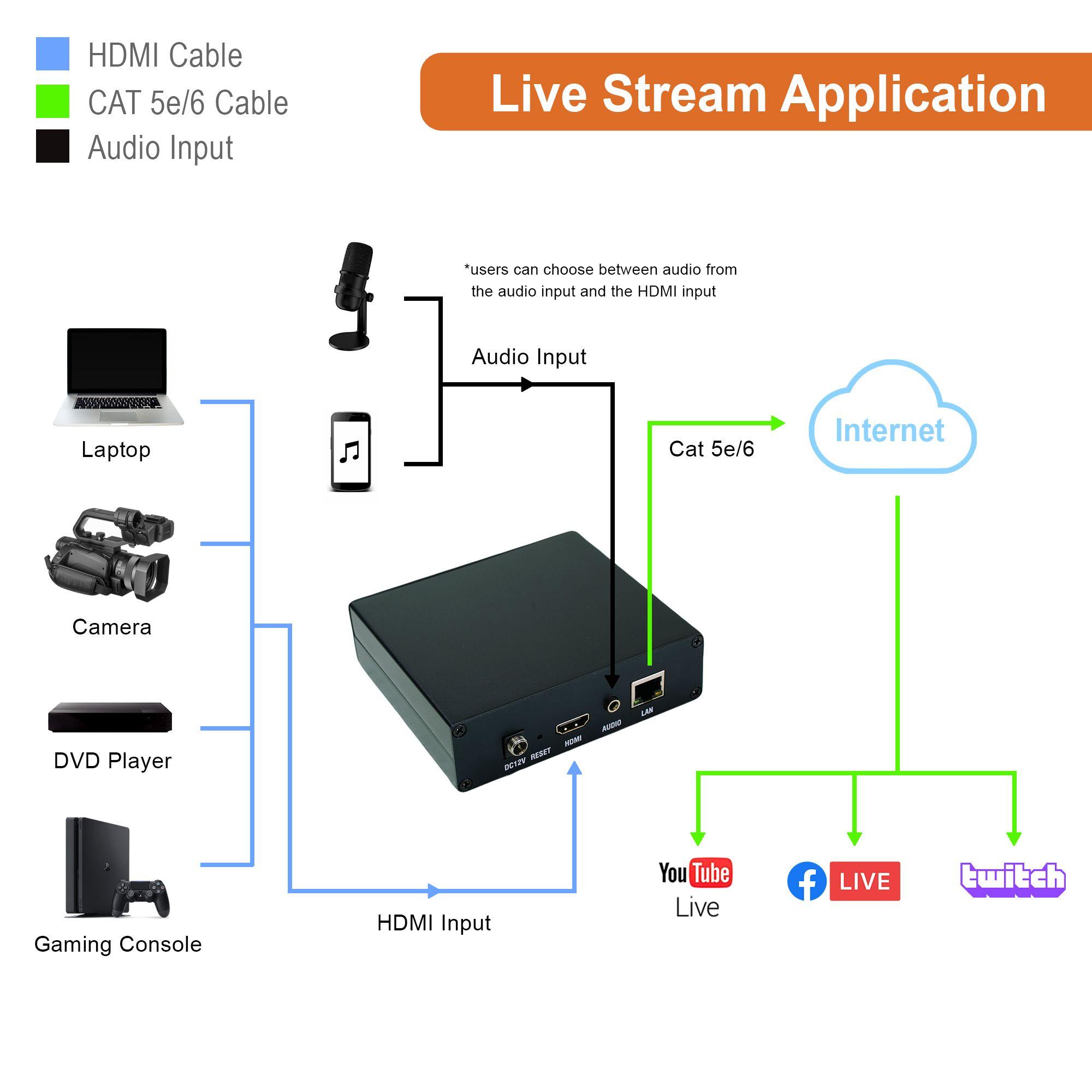

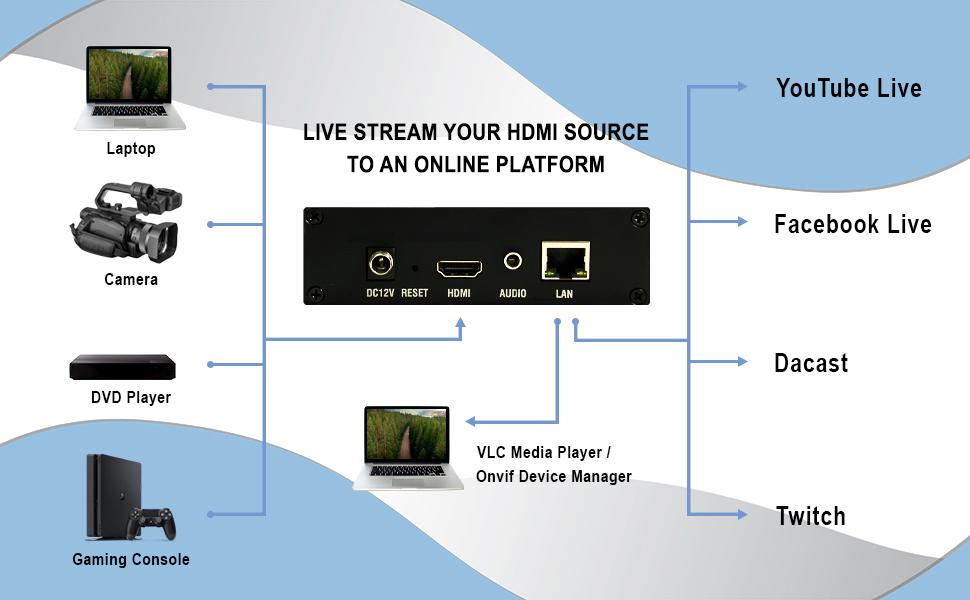

This encoder will take an HDMI audio/video signal, encode it using H.264, and give you the power to choose where to stream it to. Choose from any popular video upload site/service, one or more LAN computers using VLC/multicast, or a local surveillance system using ONVIF.
✅ Supports H.264 encoding / UDP, HTTP, RTSP, RTMPS, RTMP, ONVIF, MPEG1 Audio Layer 2 / CBR/VBR rate: 16Kbps ~ 16Mbps
✅ 100 M network interface uses full duplex mode / Supports up to 720p, 1080p@60Hz HD video input / Support image parameter settings

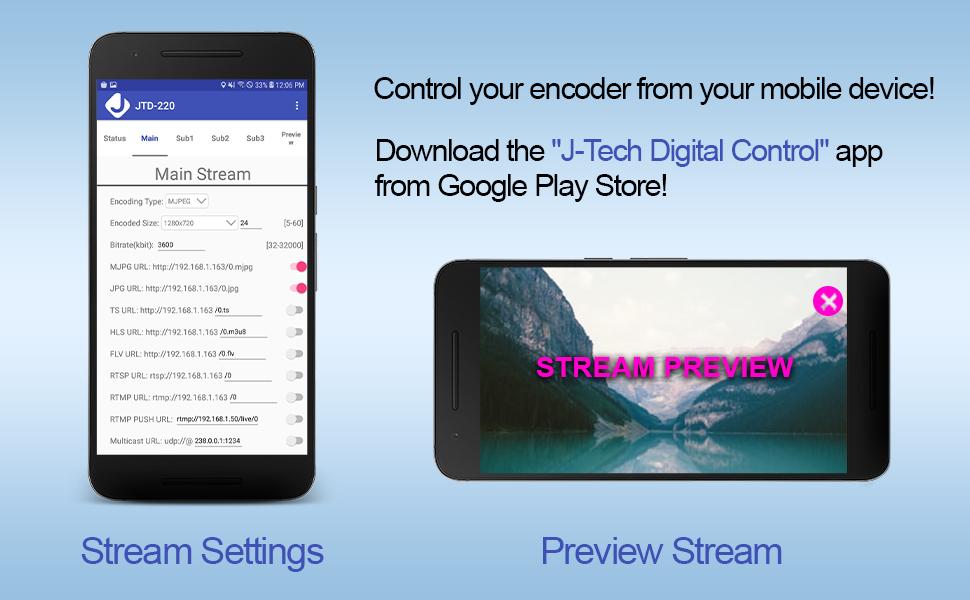

✅ WEB interface management authority / Support remote management in WAN (WEB)/ Customized resolution settings
✅ One button factory reset
Information
- Brand
- J-Tech Digital
- MPN
- JTD-497
- Model
- JTECH-ENCH4A
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications
Video
- HDMI Inputs
- 1 x 19-Pin Female HDMI 1.4
- Resolution
- Up to 1080P 60Hz
- Video Streaming FPS
- 5 - 60
- Video Streaming GOP
- 5 - 300
- Encoding Method
- H.264
- Streaming Standards
- RTSP, RTMPS , RTMP , ONVIF , TS , HLS , UDP
- H.264 Profiles
- Baseline, Main , High
- Bitrate Control
- Constant Bit Rate, Strong Constant Bit Rate, Variable Bit Rate
- Bit Rate
- 32 – 32000 kbps
Audio
- Audio Inputs
- 1 x 3.5mm Female
Communications
- Device Control
- Ethernet (Web GUI)
General
- Power Supply Input
- 100 – 240VAC 50/60Hz
- Power Supply Output
- DC 12V 1A
- Power Usage
- 12 Watts (max)

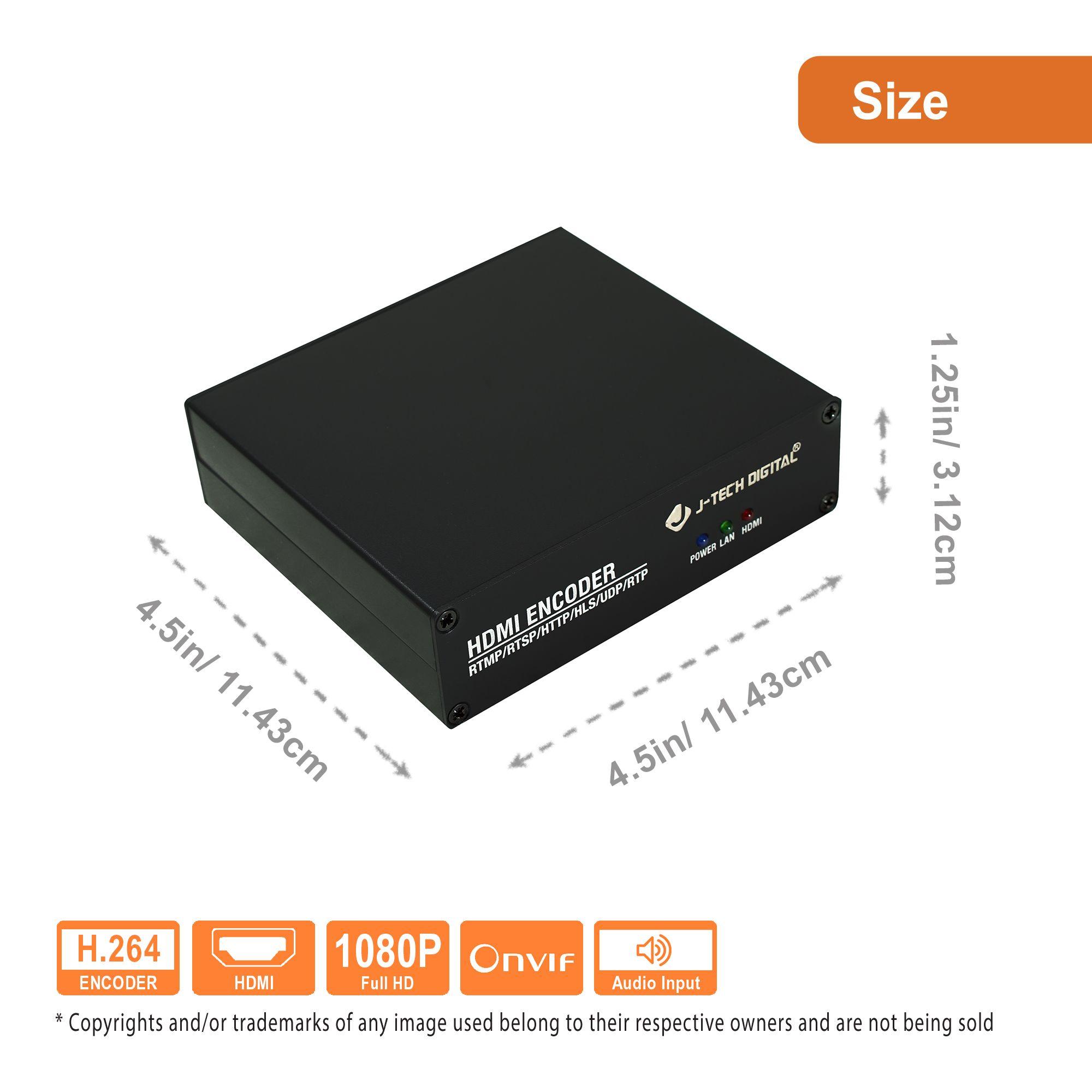

- Dimensions (LxWxH)
- 4.25 in x 4 in x 1.25 in
- Weight
- 9.6 oz
- Operating Temperature
- -4° - 140°F
- Storage Temperature
- -40° - 257°F
- Relative Humidity
- < 90% (non-condensing)

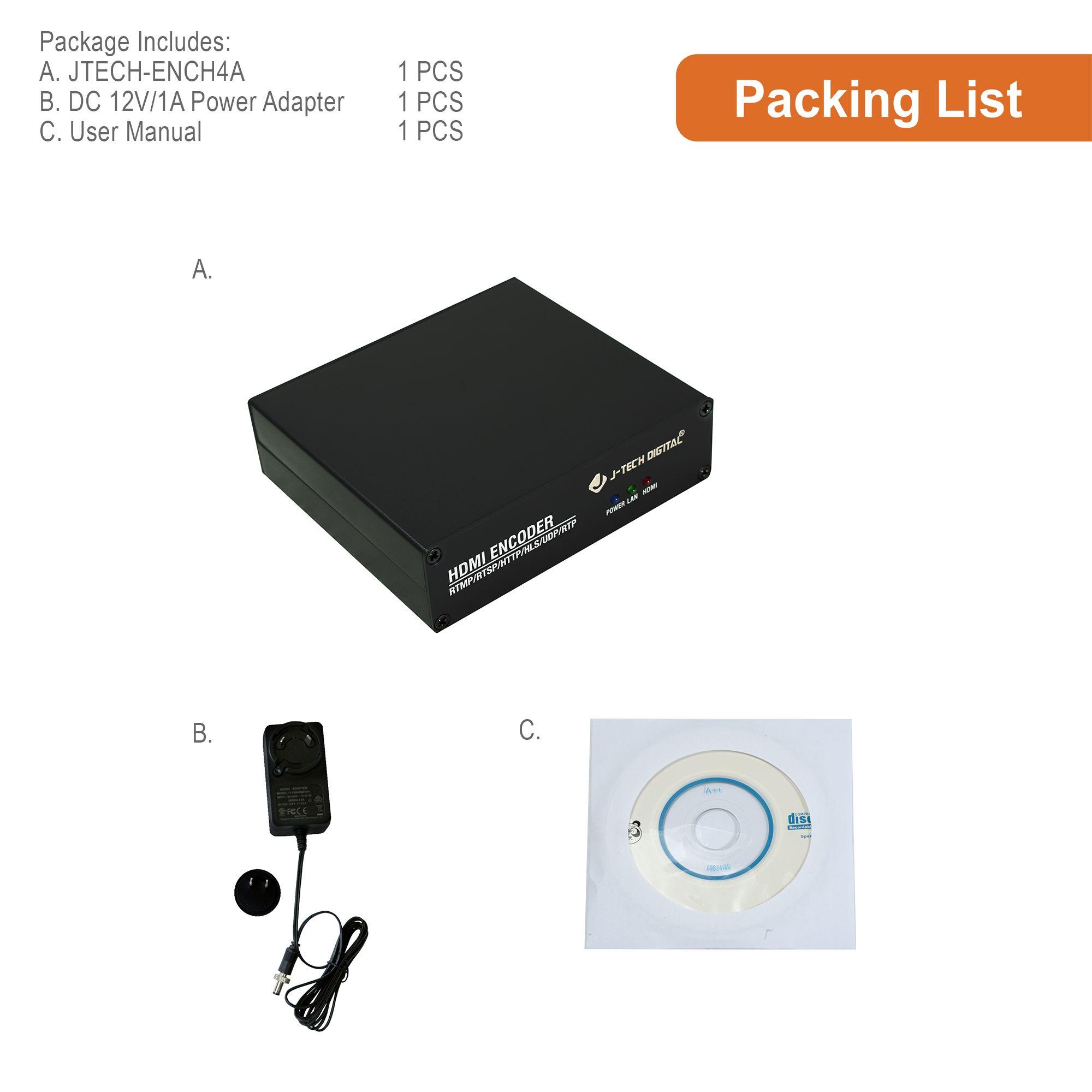

What's in the box
- 1 x J-Tech Digital JTECH-ENCH4A Encoder
- 1 x Power Adapter
- 1 x User Manual
Frequently asked questions
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
| Specification Sheet | 1.0 |
| Firmware | 1.0 |
