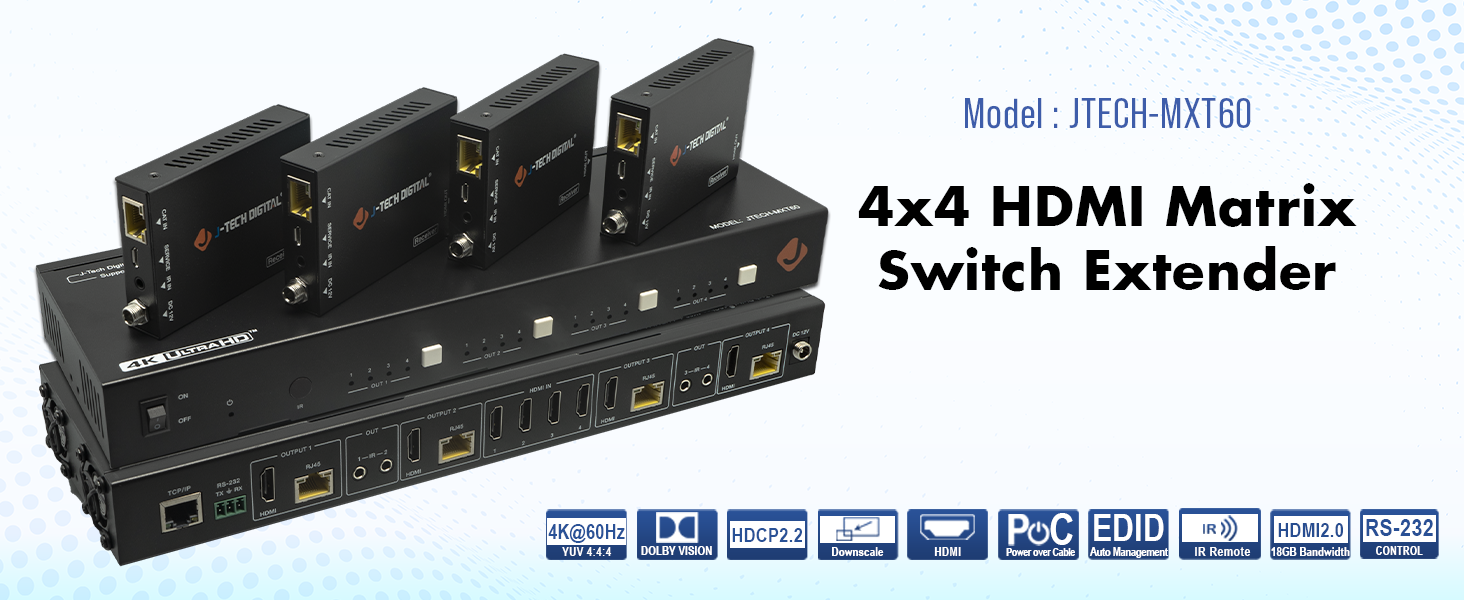

4K 60Hz 4x4 HDMI Matrix Extender Over Ethernet (130ft)

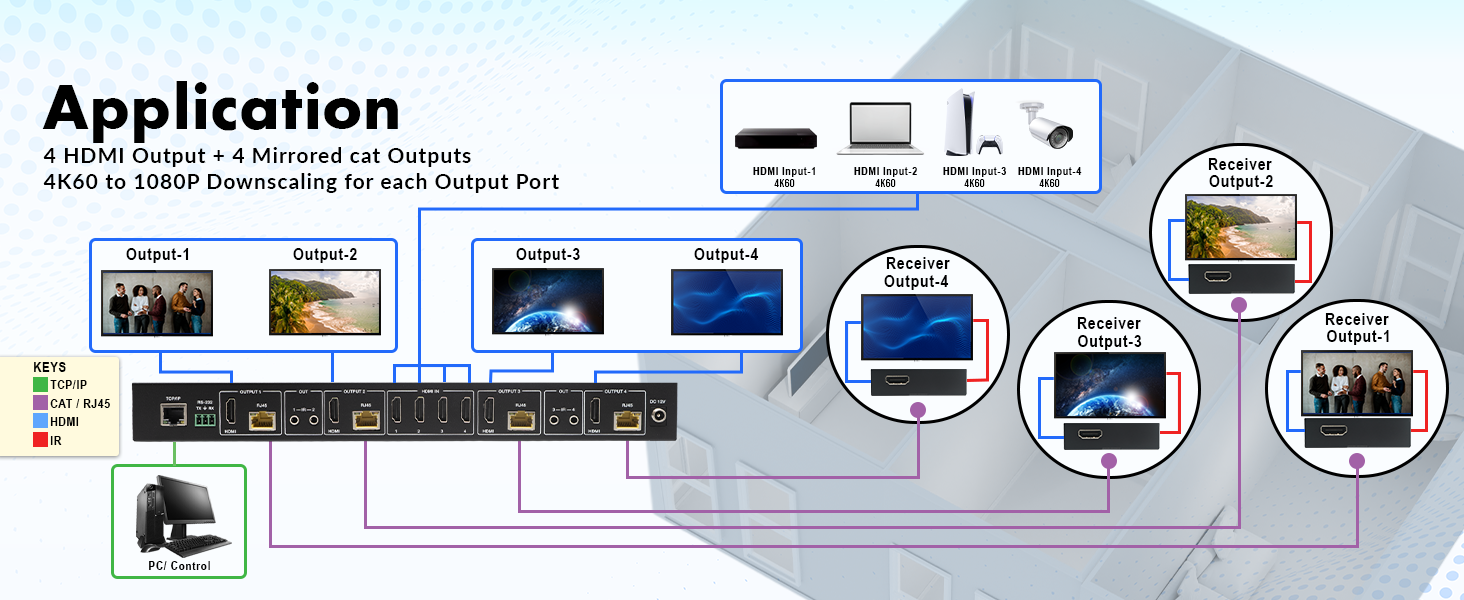

The J-Tech Digital JTECH-MXT60 is a professional 4x4 HDMI 2.0 matrix extender solution for many different applications and industries where it is necessary to route multiple UHD source signals to multiple displays in different locations within your environment. Users can transmit a 4K 60Hz HDMI source signal up to 130 FT away via single Cat5e/6 ethernet runs to included MXT60 CAT receivers.
Still using a 1080p TV or projector? No problem. The MXT60 HDMI matrix switch allows users to downgrade a 4K 60Hz source signal to 1080p 60Hz at each output, meaning you can still enjoy all of the latest and greatest content on your 1080p display until you’re ready to upgrade!
✅ HDMI 2.0b | HDCP 2.2/1.4 Compliant
✅ Resolutions up to 4K 60Hz 4:4:4 supported on all HDMI & CAT ports

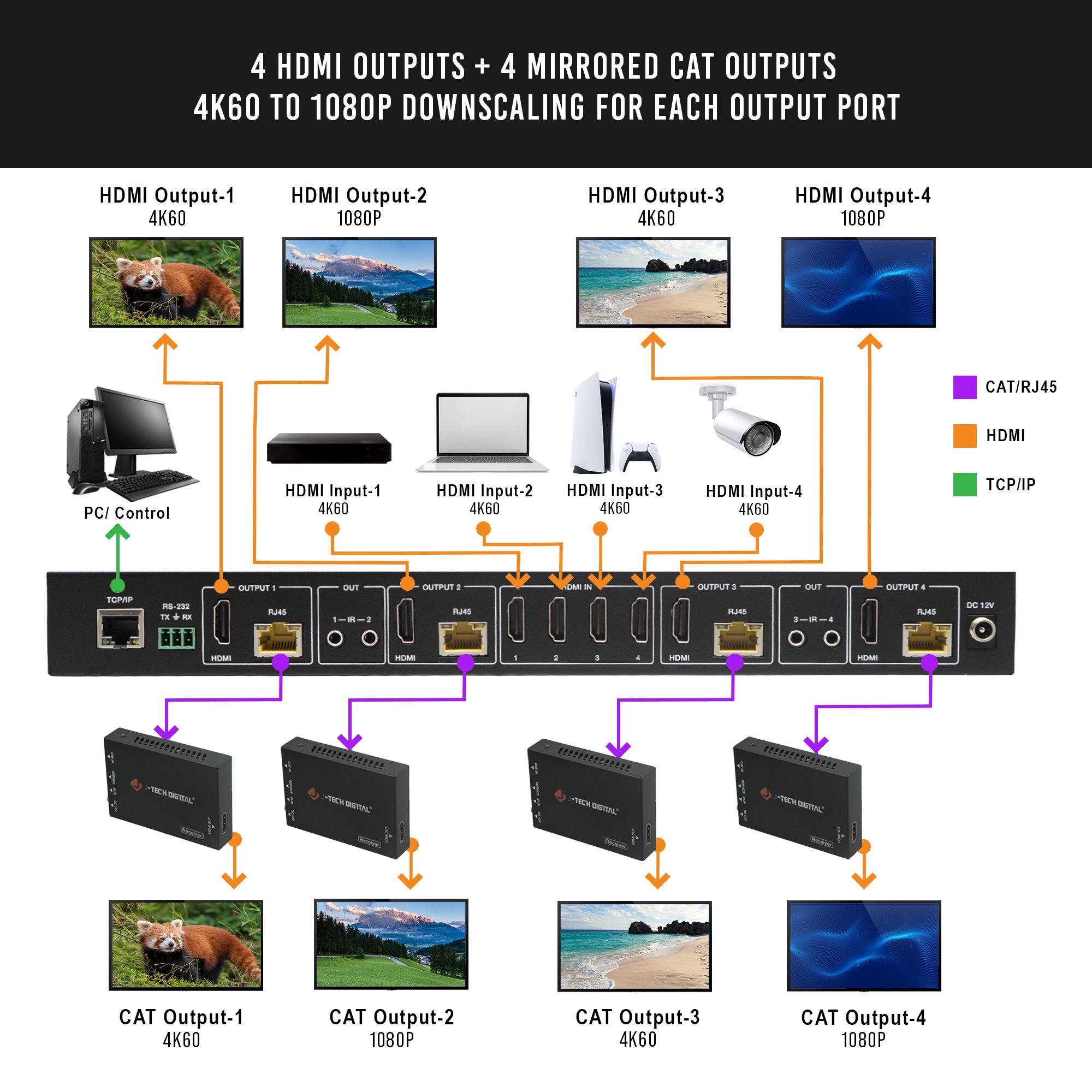

✅ 4 HDMI Inputs | 4 HDMI Outputs + 4 Mirrored CAT output ports
✅ Supports 4K60 to 1080p Downscaling for each output port
✅ HDR | HDR10 | HDR10+ | Dolby Vision | HLG Supported
✅ Transmission Distance: 130FT 4K | 230FT 1080p
✅ Advanced EDID Management

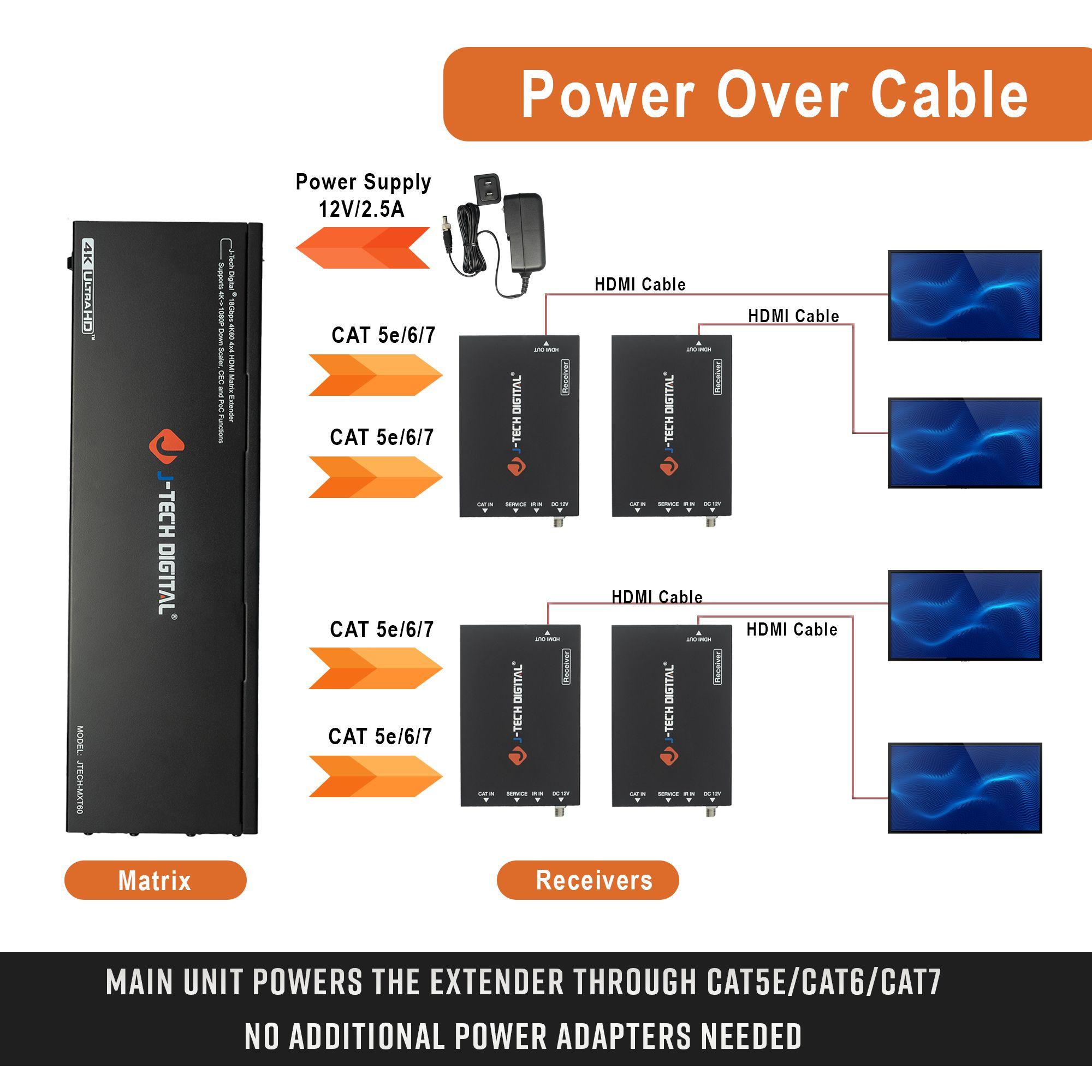

✅ 12V PoC (Power Over Cable) on all CAT ports
Information
- Brand
- J-Tech Digital
- MPN
- JTD-318
- Model
- JTECH-MXT60
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
CONTROL4, URC
Specifications
- Resolution
- Up to 4K 60Hz 4:4:4
- Matrix Ports

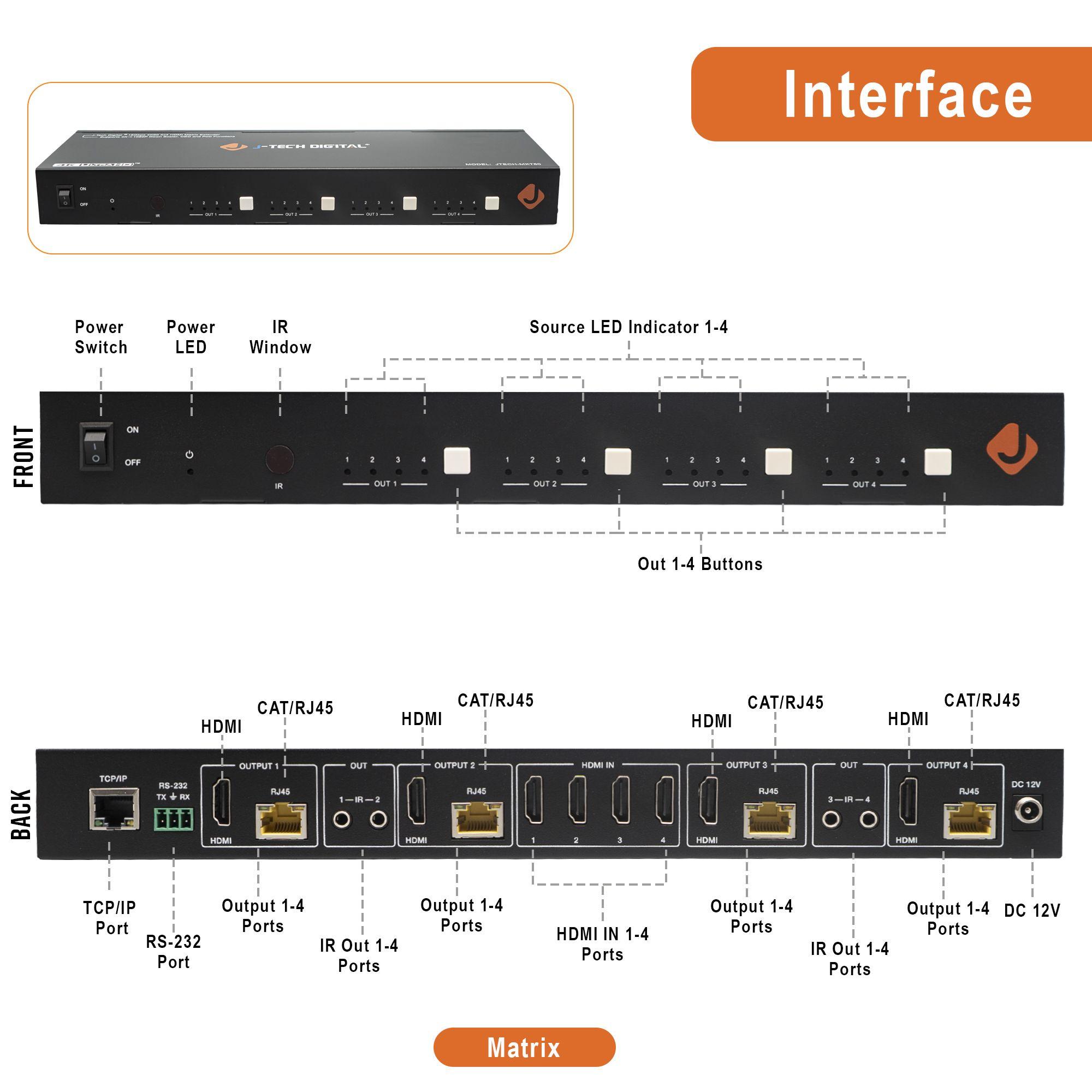

- Input: 4 x HDMI Type A [19-pin female], Output: 4 x HDMI Type A [19-pin female] | 4 x CAT port [RJ45] | 4 x IR OUT [3.5mm Stereo Mini-jack], Control: 1 x TCP/IP [RJ45] | 1 x RS-232 [3-pin phoenix connector]
- Receiver Ports

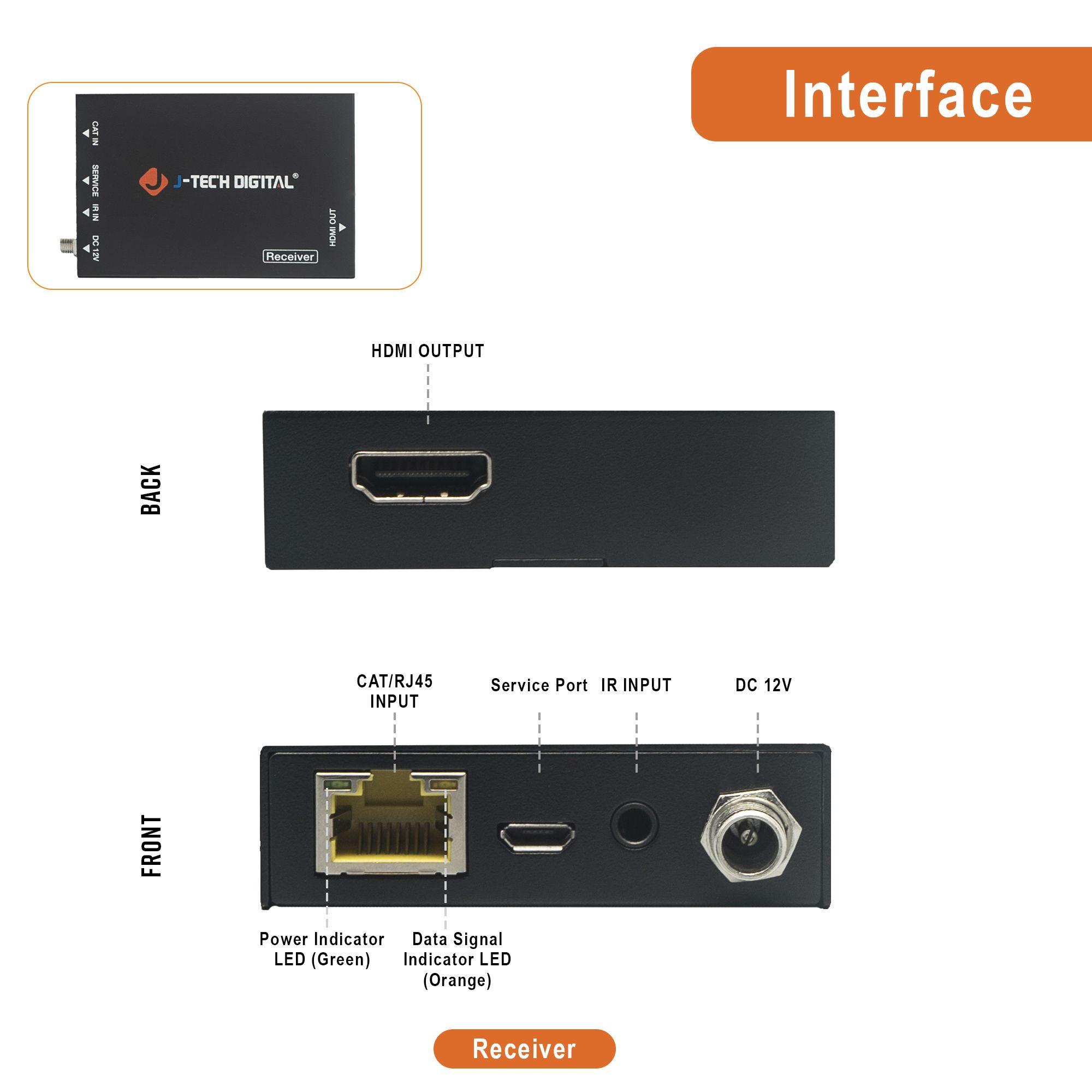

- Input: 1x IR IN [3.5mm Stereo Mini-jack] | 1x CAT port [RJ45], Output: 1x HDMI Type A [19-pin female], Control: 1x SERVICE [Micro USB, Update port]
- Transmission Distance
- 1080P: 230ft. (via a single CAT6 cable), 4K: 131ft. (via a single CAT6 cable)
- Video Protocols
- HDMI 2.0, HDCP 2.2
- Bandwidth
- 18Gbps
- HDR
- HDR10 | HDR10+ | Dolby Vision | HLG
- Color Space
- RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
- Color Depth
- 8-bit | 10-bit | 12-bit (1080P 60Hz), 8-bit (4K 60Hz YUV 4:4:4), 8-bit | 10-bit | 12-bit (4K 60Hz YCbCr 4:2:2 / 4:2:0)
- Audio Formats
- LPCM 2.0/2.1/5.1/6.1/7.1 | Dolby Digital | Dolby TrueHD | Dolby Digital Plus (DD+) | DTS-ES | DTS HD Master | DTS HD-HRA | DTS-X
- Housing
- Metal Enclosure
- Dimensions

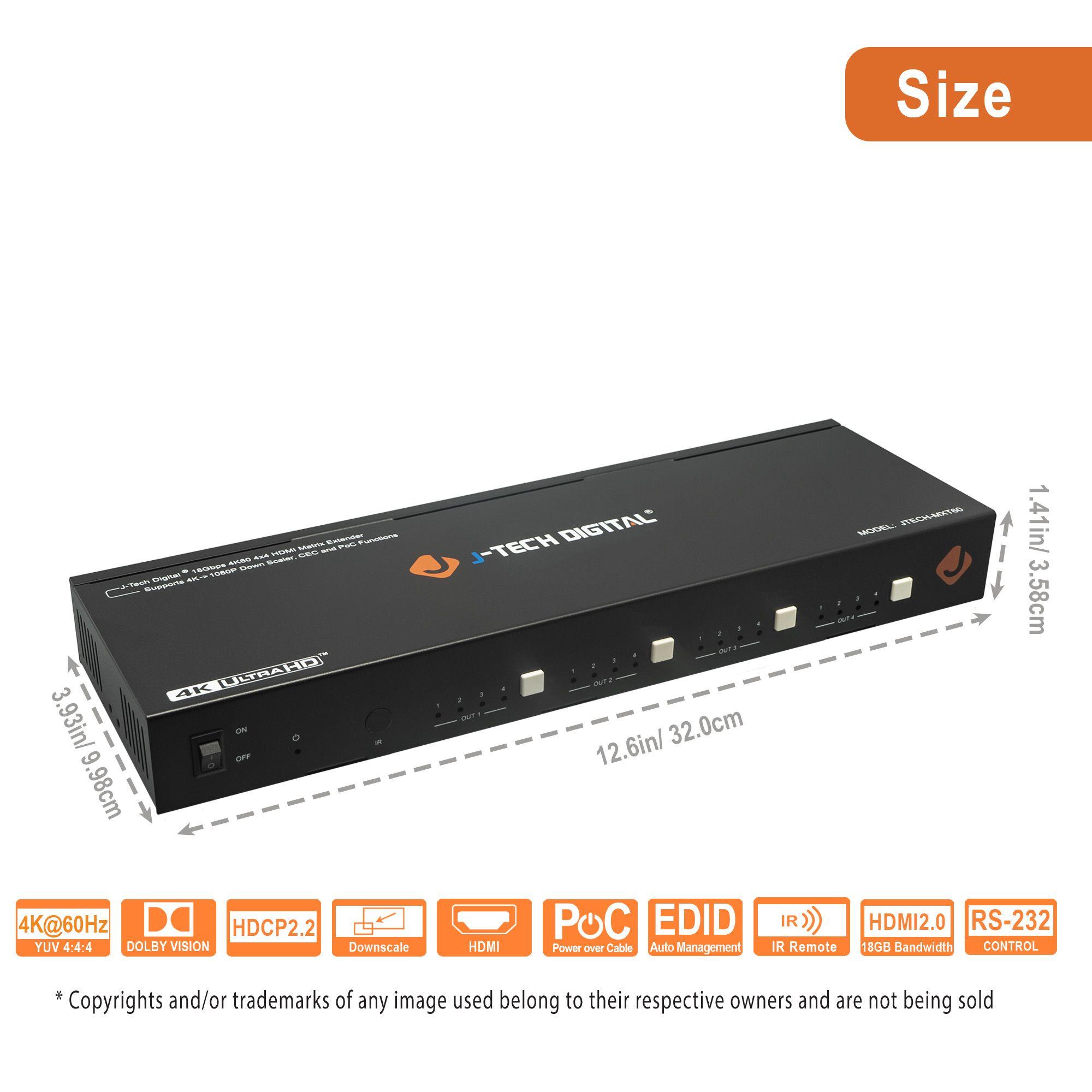

- Matrix: 12.6 in (W) × 3.93 in (D) × 1.41 in (H), Receiver: 2.40 in (W) x 3.46 in (D) x 0.70 in (H)
- Weight
- Matrix: 2.017 lbs., Receiver: 0.34 lbs
- Power Supply
- Input: AC 90 - 260V 50/60Hz | Output: DC 12V/2.5A
- Power Consumption
- 19.68W (Max)
- Operating Temperature
- 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature
- -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity
- 20~90% RH (non-condensing)

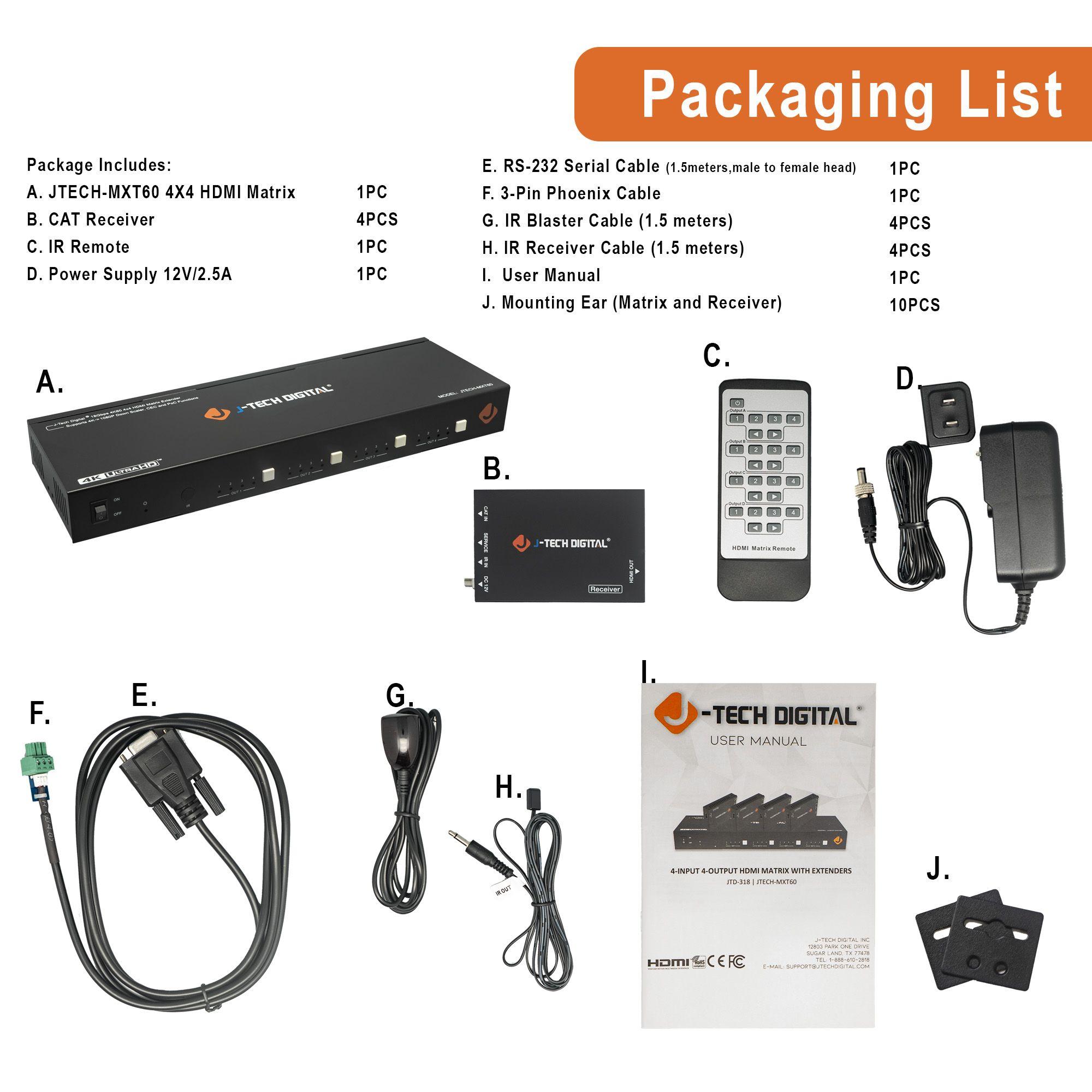

What's in the box
- 1 x Matrix
- 4 x Recievers
- 1 x IR Remote
- 1 x 12V/2.5A Power Supply
- 1 x RS232 Cable
- 1 x 3-Pin Phoenix Cable
- 4 x IR Blaster Cable
- 4 x IR Receiver Cable
- 10 x Mounting Ears
- 1 x User Manual
Frequently asked questions
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
| URC Driver | 1.0 |
| Control 4 Driver | 1.0 |
| Firmware (For Web GUI) | 2.03 |
