1080P 60Hz 4x1 Quad HDMI Multiviewer and Switch – Display 4 HDMI Sources on One Screen

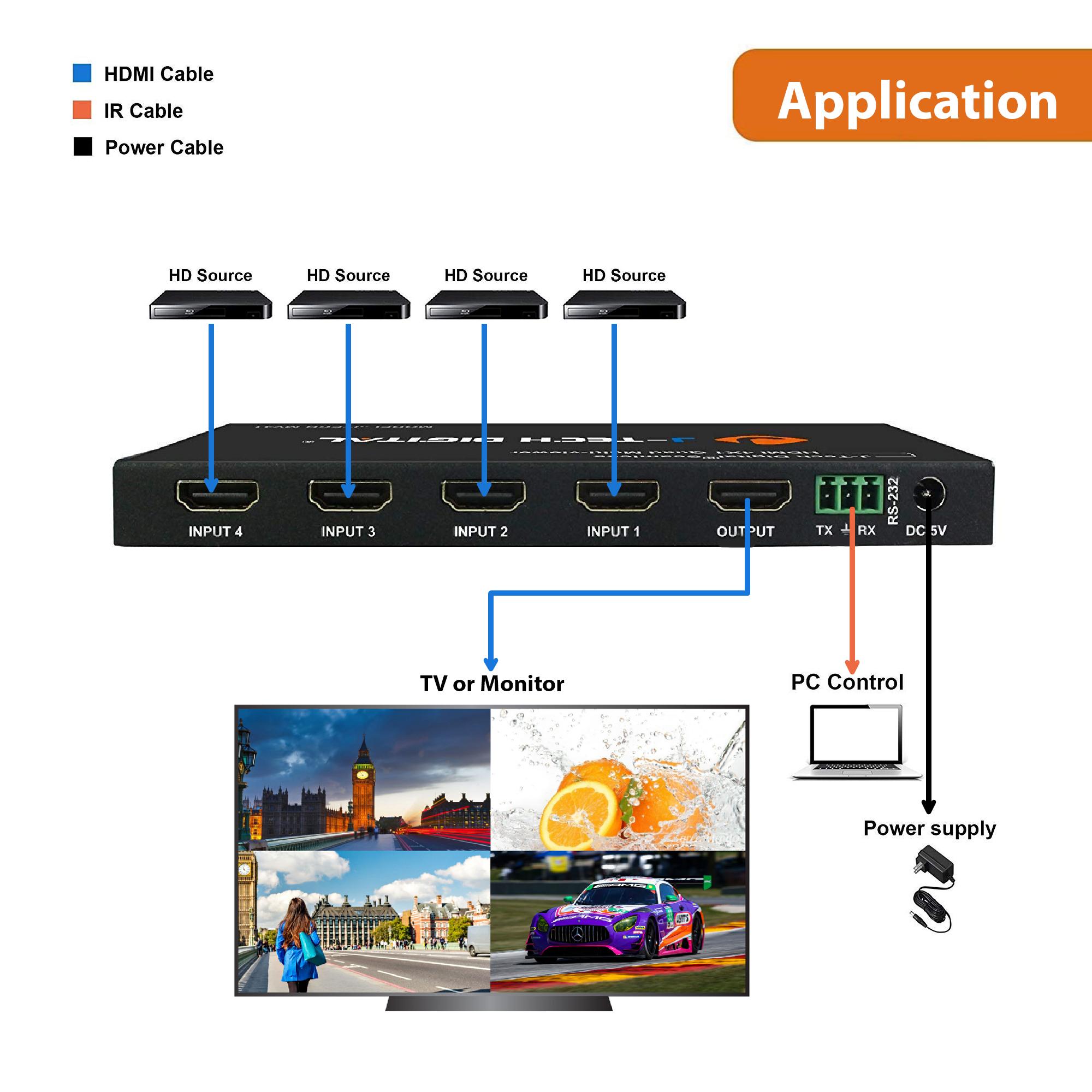

Simplify your setup with this 4-port HDMI multiviewer switch, designed to connect and control up to four HDMI devices through a single display. Effortlessly switch between your game consoles, streaming devices, Blu-ray players, and cable boxes for a clutter-free entertainment experience.

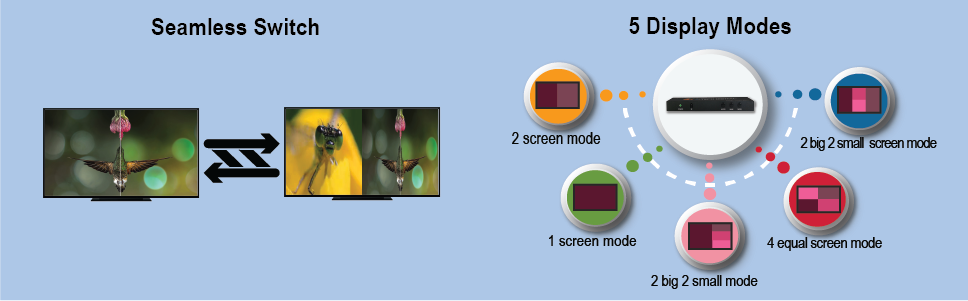

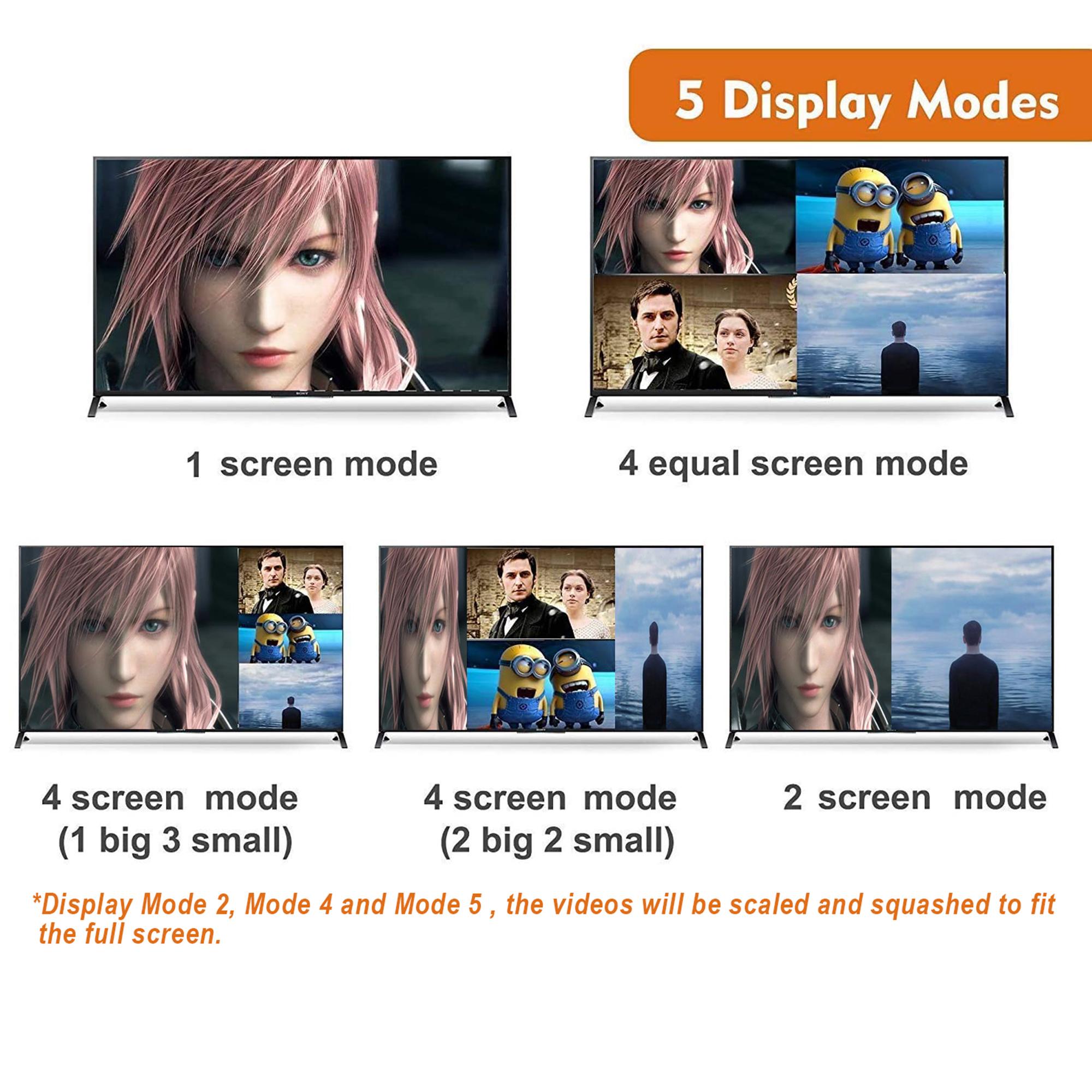

Choose from five display modes to view one, two, or all four sources simultaneously. Enjoy crystal-clear video with support for 1080P, 720P, and 480P resolutions, plus immersive sound with Dolby Atmos, DTS:X, Dolby TrueHD, and more. Easily select which device’s audio plays using the front-panel Audio button.
Streamline your connections and upgrade your entertainment with one powerful, easy-to-use HDMI switch.
Information
- Brand
- J-Tech Digital
- MPN
- JTD-1579
- Model
- JTECH-MV41
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications
- HDMI Compliance
- 1.4b, DVI 1.0
- HDCP Compliance
- 1.4
- Video Bandwidth
- 6.75Gbps
- Video Resolutions
- 1080P @ 60Hz, 720P @ 60Hz, 480P @ 60Hz
- Color Space
- RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Color Depth
- 10-bit, 12-bit
- HDMI Audio Formats (Pass-through)
- LPCM 2 / 5 / 7.1Ch, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

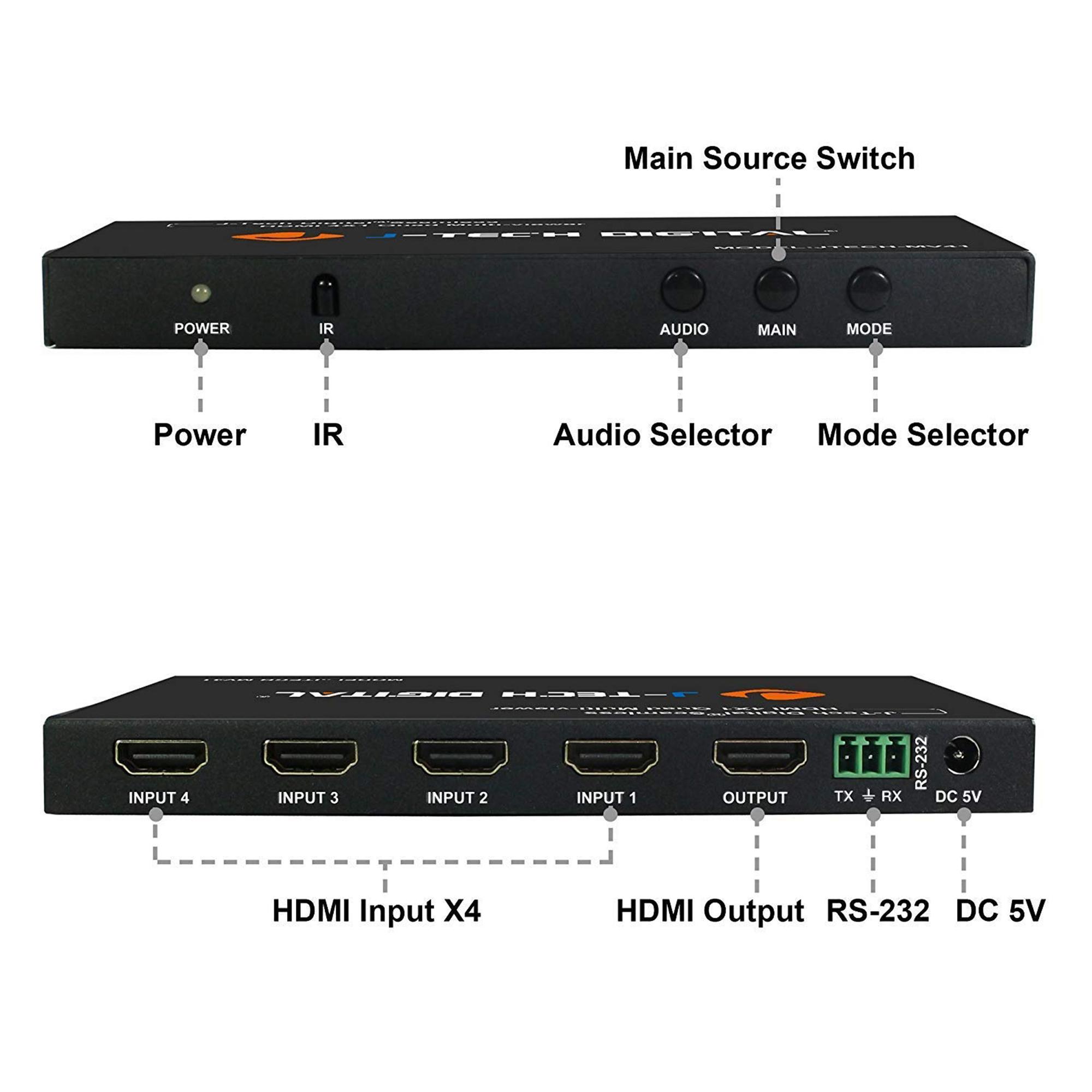

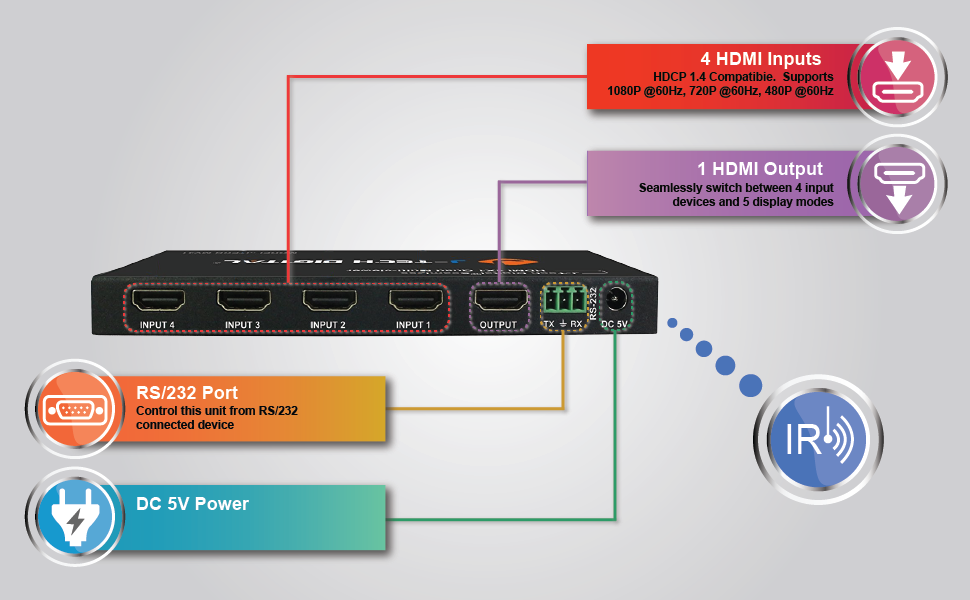

- Inputs
- 4 x HDMI
- Outputs
- 1 x HDMI, 1 x RS-232 (3.81mm Phoenix Connector)
- Housing
- Metal Enclosure
- Color
- Black

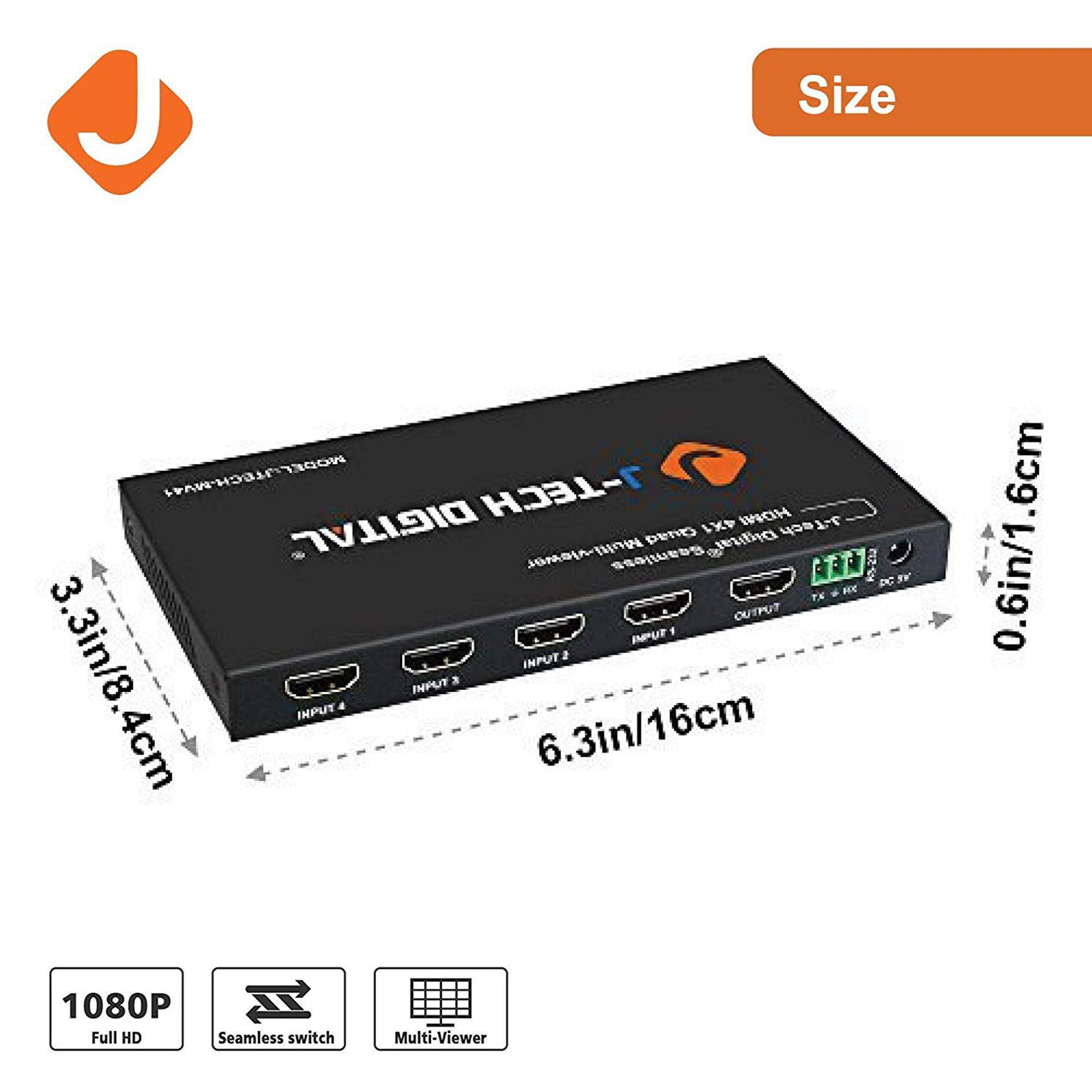

- Dimensions
- (W) 160.2mm x (D) 84mm x (H) 15.5mm
- Weight
- 337g
- Power Supply
- Input: AC100 - 240V 50/60Hz, Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)
- Power Consumption
- 6W (Max)
- Operation Temperature
- 32 - 104F
- Storage Temperature
- -4 - 140F
- Relative Humidity
- 20 - 90% RH (no condensation)

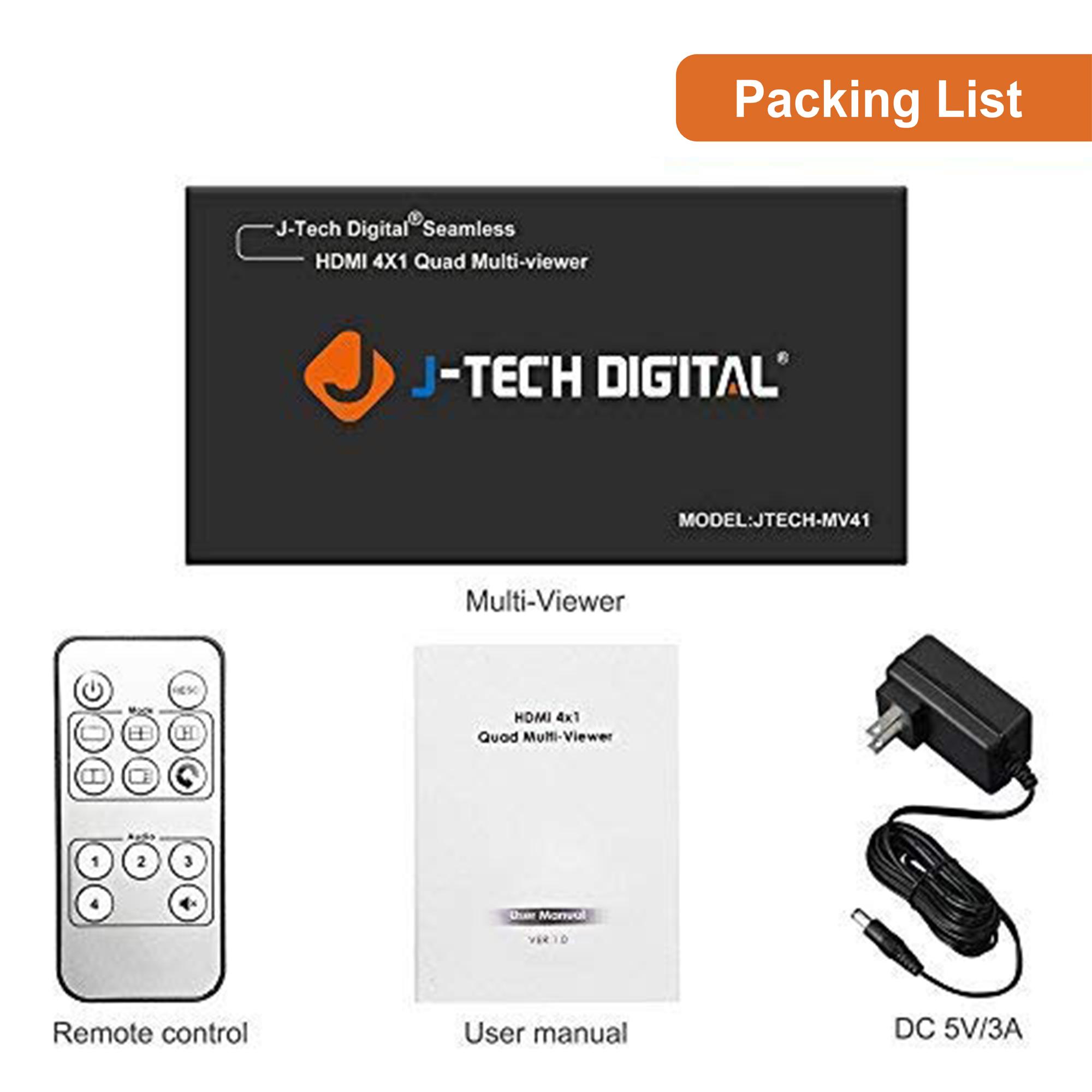

What's in the box
- 1 x Multi-viewer
- 1 x Remote Control
- 1 x Power Adapter
- 1 x User Manual
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
