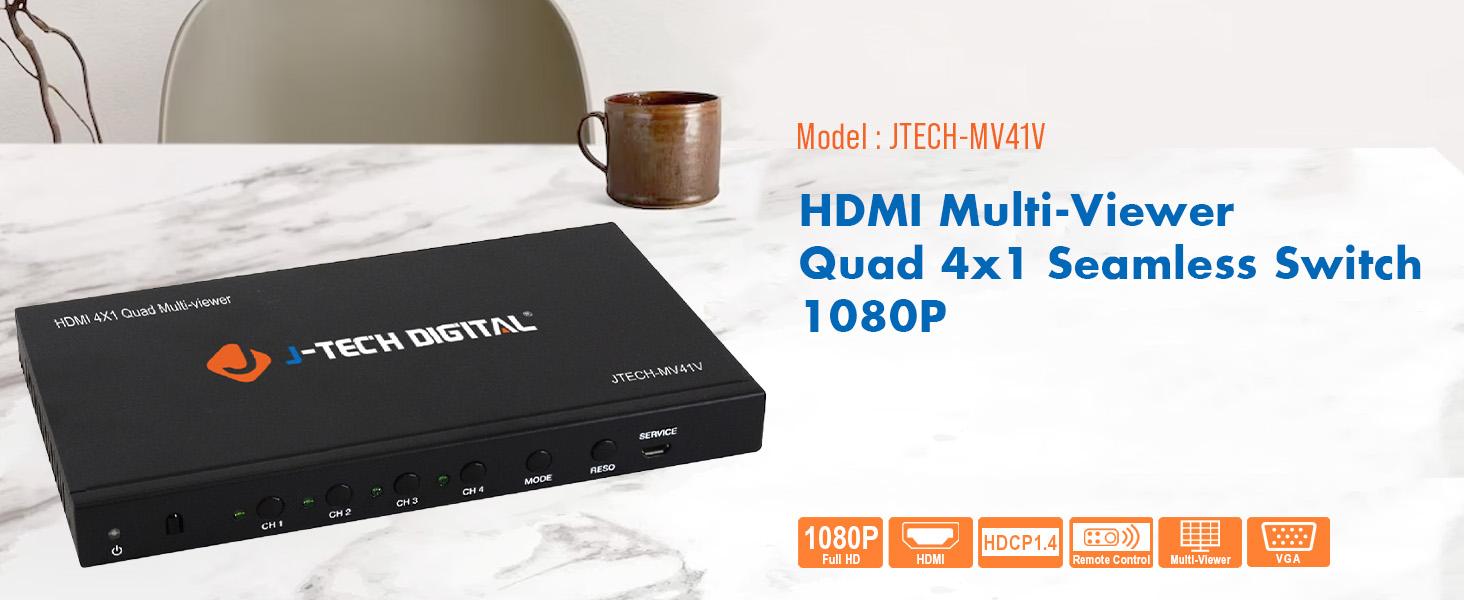

1080P 60Hz 4x1 Multiviewer with HDMI and VGA Outputs

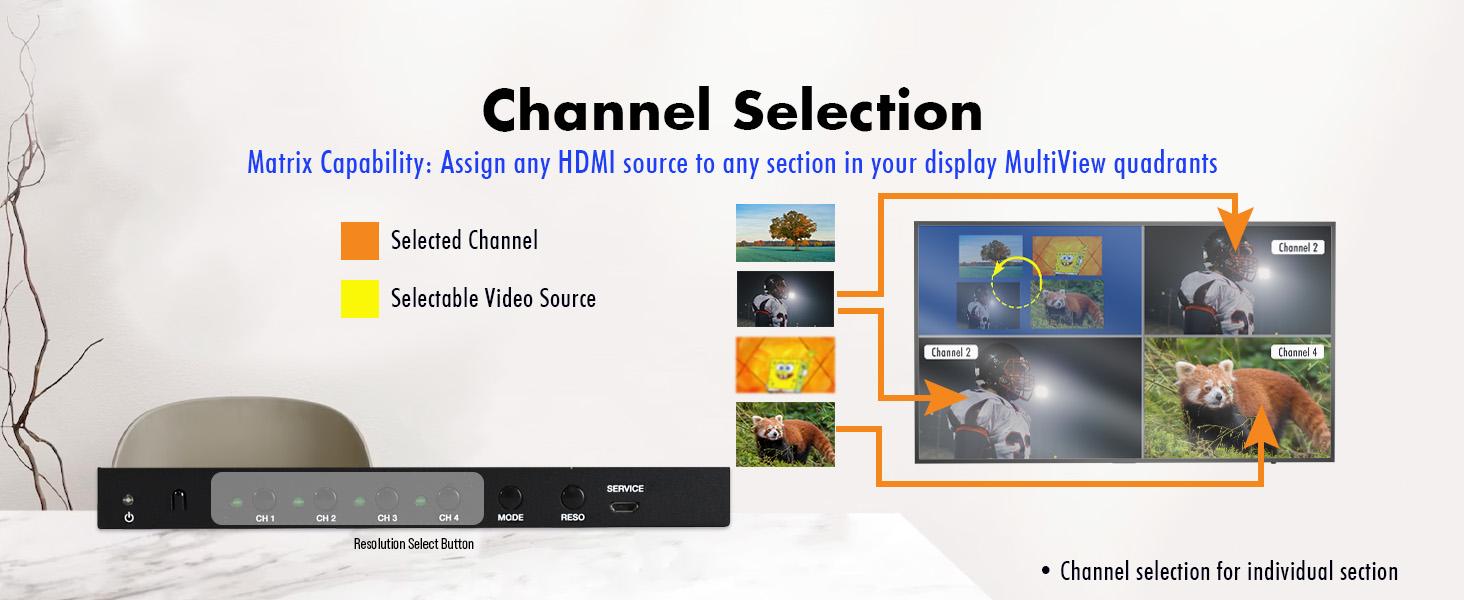

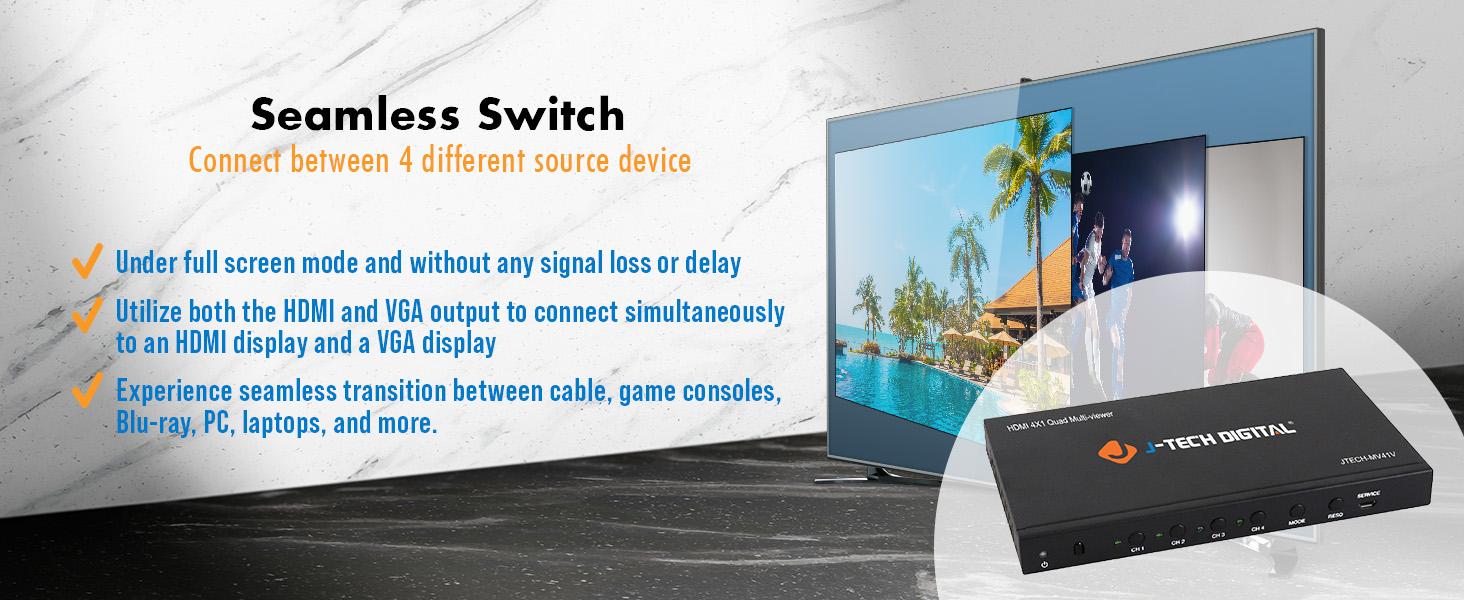

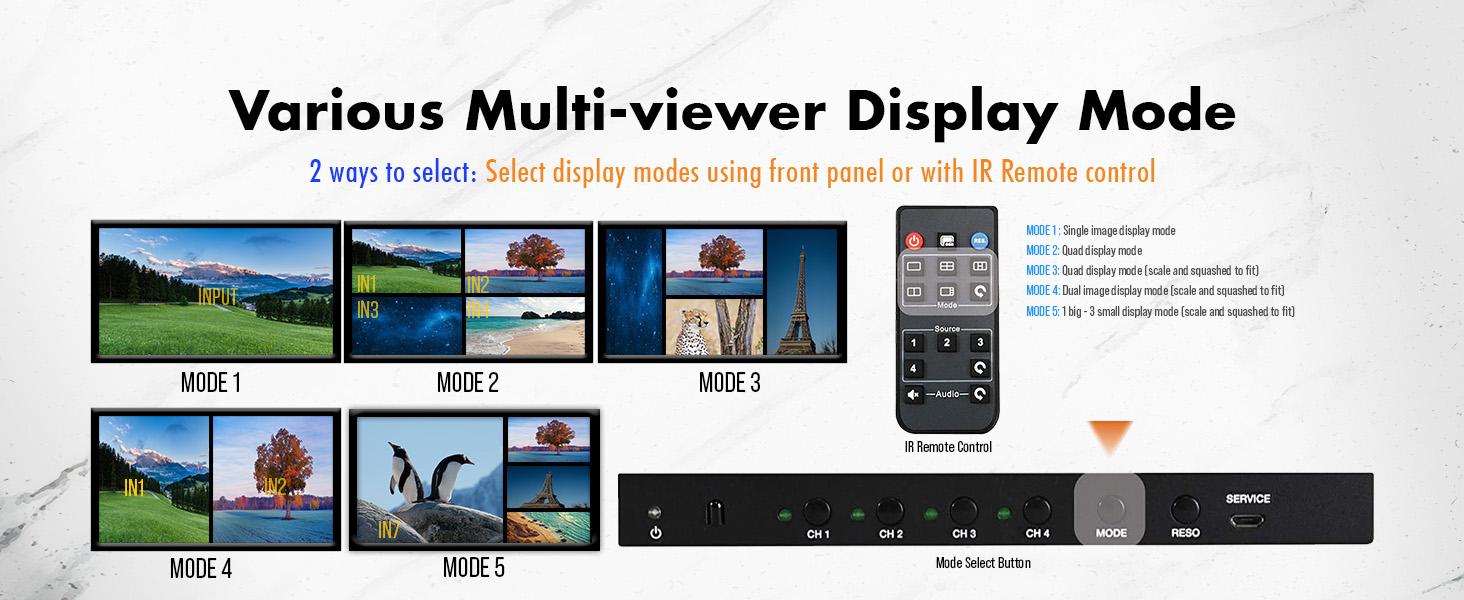

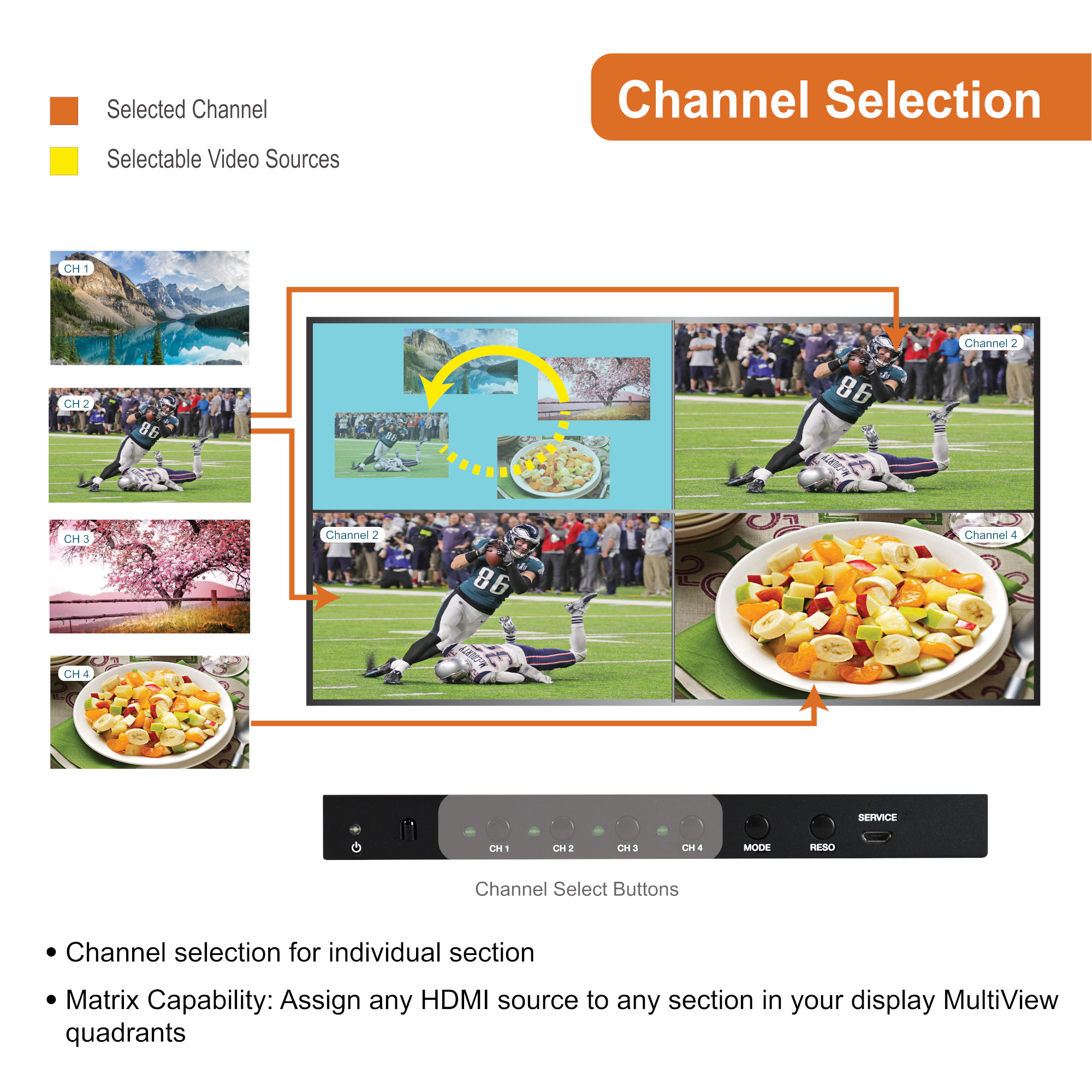

The JTECH-MV41V is a high performance 4x1 Quad Multi-Viewer with seamless switching. It can display 4 full HD 1080p input sources on one HDMI and one VGA screen simultaneously with zero latency. This device also has five different viewing modes, allowing you to display 2, or all 4 of your HDMI input sources at once in different layouts. This switch also gives you the ability to rearrange the layout of your video sources, allowing you to set your sources within any of the quadrants, in all of the available display modes.

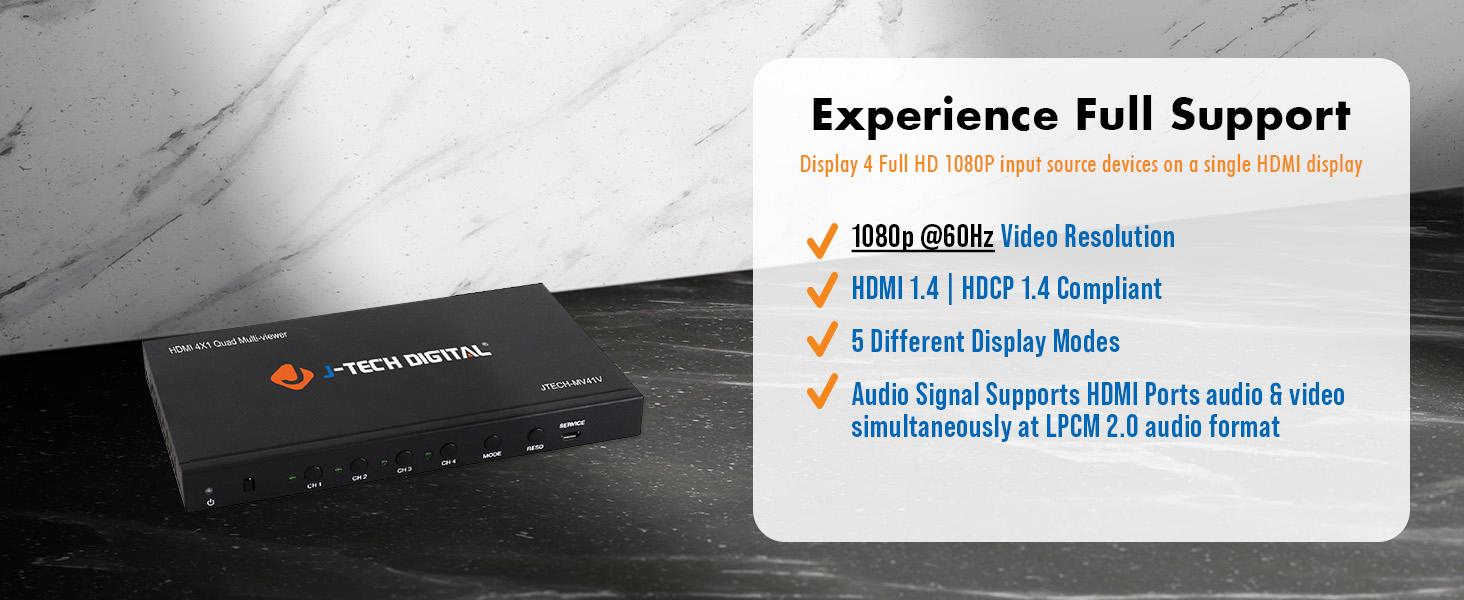

✅ Video Bandwidth: 4.95Gbps | Video Resolutions: 1080p@60Hz, 720p@60Hz, 480p@60Hz
✅Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2 | Color Depth: 10-bit, 12-bit
✅HDMI Audio Formats (Pass-through): LPCM 2.0 (44.1KHz, 48KHz)
✅HDMI Compliance: HDMI 1.4 | HDCP Compliance: HDCP 1.4
✅ Input Ports: (4) x HDMI

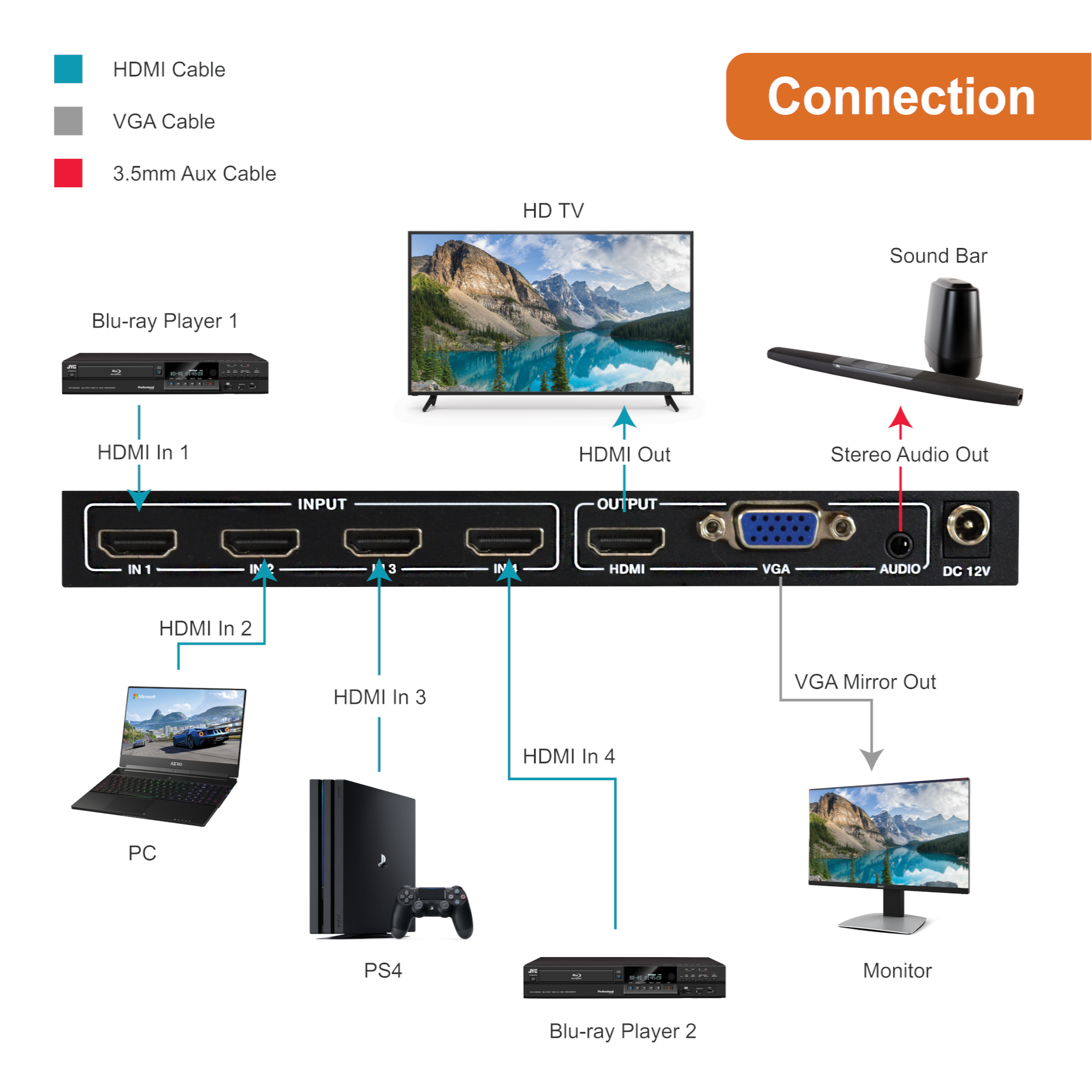

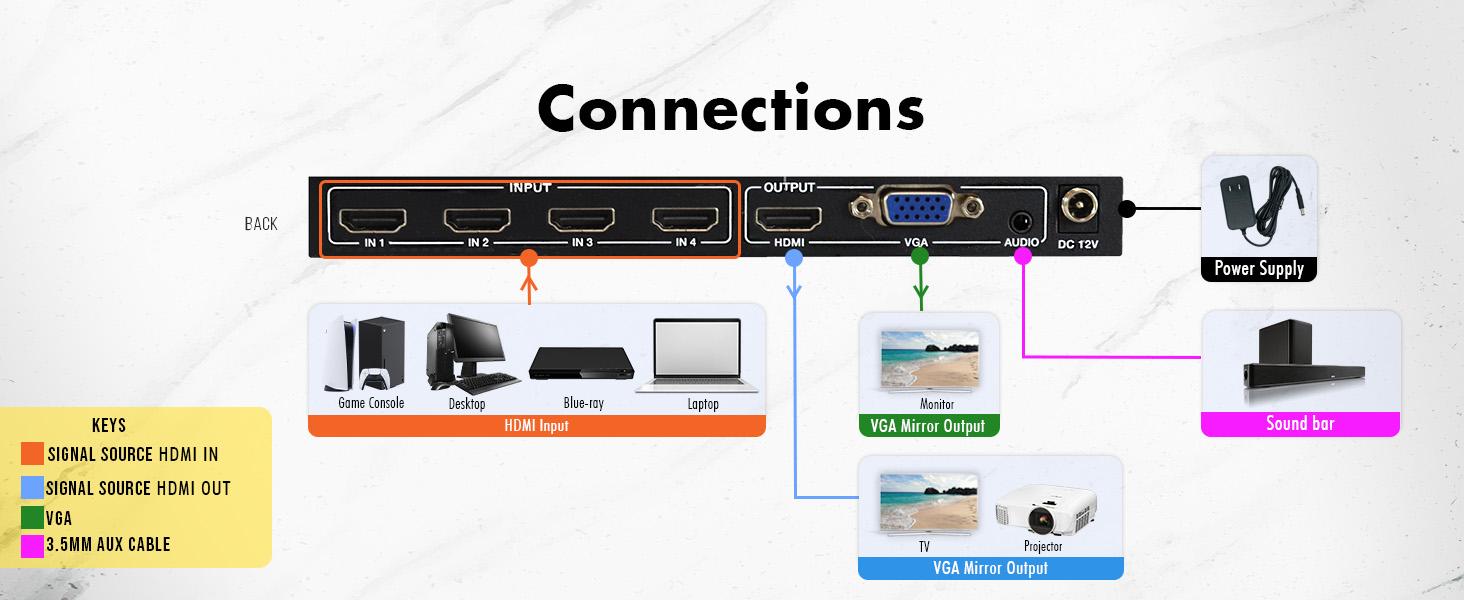

✅ Output Ports: (1) x HDMI, (1) x VGA, (1) x 3.5mm Stereo (for VGA)
Information
- Brand
- J-Tech Digital
- MPN
- JTD-440
- Model
- JTECH-MV41V
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications

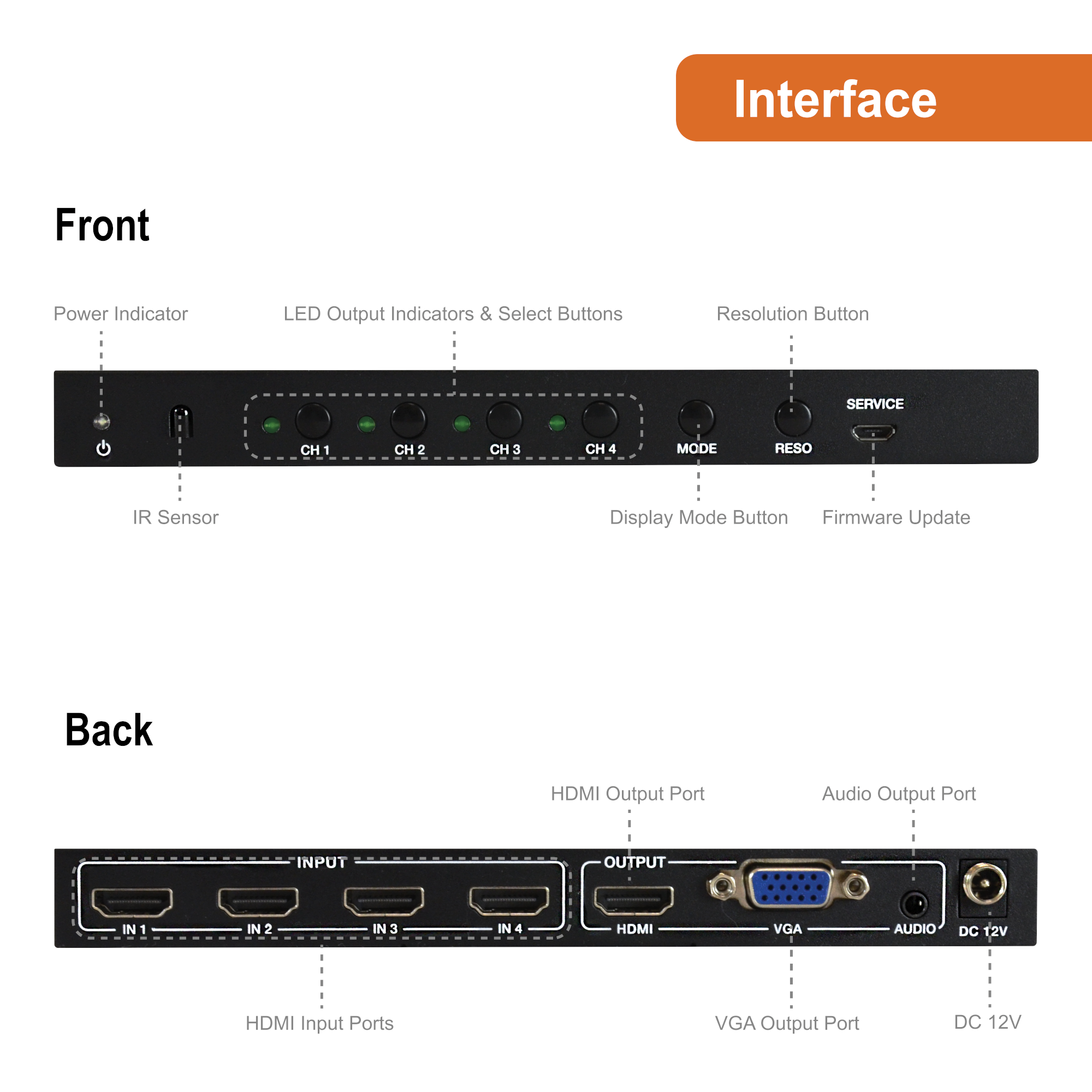

- Inputs ports
- 4 x HDMI Type A [19-pin female], 1 x SEVICER [Micro USB, Update port]
- Outputs ports
- 1 x HDMI Type A [19-pin female], 1 x VGA [VGA-D], 1 x Audio [3.5mm Stereo Mini-jack]
- Protocols
- HDMI 1.4, HDCP 1.4
- Bandwidth
- 4.95Gbps

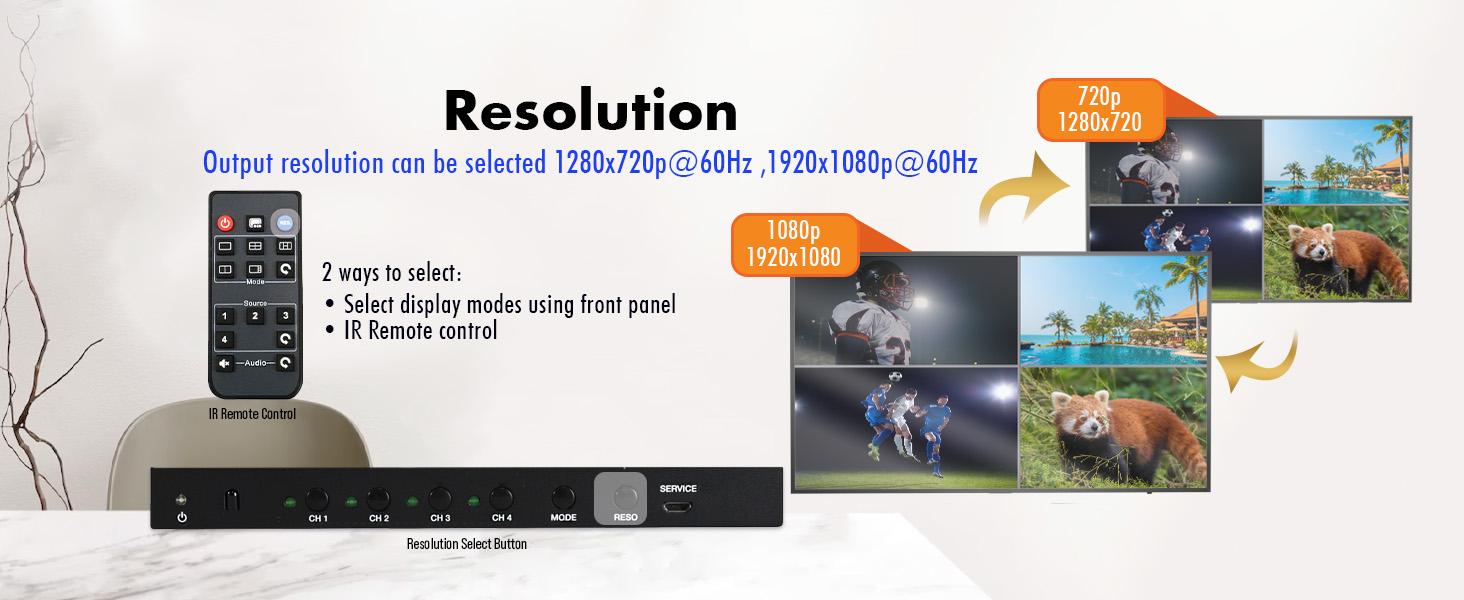

- Resolution

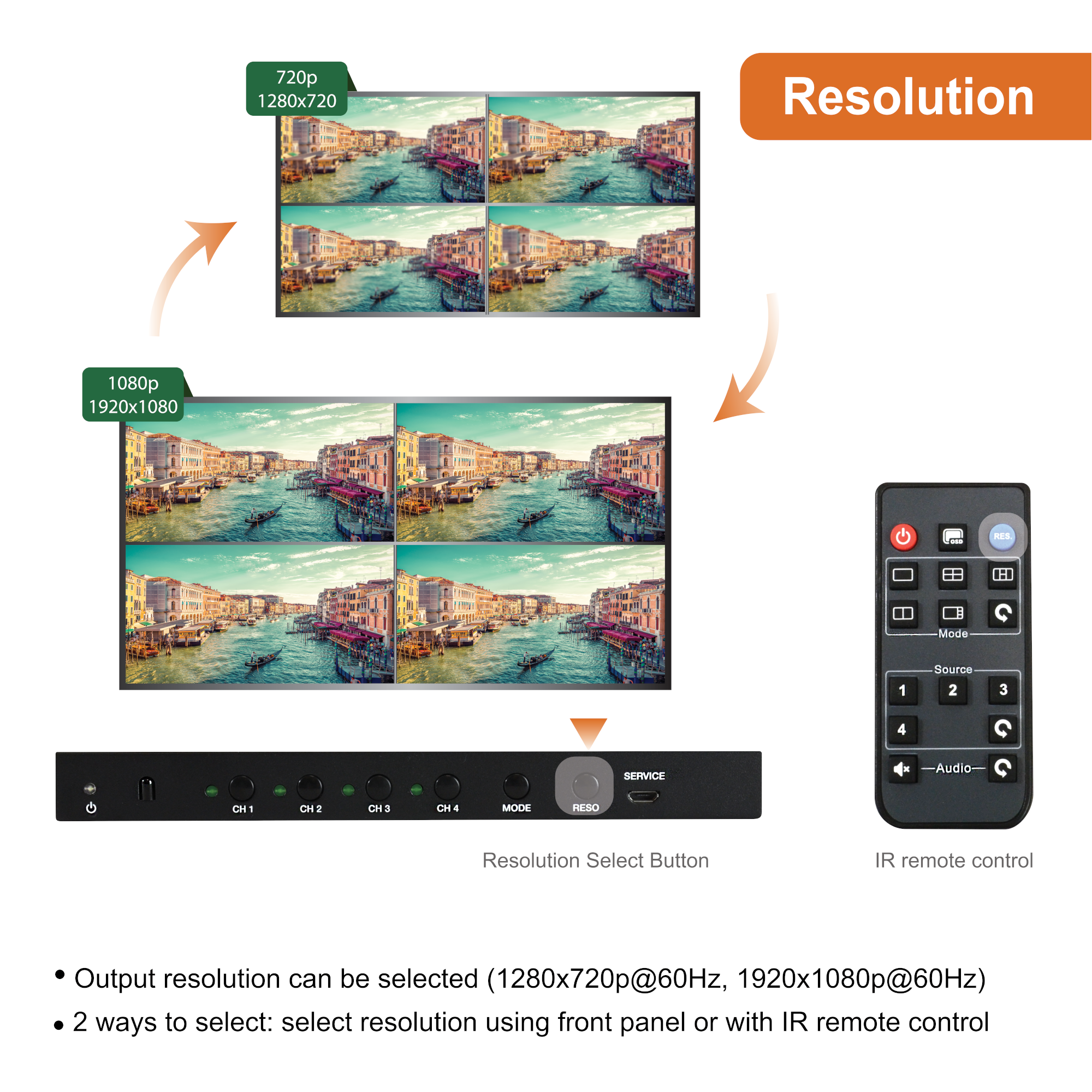

- Up to 1920×1080P@60Hz
- Color Depth
- 8-bit
- Color Space
- RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Power Supply
- Input: AC100~240V 50/60Hz, Output: DC12V/1A (US/EU standards, CE/FCC/UL certified)
- Analog Audio Formats
- LPCM2.0 44.1KHz 48KHz
- Housing
- Metal Enclosure

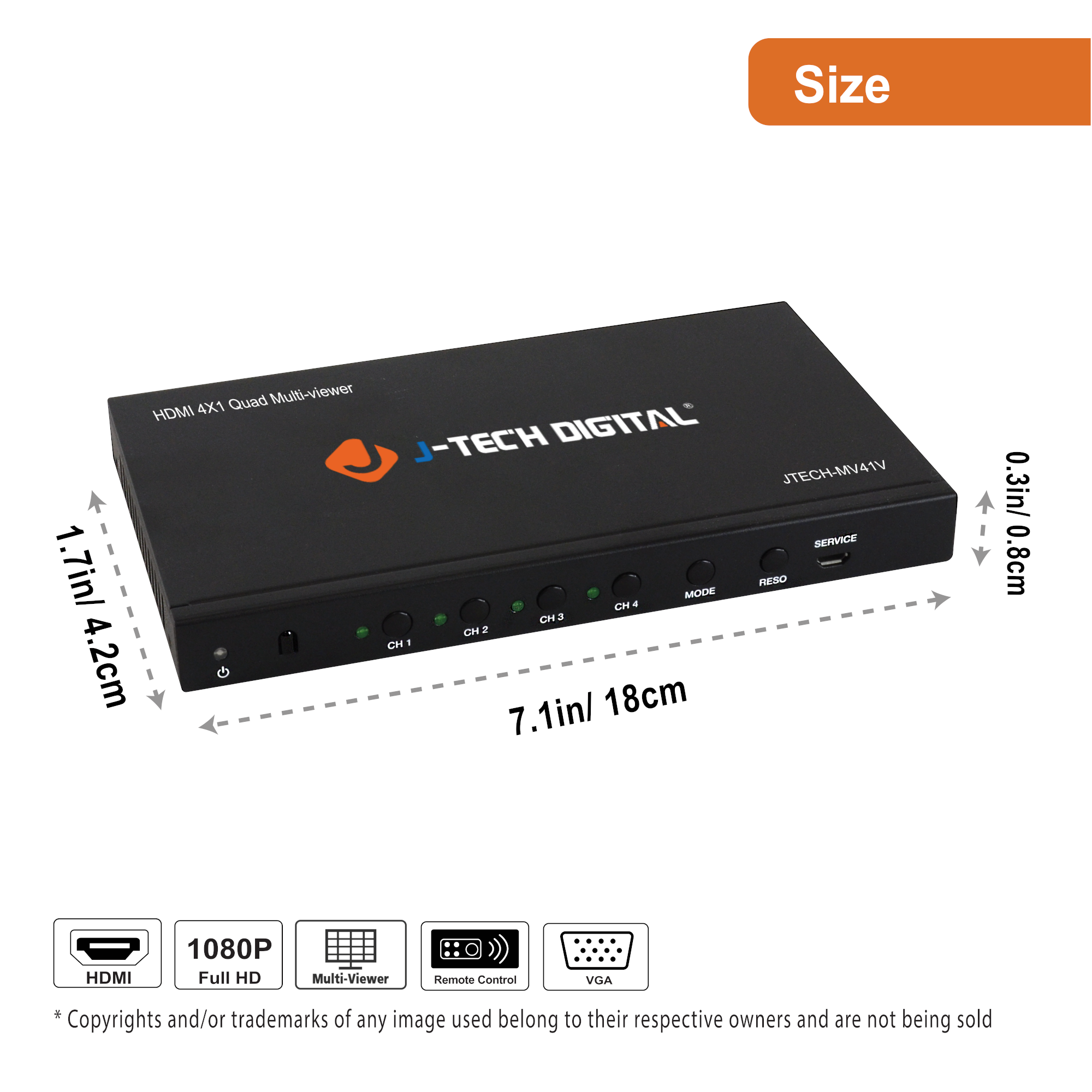

- Dimensions
- 185mm (W)×111.8mm (D)×21mm (H), 7.28" x 4.40" x 0.83"
- Weight
- 1.10lbs
- Power Consumption
- 5.28W (max)
- Operating Temperature
- 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature
- -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity
- 20~90% RH (non-condensing)

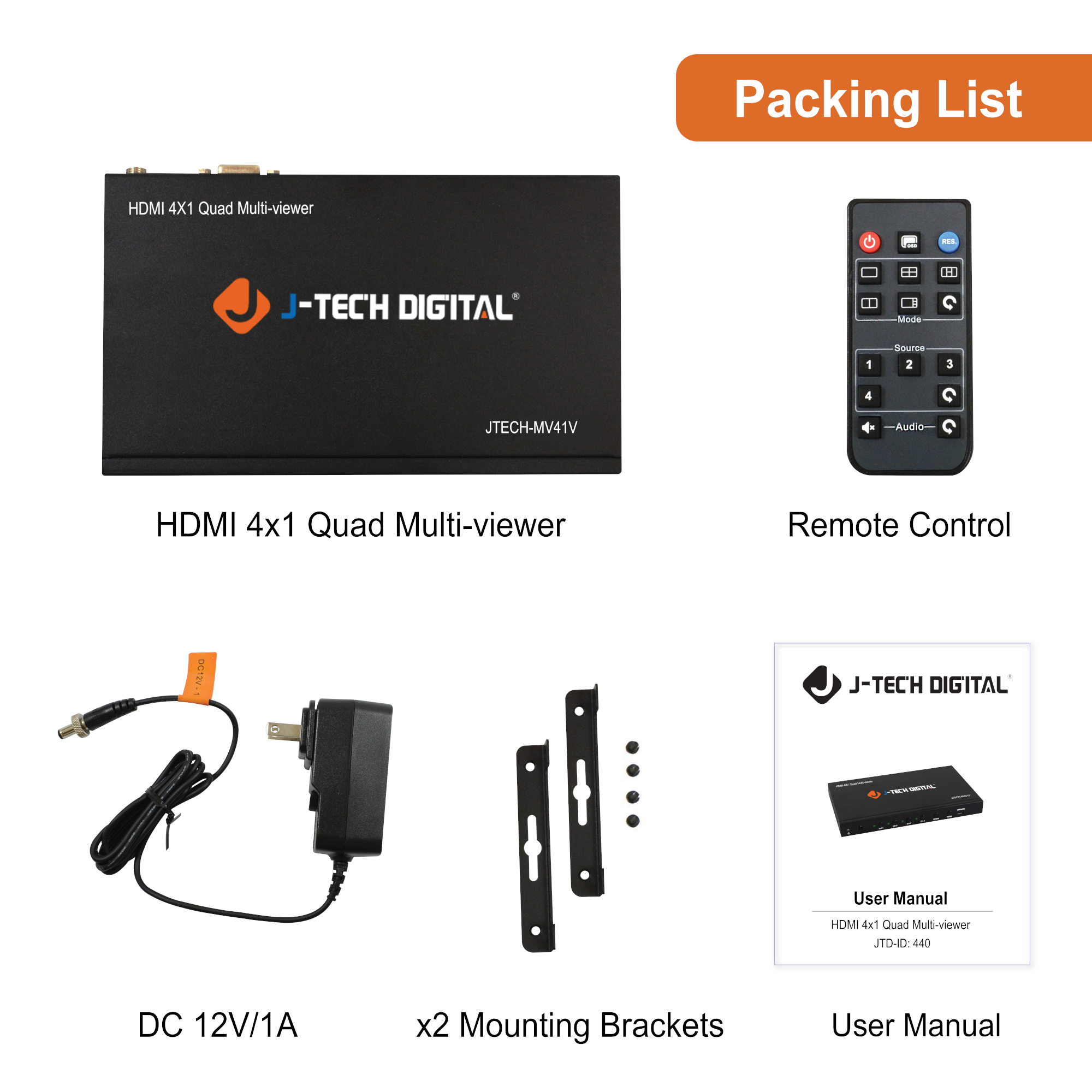

What's in the box
- 1 x JTECH-MV41V HDMI 4×1 Quad Multi-Viewer
- 1 x 12V/1A DC Power Adapter

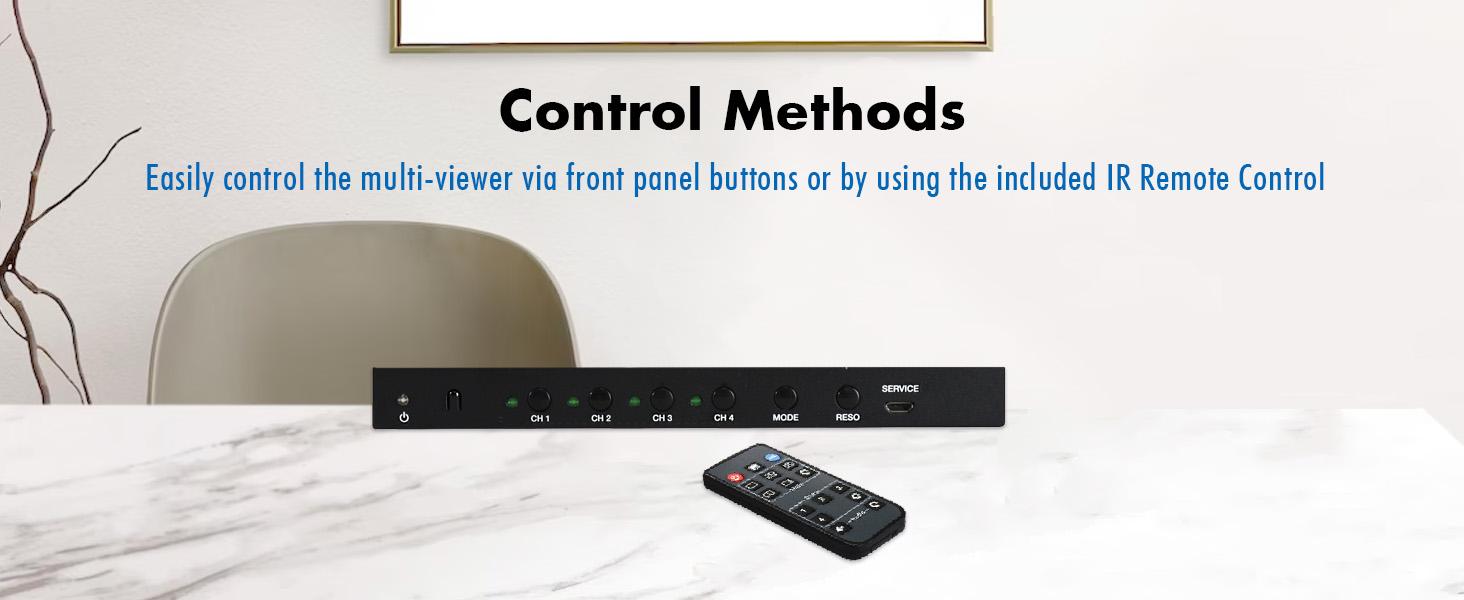

- 1 x Remote Control
- 2 x Mounting Ears
- 1 x User Manual
Frequently asked questions
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
| IR Codes | 1.0 |

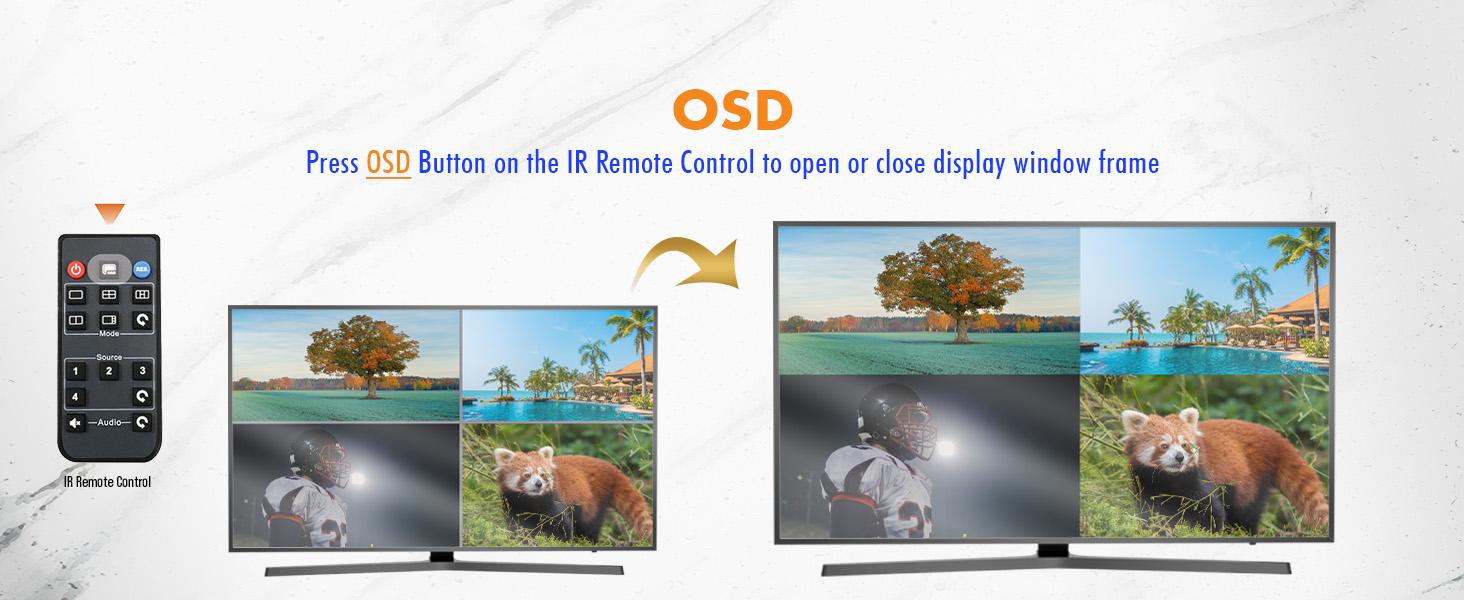

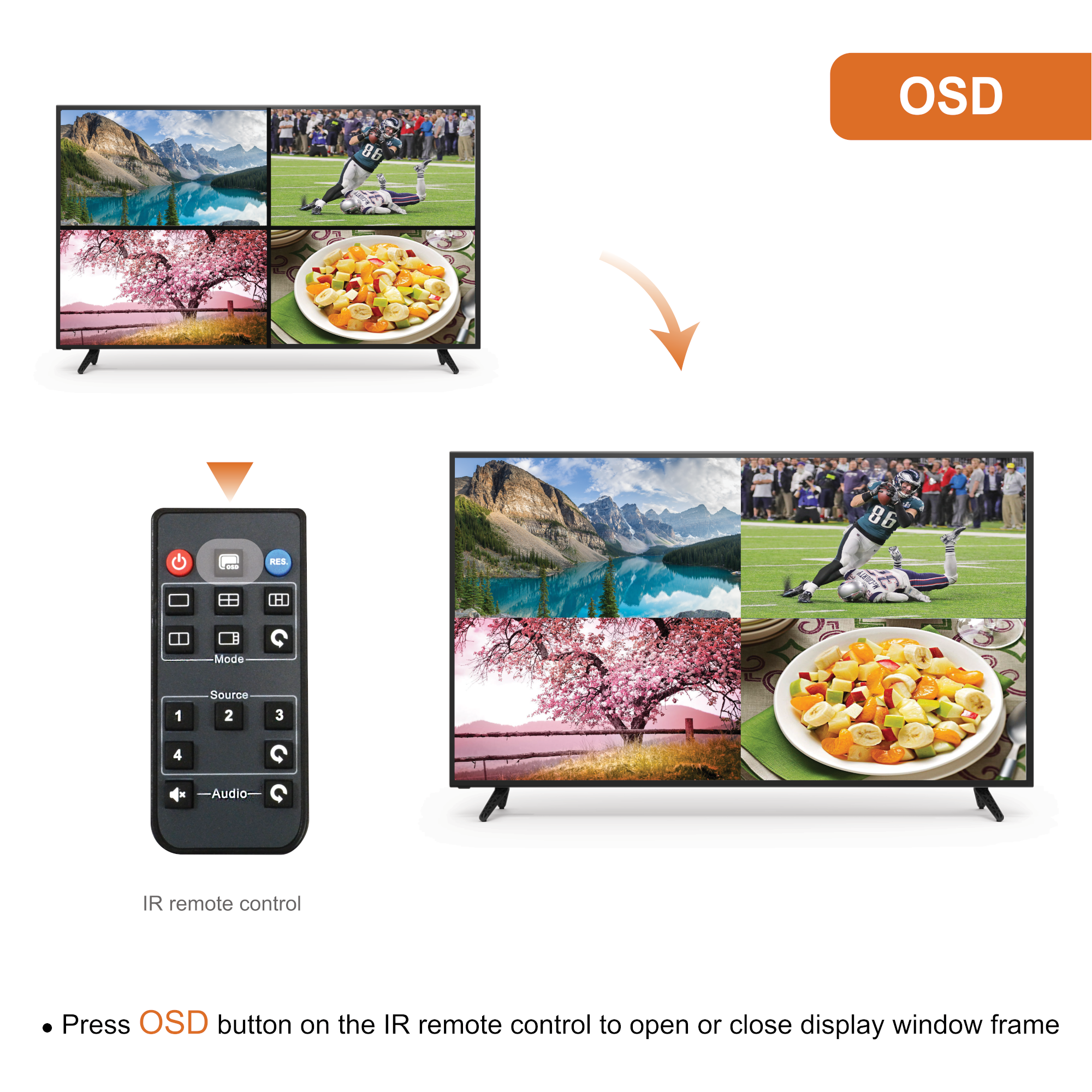

| Firmware to Remove OSD | 1.0 |
