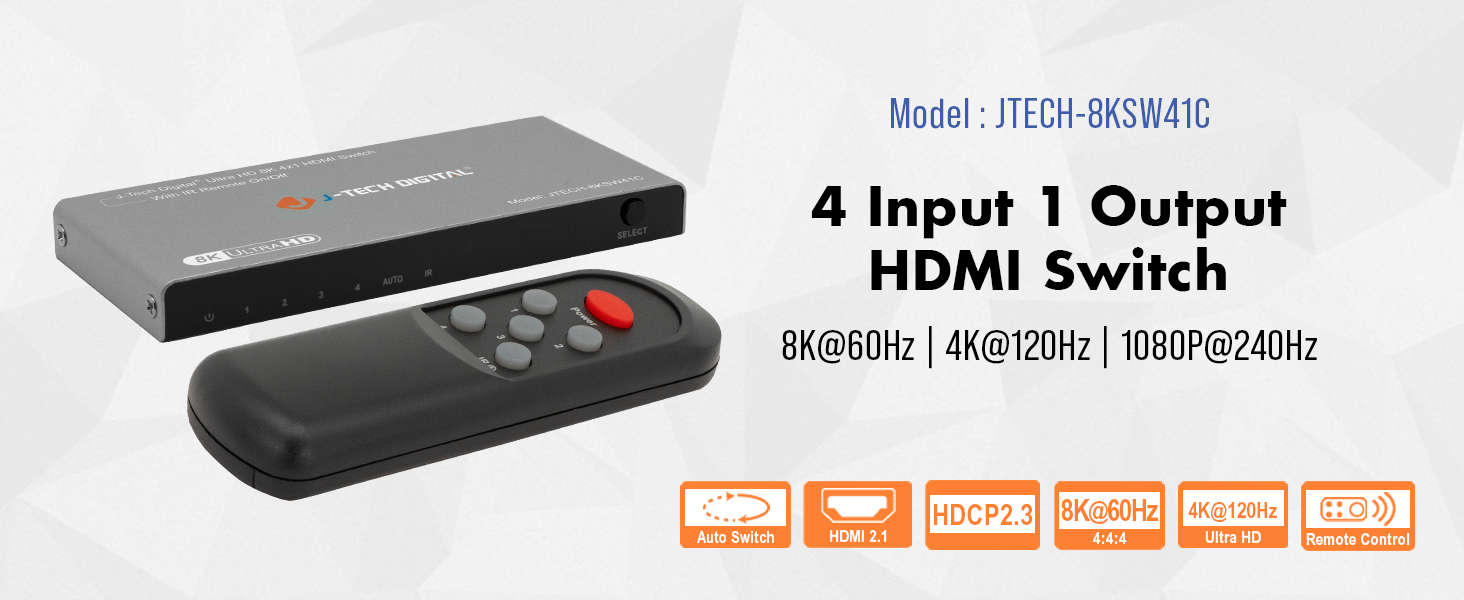

8K 60Hz 4x1 HDMI Switch with IR Remote

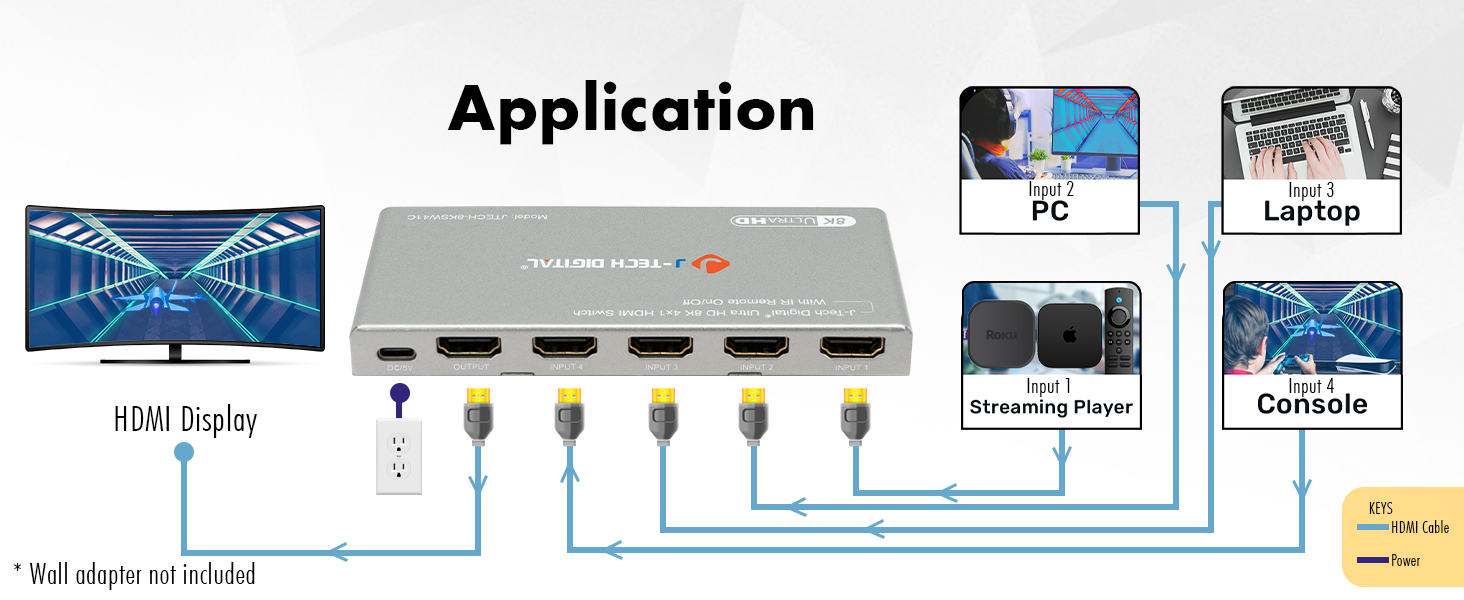

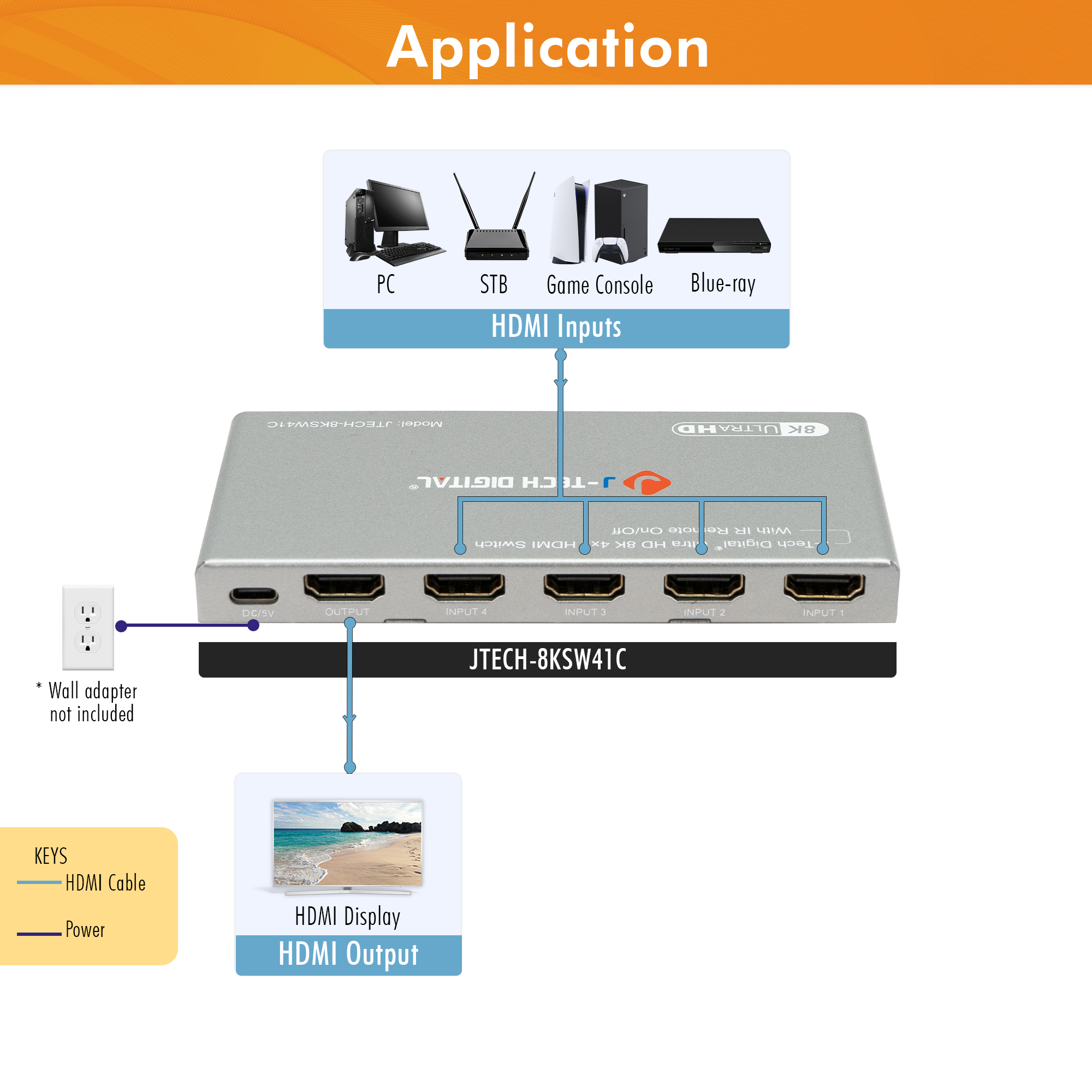

The JTECH-8KSW41C 4x1 HDMI switch allows you to connect 4 UHD sources devices to 1 display, while giving you the ability to easily switch between one of the other. Use either manual or auto switching mode to easily toggle between your input devices. The switch supports 8K @ 60Hz, 4K @120Hz, and 1080P @ 240Hz resolutions, along with support for HDR and Dolby Vision, allowing you to get immersed within your content. Latest HDMI 2.1 features such as VRR, ALLM, and QFT ensure that you get the full gaming experience.
✅ 4 x HDMI Inputs | 1 x HDMI Output
✅ HDMI 2.1 | HDCP 2.3 with backwards compatibility
✅ Supports 8K @ 60Hz | 4K @ 120Hz | 1080P @ 240Hz
✅ HDR | HDR10 | HDR10+ | Dolby Vision supported
✅ Dual Switching Modes – Select either manual or automatic switching
✅ Press the “Select” button on the unit for 3-5 seconds to toggle between the two modes or press the “Auto” button on the remote to change modes

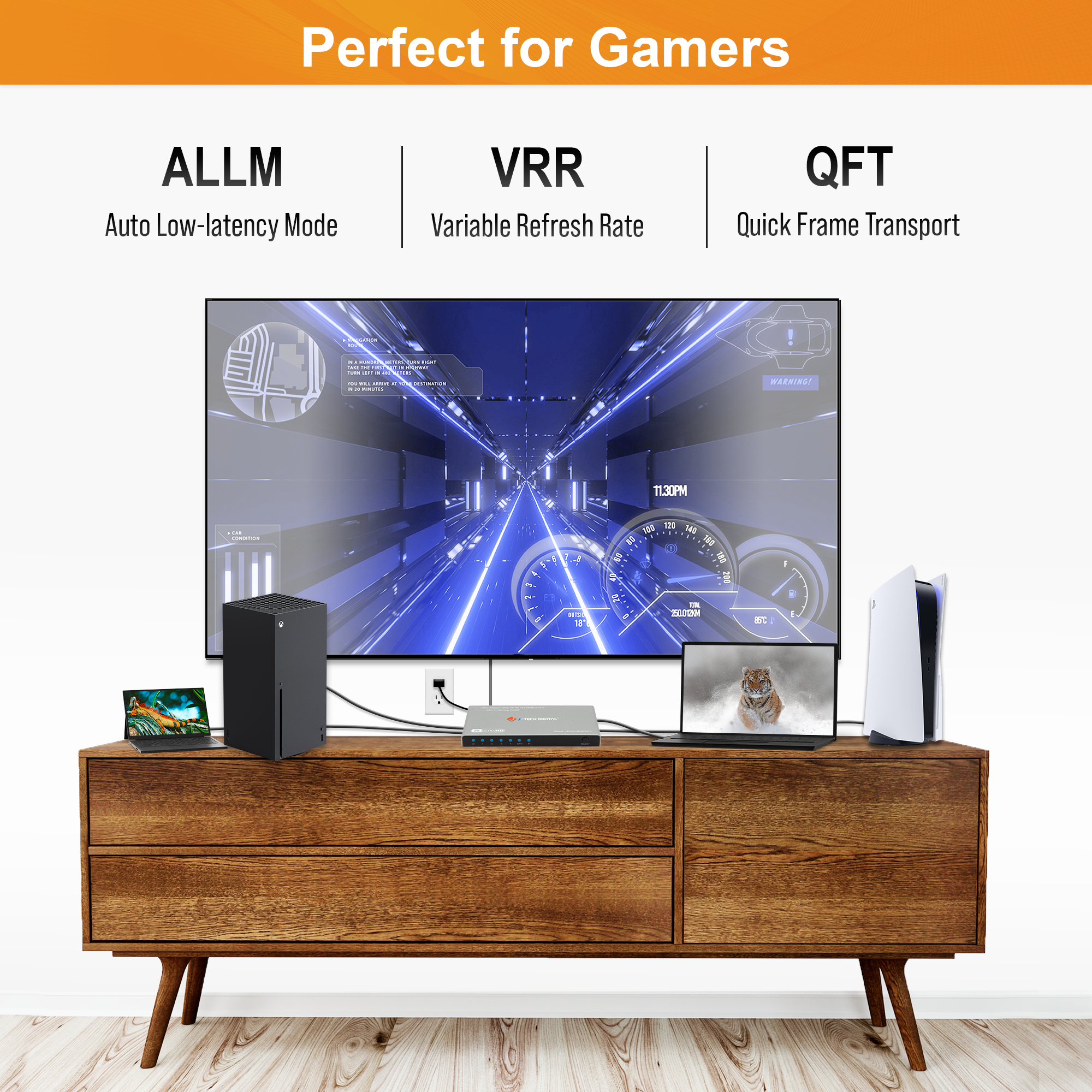

✅ Supports Variable Refresh Rate (VRR), Auto Low-Latency Mode (ALLM), and Quick Frame Transport (QFT)
✅ Supports CEC and digital audio formats such as Dolby Digital, DTS-HD Master Audio etc.

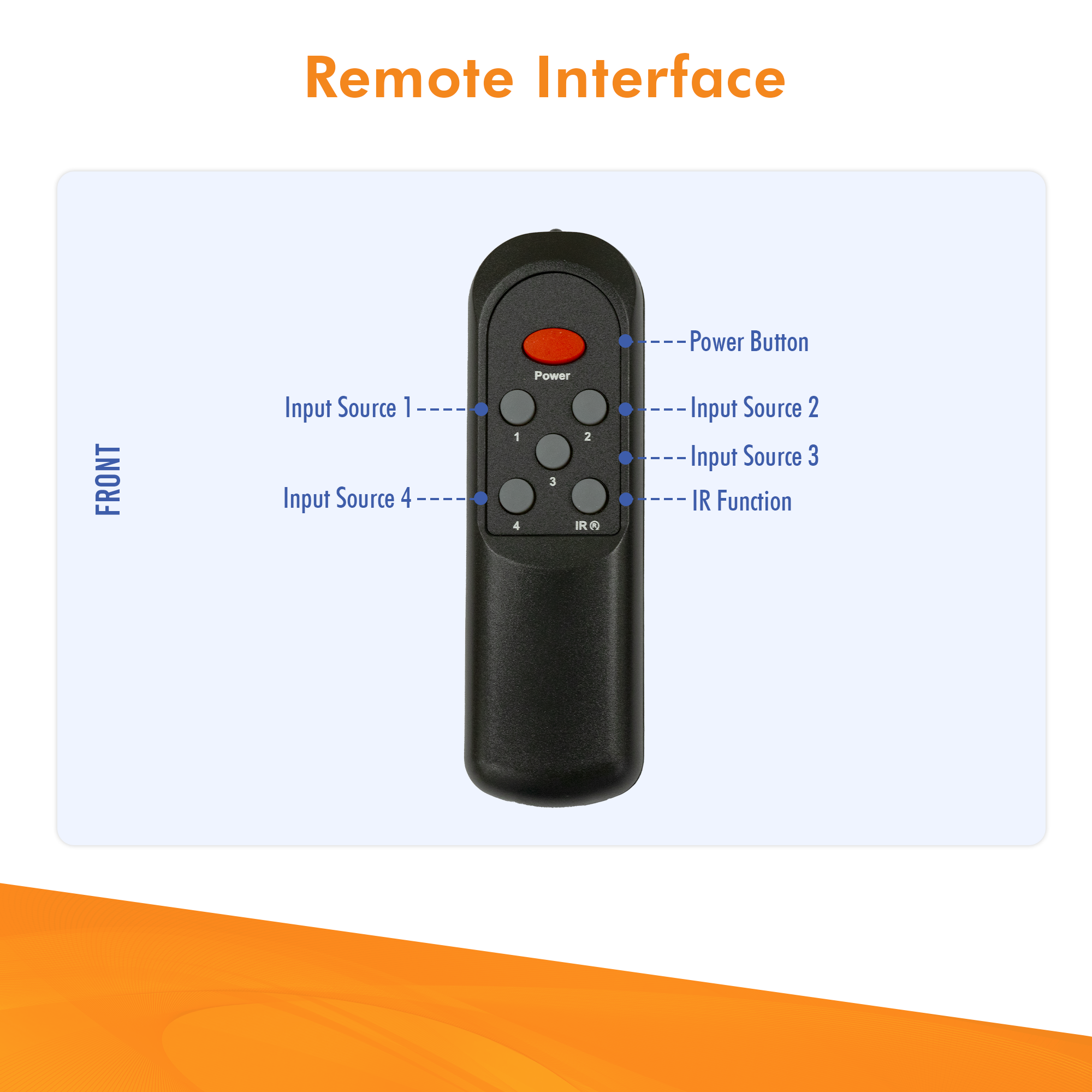

✅ Control via front panel buttons or included IR remote control
Information
- Brand
- J-Tech Digital
- MPN
- JTD-3004
- Model
- JTECH-8KSW41C
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications
- Ports
- 2 x HDMI Inputs, 1 x HDMI Output, 1 x USB-C Power Port
- Vertical Frequency Range
- 50Hz, 60Hz, 100Hz, 120Hz, 240Hz
- Resolution Support
- 8K @ 60Hz, 4K @ 120Hz, 1080P @ 240Hz
- Operating Temperature
- 0° ~ 70°C
- Storage Humidity
- 5% - 90% RH non-condensation
- Power Supply
- USB Power Cable
- Power Consumption (Max)
- 5W
- Switch Unit Cert
- FCC, CE, RoHS
- Power Supply Cert
- FCC, CE, RoHS
- Dimensions (LxWxH)
- 136.3 x 61.5 x 14.5mm
- Net Weight
- 173g

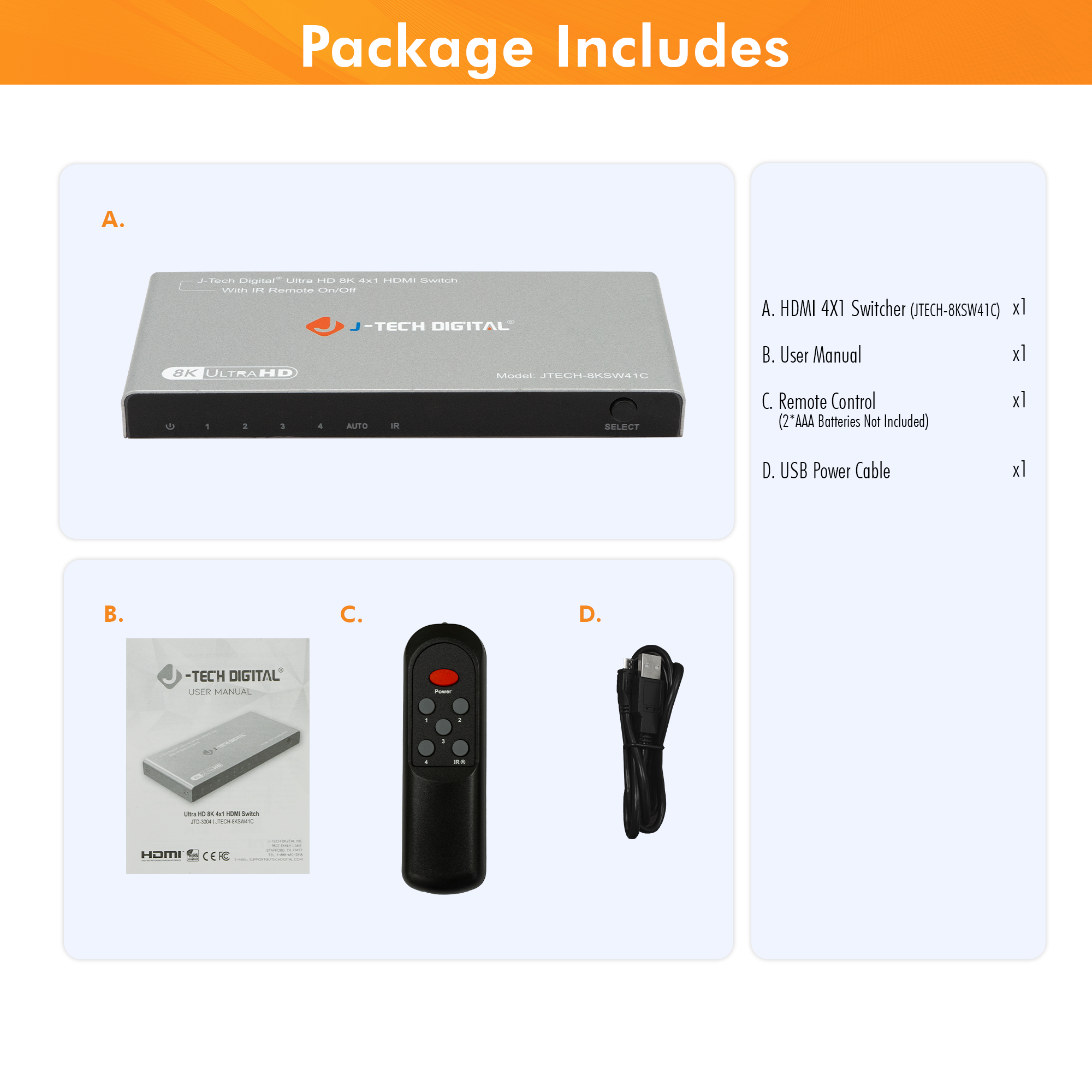

What's in the box
- 1 x Switch
- 1 x USB Power Cable
- 1 x Remote Control
- 1 x User Manual
Frequently asked questions
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
