8K 60Hz HDMI Switch 4 In 1 Out with Audio Extraction

Regular price $67.20
  • ✅ 4x1 HDMI Switch 8K@60Hz | 4K@120Hz | 1080P@240Hz: Effortlessly switch between four HDMI source devices on a single display, supporting 8K@60Hz 4:4:4, 4K@120Hz, and 1080P@240Hz for crystal-clear visuals. Enjoy HDR10, HDR10+, and Dolby Vision for an immersive viewing experience.
  • ✅ Audio Extraction via Optical & 3.5mm: Extract high-quality audio from HDMI to Optical and 3.5mm stereo output, ideal for soundbars, AV receivers, and speakers. Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and uncompressed LPCM for premium surround sound.
  • ✅ EDID Management with 15 Settings for Maximum Compatibility: Advanced EDID control with 15 preset settings optimizes resolution and audio settings for different displays. The bypass EDID function ensures plug-and-play ease with TVs, projectors, and monitors.
  • ✅ HDMI 2.1 | HDCP 2.3 | Wide Compatibility: Works with PS5, Xbox Series X, Apple TV, Roku, Fire Stick, Blu-ray players, PCs, and home theater systems for seamless integration. Supports CEC (Consumer Electronics Control) function.
SKU:
JTD-3226
Model:
JTECH-8KSW41AE

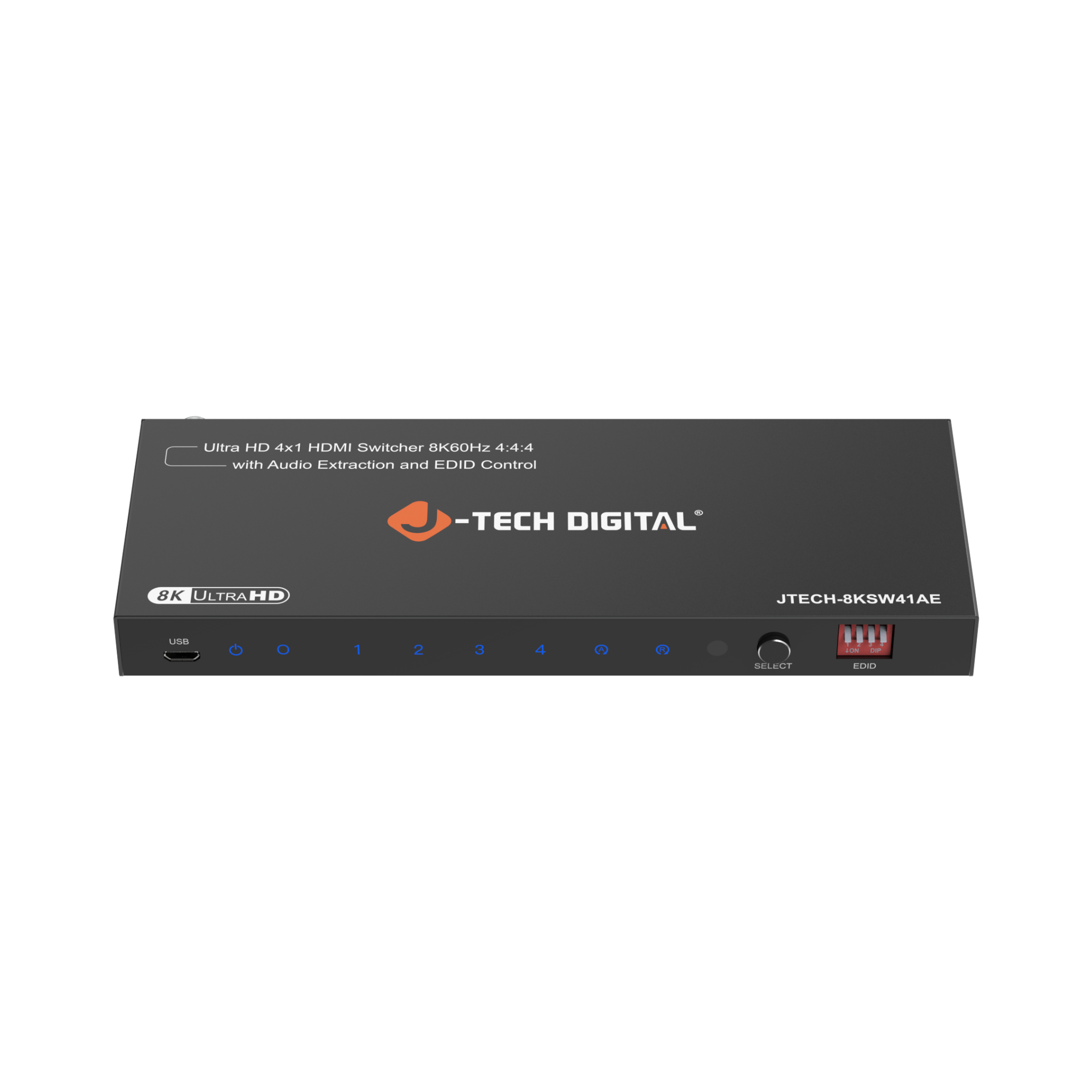

J-Tech Digital 8K HDMI switch 4 in 1 out with audio extraction and EDID control
8K 60Hz HDMI Switch 4 In 1 Out with Audio Extraction

Introducing the J-Tech Digital JTECH-8KSW41AE; 8K HDMI Switch with 4 Inputs and 1 Output featuring audio extraction via Optical and 3.5mm, and EDID control. Effortlessly switch between four HDMI sources on a single display with support for 8K@60Hz, 4K@120Hz, and 1080P@240Hz. Enjoy stunning visuals with HDR10, HDR10+, and Dolby Vision for an immersive experience. Extract audio via optical and 3.5mm stereo output, supporting Dolby TrueHD, DTS-HD, and LPCM for premium sound quality. Advanced EDID management with 15 modes ensures seamless compatibility with TVs, projectors, and monitors. Built with HDMI 2.1, HDCP 2.3, and CEC support, it works with PS5, Xbox Series X, Apple TV, Roku, Fire Stick, Blu-ray players, and more.

✅ HDMI switch with 4 In and 1 Out. Supports 8K@60Hz, 4K@120Hz, and 1080P@240Hz resolutions

✅ Extract HDMI audio via Optical and 3.5mm to send to an external sound system

✅ Features EDID DIP switch with 15 modes for maximum compatibility

✅ Supports CEC. HDMI 2.1, HDCP 2.3 compliant. HDR, HDR10 and Dolby Vision compatible

✅ Wide compatibility with most HDMI source devices

Specifications

General

Name Values
Input Ports HDMI x 4
Output Ports HDMI x 1
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 12Gbps/1200MHz per channel(48Gbps all channels)
Interlaced (50 & 60Hz)
  • 480i
  • 576i
  • 1080i
Progressive (50 & 60Hz)
  • 480p
  • 576p
  • 720p
  • 1080p
  • 4K@24/30Hz
  • 4K@50/60/120Hz
  • 8K@24/30/50/60Hz
Operating Temperature 0℃ to 70℃
Storage Humidity 5% to 90% RH non-condensation
Power Consumption (Max) 5W
Switcher Unit Cert
  • FCC
  • CE
  • RoHS
Power Supply Cert
  • FCC
  • CE
  • RoHS

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 3226-user-manual_compressed.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: 3226-user-manual_compressed.pdf

  • 5 stars: 4 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
D
David Hagwood
If you want an HDMI switch with reliable CEC capability

If you want an HDMI switch with reliable CEC capability, this is it. Since I have a lot of HDMI devices, I was using my theater receiver for the extra devices, but it didn't perform very well. The power state, audio, and inputs didn't change reliably. This switch does all of that reliably. My receiver turns on, the device input is automatically selected, and the controls work with whatever device remote I'm using reliably without any lag. So, if I turn my Apple TV on, my TV, receiver, turn on and all can be controlled with whatever remote I'm holding, working in harmony! There is no noticable in put lag, the quality is top notch. Great job with this product!

A
Anthony Spears
Perfect

This HDMI switch is perfect for my setup. Highly recommend.

K
Kennett Smith
It did the job

It did the job. I've combined a streaming device, network TV device and Bluray player to play from a projector with a Sonos speaker using optical output. The box is doing a great job switching between all three.

R
Rich Wardell
I really like this switch

I really like this switch. I use it with my gaming PC, PS5, Xbox series X, Nintendo Switch 2, and Kef LSX speakers. The speakers are connected to switch with optical cable. It switches between devices flawlessly and have no issues with 4K 120 Hz., VRR, & ALLM. My only small complaint is the audio switching. I was watching/listening on my PC, and when I switched to PS5 the audio did not work. It took my a few minutes to realize that I had to completely shut down the PC to get audio to work on PS5. I would highly recomend this device. It is much more stable then the competition.

T
Timothy Smith

Is the optical SPDIF compatible?

J-Tech Digital

Hi Timothy. Yes, the optical output is S/PDIF/TOSLINK compatible. Please note that optical S/PDIF supports stereo PCM and compressed surround formats like Dolby Digital/DTS, but not higher-bandwidth HDMI audio formats such as Dolby TrueHD, DTS-HD Master Audio, or multichannel LPCM.
