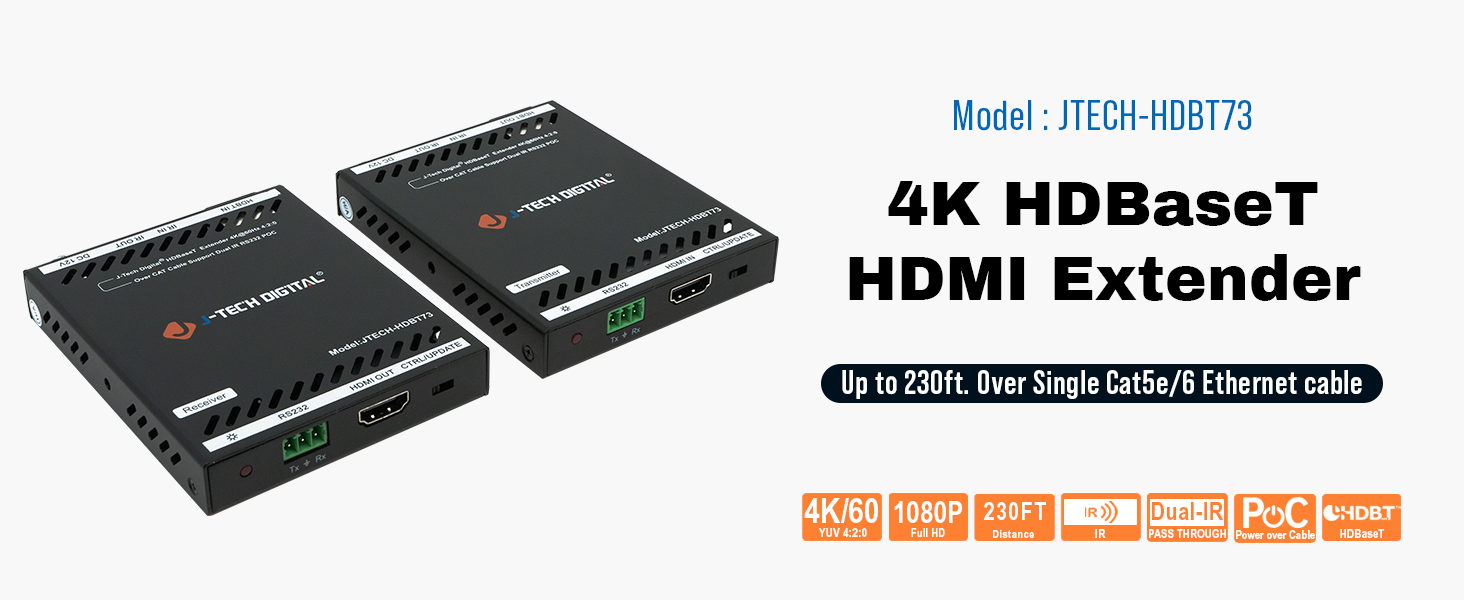

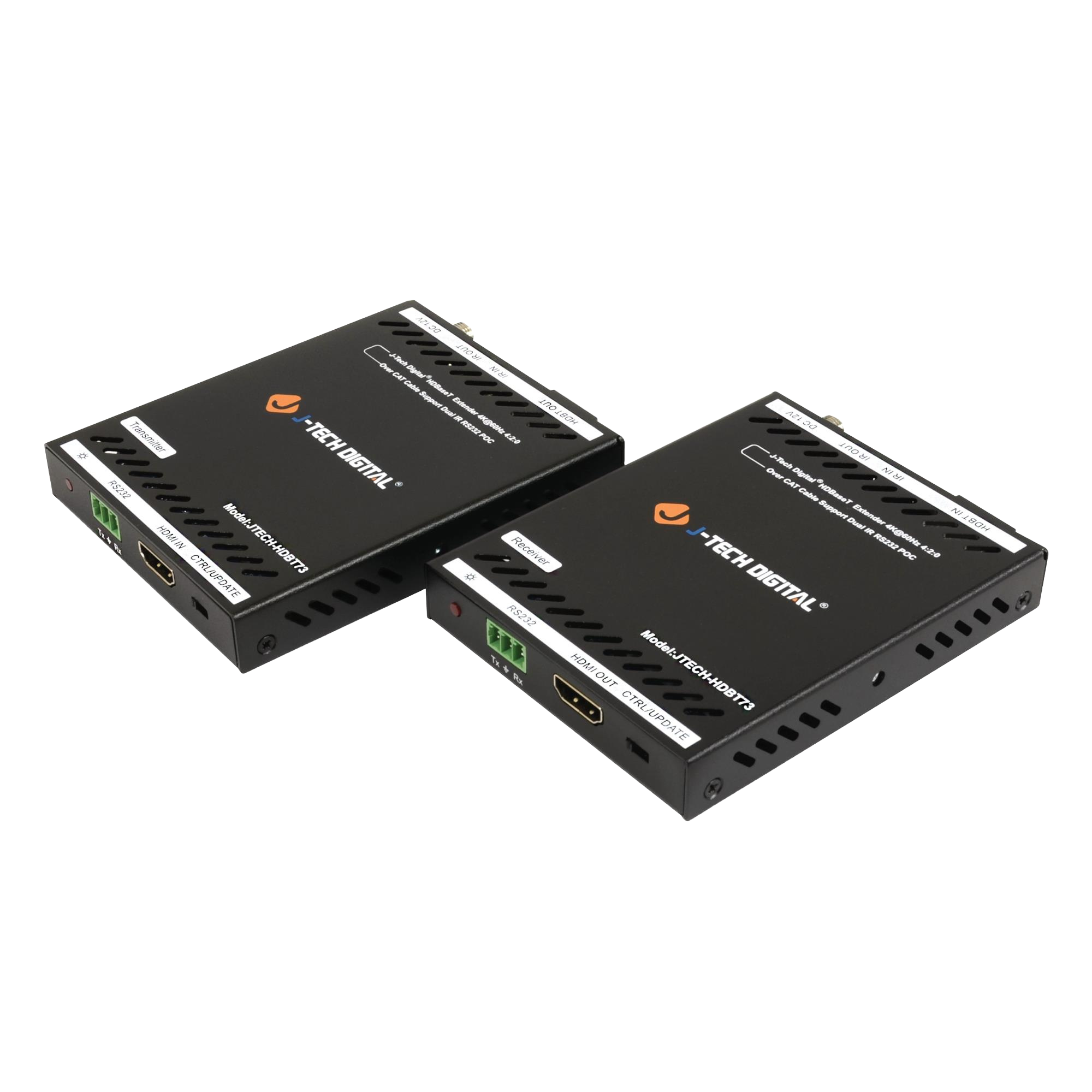

4K 60Hz (4:2:0) HDBaseT HDMI Extender Balun Over Ethernet (130ft)

4K HDMI Extender over Cat5e/Cat6 – HDBaseT PoC Extender with IR & RS232 Control

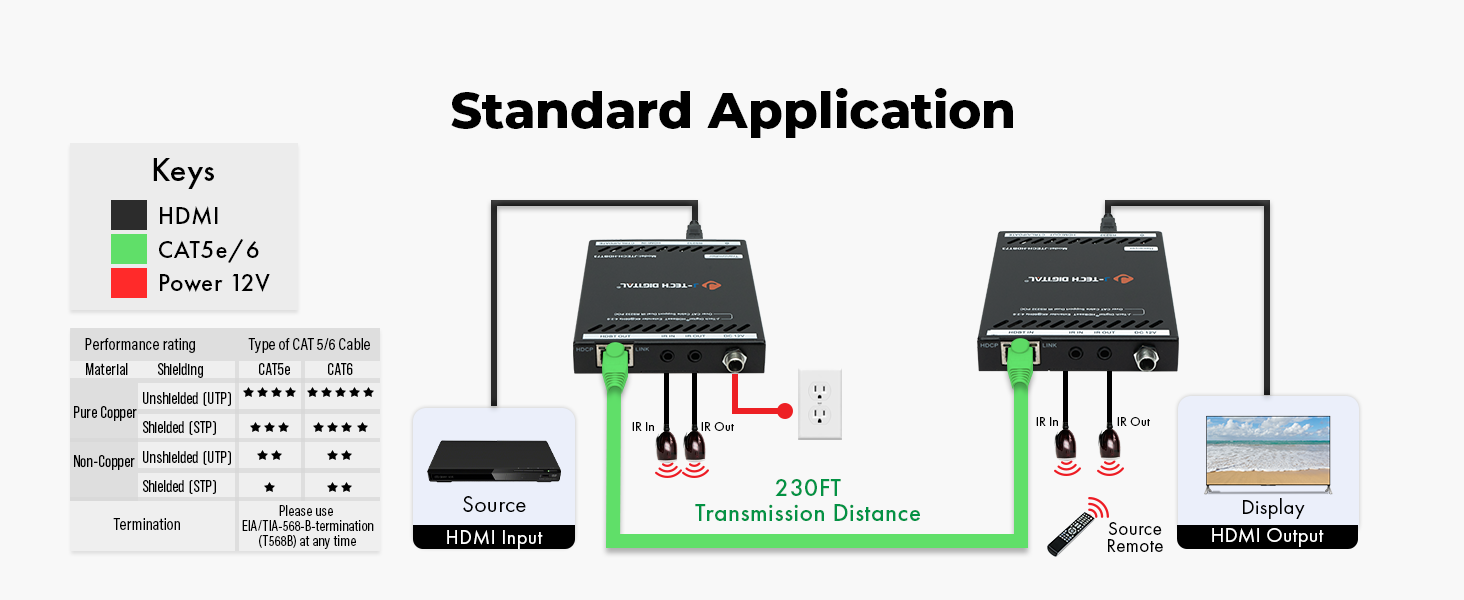

Extend high-quality HDMI signals over long distances with this HDMI Extender over Cat5e/Cat6 Ethernet cable, supporting resolutions up to 4K@60Hz (4:2:0) and 1080P up to 230 ft (70m). (Note: 4K 4:4:4 format not supported.) The unit features PoC (Power over Cable) technology—powering the receiver directly from the transmitter via a single Ethernet cable, simplifying installation and reducing clutter. Fully HDCP 2.2 / 1.4 compliant, this extender includes built-in ESD protection for safe, reliable operation. Enjoy bi-directional IR control and RS232 connectivity for firmware updates or serial command integration.

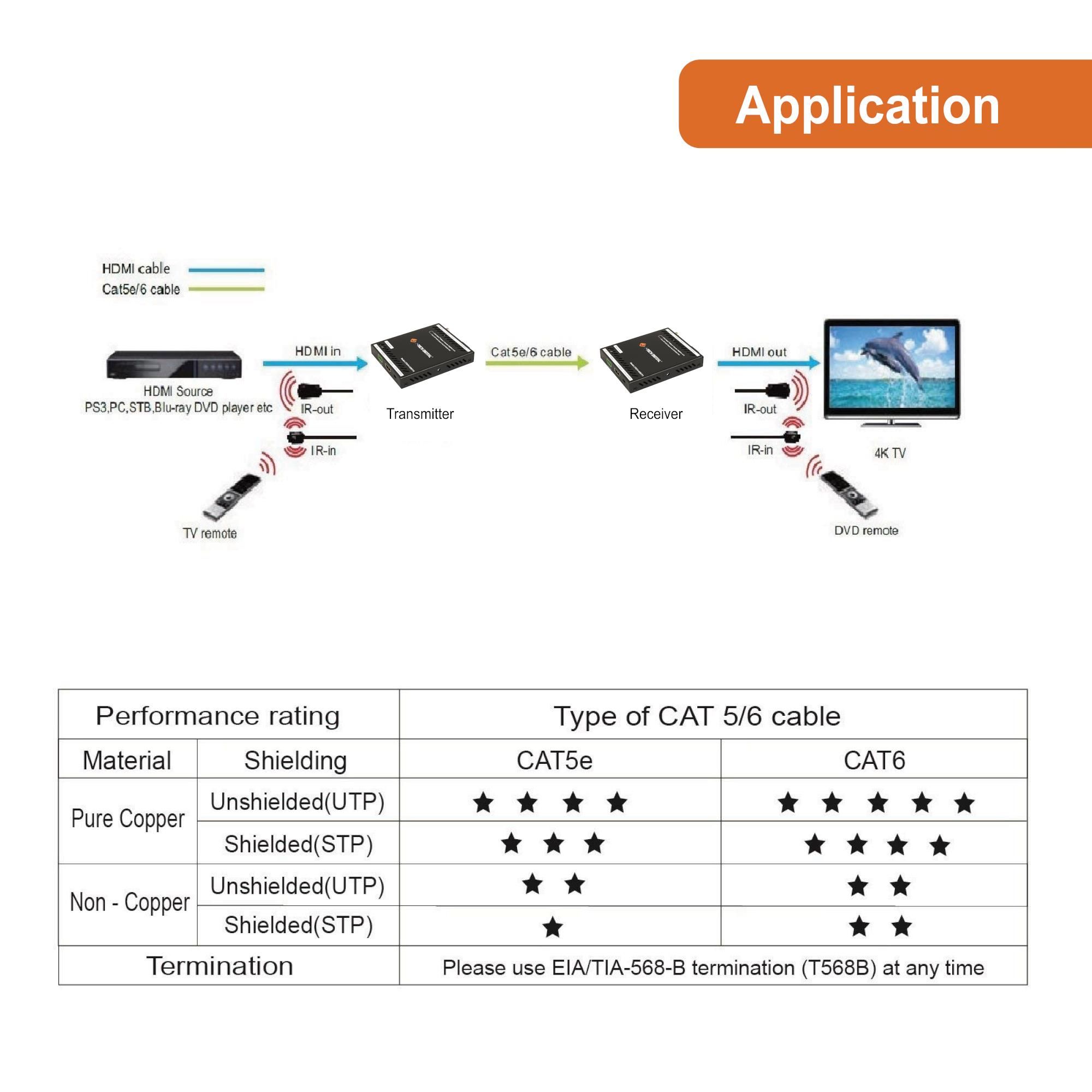

Ideal for home theaters, conference rooms, classrooms, and digital signage applications, this extender delivers stable, high-quality video and audio transmission across long distances.

✅ HDMI 1.4 and HDCP 2.2 compliant.

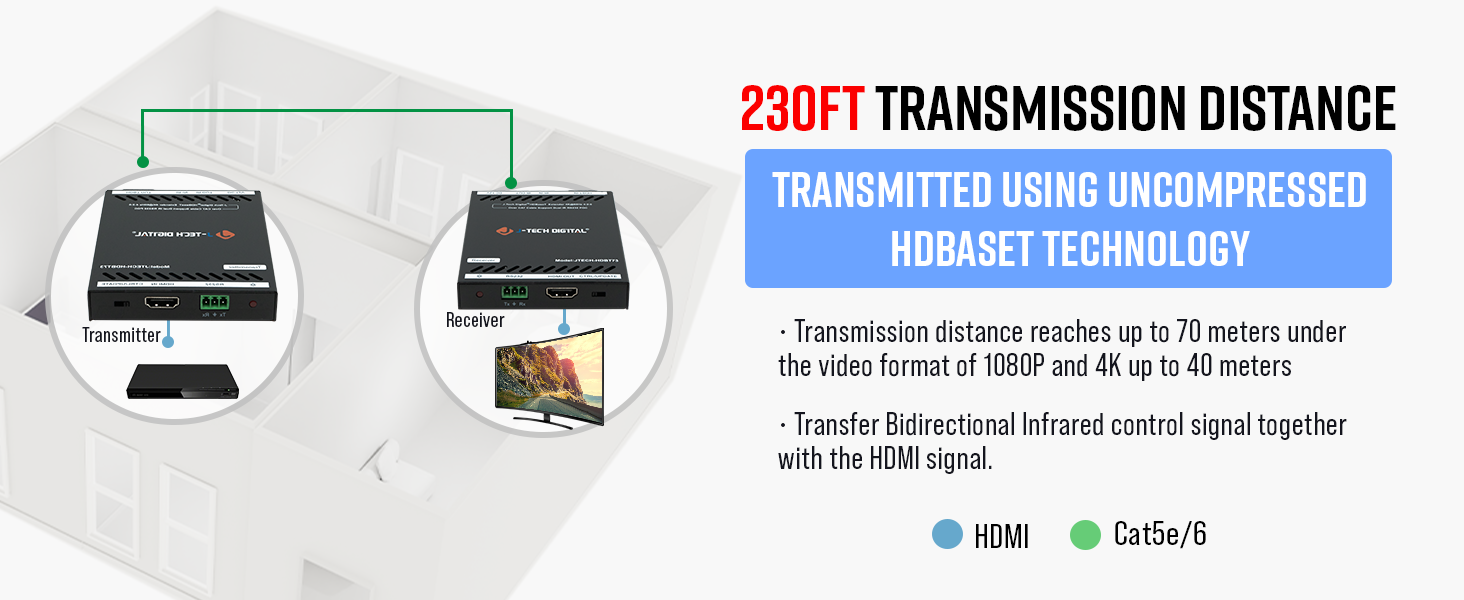

✅ Transmission distance up to 40m for 4Kx2K and 70m for 1080p.

✅ Bi-directional 5V IR and RS232 pass-through for long-distance control.

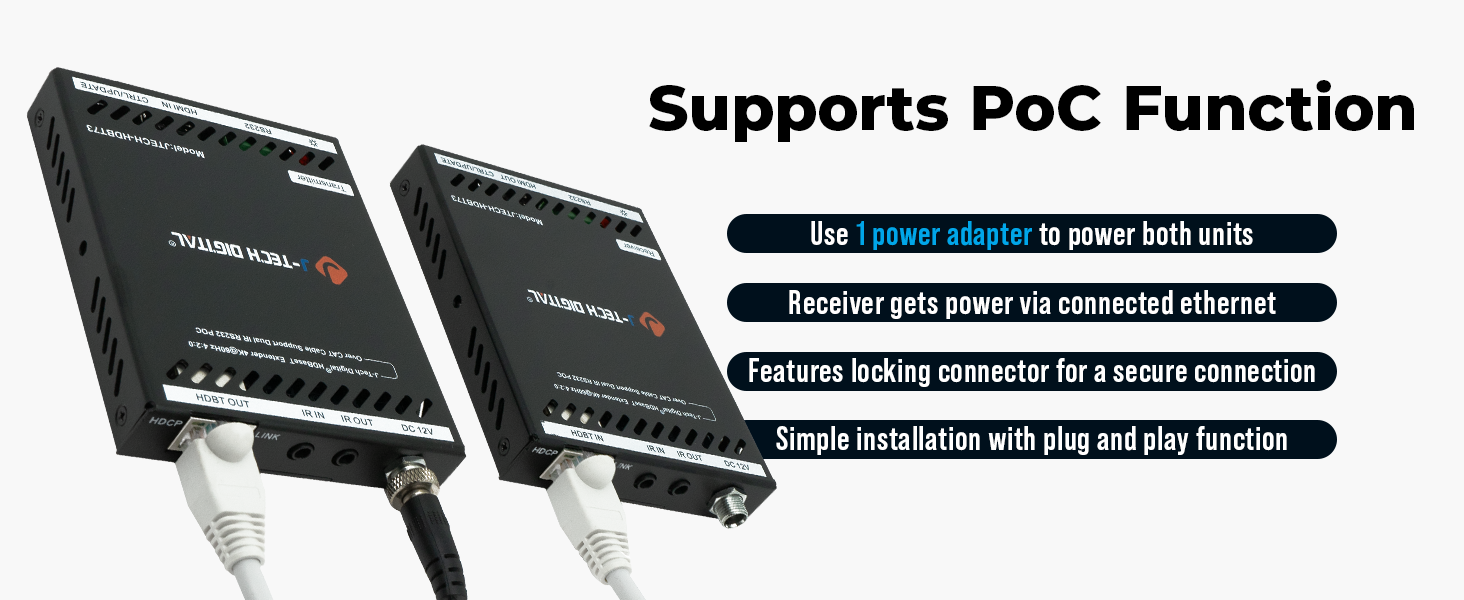

✅ Bi-directional PoC for simplified wiring.

✅ CEC functionality supported.

✅ DIP switch for selecting Control or Update mode
