USB 2.0 Extender Over Ethernet CAT5e/6 Cable

$131.99

Introducing the J-Tech Digital JTECH-BE100 USB 2.0 Extender over single ethernet cable. USB 2.0 specifications only allow users to run USB 15 feet away and this distance limitation is not ideal for many different applications and environments. Enter the JTECH-BE100. Extend not one, but two USB 2.0 ports up to 328 feet away over a single CAT5E/6 ethernet cable. That’s over 21 times further than the USB 2.0 standard.

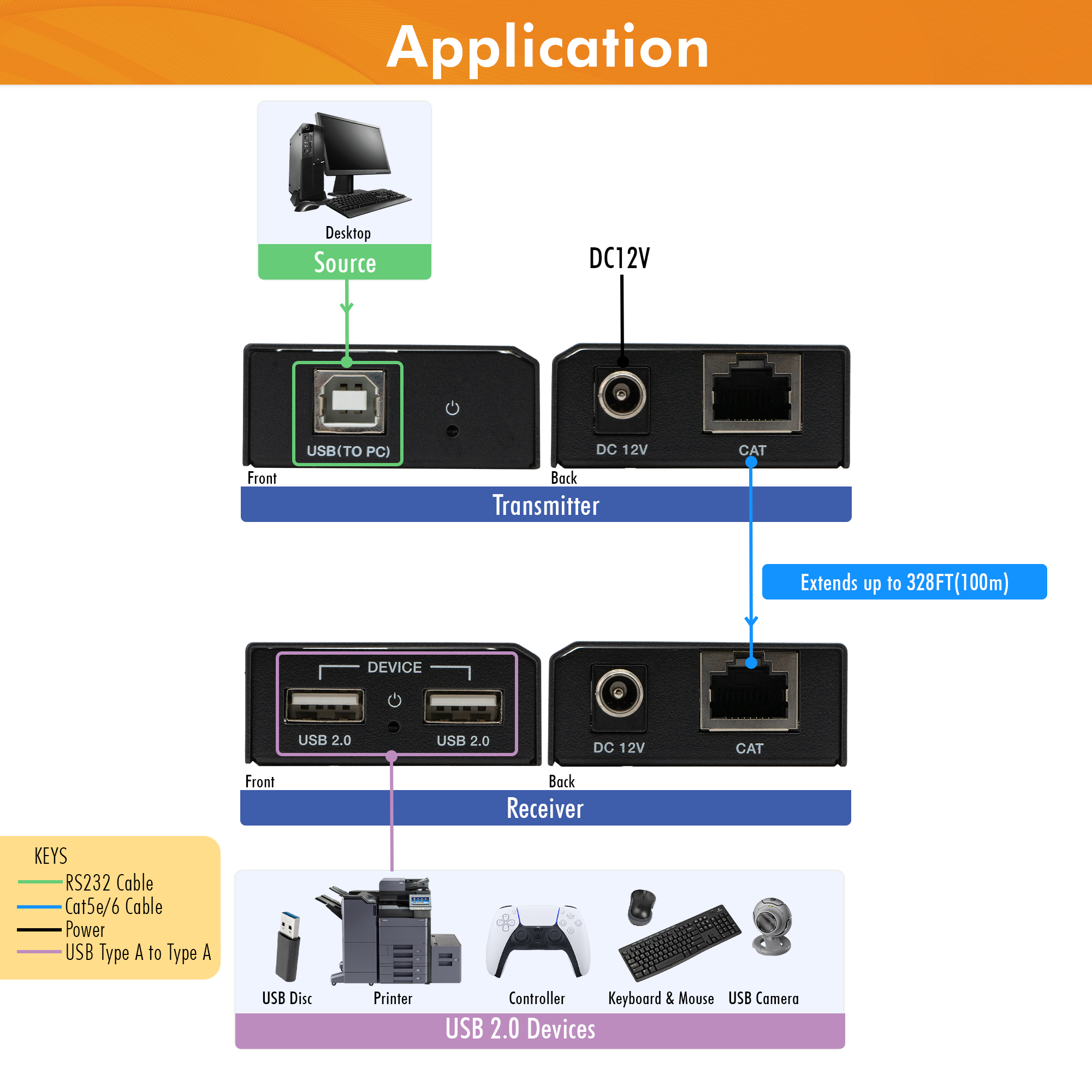

The BE100 features 1 USB-B Port on the transmitter and 2 USB-A 2.0 Ports on the receiver device. This makes extending a keyboard and mouse to a remote computer incredibly easy. Installation is simple with no additional setup required. Simply connect your USB devices, USB cables, ethernet cable and power adapter and you’re done. A true plug & play installation to get you up and running fast.

USB 2.0 (480 Mbps Data Rate) transmitted up to 328 FT over Single CAT5e/6 Ethernet

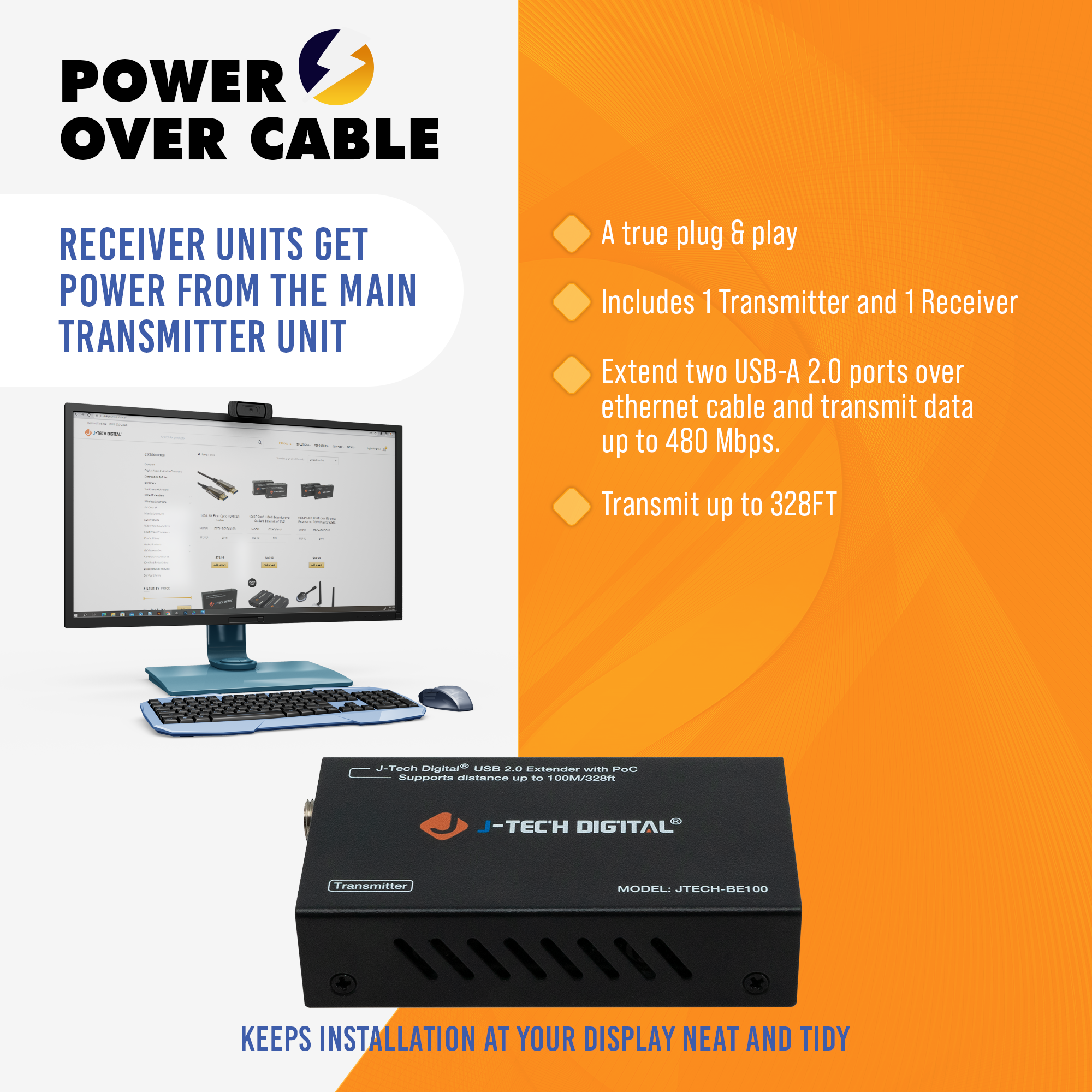

PoC (Power Over Cable) – Only one power adapter is needed to power both transmitter & receiver

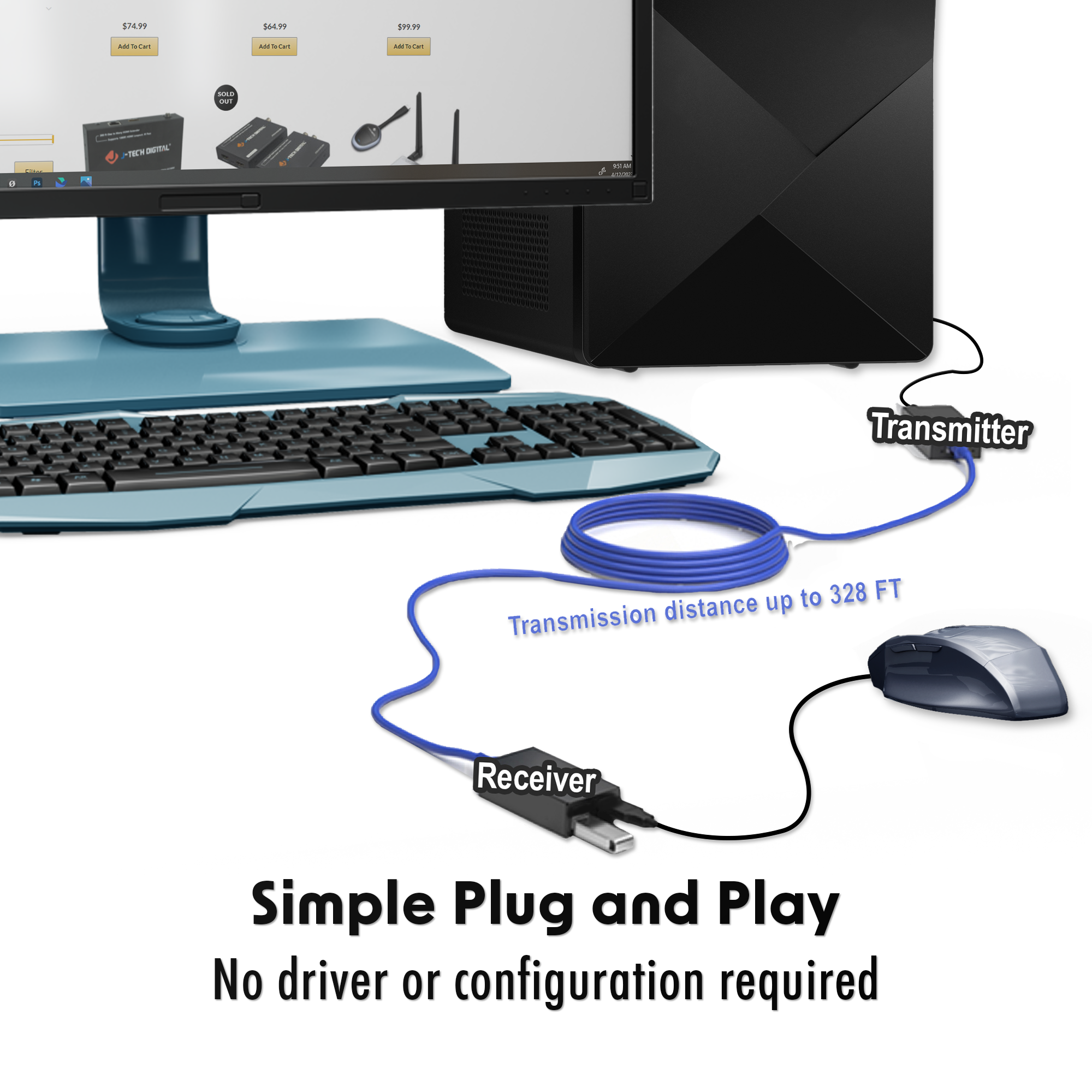

Simple Plug Play Installation and Setup

Transmitter – 1 x USB-B Port | Receiver – 2 x USB-A 2.0 Port

Information

Brand
J-Tech Digital
MPN
JTD-617
Model
JTECH-BE100

Benefits

  • Free delivery over $50
  • Free return within 30 days.
  • Hassle-free Warranty
  • Lifetime Technical Support

Drivers

Specifications

Technical
USB Protocol
USB 2.0
Transmission Rate
Up to 200Mbps
Transmission Distance
328ft.
ESD Protection
Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Connection

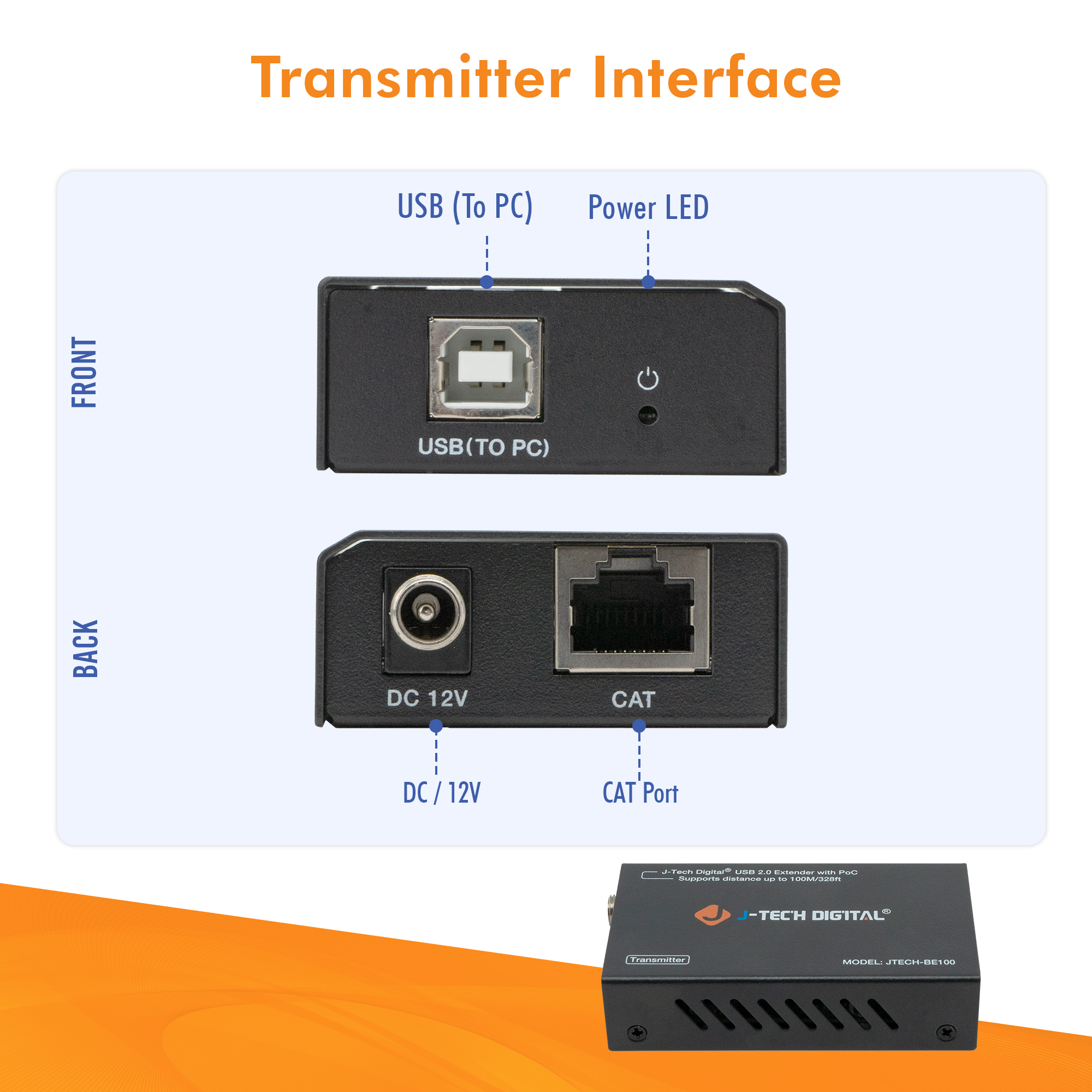

Transmitter
Input Port: 1×USB [USB-B, female], Output Port: 1×CAT [RJ45, female]
Receiver
Input Port: 1×CAT [RJ45, female], Output Port: 2×USB [USB-A, female]
Mechanical
Housing
Metal Enclosure
Color
Black

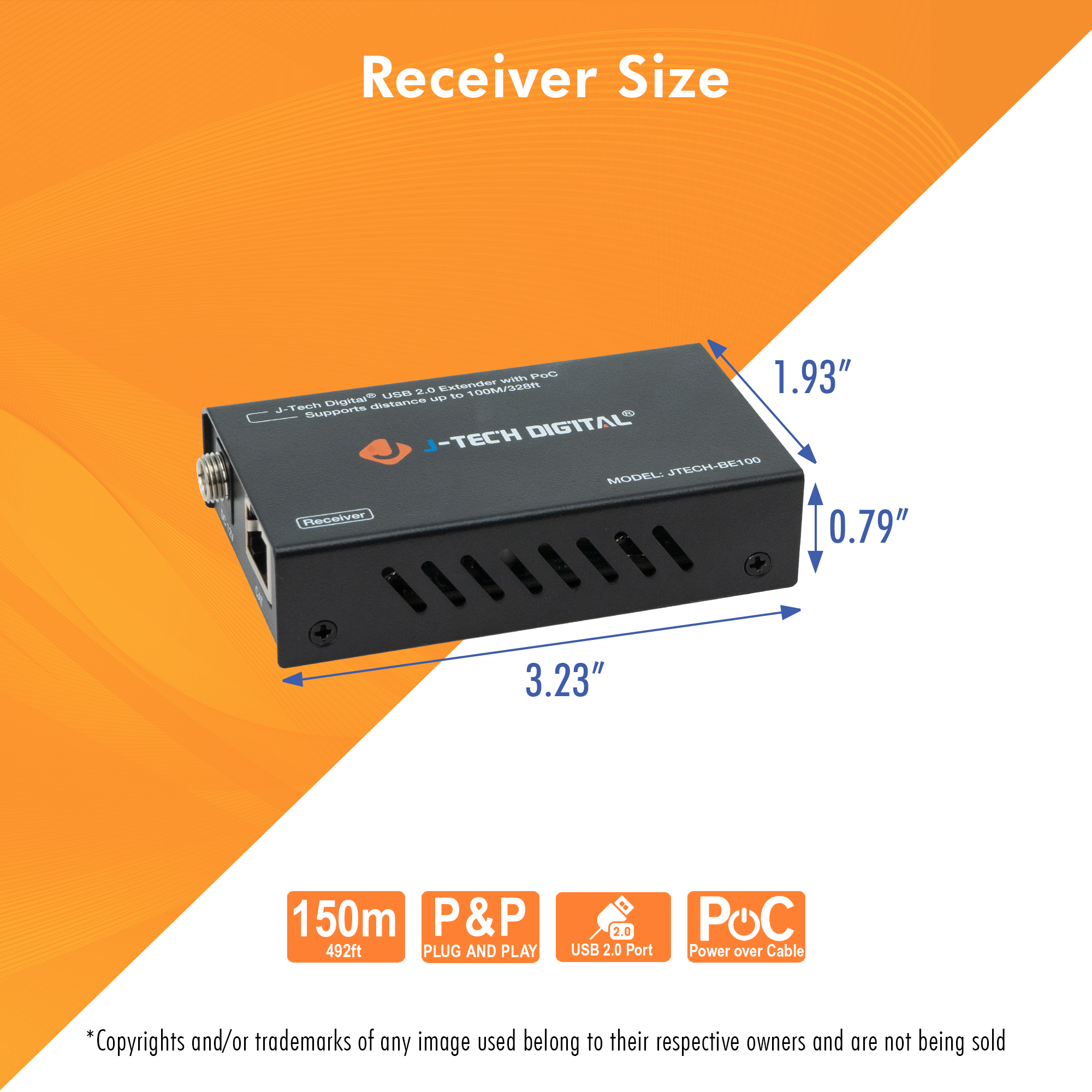

Dimensions (WxDxH)
TX / RX: 3.23” x 1.93” x 0.79”
Weight
0.22Lbs
Power Supply
Input: AC100~240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption
Transmitter: 1.3W, Receiver: 2.3W
Operating Temperature
32°F ~ 104°F
Storage Temperature
-4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)

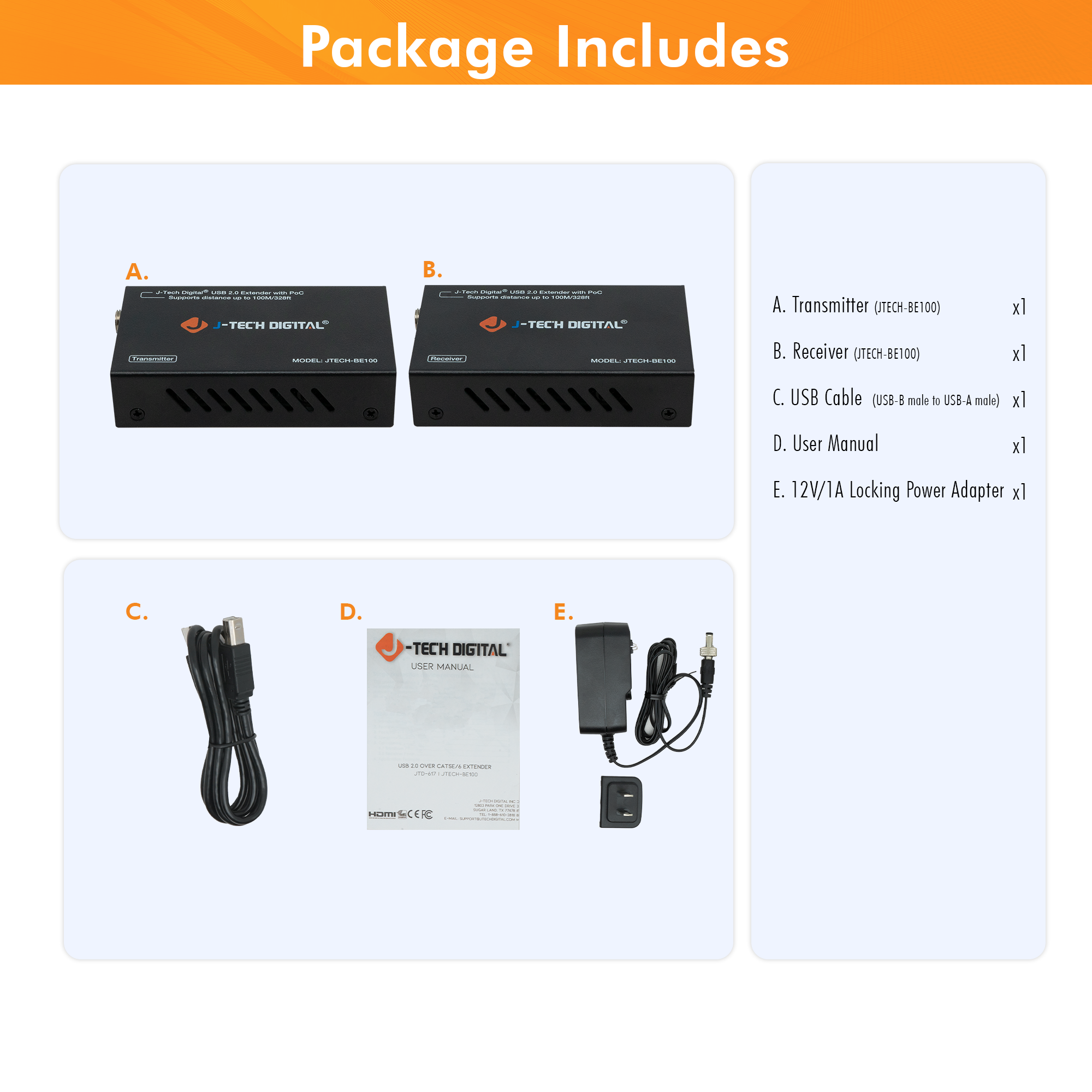

What's in the box

  • 1 x JTECH-BE100 Transmitter
  • 1 x JTECH-BE100 Receiver
  • 1 x USB cable (USB-B male to USB-A male)
  • 1 x 12V/1A Locking Power Adapter
  • 1 x User Manual

Resources

FileVersion
User Manual

1.0
