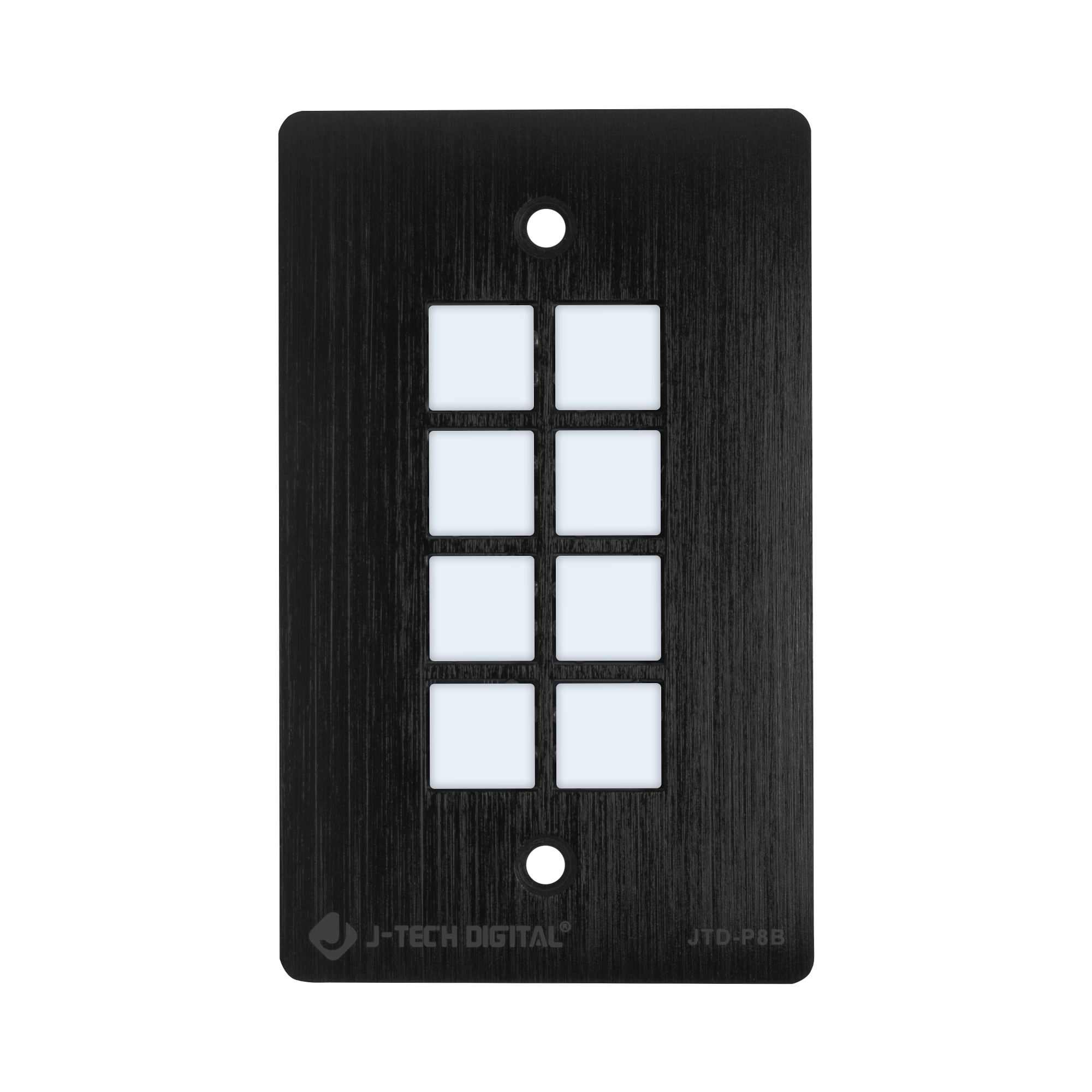

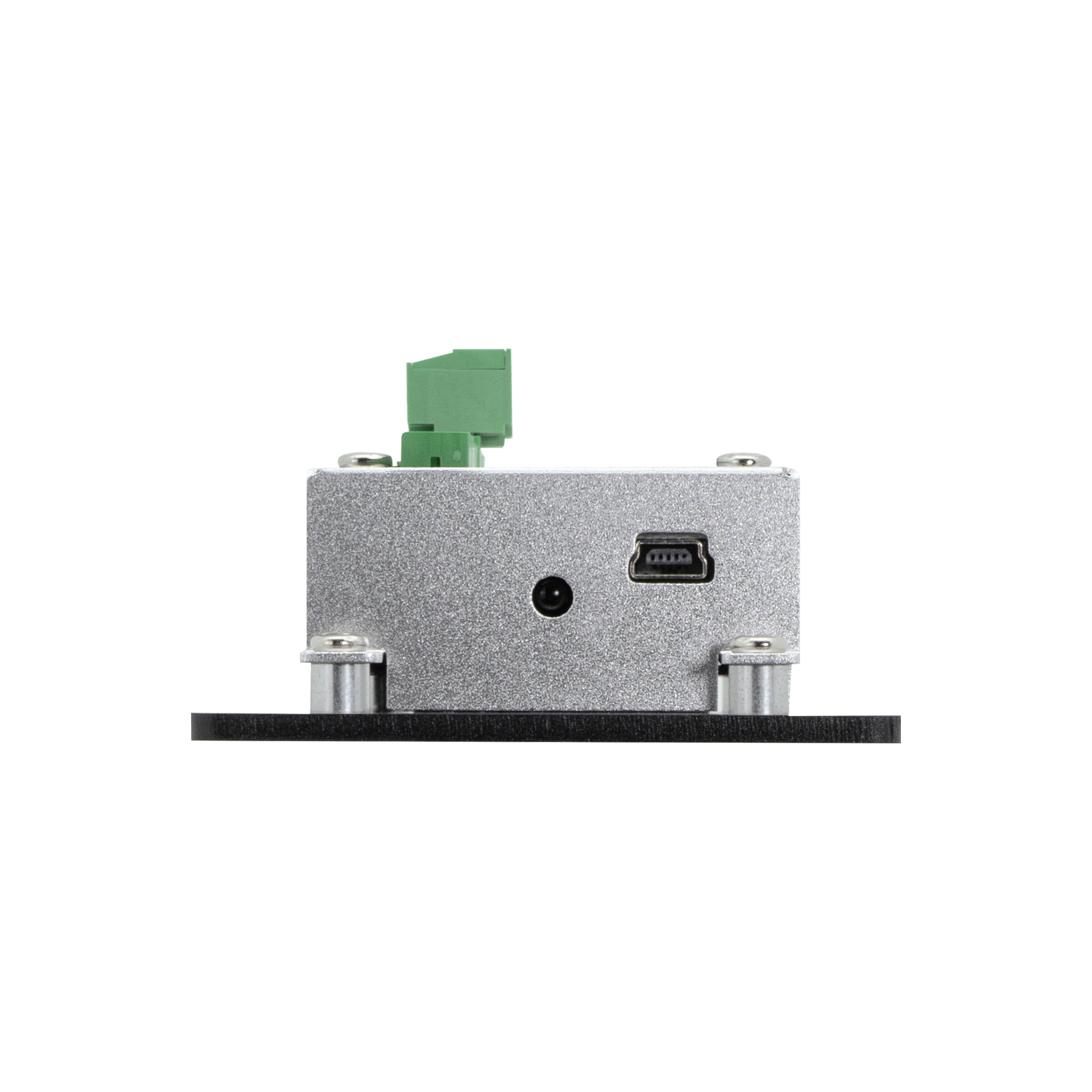

8-Button AV Control Panel Wall Plate with RS232 and IR Control (Black)
-

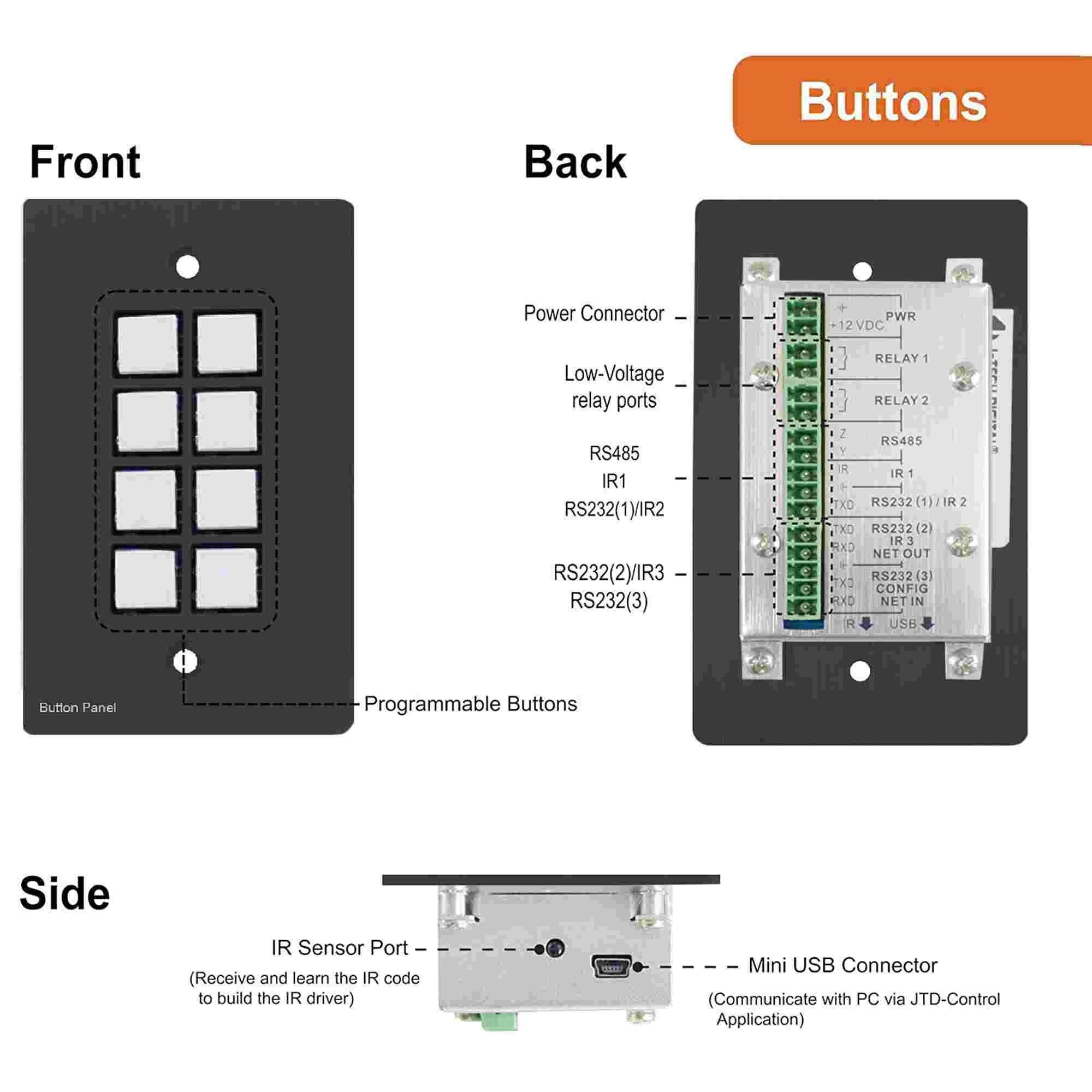

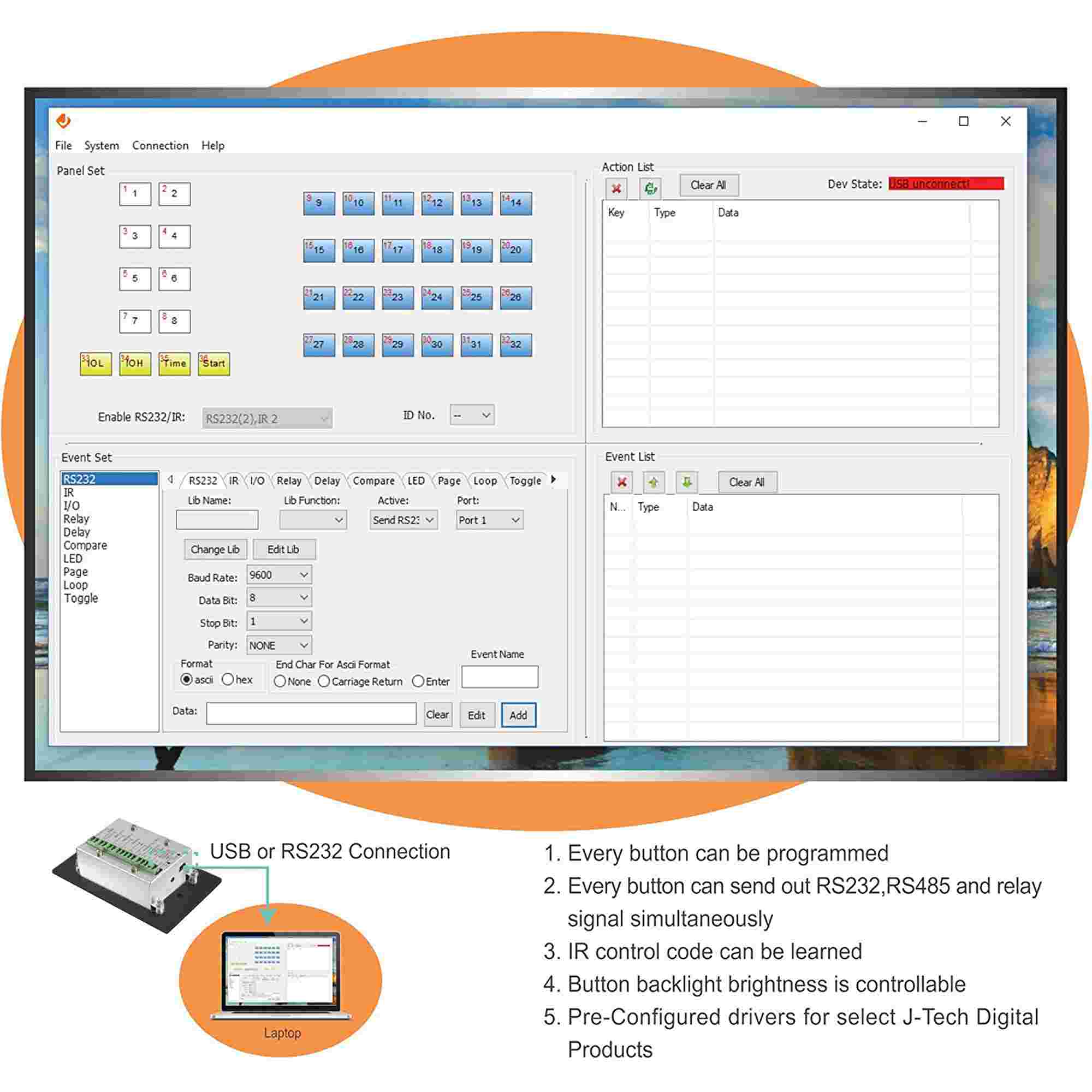

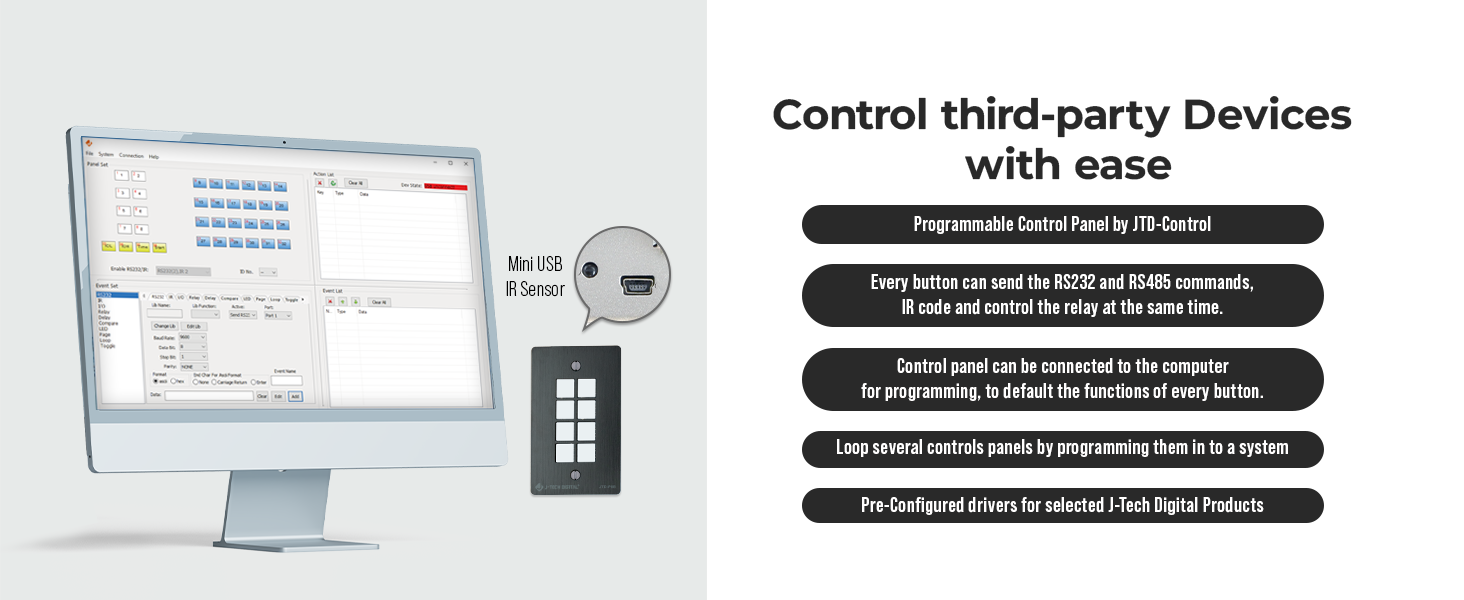

✅ Programmable Buttons: Each of the 8 buttons can be individually programmed through mini USB or IR learning via the provided PC software (available download through our website). The buttons can be programmed to work independently or as part of a group based on user preference
-

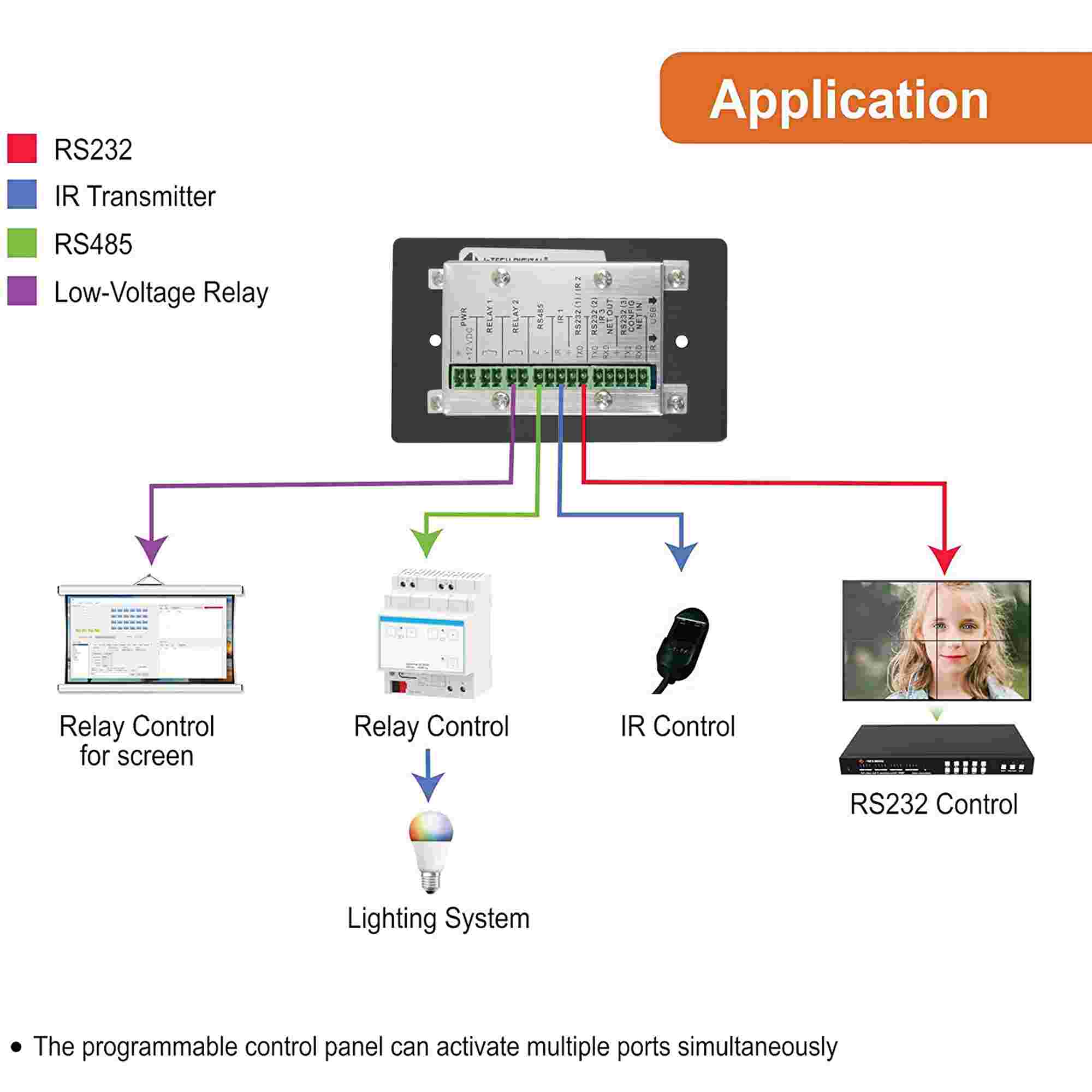

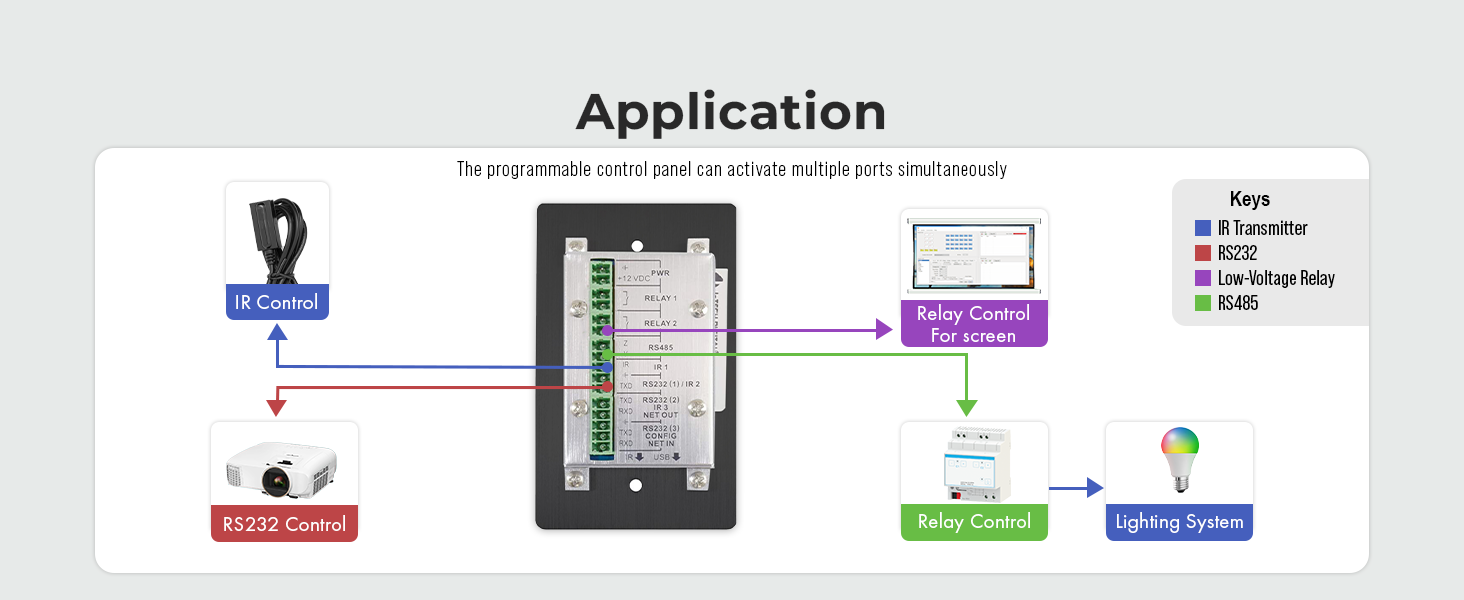

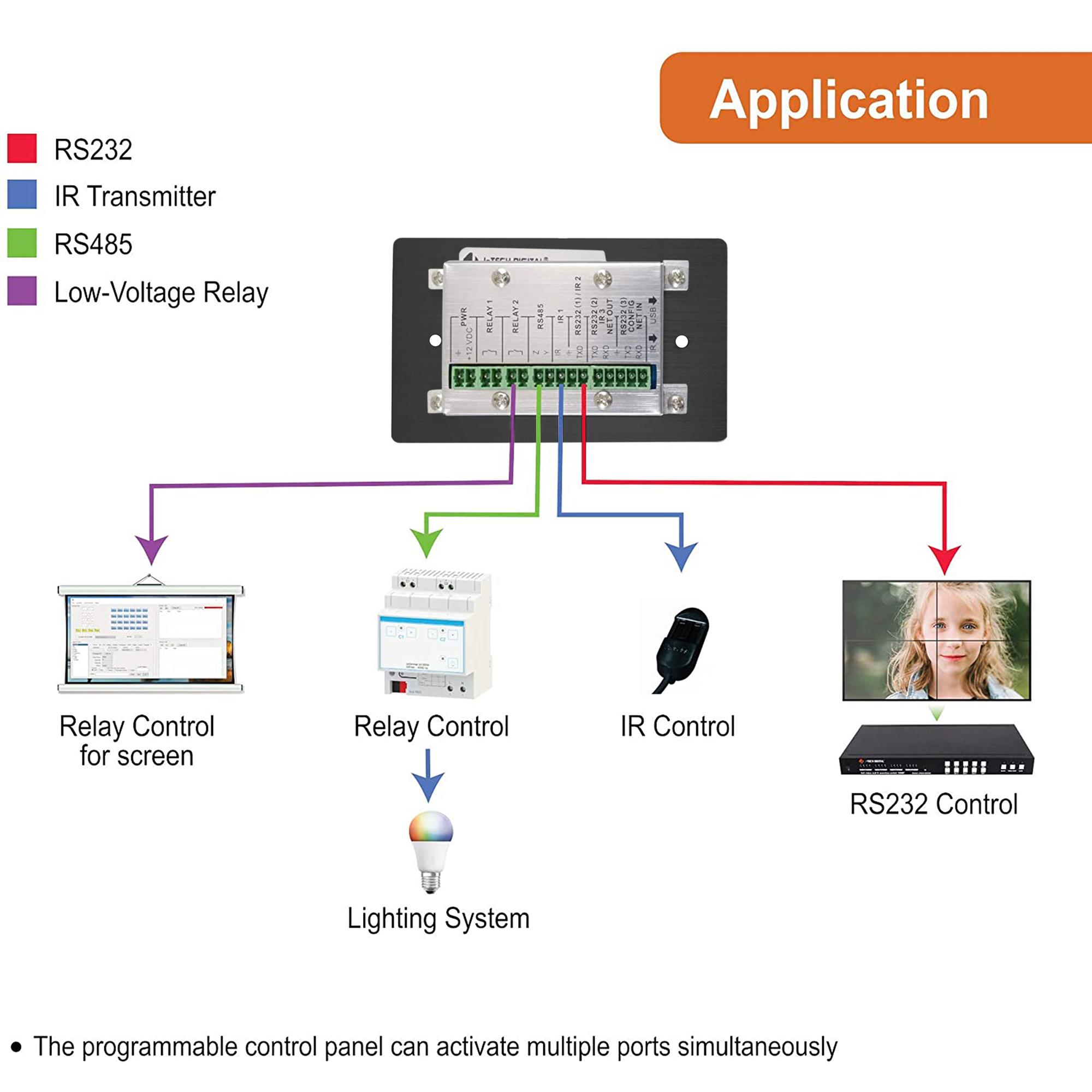

✅ Control End Devices: Use the control panel to send bi-directional commands to compliant devices via RS-232, RS-458, IR, and relay. Third-party devices such as projectors, screens, and TVs can also be controlled
-
✅ Compatible w/ J-Tech Digital Brand Products: Integrate this control panel wall plate system with our manageable devices including our HDMI matrices, switches, and multi-viewers
-
✅ Backlit Buttons w/ Ready-Made Labels: Identify each button on your control panel using one of the many included ready-made labels to simplify controlling your devices, making them easy to understand and operate. Some of the included label titles are: on, off, up, down, and more
Information
- Brand
- J-Tech Digital
- MPN
- JTD-646
- Model
- JTD-P8B
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Specifications
- Program Port
- USB or RS232
- Output Port

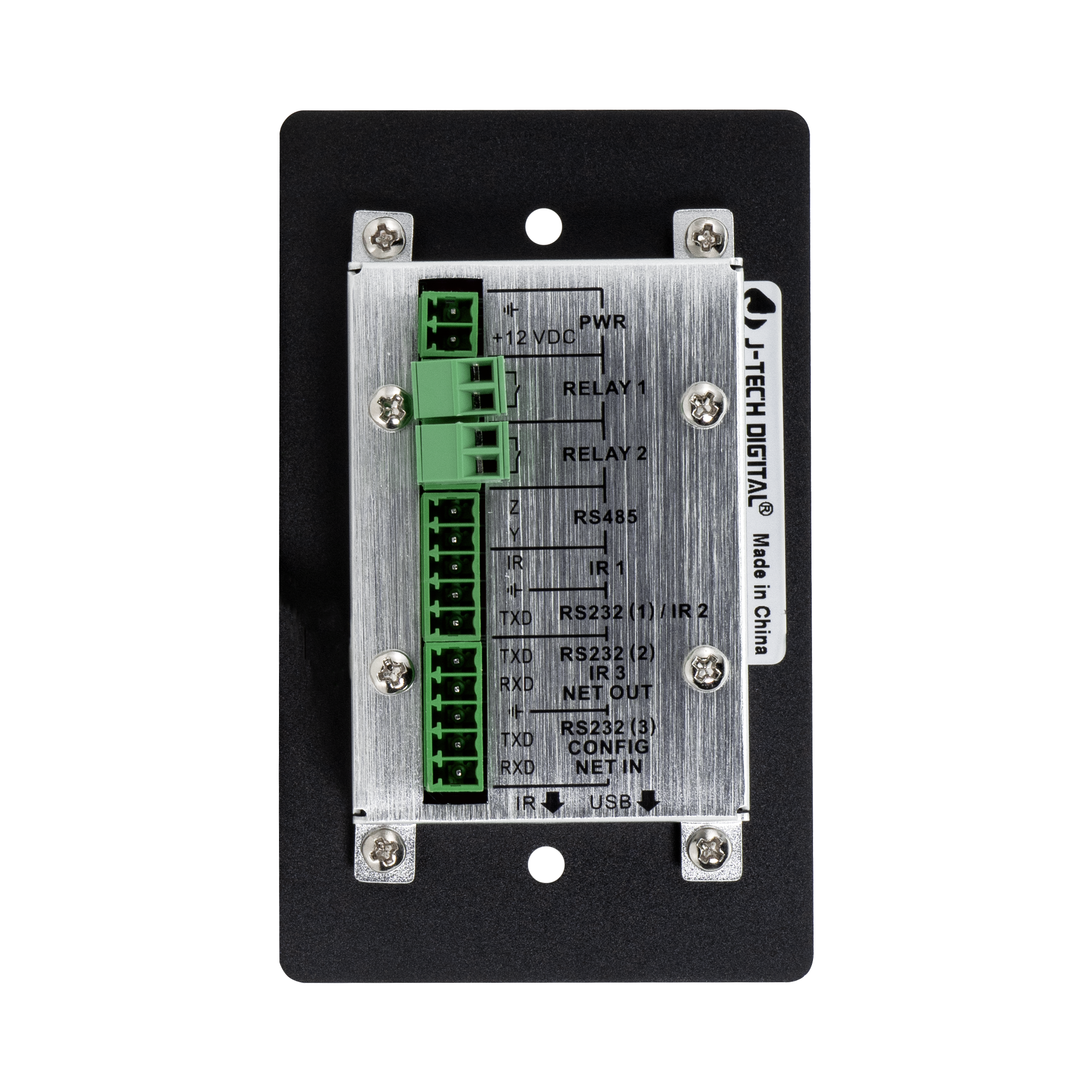

- (3) RS232, (1) RS485, (3) IR, (2) Relay
- Serial Control Port
- RS232
- Baud Rate And Protocol
- 9600 baud rate, 8 data bits, 1 stop bit,, No parity
- Software
- JTD-Control
- Frequency Response
- 20Hz ~20KHz
- Operation Temperature
- -10 ~ +55℃
- Storage Temperature
- -25 ~ +70℃
- Relative Humidity
- 10%-90%
- Power Supply
- Input: 100VAC~240VAC, 50/60 Hz, Output: 12V DC 2A
- Max Power Consumption
- 1W
- Dimension (W*H*D)
- 114mm x 70mm x 28mm
- Net Weight
- 150g

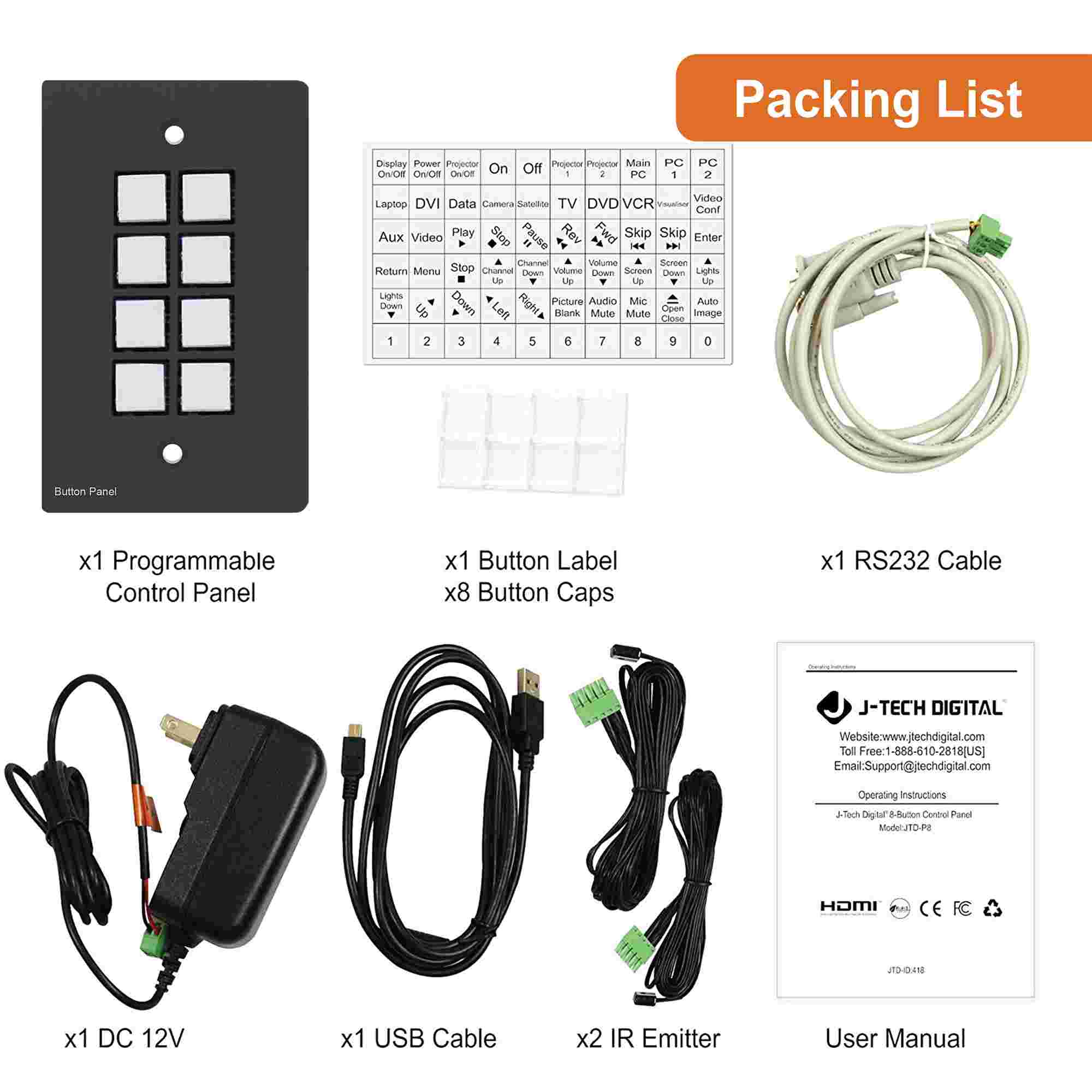

What's in the box
- 1 x Control Panel
- 1 x Button Label
- 8 x Button Caps
- 1 x RS232 Cable
- 1 x DC 12V Power Adapter
- 1 x USB Cable
- 2 x IR Emitter
- 1 x User Manual
Resources
File | Version |
---|---|
User Manual | 1.0 |
Driver Creation Guide | 1.0 |
Firmware | 1.15 |
