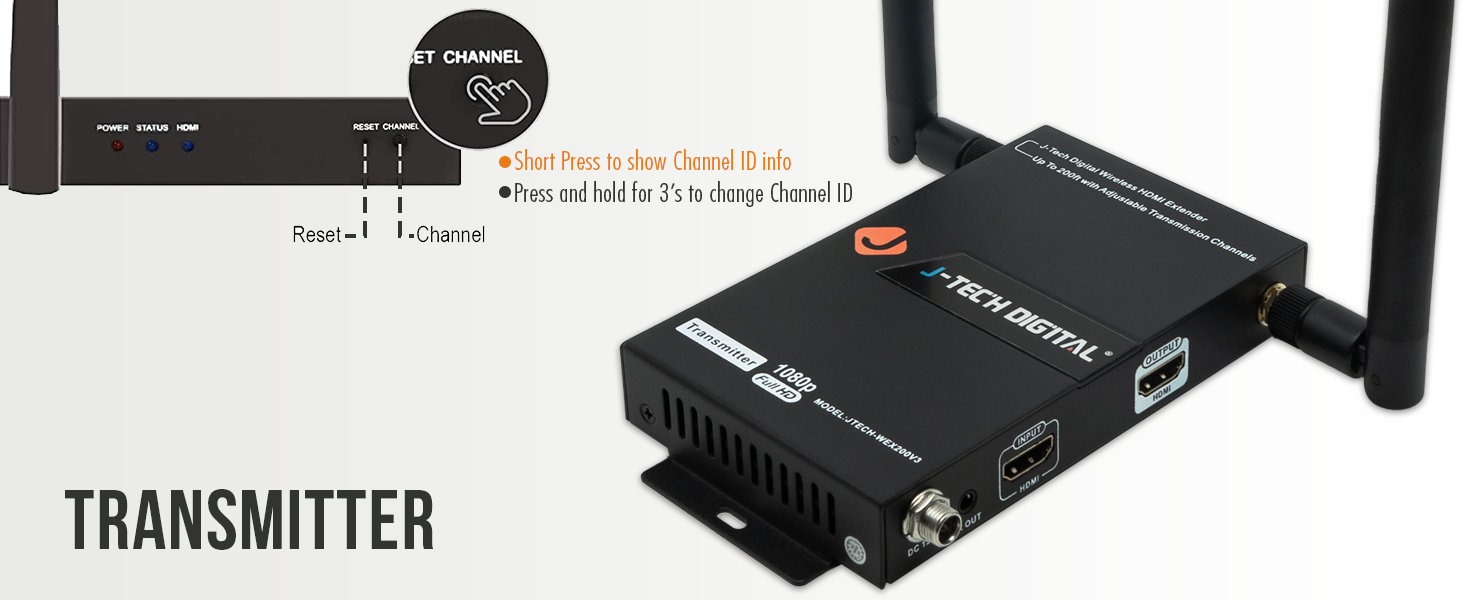

1080P 60Hz Wireless HDMI Extender Kit (200ft.)
This innovative transmitter and receiver pair are capable of streaming full HD 1080p video with support for the latest movie content up to 200ft. away within the home, through walls and ceilings for your desired setup. The extender is greatly improved the signal stability and transmission range, unlike WHDI technology, for which loss of signal is a common issue.
The J-Tech Digital wireless extender provides full compatibility with HDMI signal up to 1080P FULL HD. The innovative 1×2 function allows you to wireless split HDMI signal to broadcast over 2 TVs. It does not require a line-of-sight placement, so you can keep your home theater devices neatly out of sight. Compared with the single antenna version, the dual antenna version has improved data transmission rate and video stability.
✅ Wireless HD audio / video streaming from up to 200 feet away through standard home walls

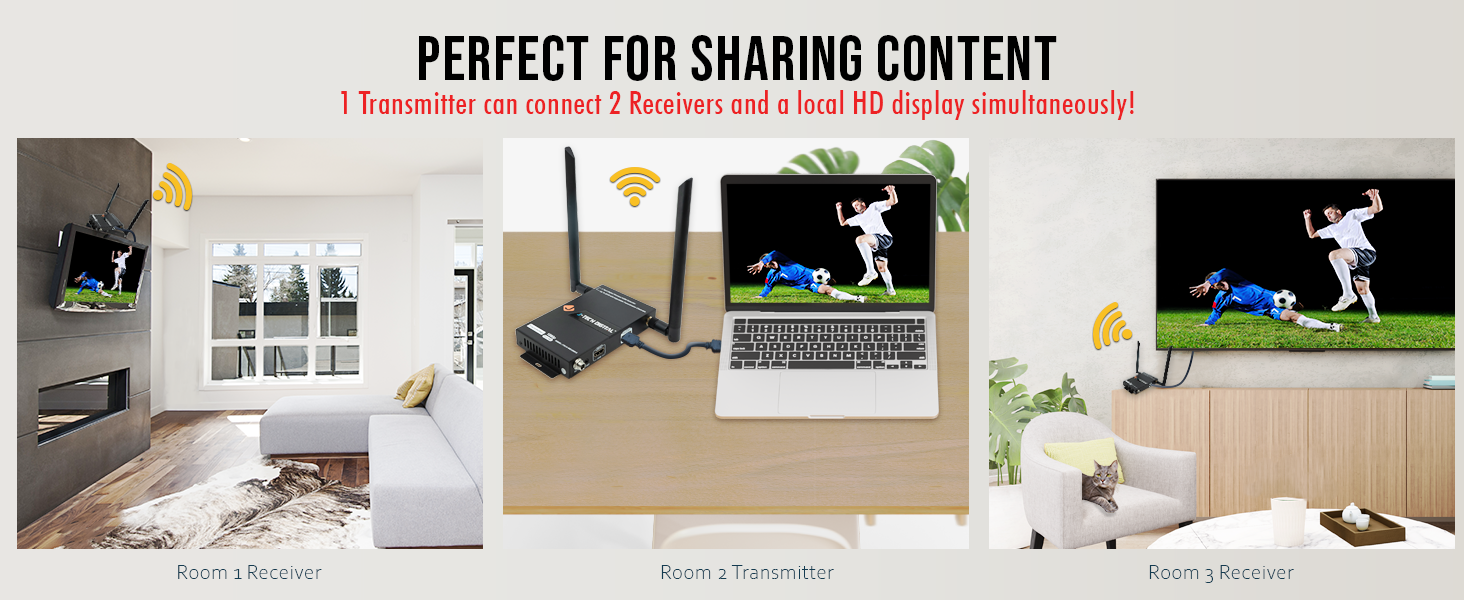

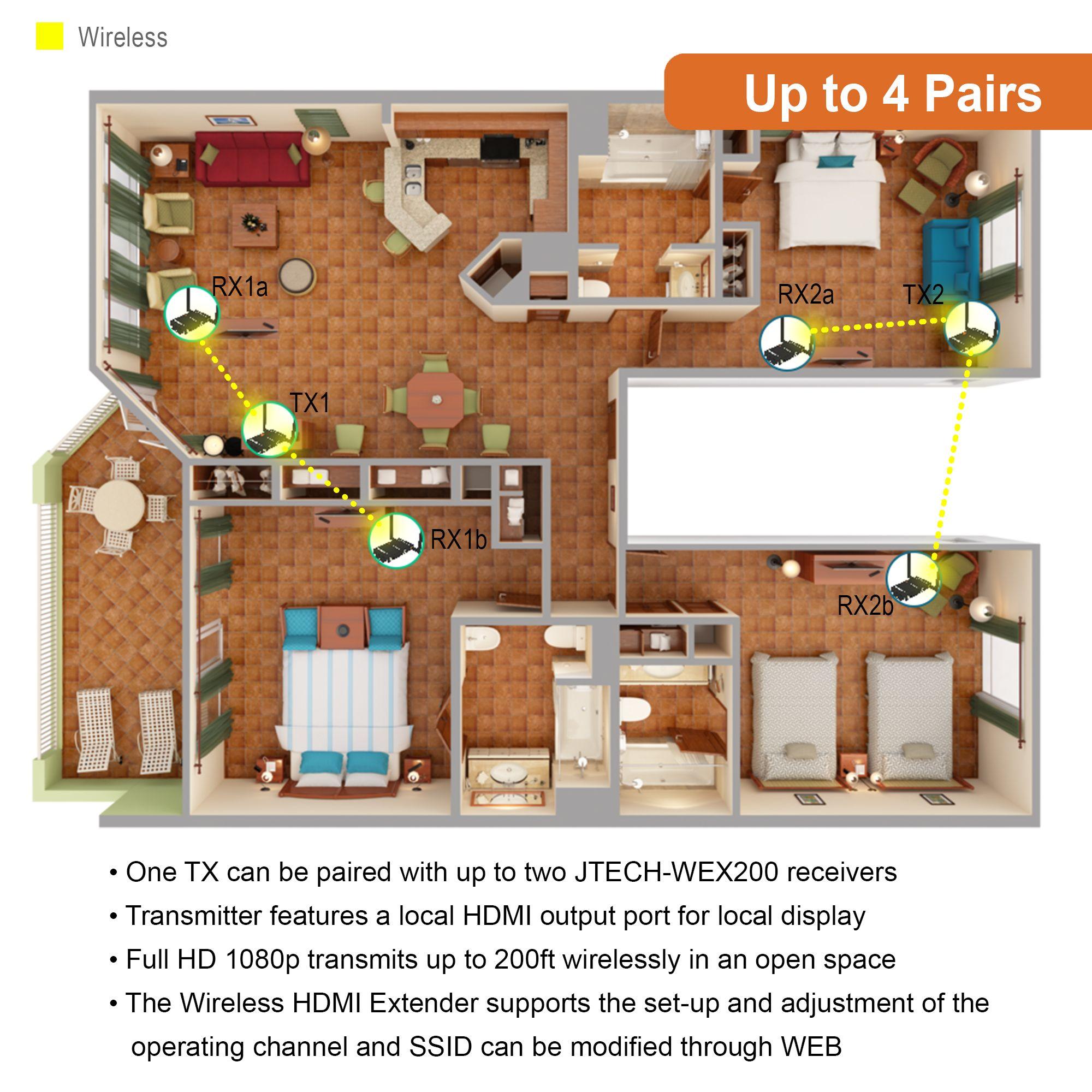

✅ Supports two receivers at the same time | Up to 4 pairs in the same environment

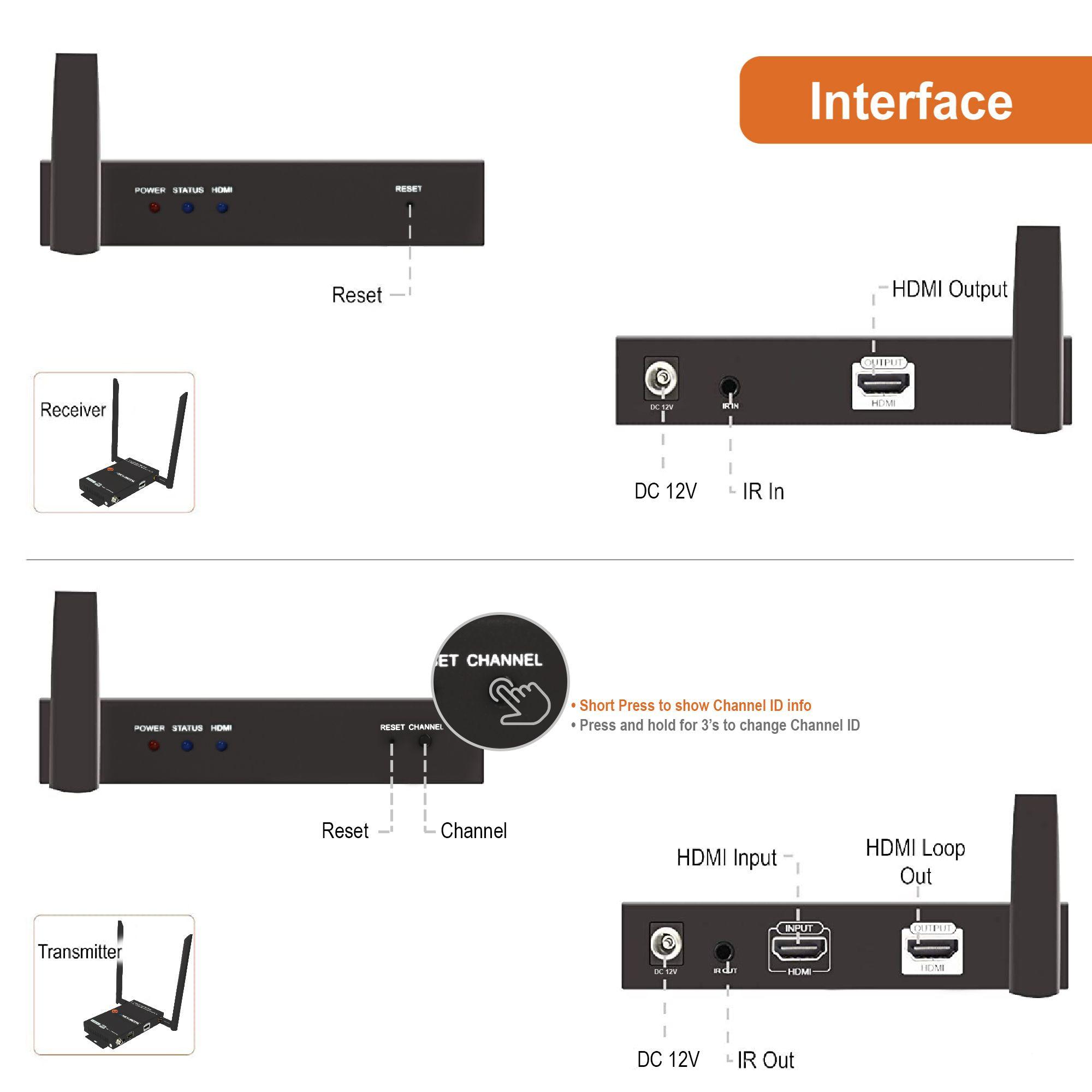

✅ Wireless Full HD 1080P with HDMI loop output | Wi-Fi channel and SSID name can be changed.
✅ Improved data rates and video stability | Wide frequency IR control
✅ Lockable DC power plug design
✅ Supports video resolutions of 480p, 720p, 1080i and 1080p
Information
- Brand
- J-Tech Digital
- MPN
- JTD-611
- Model
- JTECH-WEX200V3
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
No drivers available
Specifications
- Resolution
- Up to 1080P@50/60Hz
- Max bandwidth
- 225MHz
- Max baud rate
- 6.75Gbps
- Input/Output TMDS signal
- 0.5 ~ 1.5 Volts p-p (TTL)
- Input/Output DDC signal
- 5 Volts p-p (TTL)
- HDMI Output Cable Distance
- ≤12m AWG26 HDMI standard cable
- Transmission Distance
- Up to 200ft. (in open space)
- Storage Temperature Range
- -20°C to +60°C
- Audio Format
- LPCM2.0/48KHz/16Bit
- Antenna type
- External dual 3dBi gain antenna
- Wireless standard
- IEEE 802.11a/n
- Wireless Band
- 5GHz ISM Band
- Max Data rates
- 2T2R up to 300Mbps
- Transmit Output Power(IPEX)
- 20dBm Max
- TX/RX Max working current
- 1A
- Power Adapter Format Input
- AC 100V~240V 50HZ/60Hz, DC12A
- Operating Temperature Range
- -5°C to + 45°C
- Operating Humidity Range
- 10 to 90%RH (No Condensation)
- Storage Humidity Range
- 5 to 95%RH (No Condensation)

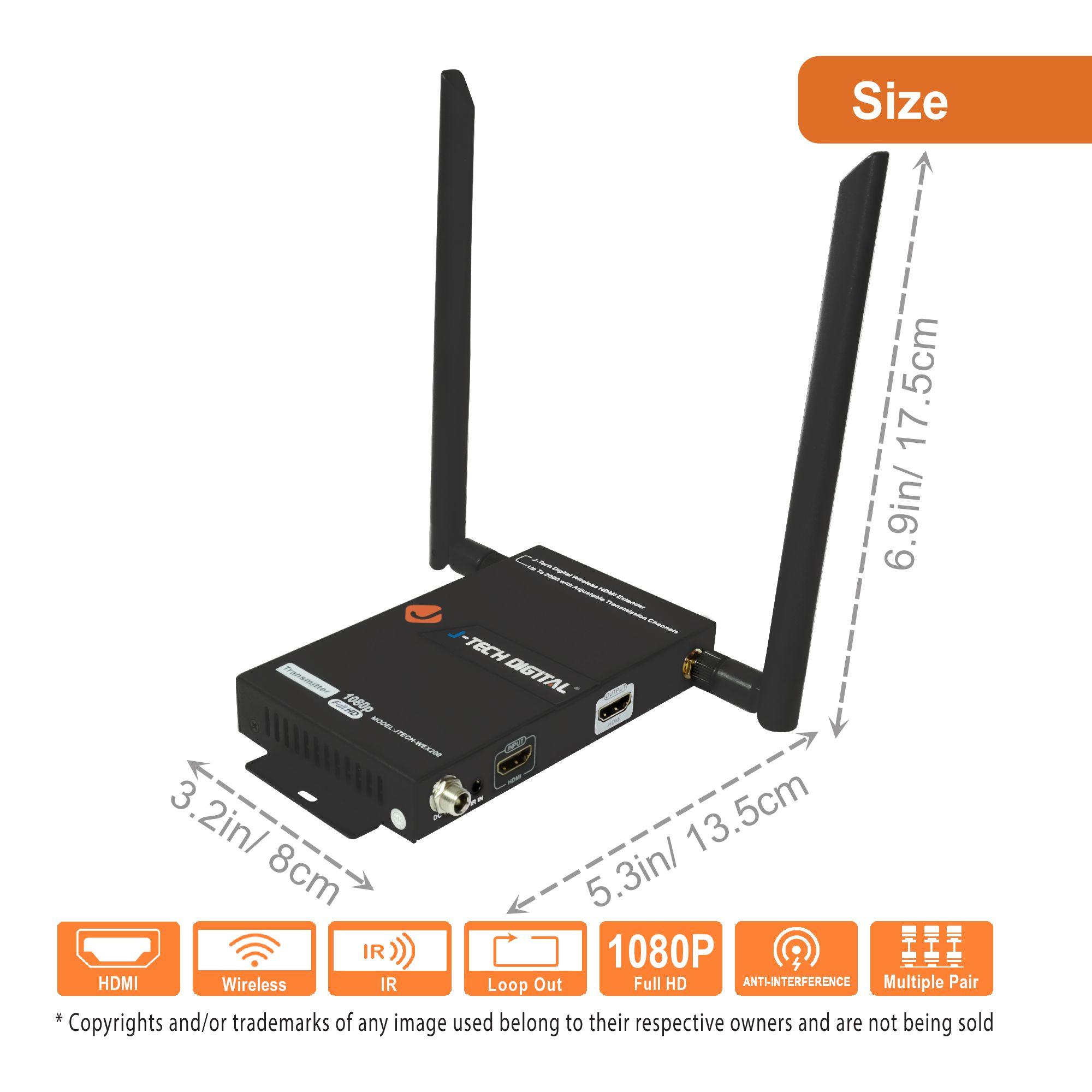

- Case Dimension (L x W x H)
- 5 x 5 x 0.98 (in)
- Weight
- TX .359 lbs / RX.352lbs
- IR Carrier frequency
- 20-60KHz

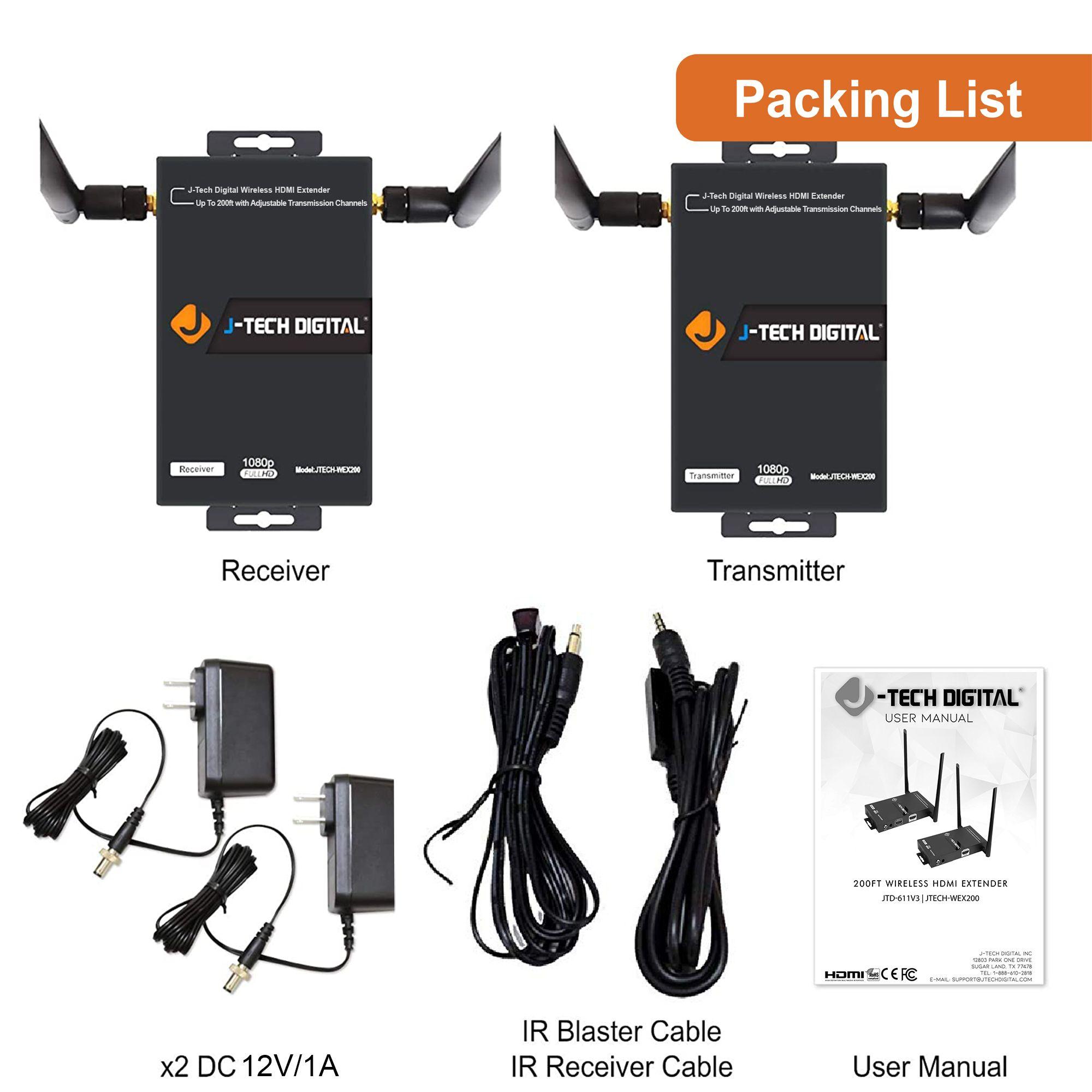

What's in the box
- 1 x Transmitter
- 1 x Receiver
- 2 x Power adapters
- 2 x IR Cables
Frequently asked questions
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
| Firmware Update | 1.0 |
