An HDMI to optical converter is a good starting point when your modern TV or HDMI source supports the documented extraction route and your older receiver has an optical input. If the legacy equipment accepts only RCA left/right or 3.5mm aux, choose an extractor or DAC that explicitly provides that analog output instead.
The right purchase depends on the source route, the converter's inputs and outputs, the receiver or speaker input, supported audio formats, and power requirements—not on matching connector shapes alone.
Identify the Output and Input You Actually Have
Before comparing listings, write down the source's output route and the older system's input. A TV's ARC/eARC port is not the same as a regular HDMI input, and an optical output does not automatically become an RCA or aux output. The exact TV and converter manuals determine compatibility; this ARC background explanation can help with the terminology.
Check the TV or HDMI Source
Start with the device supplying the picture and audio:
- Look for HDMI ARC or HDMI eARC on the TV. That route sends TV audio back through a compatible HDMI connection and requires explicit support from the TV and the receiving converter or audio device.
- Treat a regular HDMI port as a separate route. A streaming player, cable box, or game console may need a source-side extractor between the HDMI source and the display.
- Check the TV or the source's audio output menu. Note whether it offers PCM, stereo, pass-through, bitstream, or another documented format before you shop.
- Note any existing optical, RCA, or headphone output, but do not assume that an available jack solves the signal-conversion problem.
If you cannot tell whether the active route is TV ARC/eARC or regular HDMI output, identify the exact TV or source model first and that detail can change the type of HDMI audio extractor you need.
Check the Receiver, Amplifier, or Speakers
Next, inspect the equipment that will receive the sound:
- Optical/SPDIF input: Look for a square optical port and confirm that the receiver or amplifier accepts it.
- RCA left/right input: Identify the red and white analog inputs, often labeled Audio In, Line In, AUX, or something similar.
- 3.5mm stereo aux input: Check whether powered speakers, a sound system, or an amplifier uses a headphone-style input.
- Amplification: A receiver or powered speaker can drive speakers; passive speakers generally need an amplifier in the chain. Do not connect a converter directly to passive speakers unless the system includes the required amplification.
Make a short note such as “TV ARC to optical receiver” or “streaming box to extractor to powered speakers through 3.5mm.” This source-to-input map is more useful than a product title when comparing a HDMI extractor.
Choose Optical, RCA, or Aux by the Receiving Input
Choose the converter output that matches the older system's input: optical for a documented optical input, RCA for left/right analog input, and aux for a 3.5mm analog input. Optical carries a digital audio path, while RCA and aux are typically analog stereo connections; the converter must perform any required conversion.
| Receiving input on older equipment | Signal path | What the converter must provide | Typical fit |
|---|---|---|---|
| Optical or SPDIF | Digital audio | Documented optical output and compatible format support | Older AV receiver or amplifier with optical input |
| RCA left/right | Analog stereo | Explicit RCA analog output, or a documented digital-to-analog stage | Stereo receiver, amplifier, or powered speakers with red/white inputs |
| 3.5mm aux | Analog stereo | Explicit 3.5mm analog output, often with the correct stereo mode | Powered speakers, compact stereo, or an amplifier with aux input |
| Optical source to RCA/aux equipment | Digital to analog | A DAC or an extractor that documents analog output and supported mode | Legacy equipment without a digital input |
A cable with matching ends does not convert HDMI, optical, or digital audio into another signal type. If the older system is analog-only, an HDMI-to-RCA audio converter or an HDMI audio converter with 3.5mm output is the relevant category—not an optical-only device followed by the assumption that the receiver will convert it.
For analog playback, check whether the selected model documents stereo or 2-channel operation. One manufacturer's guide may require a 2CH mode for analog output, but that control should not be generalized to every converter. A DAC audio decoder is a useful starting point for comparing digital-to-analog equipment; verify its current manual against your source and receiver before purchase.
The simplest route is usually the best fit when it works with both devices. Use optical when both sides support the required digital format. Use RCA or a 3.5mm HDMI to aux converter path when the receiving equipment is analog-only and the converter explicitly supplies that output.
When an HDMI to Optical Converter Is the Right Fit
An HDMI to optical converter suits an older receiver with a compatible optical input, provided the source route and converter support each other. If the audio system accepts only RCA or aux, choose a documented analog-output extractor or DAC instead of an optical-only converter.
- Use a TV ARC/eARC route only when the TV, converter, and receiving device document support for that route.
- Use a regular HDMI source-side extractor when the source device feeds the display through the converter.
- Match the converter's optical, RCA, or 3.5mm output to the receiver or powered speakers; do not infer the output from the word “converter.”
- Confirm the supported audio format and power connection in the model's manual.
Match the Extractor to the HDMI Route
The route determines the converter's job:
| Situation | Audio direction | Product support to verify | Receiver-side connection |
|---|---|---|---|
| TV audio over ARC/eARC | TV to compatible HDMI audio device or extractor | TV port, converter, and route must explicitly support ARC or eARC | Optical, RCA, or 3.5mm only if documented |
| Streaming device or cable box feeding a TV | HDMI source to extractor, then display | HDMI input, HDMI output, audio extraction, format, and power | Optical or analog output matching the receiver |
| Older receiver already has optical input | Digital audio into receiver | Source route and optical format support | Optical/SPDIF |
| Older amplifier has only RCA or aux | Digital source to analog output stage | Explicit RCA or 3.5mm output and any required stereo mode | RCA left/right or 3.5mm aux |

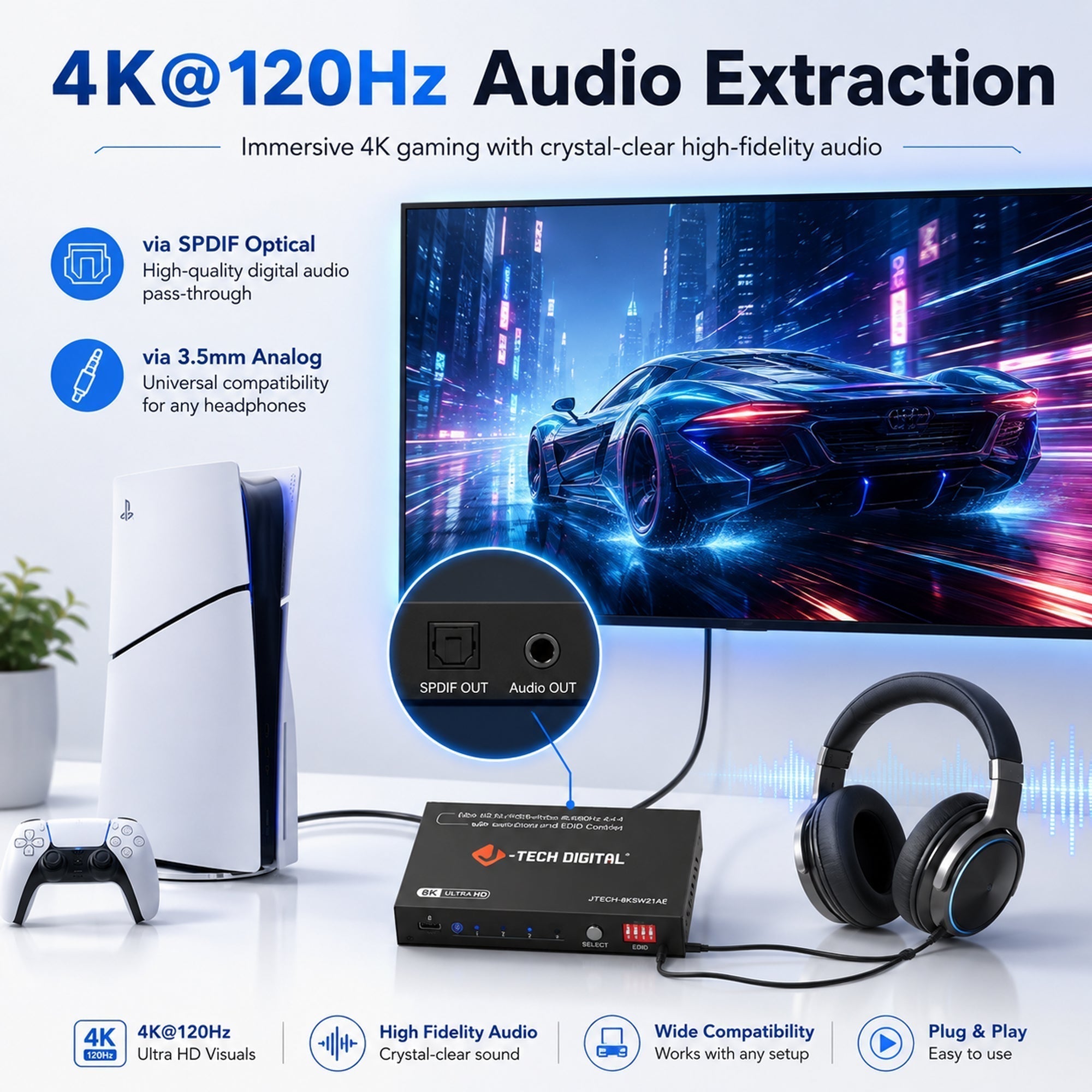

A regular HDMI source-side setup commonly runs from the source's HDMI OUT to the extractor's HDMI IN, from the extractor's HDMI OUT to the TV, and from the extractor's audio output to the receiver or powered speakers. This is a model-specific example, not a universal wiring diagram; follow the selected manual for power, audio mode, and port labels. A separate TV-return route needs explicit ARC/eARC support. For example, evaluate a manufacturer's ARC/eARC audio extractor using its current documentation rather than its product title alone.
Wire the System in the Right Order
Use this sequence to reduce input confusion:
- Identify the active TV ARC/eARC port or the regular HDMI source route.
- Connect the source, converter, and display according to the converter's diagram. For a source-side extractor, that often means source to HDMI IN and TV to HDMI OUT.
- Connect optical, RCA, or 3.5mm audio from the converter to the matching receiver, amplifier, or powered-speaker input.
- Connect the specified power adapter or USB power lead if the model requires one.
- Select the corresponding input on the older audio system and play one familiar source.
- Change only one setting at a time if the first test fails.
A quick-start wiring example can show the layout for one extractor model, but follow the selected product's manual for its actual ports and settings. An HDMI extractor with optical and RCA can be a relevant comparison when those are the required output types, but a general specification does not guarantee that it fits every TV, source, or receiver.
Fix No-Sound, Format, and Lip-Sync Problems
Troubleshoot from the physical path outward: confirm power and selected inputs, then check the audio format and isolate the chain before adjusting one documented sync control at a time. Avoid changing several devices simultaneously, because that makes it harder to identify the cause.
- Confirm power, cable connections, selected inputs, and the active HDMI route.
- Test one source and one receiver input at a time.
- Check the source and TV audio-format settings before changing converter controls.
- Isolate the TV, converter, and receiver when investigating lip-sync issues.
Check Signal and Input Selection
Follow this order:
- Confirm that the converter has the specified power connection and indicator behavior.
- Verify the intended HDMI port, especially if the TV has separate ARC/eARC and regular HDMI labels.
- Reseat the HDMI and optical, RCA, or 3.5mm cables.
- Select the audio input that actually contains the converter's signal.
- Check the TV or source output setting instead of assuming the HDMI link is active.
Test one source and one receiver input before adding a second streaming device, switch, or sound system. If the system remains silent, note the exact source, TV, converter, and receiver models before trying more advanced settings.
Use a Compatible Audio Format
The source, converter, and receiver must all support the selected format. PCM or stereo can be a useful compatibility test in some setups, but it is not a guaranteed fix; pass-through, bitstream, Dolby, and other multichannel choices depend on the equipment. Official audio-format guidance for streaming devices illustrates why the source menu matters as much as the TV menu.
- Check the streaming player's, cable box's, or console's selected output format.
- Confirm that the TV and converter document support for that format.
- If RCA or aux output is used, check whether the manual requires stereo or 2-channel mode.
- Do not assume that RCA left/right carries the surround format expected by the receiver.
Check the source first, then the TV, and finally the converter's documented mode. If analog RCA or aux output is involved, verify whether the manual calls for stereo or 2-channel mode. Do not promise surround playback from RCA left/right without checking the converter's channel and downmix documentation.
Reduce Lip-Sync Friction
If speech does not match the picture, compare the legacy system with the TV's internal speakers using the same content. Then isolate one device or HDMI-chain component at a time where practical. Processing in a receiver, soundbar, TV, or converter can contribute to delay, so use only the delay controls documented for those models. Official troubleshooting guidance supports isolating the chain, but it does not establish a universal delay value or guarantee that bypassing one device will solve every setup.
Use This Compatibility Checklist Before Buying
Before adding a converter to your cart, match the documented source route and converter input/output to the exact legacy-system input. Then verify format support, power, cables, physical fit, and a practical return or warranty path.
- Receiving input: Is the older equipment using optical/SPDIF, RCA left/right, or 3.5mm aux? Is amplification available for the speakers?
- Source route: Do you need a regular HDMI-source extractor or a TV ARC/eARC route?
- Output type: Does the converter explicitly provide the optical, RCA, or 3.5mm output you need? Do not infer it from the word “converter.”
- Audio format: Do the source, converter, and receiver support the same PCM, stereo, pass-through, bitstream, or multichannel option?
- ARC/eARC: If TV audio is returning over HDMI, do the TV port and converter both document the required ARC or eARC support?
- Power: Is an adapter or USB lead required, included, and practical near the TV and receiver?
- Cables and placement: Are the needed HDMI and audio cables included, and is there enough room for the converter and its connectors?
- Return and warranty terms: Can you return the unit if the exact model combination fails, and do the terms cover the installation period?
If any required port, format, power, or ARC/eARC detail is missing from the listing or manual, pause the purchase and verify the exact model. Browse HDMI audio extractors or broader audio converter options only after you know the route. Choose the least complex documented path that matches both devices.
FAQs about HDMI Audio Converter Setup
Can I Use HDMI ARC With an Older Receiver?
Yes, but only when the TV port and converter or receiving device explicitly support ARC; eARC should be checked separately. Also verify the receiver-side output: an ARC extractor may offer optical, RCA, or another output, but the receiver must accept that exact signal. A regular HDMI input on the TV does not establish an ARC route by itself.
Does HDMI-to-RCA Audio Support Surround Sound?
RCA left/right usually describes an analog stereo path, so do not assume it carries the surround format your receiver expects. Check the converter manual for channel handling or downmix behavior, then confirm what the receiver accepts. If multichannel playback is essential, match the documented source, converter, and receiver format before choosing RCA output.
Can I Plug an HDMI Cable Directly Into an Aux Input?
No. HDMI and 3.5mm aux use different connections and signal paths, so a passive cable is not a substitute for conversion. Use a converter with an explicit 3.5mm analog output, and connect it to powered speakers or an amplifier with its own speaker-driving capability. Confirm whether the converter requires a stereo mode.
Why Does the TV Show Audio Settings, but the Receiver Stays Silent?
The TV may be displaying settings for internal speakers, ARC/eARC, optical, or another inactive route. Check the active output selection, the receiver's selected input, and the source format separately. If the TV and receiver still disagree, test the same content through the TV speakers and determine whether the converter is receiving the intended route.
Do HDMI Audio Converters Need External Power?
Power requirements vary by converter design and connection route. Before installation, check the manual for an AC adapter, USB power lead, or other required connection, and make sure an outlet or USB port is nearby. A converter that powers on in one setup should not be assumed to use the same power arrangement in another model.
