Optical Audio Splitter vs Toslink Switch for Home Audio Routing

Choose an optical audio splitter when one optical source needs to feed multiple listening destinations. Choose a Toslink switch when multiple optical sources need to share one destination and you want to select the active source. The deciding factor is signal direction—not which product name sounds more versatile. Before you buy, map the number of sources and destinations, then verify port roles, cable fit, power, audio-format support, and day-to-day controls across the entire chain.

Splitter or Switch: Which Routing Problem Do You Have?

A splitter duplicates one source path for multiple destinations, while a switch selects one source from several inputs for a shared destination. A TV feeding both a soundbar and receiver points to a splitter; a game console and TV sharing one sound system point to a switch if they are separate optical sources. This basic signal-flow distinction is also described in optical digital audio guidance.

The simplest rule is duplicate versus select. If you need the same source available at two endpoints, investigate optical audio splitters. If you need to choose between sources, investigate optical audio switches. Neither category should be assumed to convert formats, route video, or improve sound quality.

Trace the actual path before comparing models: source output → routing-device input → routing-device output → destination input. If you cannot draw that path clearly, pause the purchase and label each device as a source or destination first.

When an Optical Audio Splitter Is the Right Choice

An optical audio splitter is worth considering when one optical source needs to reach more than one listening destination. It can simplify a TV-to-soundbar-and-receiver setup, but confirm simultaneous playback, volume behavior, mute behavior, and endpoint compatibility for the specific splitter and connected devices.

One TV Output to a Soundbar and Receiver

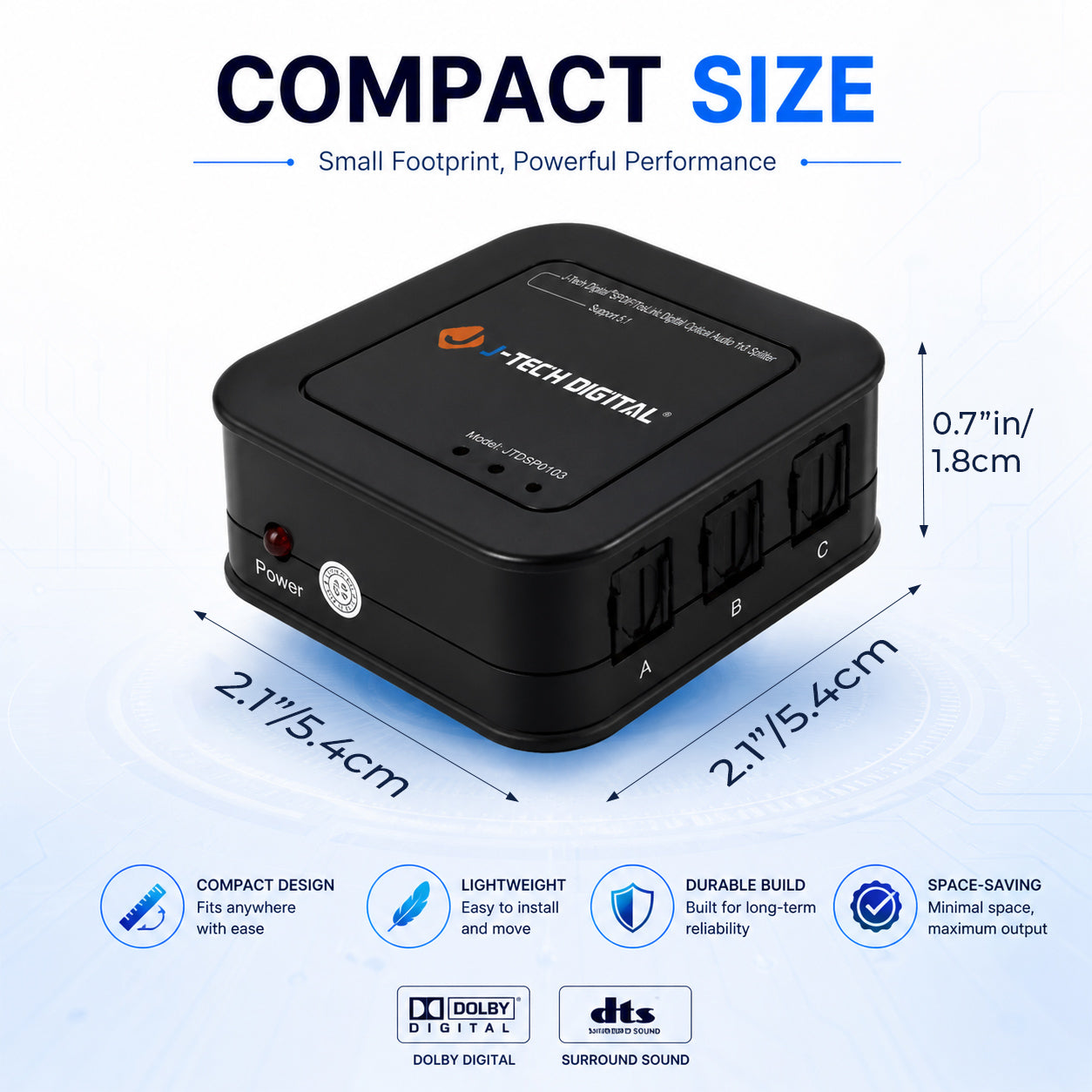

For a TV-to-soundbar-and-receiver setup, connect the TV's optical output to the splitter's input, then connect each splitter output to the intended listening device. This is a one-source/multiple-destination route, so it fits the splitter category. A model like the JTD-SP0103 1x3 optical splitter covers exactly this pattern, supporting PCM stereo and compressed 5.1 formats across all three outputs.

Before relying on the setup, check the TV's available digital-audio settings and the formats accepted by the soundbar and receiver. Also decide whether both endpoints need to operate at the same time. A category match does not confirm that both destinations will behave as expected or that one remote will control both devices.

One Source to Headphones and a Home Theater Device

A source feeding headphones and home theater equipment is another possible splitter use case. Write down the requirements before buying:

• Source: Identify the TV or other optical source that will feed the route.
• Destinations: List the headphones, receiver, soundbar, or other listening devices separately.
• Simultaneous use: Decide whether both destinations must play at once or whether one will normally be disconnected or muted.
• Volume and mute controls: Check how each endpoint is controlled. Optical distribution does not guarantee shared volume control or independent volume adjustment.

A splitter is not the right answer when you have multiple independent sources and only one destination; that is a source-selection problem. It is also not a substitute for resolving a format mismatch or adding video routing.

Check Ports, Cables, and Audio Format Compatibility

Before buying, verify the optical input and output roles, Toslink fit, cable path, power needs, and audio settings across the source, routing device, and destination. S/PDIF over Toslink can usually carry stereo PCM and compressed 5.1 formats such as Dolby Digital or DTS, depending on device support. It should not be treated as a path for Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS-HD, or multichannel PCM. Microsoft's S/PDIF documentation makes clear that interface capability does not guarantee that every device in the chain supports the same formats.

Use this checklist before installation:

• Port direction: Confirm which device has an optical output and which has an optical input. Do not rely on “splitter” or “switch” in the product name to tell you how every port is intended to work.
• Toslink fit: Check whether the cable connector matches the port and whether protective caps have been removed. Insert optical plugs straight until they are fully seated. Optical cable handling guidance also advises against bending or tying optical cables.
• Cable path: Route the cable without sharp bends or tight ties, and use only the length needed for the installation. If you need a replacement, a 3-foot Toslink cable is one option; verify its current specifications before purchase.
• Source output mode: Check the TV, console, or other source for its digital-audio output setting. A format that works when the source is connected directly may not work through every TV or routing accessory.
• Destination support: Verify the supported input formats for the receiving soundbar, receiver, or headphones. Treat PCM, Dolby, DTS, and related labels as conditional rather than as a promise from the cable type alone.
• Power and controls: Check whether the selected routing device needs power, indicators, a physical selector, or a remote. Make sure you can reach the controls from the installation location.

A TV's optical output usually cannot pass newer HDMI audio formats such as Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS-HD, or multichannel PCM. Many TVs will downmix or re-encode audio to stereo PCM or Dolby Digital 5.1, depending on their settings and model behavior. For example, Sony's optical-format support note documents a model-specific case in which Dolby Digital Plus does not output through the optical jack. That does not establish the behavior of every TV, so check your TV manual and the source's output options. If the TV cannot provide the needed optical signal, a direct source-to-receiver connection may be the simpler path when the equipment allows it.

Connect the System in the Right Signal Direction

To learn how to route optical audio reliably, label the source and destination roles first. Then connect the matching ports, power the device, select the route, and test one link at a time. Optical carries audio only, so the video connection remains separate—typically through HDMI.

Use this four-step setup sequence:

1. Draw the signal path. Mark each optical source, routing device, and destination. For a TV, soundbar, receiver, or console, write “output” beside the source port and “input” beside the destination port.
2. Connect the correct direction. For a splitter, connect one source output to the splitter input, then connect the intended listening devices to the splitter outputs. For a switch, connect each optical source to a switch input and the shared sound system to the switch output.
3. Power and select. If the device requires power, connect it as directed by its model documentation. Select the intended switch input or destination input using the controls available on the equipment.
4. Test a conservative route. Start with one source and one destination where practical. Use an audio setting supported by both devices before adding the second destination or changing several format settings.

Wire a Splitter or Switch Without Reversing the Roles

The four steps above keep the source-to-destination direction clear. For a detailed follow-up on a splitter installation, see the optical splitter setup guide. Use the guide as a setup reference, but verify the exact capabilities of the device you are installing.

Isolate a No-Sound Problem One Link at a Time

If audio disappears after adding a splitter or switch, follow this order rather than changing several settings at once:

• Check power, if required. Confirm the routing device is powered and showing the expected indicator.
• Check cable seating and direction. Reseat both Toslink plugs straight and confirm that the source output leads to the routing-device input, not another output.
• Check the destination input. Select the optical input on the soundbar, receiver, or other endpoint. Official TV troubleshooting guidance also identifies input selection and secure optical connections as common checks.
• Check the TV or source output mode. Menu names vary by manufacturer and model. Look for the digital-audio or optical-output setting in the source manual.
• Check format compatibility. Try a format the source and destination both explicitly support. If the direct source-to-destination connection works but the routed path does not, compare the routing device's specifications with both endpoints.
• Test directly where practical. Temporarily connect the source directly to the destination. This helps identify whether the failed link is the source, cable, routing device, or destination before you replace hardware.

With a console and TV, first determine whether the console and TV provide separate optical outputs or whether the TV is expected to pass console audio through its optical output. Do not assume every TV passes every HDMI-source format through optical; that behavior is model-dependent.

Use a Final Buying Checklist Before You Add to Cart

Choose the least complicated device that solves the signal path you have today. Add an optical audio splitter for one-source/multiple-destination routing or a switch for multiple-source/one-destination routing, then verify the exact model details before adding it to your cart.

Use this six-point check:

• Routing direction: Are you duplicating one source or selecting among multiple sources?
• Input and output count: Does the model provide enough connections for the devices you will use? Confirm the exact count in the current specification.
• Port direction: Do the source outputs, routing-device ports, and destination inputs line up with your drawn signal path?
• Cable fit and reach: Will the Toslink connectors fit, and can the cable reach without sharp bends or tight ties?
• Format and power: Do the source, routing device, and destination support a compatible audio format, and is power available if the model needs it?
• Daily controls: Will you need source selection, endpoint volume, mute, indicators, or remote access that the setup does not provide automatically?

If any answer is uncertain, verify the exact model specification or manual before purchasing. A switch for home audio is useful when it eliminates repeated source-cable changes; a splitter for a TV and soundbar is useful when it distributes one source to the destinations you actually need. Neither is a reason to assume future compatibility or better sound quality.

FAQs about Optical Audio Splitter Routing

Does a Toslink switch need external power?

Power requirements vary by model. Check the specifications and make sure power is available where the switch will sit. If a model uses USB power or an adapter, plan for that connection before installation.

Can a splitter add audio delay?

Delay behavior depends on the splitter, source, and receiving devices. Compare the direct and routed connections using the same program, then check lip-sync controls if a mismatch appears.

Will a Toslink cable carry Dolby Atmos from every TV?

No. Standard Toslink/optical S/PDIF does not carry Dolby Atmos, whether the Atmos track is based on Dolby TrueHD or Dolby Digital Plus. Use HDMI ARC or HDMI eARC for Atmos-capable setups, depending on the source, TV, and audio device. Optical is usually limited to stereo PCM or compressed 5.1 formats such as Dolby Digital or DTS.

Why is there no sound after adding a splitter?

Check power, cable direction, the selected optical input, the source output mode, and mutually supported formats. Test one link at a time, including a direct source-to-destination connection.

Can I use an optical switch with a game console and a TV?

Yes, if both provide separate optical outputs and need to share one soundbar or receiver input. If the TV is passing console audio through, check that model's optical behavior first; a direct connection may be simpler.
