Name: [Discontinued] HDBaseT HDMI Extender 18Gbps with ARC
Brand: J-Tech Digital
SKU: JTD-460
Price: 285.99 USD
Availability: InStock

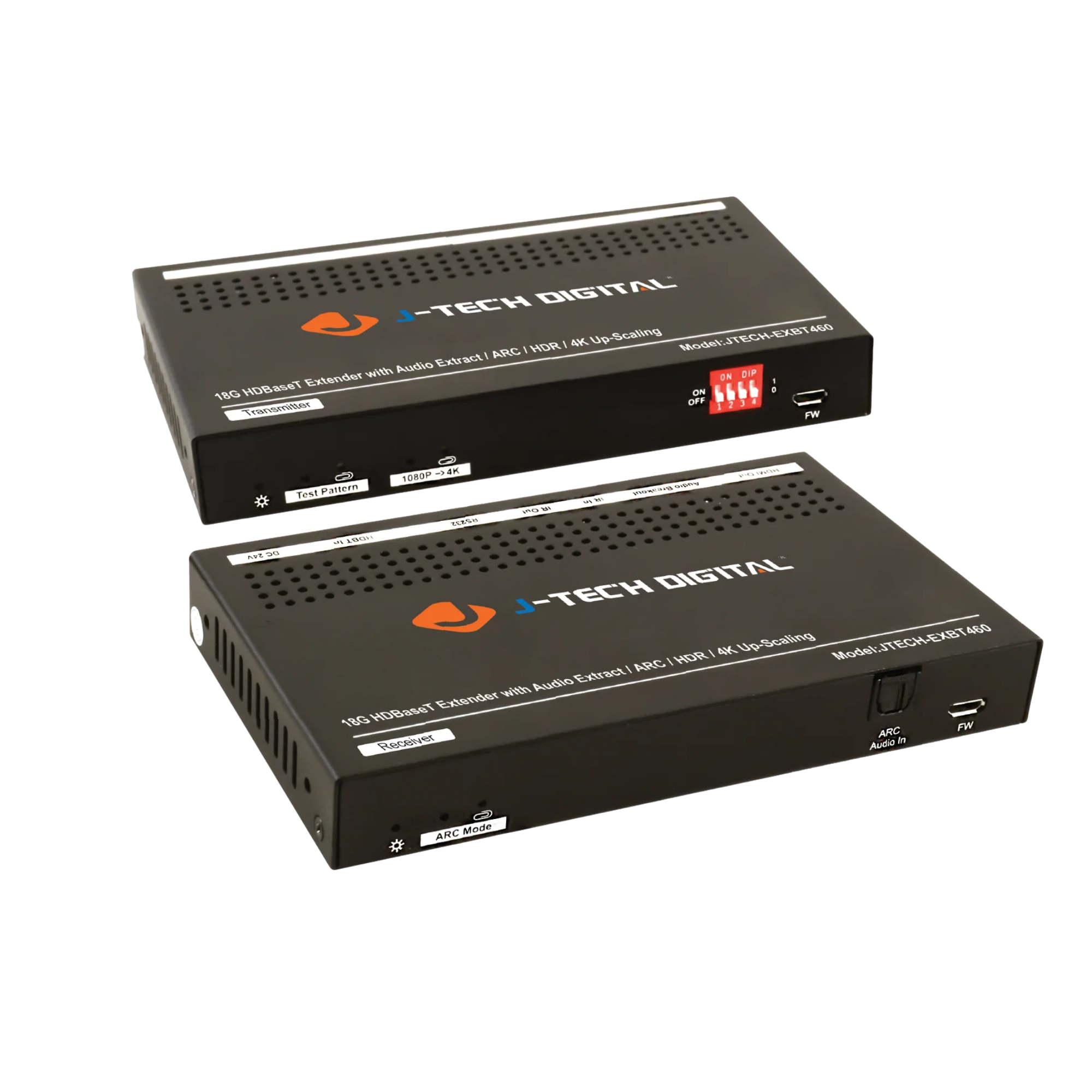

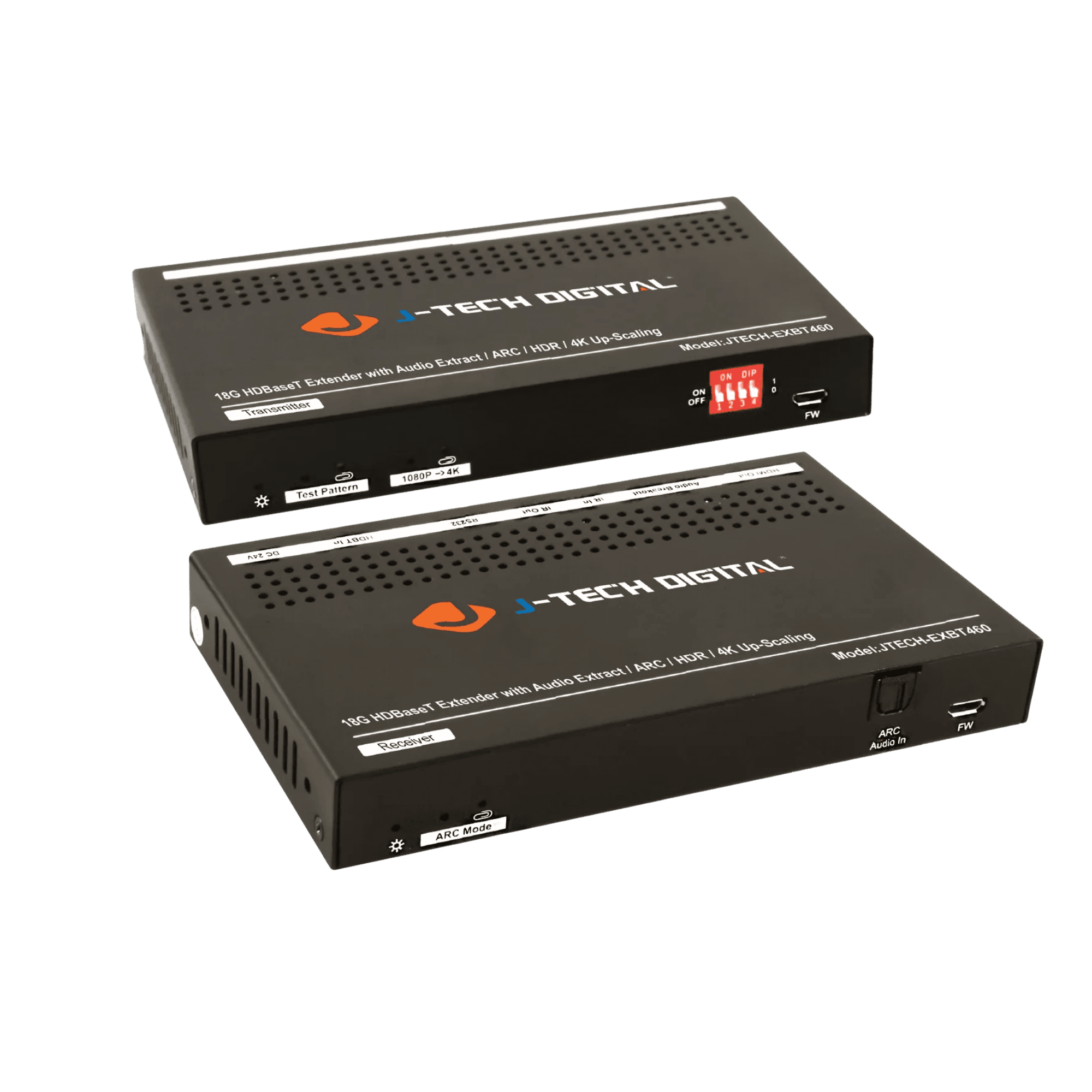

wired hdmi hdbaset extender transmitter and receiver with support up to 4k 60hz

[Discontinued] HDBaseT HDMI Extender 18Gbps with ARC

$285.99

✅ 18Gbps HDMI 2.0 Extension: Extend 4K@60Hz (4:4:4) up to 130 ft / 40 m or 1080p up to 230 ft / 70 m over Cat5e/6/7 using HDBaseT™ technology. Supports HDR10 and HDCP 2.2/1.4.
✅ ARC & Audio Extraction: Supports Audio Return Channel (ARC) from HDMI or Toslink/SPDIF back to the transmitter. Receiver also extracts audio via SPDIF/Toslink.
✅ Multi-Channel Audio Support: Compatible with PCM, Dolby Digital 5.1, DTS, DTS-X, and Dolby TrueHD.
✅ Advanced Video & EDID Features: Includes 1080p→4K upscaling, built-in 4K/1080p test patterns, EDID management, and CEC pass-through.
✅ Bi-Directional Control & PoC: Supports bi-directional PoC (Power over Cable), IR control, and RS-232 for seamless system integration.

Overnight shipping*:

Two days shipping:

Quantity

Availability:

In stock

SKU:

JTD-460

Model:

JTECH-EXBT460

Description

The JTECH-EXBT460 HDBaseT HDMI extender delivers reliable 18Gbps performance, extending 4K@60Hz HDR10 video up to 130 ft or 1080p up to 230 ft over a single Cat5e/6/7 cable. It supports ARC and audio extraction via HDMI or SPDIF, multi-channel audio formats, 1080p to 4K upscaling, EDID management, CEC pass-through, and bi-directional control with PoC, IR, and RS-232, making it ideal for professional AV installations and home theater setups.

[Discontinued] HDBaseT HDMI Extender 18Gbps with ARC

$285.99

No images available in product metafield

Resources & Downloads

Category	Description	Version	File
MANUAL	User Manual	1.0	JTD-460 User Manual

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-460 User Manual
