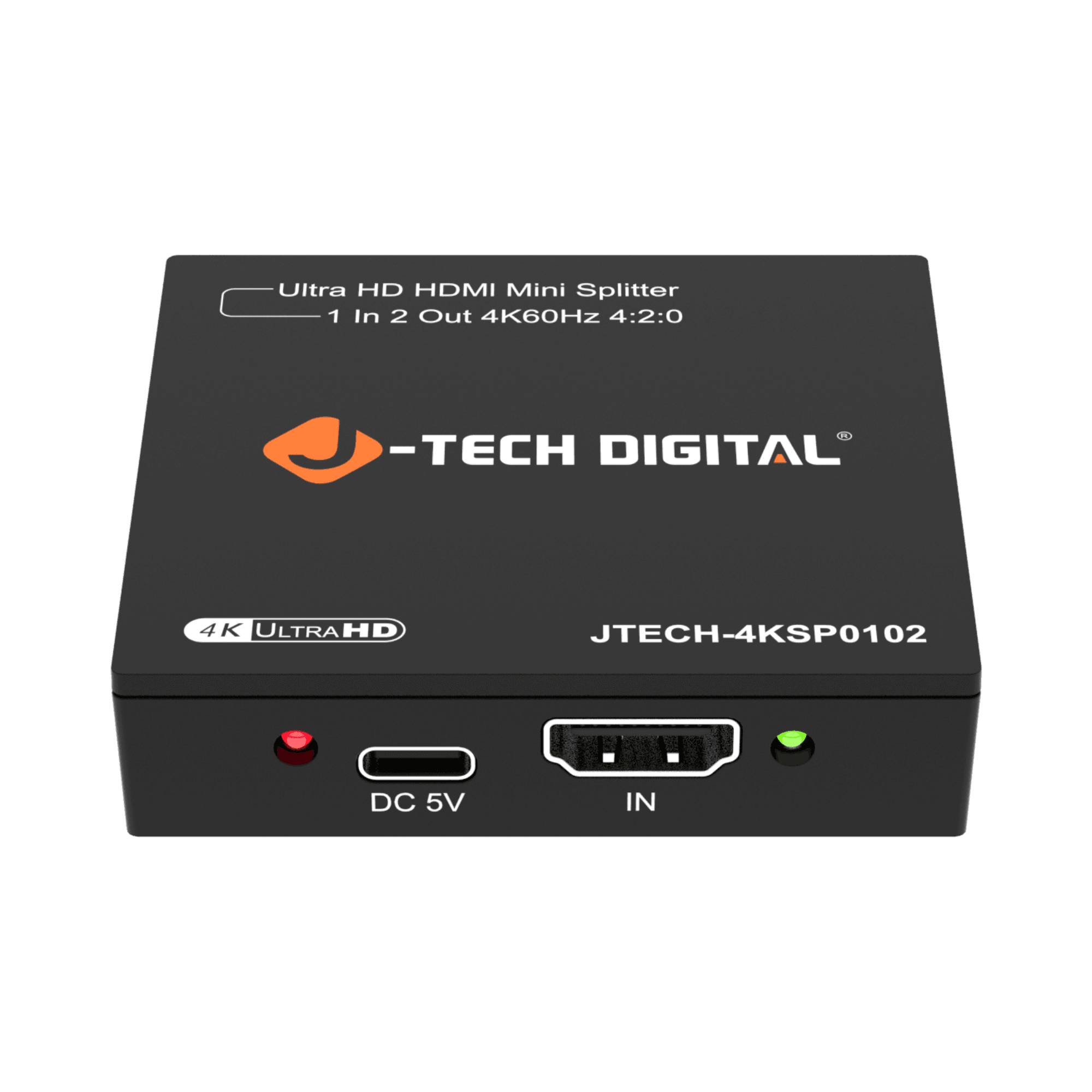

jtd-3283 1x2 4k hdmi splitter front hdmi input port

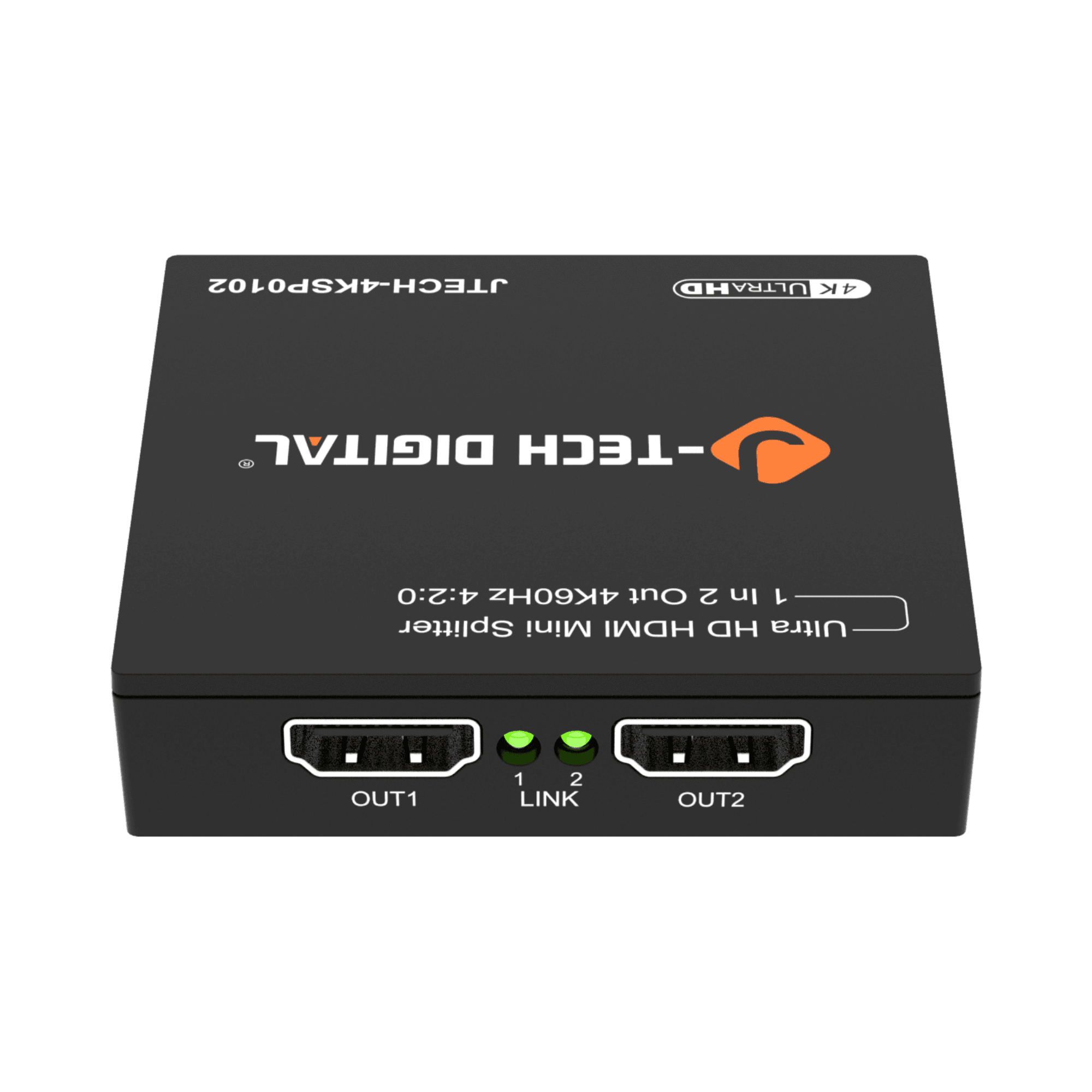

jtd-3283 1x2 4k hdmi splitter back output ports

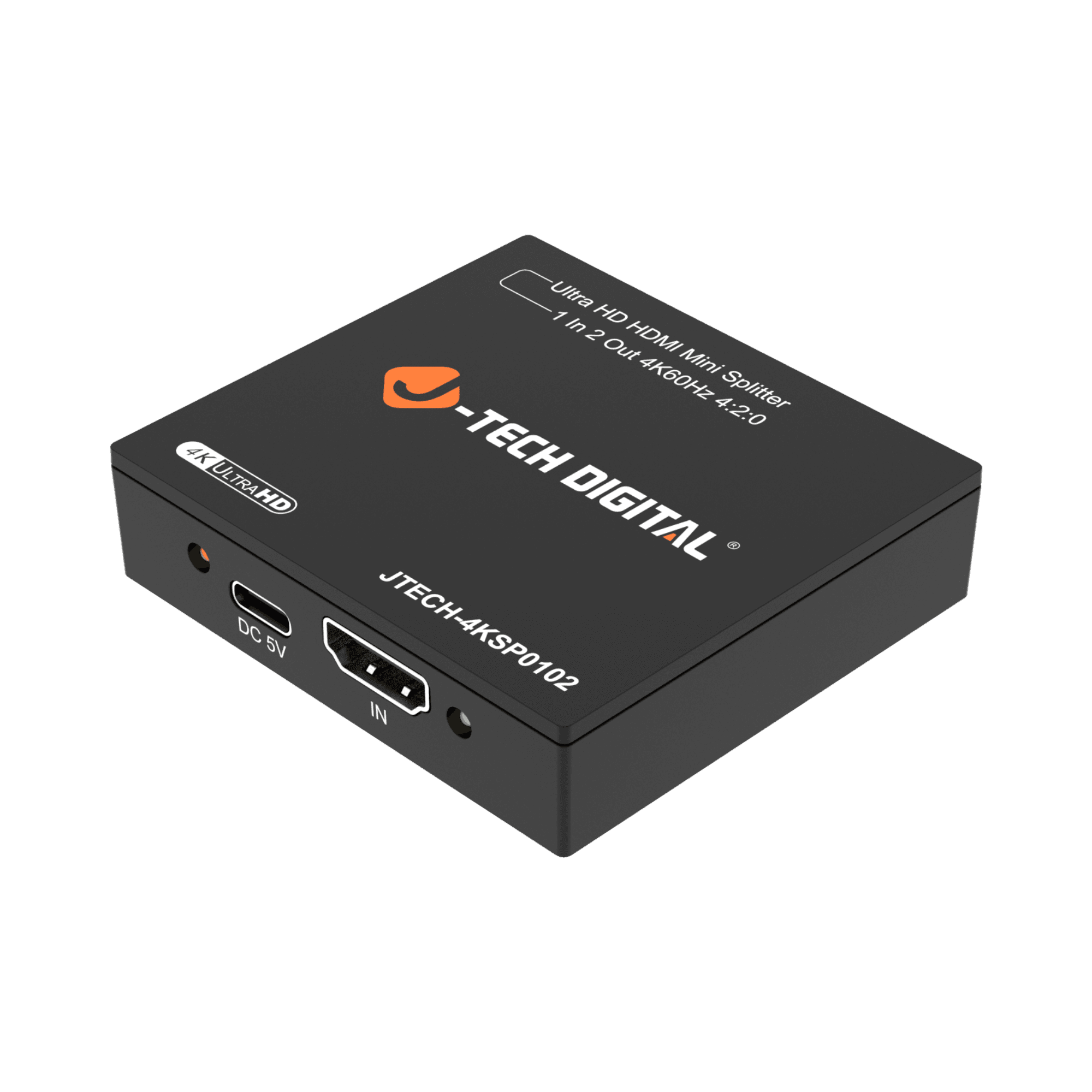

jtd-3283 1x2 4k hdmi splitter side angle showing hdmi input port

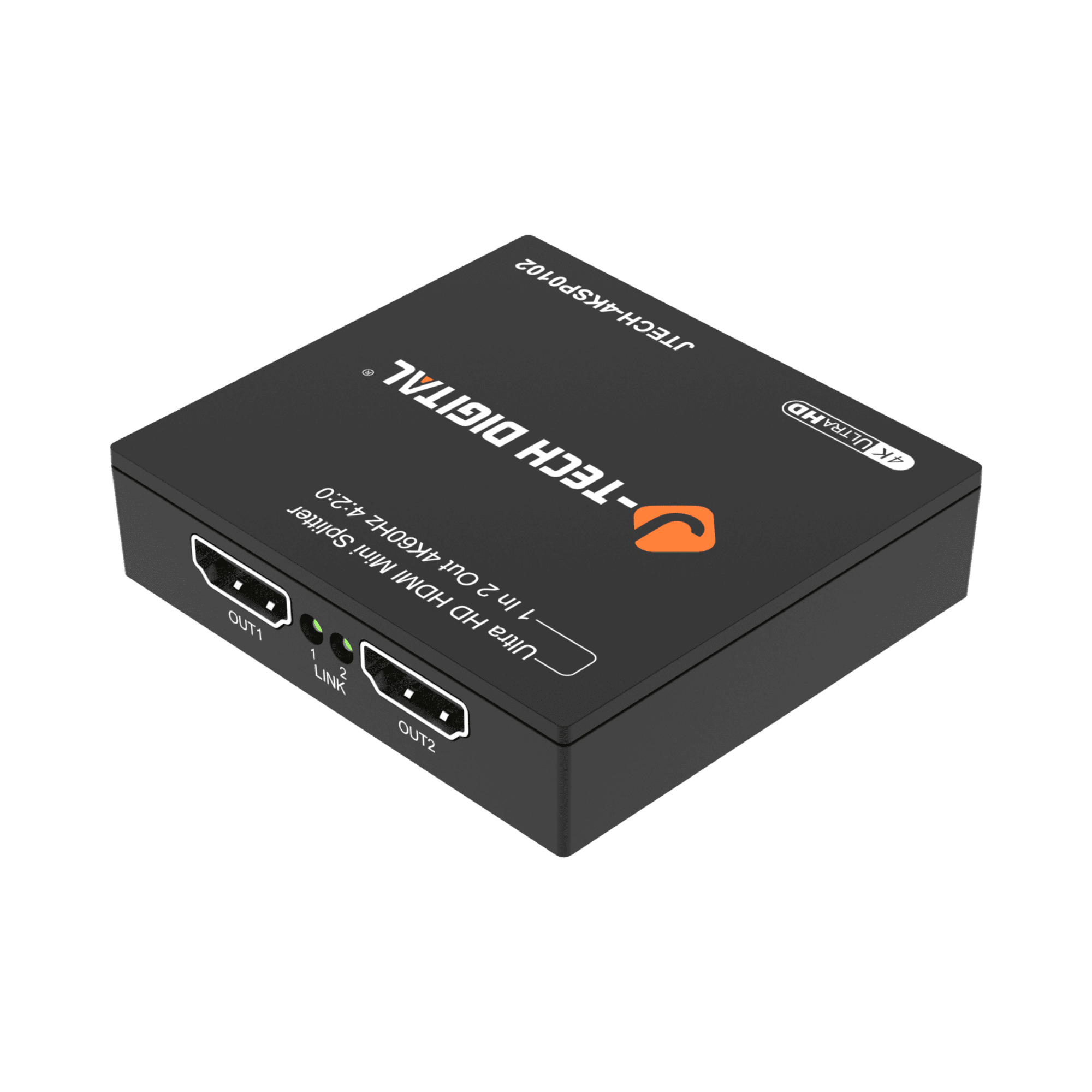

jtd-3283 1x2 4k hdmi splitter side angle showing hdmi output ports

4K 60Hz (4:2:0) 1x2 HDMI Splitter

$15.99

✅ Input 2 Output HDMI Splitter: Distribute one HDMI source to two HDMI displays simultaneously, showing the same video and audio on two TVs, monitors, or projectors without switching cables.
✅ 4K 60Hz HDMI Splitter: Supports resolutions up to 4K at 60Hz 4:2:0 with 10.2 Gbps bandwidth for clear, smooth video from gaming consoles, Blu-ray players, streaming devices, computers, and other HDMI sources.
✅ HDR, 3D and Multichannel Audio Support: Compatible with HDR and 3D video while supporting PCM 2.0, DTS, Dolby, and LPCM audio formats up to 7.1 channels for home theater and commercial AV installations.
✅ Output 1 EDID Copy and Plug-and-Play Setup: Uses HDMI Output 1 as the primary EDID source to establish compatible video and audio settings. Connect the main display to Output 1 for the best results, then connect the second display to Output 2. Includes LED indicators and a USB-A to USB-C power cable.
✅ Free Lifetime Technical Support: All J-Tech Digital products include a One-Year Manufacturer Replacement Warranty and free lifetime technical support from our customer support team located in Sugar Land, TX. Support is available from 9AM – 6PM CST, Monday through Friday.

SKU:

JTD-3283

Model:

JTECH-4KSP0102

Quantity:

4K 60Hz (4:2:0) 1x2 HDMI Splitter

$15.99

Description

Make sharing your favorite content across two screens simple with the J-Tech Digital JTECH-4KSP0102 1x2 HDMI Splitter. Connect one HDMI source and send the same video and audio to two TVs, monitors, or projectors at the same time, perfect for home theaters, gaming setups, offices, classrooms, and digital signage. Enjoy sharp 4K video up to 60Hz 4:2:0, plus HDR, 3D, Dolby, DTS, PCM 2.0, and LPCM audio up to 7.1 channels. HDMI Output 1 acts as the primary EDID source to help maintain stable compatibility between connected displays. With plug-and-play setup, LED status indicators, and an included USB-A to USB-C power cable, this compact HDMI splitter makes dual-screen viewing quick, easy, and reliable.

✅ 1 HDMI Input to 2 HDMI Outputs

✅ 4K 60Hz 4:2:0 Video Support

✅ 10.2 Gbps HDMI Bandwidth

✅ HDR and 3D Compatible

✅ Dolby, DTS and LPCM 7.1 Audio

✅ Output 1 Primary EDID Copy

Specifications

Video

Name	Values
HDMI Input	1 x HDMI input (female)
HDMI Output	2 x HDMI outputs (female)
Resolution Support	Up to 4K@60Hz 4:2:0
Bandwidth	10.2Gbps
HDMI Version	HDMI 1.4
HDCP Version	HDCP 1.4
Video Features	HDR support 3D support

Audio

Name	Values
Audio Format	PCM 2.0 DTS Dolby LPCM up to 7.1 channels

EDID

Name	Values
EDID Copy Function	For best results, connect the primary display to Output 1 Copies 4K EDID when both connected displays support 4K Copies 1080p EDID when one connected display supports up to 1080p Defaults to 1080p EDID when the connected display EDID cannot be read

Electrical

Name	Values
Power Input	5V DC USB-C power port
Power Consumption	1.5W max

Environmental

Name	Values
Operating Temperature	-5°C to +35°C +23°F to +95°F
Operating Humidity	5% to 90% RH No condensation

Physical

Name	Values
Dimensions	60.8 x 69.5 x 22 mm

Package Contents

Name	Values
Included Items	1 x HDMI Splitter 1 x 5V USB-A to USB-C Power Cable 1 x User Manual

Resources & Downloads

Category	Description	Version	File
MANUAL	User Manual	1.0	JTD-3283 User Manual.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-3283 User Manual.pdf
