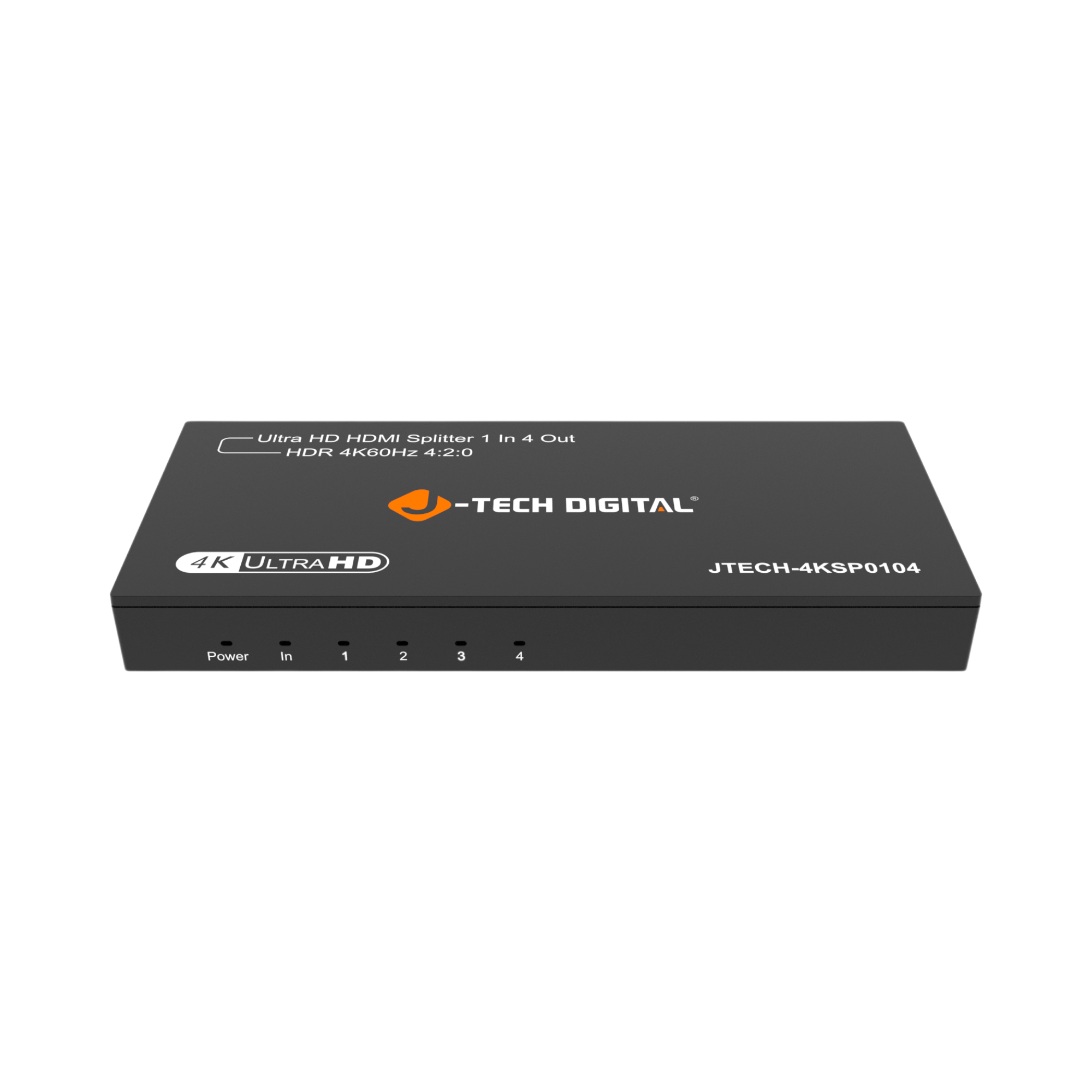

jtd-3282 1x4 4k hdmi splitter front panel with led indicators

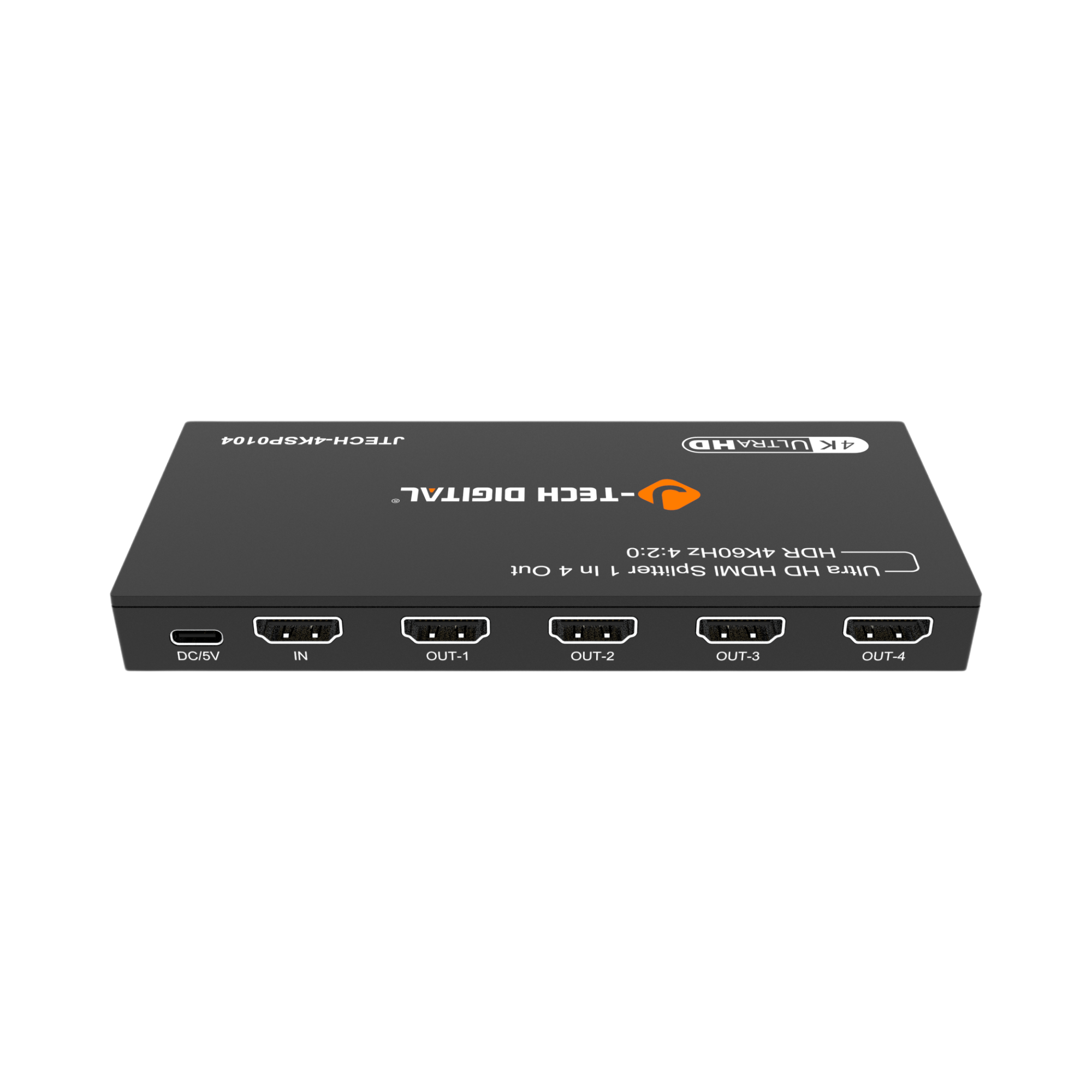

jtd-3282 1x4 4k hdmi splitter back panel showing usb-c power, 1 hdmi input and 4 hdmi output ports

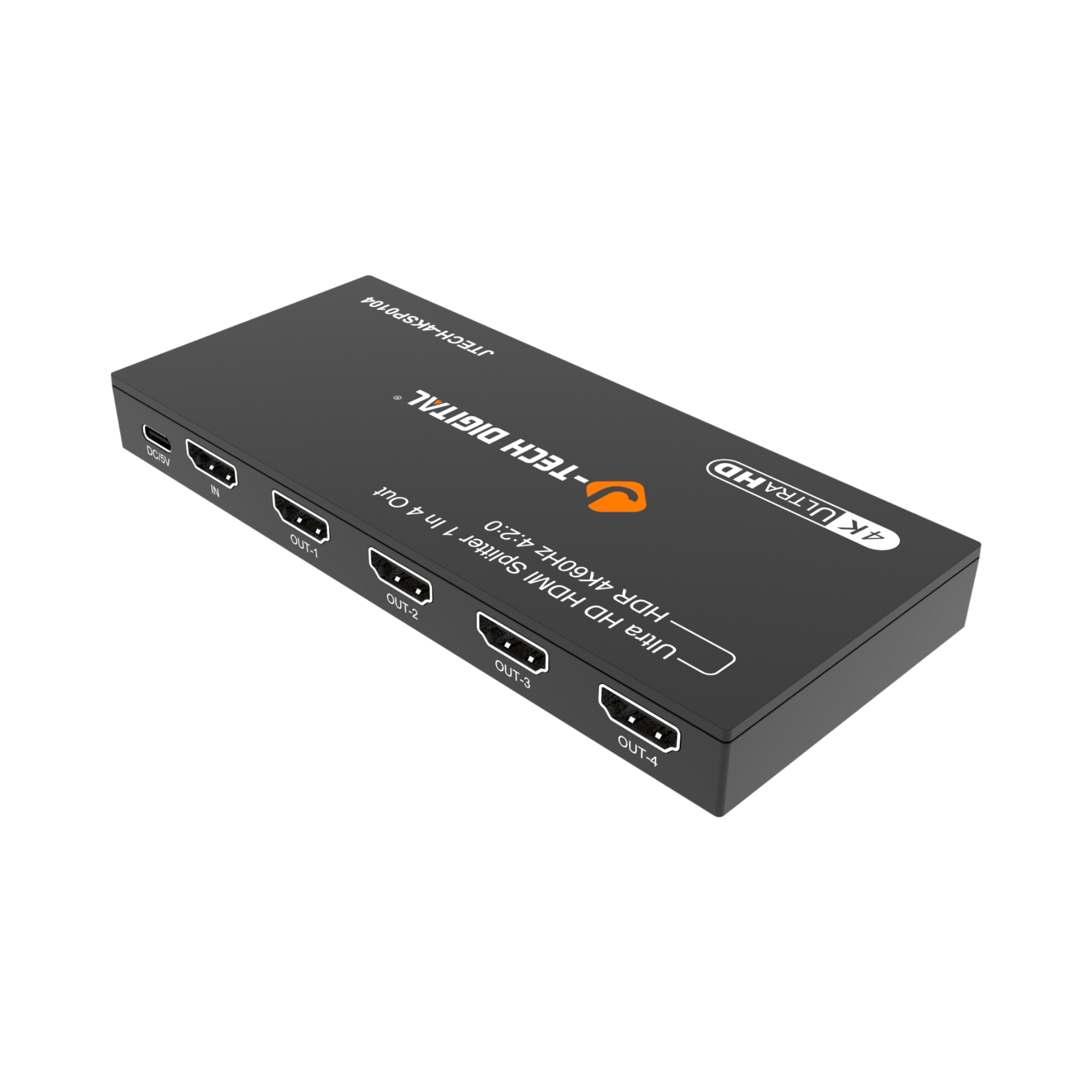

jtd-3282 1x4 4k hdmi splitter side angle showing hdmi ports

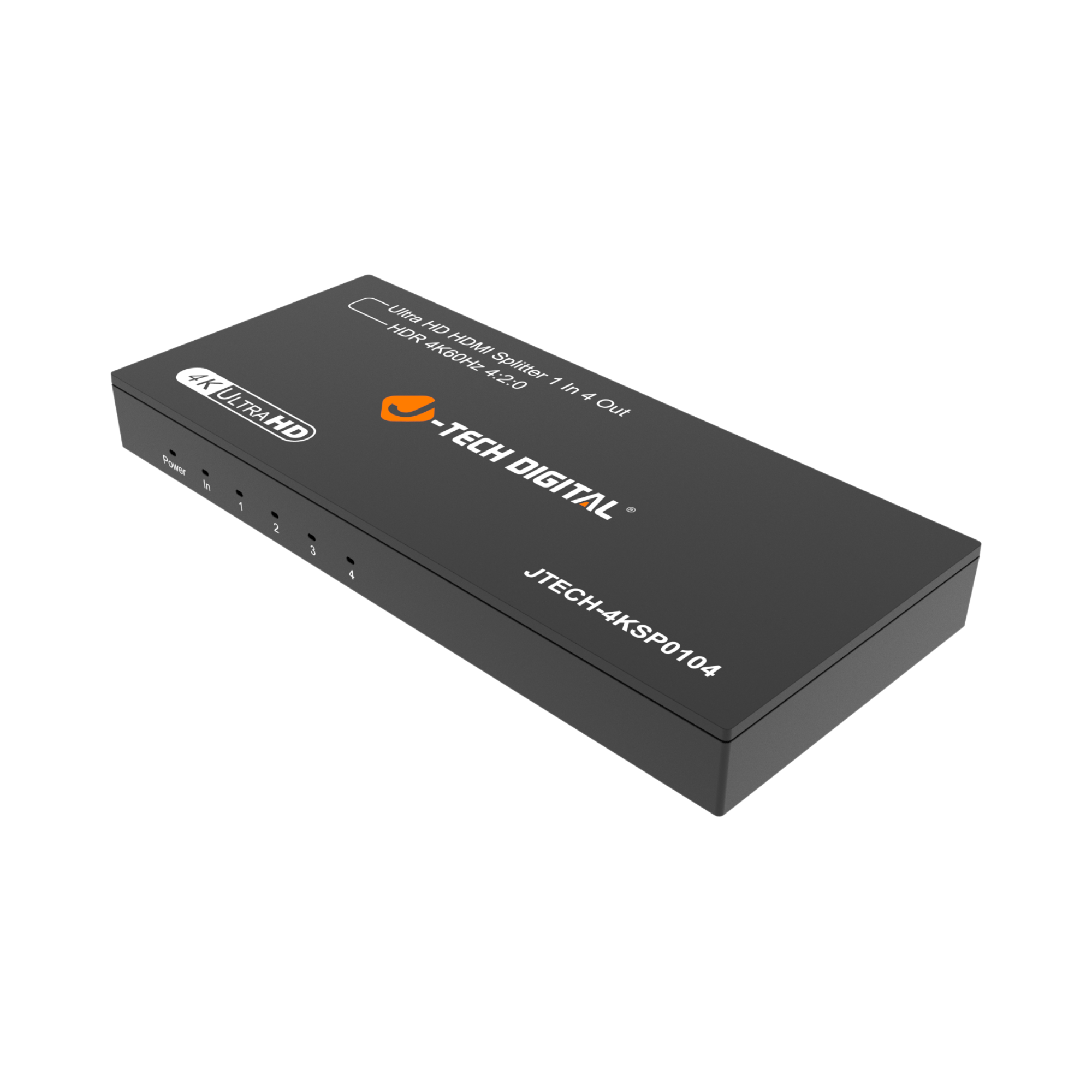

jtd-3282 1x4 4k hdmi splitter side angle showing front panel with led indicators

4K 60Hz (4:2:0) 1x4 HDMI Splitter

$23.99

✅ 1 Input 4 Output HDMI Splitter: Distribute one HDMI source to four HDMI displays simultaneously, showing the same video and audio on up to four TVs, monitors, or projectors without switching cables.
✅ 4K 60Hz HDMI Splitter: Supports resolutions up to 4K at 60Hz 4:2:0 with 10.2 Gbps bandwidth for clear, smooth video from gaming consoles, Blu-ray players, streaming devices, computers, and other HDMI sources.
✅ HDR, 3D and Multichannel Audio Support: Compatible with HDR and 3D video while supporting PCM 2.0, DTS, Dolby, and LPCM audio formats up to 7.1 channels for home theater and commercial AV installations.
✅ Automatic EDID Copy and Plug-and-Play Setup: Automatically reads connected display capabilities to establish compatible video and audio settings for stable performance across all outputs. Includes clear LED status indicators and a USB-A to USB-C power cable for quick, convenient setup.
✅ Free Lifetime Technical Support: All J-Tech Digital products include a One-Year Manufacturer Replacement Warranty and free lifetime technical support from our customer support team located in Sugar Land, TX. Support is available from 9AM – 6PM CST, Monday through Friday. Contact information available on our seller page.

SKU:

JTD-3282

Model:

JTECH-4KSP0104

Quantity:

4K 60Hz (4:2:0) 1x4 HDMI Splitter

$23.99

Description

The J-Tech Digital JTECH-4KSP0104 1x4 HDMI Splitter lets you distribute one HDMI source to up to four TVs, monitors, or projectors at the same time, with the same video and audio shown on every connected display. It supports resolutions up to 4K at 60Hz 4:2:0 and offers 10.2 Gbps bandwidth for smooth, clear playback from gaming consoles, Blu-ray players, streaming devices, computers, and other HDMI sources. The splitter is also compatible with HDR and 3D video, along with PCM 2.0, DTS, Dolby, and LPCM audio formats up to 7.1 channels, making it suitable for both home theater and commercial AV setups. Automatic EDID copying helps establish compatible video and audio settings across connected displays, while LED status indicators and the included USB-A to USB-C power cable make setup quick and straightforward.

✅ 1 HDMI Input to 4 Outputs

✅ 4K 60Hz 4:2:0 Support

✅ 10.2 Gbps HDMI Bandwidth

✅ HDR and 3D Compatible

✅ Audio Support up to 7.1 Channels

✅ Automatic EDID Copy with LED Indicators

Specifications

Video

Name	Values
HDMI Input	1 x HDMI input (female)
HDMI Output	4 x HDMI outputs (female)
Resolution Support	Up to 4K@60Hz 4:2:0
Bandwidth	10.2Gbps
HDMI Version	HDMI 1.4
HDCP Version	HDCP 1.4
Video Features	HDR support 3D support

Audio

Name	Values
Audio Format	PCM 2.0 DTS Dolby LPCM up to 7.1 channels

EDID

Name	Values
EDID Copy Function	Automatically copies the EDID of a connected display Prioritizes monitor EDID when both a TV and monitor are connected Prioritizes 1080p EDID when 4K and 1080p displays are connected Reboot the splitter after connecting a higher-resolution display so the new EDID can be copied

Electrical

Name	Values
Power Input	5V DC
Power Consumption	1.5W max

Environmental

Name	Values
Operating Temperature	-5°C to +35°C +23°F to +95°F
Operating Humidity	5% to 90% RH No condensation

Physical

Name	Values
Dimensions	150 x 64.5 x 17 mm
Net Weight	240 g

Package Contents

Name	Values
Included Items	1 x HDMI Splitter 1 x USB-C to USB-A Power Cable 1 x User Manual

Resources & Downloads

Category	Description	Version	File
MANUAL	User Manual	1.0	JTD-3282 User Manual.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-3282 User Manual.pdf
