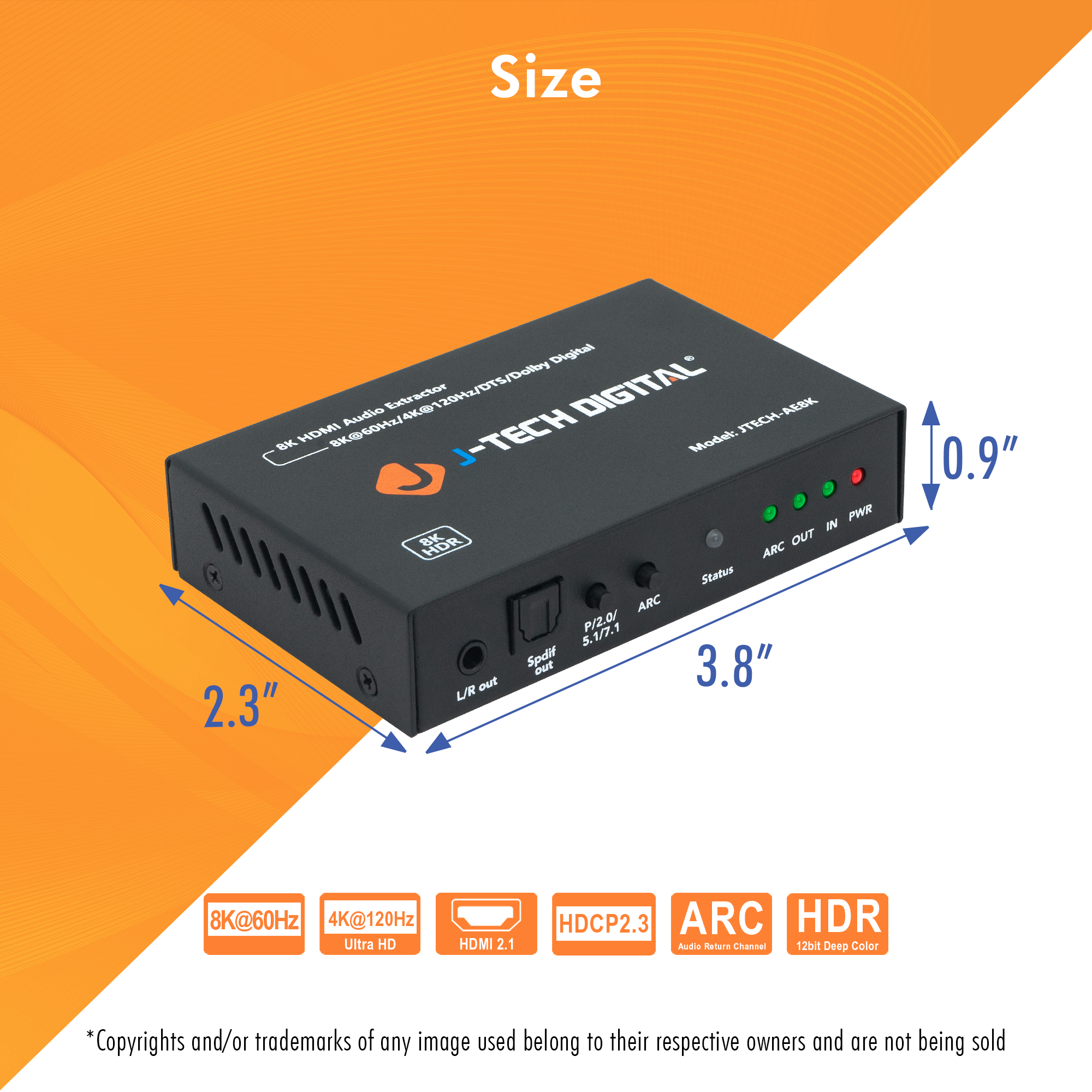

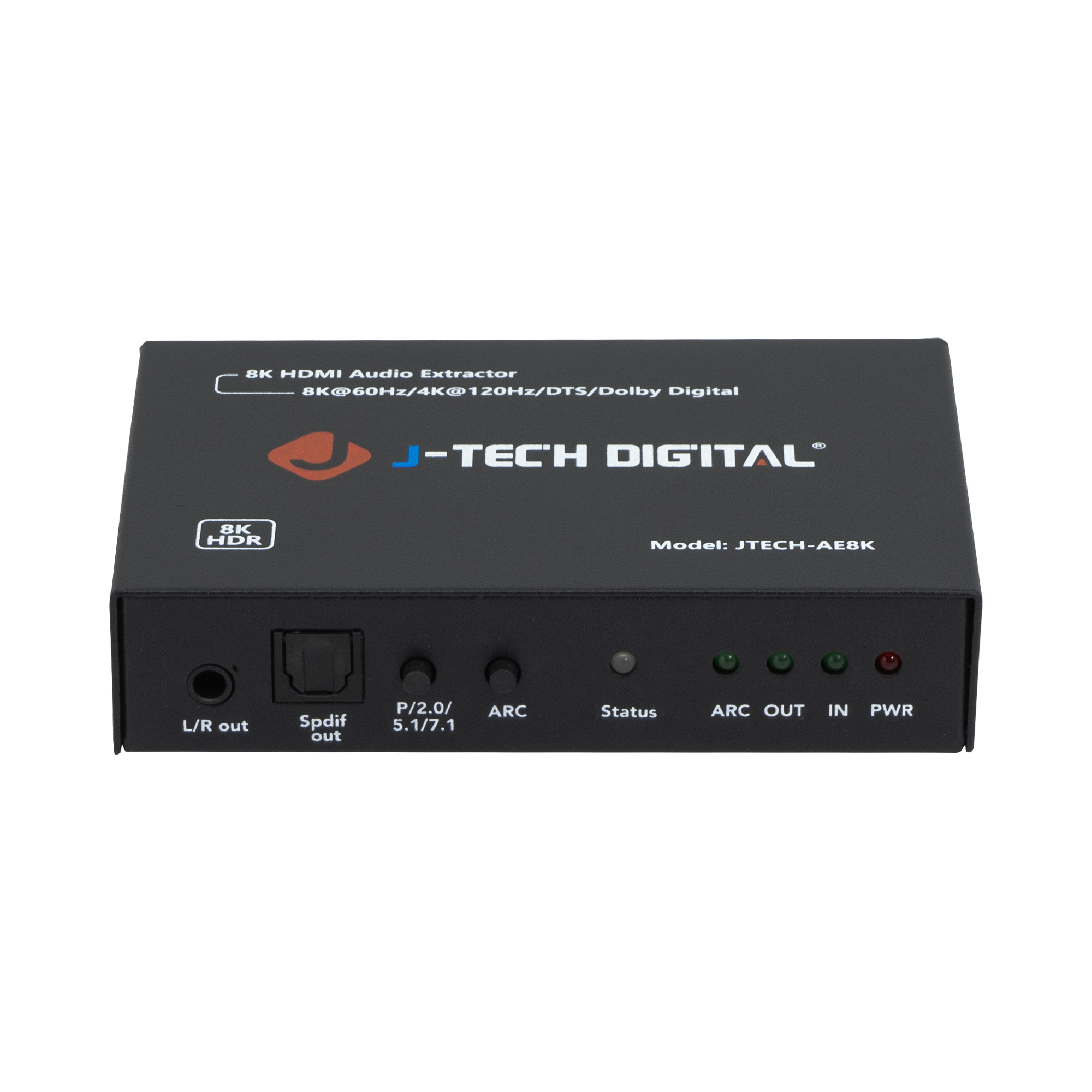

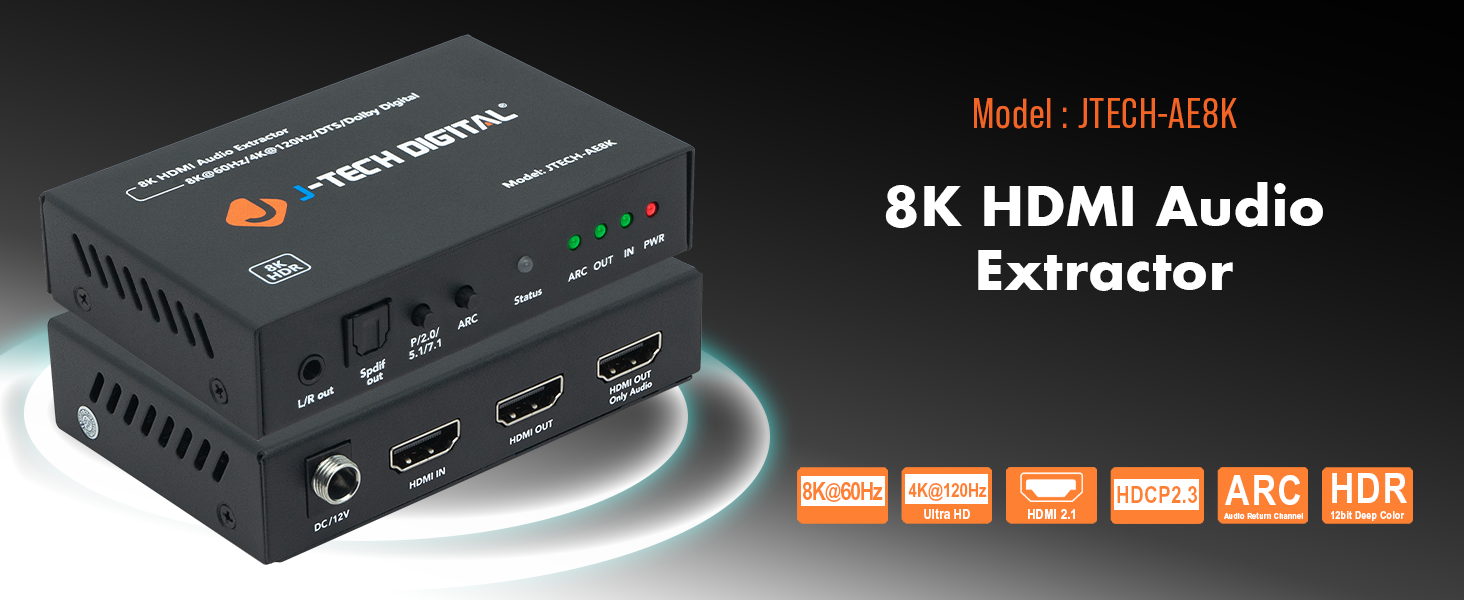

The JTECH-AE8K audio extractor is the industry latest technology that allows users to extract audio from an incoming HDMI signal, and send it to their favorite external sound systems via HDMI, Optical SPDIF, and 3.5mm L/R audio outputs. It supports resolutions up to 8K@60Hz and 4K@120Hz, while providing users with all of HDMI 2.1 features. It is also HDCP 2.3 compliance to ensure compatibility with variety of sources and displays.

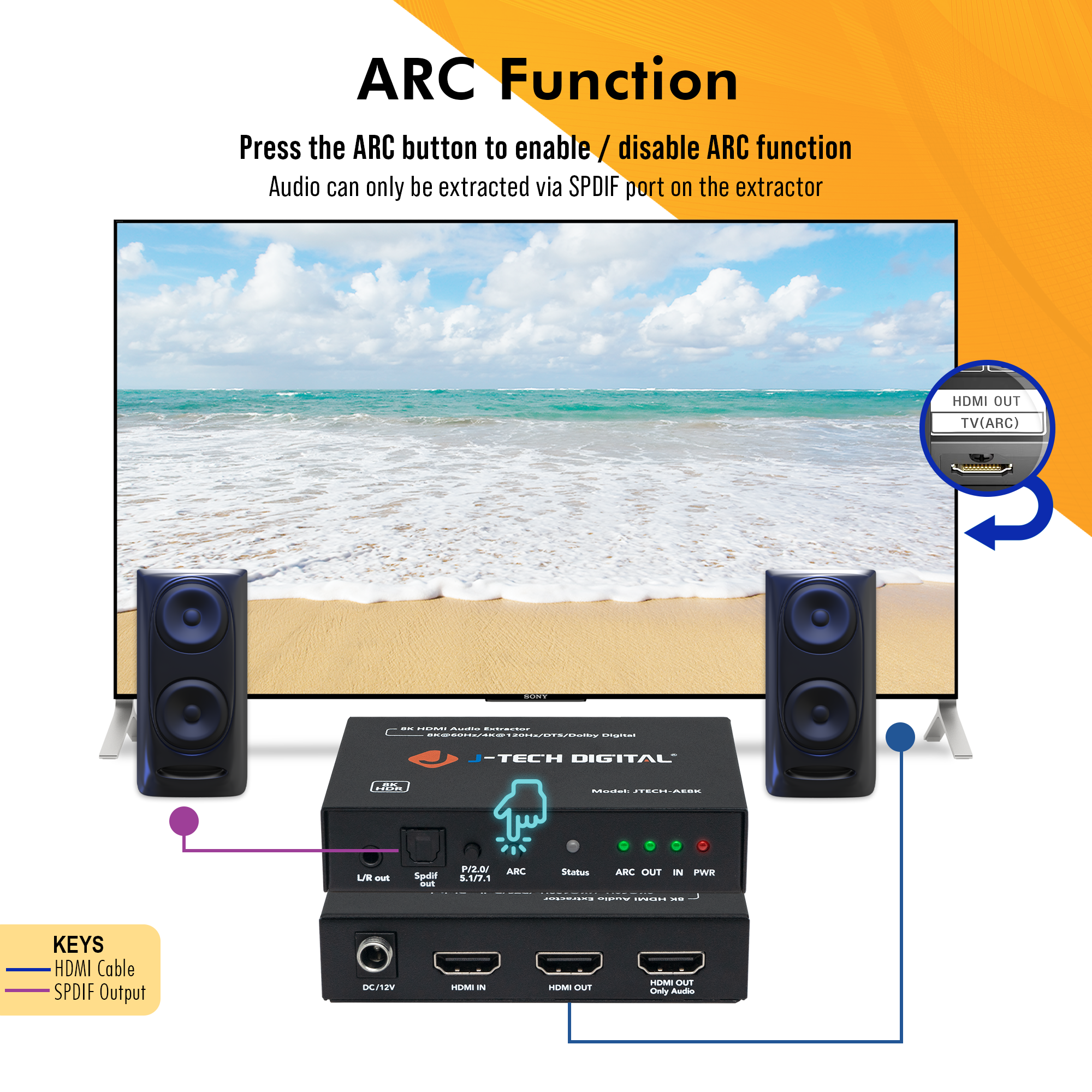

Take advantage of the HDMI-ARC function of the JTECH-AE8K. Customers can now send audio directly from their in-built TV content to external sound devices.

Please note that while using the ARC function, audio can only be extracted via the extractors Optical SPDIF port, and not the HDMI and/or 3.5mm L/R audio ports.

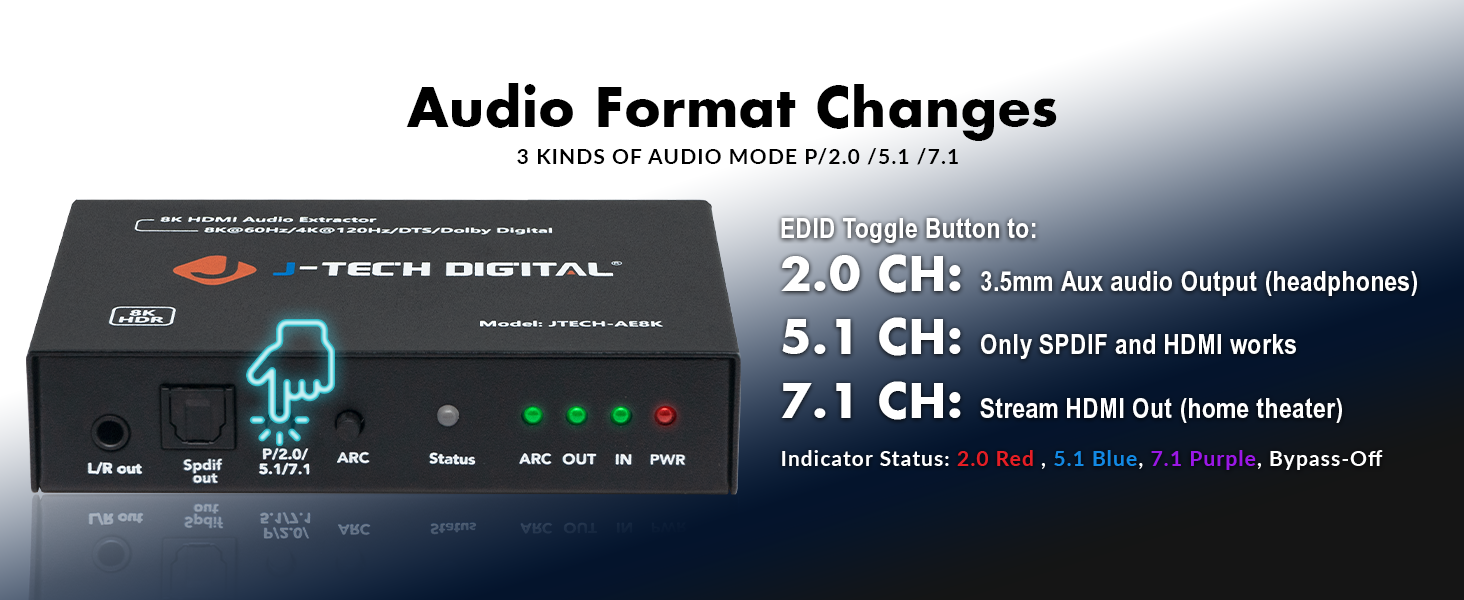

This JTECH-AE8K extractor supports PCM (via 3.5mm, Optical, HDMI Out Audio Only ports), DTS & Dolby Digital 5.1 (via Optical and HDMI Out Audio Only port), and up to 7.1ch audio (Via HDMI Out Audio Only port).

✅ Resolution support up to 8K@60Hz | 4K@120Hz

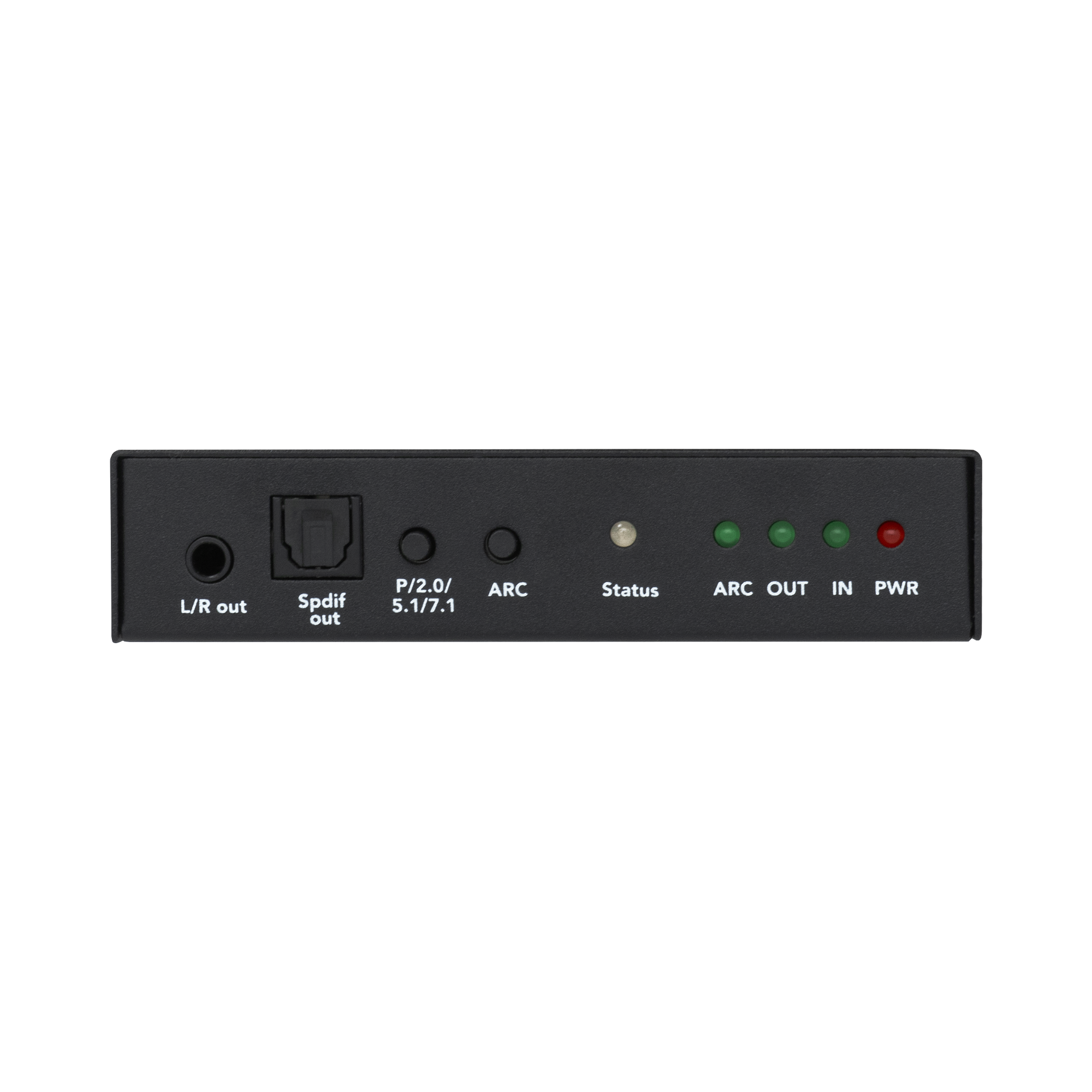

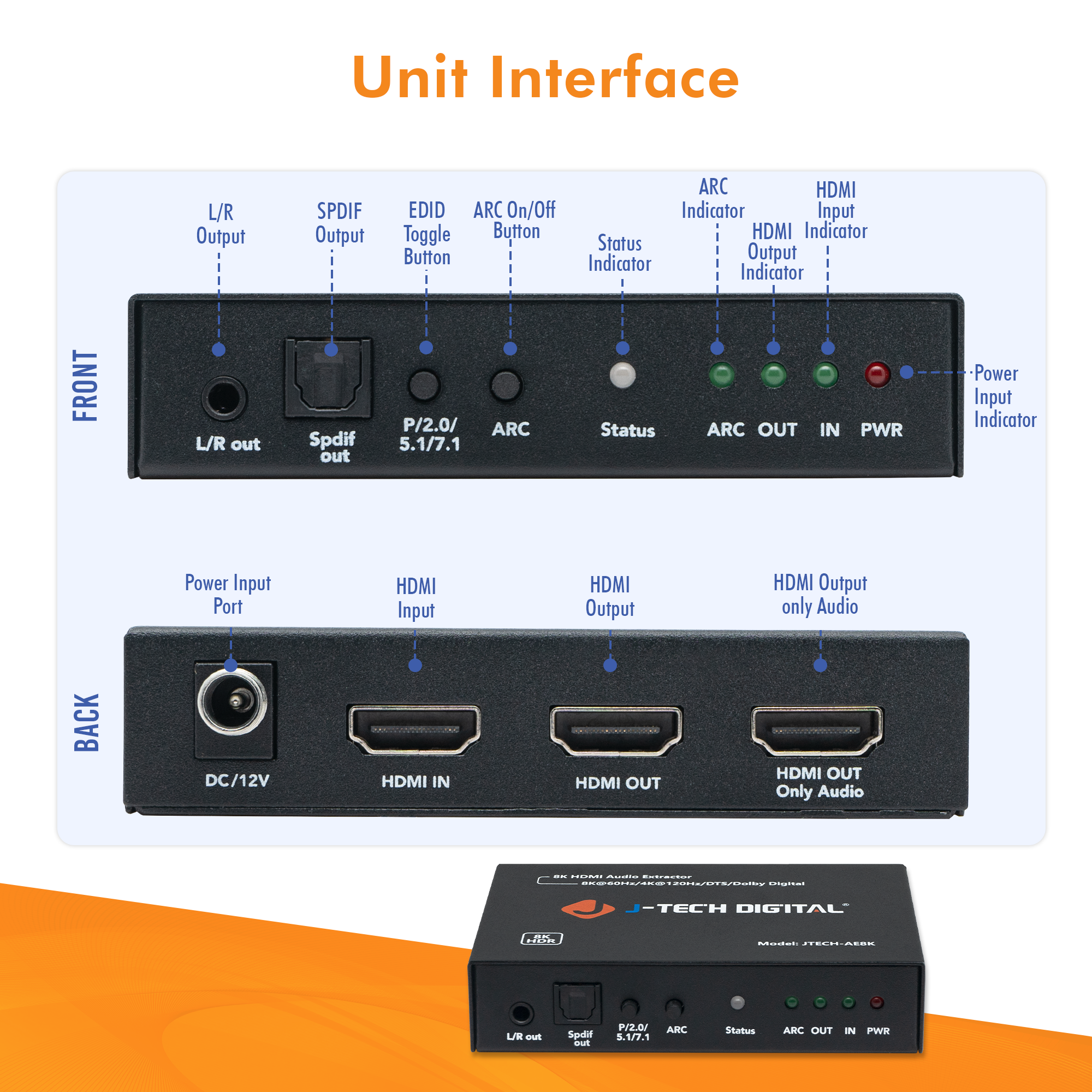

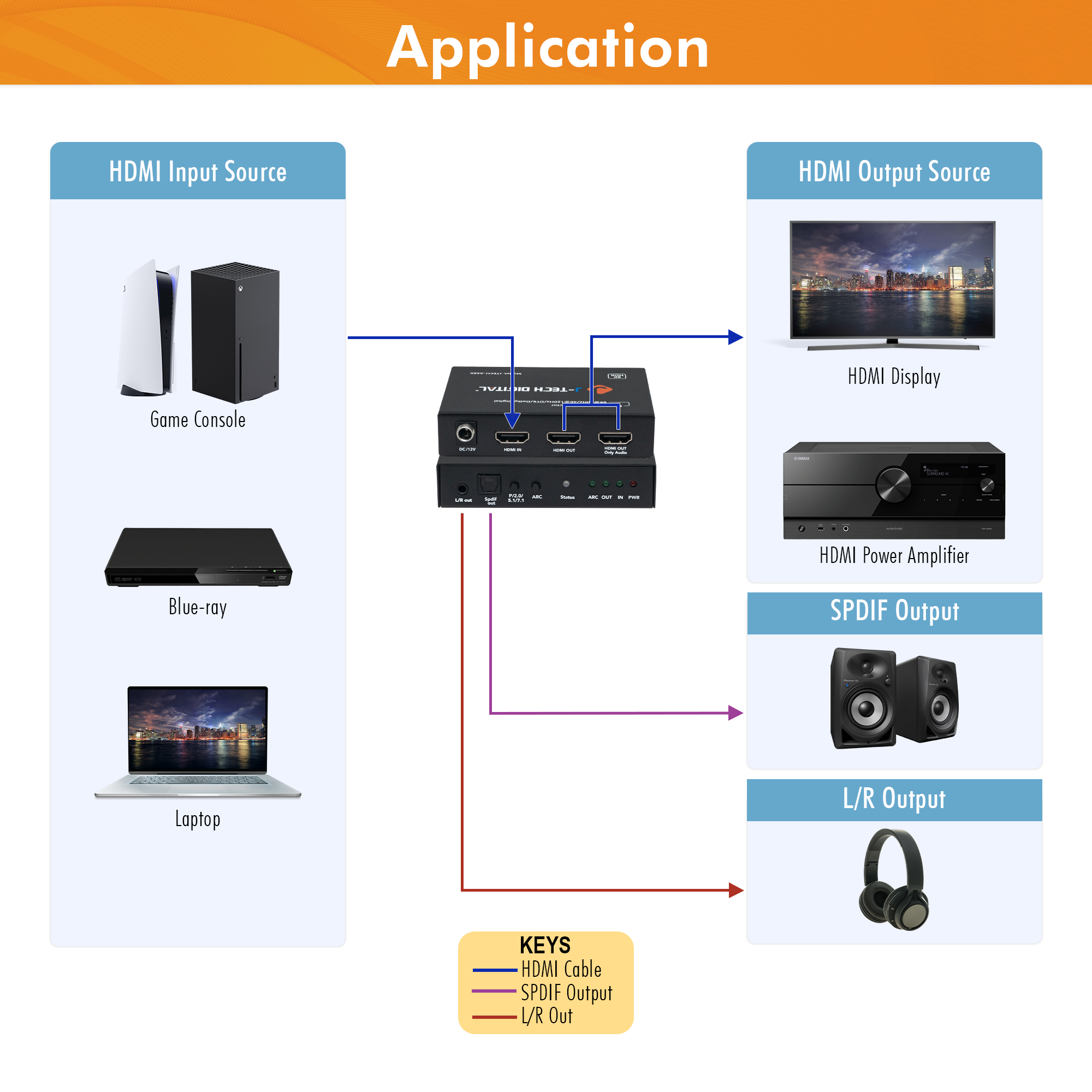

✅ Extract via HDMI, Optical SPDIF, and/or 3.5mm L/R audio out ports. Simultaneous audio through multiple ports possible if they all support the same incoming audio format

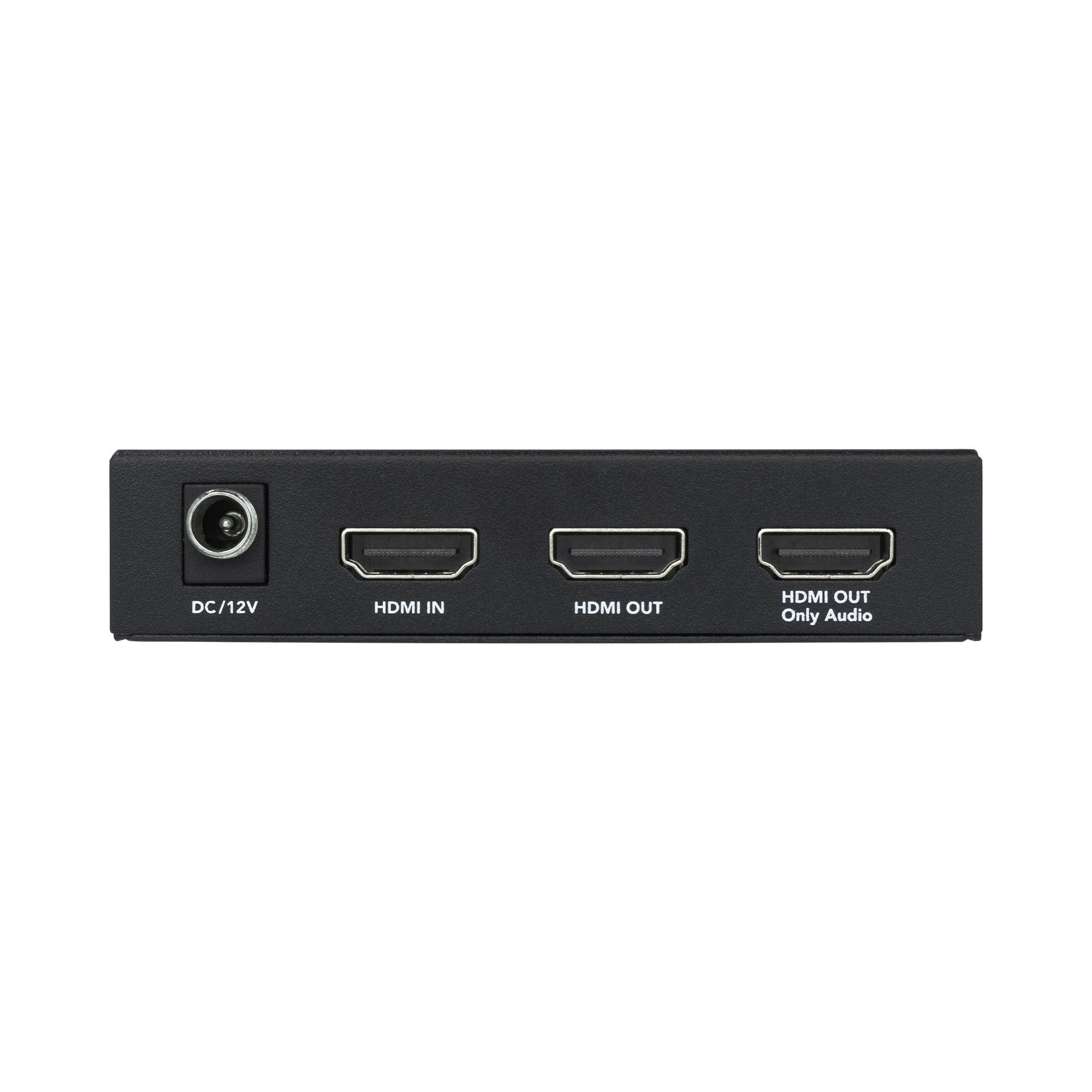

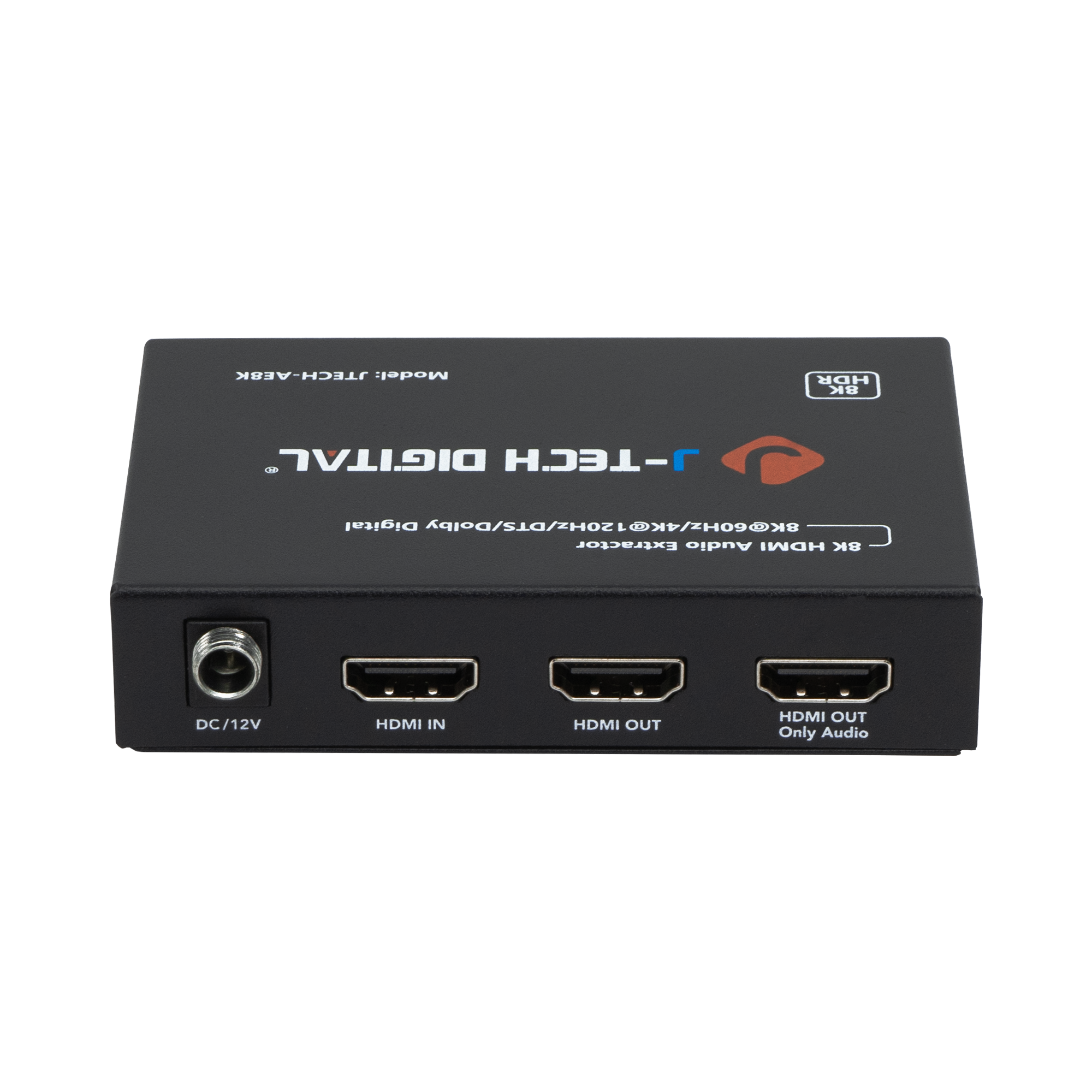

✅ Features an HDMI out for video/audio, and HDMI out for audio only

✅ Supports HDMI 2.1 | HDCP 2.3 compliant. Compatible with HDR | 12-bit deep color

✅ Works with HDMI-ARC function

✅ While using the HDMI-ARC function, audio can only be extracted via the extractors Optical port

✅ Supports audio formats, such as: PCM (via 3.5mm, Optical, HDMI Out Audio Only ports) | DTS & Dolby Digital 5.1 (via Optical and HDMI Out Audio Only port) | Up to 7.1ch audio (Via HDMI Out Audio Only port)
