The right 4K HDMI splitter is the one whose listed mode matches your source—not the one that only says “4K.” Before comparing models, record your source's resolution, refresh rate, HDR format, chroma, and color depth. Then record the required HDCP level and the audio format your soundbar or AV receiver expects.
If everything on that list matches across your displays, a straightforward powered 4K HDMI splitter built for that exact mode is usually enough. If your source needs higher chroma, a higher refresh rate, HDCP 2.2 or 2.3, or you're feeding mismatched displays, shortlist a splitter that documents those extras—not only a 4K60 4:2:0 mode.
Match the Splitter to Source Bandwidth
A splitter's usable bandwidth sets the ceiling for resolution, refresh rate, HDR, chroma, and color depth all at once. Compare that ceiling against your source's exact signal, not its 4K label alone.
Start with the source signal, not the product name
Before you look at any product page, record these five details from your source device's settings:
- Output resolution
- Refresh rate
- HDR format (if any)
- Chroma subsampling (4:2:0, 4:2:2, or 4:4:4)
- Color depth (8-bit, 10-bit, or 12-bit)
A "4K" listing tells you almost nothing about the last three items, and a splitter that handles 4K at 30Hz is a different product from one that handles 4K at 60Hz with full chroma. Compare your requirement against each HDMI version's documented capability:
| HDMI Version | Documented Capability | What It Means for Splitter Choice |
|---|---|---|
| HDMI 1.4b | 4K at 24/25/30Hz | Fine for 4K movies and slower content; check the splitter's own bandwidth and mode |
| HDMI 2.0 | Up to 18 Gbps and 4K at 50/60Hz | A bandwidth tier to compare for compatible 4K60 formats |
| HDMI 2.1 | Up to 48 Gbps; higher-refresh 4K and 8K formats | Consider this tier when the complete source mode exceeds lower-bandwidth options; match resolution, refresh rate, chroma, and color depth |
A splitter's actual advertised mode can sit well below its HDMI version's ceiling, so always check the product's own bandwidth and chroma numbers before assuming it covers your source.
When a basic 4K60 splitter is enough
If your source and every display use a video mode explicitly listed by the splitter, including resolution, refresh rate, chroma, color depth, HDR format, and HDCP level, the splitter may be a suitable fit. Do not assume that separately listed maximum specifications can all be used simultaneously.

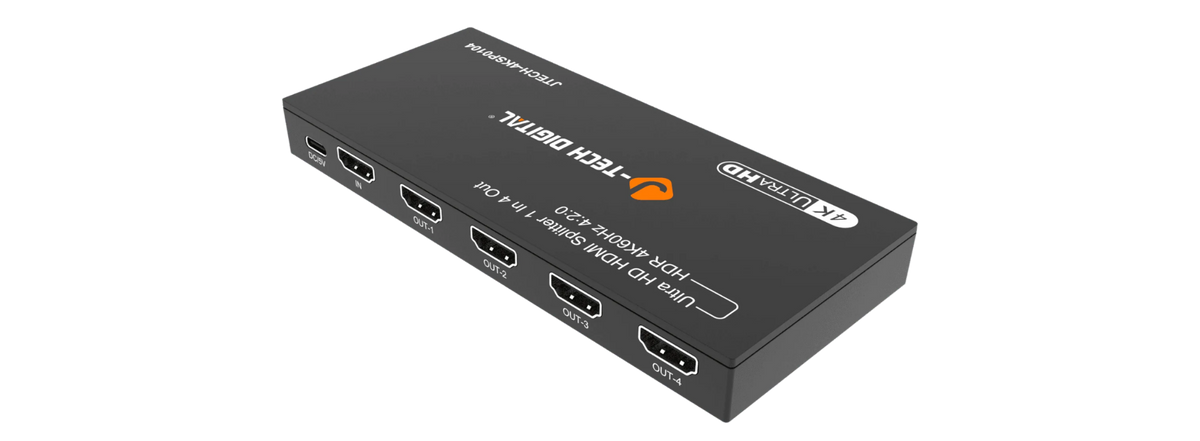

Our J-Tech Digital Splitter is documented for up to 4K at 60Hz with 4:2:0 chroma, 10.2Gbps bandwidth, HDR compatibility, and HDCP 1.4. That mode covers many 4K60 setups that stay within 4:2:0 and HDCP 1.4. If your source uses heavier chroma, or the app or disc requires HDCP 2.2 or 2.3, match that requirement on the spec sheet before you buy.
If your source needs 4K60 with more chroma than 4:2:0, compare the complete resolution, refresh rate, chroma, and color-depth mode with the splitter's documented bandwidth instead of treating 18Gbps as a universal threshold. Higher-refresh sources may require a higher-bandwidth tier, while HDCP 2.2 or 2.3 remains a separate compatibility check.
Check HDR and Color Format Support
HDR support alone doesn't guarantee your exact color format survives the trip through a splitter. Match HDR mode, chroma, color depth, resolution, and refresh rate together across every device in the chain.
Match the complete video mode
Compare these five points at each stage of the chain, not just at the display:
- Source: exact HDR format (HDR10, HDR10+, Dolby Vision), chroma, color depth, resolution, refresh rate
- Splitter: its documented supported combination of the same five values
- Display 1: what it accepts
- Display 2: what it accepts
- AV receiver, if one sits in the path: what it passes through
Matching the source's required HDR, chroma, and color-depth combination to the splitter's documented mode is the only reliable way to know HDR will actually show up on screen. A splitter that lists "HDR support" without naming the format and chroma combination has not confirmed it works with your specific source.
Plan around the weaker display
When you split one source to two displays, and only one of them accepts the source's full HDR and chroma combination, the source typically has to drop to a mode both displays can share.
That's fine when the lower mode still meets your viewing needs, such as SDR fallback on a secondary screen. It's a problem when it silently strips HDR from the display you actually care about, which is a sign you need the EDID controls covered later in this guide.
Confirm HDCP Compatibility Across Devices
HDCP applies to the entire signal path, not just your TV. HDCP authentication includes transmitters, receivers, and repeaters in the protected HDMI path, so a splitter that can't authenticate at the right level can block protected content even when the resolution looks fine.
Trace the protected signal path
Map the chain and check the HDCP level at each stop:
- Source device: note the HDCP level it requires for the content you're playing
- Splitter: confirm its documented HDCP version
- AV receiver or soundbar, if present: confirm it supports the same level
- Each display: confirm it supports the HDCP level required by the source and protected content
If any device in that chain does not document the level your content requires, stop before buying. That mismatch is a common cause of a black screen or a "no signal" message even when every other spec looks correct.
Match HDCP 1.4 to the content you actually play
Our 4K 60Hz 1x4 splitter is documented for HDCP 1.4. This 1x4 model is specified for HDCP 1.4. Use it when your source and content authenticate at that level. For services or discs that require HDCP 2.2 or 2.3, you need a splitter that lists that version. A 4K or HDR label alone does not confirm the required HDCP compatibility.
If your source or content specifically requires a higher HDCP level, confirm that number directly in the splitter's specification before you rely on it for protected playback.
Review Surround Sound Passthrough Formats
Video and audio are separate compatibility gates. Match the exact format your soundbar or AV receiver requires to what the splitter documents, not what you assume from a channel count.
Match the audio destination to the listed format
Check these three points together instead of assuming one guarantees the others:
- What format does your soundbar or AV receiver actually require as input?
- What audio formats does the splitter list in its specification, such as PCM, Dolby, DTS, or multichannel LPCM?
- Does the splitter's documented format match the destination's requirement exactly?
If the answer to the last question is no, route audio a different way, such as directly from the source or through a separate audio return path, instead of relying on the splitter to pass a format it doesn't list.
Do not infer Atmos or DTS:X from 7.1 wording
“7.1” is not the same as Dolby Atmos or DTS:X. Those names depend on the format the source sends and on whether the splitter passes that stream unchanged. Our splitter lists PCM, DTS, Dolby, and LPCM up to 7.1. If your receiver menu shows Atmos or DTS:X, confirm that the source is sending a format this passthrough path can carry—or send audio to the receiver another way. Check your soundbar or receiver's manual for the exact format name before assuming it will arrive intact.
Compare Scaling and EDID Controls
EDID tells your source what each display and audio device can accept, and it becomes a real purchase decision as soon as your displays don't match. Choose a common native mode for matching outputs, and a documented intersection, forced, or first-connected profile for mixed ones.
Scaling matters when connected displays need different resolutions. It can change the signal sent to an output so the displays share a usable mode. Before buying, check whether the splitter documents scaling, whether the feature is automatic or selectable, which output is scaled, and which resolutions it supports.
Choose the mode for matching versus mixed displays
- Matching displays: when both screens support the same resolution, HDR, and refresh rate, the splitter can typically pass a single common mode to both without extra configuration.
- Mixed displays: when one display supports less than the other, EDID communicates resolution, color, audio, and latency capabilities back to the source, and a splitter may respond with an intersection of both devices, the profile of whichever display connected first, or a forced profile you set manually.
- Our splitter’s automatic EDID copy follows the connected monitor first, and a 1080p display first when a 4K screen and a 1080p screen share the same splitter. That keeps mixed setups stable. If both outputs must stay in 4K, use matching 4K displays, or pick a splitter that documents a forced 4K profile or per-output scaling. Read our HDMI EDID explained guide if you want the full mechanism behind this behavior.
An AV receiver in the chain reports its own audio EDID too, so a mixed audio and video setup may need the same deliberate check on the audio side.
Use a short handshake-recovery sequence
If you get a black screen or an unstable picture after installation, work through this sequence before changing multiple settings at once:
- Confirm every power and cable connection is fully seated.
- Restart the source, splitter, and displays in that order so capabilities can be renegotiated.
- Temporarily set the source to a documented common output mode, such as 1080p, to confirm the path works at all.
- If the common mode works, review HDCP and EDID settings before returning to your target resolution.
Check Power, Ports, and Cable Distance
A compatible splitter can still fail if the power method, port count, or cable run doesn't fit your installation. Confirm all three before you mount anything permanently.
Confirm power and port layout
- Choose an active, powered HDMI splitter that is specifically designed to distribute one HDMI source to multiple displays. Passive HDMI Y-adapters generally cannot provide the signal management, EDID handling, and HDCP repeater functions required for reliable simultaneous output. Do not confuse a splitter with an HDMI switch, which connects multiple sources to one display.
- Count one source input against the number of display outputs you actually need.
- Confirm the connector layout leaves room for your cable runs and any wall or rack mounting.
Our 1x4 splitter runs on 5V DC power at up to 1.5W, which suits a one-source, up-to-four-display layout when those ports meet your needs.
Check every cable run before installation
- Measure the run from source to splitter and from splitter to each display separately.
- Confirm your cable's certification and bandwidth rating matches the signal you settled on earlier, not just a generic "4K cable" label.
- Compare your measured distances against the splitter and cable manufacturer's documentation rather than assuming a universal distance limit.
For layouts feeding several rooms or a longer run than one cable comfortably covers, our guide on multiple-TV splitter setup walks through output count and distance planning in more detail.
If your notes line up with 4K60 4:2:0, HDCP 1.4, and 7.1-class audio on a powered 1x4, this J-Tech Digital splitter is in range. If they don’t, use the same list to move up a tier instead of forcing the mode.
FAQ about 4K HDMI Splitter Selection
Why is my screen black after I install an HDMI splitter?
Start with the basics: confirm the splitter has power and that you selected the right input and output. Reseat or swap the HDMI cable on the affected leg. If the picture still doesn't appear, temporarily set the source to a common mode like 1080p to rule out a bandwidth mismatch, then check that every device in the chain supports the required HDCP level and that EDID has had a chance to renegotiate after a restart.
How do I fix audio sync issues with an HDMI splitter?
Confirm the splitter, display, and soundbar or AV receiver all agree on the same audio format rather than assuming any of them will convert it automatically. Restart the full chain so EDID and HDCP can renegotiate cleanly. If delay persists, test with a simpler, documented common audio format to see if the issue is format-related rather than a general processing lag.
Will every 4K HDMI splitter pass Dolby Atmos or DTS:X?
No. A splitter only needs to pass the audio format your source is actually sending. It does not have to decode Atmos or print those names on the box, but a generic “7.1” spec is not proof. Compatibility depends on the underlying audio format sent by the source, the splitter’s audio passthrough and EDID behavior, and the formats accepted by the AV receiver or soundbar. eARC is only required when the setup relies on compatible audio return from the TV.
